Product Type	Flush-mounted wireless roller shutter switch
Brand	Brennenstuhl
Model	BrematicPRO UPRS868 01 W300
Radio Frequency	868.3 MHz
Frequency Band	868.1 - 868.5 MHz
Max Transmission Power	< 20 mW
Duty Cycle	< 1% per hour
Supply Voltage	230 V / AC, 50 Hz
Max Switching Power	300 W
Power Consumption	< 1 W
Ambient Temperature	0 °C to 35 °C
Protection Rating	IP00
Dimensions (W x H x D)	52.5 x 52.5 x 25.5 mm
Weight	42 g
Main Functions	Wireless control of roller shutters via remote control or BrematicPRO app; home automation integration via Gateway; timer programming and astro functions
Installation Type	Flush-mount in a flush or surface-mounted box
Max Cable Length (travel time)	120 seconds for opening/closing
Maintenance and Cleaning	Clean with a dry, lint-free cloth; do not use solvents; do not immerse
Safety	Electrical installation by a qualified electrician; do not open the housing; disconnect power before installation/cleaning
Package Contents	1 x switch, 1 x quick start guide, 1 x digital manual
Warranty and Service	Customer service: 0080048720743 (toll-free); website: www.brematic.com/fr/service
Repairability and Spare Parts	Not user-repairable; contact service in case of issues
General Information	Complies with directives 2014/53/EU and 2011/65/EU; declaration of conformity available online

Frequently Asked Questions - BrematicPRO UPRS868 01 W300 BRENNENSTUHL

How to install the wireless roller shutter switch UPRS868?

Installation must be carried out by a qualified electrician with power disconnected. Connect the power cables (phase L, neutral N) and motor conductors to terminals A (OPEN) and B (CLOSED) as shown in the wiring diagram. Mount the device in a suitable flush-mounted box (60 mm center distance).

What is the maximum power supported by this switch?

The maximum switching power is 300 W. Do not exceed this limit to avoid fire risk.

How to pair the switch with a BrematicPRO remote control?

Press the programming button for 3 seconds until the LED flashes red. Then, on the remote control, press the desired button (left = OPEN, right = CLOSED). The LED turns off to confirm pairing.

How to integrate the switch into the BrematicPRO Gateway smart home system?

Make sure the BrematicPRO app is installed and the Gateway is operational. In the app, go to 'Settings', select the room, then 'Add device'. Select frequency 868 MHz and type 'Roller shutter'. Follow the instructions and press the programming button on the switch for 3 seconds to complete pairing.

What to do if the LED does not flash during programming?

Check that the device is correctly installed and the circuit breaker is on. If the problem persists, have the installation checked by an electrician.

How to restore factory settings of the switch?

Hold the programming button for at least 6 seconds. The LED flashes rapidly and then turns off after about 3 seconds. The device is reset.

What is the radio range of the switch?

The range depends on obstacles (walls, metal). In open field, it can reach several tens of meters, but in buildings it may be reduced. Avoid interference with other 868 MHz devices.

Can this switch be used with motorized roller shutters of all brands?

Yes, as long as the roller shutter motor operates at 230 V and does not exceed 300 W. The travel time must be less than 120 seconds.

How to clean the wireless switch?

Disconnect the power. Use a dry, lint-free cloth. For stubborn dirt, slightly dampen the cloth. Do not use solvents and never immerse the device.

Where to find the full manual and other resources?

The digital manual is available for free download at www.brematic.com/fr/service. You can also contact customer service at 0080048720743 (toll-free).

USER MANUAL BrematicPRO UPRS868 01 W300 BRENNENSTUHL

Instructions for use

EN Instruction....Page 9

Line drawing of a dual-chamber electric meter with labeled buttons (no text or symbols beyond basic markings)

Diagram of a circular device with a sensor icon and directional arrow, no text or symbols present

Diagram of a circular device with a central sensor or connector and two side ports, no text or symbols present.

www.brematic.com/de/service.

Tel.: [phone] (kostenlos)

Hersteller

Safety instructions....Page 10

Intended use Page 10

Information about Wireless Operation Page 10

Duty Cycle......Page 11

Included in delivery....Page 11

Technical data....Page 11

Device overview Page 11

Front Page 11

Back Page 11

Function......Page 11

Installation Page 12

Download app / PC software BrematicPRO....Page 12

Pairing the Wireless flush-mount shutter actuator with the BrematicPRO Wireless

Remote Control Page 12

Unpair Page 13

Pairing the Wireless flush-mount shutter actuator with the BrematicPRO Gateway....Page 13

Factory Reset......Page 13

Cleaning the device....Page 14

Action Page 14

Disposal Page 14

Service Page 14

Manufacturer Page 14

Declaration of conformity....Page 14

List of pictograms used
	Please read the instructions for use! Caution! Fire hazard!
	Observe the warnings and safety instructions!		Dispose of the packaging and device in an environmentally friendly manner!
	Caution! Danger of electric shock!

Safety instructions

The instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using this device, please familiarise yourself with all instructions for use and safety instructions. Only use the device as described and for the indicated purpose. Be sure to include all documentation when passing this device on to others.
WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children alone and unsupervised with the packaging material. It poses a risk of suffocation as children may swallow or inhale small parts or plastic film. Children frequently underestimate the dangers. Always keep children away from the device. It is not a toy.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.
- Only operate this device in a dry, dust-free environment.
- Only operate this device indoors.
Do not expose the device to adverse conditions, such as moisture,

- continuous sunlight,

- heat radiation,

• cold,
- vibrations.

CAUTION! RISK OF INJURY!

We assume no liability for property damage or personal injury due to improper use or failure to observe the safety instructions! This will void the warranty / guarantee!

- Any use not specified in these instructions for use will damage the device. Do not modify the device. Otherwise safe operation is not guaranteed.

CAUTION! DANGER OF ELECTRIC SHOCK!

Do not open the housing. This device has no parts which require maintenance. In the event of a malfunction, please contact Service.
- Work on the mains must be performed by an electrician whilst de-energised.
- If you do not have any expertise in this area, do not perform the installation of the product yourself. Commission a trained electrician.
Do not use the device if it is visibly damaged.

CAUTION! FIRE HAZARD!

Installation of the device may only be carried out by a qualified professional (e.g. an electrician), who is familiar with the relevant specifications (e.g. VDE).
- Do not connect any terminal devices to the wireless flush-mount shutter actuator which could cause a fire or other damage when switched on unattended (e.g. iron).
- Do not switch the device unsupervised or whilst unattended.
Do not overload the device.
Overloads may result in fire hazards or product damage. The maximum load is approx. 300 W.

Intended use

The wireless flush-mount shutter actuator is solely intended to control shutter motors connected to the wireless flush-mount shutter actuator in dry indoor locations.

Information about Wireless Operation

This product uses the 868.3 MHz proprietary wireless protocol. Wireless transmission is implemented using a non-exclusive channel, interference can therefore not be excluded.

The range in buildings may vary greatly from open areas. In addition to the transmission power and the reception characteristics of the receivers, ambient conditions, e.g. humidity in addition to the structural conditions on site, are important factors.

The range can be significantly reduced in part due to:

• wood, gypsum, concrete, reinforced concrete walls
• proximity to metal and conductive objects
- broadband interference, e.g. in residential areas (DECT phones, mobiles, wireless headphones, wireless speakers, wireless weather stations, baby monitors)
- proximity to electric motors, transformers, mains adapters, computers

Duty Cycle

Duty cycle refers to a transmission time limit regulated by law for devices transmitting in the 868 MHz range. It is intended to ensure smooth operation of devices operating in the 868 MHz range. The maximum transmission time of each device is 1% of an hour (corresponding to 36 seconds / hour). Once the 1% limit has been reached it cannot transmit until the time limit of the duty cycle has ended, so after one hour.

Included in delivery

1 x Wireless flush-mount shutter actuator
1 x Quick start guide
1 x Instructions for use (digital, available for download)

Technical data

Product designation: UPRS 868 01 W300 3726

Item no.: 1294350

Radio frequency: 868.3 MHz

Frequency: 868.1 - 868.5 MHz

Max. transmitting power: < 20 mW

Duty cycle: < 1 % per h

Supply voltage: 230 V/AC, 50 Hz

Switching capacity: max. 300 W

Power input: < 1 W

Ambient temperature: 0 °C to 35 °C

Protection type: IP00

Open area range: approx. 100 m

Dimensions (W x H x D): 52.5 x 52.5 x 25.5 mm

Weight: 42 g

Subject to technical changes without notice.

Device overview

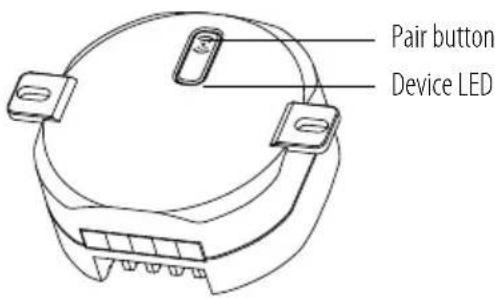

Front

LED status

flashes red Pairing mode

rapidly flashes red Wireless shutter actuator is reset

lights up green UP

lights up red DOWN

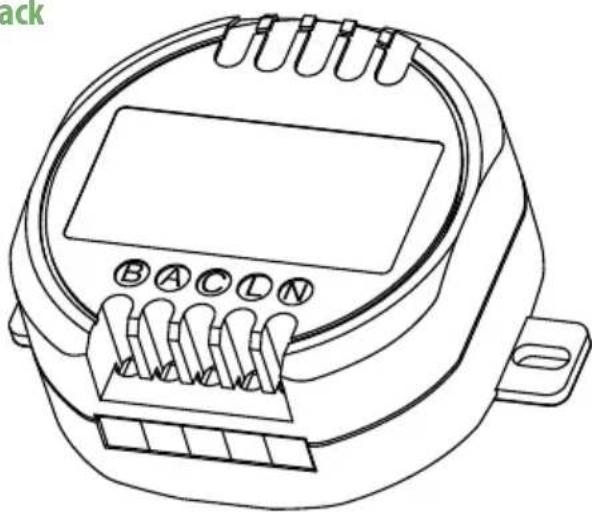

Back

Line drawing of a mechanical device with labeled ports (no text or symbols beyond basic labels)

B Shutters connection "down"

L External conductor connection L230V phase

A Shutters connection "up"

N Neutral conductor connection N 230V

C Connection phase L 230 V

Function

The wireless flush-mount shutter actuator is part of the Brennenstuhl Home Automation Systems BrematicPRO, controlled via app or the BrematicPRO PC software. The wireless flush-mount shutter actuator can be connected and controlled directly with the BrematicPRO wireless remote control to open or close shutters. It can be directly linked with the Brennenstuhl Home Automation Systems BrematicPRO via the BrematicPRO Gateway to use other software-based functions (e.g. timer control, theme control, astro function).

Shutters "up" -> Device LED lights up green

Shutters "down" -> The device LED lights up red

Installation

Note: Check before installation whether the product is located within the range of the Gateway.

CAUTION! DANGER OF ELECTRIC SHOCK!

Only install the product in a de-energised state! Disconnect the electrical mains supply line by switching off the circuit breakers connected to it or unscrewing the fuse. Prevent this from being unintentionally re-started e.g. with a warning sign.

• Before installation, check the mains supply line with a suitable measuring device to see that it is de-energised.
• The mains voltage on site must correspond with the technical data of the device (see "Technical data").
• Check the power input of the consumer you intend to connect to the device prior to installation. The travel time for up / down is 120 seconds. Then, the motor is disconnected from the mains. The maximum load is approx. 300 W.
• The device must be operated in a suitable flush-mounted box or surface mount box or assembled in another suitable casing to guarantee the necessary electric shock protection.
• Only operate the device when it is stationary.

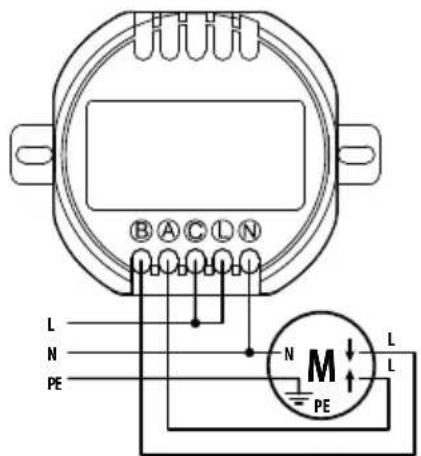

Connect the supply voltage cable to the screw terminals L and N (N = neutral conductor, L = phase) and the supply voltage cable "L" = phase of the shutter motor to the screw terminal C (see Fig.).
○ Connect the switched external conductors of the terminal A and B to the shutter motor as follows:

Terminal A: Shutters "UP"

Terminal B: Shutters "DOWN".

○ Connect the neutral conductor of the motor to the neutral conductor of the house installation.

○ Connect the "ground conductor PE" to the "ground conductor PE" of the house installation.
Attach the wireless flush-mount shutter actuator to the flush-mounted box using screws (hole spacing for mounting eyes = 60 mm).
○ Ensure during installation that the button on the housing front is not covered and that it is not pressed by accident.

Download app / PC software BrematicPRO

The Brennenstuhl Home Automation Systems BrematicPRO is controlled via the BrematicPRO app / PC software. The app can be downloaded for free from the App Store and Google Play. The PC software is available for download at www.brematic.com/gb/service.

Please follow the on-screen instructions for download and installation.

Download on the App Store

GET IT ON Google Play

For more information about the app and how to use it, please visit www.brematic.com/gb/service.

Pairing the wireless flush-mount shutter actuator with the BrematicPRO Wireless Remote Control

The wireless flush-mount shutter actuator can be paired directly with the BrematicPRO wireless remote control.

Diagram of a circular device with a central sensor or connector and two side ports, no text or symbols present.

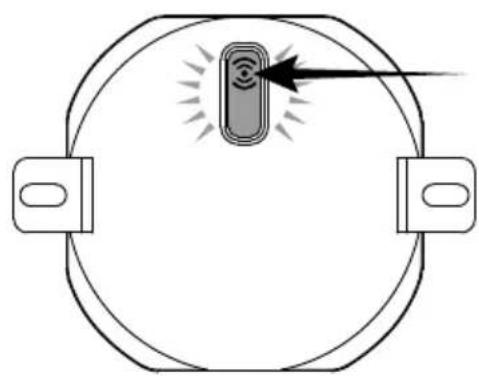

○ Press and hold the pair button for 3 seconds. The LED will flash red.

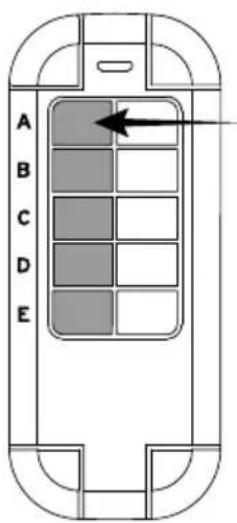

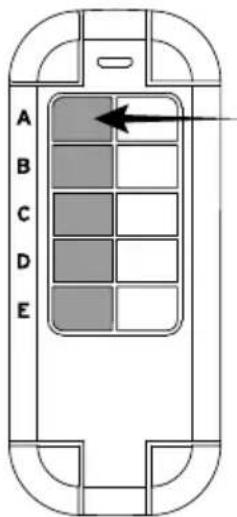

Whilst the LED is flashing, press a button on the left of the BrematicPRO wireless remote control you wish to program for the device.

Once the devices have been paired the LED will got out. This completes the pairing process.

You can now open or close shutters. The right button features the "DOWN" function and the left button features the "UP" function. You must hold the respective button pressed while doing so.

Unpair

Diagram of a circular device with a central sensor or connector and two side ports, no text or symbols present.

Press and hold the pair button for 3 to max. 5 seconds. The LED will flash red.

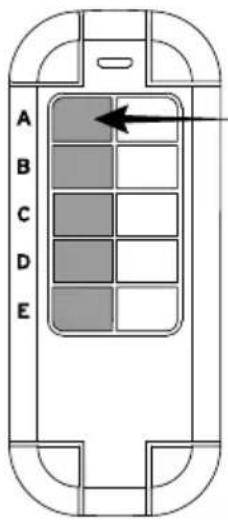

Whilst the LED is flashing, press the respective button on the right of the BrematicPRO wireless remote control you wish to unpair. This completes the unpairing process.

Pairing the wireless flush-mount shutter actuator with the BrematicPRO Gateway

When linked with the Home Automation Systems BrematicPRO via the BrematicPRO Gateway, you can use the app / BrematicPRO PC software to use additional functions, e.g. timer control, theme control, astro function (dawn/dusk control).

The app or BrematicPRO PC software is installed and open. The BrematicPRO Gateway is ready for use.

• Keep the device at least 50 cm from the Gateway.
• Open the "Settings" menu.
  ○ Select the room where you wish to use the device.
  ○Select"AddDevice".
  ○ Select the frequency "868 MHz".
  Under "New Device", select "Shutter" and click "Continue" to confirm your selection.
  ○ Follow the on-screen instructions.
  Press and hold the pair button on the device for 3 seconds. Once both devices have been paired, the LED will firstly flash red and then go out.
  ○ Enter a device name, e.g. "Living Room Shutter".
  ○ Select "Add" to assign the device to the room.
• First tap "Back" to leave the room, then "Done" to complete the pairing process.

The wireless flush-mount shutter actuator is now connected to the Home Automation Systems BrematicPRO.

Use "Test Device" to execute the functions "Up / Stop / Down" to ensure the wireless flush-mount shutter actuator is working properly.

In this submenu you can also add the device to your favourites.

Note: If you would like to open or close the shutters by pressing a button once, a task must be defined (via BrematicPRO Gateway and the App).

For more information about the app and how to use it, please visit: www.brematic.com/gb/service.

Factory Reset

The device can be restored to the factory settings at any time. A reset will be required if malfunctions occur.

○ Press the pair button for at least 6 seconds.

The LED will flash rapidly and go out after approx. 3 seconds. The device has been reset.

Cleaning the device

CAUTION! RISK OF ELECTRIC SHOCK!

Before cleaning the device, disconnect the power supply (if necessary, via circuit breakers).

Do not allow any liquid to enter the device. Liquids which get into the product can cause it to short circuit.

○ Clean the device with a dry, lint-free cloth. For tough dirt, you may also slightly dampen the cloth.
Do not clean with solvent-based cleaners. These could damage the product surface and markings.
Never immerse the device in water or other liquids. The device may otherwise be damaged.
○ Ensure the device is completely dry before using it again.

Action

Problem Possible cause Action
LED doesn't flash. Device has not been installed correctly. The circuit breaker is not switched on.	Have installation carried out correctly. Switch on the circuit breaker.
Device not detected. The device is outside the Gateway range.	Reduce the distance to the Gateway.

Disposal

kaging is made from environmentally-friendly

materials which can be disposed of through your local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life, not in the household waste. Please contact your municipality for information on collection facilities and their opening hours.

Service

For questions related to the product, please contact us at

www.brematic.com/gb/service.

Tel.: [phone] (toll-free)

Manufacturer

Declaration of conformity

Hugo Brennenstuhl GmbH & Co.KG, hereby declares the wireless system model UPRS 868 01 W400 3726 to comply with directives 2014/53/EU and 2011/65/EU (RoHS II). The full text of the EU declaration of conformity is available at the following internet address: www.brematic.com/gb/service/konformitaetserklaerung/ke_1294350.pdf

This product complies with the legal, national and European requirements. All company names and product names are trademarks of the respective owners.

All rights reserved.

Technical line drawing of a mechanical component with mounting holes and a central hub (no text or symbols)

Line drawing of a dual-chamber electric meter with labeled buttons (no text or symbols beyond basic markings)

B Branchement volets roulants «Fermé»

A Branchement volets roulants «Ouvert»

C Raccordement phase L 230 V

Diagram of a circular device with a sensor icon and directional arrow, no text or symbols present

Diagram of a circular device with a central sensor or connector and two side ports, no text or symbols present.

Line drawing of a circular electronic device with labeled buttons (BACLN, N) and a central screen (no text or symbols beyond basic labels)

Download in de App Store

Diagram of a circular device with a central sensor or connector and two side ports, no text or symbols present.

„Leer“-knop 3 seconden lang ingedrukt houden. De led knippert rood.

Diagram of a circular device with a sensor icon and directional arrow, no text or symbols present

○ Houd de „leer“-knop 3 tot max. 5 seconden lang ingedrukt. De led knippert rood.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with labeled ports (no text or symbols beyond basic labels)

B Raccordo persiane avvolgibili „chiuse“

Diagram of a circular device with a central sensor or connector and two side brackets, no text or symbols present.

Diagram of a circular device with a central sensor or connector and two side ports, no text or symbols present.

Green gradient background with a white stylized 'b' logo at the top left (no text or symbols on the graphic itself)

Smart up your home.

www.brematic.com
