USER MANUAL BrematicPRO BM 868 01 BRENNENSTUHL

Top-down view of a white electronic device with a circular lens and hexagonal pattern, labeled 'brengenstuhl*' (no other text or symbols visible)

Brematic® PRO

Wireless motion sensor

Instructions for use

EN Instruction....Page 9

15V/AM1.00 15V/AM1.00

www.brematic.com/de/service.

Tel.: [phone] (kostenlos)

Hersteller

EN Wireless motion sensor 868.3 MHz

List of pictograms used....Page 10

Safety instructions Page 10

Special safety instructions for handling batteries....Page 10

Intended use Page 11

Information about Wireless Operation Page 11

Duty Cycle....Page 11

Included in delivery....Page 11

Technical data....Page 11

Device overview Page 11

Front Page 11

Back Page 11

Control elements....Page 12

Operating mode switch Page 12

Sabotage switch....Page 12

Pair button....Page 12

Inserting / replacing the battery....Page 12

Installation without drilling....Page 12

Installation using screws....Page 12

Download app / PC software BrematicPRO Page 13

Pairing the motion detector to the BrematicPRO Gateway Page 13

Cleaning the Device....Page 13

Action......Page 13

Disposal Page 13

Service Page 14

Manufacturer Page 14

Declaration of conformity....Page 14

List of pictograms used
	Please read the instructions for use!		Improper disposal of batteries can harm the environment!
	Caution! Danger of explosion!		Dispose of the packaging and device in an environmentally friendly manner!
	Observe the warnings and safety instructions!

Safety instructions

The instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using this device, please familiarise yourself with all instructions for use and safety instructions. Only use the device as described and for the indicated purpose. Be sure to include all documentation when passing this device on to others.
WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children alone and unsupervised with the packaging material. It poses a risk of suffocation as children may swallow or inhale small parts or plastic film. Children frequently underestimate the dangers. Always keep children away from the device. It is not a toy.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.
Only operate this device in a dry, dust-free environment.
- Only operate this device indoors.
- Do not expose the device to adverse conditions, such as moisture,

• continuous sunlight,

- heat radiation,

- cold,

- vibrations.

CAUTION! RISK OF INJURY!

• Do not open the housing. This device has no parts which require maintenance.
• Do not use the device if it is visibly damaged.
  We assume no liability for property damage or personal injury due to improper use or failure to observe the safety instructions! This will void the warranty / guarantee!

- Any use not specified in these instructions for use will damage the device. Do not modify the device. Otherwise safe operation is not guaranteed.

Special safety instructions for handling batteries WARNING! DANGER TO LIFE!

Batteries are not intended for children. Seek immediate medical attention if swallowed!

CAUTION! DANGER OF EXPLOSION! Never recharge disposable batteries, do not short-circuit and / or open batteries!

● Never throw batteries into fire or water!
Do not exert mechanical loads on batteries!

Risk of battery leakage

In the event of a battery leak, immediately remove it from the device to prevent damage!
Avoid contact with the eyes, skin and mucous membranes! In the event of contact with battery acid, flush the affected areas with clean water and seek immediate medical attention!
- Only use the same type of batteries! Do not mix used and new batteries!
- Avoid extreme conditions and temperatures which may affect batteries, e.g. radiators/direct sunlight.
- Remove the batteries from the device if they have not been used for a long period!

Risk of device damage

• Only use the specified battery type!
  Please note the correct polarity when inserting the battery! This is shown in the battery compartment!
• If necessary, clean the battery and device contacts before inserting the battery!
• Remove drained batteries from the device immediately!

Intended use

The wireless motion detector is solely intended to detect moving heat sources in dry indoor areas and to send a notification to the BrematicPRO Gateway when triggered.

Any motion detected will be displayed in the app for 1 minute.

Information about Wireless Operation

This device uses the 868.3 MHz proprietary wireless protocol. Wireless transmission is implemented using a non-exclusive channel, interference can therefore not be excluded. The range in building may vary greatly from open areas. In addition to the transmission power and the reception characteristics of the receivers, ambient conditions, e.g. humidity in addition to the structural conditions on site, are important factors.

The range can be significantly reduced in part due to:

• Wood, gypsum, concrete, reinforced concrete walls
  • Proximity to metal and conductive objects
• Broadband interference, e.g. in residential areas (DECT phones, mobiles, wireless headphones, wireless speakers, wireless weather stations, baby monitors)
  • Proximity to electric motors, transformers, mains adapters, computers

Duty Cycle

Duty cycle refers to a transmission time limit regulated by law for devices transmitting in the 868 MHz range. It is intended to ensure smooth operation of devices operating in the 868 MHz range. The maximum transmission time of each device is 1% of an hour (corresponding to 36 seconds/hour). Once the 1% limit has been reached it cannot transmit until the time limit of the duty cycle has ended, so after one hour.

Included in delivery

1 x Wireless motion sensor
2x Batteries LR6 / AA / Mignon 1.5 V
3 x Screws
3 x Dowels
1 x Adhesive pad
1 x Quick start guide
1 x Instructions for use (digital, available for download)

Technical data

Product designation: BM 868 01 3726

Item no.: 1294150

Radio frequency: 868.3 MHz

Frequency: 868.1 - 868.5 MHz
Max. transmitting power: < 20 mW
Duty cycle: < 1 % per h
Range: approx. 10 m
Detection angle: approx. 130°
Supply voltage: 2 x 1.5 V LR6 / AA / Mignon
Power consumption: 30 mA max.
Battery life span: approx. 2 years (typically)
Ambient temperature: 0 °C to 35 °C
Protection type: IP20
Open area range: approx. 100 m
Dimensions (W x H x D): 85.7 x 64 x 32.4 mm
Weight: 96 g

Subject to technical changes without notice.

Device overview

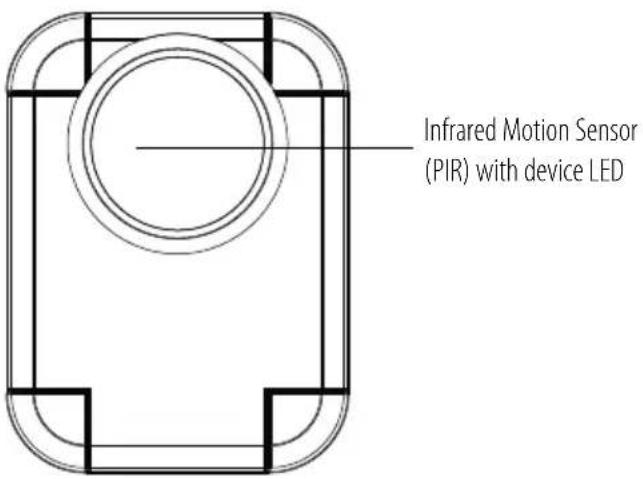

Front

Infrared Motion Sensor (PIR) with device LED

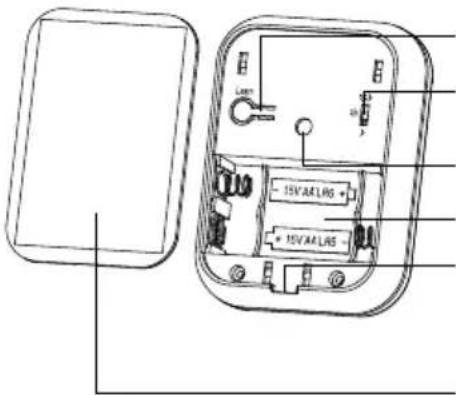

Back

Technical diagram of an electronic device showing internal components with labeled pins and connections

Pair button

Operating mode switch

Sabotage switch

Battery compartment Recess for opening installation plate

Installation plate with adhesive pad (optional)

Control elements

Operating mode switch

Using the operating mode switch you can determine what time of the day the wireless motion detector is activated. The sensitivity of the sensor to warmth and light will be adjusted to environmental conditions. You have the following options:

) Night mode

Day

※) Day + Night mode (24 h)

Sabotage switch

The sabotage switch notifies the BrematicPRO Gateway as soon as the wireless motion detector is removed from the wall bracket. The sabotage switch is intended to prevent misuse or the removal of the device by strangers.

Pair button

By pressing the pair button, the device is put into pairing mode to link the Home Automation Systems BrematicPRO via the BrematicPRO Gateway.

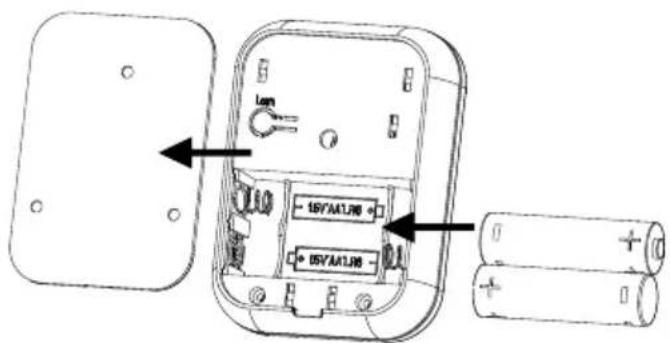

Inserting / replacing the battery

Lamp BYM1.86 BYM1.86

2 x 1.5 V batteries (Type AA)

The motion detector is operated using two 1.5 V batteries (type AA).

○ Raise the battery cover/installation plate from the recess using a small screwdriver or a similar tool and lift it fully off.
○ If applicable, remove the drained batteries.
Insert the batteries into the battery compartment with correct polarity. Please note the marking inside the battery compartment.
Close the installation plate until it audibly clicks into place after you have paired the motion detector with the BrematicPRO System. The motion detector is now ready for use.

Note: If the batteries are drained, the device LED will flash once every second behind the sensor cover.

Installation without drilling

Note: Check before installation whether the product is located within the range of the Gateway.

Use the adhesive pad to affix the wireless motion detector to a suitable installation location without drilling.
- Ensure that the installation area is clean, dust-free and free of grease.
○ Avoid installation locations which are under the strong influence of heat (i.e. sunlight) as the adhesive tape can come unstuck.

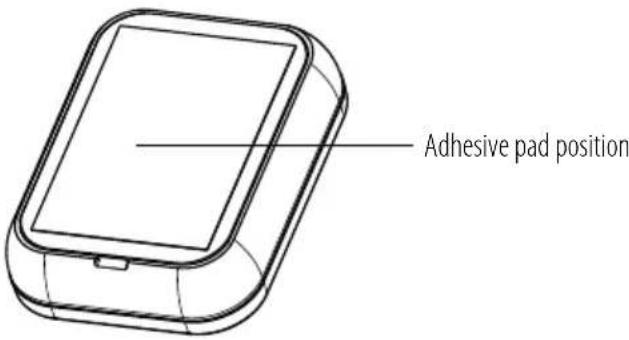

Adhesive pad position

Installation using screws

Note: Check before installation whether the product is located within the range of the Gateway.

CAUTION! DANGER OF ELECTRIC SHOCK!

Make sure that you do not damage electrical cables in the wall during installation.

The device is equipped with an installation plate which allows it to be assembled on a wall or ceiling.

Note: Do not orient the device directly towards windows, radiators or other heat sources, as otherwise, a false alarm could be triggered.

○ Select a suitable installation position for the device in the room to be monitored.

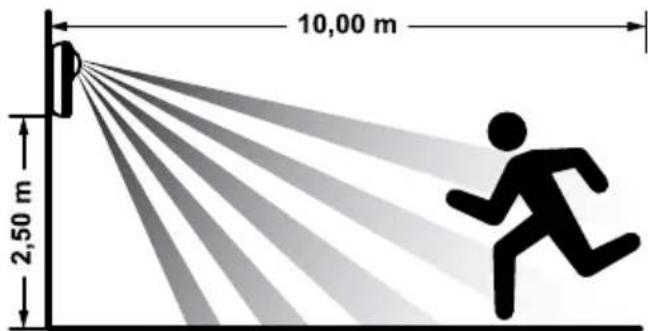

Note: The detection area of the sensor is approx. 130° with a range of approx. 10 metres at an optimal installation height of 2.5 metres.

10,00 m 2,50 m

Note: A lower installation height reduces the range.

Draw the three drill holes on the wall using a pen, with the help of the installation plate.

Drill the marked holes using a suitable drill and insert the dowels.
Note: When installing on a wood surface, use a 1.5-2 mm drill. You will not require any dowels.
- Screw the installation plate to the wall using the screws provided.
Press the motion detector onto the installation plate until it audibly clicks into place.

Download app / PC software BrematicPRO

The Brennenstuhl Home Automation System BrematicPRO is controlled via the BrematicPRO app/PC software. The app can be downloaded for free from the App Store and Google Play. The PC software is available for download at www.brematic.com/gb/service.

Download on the App Store

GET IT ON Google Play

For more information about the app and how to use it, please visit www.brematic.com/gb/service.

Pairing the motion detector to the BrematicPRO Gateway

When linked with the Home Automation System BrematicPRO via the BrematicPRO Gateway, it is possible to use software-based functions with the aid of the app/BrematicPRO PC software. After the sensor has been triggered, actions (tasks) can be triggered via the app / PC software. For example, a wireless switch actuator can be switched on or an email can be sent.

The app or BrematicPro PC software is installed and open. The BrematicPRO Gateway is ready for use.

• Keep the device at least 50 cm from the Gateway.
  ○ Open the "Settings" menu.
  ○ Select the room where you wish to use the device.
  ○ Select "Add Device".
  ○ Select the frequency "868 MHz".
  Under "New Device", select "Sensor / Detector" and click "Continue" to confirm your selection.
  ○ Follow the on-screen instructions.
  ○ Press and hold the pair button on the device for 3 seconds.
  Enter a device name, e.g. "Living Room Motion Detector".
  ○ Select "Add" to assign the device to the room.
• First tap "Back" to leave the room, then "Done" to complete the pairing process.

The motion detector is now connected to the Home Automation Systems BrematicPRO.

Find more information about the app and how to use it at: www.brematic.com/gb/service

Cleaning the Device

○ Clean the device with a dry, lint-free cloth. For tough dirt, you may also slightly dampen the cloth.
Do not clean with solvent-based cleaners. These could damage the device surface and markings.
Never immerse the device in water or other liquids. The device may otherwise be damaged.

Action

Problem Possible cause Action
The device will not function.	The battery is empty.	Insert a new battery.
The motion detector is not reporting any motion	The wrong operating mode has been selected.	Check the * /) *) mode.Check the detection range.
	The device is outside the Gateway range.	Reduce the distance to the Gateway.
The motion detector is triggered undesirably.	Sudden temperature changes in the room.	Change the * /) *) mode.Change the installation location.

Disposal

kaging is made from environmentally-friendly materials which can be disposed of through your local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life, not in the household waste. Please contact your municipality for information on collection facilities and their opening hours.

Faulty or drained batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return batteries and / or the device to the provided recycling facilities.

Improper disposal of batteries can harm the environment!

Never dispose of batteries in your household bin. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection facilities.

Service

For questions related to the product, please contact us at

www.brematic.com/gb/service.

Tel.: [phone] (toll-free)

Manufacturer

Declaration of conformity

Hugo Brennenstuhl GmbH & Co.KG, hereby declares the wireless system model BM868 01 3726 to comply with directives 2014/53/EU and 2011/65/EU (RoHS II). The full text of the EU declaration of conformity is available at: www.brematic.com/gb/service/konformitaetserklaerung/ke_1294150.pdf

This device complies with the legal, national and European requirements. All company names and product names are trademarks of the respective owners.
