USER MANUAL BrematicPRO HS868 01 IP44 BRENNENSTUHL
Wireless Brightness Sensor
Instructions for use
EN Wireless Brightness Sensor 868.3 MHz
List of pictograms used
Safety instructions
Special safety instructions for handling batteries.. 10
Intended use
Information about Wireless Operation
Duty Cycle.. 11
Included in delivery
Technical data.. 11
Device overview
Front. 11
Reverse side / inside view.
Function
Inserting / replacing the battery
Download app / PC software BrematicPRO
Installation 12
Installation using screws.. 12
Pairing the wireless brightness sensor with the BrematicPRO Gateway
Cleaning the device.. 13
Action... Page 13
Disposal
Service Page 13
Manufacturer
Declaration of conformity
| List of pictograms used | |||
| i | Please read the instructions for use! Observe the warnings and safety instructions! | ||
| Caution! Danger of explosion! Caution! Danger of electric shock! | |||
| Dispose of the packaging and device in an environmentally friendly manner! | Improper disposal of batteries can harm the environment! | ||
Safety instructions
The instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using this device, please familiarise yourself with all instructions for use and safety instructions. Only use the device as described and for the indicated purpose. Be sure to include all documentation when passing this device on to others.
A
WARNING! DANGER TO LIFE AND RISK OF
ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children alone and unsupervised with the packaging material. It poses a risk of suffocation as children may swallow or inhale small parts or plastic film. Children frequently underestimate the dangers. Always keep children away from the device. It is not a toy.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.
This device is suitable for outdoor use; it complies with protection type IP44.
CAUTION! RISK OF INJURY!
Do not open the housing. This device has no parts which require maintenance.
Do not use the device if it is visibly damaged.
We assume no liability for property damage or personal injury due to improper use or failure to observe the safety instructions! This will void the warranty/guarantee!
Any use not specified in these instructions for use will damage the device. Do not modify the device. Otherwise safe operation is not guaranteed.
Special safety instructions for handling batteries
A
WARNING! DANGER TO LIFE!
Batteries are not intended for children. Seek immediate medical attention if swallowed!
CAUTION! DANGER OF EXPLOSION! Never
recharge disposable batteries, do not short-circuit and / or open batteries!
Never throw batteries into fire or water!
Do not exert mechanical loads on batteries!
Risk of battery leakage
In the event of a battery leak, immediately remove it from the device to prevent damage!
Avoid contact with the eyes, skin and mucous membranes! In the event of contact with battery acid, flush the affected areas with clean water and seek immediate medical attention!
- Only use the same type of batteries! Do not mix used and new batteries!
- Avoid extreme conditions and temperatures which may affect batteries, e.g. radiators / direct sunlight.
- Remove the batteries from the device if they have not been used for a long period!
Risk of device damage
Only use the specified battery type!
- Please note the correct polarity when inserting the battery! This is shown in the battery compartment!
If necessary, clean the battery and device contacts before inserting the battery!
Remove drained batteries from the device immediately!
Intended use
The wireless brightness sensor is solely intended to measure the brightness of its environment and to transmit this to the BrematicPRO Gateway. The sensor is suitable for measurements within a brightness range of 1 Lx to 150 kLx. This device is suitable for outdoor use; it complies with protection type IP44.
Information about Wireless Operation
This device uses the 868.3 MHz proprietary wireless protocol. Wireless transmission is implemented using a non-exclusive channel, interference can therefore not be excluded.
The range in buildings may vary greatly from open areas. In addition to the transmission power and the reception characteristics of the receivers, ambient conditions, e.g. humidity in addition to the structural conditions on site, are important factors.
The range can be significantly reduced in part due to:
- wood, gypsum, concrete, reinforced concrete walls
- proximity to metal and conductive objects
- broadband interference, e.g. in residential areas (DECT phones, mobiles, wireless headphones, wireless speakers, wireless weather stations, baby monitors)
- proximity to electric motors, transformers, mains adapters, computers
Duty Cycle
Duty cycle refers to a transmission time limit regulated by law for devices transmitting in the 868 MHz range. It is intended to ensure smooth operation of devices operating in the 868 MHz range. The maximum transmission time of each device is 1% of an hour (corresponding to 36 seconds / hour). Once the 1% limit has been reached it cannot transmit until the time limit of the duty cycle has ended, so after one hour.
Included in delivery
1x Wireless Brightness Sensor
1 x Installation plate
2x Batteries LR6/AA/Mignon 1.5V
1 x Installation kit (screws / dowels, adhesive pad)
1xQuick start guide
1 x Instructions for use (digital, available for download)
Technical data
Product designation: HS 868 01 IP44 3726
Item no.: 1294360
Radio frequency: 868.3 MHz
Frequency: 868.1 - 868.5 MHz
Max. transmitting power: < 20mW
Duty cycle: < 1% per h
Supply voltage: 2 × 1.5V LR6/AA/Mignon
Power consumption: 30mA max.
Battery life span: approx. 2 years (typically)
Ambient temperature: -20^ to +55^
Brightness range: 1 Lx to 150 kLx
Protection type: IP44
Open area range: approx. 100m
Dimensions (W× H× D) .. 76.2× 71× 25.7mm
Weight: 54.5 g
Subject to technical changes without notice.
Device overview

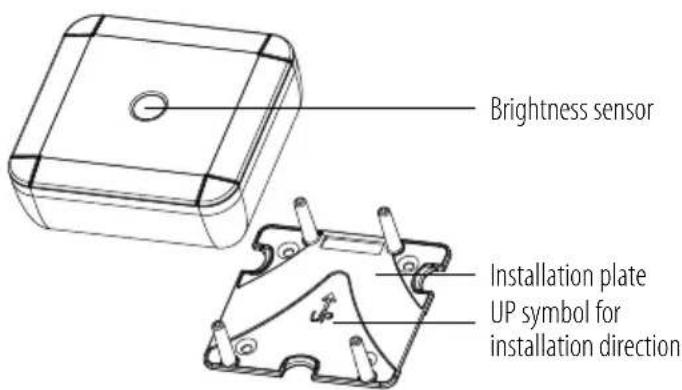

Front

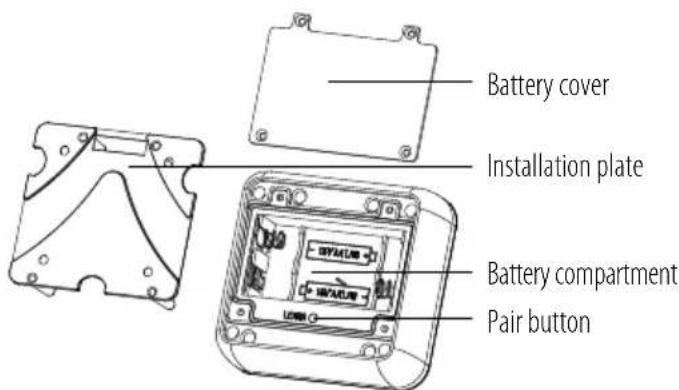

Reverse side / inside view
Function
The wireless brightness sensor is part of the Brennenstuhl Home Automation Systems BrematicPRO, controlled via app or the BrematicPRO PC software.
The wireless brightness sensor detects the ambient brightness (in Lux) at a measuring interval of approx. 5 minutes and reports these values to the BrematicPRO Gateway. The brightness values will be displayed in the app or the PC software BrematicPRO.

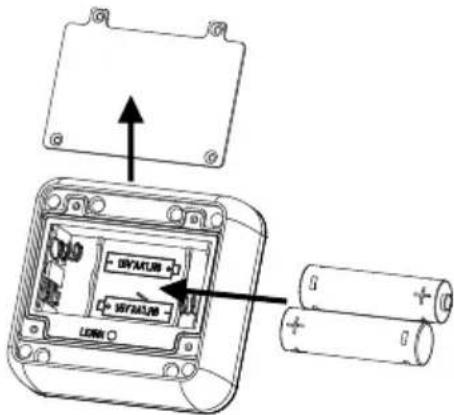

Inserting / replacing the battery
Remove the installation plate by pulling it off.
- Loosen the four screws from the battery cover and open the battery compartment.
If applicable, remove the drained batteries.
Insert the batteries into the battery compartment with correct polarity. Please note the marking inside the battery compartment.
Close the battery cover and attach it with the four screws after you have paired the product to the BrematicPRO Gateway.
The wireless brightness sensor is now ready for use.
Download app / PC software BrematicPRO
The Brennenstuhl Home Automation Systems BrematicPRO is controlled via the BrematicPRO app / PC software. The app can be downloaded for free from the App Store and Google Play. The PC software is available for download at www.brematic.com/gb/service.
Please follow the on-screen instructions for download and installation.
For more information about the app and how to use it, please visit www.brematic.com/gb/service.
Installation
Note: Carry out the wireless brightness sensor pairing process with the BrematicPRO Gateway before beginning installation.
Note: Check before installation whether the product is located within the range of the Gateway.

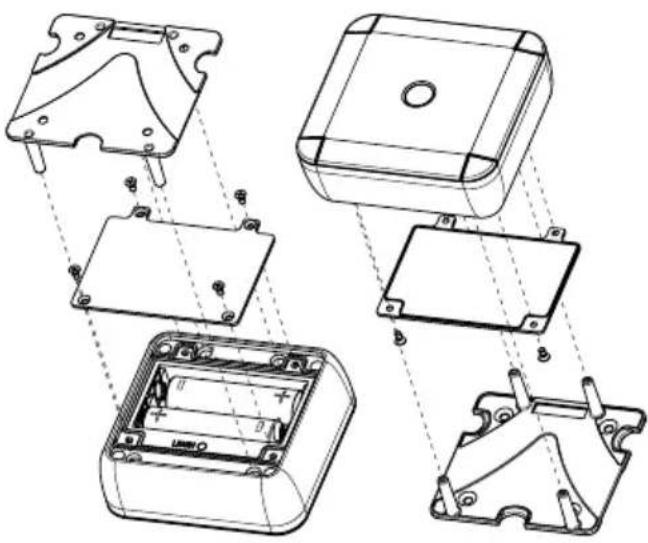

Installation using screws
CAUTION! DANGER OF ELECTRIC SHOCK! Make sure that you do not damage electrical cables in the wall during installation. An eaves, for example, is particularly suitable for outdoor installation.
Remove the installation plate from the device.
- Draw the four drill holes on the wall using a pen, with the help of the installation plate.
Drill the marked holes using a suitable drill and insert the dowels.
Screw the installation plate to the wall using the screws provided.
Note: When installing on a wood surface, use a 1.5 - 2mm drill. You will not require any dowels.
Place the device on the installation plate fastening pin and press it down firmly.
Pairing the wireless brightness sensor with the BrematicPRO Gateway
When linked with the Home Automation Systems BrematicPRO via the BrematicPRO Gateway, you can use the app/BrematicPRO PC software to use additional software-based functions, e.g. functions such as controlling actions (tasks), switching devices on / off.
The app or BrematicPRO PC software is installed and open. The BrematicPRO Gateway is ready for use.
- Keep the device at least 50~cm from the Gateway.
Open the "Settings" menu.
Select the room where you wish to use the device.
Select the frequency "868 MHz".
Select "Add Device".
Under "New Device", select "Sensor / Detector" and click "Continue" to confirm your selection.
Follow the on-screen instructions.
Press and hold the pair button on the device for 3 seconds.
Enter a device name, e.g. "Brightness Sensor".
Select "Add" to assign the device to the room.
- First tap "Back" to leave the room, then "Done" to complete the pairing process.
The wireless brightness sensor is now connected to the Home Automation Systems BrematicPRO.
Cleaning the device
Clean the device with a dry, lint-free cloth. For tough dirt, you may also slightly dampen the cloth.
Do not clean with solvent-based cleaners. These could damage the device surface and markings.
- Never immerse the device in water or other liquids. The device may otherwise be damaged.
Action
| Problem Possible cause Action | ||
| The app / PC Software BrematicPRO is reporting a low battery level. | The battery is drained. | Insert a new battery. |
| Device not detected. | The device is outside the Gateway range. | Reduce the distance to the Gateway. |
Disposal
The packaging is made from environmentally-friendly materials which can be disposed of through your local recycling facilities.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life, not in the household waste. Please contact your municipality for information on collection facilities and their opening hours.
Faulty or drained batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return batteries and / or the device to the provided recycling facilities.
Improper disposal of batteries can harm the environment!
Never dispose of batteries in your household bin. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of drained batteries through your local collection facilities.
Service
For questions related to the product, please contact us at www.brematic.com/qb/service.
Tel.: 0080048720743 (toll-free)
Manufacturer
Declaration of conformity
Hugo Brennenstuhl GmbH & Co.KG, hereby declares the wireless system model HS 868 01 IP44 3726 to comply with directives 2014/53/EU and 2011/65/EU (RoHS II). The full text of the EU declaration of conformity is available at the following internet address: www.brematic.com/gb/service/konformitaetserklaerung/ke_1294360.pdf
Wireless Brightness Sensor 868.3 MHz
This device complies with the legal, national and European requirements.
All company names and product names are trademarks of the respective owners.
All rights reserved.
