USER MANUAL PowerVac PV100 DOMETIC

Black DOMETIC air purifier device with attached black tray and silver handle (no visible text or symbols)

PV100

Rechargeable vacuum cleaner

Operating manual....9

AF Akku-Staubsauger

Line drawings of various household appliances including a vacuum cleaner, hose, and electrical connectors (no text or labels)

Technical diagram of a food processor with numbered parts for identification

3 Klick

Diagram showing a mechanical assembly with three components and directional arrows indicating motion (no text or symbols)

5 1. 2.

6 1 2

7 2. 1. Klick

Line drawing of a mechanical device with attached cable and screw base (no text or symbols)

9 230 V~ 10-14 h 0 °C-40 °C

10 0 - 100 %

11 100 %

12 12 V==

13 0 - 100 %

Illustration of a brush tip emitting powder with a cross mark, no text or symbols present

15 MAX FILL LINE MAX FILL LINE

16 MAX FINE LINE

17 1. 2.

Line drawing of a hand pouring liquid into a trash bin (no text or symbols)

19 2. 1. Klick

20 1. 2.

21 1. 2. 1.

Diagram of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

23 sw rt

24 1. 2.

	rt sw rt	sw rt sw
DE	Rot	Schwarz
EN	Red	Black
FR	Rouge	Noir
ES	Rojo	Negro
IT	Rosso	Nero
NL	Rood	Zwart

DA	Rød	Sort
SV	Röd	Svart
NO	Rød	Svart
FI	Punainen	Musta
PT	Vermelho	Preto
RU	Красный	Черный

PL	Czerwony	Czarny
CS	Červená	Černá
SK	Červená	Čierna
HU	Piros	Fekete

25 1. 2.

26

27 2. 1. Klick

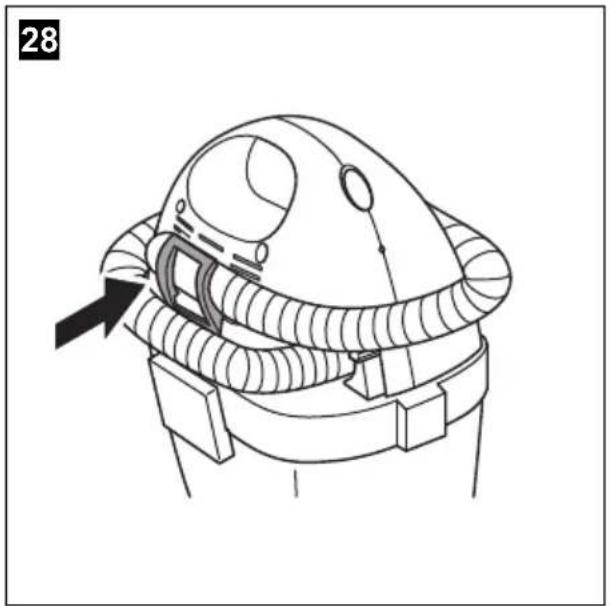

Line drawing of a spacecraft helmet with attached hoses and a belt, no text or symbols present

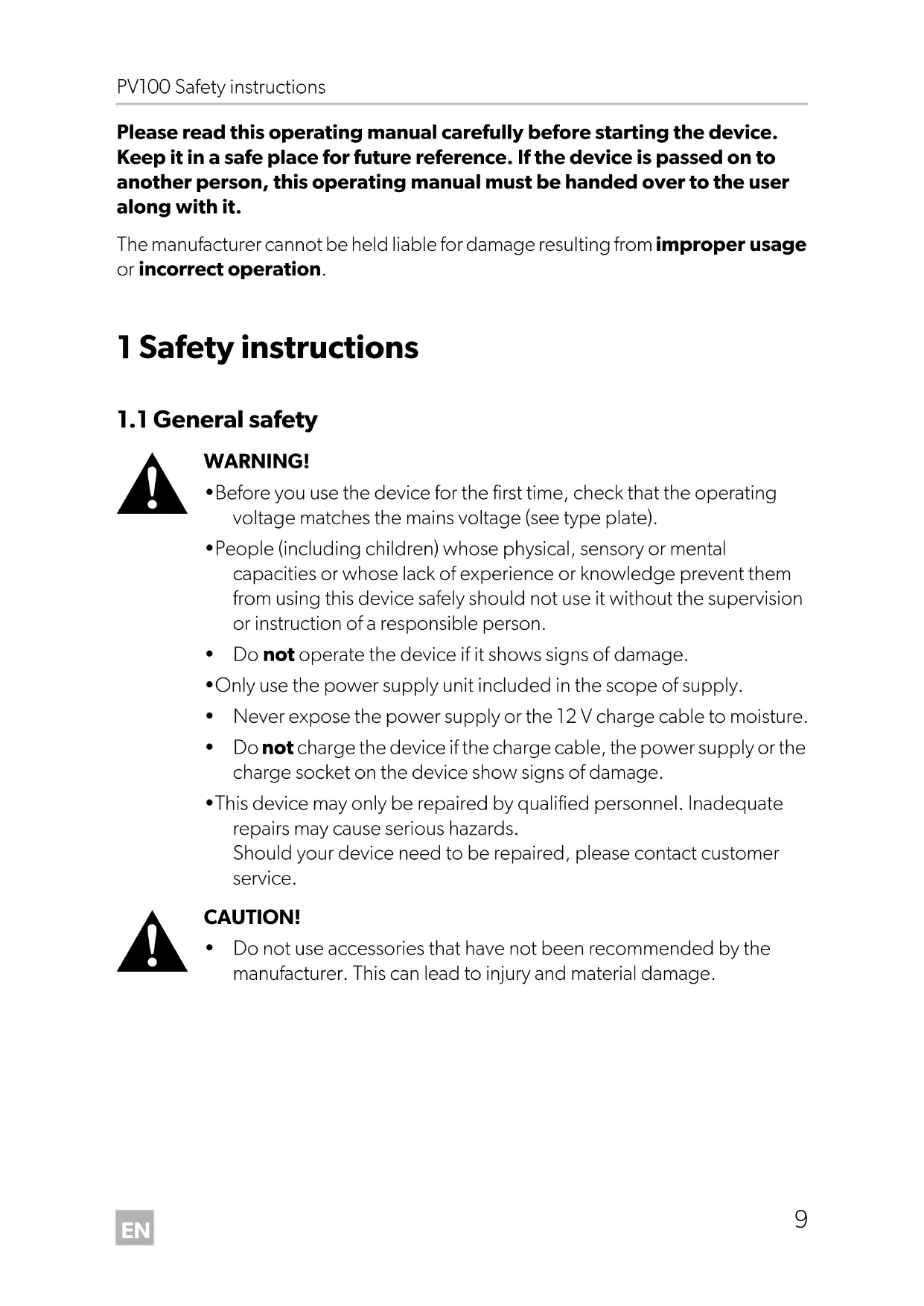

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it.

The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

1 Safety instructions

1.1 General safety

WARNING!

- Before you use the device for the first time, check that the operating voltage matches the mains voltage (see type plate).

- People (including children) whose physical, sensory or mental capacities or whose lack of experience or knowledge prevent them from using this device safely should not use it without the supervision or instruction of a responsible person.

- Do not operate the device if it shows signs of damage.

- Only use the power supply unit included in the scope of supply.

- Never expose the power supply or the 12 V charge cable to moisture.

- Do not charge the device if the charge cable, the power supply or the charge socket on the device show signs of damage.

- This device may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards.

Should your device need to be repaired, please contact customer service.

CAUTION!

- Do not use accessories that have not been recommended by the manufacturer. This can lead to injury and material damage.

1.2 Operating the device safely

WARNING!

- Never use the device in rooms where flammable materials are stored or flammable gases have built up. Sparks from the motor could ignite them.

- Do not vacuum any - solvents or caustic liquids - hot, glowing, hard or sharp objects - poisonous materials These could damage the device or the filter.

• Do not immerse the device in water.
• When vacuuming up liquids, make sure that the liquid in the container does not rise above the "MAX FILL LINE" mark.
• Do not turn the device upside down after you have vacuumed up liquids.
• Do not use the power supply unit with wet hands.

CAUTION!

• Keep the nozzles away from eyes, ears and face while operating. Ensure that hair, loose clothing and fingers do not get in the outlets or moving parts.
• Keep children and animals at a safe distance when operating the device.
• Make especially sure that the device has a secure stand when using on stairs.

NOTICE!

• Only use the device indoors, never outside.
• Make sure that none of the vents are blocked. If necessary, clean the vents before you use the vacuum cleaner.
• Do not attempt to use the device without a filter.
• Make sure that the rechargeable battery is never completely discharged. You will notice when the rechargeable battery is discharged if the motor slows down.
  Charge the rechargeable battery as soon as possible after each use.

NOTE

- Keep the filter clean, as the state of the filter seriously affects the vacuum cleaner performance.

2 S c o p e o f d

See fig. 1, page 3

3 Intended use

The PowerVac PV100 is a rechargeable battery operated vacuum cleaner for light dry and wet cleaning. This device is not intended for commercial use. It may not be used outdoors.

4 Control elements

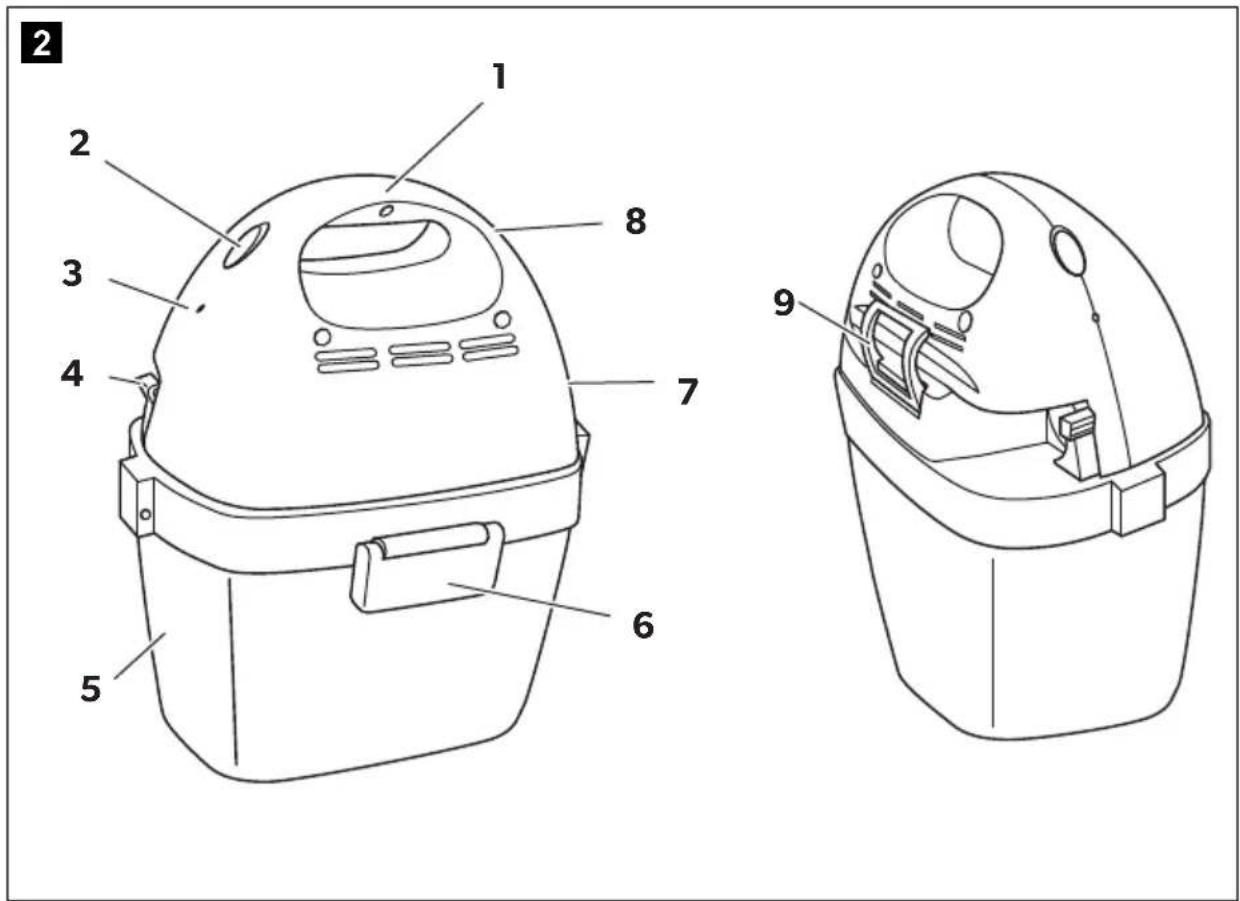

No. in fig. 2, page 3	Description
1 Handle
2 On/off switch
3 Charging displaylights up while charging and goes out once the battery is fully charged
4 Locking button
5 Dirt container
6 L o c k i n
7 Battery compartment
8 Charge socket
9 Securing clip for the suction hose

5 Before initial use

Before you use the vacuum cleaner for the first time, perform the following:

Charge the battery

NOTE

The vacuum cleaner is supplied with a rechargeable battery which has only been slightly charged. Before you can use the vacuum cleaner, you must charge the battery (see chapter “Charging the battery” on page 12).

Fit the suction hose

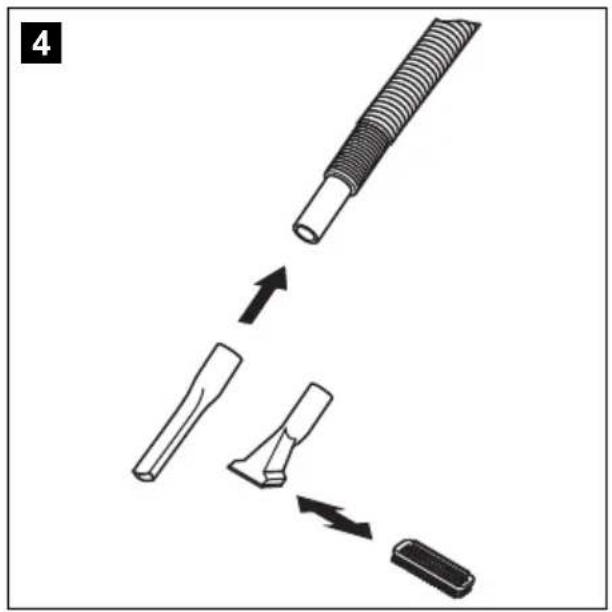

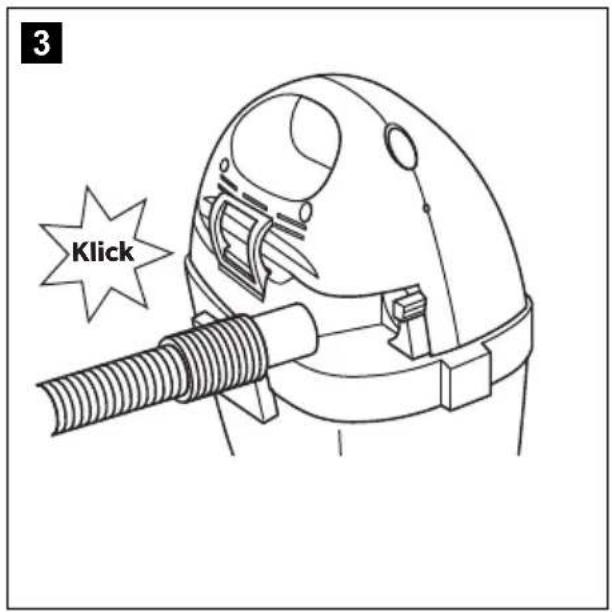

See fig. 3, page 4 and fig. 4, page 4

Check the filter

NOTICE!

• Never use the vacuum cleaner without a filter (fig. 5 1, page 4).
• Only use the filters supplied with the product by the manufacturer.

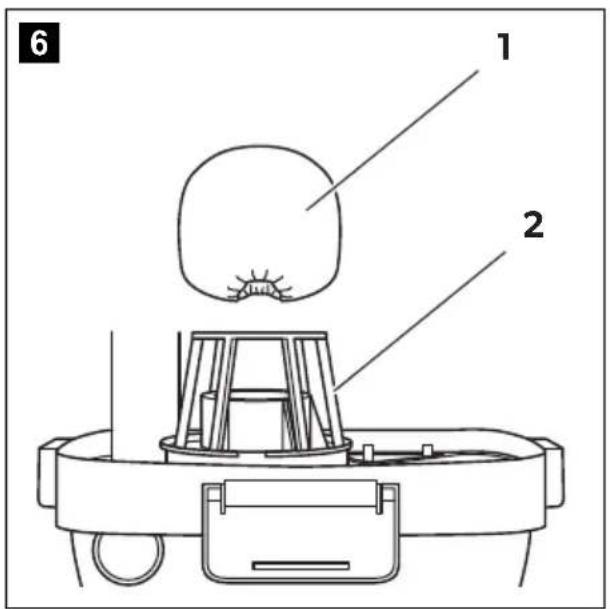

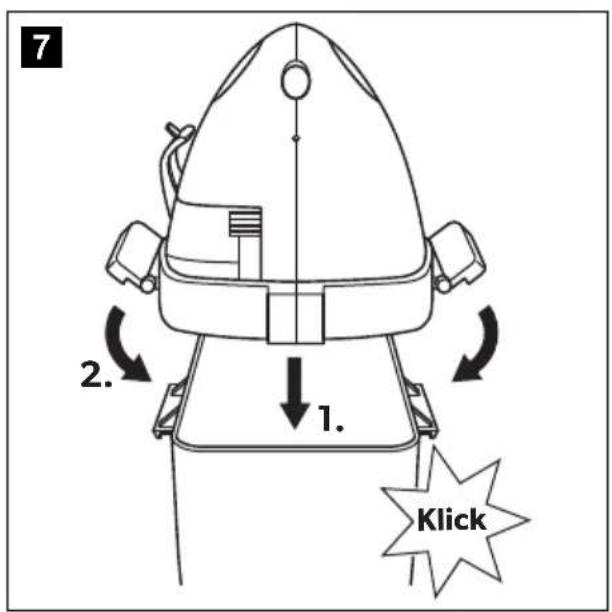

See fig. 5, page 4 to fig. 7, page 4

Fit the carrying strap

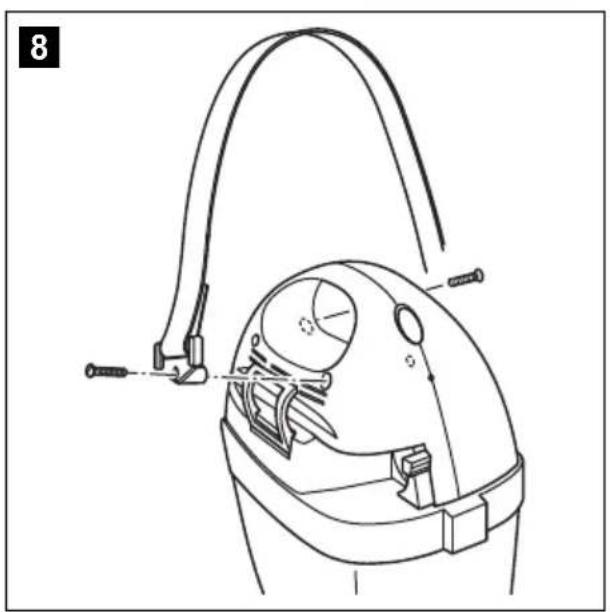

See fig. 8, page 4

6 Using the vacuum cleaner

6.1 Charging the battery

CAUTION! Beware of injury

Never attempt to charge the battery while driving or while the engine is running.

NOTICE!

Only charge the battery with the power supply unit or the 12 V charge cable supplied. Should you need spare parts, please order them exclusively from the manufacturer.

NOTE

• The power supply heats up during the charging process.
• Do not switch on the device during the charging process.

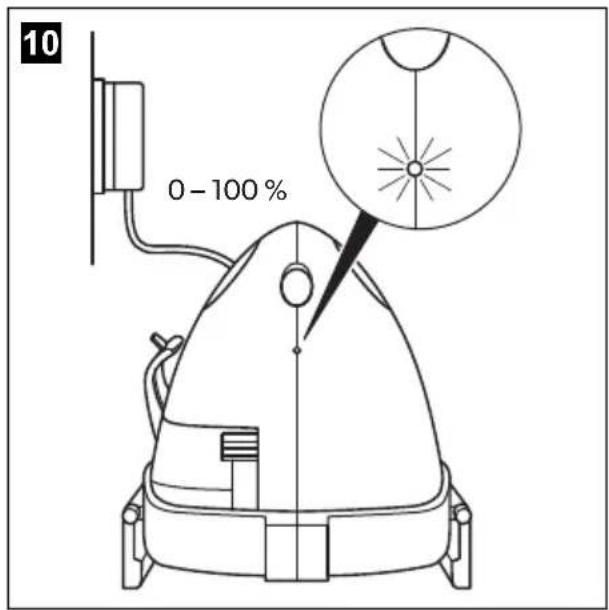

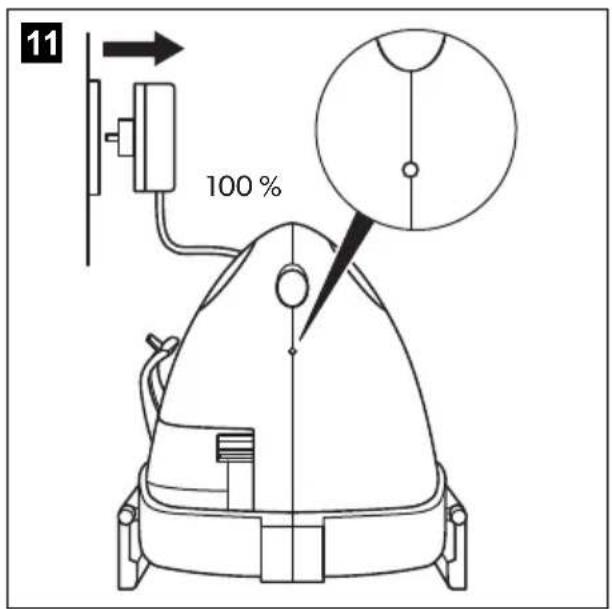

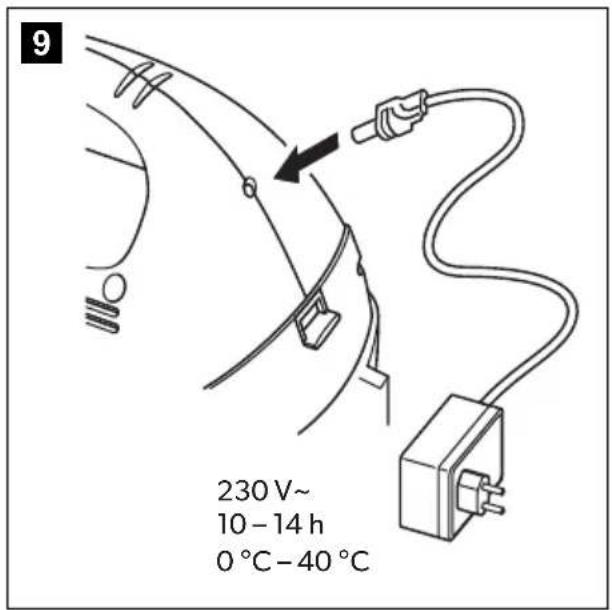

How to charge the battery from the 230 V AC mains: see fig. 9, page 5 to fig. 11, page 5.

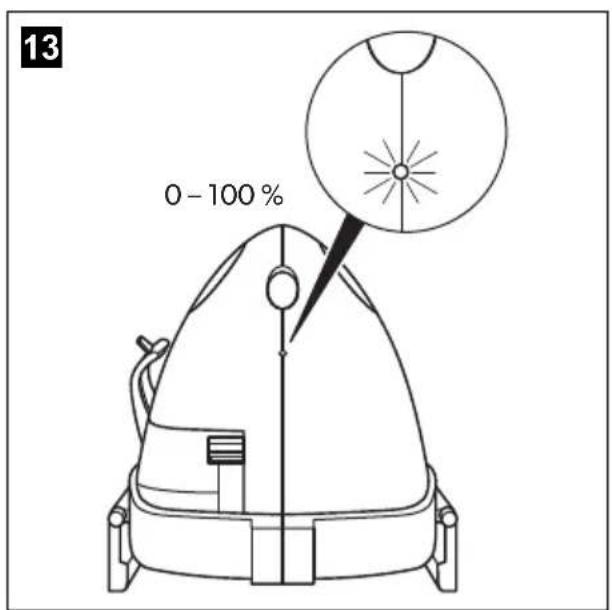

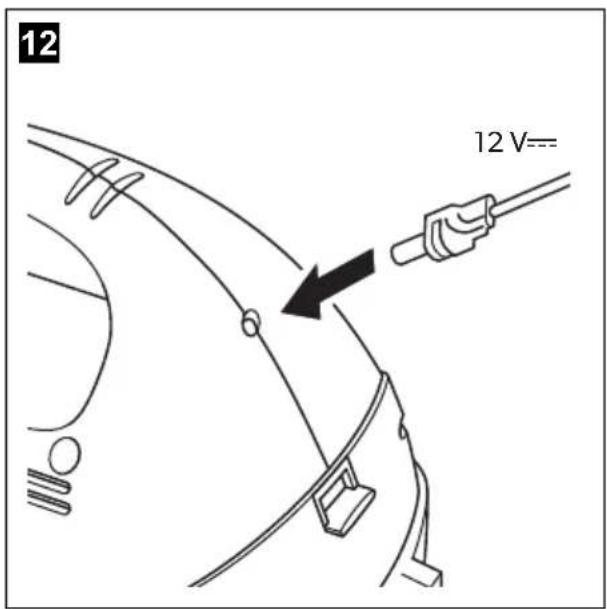

How to charge the battery from the 12 V DC power source: see fig. 12, page 5 to fig. 13, page 5.

√The charging display lights up while it is charging.

√ The battery is charged according to the available battery voltage (see chapter "Technical data" on page 16).
√ The charging process finishes automatically due to the integrated charging electronics.
√ The charging display goes out once the battery is fully charged.

6.2 Vacuuming up wet dirt or liquids

NOTE

• Empty the dirt container before you start vacuuming up liquids or wet dirt.
• Clean the dirt container and the nozzles after use, especially after cleaning up wet, sticky mess from the kitchen (see chapter "Cleaning the device and accessories" on page 14).

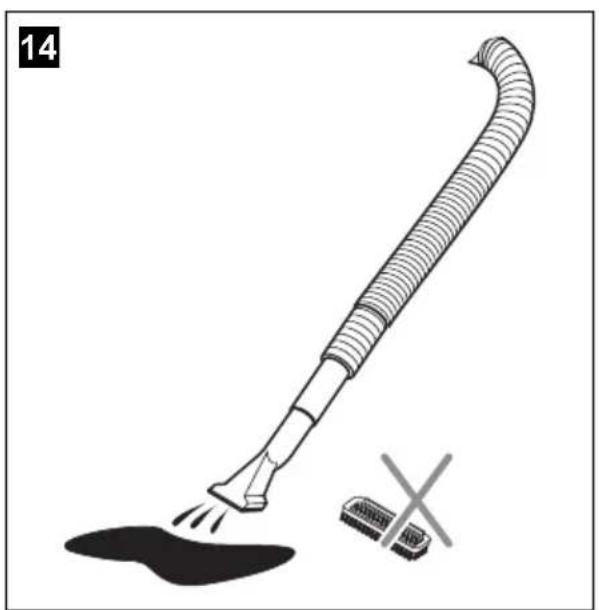

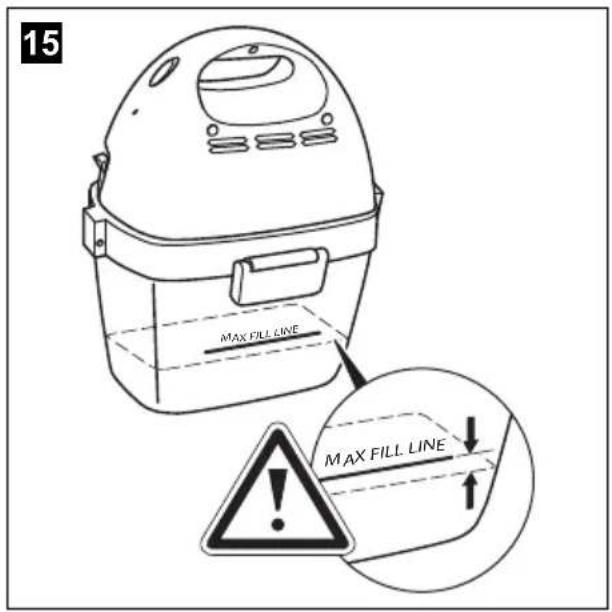

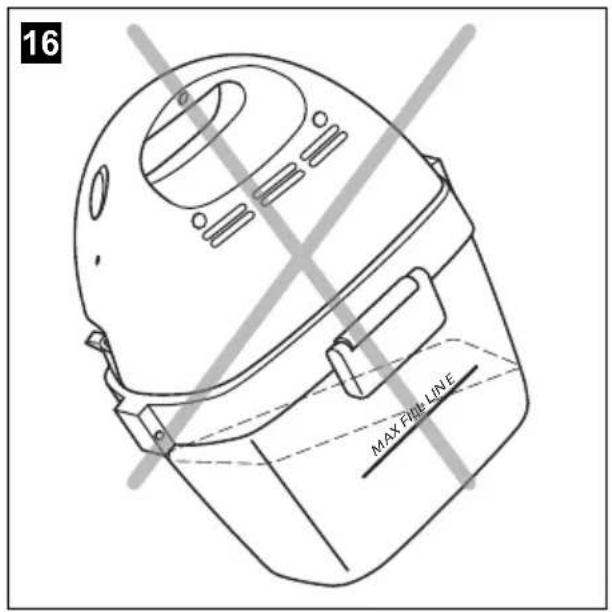

See fig. 14, page 5 to fig. 16, page 6

6.3 Emptying the dirt container

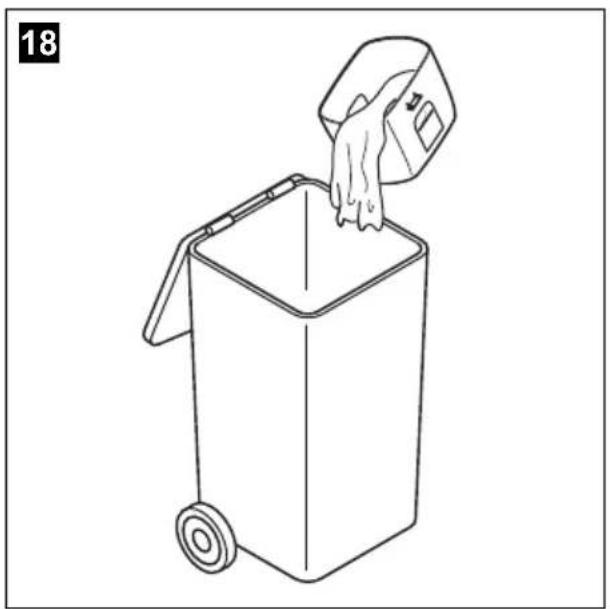

See fig. 17, page 6 to fig. 19, page 6

6.4 Removing the suction hose

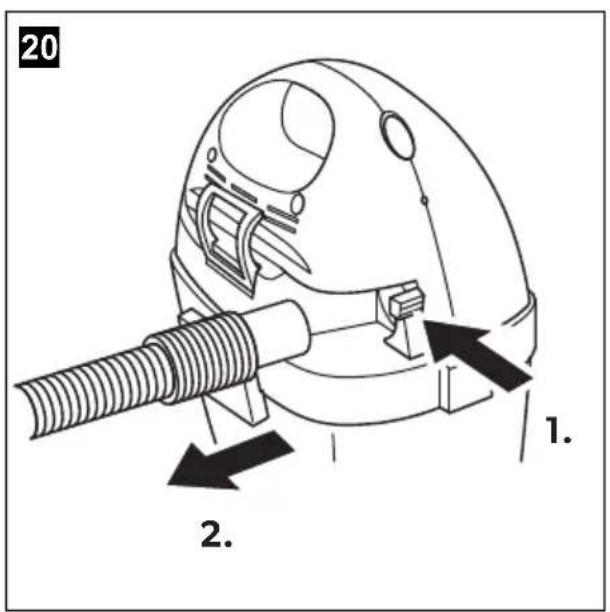

See fig. 20, page 6

7 Changing the rechargeable battery

New rechargeable batteries can be purchased from a specialist dealer. Ensure that the new battery has exactly the same specifications (12 V=, 2.6 Ah) and dimensions as the original one.

NOTICE!

Before you change the battery, disconnect the power from the charging socket.

Protect the environment!

Do not dispose of any batteries with general household waste.

Return defective or used batteries to your retailer or dispose of them at collection points.

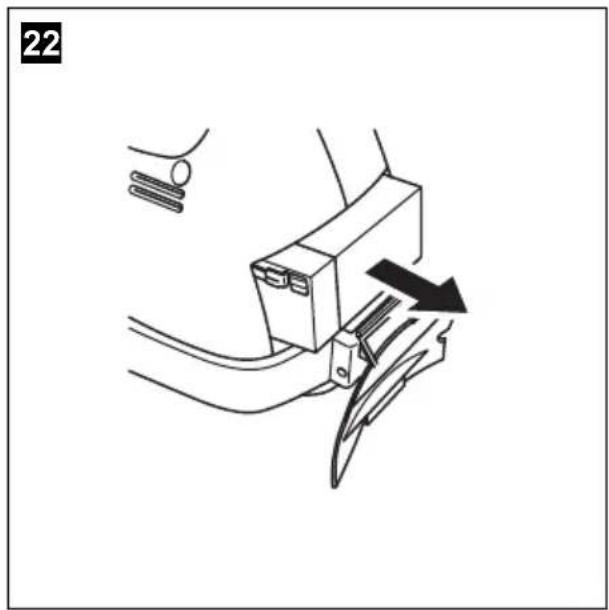

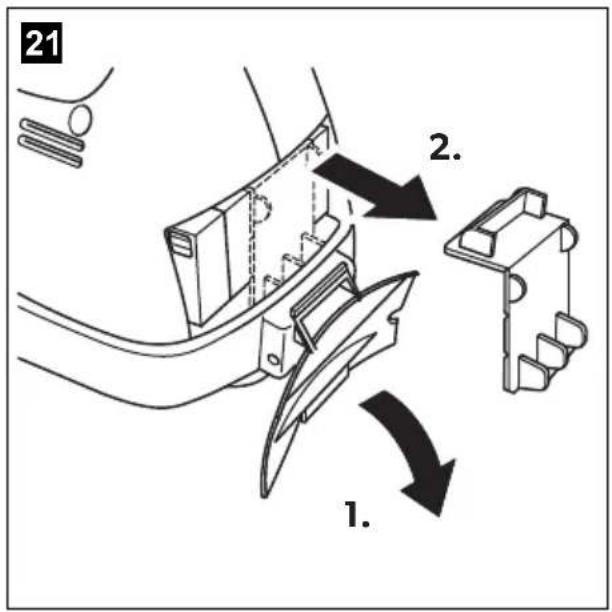

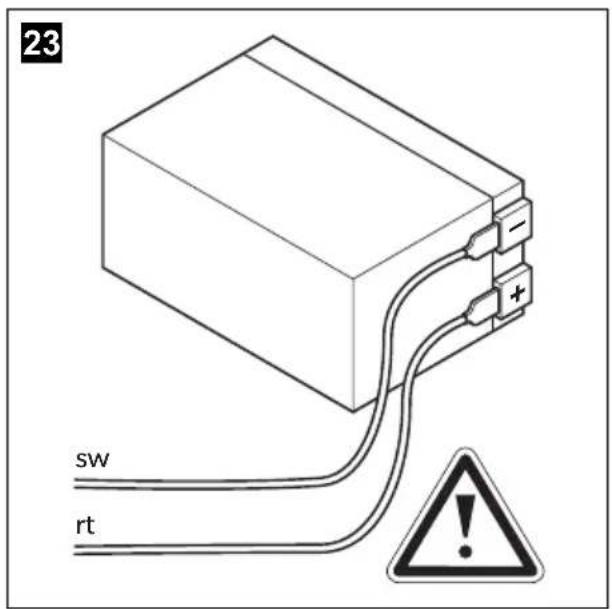

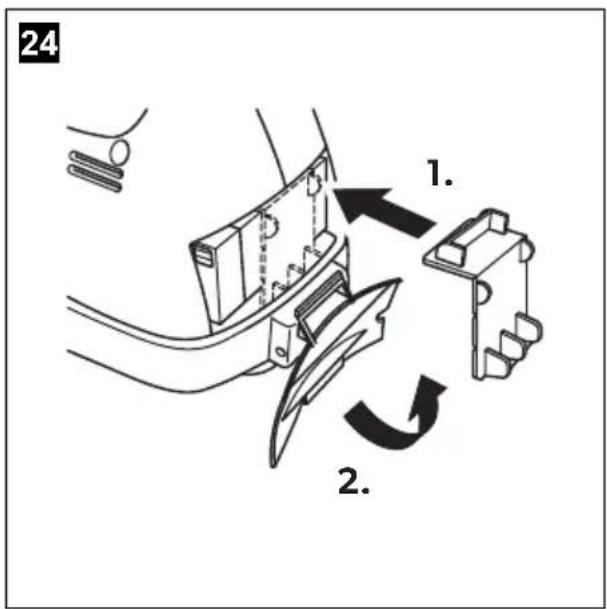

See fig. 21, page 7 to fig. 24, page 7

8 Maintaining and cleaning the vacuum cleaner

8.1 Cleaning the device and accessories

NOTICE!

Do not use sharp or hard objects or cleaning agents for cleaning as these may damage the product.

▶Occasionally clean the product with a damp cloth.
▶ Clean the dirt container and the nozzles occasionally with warm soapy water.

8.2 Cleaning the filter

If the filter is dirty, you can clean it and use it again. If the filter is extremely dirty, you can clean it with water.

NOTICE!

Do not put the filter in a washing machine or clean it with any hard objects as this can damage the filter.

NOTE

Allow the filter to dry before you replace it in the holder.

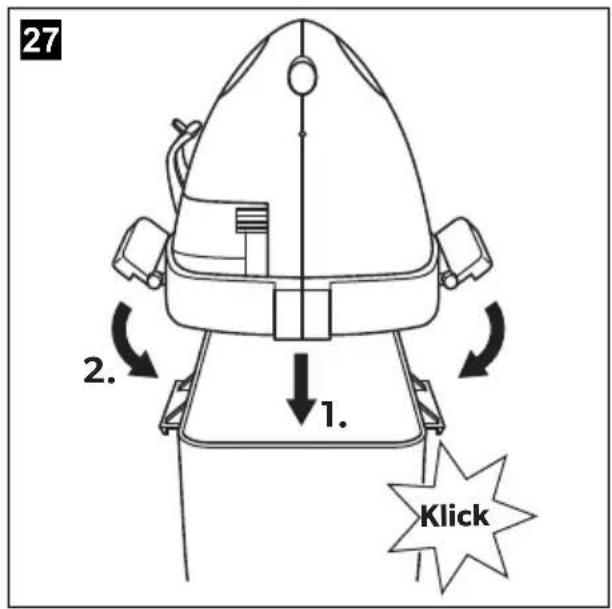

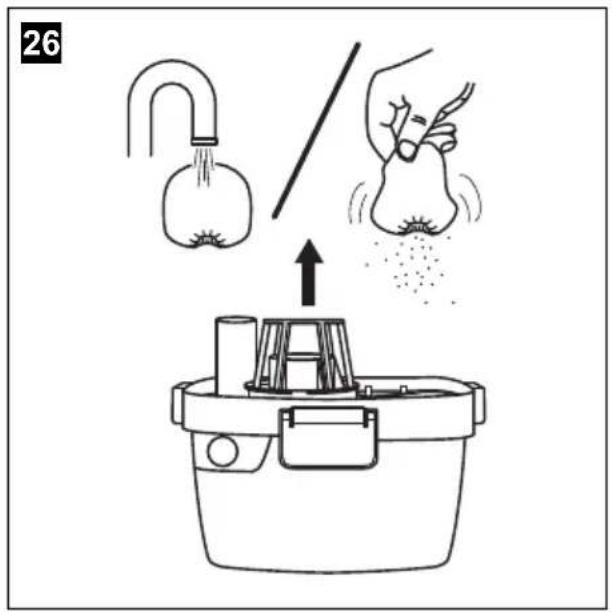

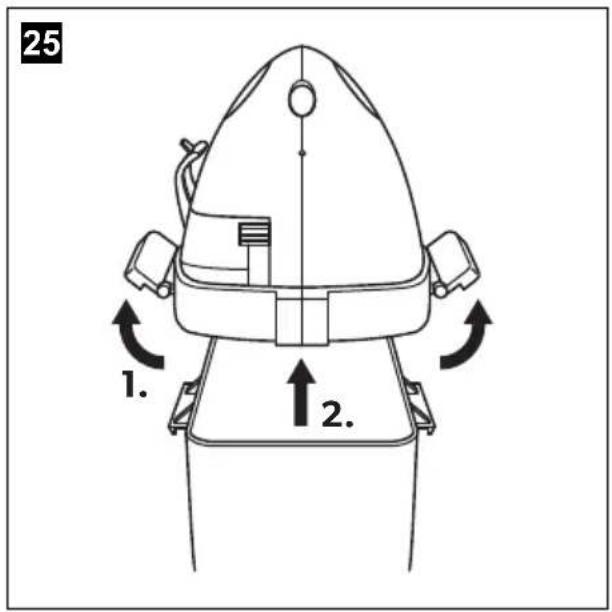

See fig. 25, page 8 to fig. 27, page 8

9 W a r r a n t y

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

10 Disposal

▶ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

10.1 Disposing of rechargeable batteries

Protect the environment!

Do not dispose of any batteries with general household waste.

Return defective or used batteries to your retailer or dispose of them at collection points.

11 Technical data

	PV100
Ref. no.: 9600000348
Engine:	12 V---, 28000 min-1
Rechargeable battery:	12 V---, 2.6 Ah
Charging time: 10 – 14 h	(automatic switch-off)
Capacity: 3.8 l
Power: 90 W
Operating temperature: 0 °C to +40 °C
Dimensions H x B x T: 320 x 270 x 198 mm
Weight: 2150 g
Certification:	CE

Maximum charge of the rechargeable battery when charging from the 12 V vehicle electrics:

Battery voltage Charge

12.0 V 30 %

12.3 V 35 %

12.5 V 40 %

12.8 V 50 %

13.0 V 60 %

13.5 V 80 %

14.0 V 90 %

14.4 V 95 %
