USER MANUAL XLB520D SHARP

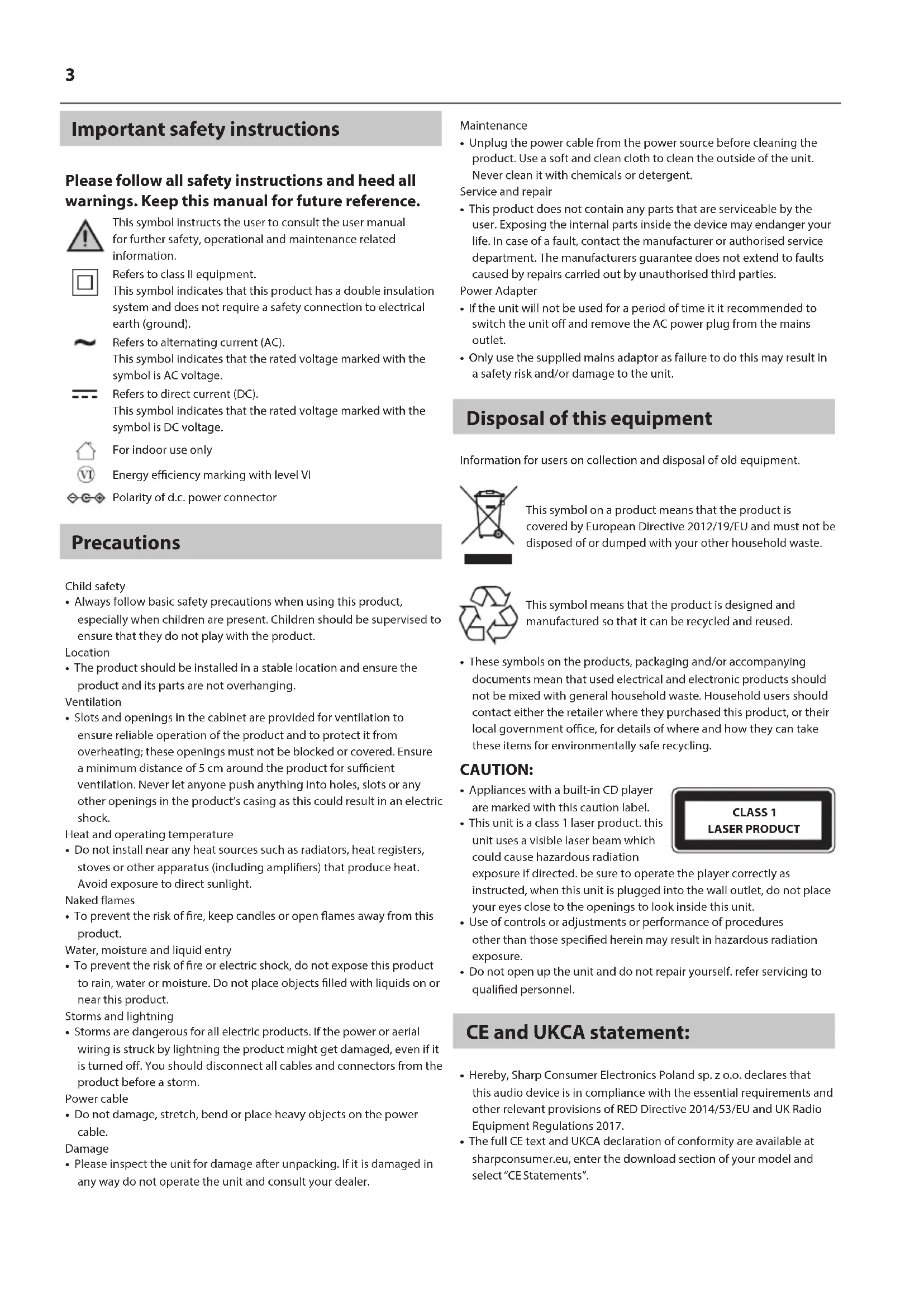

Important safety instructions Please follow all safety instructions and heed all warnings. Keep this manual for future reference. CAUTION

RISK OF ELECTRIC SHOCKDO NOT OPEN

This symbol instructs the user to consult the user manual for further safety, operational and maintenance related information. Refers to class II equipment. This symbol indicates that this product has a double insulation system and does not require a safety connection to electrical earth (ground). Refers to alternating current (AC). This symbol indicates that the rated voltage marked with the symbol is AC voltage. Refers to direct current (DC). This symbol indicates that the rated voltage marked with the symbol is DC voltage. For indoor use only Energy eciency marking with level VI Polarity of d.c. power connector Precautions Child safety

• Always follow basic safety precautions when using this product, especially when children are present. Children should be supervised to ensure that they do not play with the product. Location

• The product should be installed in a stable location and ensure the product and its parts are not overhanging. Ventilation

• Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating; these openings must not be blocked or covered. Ensure a minimum distance of 5 cm around the product for sucient ventilation. Never let anyone push anything into holes, slots or any other openings in the product’s casing as this could result in an electric shock. Heat and operating temperature

• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including ampliers) that produce heat. Avoid exposure to direct sunlight. Naked ames

• To prevent the risk of re, keep candles or open ames away from this product. Water, moisture and liquid entry

• To prevent the risk of re or electric shock, do not expose this product to rain, water or moisture. Do not place objects lled with liquids on or near this product. Storms and lightning

• Storms are dangerous for all electric products. If the power or aerial wiring is struck by lightning the product might get damaged, even if it is turned o. You should disconnect all cables and connectors from the product before a storm. Power cable

• Do not damage, stretch, bend or place heavy objects on the power cable. Damage

• Please inspect the unit for damage after unpacking. If it is damaged in any way do not operate the unit and consult your dealer. Maintenance

• Unplug the power cable from the power source before cleaning the product. Use a soft and clean cloth to clean the outside of the unit. Never clean it with chemicals or detergent. Service and repair

• This product does not contain any parts that are serviceable by the user. Exposing the internal parts inside the device may endanger your life. In case of a fault, contact the manufacturer or authorised service department. The manufacturers guarantee does not extend to faults caused by repairs carried out by unauthorised third parties. Power Adapter

• If the unit will not be used for a period of time it it recommended to switch the unit o and remove the AC power plug from the mains outlet.

• Only use the supplied mains adaptor as failure to do this may result in a safety risk and/or damage to the unit. Disposal of this equipment Information for users on collection and disposal of old equipment. This symbol on a product means that the product is covered by European Directive 2012/19/EU and must not be disposed of or dumped with your other household waste. This symbol means that the product is designed and manufactured so that it can be recycled and reused.

• These symbols on the products, packaging and/or accompanying documents mean that used electrical and electronic products should not be mixed with general household waste. Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take these items for environmentally safe recycling. CAUTION:

• Appliances with a built-in CD player are marked with this caution label.

• This unit is a class 1 laser product. this unit uses a visible laser beam which could cause hazardous radiation exposure if directed. be sure to operate the player correctly as instructed, when this unit is plugged into the wall outlet, do not place your eyes close to the openings to look inside this unit.

• Use of controls or adjustments or performance of procedures other than those specied herein may result in hazardous radiation exposure.

• Do not open up the unit and do not repair yourself. refer servicing to qualied personnel. CE and UKCA statement:

• Hereby, Sharp Consumer Electronics Poland sp. z o.o. declares that this audio device is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and UK Radio Equipment Regulations 2017.

• The full CE text and UKCA declaration of conformity are available at sharpconsumer.eu, enter the download section of your model and select “CE Statements”. CLASS 1 LASER PRODUCTEN Box contents

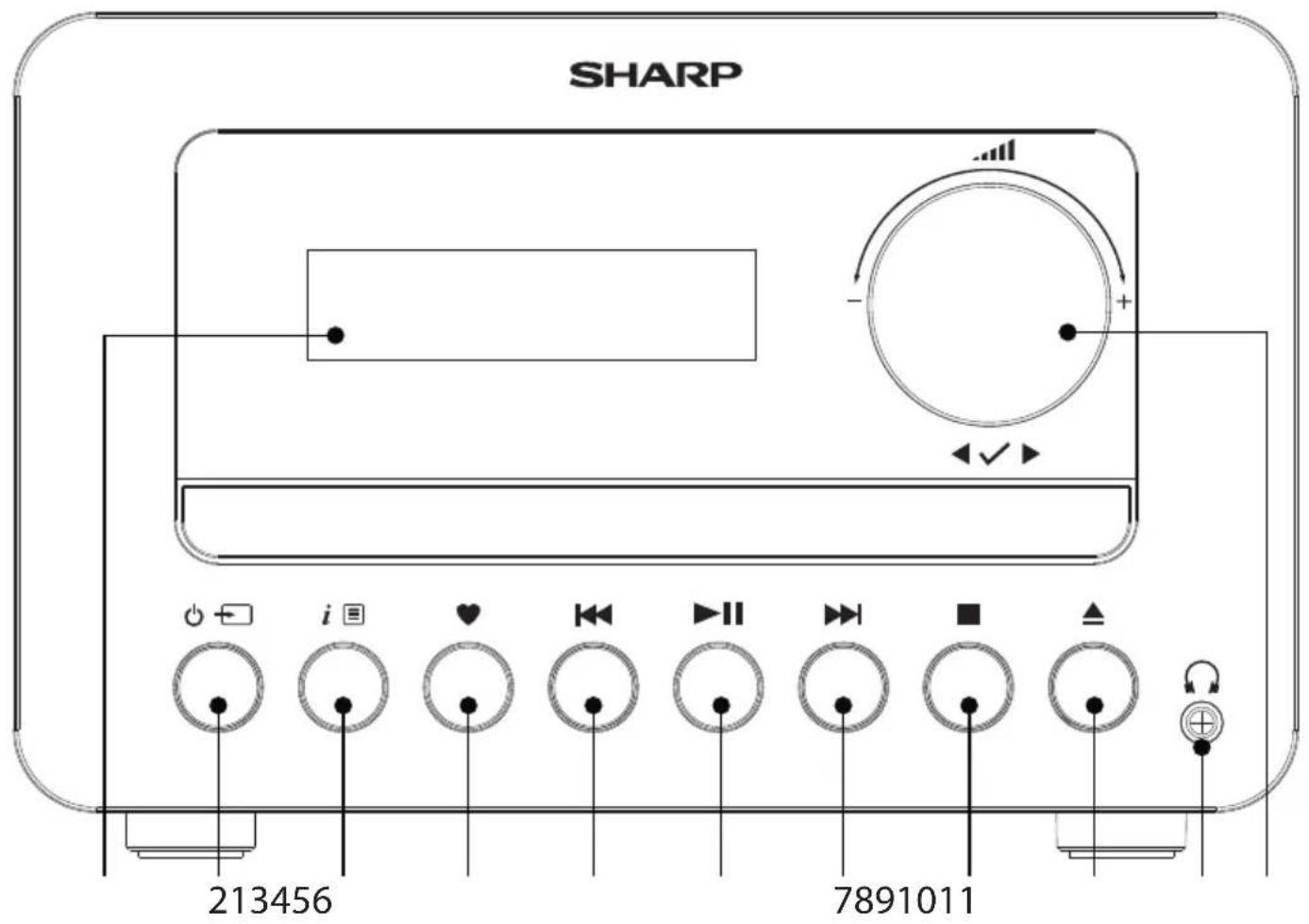

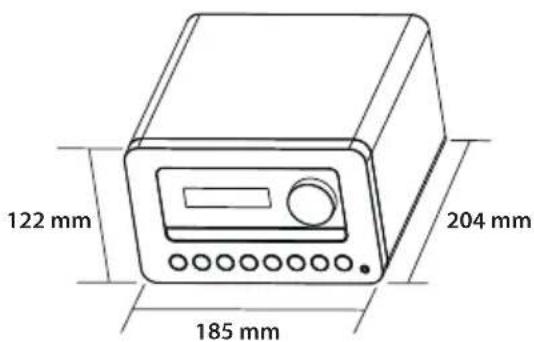

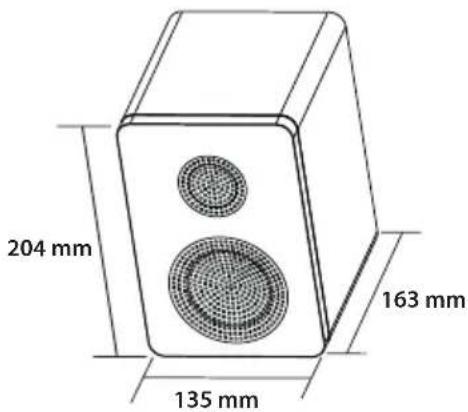

• XL-B520D Tokyo DAB+/FM Hi-Fi Micro System

• Remote control (incl. batteries)

• Short press: Power on

• Short press: Change the mode

• Short press: Station information

Preset (20 DAB/20 FM) In DAB+/FM mode:

• Short press: Preset recall

• Long press: Preset store In Bluetooth mode: Long press to disconnect current device and scan for new devices In CD mode: Long press to enter programmed play mode (20 tracks)

• Short press: - In DAB mode: Move up the DAB station list - In FM mode: Move down the frequency band by 0.05 MHz - In Bluetooth, CD, and USB mode: Previous track - In menu: Scroll left

• Long press: - In FM mode: Scan down the frequency band - In CD/USB mode: Rewind within a track

• In Bluetooth/CD/USB mode: - Short press to Play/Pause

• Short press: - In DAB mode: Move down the DAB station list - In FM mode: Short press move up frequency up 0.05 MHz; long press search up frequency band - Bluetooth/CD/USB mode: Next track - In menu: Scroll right

• Long press: - In FM mode: Scan up the frequency band - In CD/USB mode: Fast forward within a track

In CD/USB mode: Short press to stop. In CD mode: Short press twice to cancel programmed play

In CD/DAB+/FM/USB/Aux-in mode:

• Short press to open the CD tray

• Press again to close the CD tray

11. Rotary Volume/Scroll/Select control:

• Rotate: Adjust the volume

• Rotate in the menu or presets: Scroll through the available menu options or preset locations

• Short press: Select a displayed radio station/frequency, menu or preset option

• When alarm is sounding in standby, short press: activates 10-minute snooze.

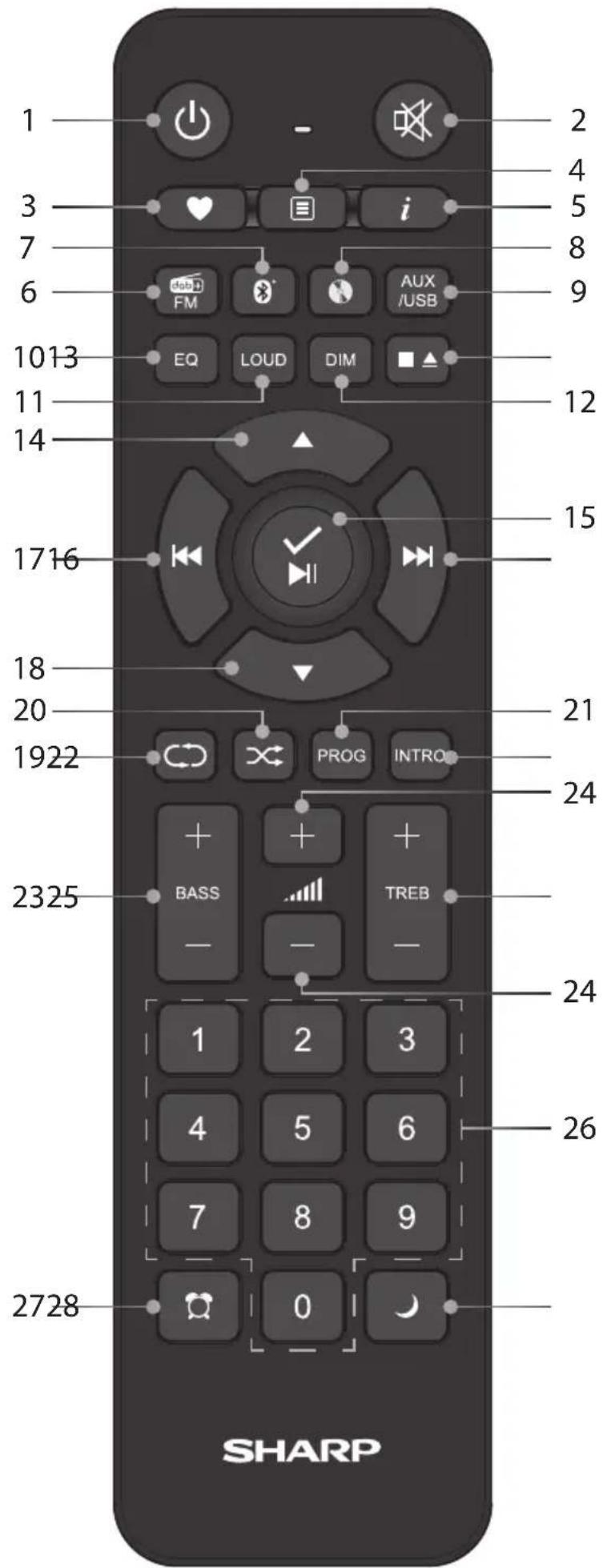

Remote control (Refer to 2 on page 2).

Press to power on or enter standby.

Press to mute the sound. Press again to resume sound, or press +/- to resume sound.

Presets (20 DAB/20 FM) In DAB+/FM mode:

• Short press: Preset recall.

• Long press: Preset store. In Bluetooth mode: Long press to disconnect current device and scan for new devices.

Info: Press to cycle through dierent types of information available.

Short press to enter Bluetooth mode. Long press to disconnect from paired device.

Press to change audio source to CD.

Press to change audio source to AUX. Press again to change audio source to USB.

Equaliser: Press to cycle through EQ options.

Loudness compensation increases the low and high frequencies when listening at low volume.

Press to cycle through display brightness settings: high, medium and low.

In CD/USB mode: press to stop playback. Press again to open/ close CD drawer.

- In DAB mode: Move up the DAB station list. - In FM mode: Move down the frquency band by 0.05 MHz. - In Menu: Move up the menu options.

Select/Play/Pause. When alarm sounds, press to snooze.

Short press for next track/station, long press for fast forward/ search forward.

Short press for previous track/station, long press to rewind/ search back.

- In Menu: Move down the menu options. - In DAB mode: Move down the DAB station list. - In FM mode: Move up the frequency band by 0.05 MHz.

Repeat: In CD/USB mode: Cycle through repeat options: repeat current track, repeat all tracks, repeat o.5

20. Shue: In CD/USB mode: Shue songs on/o.

In CD mode: Press to program the playback order.

In CD mode: Press once to play the rst 10 seconds of every track on a CD. Press again for the current track to play in full.

23. Bass +/-: Press to adjust the bass.

Alarm: Press to set up Alarm 1/2. When in standby, press to switch on/o alarms.

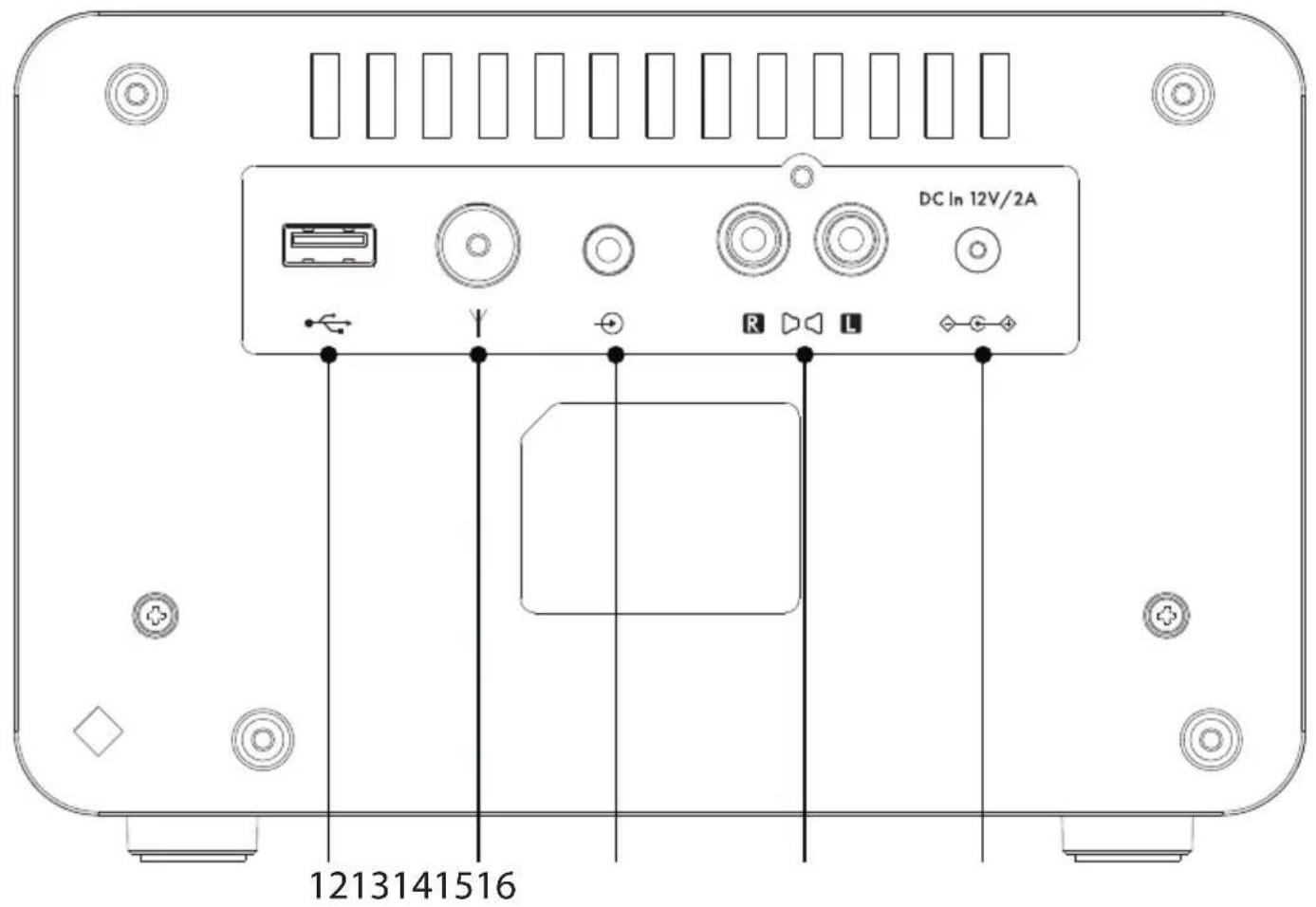

Sleep timer: Press to cycle through sleep timer options. Using your DAB+/FM hi- micro system Connection NOTE: Your micro system has been supplied with a power adapter. Please check and ensure that you connect the correct 3 pin or 2 pin part to the power adapter that is appropriate for the country where the product will be used. Connect the aerial to the back of the micro system to receive the best possible radio reception and signal quality. Connect the right and left speaker cables to the RCA sockets on the back of the main unit. Connect the power adapter lead to the power input on the back of the micro system and plug the power adapter into the wall socket and switch on. The micro system will power on and display <SHARP sharpconsumer.eu> and then go into standby. NOTE: The processes described here use the controls on the main unit (unless specied). For controls using the remote control, please refer to the 'Remote control' section. Initial set-up Extend the aerial to ensure the maximum signal strength when you scan for radio stations. Short press to switch on your micro system. It will begin an automatic scan for DAB stations. A progress bar will show the progress of the scan and the number of stations found. When the scan is complete your micro system will select the rst available station and begin to play. By default, stations are listed numerically and then alphabetically. NOTE: The DAB radio station list is stored in the memory; the next time the micro system is switched on, the station search does not take place. Short press or to scroll through the available stations. To select the station displayed, short press . There will be a short delay whilst your micro system tunes to your selected station. Time and date Time and date will be synchronised automatically to that broadcast by the DAB service in 24-hour format. To set the time and date manually, turn on the radio. Long press

enter the menu options. Use to select <System> / <Time> / <Set Time/Date>. <Set time> is displayed and the hour digits will ash; use to set hours and minutes. <Set date> is displayed and the day will ash; use to set day, month and year. <Time Saved> is shown once the year is conrmed and you will return to the <Set Time/Date> menu. Use to change the clock/date format and auto update settings. Long press to exit the menu. Change the mode Short press to change between <DAB+>, <FM>, <Bluetooth>, <CD>, <USB>, and <Aux in>. modes. The display screen will conrm the mode. Equaliser (EQ) settings You can adjust the sound of the micro system using the equaliser presets. Press and hold . Use to scroll to <System> / <Equaliser>. Select the EQ option of your choice: <Flat>, <Classic>, <Jazz>, <Pop>, <Rock>, <Voice>, <Movie>, <Music>, <Dance>, <Sport>, and <My EQ...>. Long press to exit the menu. Using headphones You can connect headphones with a 3.5mm jack (not included) to the headphone jack. When you have them connected, sound will be heard via the headphones only. NOTE: Always keep the volume within reasonable limits. DAB Radio mode Select DAB radio mode Short press until the screen displays <DAB+>. The rst time you use the micro system or if the station list is empty, your micro system will automatically begin to scan for DAB radio stations. A progress bar will show the progress of the scan and the number of stations found during the scan will also be displayed. If you were listening to a DAB station when you switched the micro system o, this station will automatically be selected when you switch the micro system back on. Changing DAB stations Use and to scroll through the available stations. Press to select when the station you want to listen to is displayed. There will be a short delay whilst your radio tunes to your selected station. Scanning for DAB stations With DAB radio, additional stations and services regularly become available. Carry out a manual scan periodically to make sure that you have the most up-to-date station listing stored within the memory of your micro system. In DAB mode: Long press . Use to scroll and select <Full Scan>. The display will change to <Scanning…>. A progress bar will show the progress of the scan and the number of stations found. Prune DAB stations You can remove the DAB stations in the station list that cannot be received in your area. These are listed with a <?> prex. In DAB mode: Long press . Use to scroll and select <Prune>. <Prune? <No> Yes> is displayed. Use to scroll and select <Yes>. Stations with a <?> prex will now no longer be displayed. Storing a DAB station preset Your micro system can store up to 20 DAB radio stations in its preset memories for instant access to your favourite stations. NOTE: Storing DAB radio station presets do not overwrite FM station presets. Tune the micro system to the DAB radio station that you wish to preset. Long press until <Preset Store <1:(Empty)>> is displayed. Use to move to the preset location that you would like to store the radio station to (1-20). Press to select. The display will conrm <Preset XEN stored>, where ‘X’ is the number of the preset (1-20). NOTE: If there is already an existing DAB station stored under a preset, it will be overwritten when you store the new station. Tune to a DAB preset station In DAB mode: Short press . <Preset Recall <1:>> is displayed together with the name or frequency of the station stored there, or <(Empty)> if no previous station has been stored. Use to move to and select the preset station that you would like to listen to (1-20). DAB display information When listening to a DAB station, you can change the information that will appear on the display. There are several dierent types of information that are sent by the broadcaster. Repeatedly short press to cycle through the dierent information options:

• Dynamic label segment (DLS) - This is scrolling text information as supplied by the broadcaster. This could include artist names, song titles, contact details for the radio station, etc.

• Signal strength - An empty will appear on the display to indicate the minimum signal strength for acceptable listening. The row of solid rectangles indicates the actual signal strength that you are receiving.

• Program type (PTY) – e.g. ‘Rock’, ‘Pop’, ‘Talk’ or ‘News’

• Multiplex name - Displays the broadcasting area and collection of radio stations on this frequency e.g. BBC National DAB, Digital 1 Network

• Channel and frequency – e.g. 12B 225.648 MHz (Channel=12B, Frequency=225.648 MHz)

• Signal error - This is displayed as a number between 0-99. To satisfactorily listen to a radio station, the signal error must be below

30. Adjust the aerial or relocate your radio to improve reception.

• Signal information - The data rate at which the signal is being transmitted.

• Date Dynamic range control (DRC) DRC data is not transmitted by all broadcasters. DRC is used for controlling dierence between the loudest and quietest sounds. e.g., in a noisy environment, setting the DRC to maximum makes quiet sounds comparatively louder, and loud sounds quieter. There are 3 levels of compression:

• <DRC o> - no compression. This is the default setting.

• <DRC low> - medium compression

• <DRC high> - maximum compression In DAB mode, long press . Use to scroll and select <DRC> and then select your preference. NOTE: The current DRC setting will have an asterisk (*) in the display. FM Radio mode To change to FM mode, short press until the micro system displays <FM>. If you were listening to an FM station when you switched the micro system o, this station will automatically be selected when you power the micro system back on. Tune to an FM station Long press or button to scan up or down the frequency band. The radio will search for and stop at the next available station. Short press or to ne-tune each frequency in 0.05MHz steps. NOTE: If the reception is poor, adjust the aerial or move the micro system to another location. Change the scan setting In FM mode: Long press , <Scan setting> will be displayed. Press . There are two dierent options to choose from:

• <Strong stations> The scan will only stop when a strong signal strength is received, resulting in better audio quality. It is possible that the station you are scanning for may be missed using this option.

• <All stations> The scan will stop at every station it receives, even if the signal strength is poor. Use to choose and select from the options available. NOTE: The current scan setting will have an asterisk (*) in the display. Audio mode The micro system will automatically switch between stereo and mono, depending on the quality of the signal being received but you can override this function and manually switch between them. NOTE: You may wish to select ‘Stereo’ if you are listening to your micro system using headphones. Press and hold . Use the rotary control to scroll to <Audio setting>. Press the rotary control to select Choose between <Forced mono> and <Stereo allowed>. The current setting will have an asterisk (*) in the display. Use to conrm Long press to exit the menu. Storing an FM station preset Your micro system can store up to 20 FM stations in its preset memories for instant access to your favourite stations. NOTE: Storing FM radio station presets do not overwrite your DAB station presets. Tune the micro system to the FM radio station that you wish to preset. Long press until <Preset Store <1:(Empty)>> is displayed. Use to move to and select the preset location that you would like to store the radio station to (1-20). The display will conrm <Preset X stored>, where ‘X’ is the number of the preset (1-20). NOTE: If there is already an existing FM station stored under a preset, it will be overwritten when you store the new station. Auto memory store (AMS) Alternatively, you can use the Auto Memory Store (AMS) feature to store your FM radio station presets. In FM mode, long press . Use to scroll to and select <AMS>. Your micro system will now scan the FM frequency band and the stations found will be automatically stored to the preset locations. NOTE: You can manually overwrite your AMS stored presets by following the steps in ‘Storing an FM station preset’ above. Tune to an FM preset station In FM mode: Short press . <Preset Recall <1:>> is displayed together with the name or frequency of the station stored there, or <(Empty)> if no previous station has been stored. Use to move to and select the preset station that you would like to listen to (1-20). FM display information When listening to an FM station you can change the information that appears on the second line of the display. Repeatedly short press

cycle through the dierent information options:

• Radiotext (RT) - This is scrolling text information as supplied by the broadcaster. This could include artist names, song titles, contact details for the radio station, etc.

• Program Type (PTY) – e.g., ‘Rock’, ‘Pop‘, ‘Talk’, or ‘News’

• Station name or frequency – e.g., BBC R4, 93.30MHz

• Date7 CD player To change to the CD player, short press until the micro system displays <CD>.The display will read <Reading>, followed by <No disc>, if the CD compartment is empty. Play a CD NOTE: It is not possible to play DVD or computer CDs. Press . The CD drawer will open and <Open> will be displayed. Place CD onto the CD tray. Ensure that the CD is laying at on the tray. Press to close the CD tray. <Reading> will be displayed and after a short delay, the CD will start playing. CD controls: The following controls are possible when playing a CD: Short press to play a CD. The track number and the elapsed time of the track will be displayed. Press again to pause the CD. The elapsed time will ash while music is paused. Short press to move to next track. Long press to forward within a track. Press to move to previous track. Long press to rewind within a track. Press to stop CD. NOTE: If you stop or pause playing a CD for approximately 20 minutes, your micro system will go into standby mode automatically. Programmed play Using your remote control, you can program the play order of up to 20 tracks on your CD. NOTE: To set up programmed play, the CD must be stopped in the CD compartment and must not be paused or playing. While in CD mode: In CD mode, with the CD you wish to programme in the CD compartment and stopped: Press to enter CD programmed play mode <T01 P01> will be displayed. Use or to go to the track number that you would like to program to play rst. Press to conrm. You will now be able to select the second track that you would like to program. Continue to select each track as above, up to a total of 20 tracks. Press to play the programmed tracks. To exit programmed play mode, press twice. Caring for compact discs

• Do NOT touch the playback side of the CD.

• Do NOT attach paper or tape or any other material to the disc.

• Fingerprints and dust on the disc will cause sound deterioration. Wipe the disc from the centre outwards with a soft cloth Always keep the disc clean.

• If dust or marks cannot be removed with a soft cloth, wipe the disc lightly with a slightly damp soft cloth and then wipe with a soft dry cloth.

• Do NOT use any type of solvent, commercially available cleaners or antistatic spray for vinyl as it may damage the disc.

• Do NOT store discs in a place subject to direct sunlight or near a heat source.

• Do NOT store discs in a place subject to moisture or dust, such as a bathroom or near a humidier. Bluetooth mode Ensure your micro system is in Bluetooth mode by short pressing until the radio displays <Bluetooth>. Your micro system will begin to search for Bluetooth devices. Ensure the Bluetooth-enabled device you are connecting to is discoverable. NOTE: If necessary, refer to the instructions for your device to add or set up Bluetooth. When found, your micro system will be displayed as ‘SHARP XL-B520D’ on your device. Select this to begin pairing. Once done, <Connected> will be displayed on your radio. Paired devices will connect to the micro system when they are within range (within 10 metres in line of sight). Your device will remain paired with the radio unless you decide to disconnect it. To disconnect from Bluetooth, long press for 3 seconds to unpair your current device and search for new devices. Wirelessly stream music via Bluetooth In Bluetooth mode, you can wirelessly stream audio through the micro system. Use the controls on your paired Bluetooth device as well as those on your micro system. Controls available:

• Next track: Short press Volume can also be adjusted – either using your micro system and/or your connected device. NOTE: If the micro system is inactive for 20 minutes, or no audio signal is being received, the micro system will automatically go into standby. USB mode Ensure your micro system is in USB mode by short pressing until the micro system displays <USB>. Insert the USB stick which has the MP3 les you wish to play into the USB input. NOTE: If the USB does not insert easily, try rotating it by 180 degrees and try again. Never force the USB stick into the socket or try to insert it at an angle as this could damage the socket. NOTE: USB drives up to 64GB FAT32 are supported. The following controls are available when using a USB: Short press to Play/Pause. Short press to move to previous track. Long press to rewind within a track. Short press to move to next track. Long press to forward within a track. Press to stop. NOTE: To navigate the folders on the USB, use and on the remote control. Aux in mode To change to an Aux-input, short press until the micro system displays <Aux in>. Use a 3.5mm audio input connection cable (not included) for a quick and easy connection to an external audio source. Connect one end of the 3.5mm audio connection cable to the headphone (or auxiliary out) socket of your secondary device, connect the other end to the Aux in socket on the rear of your micro System. Press the Play button on your external device to start playback through the micro System speakers. To gain optimal volume levels, adjust the output volume level on both the secondary device and on the micro System. NOTE: It is recommended that you unplug the Audio cable from the Aux in socket after you have nished listening to your external device.EN Alarm functionality Set an alarm NOTE: Check that the micro system is displaying the correct time and date before you set an alarm. DAB+ Full Scan Manual Tune System DRC Sleep Prune Alarm System Time Backlight

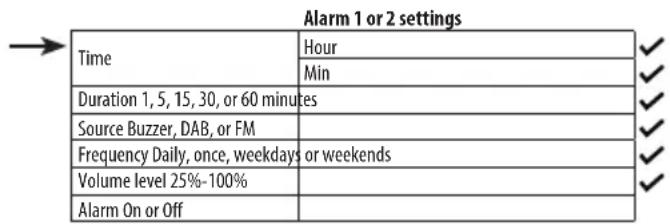

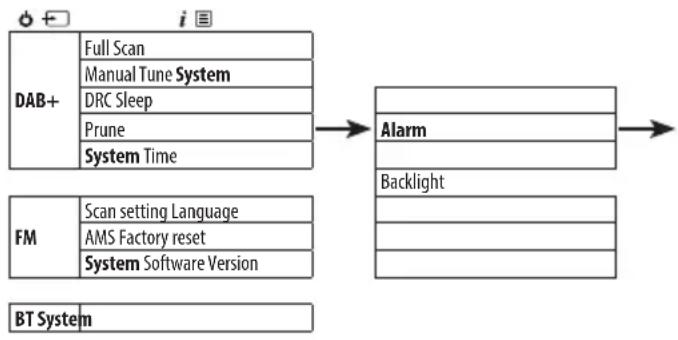

Scan setting Language AMS Factory reset System Software Version BT System Alarm Alarm 1 Setup Alarm 2 Setup Alarm 1 or 2 settings Time Hour Min Duration 1, 5, 15, 30, or 60 minutes Source Buzzer, DAB, or FM Frequency Daily, once, weekdays or weekends Volume level 25%-100% Alarm On or O NOTE: If the time is not set or has failed to update from the radio signal, <Time is not set> will be displayed when you try to set the alarm. The micro system will then prompt you to set the time. An alarm can only be set after the time has been set. Stop, snooze or switching the alarm o To stop the alarm, short press ,<Alarm o> will be displayed. The alarm symbol will remain in the display and will sound again at the same time the next day unless it was set for <Once>. To snooze the alarm, press . <Snooze> will be displayed, followed by a 10-minute countdown. Once the countdown ends, the alarm will sound again. You can terminate snooze by pressing . <Alarm o> will be displayed. To switch o the alarm, follow the steps for ‘Set an alarm’ and select <O>. Sleep timer You can set your micro system to switch to standby mode automatically using the sleep timer. You can choose from <Sleep o>, <15>, <30>, <45>, <60> and <90> minutes. To do this, long press . Use to scroll and select <System> / <Sleep>. Use to scroll and select your preference. <Sleep> will be displayed. In the top right of the micro system display, the number of minutes until your micro system will switch to standby mode will be displayed e.g., S90. Display backlight timeout To adjust the display backlight timeout, long press . Use to scroll to and select <System> / <Backlight> / <Timeout>. Scroll through the available backlight timeout options. The current setting will have an asterisk (*) in the display. Press to select. Similarly, use to change the settings for the backlight brightness for the <Dim level> and <On level>. There are 3 options available: <High>, <Medium>, and <Low>. Display language To change the display language, long press . Use to scroll and select <System> / <Language>. Use to scroll and select your preferred language. There are 7 options available: English, French, German, Italian, Spanish, Polish, and Dutch. An asterisk (*) will be displayed next to the current language setting. Software version To check the software version of your micro system, long press . Use to scroll and select <System> / <SW Version>. The software version will be displayed. Factory reset You can reset your micro system to restore it to the original factory settings. NOTE: If you reset your micro system, your stored presets will be deleted and any connected Bluetooth device will be unpaired. Long press . Use to scroll and select <System> / <Factory reset>. <Factory Reset? <No> Yes> will be displayed. Use

scroll and select <Yes>. <Restarting…> will be displayed. After a few seconds, the display will change to <SHARP sharpconsumer.eu> and will then go to standby mode. Troubleshooting If there is no sound or power:

• Check that the power cable is connected and that the micro system is not in standby mode.

• If you have headphones connected, audio will play through them. Unplug your headphones to listen through the micro system speakers.

• Ensure you are in the correct mode, and using the correct control functions for that mode.

• If you are using a Bluetooth connected device or an external sound source via Aux-in, increase the volume on the secondary device and on the micro system. If the radio reception is poor: Make sure that you have fully extended the aerial. Rescan for radio stations, see sections ‘Scanning for DAB stations’ and/or ‘Tune to an FM station’ as appropriate. Try moving your micro system to another location to see if the reception improves. Check that you do not have other electrical equipment close to your micro system. This may cause interference. If a CD does not play:

• Check that you are in CD mode.

• Remove the CD and check that it is not scratched or damaged as this will not play.

• Please check that you are using an original audio CD and not a copy. If the CD is not an original, playback may not be supported (depending on the CD and audio le types being used). If you are unable to pair with a Bluetooth device: Check that you are in Bluetooth mode. Ensure that you are within 10 metres of the micro system for Bluetooth functionality. Move the micro system and Bluetooth device away from other Bluetooth devices/electrical equipment. If possible, turn o other nearby Bluetooth devices or disable their Bluetooth functionality.9 If the function buttons do not respond:

• Check that the mains power is connected at the back of your micro system. Short press the (Power/Mode) button.
