USER MANUAL 105 Testo

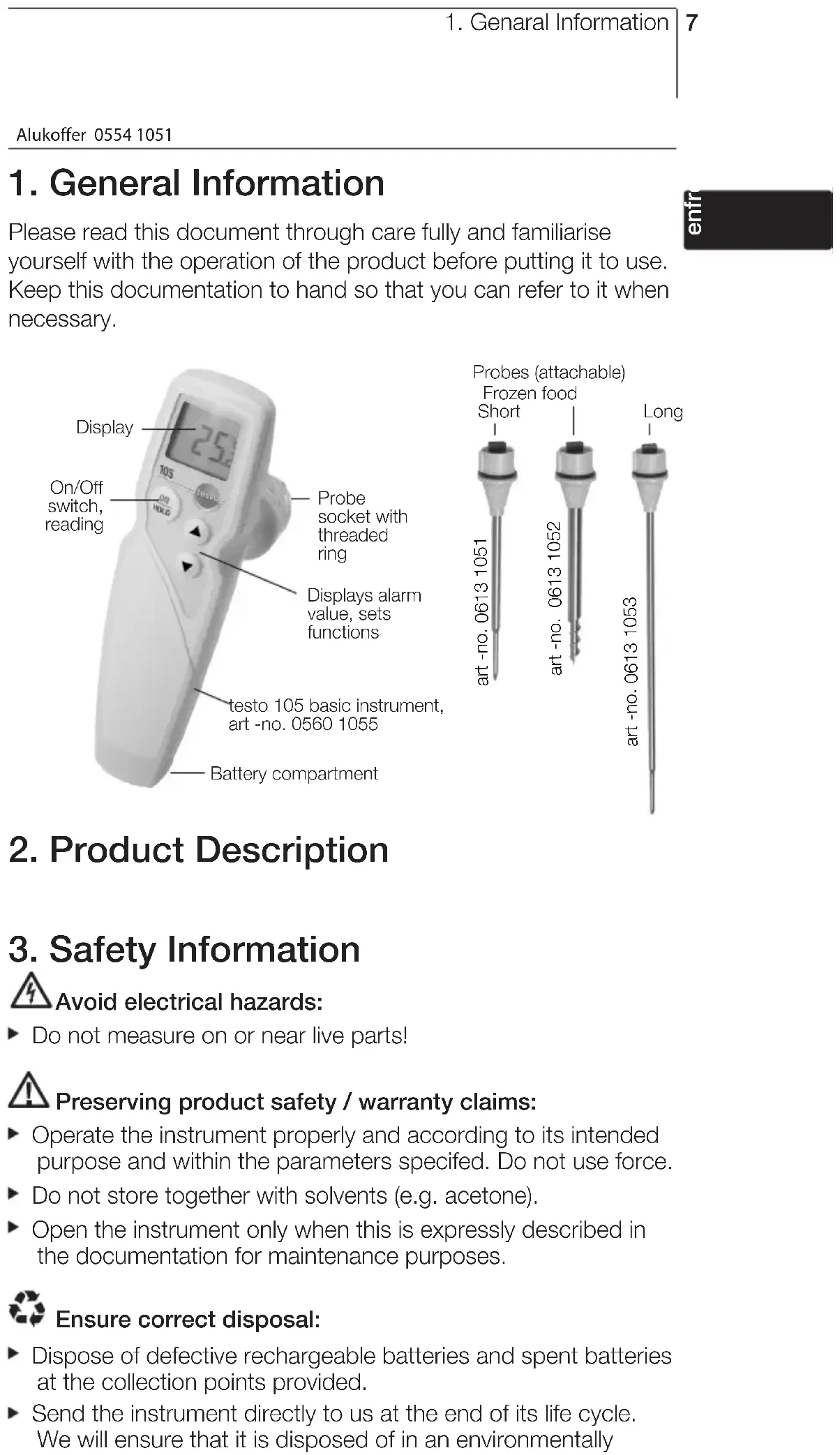

Please read this document through care fully and familiarise yourself with the operation of the product before putting it to use. Keep this documentation to hand so that you can refer to it when necessary.

Avoid electrical hazards: Do not measure on or near live parts! Preserving product safety / warranty claims: Operate the instrument properly and according to its intended purpose and within the parameters specifed. Do not use force. Do not store together with solvents (e.g. acetone). Open the instrument only when this is expressly described in the documentation for maintenance purposes. Ensure correct disposal: Dispose of defective rechargeable batteries and spent batteries at the collection points provided. Send the instrument directly to us at the end of its life cycle. We will ensure that it is disposed of in an environmentally

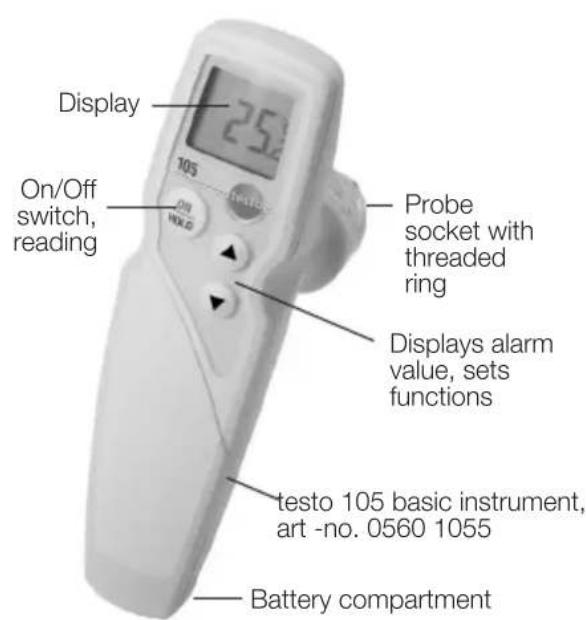

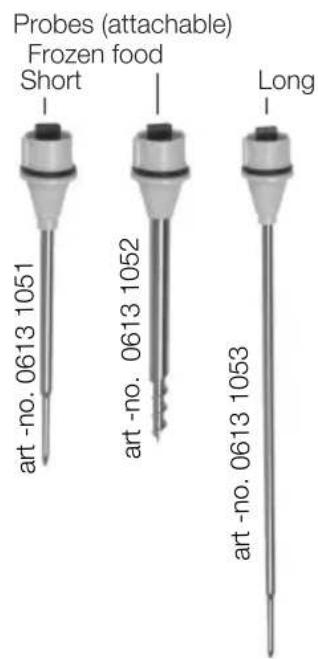

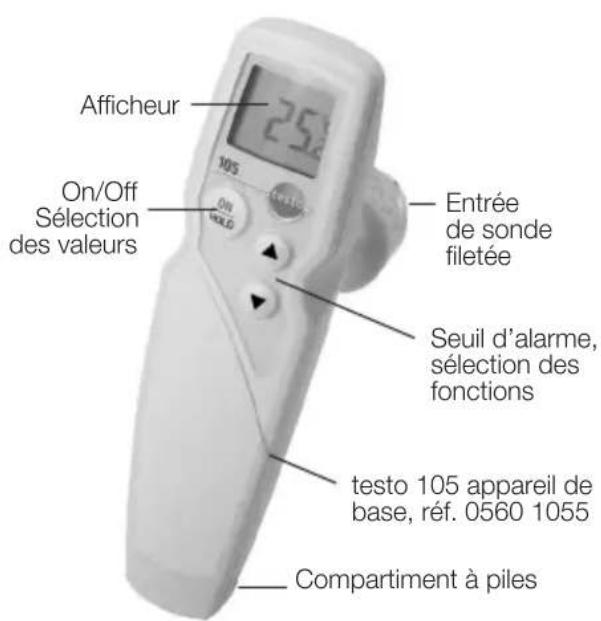

Displays alarm value, sets functions On/Off switch, reading Battery compartment Probes (attachable) Frozen food Short Long Display Probe socket with threaded ring testo 105 basic instrument, art -no. 0560 1055 art -no.

testo 105 is a robust food thermometer to measure the temperature of semi-solid substances. Depending on the probe used, the thermometer can be used in the following sectors: gastronomy, refrigeration, industrial kitchens, supermarkets, Incoming goods inspections, HACCP. The following components of the product are designed for continuous contact with foodstuffs in accordance with the regulation (EC) 1935/2004: The measurement probe up to 1 cm before the probe handle or the plastic housing. If provided, the information about penetration depths in the instruction manual or the mark(s) on the measurement probes should be noted.

Feature Values Measurement range -50 to +275 °C Resolution 0.1 °C Accuracy ±0.5 °C at -20 to +100 °C ±1 °C at -50 to -20.1 °C ±1 % at +100.1 to +275 °C Response time t99* Probe short / long: 10s, frozen food probe: 15s (in frozen meat: approx. 60s) Measuring rate 2 measurements per second Working temperature -20 to +50°C Transport/ Storage temperature -40 to +70°C Power supply 4 x round cell type LR44 Battery life 80 h (typically) Housing ABS Protection class IP65 (with attached probe) Dimensions (without probes) 145 x 95 x 38 mm CE guideline 2014/30/EU Warranty 2 years, warranty conditions: see www.testo.com/ warranty

• Measured in moving liquid. Information on standards This product fulfills guidelines in accordance with the EN 13485 standard. Suitability: S, T (storage, transport) Environment: E (transportable thermometer) Accuracy class: 0.5 Measurement range: -50 to +275 °C According to EN 13485, the measuring instruments should be checked and calibrated regularly under the terms of EN 13486 (Recommended: Yearly). Contact us for more information.6. Initial Operation 9

6. Initial Operation

1 Pull out battery compartment. 2 Insert battery (4 x Type LR44). Watch out for +/-. 3 Reinsert battery compartment.

If the signal sound is switched on, there will be a sound every time

Hold Max Min is pressed and alarm limits are exceeded. If the light is switched on, the display light will light up for 5s every time a button is pressed or alarm limits are exceeded. If Auto Off is switched on, the instrument switches off automatically after 10 minutes if no button has been activated. If Auto Hold is switched on, AUTO HOLD flashes. Once the reading is stable within a fixed time duration, it will be frozen. AUTO HOLD lights up. Restart measurement: Hold Max Min

7.1 Switching On/Off

Switch on instrument:

Switch off instrument: Keep Hold Max Min pressed.

Observe required immersion/penetration depth for correct measurement results: Probe short/long: > 35 mm, frozen food probe: > 50 mm. Instrument is switched on. Immerse/penetrate or screw in probe into object being measured. - The current reading is shown. Holding reading manually Hold reading: Hold Max Min

- Reading is frozen and HOLD lights up. Restart measurement:

Exceeding the alarm value - ALARM and (upper alarm value exceeded) or (lower alarm value exceeded) light up.

Instrument is switched on. 1 Show set upper alarm value ( ): . -or- Show set lower alarm value ( ): . 2 Set alarm value: or . Keep button pressed to increase setting speed. 3 Return to measurement:

The instrument is switched off. 1 Open configuration mode: Keep

If Auto Hold has been switched on: Set time duration (5, 10, 15 or 20s) at which a reading has to be stable (change lower than 0.2°C) for it to be frozen: . Confirm selection:

4 Switch sound ( ) on ( ) or off ( ): . Confirm selection:

5 Switch light ( ) on ( ) or off ( ): . Confirm selection:

6 Switch Auto Off on ( ) or off ( ): . Confirm selection:

- Configuration is complete. The instrument changes to the measurement mode.9. Service and Maintenance 11

9. Service and Maintenance

9.1 Changing the probe

The instrument must be switched off. 1 Turn threaded ring in an anti-clockwise direction and remove the probe. 2 Attach new probe (observe guides) and screw on threaded ring in a clockwise direction.

9.2 Changing the battery

1 Take out the battery compartment. 2 Remove empty batteries and put in new batteries (4 x Type LR44). Observe +/- 3 Reinsert battery compartment.

9.3 Cleaning the instrument

Do not use any abrasive cleaning agents or solutions. Clean the housing and probe with a damp cloth (soap water).

10. Questions and Answers

Question Possible causes Possible solution lights up. Batteries empty Change batteries. - - - lights up. Measurement range Measurements can only exceeded. be carried out in the range specified. Instrument cannot be Batteries empty. Change batteries. switched on. Instrument switches Auto Off function Switch off Auto Off function itself off. is switched on. (See Switching on instrument). If we have not answered your question, please contact your local dealer or Testo´s Customer Service. For contact details, please visit www.testo.com/service-contact

??12 testo 105 with penetration probes short, long and frozen food, belt holder 0563 1052 testo 105 with frozen food penetration probe, belt holder 0563 1054 Aluminium case 0554 105113
