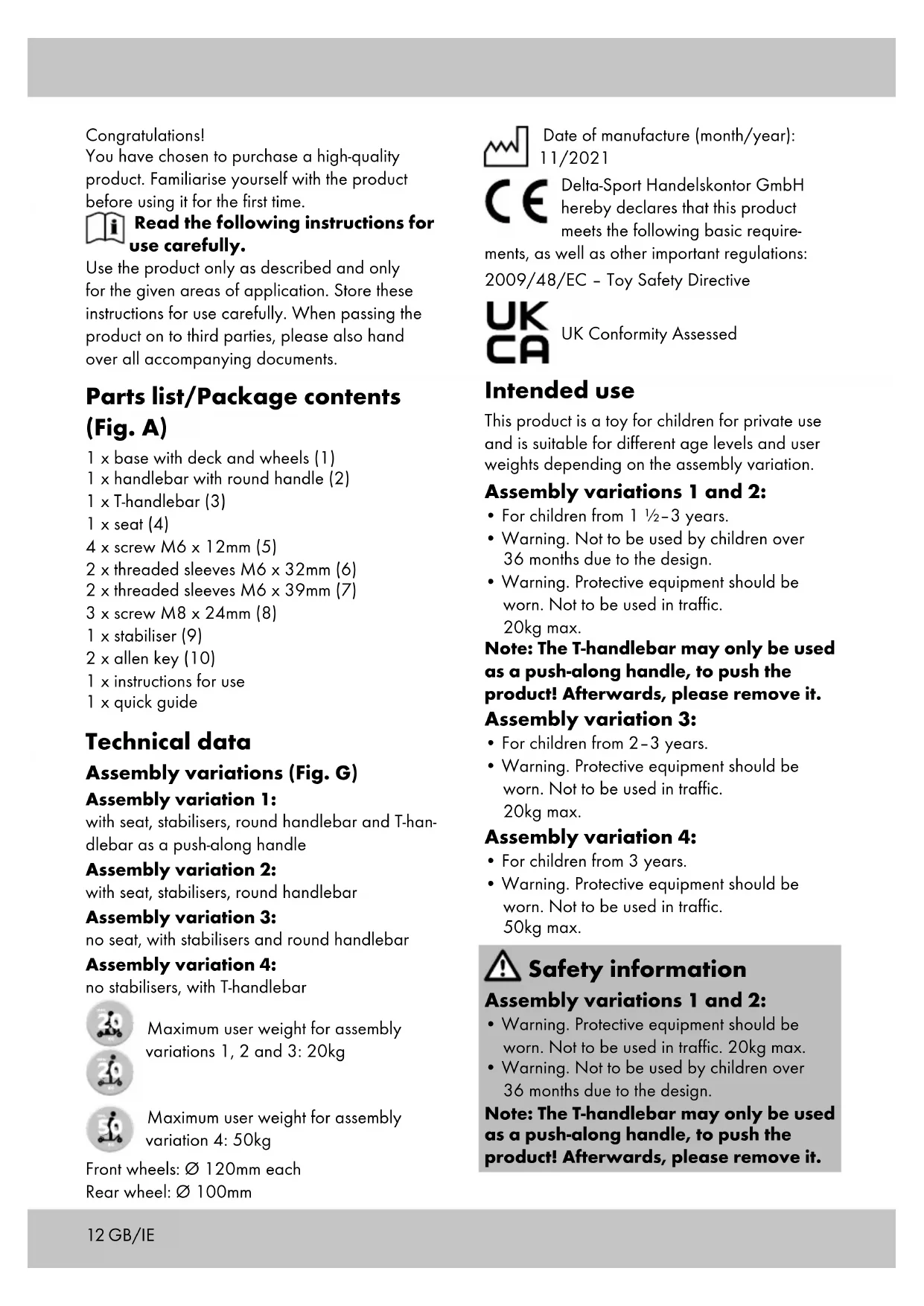

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Parts list/Package contents (Fig. A)

1 x base with deck and wheels (1)
1 x handlebar with round handle (2)
1 x T-handlebar (3)
1 x seat (4)
4× screw M6× 12mm (5)
2 × threaded sleeves M6 × 32mm (6)
2× threadedleevesM6×39mm(7)
3× screw M8× 24mm (8)
1 x stabiliser (9)
2xallenkey(10)
1 x instructions for use
1 x quick guide

Technical data

Assembly variations (Fig. G)

Assembly variation 1:

with seat, stabilisers, round handlebar and T-handlebar as a push-along handle

Assembly variation 2:

with seat, stabilisers, round handlebar

Assembly variation 3:

no seat, with stabilisers and round handlebar

Assembly variation 4:

no stabilisers, with T-handlebar

Maximum user weight for assembly variations 1, 2 and 3: 20kg

Maximum user weight for assembly variation 4:50kg

Front wheels: 120mm each

Rear wheel: 0100mm

Date of manufacture (month/year): 11/2021

Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic require

ments, as well as other important regulations: 2009/48/EC - Toy Safety Directive

UK Conformity Assessed

Intended use

This product is a toy for children for private use and is suitable for different age levels and user weights depending on the assembly variation.

Assembly variations 1 and 2:

• For children from 1 12 - 3 years.
• Warning. Not to be used by children over 36 months due to the design.
• Warning. Protective equipment should be worn. Not to be used in traffic. 20kg max.

Note: The T-handlebar may only be used as a push-along handle, to push the product! Afterwards, please remove it.

Assembly variation 3:

• For children from 2-3 years.
• Warning. Protective equipment should be worn. Not to be used in traffic. 20kg max.

Assembly variation 4:

• For children from 3 years.
• Warning. Protective equipment should be worn. Not to be used in traffic. 50kg max.

Safety information

Assembly variations 1 and 2:

• Warning. Protective equipment should be worn. Not to be used in traffic. 20kg max.
• Warning. Not to be used by children over 36 months due to the design.

Note: The T-handlebar may only be used as a push-along handle, to push the product! Afterwards, please remove it.

Assembly variation 3:

• Warning. Protective equipment should be worn. Not to be used in traffic. 20kg max.

Assembly variation 4:

• Warning. Protective equipment should be worn. Not to be used in traffic. 50kg max.

Assembly variations 1, 2, 3 and 4: WARNING!

• None of the packaging materials and fittings are part of the toy itself, and must be removed for safety reasons before giving the product to children to play with.
  Children may only play with the product under supervision.

Risk of injury!

• Adult assembly only due to small parts!
  The product may only be used by one person at a time.
• Check the product for damage or wear before each use. Always check that all fasteners are tight. The product should only be used if it is in perfect condition!
• Make sure that the screws and threaded screws retain their self-locking properties.
• Do not modify the product in a way that might endanger your safety.
• Always wear suitable protection (helmet, hand protectors, elbow pads, knee pads and wrist guards) and shoes!
• Always show consideration for other people!
• Use the product only on suitable surfaces that are smooth, clean and dry. Keep away from other traffic users, if possible.

Avoid sloping terrain, stairs and open water.

• Never ride in the dark or when visibility is poor.
• Do not let your child use the product unsupervised, as children cannot assess potential dangers.
• Using the product requires skill to prevent falls or collisions, which could result in injury to the user or others.

Preventing damage to the product!

• Avoid water, oil, potholes and very rough surfaces.

Assembly

Assembling the handlebar (Fig. B)

You will need the base (1) and, for the assembly variations 1, 2 and 3, the round handlebar (2) and the T-handlebar (3) for assembly variation 4.

Press the pin (2a, 3a) and insert the handlebar into the base.

Important: Make sure that the handlebar locks into place in the base.

Assembly variations 1 and 2 (Fig. C)

Place the seat (4) on the base (1). Make sure that the holes on the seat and the base are lying on top of each other.

Insert the short sleeves (6) from above through the two front holes and secure them from below with two screws (5).

Insert the long sleeves (7) from above through the two rear holes on the seat and the rear holes on the stabiliser (9).

Secure them from below with two screws (5). Put a screw (8) into the front hole of the stabiliser and tighten it (Fig. D).

Use the Allen key (10) provided for the assembly and lock all screws and threads.

Note: The T-handlebar can be used as a push-along handle for assembly variation 1.

Press the pin (3a) on the T-handlebar (3) inwards and insert the T-handlebar (3) into the opening on the seat (4). The pin (3a) must audiably click into place.

Assembly variation 3 (Fig. E)

Secure the stabilisers (9) in the rear three holes with the screws (8) and tighten the screws with one of the Allen keys (10) provided.

Adjusting the height of the seat (Fig. F)

The seat can be adjusted to various heights from approx. 26 - 32cm

To do this, loosen the locking screw (4a) and adjust the seat to the desired height.

Tighten the locking screw again.

Disassembly

Disassembling the handlebars

Press the pin (2a, 3a) on the back of the base and pull out the handlebar (Fig. B). To remove the handlebar from the seat, press the pin (3a) and pull the handlebar out.

Disassembling the seat (Fig. C)

Loosen the screws and remove the threaded sleeves. Take off the seat.

Use

Riding

Depending on the assembly variation, either sit on the seat and give momentum by regularly pushing off with both legs, or, if using without the seat, put one leg on the deck and give momentum by regularly pushing off with the other leg. The product is steered by shifting your weight.

Braking

For the assembly variation with a seat, apply the brakes by setting both feet on the ground. When using without the seat, you can brake by pressing one foot on the rear wheel friction brake.

Maintenance

Replacing the front wheels

You can replace the front wheels.

Important!

Pay attention to the technical specifications. Wheels with a different diameter, may alter the riding properties and possibly endanger the user.

Do not use wheels that cannot be installed properly.

Never use wheels that are larger than the original wheels on the product.

Wheels wear out. This wear depends on many factors, such as, for example, the terrain, the size and weight of the user, the weather conditions, the material of the wheels and their hardness, etc. Therefore, it is necessary to replace them now and then.

1. Using a suitable Allen key, loosen the screws of the two front wheels and remove them.
2. Install the new wheels and secure them with the screws.

After replacing the wheels: After the first few minutes of riding, make sure that the screws are still tight and that nothing has detached or become loose.

Tension the wheel once more to make sure that it is running quietly.

Storage, cleaning

We recommend that you clean and dry the product thoroughly after use.

Remove small stones or other objects that may have got caught on the wheels. Always store the product in a dry place.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol - which

is meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.
