Product type	Three-wheeled scooter (Tri-Scooter)
Brand	Playtive
Model	IAN 374104
Recommended age	From 3 years
Maximum user weight	50 kg
Front wheel diameter	120 mm
Rear wheel diameter	100 mm
Bearing type	ABEC 5
Handlebar height (adjustable)	3 levels, up to approx. 76 cm
Adjustment mechanism	Locking pin and quick-release clamp
Frame material	Metal (steel or alloy)
Product weight	Approx. 3.5 kg (estimate)
Color	Not specified (typically grey/blue)
Power supply	None (non-electric scooter)
Lighting	Integrated non-replaceable LED
Usage	Smooth, clean, dry surfaces, off public roads
Recommended safety equipment	Helmet, hand, wrist, elbow and knee protectors
Maintenance	Clean after use, check screws and nuts
Spare parts available	Front wheels (replaceable)
Warranty	3 years (excluding normal wear)

Frequently Asked Questions - IAN 374104 Playtive

How to assemble the Playtive IAN 374104 scooter?

Assembly is done in two parts: insert the handlebar grip into the lower part of the Tri-Scooter by pressing the locking pin. Make sure the pin engages properly. Caution: risk of pinching!

What is the maximum allowed weight for this scooter?

The maximum user weight is 50 kg. Do not exceed this limit to avoid risk of injury or damage to the device.

How to adjust the handlebar height?

Loosen the quick-release clamp, pull the T-tube upward until the locking button engages in one of the three holes, then retighten the clamp. The maximum height is approximately 76 cm.

Can the wheels of this scooter be replaced?

Yes, the front wheels are replaceable. Use wheels of the same diameter (120 mm) to avoid altering the riding characteristics. Loosen the screws with an Allen key, install the new wheels, and retighten.

How to clean and maintain the Playtive scooter?

Clean the scooter after each use with a damp cloth and dry it thoroughly. Remove any stones stuck in the wheels. Regularly check the tightness of screws and nuts. Store it in a dry place.

Is there a warranty on this product?

Yes, a 3-year warranty is offered by DELTA-SPORT HANDELS-KONTOR GmbH, covering material and manufacturing defects. Wear parts (wheels, batteries) are excluded. Keep the receipt.

Is this scooter suitable for children under 3 years old?

No, it is not suitable for children under 36 months due to small parts that could cause choking. Use must always be under adult supervision.

Can the scooter be used on public roads?

No, use on public roads is prohibited. It is designed for private use on smooth, clean, dry surfaces, away from other road users.

What to do if the handlebar does not stay in place?

Check that the locking pin is properly engaged in one of the holes. If the quick-release clamp is loose, tighten the knurled screw using the provided hex key. Make sure the device is locked securely.

How to store the scooter to protect it?

Store it in a dry place, away from moisture and extreme temperatures. You can disassemble the handlebar by pressing the pin for more compact storage.

USER MANUAL IAN 374104 Playtive

Two identical grayscale electric scooter scooters with wheels, shown from different angles (no text or symbols visible)

PDF ONLINE www.lidl-service.com

TRI-SCOOTER MIT LED-ROLLEN TRI-SCOOTER WITH LED WHEELS TROTTINETTE À 3 ROUES LED

DE AT CH

TRI-SCOOTER MIT

LED-ROLLEN

Gebrauchsanweisung

FR BE

TROTTINETTE À 3 ROUES LED

TRI-SCOOTER WITH LED WHEELS

Instructions for use

NL BE

TRI-STEP MET LED-WIELEN

Gebruiksaanwijzing

CZ

DĚTSKÁ TROJKOLOBĚŽKA S LED KOLEČKY

Návod k použití

ES

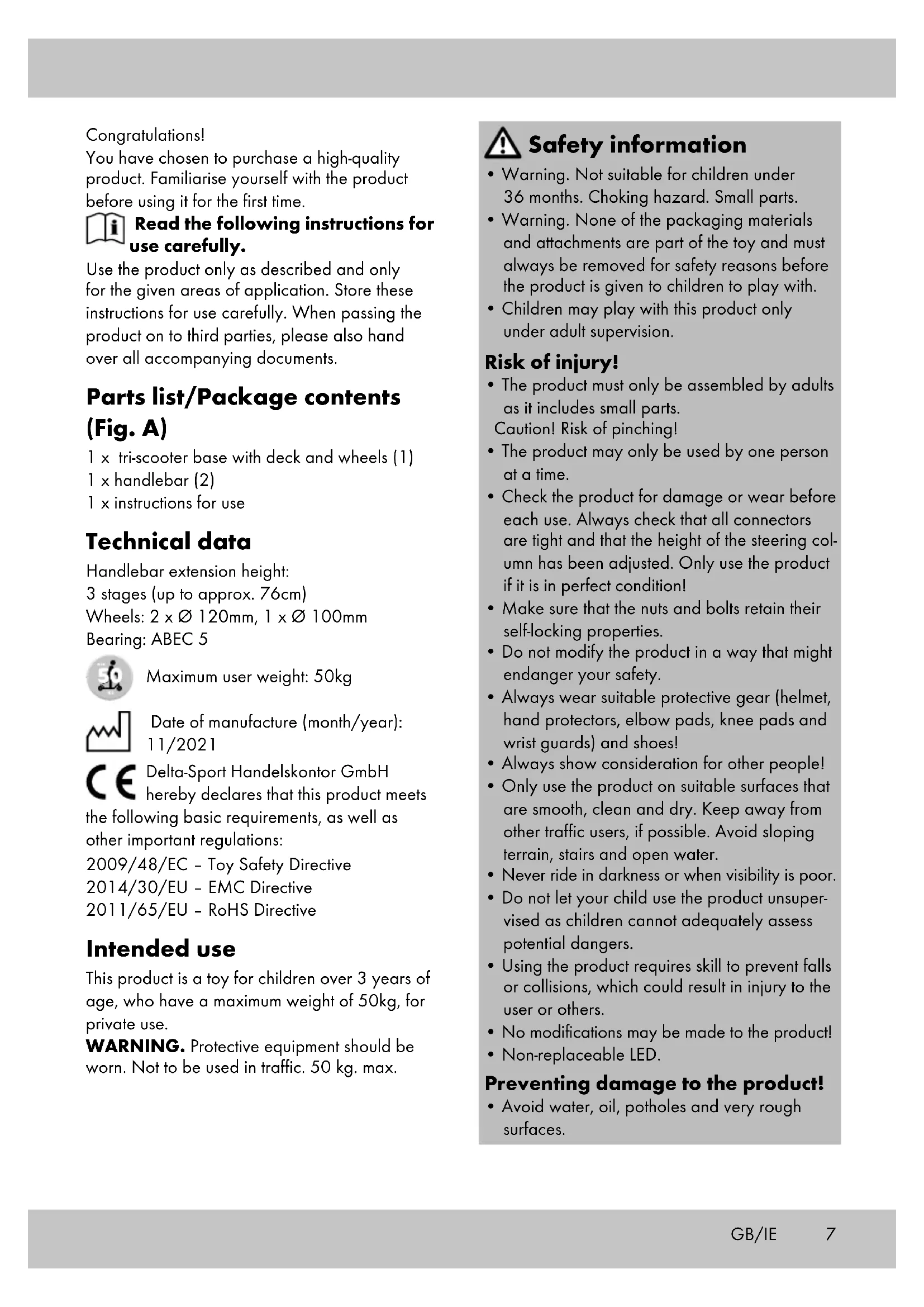

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Parts list/Package contents (Fig. A)

1 x tri-scooter base with deck and wheels (1)
1 x handlebar (2)
1 x instructions for use

Technical data

Handlebar extension height:

3 stages (up to approx. 76cm)

Wheels: 2 x ∅ 120mm, 1 x ∅ 100mm

Bearing: ABEC 5

Maximum user weight: 50kg

Date of manufacture (month/year): 11/2021

Delta-Sport Handelskontor GmbH hereby declares that this product meets

the following basic requirements, as well as other important regulations:

2009/48/EC - Toy Safety Directive

2014/30/EU - EMC Directive

2011/65/EU - RoHS Directive

Intended use

This product is a toy for children over 3 years of age, who have a maximum weight of 50kg, for private use.

WARNING. Protective equipment should be worn. Not to be used in traffic. 50 kg. max.

Safety information

• Warning. Not suitable for children under 36 months. Choking hazard. Small parts.
• Warning. None of the packaging materials and attachments are part of the toy and must always be removed for safety reasons before the product is given to children to play with.
  • Children may play with this product only under adult supervision.

Risk of injury!

• The product must only be assembled by adults as it includes small parts. Caution! Risk of pinching!
• The product may only be used by one person at a time.
• Check the product for damage or wear before each use. Always check that all connectors are tight and that the height of the steering column has been adjusted. Only use the product if it is in perfect condition!
• Make sure that the nuts and bolts retain their self-locking properties.
• Do not modify the product in a way that might endanger your safety.
• Always wear suitable protective gear (helmet, hand protectors, elbow pads, knee pads and wrist guards) and shoes!
  • Always show consideration for other people!
• Only use the product on suitable surfaces that are smooth, clean and dry. Keep away from other traffic users, if possible. Avoid sloping terrain, stairs and open water.
• Never ride in darkness or when visibility is poor.
• Do not let your child use the product unsupervised as children cannot adequately assess potential dangers.
• Using the product requires skill to prevent falls or collisions, which could result in injury to the user or others.
• No modifications may be made to the product!
  • Non-replaceable LED.

Preventing damage to the product!

- Avoid water, oil, potholes and very rough surfaces.

Assembly (Fig. B)

The product is delivered in two parts. Assemble as follows:

• Take the product out of the packaging, press the locking pin (3) and insert the handlebar (2) into the Tri-Scooter base (1).

Important: Make sure that the handle-bar locks into place in the Tri-Scooter base. Caution! Risk of pinching!

Adjusting the height of the handlebar (Fig. C)

The handlebar can be adjusted to three different heights. The product may only be used if the locking knob is locked in place in one of the three holes provided and the T-tube is then secured using the quick-release fastener.

1. Loosen the quick-release fastener (4) on the handlebar (2).
2. Pull the T-tube (5) upwards, until the locking knob (6) locks into place in one of the three holes (7).
3. Secure the T-tube (5) by locking the quick-release fastener (4).

Note: if the quick release fastener (4) does not fit snugly on the handlebar (2) when tightening, tighten the knurled screw (8) firmly with a hex key.

Make sure that the quick release fastener (4) is secured before tightening.

Disassembly

Press the pin (3) on the back of the Tri-Scooter's base and pull out the handlebar (2) (Fig. B).

Use

Riding

• Put one foot on the deck and give momentum by regularly pushing off with the other foot.
• The Tri-Scooter can be steered by moving the handlebars, by shifting your weight or using a combination of both.

Maintenance

Replacing the front wheels

The front wheels can be replaced. Important! Pay attention to the technical specifications. Wheels with a different diameter may alter the riding properties and possibly endanger the user. Do not use wheels that cannot be installed properly. Never use wheels that are larger than the original wheels on the product.

Wheels wear out. This wear depends on many factors, including the terrain, the size and weight of the user, the weather conditions, the material of the wheels and their hardness, etc. Therefore, it is necessary to replace them now and then.

1. Using a suitable Allen key, loosen the screws on the two front wheels.
2. Install the new wheels and secure them with the screws.

After replacing the wheels:

After the first few minutes of riding, make sure that the screws are still tight and that nothing has detached or become loose. Tension the wheel once more to make sure that it runs smoothly.

Storage, cleaning

We recommend that you clean and dry the product thoroughly after use. Remove small stones or other objects that may have become stuck to the wheels. Always store the product in a dry place.

Disposal

In the interest of protecting the environ- ment, do not throw your product into the household waste once you are finished but rather take it to a specialty disposal Find out about collection sites and their of operation from your local authority.

Defective or used batteries must be recycled pursuant to Directive 2006/66/EC and changes to it. Return batteries and/or the product via the collecting sites provided.

Packaging materials, such as plastic bags, must be kept away from children. Keep the packaging materials out of reach of children.

Dispose of the product and packaging in an environmentally friendly manner.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a)

and numbers (b) with the following meaning:

1-7: plastics/20-22: paper and card-

board/80-98: composite materials.

The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste. The Triman logo only applies to France. Find out how to dispose of the used product from your municipal or city administration.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt.

The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 374104_2104
