USER MANUAL IAN 271532 Playtive
Instructions for use
IAN 271532
DE AT CH
Lieferumfang 4
Technische Daten 4
To return the Product to its Transport
Condition 17
Use 17
Maintenance 17-18
Care, Storage 18
Disposal Information 18
3-year warranty 18

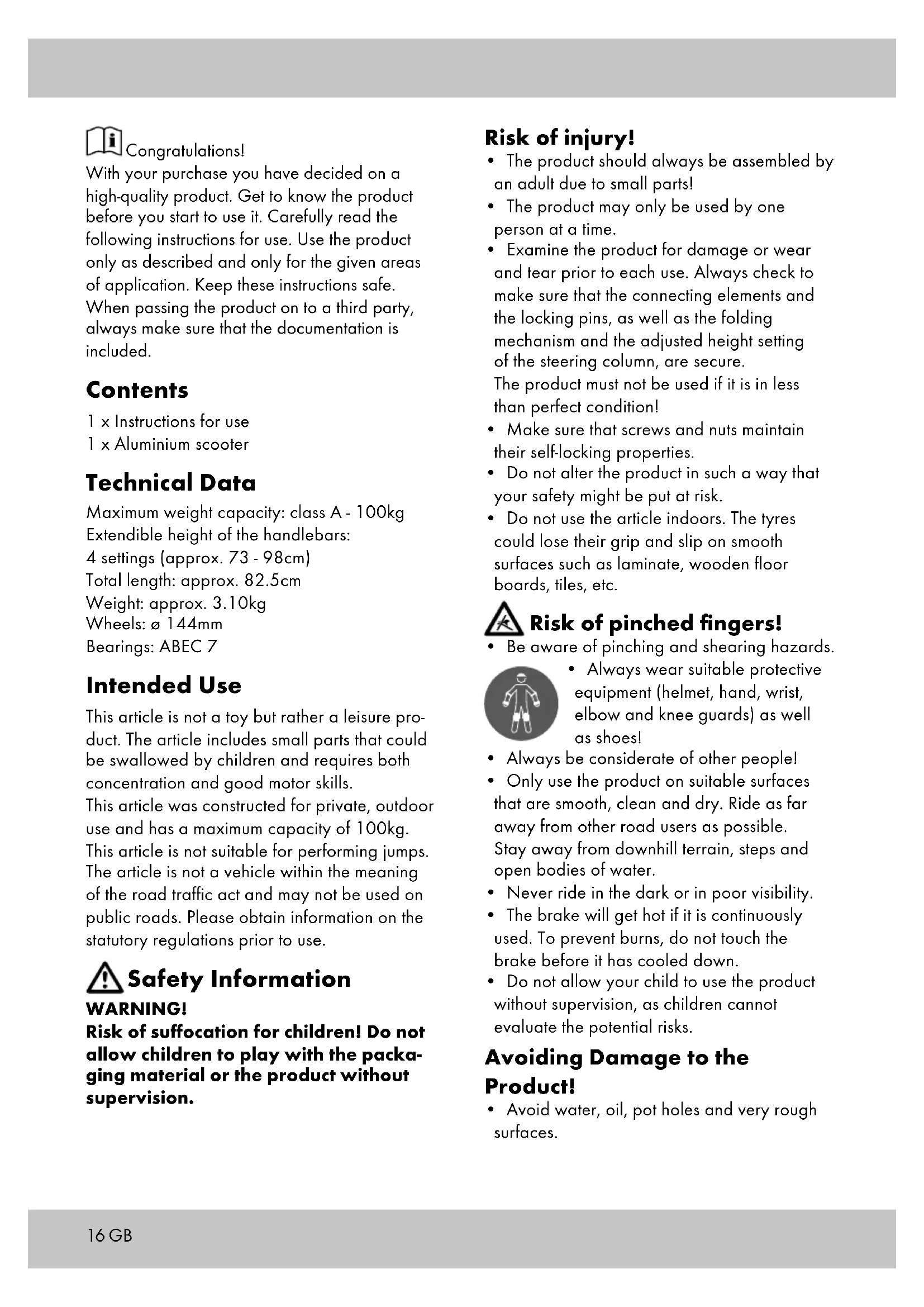

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following instructions for use. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.
Contents
1 x Instructions for use
1 x Aluminium scooter
Technical Data
Maximum weight capacity: class A - 100kg
Extendible height of the handlebars:
4 settings (approx. 73 - 98cm)
Total length: approx. 82.5cm
Weight: approx. 3.10kg
Wheels: 144mm
Bearings: ABEC 7
Intended Use
This article is not a toy but rather a leisure product. The article includes small parts that could be swallowed by children and requires both concentration and good motor skills.
This article was constructed for private, outdoor use and has a maximum capacity of 100kg . This article is not suitable for performing jumps. The article is not a vehicle within the meaning of the road traffic act and may not be used on public roads. Please obtain information on the statutory regulations prior to use.
A
Safety Information
WARNING!
Risk of suffocation for children! Do not allow children to play with the packaging material or the product without supervision.
Risk of injury!
The product should always be assembled by an adult due to small parts!
The product may only be used by one person at a time.
- Examine the product for damage or wear and tear prior to each use. Always check to make sure that the connecting elements and the locking pins, as well as the folding mechanism and the adjusted height setting of the steering column, are secure.
The product must not be used if it is in less than perfect condition!
- Make sure that screws and nuts maintain their self-locking properties.
- Do not alter the product in such a way that your safety might be put at risk.
- Do not use the article indoors. The tyres could lose their grip and slip on smooth surfaces such as laminate, wooden floor boards, tiles, etc.
#
Risk of pinched fingers!
- Be aware of pinching and shearing hazards.
Always wear suitable protective equipment (helmet, hand, wrist, elbow and knee guards) as well as shoes!
Always be considerate of other people!
- Only use the product on suitable surfaces that are smooth, clean and dry. Ride as far away from other road users as possible. Stay away from downhill terrain, steps and open bodies of water.
- Never ride in the dark or in poor visibility.
- The brake will get hot if it is continuously used. To prevent burns, do not touch the brake before it has cooled down.
- Do not allow your child to use the product without supervision, as children cannot evaluate the potential risks.
Avoiding Damage to the Product!
- Avoid water, oil, pot holes and very rough surfaces.
Assembly
(Images are examples for all product variations)
The product is delivered folded up in its transport condition. To make it ready to ride, proceed as follows:
Unfold (Fig. A)
- Loosen the lower quick-release fastener (1).
- Pull the lever (2) upward and fold the steering post (3) forward until it locks in place.
- Secure the folding mechanism by fastening the lower quick-release fastener.
Attach handlebars (Fig. B)
- Release the handlebars (4) from the holders (5).
- Press down on the locking buttons (6) on the handlebars and push the handlebars into the T-pipe (7) on both sides of the steering column. The locking buttons must audiably click into the designated holes (8).

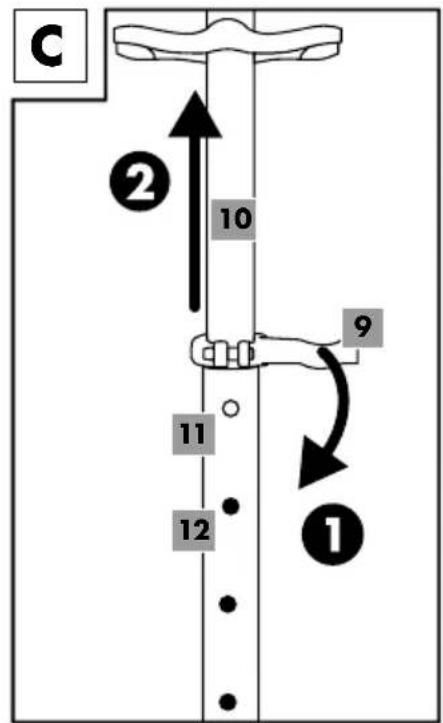

Adjusting the steering post height (Fig. C)
The steering post can be adjusted to four different heights. Only use the product after clicking the locking button into one of the four holes and securing the steering post with the quick-release fastener!
- Loosen the quick-release fastener (9) on the steering post.
- Pull the steering post (10) upward until the locking button (11) locks into one of the four holes (12).
- Secure the steering post by tightening the quick-release fastener.
Steering head bearing (Fig. D)
The steering head bearing is preset at the time of delivery. In the event that the handlebars have too much play after some time or become too stiff, have the steering head bearing adjusted by a speciality retailer or a bicycle shop.
To return the Product to its Transport Condition
- Release the quick-release fastener (9) on the bar, press the locking button (11), slide the bar (10) down as far as possible and lock the quick-release fastener (9).
- Press the locking buttons (6) on the grips, pull the grips out of the T-bar (7) and secure them on the holders (5).

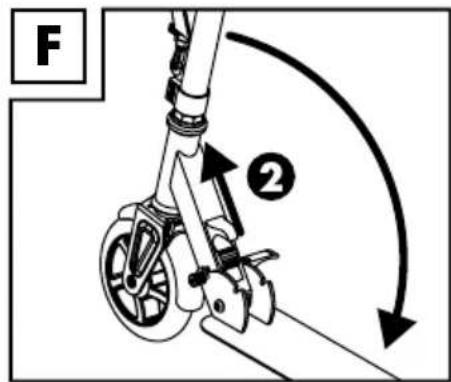

- Loosen the lower quick-release fastener (Fig. E) and pull the lever (2) upward, push the steering post toward the deck until it locks in place (Fig. F). Tighten the lower quick-release fastener (Fig. G).
Use
Riding, braking, parking (Fig. H)
- Place one leg on the deck (13) and regularly and push off with the other leg at regular intervals to create momentum.
- Step on the brake plate to brake (14).
- Unfold the kickstand (15) to park. The product may only be parked on a smooth surface.
Maintenance
Replacing the wheels (Fig. 1) Important! Please observe the technical data. Wheels that have a different diameter can change the riding properties and, in some cases, possibly endanger the user. Do not use wheels that cannot be perfectly mounted.
Never mount wheels that are larger than the product's original wheels.
Wheels wear out. This wear and tear results from many factors, for example the ground, the user's size and weight, the weather conditions, the material of the wheels and their durability. It is thus necessary to replace them from time to time.
- Remove the axle bolts (16) using two setscrew wrenches size 5.
- Remove the axle bolts and remove the wheel.
- Attach the new wheel (17) and secure with the axle bolts.
After replacing:
Do not use if the wheel grinds on the sides following replacement!
Make sure that all screws are still secure and have not loosened after the first few minutes of riding.
Tighten the wheel again to make sure that it runs smoothly and that no noises are coming from the bearings.

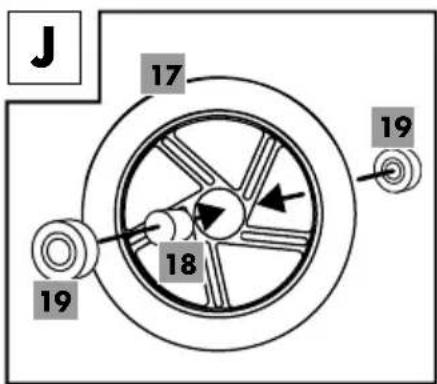

Exchanging the ball bearings (Fig. J)
- Remove wheels (17) as described with an Allen key and (page 17 - 18).
- Remove one bearing by pressing on the spacer (18) with a setscrew wrench and remove the spacer.
- Remove the other bearing (19), pushing it out with an Allen key.
- Insert a new bearing. Flip the wheel, insert the spacer, and then push in a second new bearing.
- Reattach the wheels.
Care, Storage
It is recommended that the product be thoroughly cleaned and dried after being used. Remove small stones or other objects that may have remained on your wheels. Dry off wet or damp ball bearings with a clean cloth.
Oil the bearings from the outside with a suitable bearing oil to prevent rusting. Always store the product in a dry place.
Disposal Information
Dispose of the product and all corresponding components through an approved waste disposal company or through your municipal waste disposal provider. Please observe the currently valid regulations. In case of doubt, ask your waste disposal provider about environmentally sound disposal.
3 years warranty
The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.
The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.
With regard to complaints, please contact the following service hotline or contact us by e-mail.
Our service employees will advise as to the subsequent procedure as quickly as possible.
We will be personally available to discuss the situation with you.
Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.
IAN:271532
GB Service Great Britain
Tel.: 08715000720
(£ 0.10/Min.)
E-mail: deltasport@lidl.co.uk
All items are also available for purchase directly from our online shop: www.delta-sport.info
DELTA-SPORT HANDELSKONTOR GMBH
Wragekamp 6 · D-22397 Hamburg
Version: 02/2016
