Product type	Non-electric scooter (children's toy)
Brand	Playtive
Model	IAN 273315
Use	Outdoor, private use
Recommended age	From 3 years
Maximum user weight	50 kg
Wheel diameter	120 mm
Bearing type	ABEC 5
Adjustable handlebar height	3 levels (approx. 73 - 83 cm)
Folding	Yes, in transport position
Brake	Foot brake on rear fender
Frame material	Aluminum (reasonable estimate)
Scooter weight	Approximately 3 kg (estimate)
Repairability	Replaceable wheels and bearings
Maintenance	Regular cleaning, drying, greasing of bearings
Storage	Away from moisture, in a dry place
Safety	Requires protective gear (helmet, wrist guards, knee pads)
Warranty	3 years
Customer service (Switzerland)	Tel: [phone], email: [e-mail]
IAN number	273315

Frequently Asked Questions - IAN 273315 Playtive

How to unfold the Playtive IAN 273315 scooter?

Unlock the lower quick release, pull the lever up and pull the handlebar forward until it clicks. Lock the quick release.

What is the maximum weight allowed for using this scooter?

The maximum user weight is 50 kg.

How to adjust the handlebar height?

Loosen the quick release on the handlebar, pull the handlebar up until the stop button engages in one of the three holes (heights between about 73 and 83 cm). Tighten the quick release.

What type of bearings does the scooter use?

The bearings are ABEC 5.

How to replace a wheel?

Unscrew the axle bolts with two 5mm hex keys, remove the bolts and take off the wheel. Mount the new wheel and secure it with the axle bolts. Tighten well after a few minutes of use.

How to replace the bearings?

Remove the wheel, push the bearings out of the spacer with a hex key. Press in a new bearing, place the spacer, then press in the second bearing. Reassemble the wheel.

What are the important safety instructions?

Always wear a helmet, wrist guards, elbow pads and knee pads. Use the scooter on smooth, dry surfaces away from traffic. Do not use at night or in poor visibility. Children must be supervised.

How to maintain the scooter?

Clean it after each use, dry the bearings and grease the outside with appropriate grease. Remove gravel from the wheels. Store it in a dry place.

What is the warranty period?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects.

How to fold the scooter for transport?

Loosen the handlebar quick release, press the stop button, push the handlebar down and tighten. Remove the grips and attach them to their holders. Unlock the lower quick release, pull the lever, fold the handlebar towards the footrest until it clicks, then lock.

USER MANUAL IAN 273315 Playtive

Two white electric scooters with wheels, one with a black handle and the other with a gray handle, displayed against a plain background (no text or symbols visible on the scooters themselves).

SCOOTER

DELTA-SPORT HANDELSKONTOR OMBH

Wepsonp 6

0-22397 Forberg

Version: 04/2015

Date: 2014-05

DE AT CH

SCOOTER

Gebrauchsanweisung

IT CH

MONOPATTINO

Instructions for use

田 田 田

Before reading, told out the illustration page and got to know all of the functions of your unit.

GB Instructions and Safety Notice Page 15

IAN 273315

1□

IAN 273315

DE AT CH

FR IT GB

The following table is in English:

Mancerezien 13-14

Scope of delivery 15

Technical data 15 Intended use 15

Safety instructions 15

Fiting 16 Making the article regularly for transport 16

The private ready for the spot minimum 12

Maidenerer 16-17

Marinence, storage 17

3 years warranty 17

23

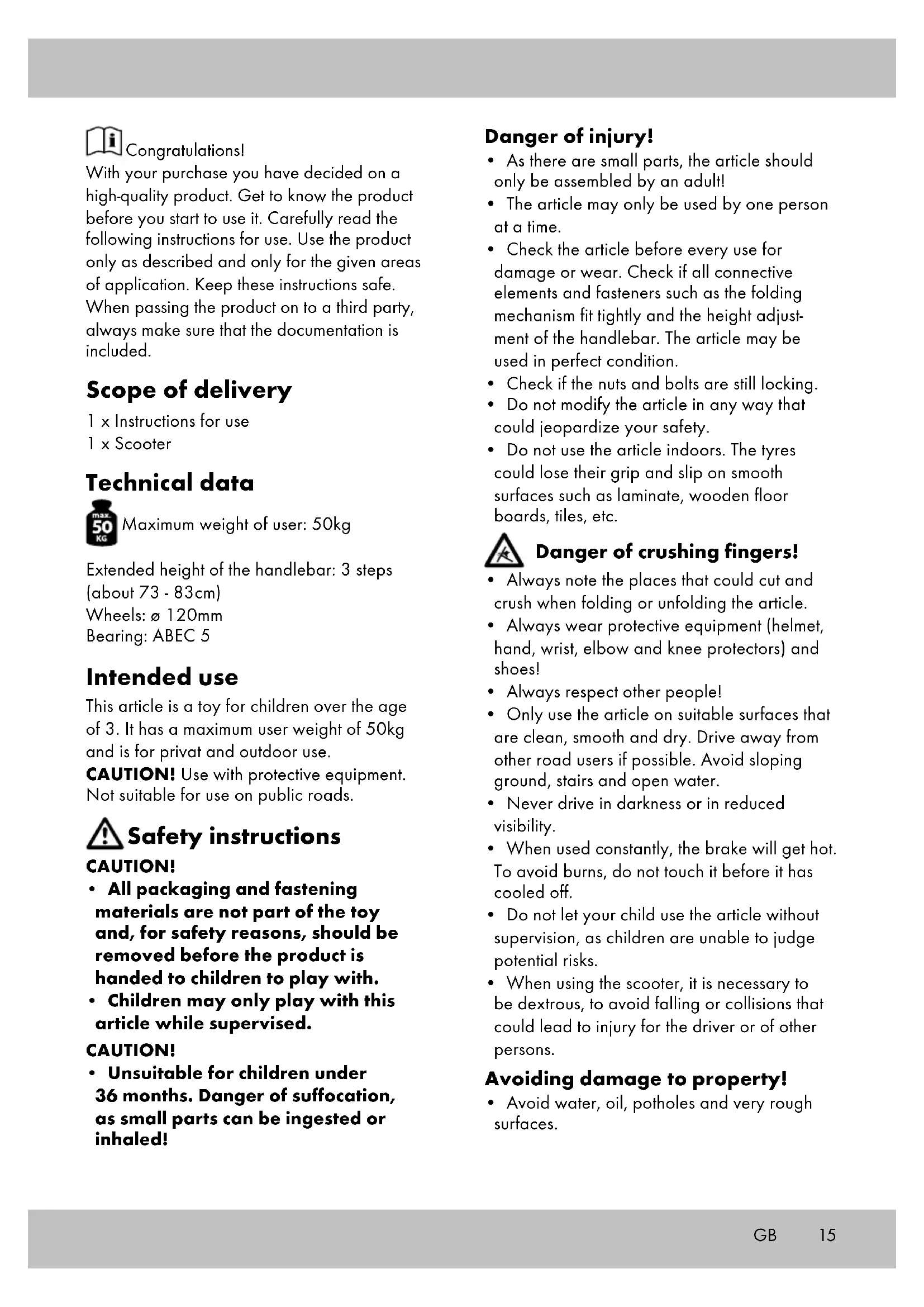

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following instructions for use. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Scope of delivery

1 x Instructions for use

1 x Scooter

Technical data

Maximum weight of user: 50kg

Extended height of the handlebar: 3 steps (about 73 - 83cm)

Wheels: ø 120mm

Bearing: ABEC 5

Intended use

This article is a toy for children over the age of 3. It has a maximum user weight of 50kg and is for privat and outdoor use.

CAUTION! Use with protective equipment. Not suitable for use on public roads.

Safety instructions

CAUTION!

- All packaging and fastening materials are not part of the toy and, for safety reasons, should be removed before the product is handed to children to play with.

• Children may only play with this article while supervised.

CAUTION!

• Unsuitable for children under 36 months. Danger of suffocation, as small parts can be ingested or inhaled!

Danger of injury!

- As there are small parts, the article should only be assembled by an adult!

- The article may only be used by one person at a time.

- Check the article before every use for damage or wear. Check if all connective elements and fasteners such as the folding mechanism fit tightly and the height adjustment of the handlebar. The article may be used in perfect condition.

- Check if the nuts and bolts are still locking.

- Do not modify the article in any way that could jeopardize your safety.

- Do not use the article indoors. The tyres could lose their grip and slip on smooth surfaces such as laminate, wooden floor boards, tiles, etc.

Danger of crushing fingers!

• Always note the places that could cut and crush when folding or unfolding the article.

• Always wear protective equipment (helmet, hand, wrist, elbow and knee protectors) and shoes!

• Always respect other people!

- Only use the article on suitable surfaces that are clean, smooth and dry. Drive away from other road users if possible. Avoid sloping ground, stairs and open water.

- Never drive in darkness or in reduced visibility.

- When used constantly, the brake will get hot. To avoid burns, do not touch it before it has cooled off.

- Do not let your child use the article without supervision, as children are unable to judge potential risks.

- When using the scooter, it is necessary to be dextrous, to avoid falling or collisions that could lead to injury for the driver or of other persons.

Avoiding damage to property!

- Avoid water, oil, potholes and very rough surfaces.

Fitting

For transport, the article is delivered folded up. To make the product ready for use, proceed as follows:

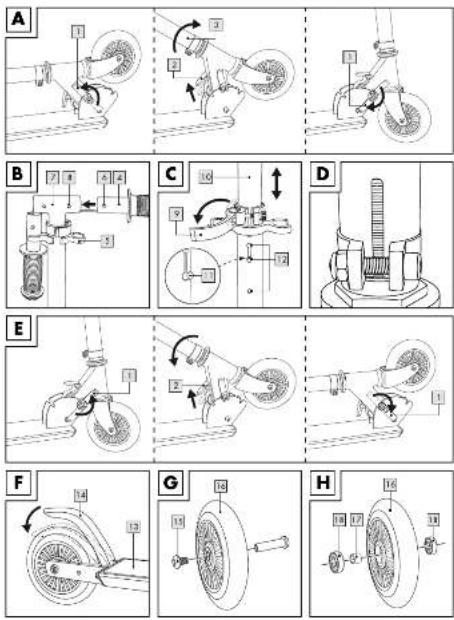

Unfolding (Fig. A)

1. Loosen the bottom quick fastener (1).
2. Pull the lever (2) upwards and push the handlebar (3) forward until it clicks in.
3. Secure the folding mechanism by locking the lower quick fastener.

Fitting the handles (Fig. B)

1. Loosen the handles (4) from the brackets (5).
2. Press the lock buttons (6) on the handles downwards and push the handles in the T-bar (7) of the handlebar. The lock buttons have to audibly lock into the drilled holes (8).

Adjusting the height of the handlebar (Fig. C)

The handlebar is adjustable to three different heights. The article may only be used when the lock button is clicked into one of the drilled holes provided and the handlebar is subsequently locked with the quick fastener!

1. Loosen the quick fastener (9) at the handlebar.
2. Pull the handlebar (10) upwards, until the lock button (11) clicks into one of the three drilled holes (12).
3. Secure the handlebar by locking the quick fastener.

Headset (Fig. D)

When the article is delivered, the headset is pre-adjusted. Should the handlebar be too loose or too stiff after a certain time, have the headset adjusted by a specialist dealer or a cycle shop.

Making the article ready for transport (Fig. E)

1. Loosen the quick fastener (1) at the handlebar, press the lock button, push the handlebar in fully, lock the quick fastener.
2. Press the lock buttons of the handles, pull the handles out of the T-bar and fasten them on the brackets.
3. Loosen the quick fastener and pull the bar (2) upwards, push the handlebar direction deck, until it clicks in. Lock lower quick fastener.

Use

Driving, braking (Fig. F)

• Put one leg on the deck (13) and propel yourself forward by regularly pushing off with the other leg. The scooter can be steered by moving the handlebar, moving your weight and by a combination of both.
• For braking, step onto the brake plate (14).

Maintenance

Changing the wheels (Fig. G) Important!

Please observe the technical data. Wheels with a different diameter can change the handling characteristics and may lead to danger for the user. Never use wheels that cannot be fitted properly. Never fit larger wheels than the original wheels of the article.

The wheels wear. Wear is dependent on many factors, such as the ground, the height and width of the user, the weather conditions, the material of the wheels and their hardness. Therefore, it is necessary to change them from time to time.

• Loosen the axle bolts (15) using two Allen keys size 5.
  • Pull out the axle bolts and remove the roll.
• Insert a new roll (16) and fasten it, using the axle screws.

After the exchange:

Should the wheel rub on the side, do not use it! Ensure that all screws are still tight after a few minutes of driving and that nothing has loosened or come loose. Tighten the wheel again, to ensure, that it runs smoothly and that there are no bearing noises.

Swapping the ball bearings (Fig. H)

• Remove the roll as described.
• Press the bearing out by pressing onto the spacer (17) using an Allen key and remove the spacer.
• Press the other bearing (18) out by pressing with an Allen key.
• Press in a new bearing. Turn the wheel around, insert the distance pieces and press in a second new bearing.
• Fasten the wheels again.

Maintenance, storage

We recommend to clean and dry the article thoroughly after use. Remove little stones or other objects that possibly have become stuck on your wheels. Dry wet or damp ball bearings with a clean cloth. Grease the bearings from the outside with a suitable bearing grease, to prevent rusting on the outside. Store the article in a dry place.

Notes for disposal

Dispose of the article and all its components using a certified disposal firm or your communal recycling facility. Please observe the current regulations. If in doubt, contact your communal recycling facility regarding environmentally friendly disposal.

3 years warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 273315

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

All items are also available for purchase directly from our online shop: www.delta-sport.info
