USER MANUAL IAN 279355 Playtive

Instructions for use

NL BE

3-IN-1 TRI-SCOOTER

Gebruiksaanwijzing

ES

PATINETE DE TRES RUDAS 3 EN 1

Part names / Scope of delivery 12

Technical data 12

Correct use 12

Safety notes 12-13

Assembly 13

Dismantling 14

Use 14

Maintenance 14

Care, storage 14

Disposal 14

3 Years Warranty 14-15

NL BE

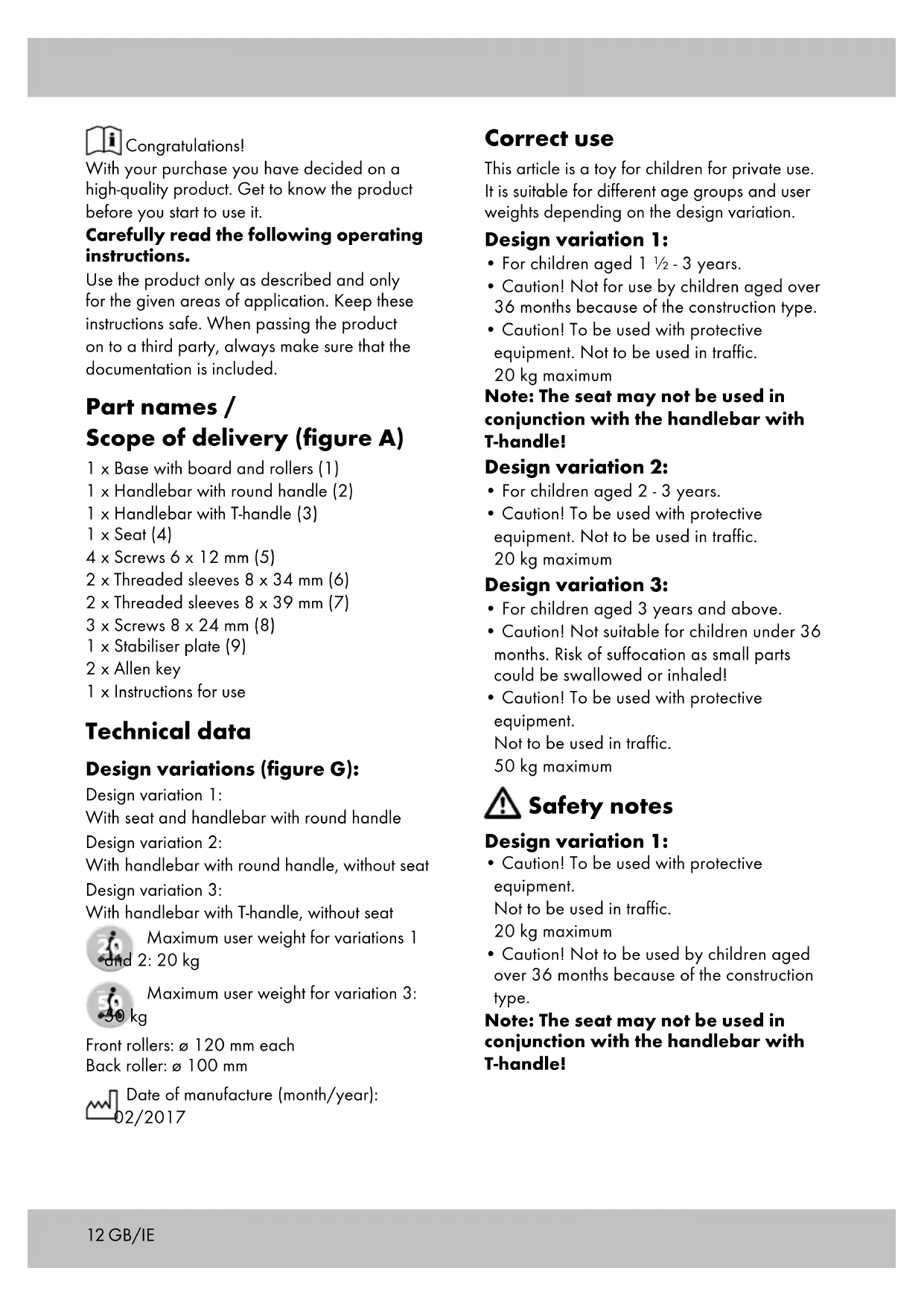

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following operating instructions.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Part names /

Scope of delivery (figure A)

1 x Base with board and rollers (1)
1 x Handlebar with round handle (2)
1 x Handlebar with T-handle (3)
1 x Seat (4)
4× Screws 6× 12mm (5)
2 × Threaded sleeves 8 × 34 ~mm (6)
2× Threaded sleeves 8× 39mm (7)
3× Screws 8× 24mm (8)
1 x Stabiliser plate (9)
2 x Allen key
1 x Instructions for use

Technical data

Design variations (figure G):

Design variation 1:

With seat and handlebar with round handle

Design variation 2:

With handlebar with round handle, without seat

Design variation 3:

With handlebar with T-handle, without seat

Maximum user weight for variations 1

2: 20 kg

Maximum user weight for variation 3:

Front rollers: 120mm each

Back roller: 100mm

Date of manufacture (month/year):

02/2017

Correct use

This article is a toy for children for private use. It is suitable for different age groups and user weights depending on the design variation.

Design variation 1:

• For children aged 1 12 - 3 years.
• Caution! Not for use by children aged over 36 months because of the construction type.
• Caution! To be used with protective equipment. Not to be used in traffic. 20kg maximum

Note: The seat may not be used in conjunction with the handlebar with T-handle!

Design variation 2:

• For children aged 2 - 3 years.
• Caution! To be used with protective equipment. Not to be used in traffic. 20kg maximum

Design variation 3:

• For children aged 3 years and above.
• Caution! Not suitable for children under 36 months. Risk of suffocation as small parts could be swallowed or inhaled!
• Caution! To be used with protective equipment. Not to be used in traffic. 50 kg maximum

Safety notes

Design variation 1:

• Caution! To be used with protective equipment. Not to be used in traffic. 20 kg maximum
• Caution! Not to be used by children aged over 36 months because of the construction type.

Note: The seat may not be used in conjunction with the handlebar with T-handle!

Design variation 2:

• Caution! To be used with protective equipment.

Not to be used in traffic.

20 kg maximum

Design variation 3:

• Caution! To be used with protective equipment.

Not to be used in traffic.

50 kg maximum

• Caution! Not suitable for children under 36 months. Risk of suffocation as small parts could be swallowed or inhaled!

Design variations 1, 2, and 3 CAUTION!

• None of the packaging and attachment materials are a constituent part of the toy and should be removed for safety reasons before the article is given to children to play with.
  Children may only play with the article under supervision.

Risk of injury!

The assembly of the article should always be carried by adults due to the presence of small parts!
The article may only be used by one person at a time.
- Inspect the article before each use for damage or wear. Always check that all connecting elements are firmly in place. The article may only be used while in perfect condition!
- Ensure that screws and threaded sleeves retain their self-locking characteristics.
- Do not modify the article in such a way that it could endanger your safety.
Always wear suitable protective equipment (helmet, hand, wrist, elbow, and knee protectors) and shoes!
Always show consideration for others!
- Only use the article on suitable surfaces that are smooth, clean, and dry. Ride away from other road users where possible. Avoid sloping terrain, stairs, and open bodies of water.

• Never ride in the dark or in bad visibility.
• Do not allow your child to use the article without supervision, as children are not able to assess potential risks.
• Skill is required for the use of the article in order to avoid falls or collisions that could lead to injury to the driver or to other persons.

Avoiding damage to property!

• Avoid water, oil, potholes, and very rough surfaces.

Assembly

Assembling the handlebar (figure B)

You will need the base (1) and the handlebar with the round handle (2) for design variations 1 and 2 or the handlebar with the T-handle (3) for design variation 3. Press the pin (2a, 3a) and insert the handlebar into the base (figure B).

Important: Please ensure that the handlebar clicks into the base.

Assembly of design variation 1 (figure C)

Lay the seat (4) onto the base (1). Please ensure that the drill holes on the seat and the base are directly above one another. Insert the short sleeves (6) through the two front drill holes from above and secure them from below using two screws (5). Insert the long sleeves (7) through the two back drill holes and back drill holes on the stabiliser plate (9) from above. Secure these from below using two screws (5). Insert a screw (8) in the front drill hole on the stabiliser plate and tighten it (figure D). Use the included Allen key for the assembly.

Assembly of design variation 2 (figure E)

Secure the stabiliser plate at the back three drill holes using the screws (8) and tighten the screws with the included Allen key.

Adjusting the height of the seat (figure F)

The seat can be set to different heights between approximately 26 - 32 cm. To make this adjustment release the locking screw (4a) and set the desired height. Tighten the locking screw again.

Dismantling

Dismantling the handlebar

Press the pin on the back of the base (2a, 3a) and pull the handlebar out (figure B).

Dismantling the seat

Release the screws and pull the threaded sleeves out. Remove the seat.

Use

Riding

Depending on the design variation, sit on the seat and create momentum by pushing off with both legs at regular intervals, or, if using the scooter without a seat, stand on the board with one leg and create momentum by pushing off regularly with the other leg. The article is steered by shifting weight.

Braking

When using design variation 1 with the seat, brake by putting both feet on the ground. When using the article without the seat, brake by stepping onto the friction brake on the back wheel with one foot.

Maintenance

Exchanging the front rollers

You can change the front rollers.

Important!

Pay attention to the technical data.

Rollers with a different diameter can change the riding conditions and pose a risk to the user in some circumstances. Do not use any rollers that cannot be fitted perfectly.

Never fit rollers that are larger than the original rollers on the article.

Rollers suffer wear. The wear depends on many factors such as the ground, size and weight of the user, weather conditions, roller material and their degree of hardness. It is therefore necessary to exchange them from time to time.

1. Release the screws on the front two rollers using a suitable Allen key.
2. Fit the new rollers and secure the new rollers with the screws.

After exchange:

Please ensure that the screws are still tight after the first few minutes of riding and that nothing has been released or become loose. Tighten the roller again in order to ensure that it is running smoothly.

Care, storage

We recommend thorough cleaning and drying after using the article.

Remove small stones or other objects that may have been caught on the rollers. Always store the article in a dry place.

Disposal

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required! Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required. Ensure that you comply with all regulations currently in force.

3 Years Warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN:279355

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

You can also find spare parts for your product at:

www.delta-sport.com, category Service - Lidl Spare Parts
