USER MANUAL Blender 609010 LAGRANGE

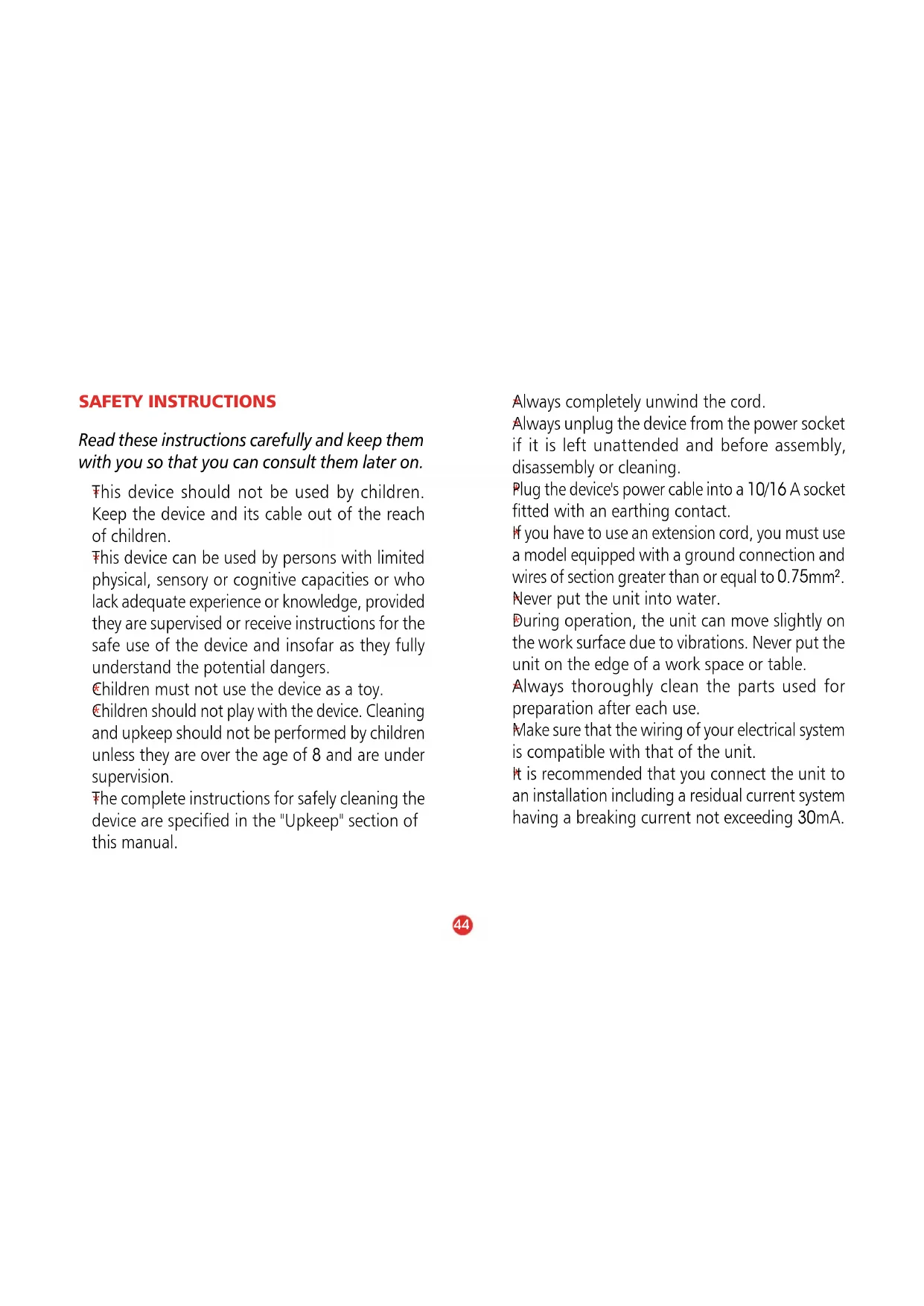

DEUSAFETY INSTRUCTIONS Read these instructions carefully and keep them with you so that you can consult them later on.

This device should not be used by children. Keep the device and its cable out of the reach of children.

This device can be used by persons with limited physical, sensory or cognitive capacities or who lack adequate experience or knowledge, provided they are supervised or receive instructions for the safe use of the device and insofar as they fully understand the potential dangers.

Children must not use the device as a toy.

Children should not play with the device. Cleaning and upkeep should not be performed by children unless they are over the age of 8 and are under supervision.

The complete instructions for safely cleaning the device are specied in the "Upkeep" section of this manual.

Always completely unwind the cord.

Always unplug the device from the power socket if it is left unattended and before assembly, disassembly or cleaning.

Plug the device's power cable into a 10/16 A socket tted with an earthing contact.

If you have to use an extension cord, you must use a model equipped with a ground connection and wires of section greater than or equal to

Never put the unit into water.

During operation, the unit can move slightly on the work surface due to vibrations. Never put the unit on the edge of a work space or table.

Always thoroughly clean the parts used for preparation after each use.

Make sure that the wiring of your electrical system is compatible with that of the unit.

It is recommended that you connect the unit to an installation including a residual current system having a breaking current not exceeding 30mA. 44* If the power cable is damaged, to avoid any danger it must be replaced by , its after-sales service, or a qualied person that has been approved by .

These units are not intended to be operated by means of an exterior timer or by a separate remote control system.

Use the unit on a at, horizontal, dry and non-sliding surface.

Never put your unit on a hot surface or near a ame.

Never leave your unit plugged in without using it.

Never let the unit operate without surveillance.

Never block the aeration vents.

Never put the unit on another unit.

Never put any part of the unit in a microwave.

For your safety, it is recommended that you never use or leave your unit in an area exposed to foul weather and moisture.

Never use the unit for any purpose other than its intended use.

CAUTION: Risk of injury if the product is used incorrectly.

If your unit is damaged, do not use it and contact the after-sale service.

For your safety, only us accessories and spare parts suited to your unit.

Warning: always unplug the unit before installing,

removing or positioning the accessories.

To avoid any failures of the unit, do not let any food or liquid into the connection point between the glass bowl and the motor block.

Never exceed the maximum level authorized on the accessories.

During the use of the unit, never insert ngers, hands or utensils into the bowl without having rst unplugged the unit.

Never ll the blender with very hot foods (above 90°C).

Avoid thermal shocks to the glass bowl and in particular very rapid cooling (always respect a maximum temperature difference of 70° C)

ENG* Never put the base on the motor block without having rst attached the bowl.

Make sure that cover is correctly positioned on the bowl before starting the unit.

Never start the unit when it is empty.

The blades are very sharp and precautions must be taken during handling of the sharp cutting blades and when emptying and cleaning the bowl to avoid any risk of injury.

Always wait for the complete stopping of the motor of the unit before removing the bowl from its base.

To avoid all risk of splashing, be careful not to exceed 1.5 liter of liquid in the blender.

In order to avoid all risk of leaks, position the seal on the blade unit before installing the blender.

To avoid the risk of any leakage, ensure that you place the seal around the blade assembly before installing the blender.

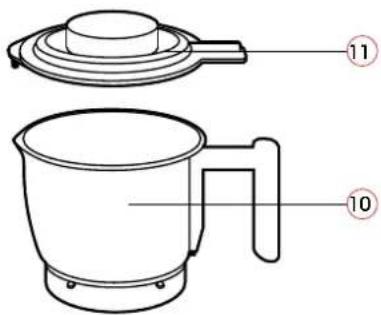

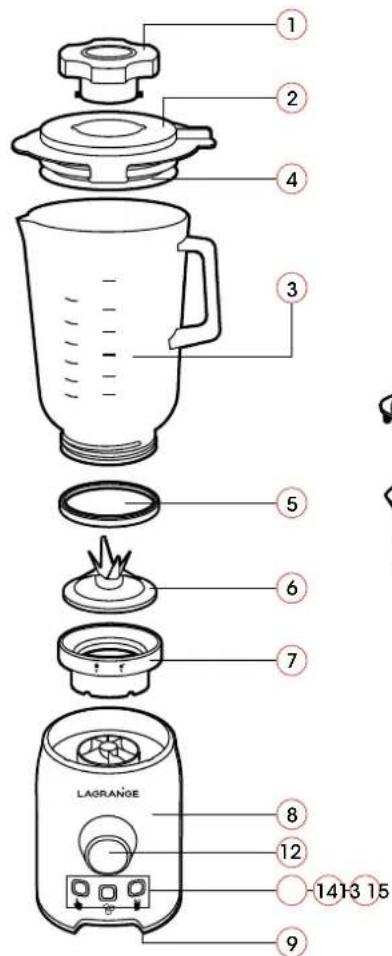

10. Stainless steel grinder with 2 stainless steel blades

11. Clear plastic lid with locking system

12. On/Off button and speed control

13. button: manual operation at maximum speed

Blender with mill Type 60901X

Graduated glass bowl, capacity 2L gross – 1.5L net

Star-shaped 6-blade knife

Manual operation button at maximum speed

Stainless steel grinder

The cable that is used is a 0.75 mm² H05VV-F 3 G. These devices comply with the 2014/35/EU, 2014/30/EU, WEEE 2012/19/EU, RoHs 2011/65/EU directives and the EC 1935/2004 regulations concerning materials in contact with foodstuffs. ENVIRONMENT Protection of the environment – DIRECTIVE 2012/19/EU In order to protect our environment and our health, the elimination of electrical equipment at the end of its working life must be done according to very specic rules and requires the involvement of all parties, suppliers and users. That is why your unit, as indicated by the symbol on its information plate, must never be thrown into a public or private garbage can intended for household wastes. At the time of its elimination, it is your responsibility to bring your unit to a public collection center designated for the recycling of electrical and electronic equipment. To obtain information about the centers for collection and recycling of discarded units, please contact the local authorities of your region, the household waste collection services or the store where you purchased your unit.

When you unwrap your unit, carefully remove all of the securing elements and bags and labels from the packaging.

Make sure that all of the parts and accessories are present and intact.

Fully unwind the cable and carefully examine it before use.

Before using your unit, thoroughly clean all of the parts in water with soap or dishwashing liquid added.

Rinse and carefully dry all of the parts. See upkeep section. ASSEMBLY

Flip your glass bowl upside down.

Place the silicone seal around the blade assembly.

Place the blade and seal assembly in the glass bowl.

Position the tightening ring, screw clockwise and tighten.

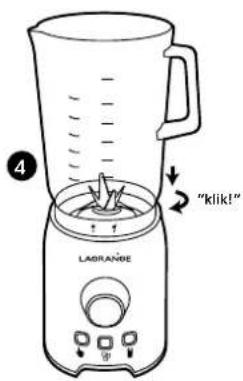

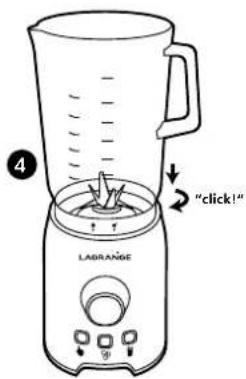

Position the glass bowl on the base and turn it clockwise until you hear a "click" xing it in place, tighten further if necessary.

Plug in the power cord. “click!“

Put all of the ingredients in the glass bowl without going beyond the last graduation (1500ml).

For a homogeneous mixture, put the liquid ingredients in rst and then add the solid ingredients.

Place the lid on the glass bowl, push it down rmly and turn clockwise to lock it in place. Make sure that the notches on the lid are correctly positioned in the bars on the sides of the glass bowl. Don't forget to put the measuring cap in the hole in the lid by placing the bars in the lid's notches, then lock it in place by turning it clockwise.

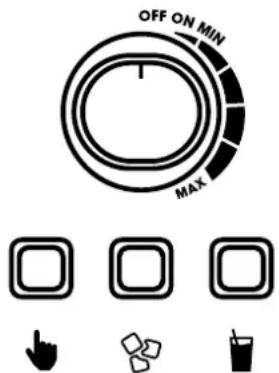

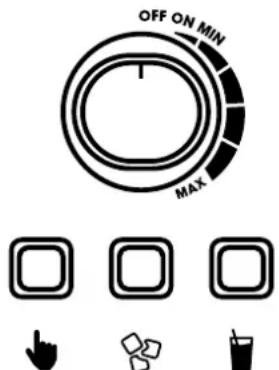

The three "function" buttons will then light up. They will ash when you remove the bowl from the base.

Switch on the device by turning the speed control to the right and activating the "on" function.

Adjust the speed by turning the control clockwise for accelerating to maximum speed or counter-clockwise to slow down until arriving at the off position.

The "function" buttons cannot be used simultaneously with the speed control.

You can use the "Symbol - Blade" button with the "manual" function. Each press will produce the maximum speed, likewise when the button is pressed and held.

You can use the button with the "manual" function. Each press will produce the maximum speed, likewise when the button is pressed and held.

You can use the button with the "crushed ice" function. The program alternates between full speed and pauses, stopping automatically after 60 seconds. However, you can stop the program before by pressing the same button.

You can use the button with the "drink" function to make all your smoothies, iced coffees, milkshakes or other drinks. The program will run for 60 seconds at full speed and will stop automatically. However, you can stop the program before by pressing the same button.

To add ingredients during the mixing, remove the measuring cap located on the cover and insert the ingredients through the opening of the cover.

Do not use the device for more than 1 minute at maximum speed with the glass bowl or the grinder. Take a 10 second break after a one-minute cycle.

Be careful to cut meat and solid foods into pieces before putting them in the blender. If you must mix large quantities of foods, do so progressively, in small portions.

Always stop the unit before opening the cover. 50WARNING: Never take off the cover during the mixing of the preparation. To add ingredients during the mixing, remove the measuring cap from the cover or rst stop the unit. For all types of preparation, it is important to start mixing at a slow speed and to progressively increase the mixing speed. Grinder

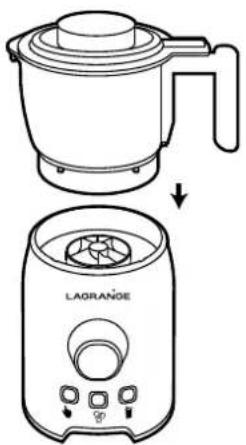

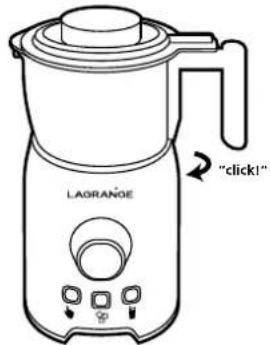

Place the grinder on the base of the blender, then lock in place by pushing rmly into the base and turning clockwise until it clicks.

Place the ingredients inside the stainless steel bowl.

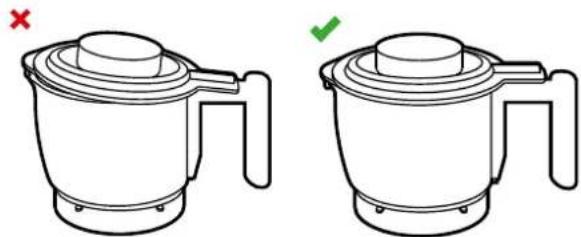

Place the lid on the stainless steel bowl and lock in place by pushing rmly and turning clockwise until it clicks. Make sure that the notch on the lid is correctly positioned under the pouring spout of the stainless steel bowl. You can use your grinder for a multitude of purposes:

Crushing walnuts, hazelnuts, almonds…

Grinding coffee, spices, seeds…

Make icing sugar from granulated sugar, a crumble from cereal

and cookies or bread crumbs from rusks or dry bread…

Chop raw or cooked meat… Attention, to obtain the best results, do not overll the grinder. Repeat several times if necessary. Do not use the grinder for liquid mixtures. “click!“

The appliance has a temperature safety device that protects the appliance from overheating.

If the appliance switches off by itself and you cannot turn it back on, unplug it and wait for around 15 minutes before plugging it back in again. If it still does not work, call upon one of the authorised technical assistance services.

If you use the speed control, stop the device by turning the control counter-clockwise to the off position.

If you are using a "function" button, wait for the end of the cycle or press the "function" button a second time.

Unlock the glass bowl or the grinder from the base.

Unlock the lids of the glass or stainless steel bowl by turning them counter-clockwise before pouring the mixture into a container. UPKEEP

Never put the body of the unit or the cord in water and never put them in the dishwasher. Never use aggressive or abrasive fabrics or products on the plastic parts to preserve the plastic and its shine. Always unplug the unit before cleaning it. Entirely dismantle the product, without forgetting the seal. You can put the bowl in the dishwasher after removing the tightening ring, blade assembly, and seal. Do not leave the blade assembly soaking in water. Clean the base with a moist cloth. Never use abrasive sponges or products for cleaning. For optimal results, we recommend washing the cover and the seals by hand. 52Dismantling:

Unscrew the glass bowl's tightening ring by turning it anti-clockwise (bowl turned upside down) and remove the 6-blade assembly and the seal so they can be cleaned.

Once the glass bowl has been cleaned, place the bowl upside down and replace the blade and seal assembly. Ret the tightening ring and screw clockwise until tight. Tip: For a pre-cleaning or fast cleaning between 2 preparations, put about 1 liter of hot water in the bowl and run the blender for 30 seconds on intermediate speed.

Ingredients (for about 12 crêpes): 250g of our – 2 eggs – 3 tablespoons of granulated sugar – 25g of melted butter – ½ demitasse spoon of salt – 3 tablespoons of oil – 1 tablespoon of rum – one ½ liter of milk. Put the our and the eggs in the glass bowl of the blender. Add the sugar, salt, melted butter and oil. Start the unit. Progressively add the milk through the central opening of the cover. Add the rum. Let sit for at least one half-hour.

CHOCOLATE OR VANILLA MILKSHAKE

Ingredients (for about 8 small glasses): 6 scoops of vanilla or chocolate ice cream – 40cl of milk – 8 ice cubes. Put the ice cubes in the blender's bowl and mix for a few seconds to get crushed ice. Add the ice and milk to your blender's bowl, then mix. Serve the milk-shake immediately. ICED COFFEE Ingredients: 15cl of coffee – 2 tablespoons of granulated sugar – 30cl of milk – ice cubes. Put about 10 ice cubes in the blender's bowl and mix for a few seconds to get crushed ice. Switch the blender on again. Put the coffee, the sugar and the milk in the bowl of your blender. Start the blender again. Serve immediately. You can add ice cubes. MANGO LASSI Ingredients: 4 jars of plain yogurt – 1 glass of whole milk – 4 tablespoons of granulated sugar – one mango – peeled and cut into small pieces – 2 bananas – 10cl of apple juice. Put all of the ingredients in the glass bowl of the blender. Blend the mixture. Serve with ice cubes.

APPLE STRAWBERRY BANANA SMOOTHIE

Ingredients: 250g of strawberries – 2 bananas – 10cl of apple juice. Put all of the ingredients in the glass bowl of the blender. Blend the mixture. Serve with ice cubes. 54MOJITO Ingredients: 30 mint leaves – 8 demitasse spoons of brown sugar – juice of 2 limes – 180ml of Cuban White Rum – 250ml of sparkling water – 10 ice cubes. Squeeze the limes and put the juice in the glass bowl of the blender with the rum, the sugar and the ice cubes. Mix for

seconds until the ice cubes are crushed. Then add the sparkling water and mint and mix on low speed for a few seconds. Serve. N.B.: Alcohol abuse is dangerous for your health, to be consumed with moderation.

Ingredients: 500ml of coconut milk – 250ml of pineapple juice – 250ml of white rum. Put all of the ingredients in the glass bowl of the blender. Blend the mixture. Serve. N.B.: Alcohol abuse is dangerous for your health, to be consumed with moderation. TOMATO GAZPACHO Ingredients (for a mixture of approx. 1.5L): 6 tomatoes – 1 cucumber – 1 onion – 1 red bell pepper – 1 yellow bell pepper – 2 cloves of garlic – 4 tablespoons of wine vinegar – 4 tablespoons of olive oil – juice of one lemon – 1 tablespoon of tomato concentrate – 1/2 glass of water – basil – hot pepper – salt and pepper. Peel, take out the seeds, and cut the tomatoes into pieces, peel and coarsely chop the cucumber and onion, hull and remove the seeds from the bell peppers and cut them into strips, peel and crush the cloves of garlic. Add the water and these ingredients to the blender before adding the vinegar, oil, lemon juice, basil and tomato paste and mix. Add salt, pepper, and hot pepper. If you prefer a more uid texture, add some water. You can also put the preparation through a conical strainer for a gazpacho which is smooth and without pulp. Keep in refrigerator until serving.

Ingredients: 900g of carrots – vegetable broth – 45g of butter – 45g of crème fraiche – salt and pepper – powdered nutmeg. Wash the carrots, peel them and cut them into sections. Cook them for 20 minutes in the vegetable broth. Put them in the blender and add the melted butter, fresh cream, salt and pepper, then nutmeg. Blend the mixture. Keep warm on a very low heat.

Ingredients: 500g of broccoli – vegetable broth – 25cl of liquid crème fraiche – salt and pepper. Wash the broccoli. Cook the orets for 10 minutes in the vegetable broth. Put them in the blender, mix and add the fresh cream, salt and pepper. Blend the mixture. Keep warm on a very low heat until you are ready to serve.

Ingredients: 800g of apples – 2 vanilla pods – 10cl of water – 150g of granulated sugar. Peel the apples, cut them into 8 and remove the seeds. In a pan, bring the water to a boil with the sugar and the split and scraped vanilla pods. Once the water is boiling, add the apples. Cook on a low heat stirring from time to time for about 20 minutes. Remove the vanilla pods then blend the mixture in the blender. Eat hot or cold with a scoop of vanilla ice cream. 56GUARANTEE TERMS Guarantee for household appliances. Your unit is guaranteed for 2 years. In order to receive an additional year of guarantee free of charge, register on the web site (www.lagrange.fr). The guarantee includes parts and labor and covers manufacturing defects. The guarantee does not cover deterioration due to poor use or non-observance of the instructions for use or breakage due to falling. THIS GUARANTEE APPLIES TO HOUSEHOLD USES. IT CANNOT APPLY TO PROFESSIONAL OR SEMI-PROFESSIONAL USES. The legal guarantee due from the seller does not in any way exclude the legal guarantee due from the Manufacturer for manufacturing aws or defects according to articles 1641 to 1649 of the Civil Code. In the event of a breakdown or malfunction, contact your retailer. In the event of technical defects observed within one week of purchase, the units will be exchanged. Beyond this period, they will be repaired by the after-sale service. To benet from this guarantee, the user must present a copy of the invoice specifying the date of purchase of the unit. Duration of availability of spare parts In accordance with article L 111-2 of the consumer code, the availability of spare parts that we provide for a repairable product is 5 years as of its date of manufacturing. However, this availability is only guaranteed in the country where the product was purchased. Shipping costs for returns After the rst year which benets from the dealer’s guarantee, you will only have to pay the costs for returning the product to the factory. We will ship it back to you at our expense as quickly as possible. If you have any other questions about our products, you can contact us at the following address: Service consommateurs 17, chemin de la Plaine ZA Les Plattes CS30228
