Product type	Blender
Brand	Lagrange
Model	609 002
Dimensions (H x W x D)	Approximately 38 x 16 x 16 cm
Weight	Approximately 1.5 kg
Power	600 W
Bowl capacity	1.5 L
Blade material	Stainless steel
Bowl material	BPA-free plastic
Speeds	2 speeds + pulse
Main functions	Mixing, crushing ice, making smoothies and soups
Safety	Safety lid lock, overheating protection
Care and cleaning	Bowl and lid dishwasher safe, blade hand wash only
Spare parts available	Bowl, lid, gasket, blade
Repairability score	8.0 / 10
Color	White
Cable length	Approximately 1 m

Frequently Asked Questions - 609 002 LAGRANGE

How to use the Lagrange 609 002 blender?

Place ingredients in the bowl, close the lid tightly by turning until locked, then plug in the appliance and select the desired speed. Use the Pulse function for quick mixing.

Can I blend hot ingredients?

No, do not pour hot ingredients (above 60°C) into the blender, as this may damage the plastic bowl.

How to clean the blender?

Unplug the appliance. Wash the bowl and lid in the dishwasher (top rack) or by hand with a soft sponge. The blade must be hand washed carefully.

What to do if the blender does not start?

Check that the lid is properly locked (safety). Make sure the outlet works. If the problem persists, contact customer service.

What is the maximum capacity of the bowl?

The capacity is 1.5 L, do not fill beyond the maximum mark to avoid overflow.

Can I crush ice with this blender?

Yes, use the Pulse function and medium ice cubes. Do not use very hard ice or large blocks.

Is the blender covered by warranty?

Yes, this product comes with a 2-year legal warranty of conformity. Keep your receipt.

Where can I find spare parts?

You can order parts (bowl, lid, blade) from Lagrange customer service or on their official website.

How to avoid leaks?

Make sure the sealing gasket is properly in place and the lid is securely locked. Do not exceed the maximum capacity.

Can I blend hot liquids in this blender?

No, hot liquids can cause pressure buildup and blow off the lid. Let cool before blending.

USER MANUAL 609 002 LAGRANGE

2

DESCRIPTION DE L'APPAREIL

CONDITIONS DE GARANTIE

16

BESCHRIJVING VAN HET APPARAAT

INGEBRUIKNAME

APFEL-ERDBEER-BANANEN-SMOOTHIE

58

1. Measuring cap 60ml
2. Cover with central filling opening
3. Glass bowl (2L gross - 1.5L net)
4. Plastic support base for blades
5. Set of 6 stainless steel blades
6. Plastic clamping ring
7. Painted stainless steel body of the unit
8. Anti-skid pads

Glass mini-grinder:

1. Glass mini-bowl
2. Plastic support base for blades
3. Set of 2 stainless steel blades
4. Plastic clamping ring

* The 2 seals are interchangeable.

Control panel with touch-sensitive controls:

1. Electronic screen with backlighting
2. "Ice Cream" button
3. "Speed" button
4. "Time" button
5. "Menu" button
6. On/off button

Mixer

Type 609

SAFETY INSTRUCTIONS

Read these instructions carefully and keep them with you so that you can consult them later on.

* Always completely unwind the cord.
* Connect the cord to a 10/16A outlet.
* If you have to use an extension cord, you must use a model equipped with a ground connection and wires of section greater than or equal to 0.75mm ² .
* Never put the unit into water.
* Do not embed the unit.
* During operation, the unit can move slightly on the work surface due to vibrations. Never put the unit on the edge of a work space or table.
* Always thoroughly clean the parts used for preparation after each use.
* This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

* Keep the appliance and its cord out of reach of children less than 8 years.

* Make sure that the wiring of your electrical system is compatible with that of the unit. It is recommended that you connect the unit to an installation including a residual current system having a breaking current not exceeding 30mA.

* These units are not intended to be operated by means of an exterior timer or by a separate remote control system.

* Use the unit on a flat, horizontal, dry and non-sliding surface.

* Never put your unit on a hot surface or near a flame.

* Never leave your unit plugged in without using it.

* Never let the unit operate without surveillance.

* Don't operate the unit in a confined space.

* Never block the aeration vents.

* Never put the unit on another unit.

* Never put any part of the unit in a microwave.

* For your safety, it is recommended that you never use or leave your unit in an area exposed to foul weather and moisture.

* Never use the unit for any purpose other than its intended use.

* If your unit is damaged, do not use it and contact the LAGRANGE after-sale service.

* For your safety, only use LAGRANGE accessories and spare parts suited to your unit.

* Warning: always unplug the unit before installing, removing or positioning the accessories.

* To avoid any failures of the unit, do not let any food or liquid into the connection point between the glass bowl and the motor block.

* Never exceed the maximum level authorized on the accessories.

* Never put your fingers or any other object into the blender when it is in operation.

* Do not let long hair, scarves, ties, shawls... hang above accessories in operation.

* During the use of the unit, never insert fingers, hands or utensils into the bowl without having first unplugged the unit.

* Never fill the blender with very hot foods (above 80°C).

* Never put the base on the motor block without having first attached the bowl.

* Make sure that cover is correctly positioned on the bowl before starting the unit.

* Never start the unit when it is empty.

* The blades are very sharp. Handle them with care to avoid all risk of injury.

* Always wait for the complete stopping of the motor of the unit before removing the bowl from its base.

* To avoid all risk of splashing, be careful not to exceed 1.5 liter of liquid in the blender.

* In order to avoid all risk of leaks, position the seal on the blade unit before installing the blender.

FEATURES

* Graduated glass bowl, capacity 2L gross – 1.5L net
* Star-shaped 6-blade knife
* Control panel with electronic screen and touch-sensitive controls
* 6 predefined modes + "ice cream" function
* 10 speeds
* Adjustment of mixing time and electronic timer-automatic stopping
* Glass mini-grinder
* 22,000 rotations/minute
* 230 Volts - 50Hz - 1000 Watts

CORD

Examine the power cord carefully before using it. If it is damaged, you must not use the unit. The cord should only be replaced by LAGRANGE its after-sale service department or a qualified person approved by LAGRANGE in order to avoid danger for the user. The cord used is a H05RR-F 3G 0.75mm ² .

These units are in compliance with directives 2006/95/CE, 2004/108/CE, DEEE 2002/96/CE, RoHs 2002/95/CE and the CE food contact regulation 1935/2004.

ENVIRONMENT

Protection of the environment - DIRECTIVE 2002/96/CE

In order to protect our environment and our health, electrical units at the end of their working lives must be disposed of according to very specific rules requiring the involvement of everyone, both suppliers and users.

That is why your unit, as indicated by the symbol on its nameplate, must not be put into a public or private garbage can intended for household wastes.

At the time of its disposal, it is your responsibility to bring your unit to a public collection center designated for the recycling of electrical and electronic equipment. If you need information about centers for the collection and recycling of discarded units, please contact the local authorities in your region, the household waste collection services or the store where you bought your unit.

START-UP AND USE

1 ^ST USE

* When you unwrap your unit, carefully remove all of the securing elements and bags and labels from the packaging.
* Make sure that all of the parts and accessories are present and intact.
Before using your unit, clean your bowl thoroughly with soapy water or water with dishwashing liquid.
* Rinse and carefully dry all of the parts. See upkeep section.

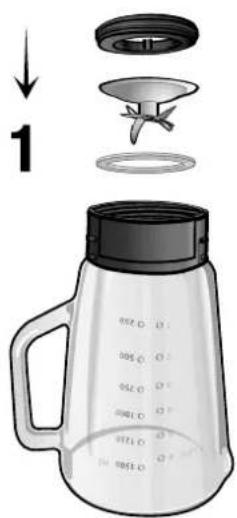

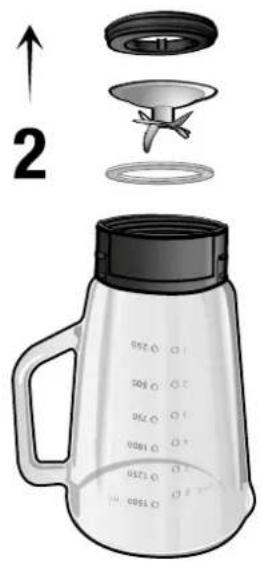

ASSEMBLY

* Turn the glass bowl over.
* Put the silicone seal and then the set of blades in the plastic base.
* Position the clamping ring with the 4 pegs facing upwards.
* Turn the ring counterclockwise and tighten it using the pegs.
* Position the glass bowl on the base and then turn it to the left to lock it into place.
* Plug in the power cord.

START-UP

* Put all of the ingredients in the glass bowl without going beyond the last graduation (1500ml).
* For a homogeneous mixture, put the liquid ingredients in first and then add the solid ingredients.
* Put the cover on the glass bowl, and push it in properly to lock it. Don't forget to put the measuring cup in place in the opening of the cover.
* Plug in the unit. The screen will then go on in blue for 3 seconds if the glass bowl is properly connected.
* Start the unit by pressing the on/off button. N.B.: It is better to use the thumb because the contact surface is larger.

* Press the touch-sensitive button of your choice:
- "Menu" or "Ice Cream" buttons for a predefined program.
- "Time" and "Speed" buttons for an "à la carte" program.

N.B.: To change the time, the speed or the program in the menu, just press the button successively.

* Press the on/off button again to start the chosen program.
* To add ingredients during the mixing, remove the measuring cap located on the cover and insert the ingredients through the opening of the cover.
Be careful not to use the unit for too long so that it doesn't overheat. If you have not finished the mixing at the end of 3 minutes, turn off the unit and let it cool down before continuing the mixing.
* Be careful to cut meat and solid foods into pieces before putting them in the blender. If you must mix large quantities of foods, do so progressively, in small portions.
* Always stop the unit before opening the cover. N.B.: It is possible to stop the unit at any time by pressing the on/off button.

USE OF THE CONTROL PANEL

ICE CREAM BUTTON

Duration of the cycle: adjustable (20-40-60-80-100-120 seconds)

Speed 10

To make crushed ice, put ice cubes in the glass bowl and put the cover back on. Don't add water.

At the end of the cycle, the unit stops automatically.

SPEED BUTTON

1 to 10

TIME BUTTON

20-40-60-80-100-120 seconds

At the end of the cycle chosen, the unit stops automatically.

N.B.: If after selecting a speed, no time is selected, by default the functioning time will be 45 seconds.

MENU BUTTON

* Purée:

Duration of the cycle: 60 seconds

Speed 10

Mode of functioning: functions continuously for 120 seconds

At the end of the cycle, the unit stops automatically.

N.B.: We don't recommend making mashed potatoes in the blender.

Cream:

Duration of the cycle: 70 seconds

Speed 10

Mode of functioning: functions for 3 seconds and then stops for

2 seconds, functions again for 3 seconds and stops for 2 seconds...

At the end of the cycle, the unit stops automatically.

Grinding:

Duration of the cycle: 120 seconds

Speed 10

Mode of functioning: functions continuously for 120 seconds

At the end of the cycle, the unit stops automatically.

* Mix:

Duration of the cycle: 100 seconds

Speed 5

Mode of functioning: functions continuously for 100 seconds.

At the end of the cycle, the unit stops automatically.

* Chopping:

Duration of the cycle: 60 seconds

Speed 10

Mode of functioning: functions for 1 second and then stops for

1 second, functions again for 1 second and stops for 1 second...

At the end of the cycle, the unit stops automatically.

Whipping:

Duration of the cycle: 120 seconds

Speed 10

Mode of functioning: functions continuously for 120 seconds

At the end of the cycle, the unit stops automatically.

ON/OFF BUTTON

Use the on/off button before any function selection to turn on the unit once it is plugged in.

Also use this button to start the defined program and to start the operation of the unit.

It is also possible to interrupt the functioning at any time by pressing this same button.

ENG

WARNING:

Never take off the cover during the mixing of the preparation. To add ingredients during the mixing, remove the measuring cap from the cover or first stop the unit.

For all types of preparation, it is important to start mixing at a slow speed and to progressively increase the mixing speed.

MINI GRINDER:

Your mini grinder can be used for many purposes:

* Crushing walnuts, hazelnuts, almonds...
* Grinding coffee, spices...
* Mince the onions.
* Purée dried apricots, cooked vegetables (baby purée), or a mixture of garlic and parsley to make a chopped parsley mix.
* Make icing sugar from granulated sugar, a crumble from cereal and cookies or bread crumbs from rusks or dry bread...
* Chop raw or cooked meat...

N.B.: for an optimal result, do not overfill the glass bowl of the mini grinder. Mix in several batches if necessary.

Do not use the mini grinder for liquid preparations.

UPKEEP

WARNING:

Never put the body of the unit or the cord in water and never put them in the dishwasher.

Never use aggressive or abrasive fabrics or products on the plastic parts to preserve the plastic and its shine.

Always unplug the unit before cleaning it.

Entirely dismantle the product, without forgetting the seal.

The bowl and the mini-bowl can be put in a dishwasher after removing the clamping ring, the blade set and the seal.

Don't leave the blade units soaking in water.

Clean the base with a moist cloth. Never use abrasive sponges or products for cleaning.

For optimal results, we recommend washing the cover and the seals by hand.

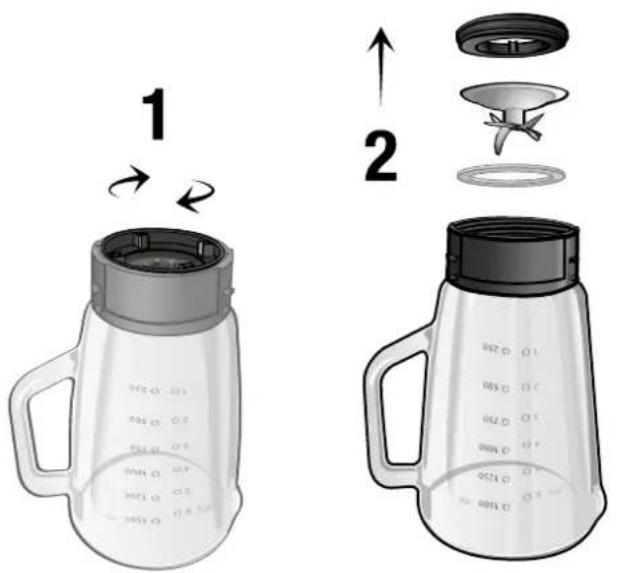

DISMANTLING:

* Blender

Unscrew the clamping ring from the glass bowl and remove the set of 6 blades and the seal in order to thoroughly clean them. Once the glass bowl has been cleaned, turn over the bowl and put the seal back in place along with the set of blades. Put the clamping ring back in place and screw thoroughly.

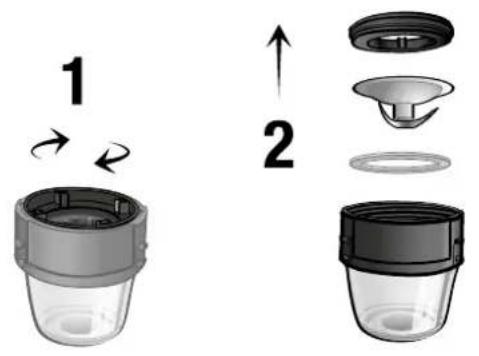

* Mini grinder

Unscrew the clamping ring of the glass mini-bowl and remove the set of two blades and the seal in order to clean them thoroughly.

Once the glass mini-bowl has been cleaned, turn over the bowl and put the seal and the set of blades back in place. Put the clamping ring back in place and screw thoroughly.

Tip: For a pre-cleaning or fast cleaning between 2 preparations, put about 1 liter of hot water in the bowl and run the blender for 30 seconds on intermediate speed.

RECIPES

DOUGH FOR CRÊPES

Ingredients (for about 12 crêpes): 250g of flour – 2 eggs – 3 tablespoons of granulated sugar – 25g of melted butter – 1/2 demitasse spoon of salt – 3 tablespoons of oil – 1 tablespoon of rum – one 1/2 liter of milk.

Put the flour and the eggs in the glass bowl of the blender. Add the sugar, salt, melted butter and oil.

Start the unit in "Mix" mode.

Progressively add the milk through the central opening of the cover. Add the rum. Let sit for at least one half-hour.

CHOCOLATE OR VANILLA MILKSHAKE

Ingredients: 4 scoops of vanilla or chocolate ice cream - 60cl of milk - 6 ice cubes.

Put all of the ingredients in the glass bowl of your blender, then mix in "Mix" mode.

Serve the milk-shake immediately.

ICED COFFEE

Ingredients: 15cl of coffee – 2 tablespoons of granulated sugar – 30cl of milk – ice cubes.

Put about 10 ice cubes in the bowl of the blender and mix them in "Ice Cream" mode.

Put the coffee, the sugar and the milk in the bowl of your blender. Start the blender again in "Mix" mode. Serve immediately. You can add ice cubes.

MANGO LASSI

Ingredients: 4 jars of plain yogurt – 1 glass of whole milk – 4 tablespoons of granulated sugar – one mango – peeled and cut into small pieces – 2 bananas – 10cl of apple juice.

Put all of the ingredients in the glass bowl of the blender. Mix the preparation in "Mix" mode.

Serve with ice cubes.

APPLE STRAWBERRY BANANA SMOOTHIE

Ingredients: 250g of strawberries – 2 bananas – 10cl of apple juice.

Put all of the ingredients in the glass bowl of the blender. Mix the preparation in "Mix" mode.

Serve with ice cubes.

MOJITO

Ingredients: 30 mint leaves – 8 demitasse spoons of brown sugar – juice of 2 limes – 180ml of Cuban White Rum – 250ml of sparkling water – 10 ice cubes.

Squeeze the limes and put the juice in the glass bowl of the blender with the rum, the sugar and the ice cubes.

Mix in "Ice Cream" mode for 40 to 60 seconds, until the ice cubes are crushed. Then add the sparkling water and the mint and mix on position 1 for several seconds.

Serve.

N.B.: Alcohol abuse is dangerous for your health, to be consumed with moderation.

PIÑA COLADA

Ingredients: 500ml of coconut milk – 250ml of pineapple juice – 250ml of white rum.

Put all of the ingredients in the glass bowl of the blender. Mix the preparation in "Mix" mode.

Serve.

N.B.: Alcohol abuse is dangerous for your health, to be consumed with moderation.

TOMATO GAZPACHO

Ingredients: 6 tomatoes – 1 cucumber – 1 large onion – 1 red bell pepper – 1 yellow bell pepper – 2 cloves of garlic – 4 tablespoons of wine vinegar – 4 tablespoons of olive oil – juice of one lemon – 1 tablespoon of tomato concentrate – 1 glass of water – basil – hot pepper – salt and pepper.

Peel, take out the seeds, and cut the tomatoes into pieces, peel and coarsely chop the cucumber and onion, hull and remove the seeds from the bell peppers and cut them into strips, peel and crush the cloves of garlic.

Put these ingredients in the blender in "Chopping" mode, add the water, vinegar, oil, lemon juice, basil and tomato concentrate and then use the "Mix" mode. Add salt, pepper, and hot pepper. If you prefer a more fluid texture, add some water. You can also put the preparation through a conical strainer for a gazpacho which is smooth and without pulp.

Keep in refrigerator until serving.

CARROT PURÉE

Ingredients: 900g of carrots – vegetable broth – 45g of butter – 45g of crème fraîche – 3 tablespoons of cornstarch – 1 egg yolk – salt and pepper – powdered nutmeg.

Wash the carrots, peel them and cut them into sections.

Cook them for 20 minutes in the vegetable broth.

Put them in the blender in "Purée" mode, add the melted butter, the cornstarch mixed with the cream fraiche, the salt and pepper, then the nutmeg. Then use the "Mix" mode.

Keep warm on a very low heat. Then add the egg yolk just before serving.

BROCCOLI PURÉE

Ingredients: 500g of broccoli – vegetable broth – 25cl of liquid crème fraîche – salt and pepper.

Wash the broccoli.

Cook the florets for 10 minutes in the vegetable broth.

Put them in the blender in "Purée" mode, add the cream fraiche, salt and pepper.

Then use the "Mix" mode.

Keep warm on a very low heat until you are ready to serve.

VANILLA APPLE SAUCE

Ingredients: 800g of apples – 2 vanilla pods – 10cl of water – 150g of granulated sugar.

Peel the apples, cut them into 8 and remove the seeds.

In a pan, bring the water to a boil with the sugar and the split and scraped vanilla pods.

Once the water is boiling, add the apples. Cook on a low heat stirring from time to time for about 20 minutes.

Remove the vanilla pods and then put them in the blender in "Purée" mode.

Eat hot or cold with a scoop of vanilla ice cream.

GUARANTEE TERMS

Guarantees for LAGRANGE household appliances.

Your unit is guaranteed for 2 years.

In order to receive an additional year of guarantee free of charge, register on the LAGRANGE web site (www.lagrange.fr). The guarantee includes parts and labor and covers manufacturing defects. The guarantee does not cover deterioration due to poor use or non-observance of the instructions for use or breakage due to falling.

THIS GUARANTEE APPLIES TO HOUSEHOLD USES. IT CANNOT APPLY TO PROFESSIONAL OR SEMI-PROFESSIONAL USES.

The legal guarantee due from the seller does not in any way exclude the legal guarantee due from the Manufacturer for manufacturing flaws or defects according to articles 1641 to 1649 of the Civil Code. In the event of a breakdown or malfunction, contact your retailer. In the event of technical defects observed within one week of purchase, the units will be exchanged.

Beyond this period, they will be repaired by the LAGRANGE after-sale service.

To benefit from this guarantee, the user must present a copy of the invoice specifying the date of purchase of the unit.

Duration of availability of spare parts

In accordance with article L 111-2 of the consumer code, the availability of spare parts that we provide for a repairable product is 5 years as of its date of manufacturing.

However, this availability is only guaranteed in the country where the product was purchased.

Shipping costs for returns

After the first year which benefits from the dealer's guarantee, you will only have to pay the costs for returning the product to the factory. We will ship it back to you at our expense as quickly as possible.

If you have any other questions about our products, you can contact us at the following address:

LAGRANGE
