USER MANUAL 427596 SILVERLINE

AIR RANGE JSILVERLINEC® Silver Regulator

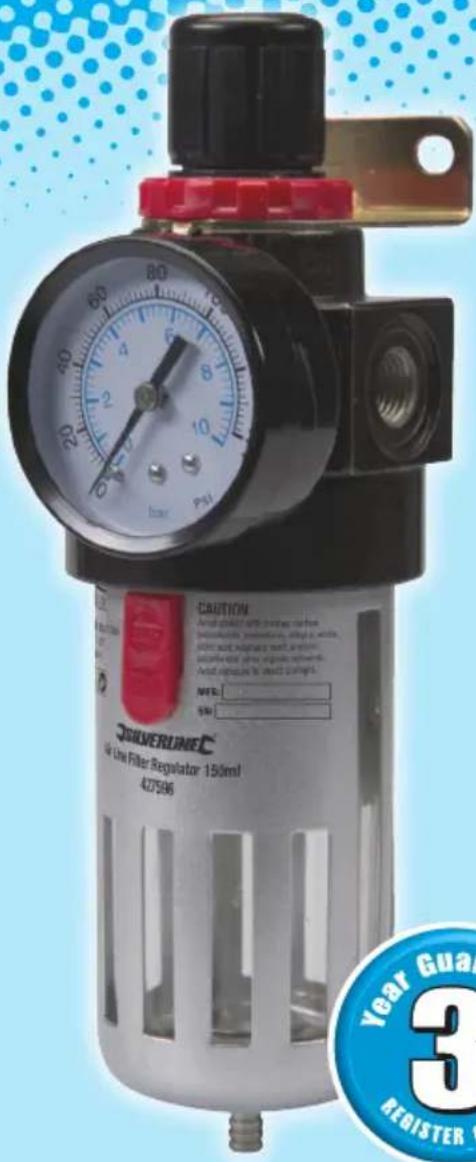

Air Line Filter Regulator

150ml

POWERLINE® Use Filter Regulator 150ml 427596 CAUTION Anchial gasket and filter surface inconductor, insulator, diode, wire, with and relaying net, anion supplied by the output network. Anchial gasket is closed at 100 gm MFL: $80 Year Guard 3 REGISTER

GB Air Line Filter Regulator
F Filtre régulateur pour air comprimé
Druckluft-Wartungseinheit mit Filter
ESP Filtro regulador para aire comprimido
Filtro regolatore per aria compressa
NL Perslucht regelaar

1 2 3 4 5 6 7 CAUTION Acid correct with branes carbon. nitric acid, sulphuric acid, antilene, platinum and other organic solvents. Avoid exposure to direct sunlight. MFC: SN:

SILVERLINEC® ATM RANGE Short Regulator

Air Line Filter Regulator

150ml

English 4

Français ...... 10

Deutsch 16

Español ...... 22

Italiano 28

Nederlands......34

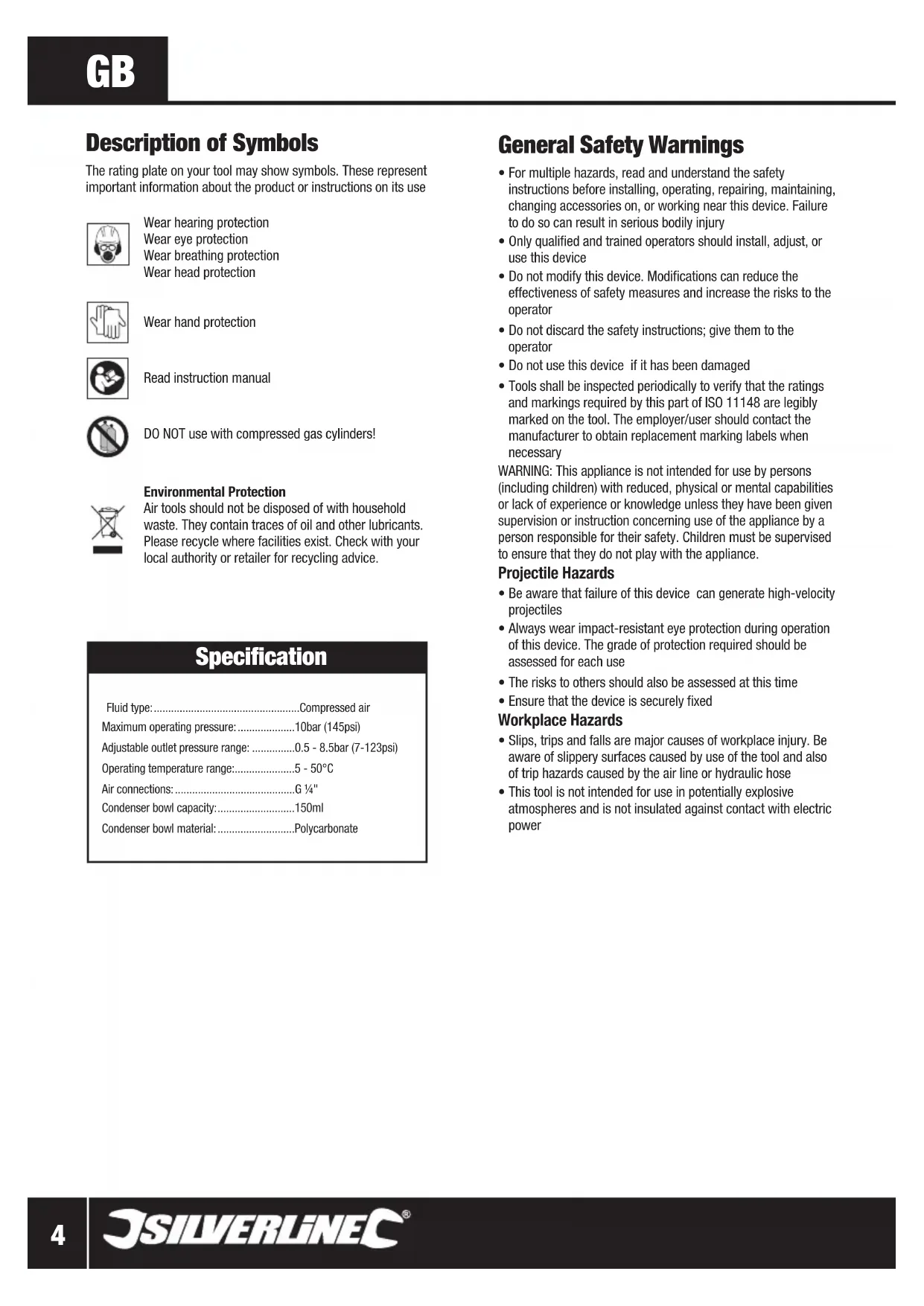

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use

Wear hearing protection

Wear eye protection

Wear breathing protection

Wear head protection

Wear hand protection

Read instruction manual

DO NOT use with compressed gas cylinders!

Environmental Protection

Air tools should not be disposed of with household waste. They contain traces of oil and other lubricants. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Specification

Fluid type:......Compressed air

Maximum operating pressure: 10bar (145psi)

Adjustable outlet pressure range: 0.5 - 8.5bar (7-123psi)

Operating temperature range: 5 - 50°C

Air connections: G 1/4"

Condenser bowl capacity: 150ml

Condenser bowl material:.....Polycarbonate

General Safety Warnings

• For multiple hazards, read and understand the safety instructions before installing, operating, repairing, maintaining, changing accessories on, or working near this device. Failure to do so can result in serious bodily injury
• Only qualified and trained operators should install, adjust, or use this device
• Do not modify this device. Modifications can reduce the effectiveness of safety measures and increase the risks to the operator
• Do not discard the safety instructions; give them to the operator
• Do not use this device if it has been damaged
• Tools shall be inspected periodically to verify that the ratings and markings required by this part of ISO 11148 are legibly marked on the tool. The employer/user should contact the manufacturer to obtain replacement marking labels when necessary

WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

Projectile Hazards

• Be aware that failure of this device can generate high-velocity projectiles
• Always wear impact-resistant eye protection during operation of this device. The grade of protection required should be assessed for each use
• The risks to others should also be assessed at this time
• Ensure that the device is securely fixed

Workplace Hazards

• Slips, trips and falls are major causes of workplace injury. Be aware of slippery surfaces caused by use of the tool and also of trip hazards caused by the air line or hydraulic hose
• This tool is not intended for use in potentially explosive atmospheres and is not insulated against contact with electric power

Additional Safety Instructions for Pneumatic Devices

Air under pressure can cause severe injury:

• Always shut off air supply, drain hose of air pressure and disconnect tool from air supply when not in use, before changing accessories or when making repairs
- Never direct air at yourself or anyone else
- Whipping hoses can cause severe injury. Always check for damaged or loose hoses and fittings
- Whenever universal twist couplings (claw couplings) are used, lock pins should be installed and whipcheck safety cables should be used to safeguard against possible hose-to-tool or hose-to-hose connection failure
- Do not exceed the maximum air pressure stated on the tool
• Never carry an air tool by the hose

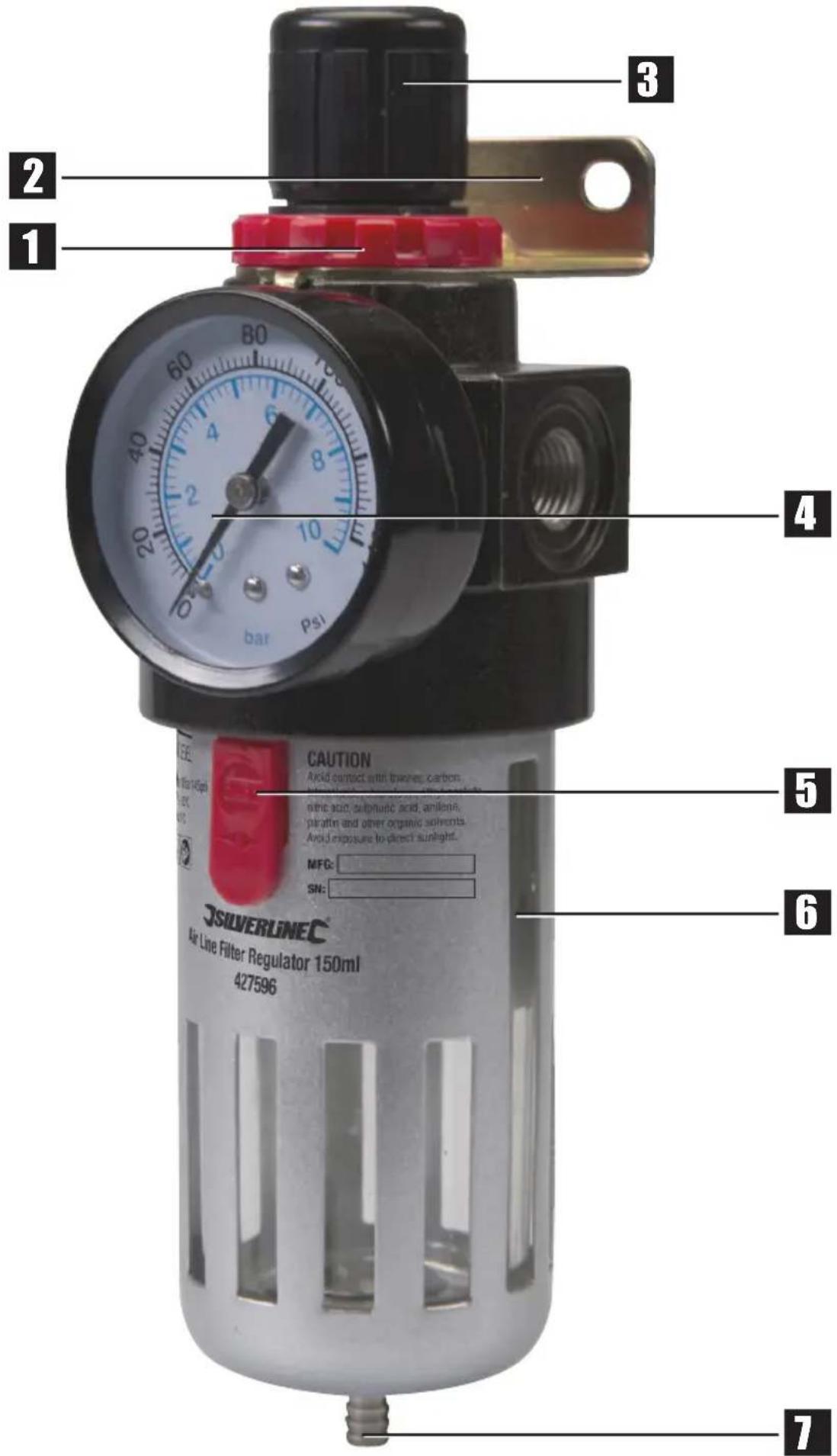

Product Familiarisation

1 Mounting Bracket Locking Ring

2 Mounting Bracket

3 Pressure Control

4 Pressure Gauge

5 Bowl Unlock Button

6 Condenser Bowl

7 Drain Valve

Intended Use

- Combination filter regulator unit for permanent installation in compressed air lines, to remove foreign matter from the compressed air, and for setting the air pressure accurately using the integrated pressure gauge

WARNING: This filter does not produce breathing grade compressed air!

WARNING: Some water vapour will pass through this unit and could condense into liquid form downstream, as air temperature drops. Install an air dryer if water condensation could have a detrimental effect on the application.

Unpacking Your Device

• Carefully unpack and inspect your tool. Fully familiarise yourself with all its features and functions
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool

Before Use

Installation

Note: DO NOT install this filter regulator in locations where it would be permanently exposed to direct sunlight.

1. Install the Mounting Bracket (2) on a wall, machine housing or other even surface using two suitable screws (mounting hardware not included). The Drain Valve (7) must be located at the bottom of the unit
2. Attach the mounting bracket and Mounting Bracket Locking Ring (1) as shown in the 'Product Familiarisation' image above. Turn the locking ring clockwise to tighten the thread
3. Apply some PTFE tape (not included) to the screw threads of the Pressure Gauge (4). This will help to maintain an air tight seal

Note: Apply PTFE tape tightly and in a clockwise direction, so it does not come off when the thread is screwed into the tool.

1. Screw the pressure gauge clockwise into the threaded hole of the regulator body as shown in the 'Product Familiarisation' image above.

Note: Be careful not to cross the threads. Turn gently at first. Ensure that the dial is correctly positioned when tightening the pressure gauge.

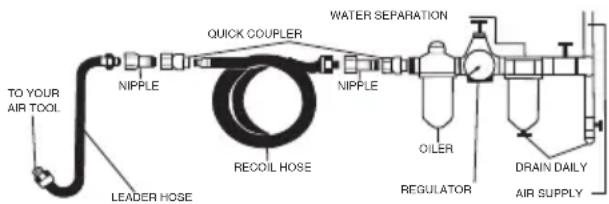

Air supply connection

WARNING: Ensure that the air system is fully drained and the compressor is switched off, before connecting the filter regulator.

WARNING: This filter regulator unit must not be used with compressors that use lubricants containing aromatic hydrocarbons. Such chemicals would damage and lead to failure of the polycarbonate Condenser Bowl (6).

IMPORTANT: The arrows on the inlet/outlet ports indicate direction of air flow. AIR FLOW IS FROM THE COMPRESSOR TO THE TOOL.

WARNING: For use with motorised air tools an oiler unit must be fitted downstream of this filter/regulator.

- Connect the filter regulator to the compressor feed, before the oiler (see diagram below)

Note: For painting applications, e.g. when using spray guns, omit the oiler

• Do not allow supply pressure to exceed the maximum stated (see "Specifications")
• Ensure that water is drained from air system daily
• Ensure that all parts of the system (hoses, couplers, etc.) are correctly rated for the air pressure to be used

Operation

WARNING: The Condenser Bowl (6) is manufactured from polycarbonate and must not be exposed to temperatures above 50°C.

Before each use

- Inspect the unit and air hoses for wear or damage, and replace if necessary. Do not use damaged or leaking hoses or connections

Adjusting the air pressure

Note: Some air tools have built-in regulators, which are used to control speed/torque performance. Where a machine does not have a built-in regulator, the speed/torque can still be adjusted by varying the pressure on your air supply regulator.

• INCREASE the air pressure by pulling the Pressure Control (3) up to unlock it, then turning it clockwise. Push the pressure control back down to lock it again
• DECREASE the pressure by unlocking the pressure control, then turning it anticlockwise. Push down to lock it again

WARNING: For applications that require a very accurate air pressure, confirm outlet pressure with a calibrated pressure gauge.

Draining the condenser bowl

WARNING: Cleaning and draining MUST ONLY be carried out with the compressor switched off and the air system drained of pressure.

• The condenser will collect moisture and dirt which, unless removed, will cause serious corrosion to this device and to your machines
• Drain the Condenser Bowl (6) daily (or more often where applicable) by pulling down on the Drain Valve (7) until all liquid has escaped

Maintenance

WARNING: Always shut off the compressor and depressurise the air supply before cleaning or carrying out any maintenance.

WARNING: The polycarbonate Condenser Bowl (6) can be damaged and may fail if exposed to certain solvents or strong alkaline cleaning agents (either internally or externally).

Cleaning

• Press the Bowl Unlock Button (5), twist the Condenser Bowl (6) clockwise or anticlockwise until the bayonet connection unlocks, and remove the bowl
• Wash out using a mild detergent and a lint-free cloth
• Rinse with plenty of clean cold fresh water and dry thoroughly
• To reassemble, first check that the 0-ring that seals the bowl against the body of the unit is clean and undamaged, then engage the locking bayonet and twist the cup until the unlock button clicks into its locked position

Disposal

• As with other power tools, air tools should not be disposed of with household waste
• Air tools may contain traces of tool oil and other lubricants and so must be recycled accordingly
• Contact your local waste disposal authority for information on the correct way to dispose of power tools

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

• Your personal details
  • Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorised by: Silverline Tools

Declares that the

Identification code: 427596

Description: Air Line Filter Regulator

Conforms to the following Directives:

• Machinery Directive 2006/42/EC

• EN 12100:2010

Notified body: Shanghai Yousende Products Inspection Technology Co.,

Ltd, Shanghai, China

The technical documentation is kept by: Silverline Tools

Date: 07/01/14

Signed by:

Dum Mung Director

Name and address of the manufacturer:

Powerbox Ltd., Boundary Way, Lufton Trading Estate, Yeovil, Somerset, BA22 8HZ, United Kingdom
