USER MANUAL IAN 353093 Playtive

Illustration of two children's toy basketballs with motion guides and a monitor on top (no text or symbols)

PDF ONLINE www.lidl-service.com

HÜPFBURG BOUNCY CASTLE CHÂTEAU GONFLABLE

DE AT CH

HÜPFBURG

Kurzanleitung

FR BE

CHÂTEAU GONFLABLE

Simple line drawing of a stylized ear with concentric rings and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a rotating arm and housing (no text or symbols)

DE AT CH

Lieferumfang 6

Technische Daten 6

Safety instructions 9-10

Risk of injury 9

Avoiding material damage 10

Assembly 10

Inflation 10

Tethering the bouncy castle 10

Dismantling 11

Storage, cleaning 11

Repairs 11

NL BE

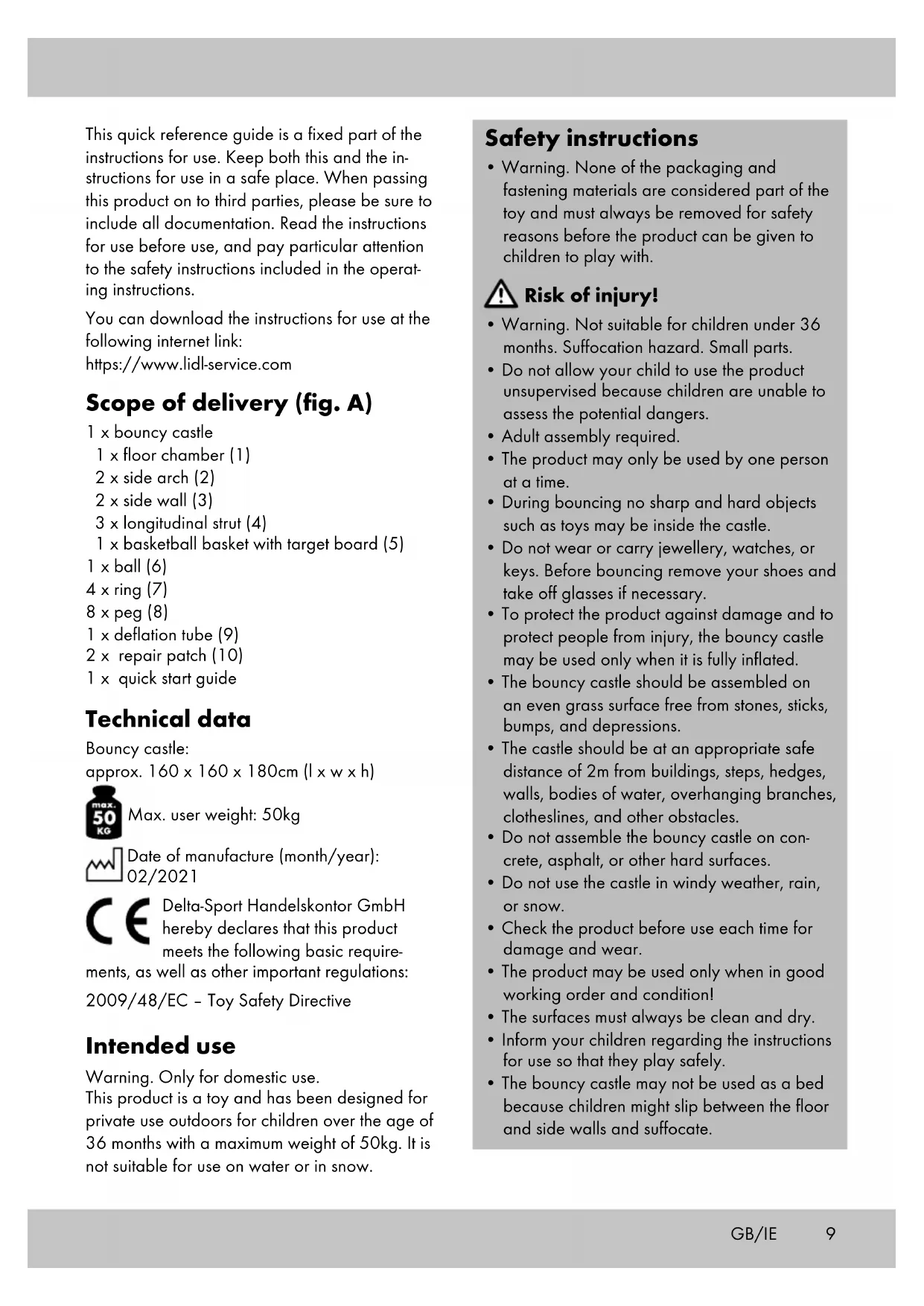

This quick reference guide is a fixed part of the instructions for use. Keep both this and the instructions for use in a safe place. When passing this product on to third parties, please be sure to include all documentation. Read the instructions for use before use, and pay particular attention to the safety instructions included in the operating instructions.

You can download the instructions for use at the following internet link:

https://www.lidl-service.com

Scope of delivery (fig. A)

1 x bouncy castle

1 x floor chamber (1)

2 x side arch (2)

2 x side wall (3)

1 x basketball basket with target board (5)

1 x ball (6)

4 x ring (7)

8 x peg (8)

1 x deflation tube (9)

2 x repair patch (10)

1 x quick start guide

Technical data

Bouncy castle:

approx. 160 x 160 x 180cm (l x w x h)

Max. user weight: 50kg

Date of manufacture (month/year):

02/2021

Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic require-

ments, as well as other important regulations:

2009/48/EC - Toy Safety Directive

Intended use

Warning. Only for domestic use.

This product is a toy and has been designed for private use outdoors for children over the age of 36 months with a maximum weight of 50kg. It is not suitable for use on water or in snow.

Safety instructions

- Warning. None of the packaging and fastening materials are considered part of the toy and must always be removed for safety reasons before the product can be given to children to play with.

Risk of injury!

- Warning. Not suitable for children under 36 months. Suffocation hazard. Small parts.

- Do not allow your child to use the product unsupervised because children are unable to assess the potential dangers.

- Adult assembly required.

- The product may only be used by one person at a time.

- During bouncing no sharp and hard objects such as toys may be inside the castle.

- Do not wear or carry jewellery, watches, or keys. Before bouncing remove your shoes and take off glasses if necessary.

- To protect the product against damage and to protect people from injury, the bouncy castle may be used only when it is fully inflated.

- The bouncy castle should be assembled on an even grass surface free from stones, sticks, bumps, and depressions.

- The castle should be at an appropriate safe distance of 2m from buildings, steps, hedges, walls, bodies of water, overhanging branches, clotheslines, and other obstacles.

- Do not assemble the bouncy castle on concrete, asphalt, or other hard surfaces.

- Do not use the castle in windy weather, rain, or snow.

- Check the product before use each time for damage and wear.

- The product may be used only when in good working order and condition!

- The surfaces must always be clean and dry.

- Inform your children regarding the instructions for use so that they play safely.

- The bouncy castle may not be used as a bed because children might slip between the floor and side walls and suffocate.

Avoiding material damage!

• All inflatables are susceptible to cold.
• For this reason never unfold and inflate the product at a temperature lower than 15^ C !
• In the event that the air pressure increases in the hot sun, it must be balanced accordingly by letting out air.
• Make sure that the product, especially when inflated, does not come into contact with stones, gravel, or sharp objects and does not rub or scrape against anything; this can cause damage to the plastic foil.
• Use only the correct pump adapters to insert into the safety valves. The valves might otherwise become damaged.
• Do not over-inflate because you then risk tearing open the welded seams. Close the valves properly after inflating.
• Avoid contact with sharp, hot, pointed, and dangerous objects.

Assembly

Assembly should always be undertaken by an adult. Follow the individual assembly steps in the order indicated.

• Choose an even and clean surface with enough room to unpack and unfold the castle.
• Check that all the individual parts are there and in good order and condition.
  • After assembling for the second time you should check the bouncy castle for any damage, holes and tears and seal them.

Inflation

Warning!

• Always inflate the air chambers completely!
- Avoid inflating the air chambers too much because there is the risk of over-stretching the welded seams and even tearing them open.
- To inflate the product use standard commercial foot pumps or double-stroke piston pumps with the appropriate pump adapters

• To inflate the product do not use a compressor or compressed air bottles. This can lead to damage to the product.
  • Make sure that the chambers are evenly inflated.
• Inflate each air chamber until it feels firm. When you press with your thumb against the air chamber it should still give a little.
  Avoid using sunscreen and skin care products containing alcohol. Sunscreen and skin care products containing alcohol can cause the colour coating of this PVC inflatable product to peel. This can lead to stains on your body, your clothing, and other objects that are in contact.

- WARNING!

Sequence WARNING!

Follow the correct sequence when inflating the air chambers. Always inflate all air chambers fully.

1. Floor chamber (1)
2. Side arches (2)
3. Side walls (3)
4. Longitudinal struts (4)
5. Basketball basket and target board (5)

Inflation

1. Open the valve on the bottom of the floor compartment.

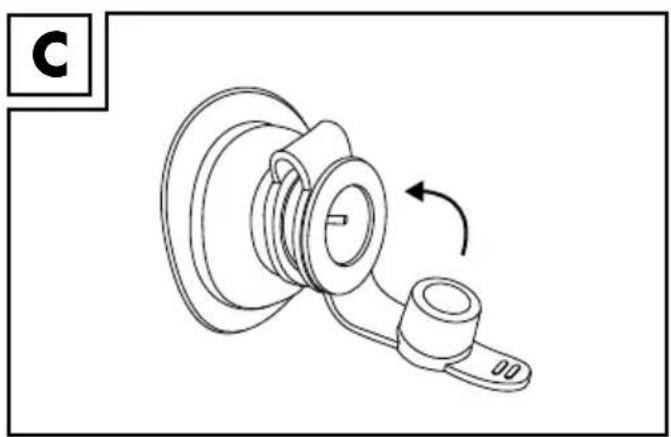

2. Fill the floor chamber (1) with air and close the cap (fig. C). Inflate the air chamber until it feels firm. When you press with your thumb against the air chamber it should still give a little.
   Close the valve seal and push in the valve by pressing gently.
3. To fill components 2-5 open the valve seal and inflate the air chambers (fig. B). Close the valve seal and push in the valve by pressing gently.

Tethering the bouncy castle

Fasten the product securely at the eight fastening loops (1a) using one peg (8) each on an even grass surface (fig. A).

Dismantling

Deflate the castle as follows:

1. To deflate the floor chamber quickly, open the seal (fig. D).
2. To deflate the other components pull out the respective valve and squeeze the valve stem lightly so that the air can escape or insert the deflation tube (9) into the corresponding stopper to let the air escape rapidly.
3. Deflate the ball (6) and the rings (7) as described under point 2.

Storage, cleaning

When not in use, always store the product clean, dry, and not inflated at room temperature.

The valves should always be closed during storage. Clean the product only with water or soapy water, never with abrasive detergents.

When storing for the winter do not place any sharp-edged objects on the product and do not powder with talc.

Repairs

Small leaks or holes can be repaired with the repair patches supplied.

Important! After repair do not inflate the product for 20 minutes! Do not use the patch for leaks or holes on the seam.

• Allow the air to escape from the product completely.
• Clean the area around the leak thoroughly! The area must be dry and free of grease.
• Cut out a piece of repair material big enough to have its edges protruding about 1.3cm over and beyond the damaged area.
• Pull the patch off the paper, place it on the damaged area, and press it down firmly.
