USER MANUAL 264607 Hendi

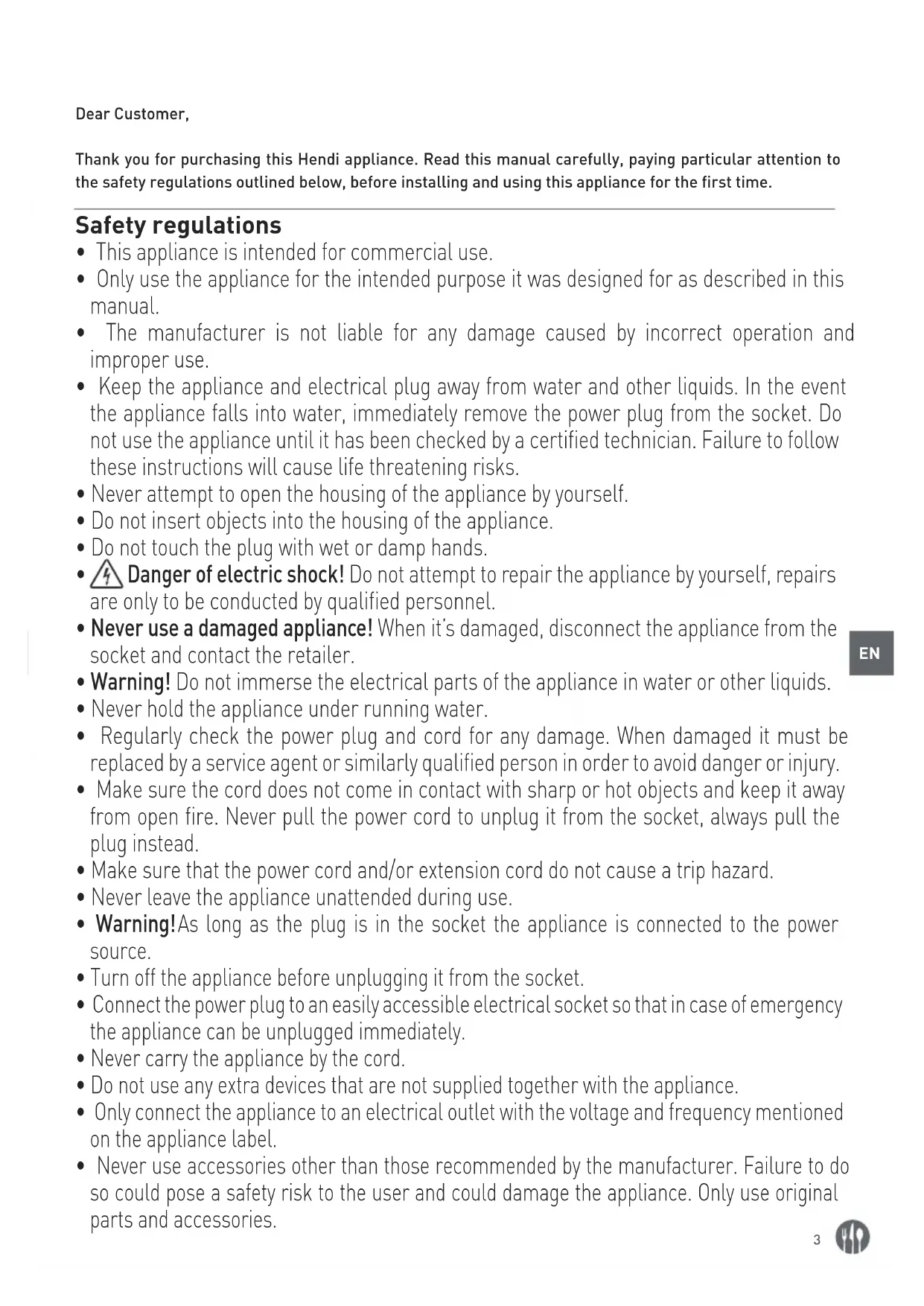

Dear Customer, Thank you for purchasing this Hendi appliance. Read this manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time. Safety regulations

• This appliance is intended for commercial use.

• Only use the appliance for the intended purpose it was designed for as described in this manual.

• The manufacturer is not liable for any damage caused by incorrect operation and improper use.

• Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.

• Never attempt to open the housing of the appliance by yourself.

• Do not insert objects into the housing of the appliance.

• Do not touch the plug with wet or damp hands.

Danger of electric shock! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.

• Never use a damaged appliance! When it’s damaged, disconnect the appliance from the socket and contact the retailer.

• Warning! Do not immerse the electrical parts of the appliance in water or other liquids.

• Never hold the appliance under running water.

• Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.

• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.

• Make sure that the power cord and/or extension cord do not cause a trip hazard.

• Never leave the appliance unattended during use.

• Warning! As long as the plug is in the socket the appliance is connected to the power source.

• Turn off the appliance before unplugging it from the socket.

• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.

• Never carry the appliance by the cord.

• Do not use any extra devices that are not supplied together with the appliance.

• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.4

• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.

• Keep the appliance and its power cord out of reach of children.

• WARNING: ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage. Special Safety Regulations

• Hot surface! Risks of burns! The grid and the adjacent metal enclosure part be- comes very hot during operation. Therefore, touch only the designated handle and the rotating knob only.

• The utensil (not supplied) that put on the grid should be heat resistant.

• Do not cover the appliance during operation and keep it away from inflammable objects, e. g. curtains, newspaper or liquid such as alcohol & fuels

• Do not place the appliance near heat sources, like cooking stove, heater or fire.

• This appliance is only served for the preparation of food.

• Use the appliance only in a well-ventilated area. Place the appliance on a flat, horizontal, stable surface. Leave at least 20 cm spacings from surrounding for ventilation purpose.

• Clean the appliance after each use to avoid infestation with mould fungus or vermin.

• The grid and the dripping tray are not dishwasher safe and must be cleaned by hands.

• Allow completely cool down before storage and cleaning.

• Warning! During installation, do not place on surfaces or near walls, partitions, or kitch

en furniture and the like --- unless they are made of non-combustible material or clad with a suitable non-combustible heat insulating material, and also pay attention to the fire prevention regulations. Intended use

• This appliance is intended for professional use.

• This appliance is designed only for grilling appro- priate food products. Any other use may lead to damage of the appliance or personal injury.

• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the de- vice. Grounding installation This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is fitted with a power cord that has a grounding wire and grounded plug. The plug must be plugged into an outlet that is properly installed and grounded.5

Hendi Salamander The temperature of the appliance can be regulated up to 300°C. This appliance is mainly used for grill- ing or keeping dishes/sandwiches warm and crisp. It also has a removable grid and dripping tray. Before First Use

Remove all parts from the packing material.

Check for the completeness and shipping dam- age immediately after unpacking. Contact the supplier if there is any damage.

Clean the appliance (See ==> Cleaning and main- tenance).

Operate the appliance for at least 10 minutes without food with the temperature controller at MAX position. This will burn any product residue away (See ==>Operation).

During this operation, some smoke might evoked due to burning of production residue. This is nor- mal and does not indicate any defect or hazard to the appliance.

Unplug the appliance from the electrical supply outlet.

Let the appliance cool down completely and then clean it before start to use. (See ==> Cleaning and Maintenance). Operation

Connect the power plug to a suitable electrical power outlet.

Then, rotate the temperature controller clock- wise to the desired temperature (up to 300°C) and ORANGE heating indicator light up.

GREEN ON/OFF indicator will also light up.

The appliance is starting to be heated up.

ORANGE heating indicator will go out once the set the temperature is reached. At the same time, the heater stops operating.

Lift up the top panel using the handle before tak- ing out the food.

When the temperature lowers, the temperature controller switch ON and the ORANGE heating indicator will light up again. The heating tube will start operation again.

When the temperature controller is switched to the maximum position, the appliance will heat continuously with the maximum temperature.

The salamander with double temperature con- troller operates the same way.

• Green ON/OFF indicator will go out after the product is switched off. Remark

Warning! Only touch the front handle on the top panel or temperature regulator. Other parts may get very hot during operation.

Attention! Make sure the food does not spill over the edge of the grilling plate. Useful hints

Grilled food may burn if the grilling time is too long or if the temperature is too high or the top panel is too close.

The grilling time and temperature depends upon the kind of food and the thickness. Find the opti- mal time by trial.

Always make sure that the grilled food is com- pletely cooked.

Always lift up the top panel to remove grilled food and using a suitable tool (not supplied) to avoid danger of burns.6

Cleaning and Maintenance

Risk of electric shock!

Do not let water or liquids enter the appliance!

Always unplug the appliance from the electrical power supply supply before cleaning and storage. Risk of burns!

Make sure the grid have cooled down completely before cleaning.

Clean the appliance after each use.

Properly dispose of the oil in the dripping tray.

The gird and the dripping tray are removable for cleaning.

Drop a little edible oil on stubborn residues on the grid and dripping tray. Let these soak for approx. 20 minutes.

Wipe the grid, dripping tray and the housing with a slightly damp cloth.

Avoid strong cleaning agents or scouring pads as these may damage the grid and the dripping tray.

Keep the appliance in a clean and dry location, away from the direct sunlight.

Keep the appliance out of reach of the children for storage. Troubleshooting If the appliance does not function properly, check the below table to find a solution. If you are still unable to solve the problem, contact the supplier/ service provider. Symptom Possible Cause Solutions Appliance is not working at all and all the lights are off. - Appliance not plugged in. - Circuit breaker triggered. - Internal power malfunction. - Plug the appliance into a work- ing power supply. - Check the circuit breaker of the power supply. - Contact supplier. Appliance is not heating, the green light is on and the orange light is off. - Temperature regulator defec- tive. - Temperature regulator in the ‘off’ position. - Contact supplier. - Turn the knob of the tempera- ture regulator to switch it on. Appliance is not heating, the green light and orange light are on - Heating element defective. - Contact supplier. Circuit breaker is triggered when the appliance is switched on. - Overload of the power supply. - Internal Short-circuit. - Connect the appliance to suit- able power supply (16 Ampère). - Check if there are other appliances on the same circuit breaker. - Contact supplier. Appliance is not hot enough or too hot - Temperature regulator defec- tive. - Incorrect height of the heating element. - Contact supplier. - Decrease or increase the height of the upper housing (heating element). Upper housing can’t be moved up or down. - Upper housing blocked by external object. - Internal mechanical defect. - Remove the external object to free the upper housing. - Contact supplier.7

Technical specification Model 264607 264706 Dimension (mm) 480x520x(H)530 600x520x(H)530 Power supply 220-240V~ 50/60Hz Power 2800W 3600W (2x1800W) Number of temperature controllers 1 2 Protection class class I Waterproof class IPX3 Temperature range Up to 300 ºC Heating area (mm) 440×320 590×350 Vertical movement of upper housing 70~200mm Weight 39 kg 49 kg Remark: Technical data is subjected to change without prior notification. Warranty Any defect affecting the functionality of the ap- pliance which becomes apparent within one year after purchase will be repaired by free repair or re- placement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appli- ance is claimed under warranty, state where and when it was purchased and include proof of pur- chase (e.g. receipt). In line with our policy of continuous product devel- opment we reserve the right to change the product, packaging and documentation specifications with- out notice. Discarding & Environment When decommissioning the appliance, the prod- uct must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a des- ignated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate col- lection and recycling of your waste equipment at the time of disposal will help conserve natural re- sources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.8
