Brand	Blaupunkt
Model	5DL69653
Product type	Range hood
Intended use	Domestic use to eliminate kitchen odors
Minimum safety distance (cooking surface)	650 mm
Exhaust duct diameter	120 mm minimum
Appliance classes	Class I (grounding required)
Number of motor speeds	3 (speed 1, 2, 3 + intensive)
Delayed shut-off function	Yes, 30 minutes on long press 2 seconds
Intensive function	Yes, 6 minutes at high speed
Lighting	Yes, switch L (replacement by after-sales service)
Grease filter	Dishwasher safe, every 2 months
Activated carbon filter	Not washable, replace every 4 months
External cleaning	Damp cloth and mild detergent, no alcohol or silicone
User maintenance	Filters only, no cleaning by children unsupervised
Power supply	See rating plate inside the hood
Electrical connection	By a qualified technician, grounding mandatory
Cable length	Not specified
Hood material	Not specified
Dimensions (W x D x H)	Not specified
Weight	Not specified
Spare parts	Contact after-sales service for lighting and other parts

Frequently Asked Questions - 5DL69653 BLAUPUNKT

What is the minimum safety distance between the cooking surface and the hood?

The minimum safety distance is 650 mm. If the instructions for your gas cooking specify a greater distance, follow that.

How to clean the grease filters?

Grease filters should be cleaned every 2 months. They can be washed in the dishwasher or by hand with a mild detergent.

When to replace the activated carbon filter?

The activated carbon filter cannot be washed and should be replaced approximately every 4 months (or more often depending on usage).

How to use the delayed shut-off function?

Press the T2, T3 or T4 button for 2 seconds to activate the 30-minute delayed shut-off. The corresponding buttons flash. You can change the speed during the countdown.

What to do if the hood stops working?

First check the power supply and fuse. If the cord is damaged, have it replaced by the manufacturer or a certified technician. For any other problem, contact after-sales service.

Can I use the hood without an exhaust duct?

Yes, the hood can operate in recirculation mode with an activated carbon filter. In this case, the air is filtered and returned to the room.

How to replace the hood light bulb?

Replacing the lighting must be done by the after-sales service. Contact after-sales service for a suitable bulb and installation.

What safety precautions should I observe?

Never flambé food under the hood, watch over deep fryers, ensure adequate ventilation if using the hood with gas appliances, and do not allow children to play with the appliance.

Can the hood be installed above a gas cooktop?

Yes, provided the minimum safety distance of 650 mm is observed (or more if specified by the cooktop).

How to activate the intensive speed?

Press the T4 button for 2 seconds. The hood runs at high speed for 6 minutes, then returns to the previous speed. The button flashes during this time.

USER MANUAL 5DL69653 BLAUPUNKT

Illustration of a hand holding a smartphone with a finger, next to a stylized 'Z' logo (no text or symbols on the device itself)

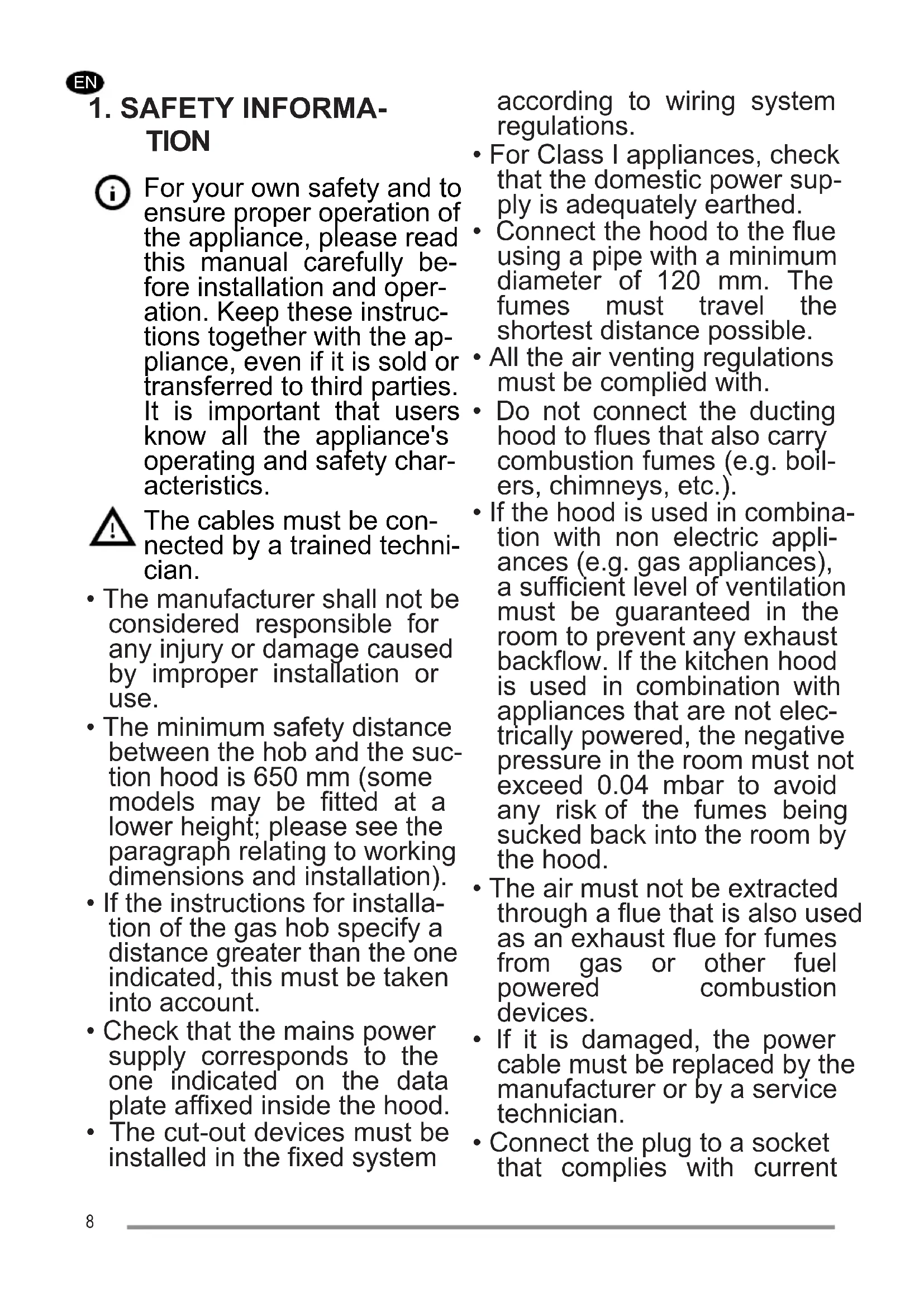

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.
• The cut-out devices must be installed in the fixed system

according to wiring system regulations.

- For Class I appliances, check that the domestic power supply is adequately earthed.

- Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.

- All the air venting regulations must be complied with.

- Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).

- If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.

- The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.

- If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.

- Connect the plug to a socket that complies with current

regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out

by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psychophysical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol 📁 on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might

result from its improper dis- posal. For more detailed in- formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

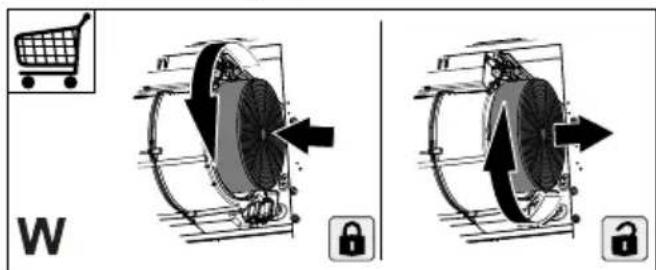

- The activated charcoal filter cannot be washed or regenerated, and must be changed approximately every 4 months of operation, or more frequently in the case of particularly intensive use (W).

- The grease filters must be cleaned every 2 months of operation, or more frequently in the case of particularly intensive use. They can be washed in a dishwasher (Z).

Hand holding a smartphone with a Z symbol on its screen (no text or symbols on the device itself)

• Clean the hood using a damp cloth and neutral liquid detergent.
• Avoid using alcohol or silicone-based products to clean the inside and outside of the cooker hood.

4. CONTROLS

Button Function
T1	Stops the motor. -
T2	Starts the motor at first speed. Buttons T1+T2 are lit.
T3	Starts the motor at second speed. Buttons T1+T3 are lit.
	Pressed for 2 seconds activates a 30-minute delayed shutdown (Motor + Lights). The operating speed can be changed when the function is active.	The respective buttons T1+(T2 or T3 or T4) flash.
T4	Starts the motor at third speed. Buttons T1+T4 are lit.
	Pressed for 2 seconds. Activates Intensive speed for 6 minutes, at the end of which it returns to the previously set speed. Suitable for dealing with peaks of cooking fume emissions.	The button flashes.
L	Turns the lighting system on and off. Button lit.

5. LIGHTING

- Please contact the Service Department to change it ("Please contact the service department to purchase it").
