Product type	Display refrigerator
Brand	Polar
Model	DM071
Dimensions (H x W x D)	510 x 430 x 480 mm
Power supply	220-240 V ~ 50 Hz, 85 W, 0.55 A
Refrigerant	R600a (isobutane)
Temperature range	0 to 18 °C
Door type	Glass door
Thermostat setting	From 0 (warm) to 5 (cold)
Door reversal	Possible
Defrosting	Manual
Minimum installation distance	20 cm from walls
Recommended cleaning	Warm soapy water
Do not cover while in operation	Yes, risk of overheating
Do not use steam or water jet	Yes, for cleaning
Do not use a power strip at the back	Yes
Repairability	By POLAR authorized technician
Disposal	Recycling by specialized company
Certifications	CE, WEEE

Frequently Asked Questions - DM071 POLAR

How to adjust the refrigerator temperature?

Use the thermostat located at the back of the appliance. It is calibrated from 0 (warm) to 5 (cold). Turn the knob to obtain the desired temperature.

Can I reverse the door?

Yes, you can reverse the door by unscrewing the hinges and changing the handle to the other side. Refer to the Door reversal section of the manual for detailed instructions.

What to do if the appliance is not cooling enough?

First check that the temperature is set correctly. Make sure the door is not opened too often and that the seal is in good condition. If the problem persists, contact an authorized technician.

Which product should I use to clean the appliance?

Use warm soapy water. Do not use aggressive cleaners, steam, or water jets. Wipe with a soft cloth.

Can I use a power strip behind the appliance?

No, do not place power strips or portable power supplies at the back of the appliance. Plug it directly into a suitable wall outlet.

The appliance is noisy, what should I do?

Check that the appliance is level by adjusting the screw feet. Intermittent noise may be normal. If the noise persists, contact an authorized technician.

Can I use the appliance outdoors?

No, this appliance is not suitable for outdoor use. Install it in a dry place away from direct sunlight.

How to dispose of the appliance at the end of its life?

In accordance with EU regulations, the appliance must be disposed of by a specialized company capable of extracting and recycling components. Contact your local waste collection authority.

Is the R600a refrigerant dangerous?

R600a is a flammable gas. Do not pierce the refrigeration circuit and do not store flammable aerosols. In case of leakage, ventilate the room.

How much space should I leave around the appliance?

Leave a space of at least 20 cm between the appliance and walls or other objects to ensure good air circulation.

USER MANUAL DM071 POLAR

White refrigerator with multiple Heineken beverage cans on the side, open door open (no visible text or symbols)

NL Koeler 7

Handleiding

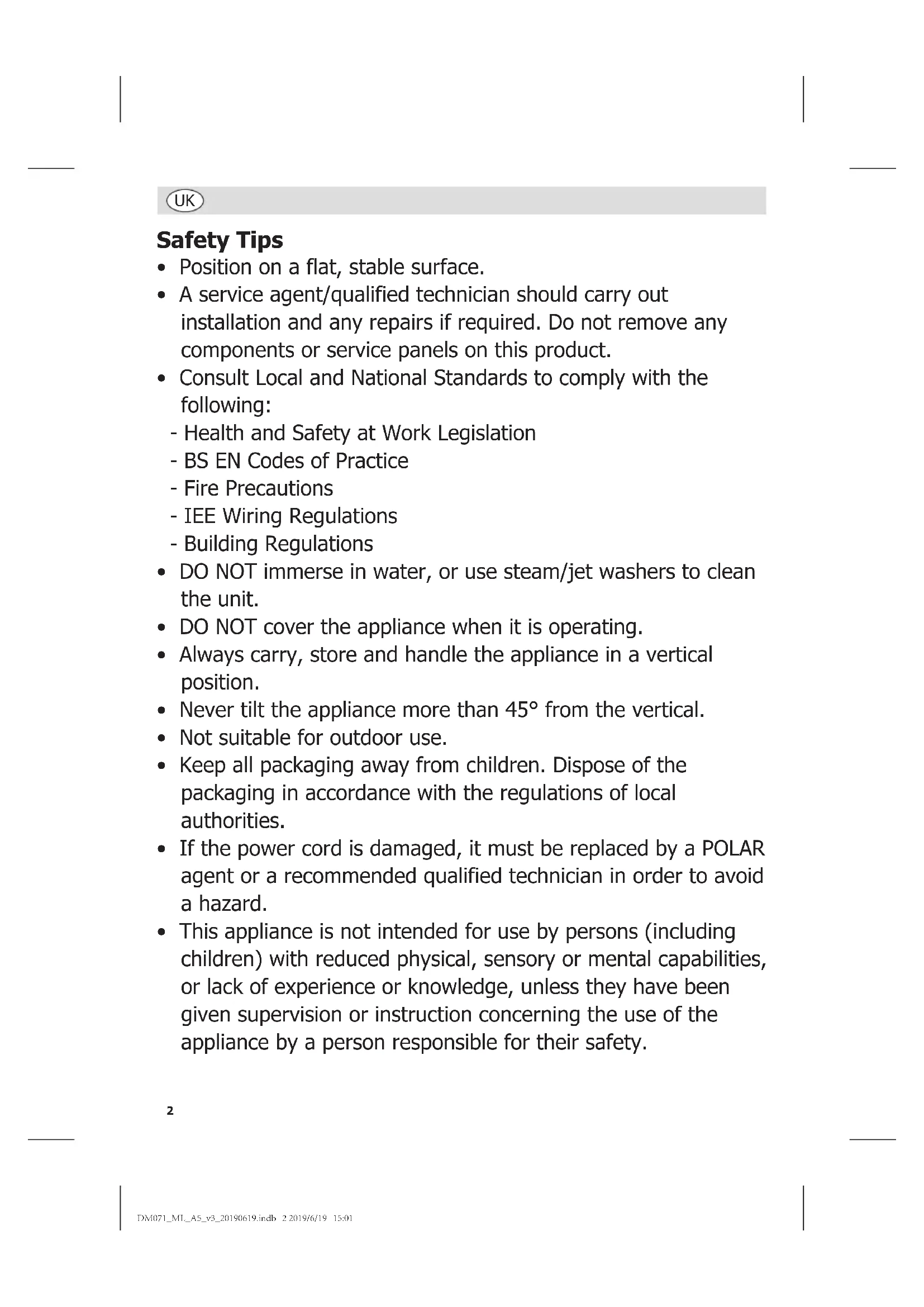

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations

• Building Regulations

• DO NOT immerse in water, or use steam/jet washers to clean the unit.

• DO NOT cover the appliance when it is operating.
• Always carry, store and handle the appliance in a vertical position.
• Never tilt the appliance more than 45^ from the vertical.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Polar recommend that this appliance is PAT tested on an annual basis to ensure the product remains safe.

Warning: Risk of Fire / flammable materials

• The refrigerant gas contained in this appliance is isobutene (R600a), which is low-polluting but flammable.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

Pack Contents

The following is included:

• Display Chiller
  • Instruction manual

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

UK

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging and the protective film from all surfaces.
2. Avoid positioning the cooler in direct sunlight or damp areas.
3. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation. NEVER LOCATE NEXT TO OR NEAR A HEAT SOURCE.
4. If necessary, adjust the screw legs of the cooler to make it level.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

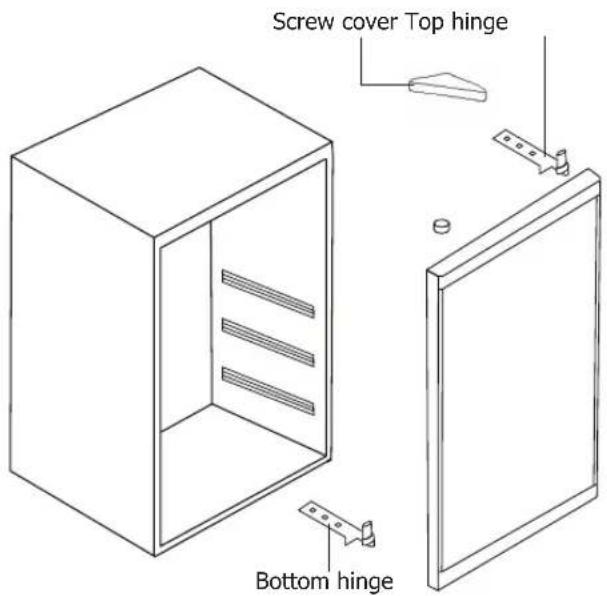

Reversing the Door

Depending on the location of the appliance, it may be necessary to change the direction the door of the cooler opens by changing the side of the door handle.

To reverse the door handle:

1. Ensure the appliance is disconnected from the power supply.
2. Tilt the appliance back slightly and prop it securely. The appliance must not be tipped back by more than 45 degrees.
3. Unscrew the door hinge screws on the base of the door and remove the Hinge.
4. Open the door slightly and remove the door in a downwards direction.
5. Remove the plastic screw cover from the top of the cooler by levering it off with a small screwdriver.
6. Unscrew and remove the hinge from the top of the appliance.
7. Screw the reversed door frame Hinge to the opposite side of the appliance and reattach the screw cover.
8. Fit the door into place by locating the upper Hinge first then closing the door.
9. Reattach the Bottom hinge onto the opposite side of the door.
10. The appliance can now be lowered into position.

Screw cover Top hinge Bottom hinge

Operation

The controller is located at the rear of the appliance.

The thermostat is graded from 0 (warm) to 5 (cold).

Simple line drawing of a 3D cube with a small rectangular block inside, no text or symbols present.

Cleaning, Care & Maintenance

• Always switch off and disconnect the power supply before cleaning.
- Warm, soapy water is recommended for cleaning. Cleaning agents may leave harmful residues.
- A POLAR agent or qualified technician should carry out repairs if required.
• Periodically clean the bottom of the cooler compartment to remove any build-up of condensation.

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer.

Fault Probable Cause Solution
The appliance is not working	The unit is not switched on Check the unit is plugged in correctly and switched on
	Plug and lead are damaged Call POLAR agent or qualified Technician
	Fuse in the plug has blown Replace the fuse
	Power supply Check power supply
	Internal wiring fault Call POLAR agent or qualified Technician
Appliance is noisy or works intermittently	Appliance is not level Adjust the feet to level the appliance
Cooler cabinet is not cold enough	Temperature set incorrectly Check temperature and reset if necessary
	External environment may require colder temperature	Check temperature and reset if necessary
	The door is opened too often Only open when necessary
	Door seal is worn Call POLAR agent or qualified technician
Doors will not close properly	Cooler is not level Adjust the feet
	Door has been reversed and not properly fitted	See “Reversing the Door”
	Shelves are out of position Check all shelves are properly inserted
	Door seal is dirty	Wipe clean with a damp cloth

Technical Specifications

Model	Voltage	Power	Current	Refrigerant	Temp. Range	Dimensions H x W x D mm	Weight (kg)
DM071	220-240V 50Hz	85W	0.55A	R600a	0-18°C	510 x 430 x 480	15

UK

Electrical Wiring

POLAR appliances are supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

Veiligheidstips

Simple line drawing of a 3D cube with a small rectangular block inside, no text or symbols present.

NL

Simple line drawing of a 3D cube with a small rectangular block inside, no text or symbols present.

Simple line drawing of a 3D cube with a small rectangular block inside, no text or symbols present.

Funzionamento

Technical line drawing of a cabinet with labeled components, showing front and side views (no text or symbols beyond labels)

Simple line drawing of a 3D cube with a small rectangular block inside, no text or symbols present.

ES

Simple line drawing of a 3D cube with a small rectangular block inside, no text or symbols present.

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità • - Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho

24 ^th April 2019

Technical & Quality Manager

POLAR

REFRIGERATION

QR code image with a central logo, likely linking to a digital resource or website.

http://www.polar-refrigerator.com/

DM071_ML_A5_v3_20190619
