Product type	Double-door bar refrigerated cabinet
Dimensions (H x W x D)	925 x 920 x 540 mm
Weight	75 kg
Power supply	230 V, 50 Hz, 112 W, 1.1 A
Temperature range	2 °C to 8 °C
Capacity	223 litres
Refrigerant	R600a (55 g)
Number of doors	2
Door type	Hinged door
Shelves provided	4 adjustable shelves
Control panel	Electronic display with adjustment keys
Defrost	Automatic + manual
Interior lighting	Replaceable bulb
Main functions	Refrigeration, temperature adjustment, manual defrost
Maintenance and cleaning	Regular interior cleaning, condenser dusting
Safety	Mandatory grounding, do not use electrical devices inside
Installation	20 cm clearance around for ventilation, flat and stable surface
Recommended ambient temperature	Avoid heat sources and direct sunlight
Compliance	European directives (MD, EMC, RoHS)

Frequently Asked Questions - CB930 POLAR

How to adjust the temperature of the Polar CB930 refrigerator?

Press the SET button for 3 seconds until '00' flashes. Use the arrow to set it to '55', then confirm with SET. Navigate the menu to 'St' for setpoint, adjust to the desired temperature (between 2 and 8 °C), then confirm. The appliance resumes normal operation after 30 seconds.

What to do if the appliance is not cooling enough?

Check that the doors are properly closed and the seals are in good condition. Clean the condenser (located at the back) if it is dirty. Ensure the appliance is not near a heat source and that air circulates freely around it. If the problem persists, contact a qualified technician.

How to clean the condenser?

Unplug the appliance. Use a soft-bristle brush or vacuum cleaner to gently clean the condenser fins at the back of the appliance. Be careful not to damage them. Perform this operation regularly to extend the life of the appliance.

Why is the appliance making an abnormal noise?

Check that the appliance is placed on a flat and stable surface. Make sure it is not in contact with nearby objects. If the noise persists, it may be an internal problem; contact a qualified technician.

How to start a manual defrost?

Press and hold the defrost button (often a snowflake icon) for 3 seconds. The defrost indicator lights up. To stop the defrost, press and hold the same button again for 3 seconds. Note that manual start resets the automatic cycle.

How to change the interior bulb?

Turn off and unplug the appliance. Let the bulb cool down. Disconnect the old bulb from its socket and insert a new bulb of the same type. Reconnect the appliance. Caution: the bulb may be hot after use.

What is the capacity of the Polar CB930 refrigerator?

The net capacity is 223 litres, with 4 adjustable shelves provided.

What are the important safety instructions?

Do not immerse the appliance, do not use a steam cleaner, do not store explosive substances, do not obstruct ventilation openings, and do not damage the refrigeration circuit. The appliance must be transported vertically and must not be tilted more than 45°.

How to correctly install the appliance?

Place the appliance on a flat and stable surface. Leave at least 20 cm space around for air circulation. Avoid heat sources and direct sunlight. Adjust the screw feet to stabilize. Before first use, clean the interior and shelves with soapy water.

What to do in case of power outage?

Keep the doors closed to maintain temperature as long as possible. If the interruption is prolonged, check the food and discard any that may have spoiled. When power returns, the appliance resumes normal operation.

USER MANUAL CB930 POLAR

Exterior view of a modern stainless steel multi-level beverage refrigerator with glass doors showing red and black beverage cans (no visible text or labels)

Black and white photo of a modern black beverage refrigerator with glass doors showing beverage bottles (no visible text or labels)

Black double-decker refrigerator with two side bays filled with red and white beverage cans (no visible text or labels)

NL Barkoeler

Handleiding

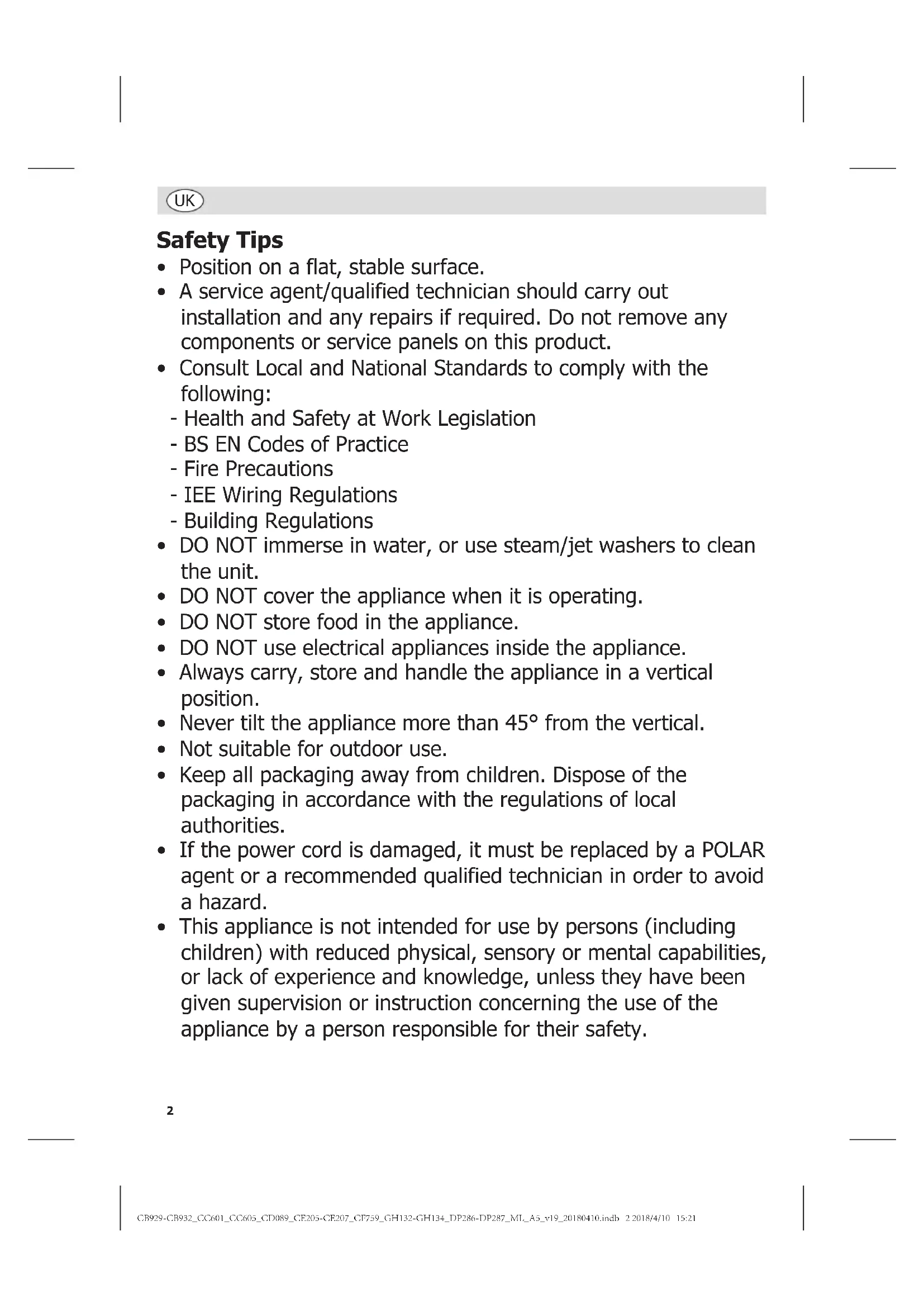

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations

• Building Regulations

• DO NOT immerse in water, or use steam/jet washers to clean the unit.

• DO NOT cover the appliance when it is operating.
  • DO NOT store food in the appliance.
• DO NOT use electrical appliances inside the appliance.
• Always carry, store and handle the appliance in a vertical position.
• Never tilt the appliance more than 45^ from the vertical.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Polar recommend that this appliance is PAT tested on an annual basis to ensure the product remains safe.

Caution Risk of Fire

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Product Description

• CB929 - Single Door Back Bar Chiller

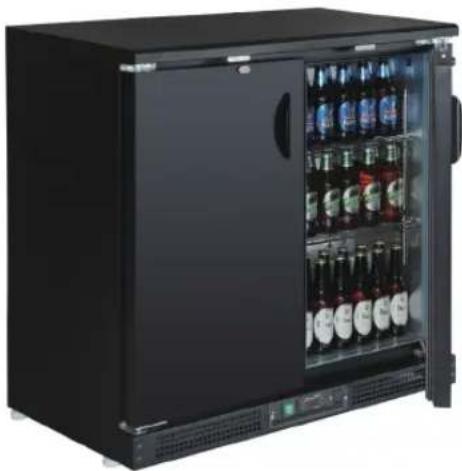

• CB930 - Double Door Back Bar Chiller

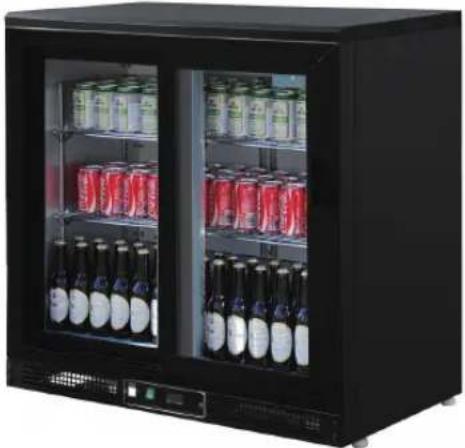

• CB931 - Double Door (Sliding) Back Bar Chiller
• CB932 - Three Door Back Bar Chiller
• CC601 - Double Door (Sliding) Back Bar Chiller
• CC605- Three Door Back Bar Chiller (Sliding)
• CD089 - Single Split Door Back Bar Chiller
• CE205 - Single Door Back Bar Chiller
• CE206 - Double Door Back Bar Chiller
• CE207 - Three Door Back Bar Chiller

• CF759 - Double Door (Sliding) Back Bar Chiller (Reduced Height)
• GH132 - Single Door Back Bar Chiller (Solid Door)
• GH133 - Double Door Back Bar Chiller (Solid Door)
  • GH134 - Three Door Back Bar Chiller (Solid Door)
• DP286 - Single Door Back Bar Chiller (Reduced Height)
• DP287 - Double Door Back Bar Chiller (Reduced Height)

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

UK

Pack Contents

ALL MODELS:

• POLAR Back Bar Chiller
• Key
- Instruction manual

Plus...

• 1 DOOR MODEL: 2 adjustable shelves
• 2 DOOR MODEL: 4 adjustable shelves
• 3 DOOR MODEL: 6 adjustable shelves

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging and the protective film from all surfaces.
2. Avoid positioning the appliance in direct sunlight or damp areas.
3. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation. NEVER LOCATE NEXT TO OR NEAR A HEAT SOURCE.
4. Insert the slide-out shelf/shelves at the desired levels.
5. If necessary, adjust the screw feet of the appliance to make it level.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

Operation

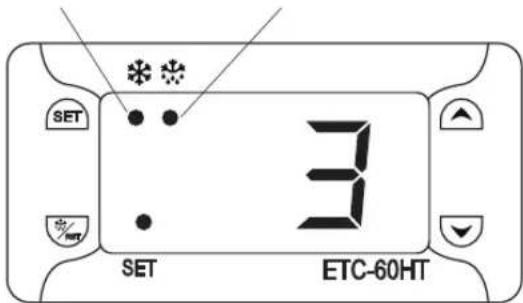

Control Panel

The control panel is located below the doors on the front of the appliance.

Cooling Light Defrost Light

SET SET ETC-60HT

Turn On

1. Close the door of the appliance.
2. Connect the appliance to a mains power supply.
3. Switch on the Power switch [I].

Note: The Cooling Light is illuminated when the appliance is chilling the interior cabinet.

How To Change The Set Temperature

The default operating temperature is 2 °C. To change the operating temperature:

1. Press SET for 3 seconds starts to blink.
2. Press ▲ until ▼ is shown, Press SET to confirm.
3. You are now in the menu and will see FDI blinking.
4. Press to show (temperature set point). Press SET to confirm.
5. Adjust temperature to required temperature. Press SET to store set point.
6. Unit will resume normal operations after 30 seconds.

Manual Defrost

- POLAR Back Bar Chillers feature an automatic defrost. However, should the appliance require an additional defrost period press and hold the

- Press and hold the button for 3 seconds to stop defrosting.

Note: If a manual defrost is started this resets the automatic defrost timer. During defrost periods the Defrost light is illuminated.

Cleaning, Care & Maintenance

• Switch off and disconnect from the power supply before cleaning.
• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
  • Always wipe dry after cleaning.
• A POLAR agent or qualified technician must carry out repairs if required.

Cleaning the Condenser

Periodically cleaning the condenser can extend the life of the appliance. The condenser is located at the back of the appliance.

Note: Use a soft brush or vacuum cleaner to clean the fins of the condenser, taking care not to damage the fins.

Replacing the Interior Lamp (for CC601, CC605, CB929\~CB932)

WARNING: Allow the lamp to cool before replacing. The lamp remains hot immediately after use.

1. Turn Off and disconnect the appliance from the mains power supply.
2. Unplug the lamp from the socket.
3. Insert the new lamp into place.

Close-up of two transparent cable connectors with black arrows indicating direction (no text or symbols)

Troubleshooting

If your appliance develops a fault, please check the following table before making a call to the Helpline.

Fault Probable Cause Solution
The appliance is not working	The unit is not switched on Check the unit is plugged in correctly and switched on
	Plug and lead are damaged Call POLAR agent or qualified Technician
	Fuse in the plug has blown Replace the fuse
	Power supply Check power supply
	Internal wiring fault Call POLAR agent or qualified Technician
The appliance turns on, but the temperature is too high/low	Condenser blocked with dust Clean Condenser
	Doors are not shut properly Check doors are shut and seals are not damaged

UK

Fault Probable	Cause Solution
The appliance turns on, but the temperature is too high/low	Appliance is located near a heat source or air flow to the condenser is being interrupted	Move the appliance to a more suitable location
	Ambient temperature is too high Increase ventilation or move appliance to a cooler position
	Insufficient airflow to the fans Remove any blockages to the fans
	Appliance is overloaded Reduce the amount stored in the appliance
	Factory default parameters adjusted	Call POLAR agent or qualified Technician
The appliance is unusually loud	The appliance is touching a neighbouring object	Check installation position and change if necessary
	The appliance has not been installed in a level or stable position	Check installation position and change if necessary

Technical Specifications

Model Voltage Power Current				Temperature Range	Capacity (Litres)	Refrigerant	Dimensions H x W x D mm	Weight (kg)
CB929 230V 50Hz 105.4W		1.1A 2°C to	8°C 140 R600a	40g 925 x 600 x	540 54
CB930	230V 50Hz	112W	1.1A	2°C to 8°C	223	R600a 55g	925 x 920 x 540	75
CB931	230V 50Hz	112W	1.1A	2°C to 8°C	223	R600a 55g	925 x 920 x 535	72
CB932	230V 50Hz	137.6W	1.1A	2°C to 8°C	335	R600a 40g	925 x 1350 x 540	95
CC601	230V 50Hz	112W	1.1A	2°C to 8°C	223	R600a 55g	925 x 920 x 535	95
CC605	230V 50Hz	137.6W	1.1A	2°C to 8°C	335	R600a 40g	925 x 1350 x 535	91
CD089	230V 50Hz	105.4W	1.1A	2°C to 8°C	140	R600a 40g	925 x 600 x 535	54
CE205 230V 50Hz 105.4W		1.1A 2°C to	8°C 140 R600a	40g 925 x 600 x	540 54
CE206	230V 50Hz	112W	1.1A	2°C to 8°C	223	R600a 55g	925 x 920 x 540	75
CE207	230V 50Hz	137.6W	1.5A	2°C to 8°C	335	R600a 40g	925 x 1350 x 540	95
CF759	230V 50Hz	112W	1.1A	2°C to 8°C	223	R600a 55g	870 x 920 x 535	62
GH132	230V 50Hz	105.4W	1.1A	2°C to 8°C	140	R600a 40g	925 x 600 x 540	54
GH133	230V 50Hz	112W	1.1A	2°C to 8°C	223	R600a 55g	925 x 920 x 540	75
GH134	230V 50Hz	137.6W	1.1A	2°C to 8°C	335	R600a 40g	925 x 1350 x 540	95
DP286	230V 50Hz	105.4W	1.1A	2°C to 8°C	140	R600a 40g	870 x 600 x 540	54
DP287	230V 50Hz	112W	1.1A	2°C to 8°C	223	R600a 55g	870 x 920 x 540	75

Electrical Wiring

POLAR appliances are supplied with a 3 pin, moulded, BS1363 plug and lead, with a 3 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

NL

Veiligheidstips

SET SET ETC-60HT

Inschakelen

Close-up of two transparent plastic connectors with black arrows indicating direction (no text or symbols)

SET * * * SET ETC-60HT

Mise en marche

Close-up of two transparent plastic connectors with black arrows indicating direction (no text or symbols)

Dépannage

Symbolic image showing a recycling bin with crossed-out lines and a minus sign, next to the acronym 'CE'.

SET 3 SET ETC-60HT

Einschalten

Close-up of two transparent electrical connectors with black arrows indicating direction (no text or symbols)

Störungssuche

SET * * * SET ETC-60HT

Accensione

Close-up of two transparent cable connectors with black arrows indicating direction (no text or symbols)

SET * * * SET ETC-60HT

Encendido

Close-up of two transparent electrical connectors with black arrows indicating direction (no text or symbols)

SET * * * SET ETC-60HT

Ligar

Close-up of two transparent cable connectors with black arrows indicating direction (no text or symbols)

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità • - Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho

Technical & Quality Manager

POLAR

REFRIGERATION

QR code image with a central logo, likely linking to a digital resource or website.

http://www.polar-refrigerator.com/

CB929-CB932_CC601_CC605_CD089_CE205-CE207_CF759_GH132-GH134_DP286-DP287_ML_A5_v19_20180410
