| Product type | SDS-max combination hammer and breaker |
| Brand | Metabo |
| Model | KHEV 540 BL |
| Power supply | Mains, 230 V ~, 50/60 Hz |
| Power input | 1500 W |
| Power output | 750 W |
| No-load speed | 150 - 300 rpm |
| Maximum impact rate | 4500 impacts/min |
| Impact energy | 10 J |
| Max. drilling diameter in concrete (solid bits) | 40 mm |
| Max. drilling diameter in concrete (core bits) | 100 mm |
| Weight without cable | 7.2 kg |
| Dimensions (L x W x H) | 450 x 110 x 250 mm |
| Tool holder | SDS-max |
| Number of chisel positions | 12 |
| Main functions | Drilling, chiseling, adjustable impact power (70% / 100%), Metabo VibraTech (MVT) anti-vibration system, permanent activation in chiseling mode |
| Safety | Restart protection after power cut, emergency stop, recommended RCD protection switch (30 mA) |
| Maintenance and cleaning | Regularly clean ventilation slots by vacuuming or compressed air; disconnect before maintenance; use original Metabo accessories |
| Spare parts and repairability | Repairs by qualified electrician or Metabo service; spare parts list available at www.metabo.com |
| General information | Protection class II; noise level may exceed 80 dB(A); wear hearing protection, safety glasses, gloves and dust mask |
Frequently Asked Questions - KHEV 540 BL METABO
User questions about KHEV 540 BL METABO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hammer in PDF format for free! Find your manual KHEV 540 BL - METABO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KHEV 540 BL by METABO.
USER MANUAL KHEV 540 BL METABO
KHEV 5-40 BL KHEV 8-45 BL KHEV 11-52 BL MHEV 5 BL MHEV 11 BL


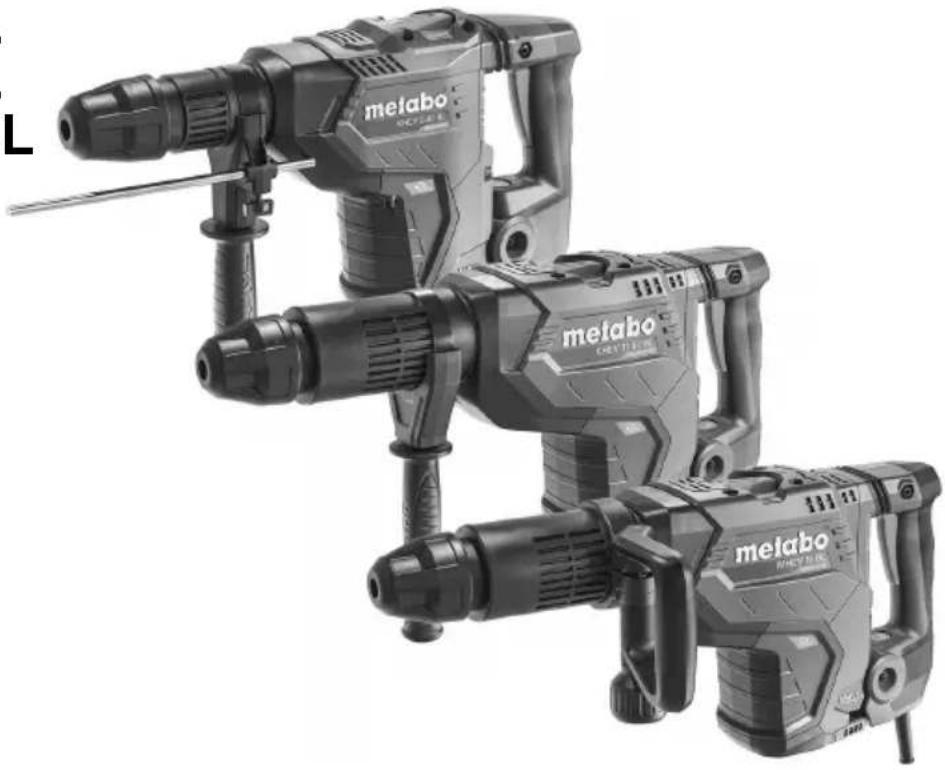

Three Metabo mobile drillers displayed against a plain background (no visible text or symbols on the devices themselves)
| SDS-max SDS-max SDS-max SDS-max SDS-max | ||||||
| P_1 | W 1150 | 1500 | 1500 | 1500 | 1500 | |
| P_2 | W 730 7 | 50 810 730 8 | 10 | |||
| n_0 | /min | 0 - 3500 - 500 | 0 - 2100 - 300 | 0 - 2000 - 270 | - | - |
| D_1 | mm (in) | 40 ( 1^9/_16 ) | 45 ( 1^25/_32 ) | 52 ( 2^1/_16 ) | - | - |
| D_2 | mm (in) | 105 ( 4^1/_8 ) | 125 ( 4^15/_16 ) | 160 ( 6^5/_16 ) | - | - |
| s_max | /minbpm | 2900 290 | 2400 2900 | 2100 | ||
| W(EPTA 05/2009) | J | 8,7 | 12,2 | 18,8 | 8,7 | 18,0 |
| C | - | 12 | 12 | 12 | 12 | 12 |
| m | kg (lbs) | 8,3 (18) | 9,8 (22) | 12,4 (27) | 7,9 (17) | 12,2 (27) |
| a_h,HD/K_h,HD | m/s^2 | 8,0 (1,5) | 8,6 (1,5) | 9,5 (1,5) - | - | |
| a_h,Cheq/K_h,Cheq | m/s^2 | 7,3 (1,5) | 9,2 (1,5) | 9,7 (1,5) | 7,3 (1,5) | 10,3 (1,5) |
| L_pA/K_pA | dB (A) | 93 / 3 | 94 / 3 | 98 / 3 | 93 / 3 | 90 / 3 |
| L_WA/K_WA | dB (A) | 104 / 3 | 105 / 3 | 110 / 3 | 104 / 3 | 101 / 3 |
| L_pA(M) | dB (A) - | - | - | - | - | |
| L_WA(M) | dB (A) | - | - | - | - | 98,4 |
| L_WA(G) | dB (A) | - | - | - | - | 101,0 |
*2) 2014/30/EU, 2006/42/EC, 2011/65/EU
*3) EN 60745-1:2009+A11:2010, EN 60745-2-6:2010, EN 50581:2012

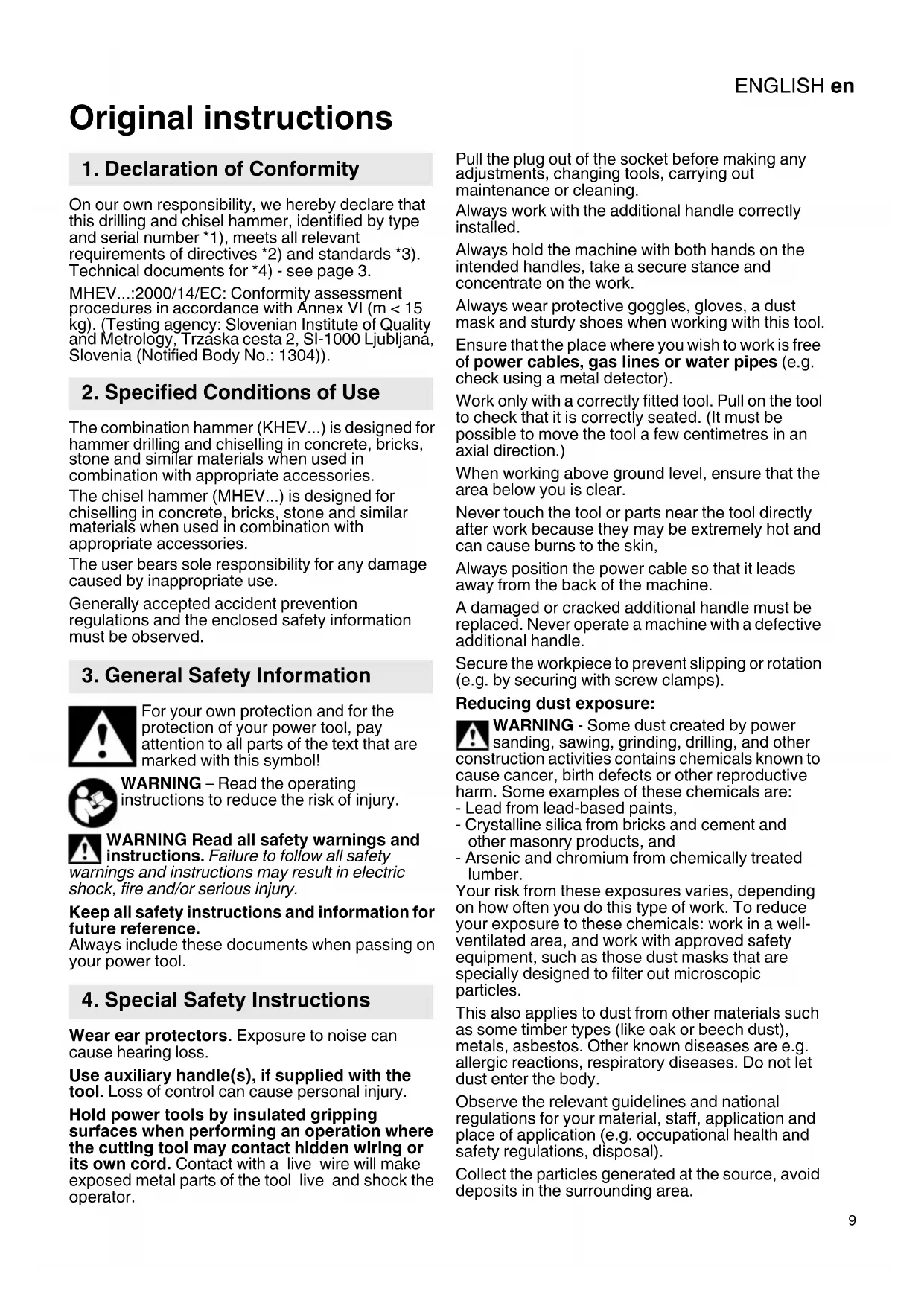

Original instructions
1. Declaration of Conformity
On our own responsibility, we hereby declare that this drilling and chisel hammer, identified by type and serial number *1), meets all relevant requirements of directives *2) and standards *3). Technical documents for *4) - see page 3.
MHEV...:2000/14/EC: Conformity assessment procedures in accordance with Annex VI (m < 15 kg). (Testing agency: Slovenian Institute of Quality and Metrology, Trzaska cesta 2, SI-1000 Ljubljana, Slovenia (Notified Body No.: 1304)).
2. Specified Conditions of Use
The combination hammer (KHEV...) is designed for hammer drilling and chiselling in concrete, bricks, stone and similar materials when used in combination with appropriate accessories.
The chisel hammer (MHEV...) is designed for chiselling in concrete, bricks, stone and similar materials when used in combination with appropriate accessories.
The user bears sole responsibility for any damage caused by inappropriate use.
Generally accepted accident prevention regulations and the enclosed safety information must be observed.
3. General Safety Information
For your own protection and for the protection of your power tool, pay attention to all parts of the text that are marked with this symbol!
WARNING – Read the operating instructions to reduce the risk of injury.
WARNING Read all safety warnings and instructions. Failure to follow all safety
warnings and instructions may result in electric shock, fire and/or serious injury.
Keep all safety instructions and information for future reference.
Always include these documents when passing on your power tool.
4. Special Safety Instructions
Wear ear protectors. Exposure to noise can cause hearing loss.
Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a live wire will make exposed metal parts of the tool live and shock the operator.
Pull the plug out of the socket before making any adjustments, changing tools, carrying out maintenance or cleaning.
Always work with the additional handle correctly installed.
Always hold the machine with both hands on the intended handles, take a secure stance and concentrate on the work.
Always wear protective goggles, gloves, a dust mask and sturdy shoes when working with this tool.
Ensure that the place where you wish to work is free of power cables, gas lines or water pipes (e.g. check using a metal detector).
Work only with a correctly fitted tool. Pull on the tool to check that it is correctly seated. (It must be possible to move the tool a few centimetres in an axial direction.)
When working above ground level, ensure that the area below you is clear.
Never touch the tool or parts near the tool directly after work because they may be extremely hot and can cause burns to the skin,
Always position the power cable so that it leads away from the back of the machine.
A damaged or cracked additional handle must be replaced. Never operate a machine with a defective additional handle.
Secure the workpiece to prevent slipping or rotation (e.g. by securing with screw clamps).
Reducing dust exposure:
WARNING - Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
- Lead from lead-based paints,
- Crystalline silica from bricks and cement and other masonry products, and
- Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
This also applies to dust from other materials such as some timber types (like oak or beech dust), metals, asbestos. Other known diseases are e.g. allergic reactions, respiratory diseases. Do not let dust enter the body.
Observe the relevant guidelines and national regulations for your material, staff, application and place of application (e.g. occupational health and safety regulations, disposal).
Collect the particles generated at the source, avoid deposits in the surrounding area.
ENGLISHen
Use suitable accessories for special work. In this way, fewer particles enter the environment in an uncontrolled manner.
Use a suitable extraction unit.
Reduce dust exposure with the following measures:
- do not direct the escaping particles and the exhaust air stream towards yourself or nearby persons or towards dust deposits,
- use an extraction unit and/or air purifiers,
- ensure good ventilation of the workplace and keep it clean using a vacuum cleaner. Sweeping or blowing stirs up dust.
- Vacuum or wash protective clothing. Do not blow, beat or brush protective gear.
5. Overview
See page 2.
1 Clamping knob *
2 Bow handle (additional handle) *
3 Additional handle *
4 Wing screw (for adjusting the depth stop) *
5 Depth stop *
6 Tool lock
7 K n o b
8 Metabo VibraTech (MVT): integrated damping system
9 Trigger
10 Button for continuous operation (only in chisel operating mode)
11 Handle
12 Electronic signal indicator
13 Operating indicator (light signal if mains power is connected)
14 Button for reduced impact force (for working in soft material)
* model-dependent, equipment-dependent
6. Initial Operation
Before commissioning, check that the rated mains voltage and mains frequency stated on the type plate match your power supply.
Always install an RCD with a maximum trip current of 30 mA upstream.
Use only extension cables with a minimum cross-section of 1.5 mm^2 . Extension cables must correspond to the power consumption of the machine (cf Technical Specifications). If a cable roller is used, always roll up the cable completely.
6.1 Assembly of the bow handle or additional handle
For safety reasons, always use the bow handle (2) or additional handle (3) supplied.
MHEV...:
Release the clamping ring by turning the clamping knob (1) anticlockwise. Adjust the bow handle (2) to the required position and angle. Tighten the clamping knob firmly.
KHEV...:
Open the clamping ring by turning the additional handle (3) anticlockwise. Secure the additional handle at the required angle. Tighten the additional handle.
7. Use
7.1 Depth Stop Setting
(Only for KHEV 5-40 BL)
Release the wing (4) screw. Set the depth stop (5) to the required drilling depth. Retighten the wing screw (4).
7.2 Positioning, removing tool
Before inserting, clean tool shank and apply supplied special grease (accessories: Order no. 6.31800)! Use only SDS-max tools.
Positioning tool:
Turn tool and insert until it engages. The tool is automatically locked.
Pull on the tool to check that it is correctly seated. (It must be possible to move the tool a few centimetres in an axial direction.)
Remove the tool:
Pull the tool lock (6) backwards in direction indicated by arrow (a) and remove tool (b).
7.3 Setting operating mode and chisel position
Avoid levering with the machine when a chisel is fitted.
Do not activate the switch button (7) until the motor has completely stopped.
Turn the switch button (7) to select the desired operating mode.
Impact drilling (only for KHEV...)
T Chiselling
N Setting which enables the chisel to be rotated to the desired position.
Setting the position of the chisel: The chisel can be locked in different positions.
- Insert the chisel.
- Turn the knob (7) to the interim position.
- Turn the chisel to the required position.
- Turn the switch button (7) to position .
- Turn the chisel until it engages.
When a chisel is fitted, only operate the machine in the chiselling operating mode
7.4 Setting impact force
Press the button (14) to change the impact force (and the speed) (but not while the motor is running).
Button (14) illuminated: reduced impact force, reduced speed (approx. 70%)
Button (14) not illuminated: maximum impact force.
high speed (100%)
The correct setting is found by trial and error. Example: if work is being completed on soft, brittle material or if you want to keep breakage to a low level, work at “reduced impact force”.
Use the “maximum impact force” setting for working with harder materials.
7.5 Switching on and off Torque setting:
Press the trigger switch (9) to switch on the machine.
To switch off release the trigger switch (9).
Continuous operation (only in chiselling mode):
The machine can be switched to continuous operation (only in chiselling mode) by pressing the (10) button. ((10) button illuminated.)
To switch off, press the (10) button once again. (10) button not illuminated.)
In continuous operation, the machine continues running if it is forced out of your
hands. Therefore, always hold the machine with both hands using the handles provided, stand securely and concentrate.
7.6 Metabo VibraTech (MVT)
For reduced vibrations and less stress on the hands.
Always apply a moderate amount of pressure to the handle when pushing down the machine and do not force. Vibrations are reduced most effectively at the central position (8).
8. Cleaning, Maintenance
The power tool should be cleaned regularly, often and thoroughly through all air vents using a vacuum cleaner or by blowing in dry air. Prior to this operation, separate the power tool from the power source and wear protective glasses and dust mask.
9. Troubleshooting
Elektronic signal indicator (12)
Flashing - restart protection
When power is restored after a power failure, the machine - which is still switched on - will not start for safety reasons. Switch machine on and off again.
Continuously illuminated - overload
If the machine is overloaded for a long period of time, the power intake is limited to avoid
further excessive heating of the motor.
Allow the machine to run at idle speed until it has cooled off and the electronic signal indicator goes out.
10. Accessories
Use only genuine Metabo accessories.
Use only accessories that fulfil the requirements and specifications listed in these operating instructions.
See page 4.

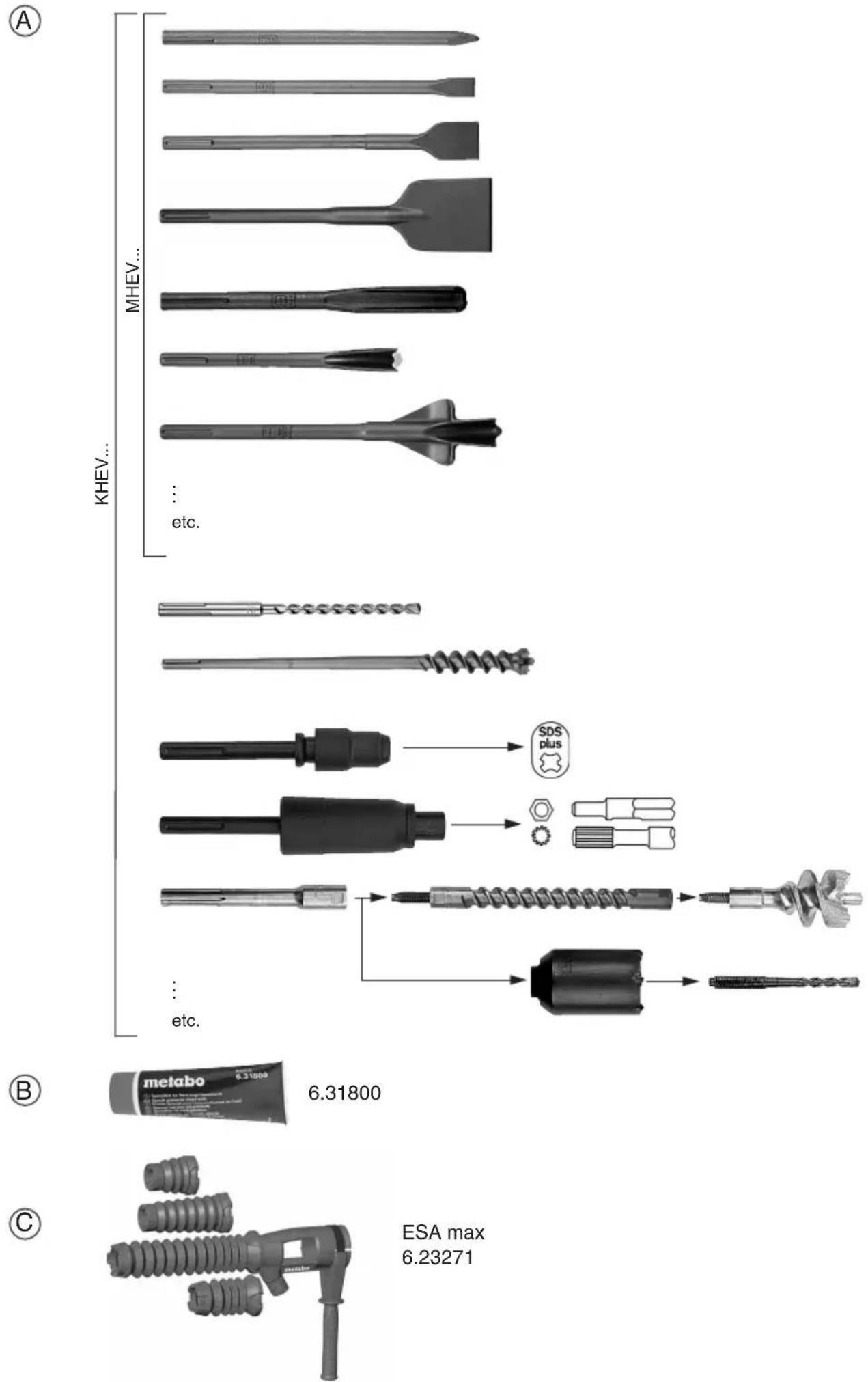

A Extensive drill bit and chisel assortment for a wide range of applications.
B Special grease (for lubricating the tool shanks)
C Dust extraction system
For a complete range of accessories, see www.metabo.com or the catalogue.
11. Repairs
Repairs to electrical tools must ONLY be carried out by qualified electricians!
The connection cable must only be replaced by Metabo or an authorised customer service workshop.
Contact your local Metabo representative if you have Metabo power tools requiring repairs. See www.metabo.com for addresses.
You can download a list of spare parts from www.metabo.com.
12. Environmental Protection
Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.
Only for EU countries: never dispose of power tools in your household waste! Used power tools must be collected separately and
handed in for environmentally compatible recycling in accordance with European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in national legal systems.
13. Technical Specifications
Explanatory notes on the specifications on page 3. Changes due to technological progress reserved.
P_1 =Rated input power
P_2 =Power output
n_0= No-load speed
D_1 =Max. drilling diameter in concrete with impact masonry bits
D_2 =Max. drilling diameter in concrete with impact core cutters
s_max =Maximum impact rate
W = S i n g l e i C = N u m b e r
m = Weight without mains cable
Measured values determined in conformity with EN 60745.
□ Machine in protection class II
\~ AC power
The technical specifications quoted are subject to tolerances (in compliance with relevant valid standards).
Emission values
ENGLISHen
These values make it possible to assess the emissions from the power tool and to compare different power tools. The actual load may be higher or lower depending on operating conditions, the condition of the power tool or the accessories used. Please allow for breaks and periods when the load is lower for assessment purposes. Arrange protective measures for the user, such as organisational measures based on the adjusted estimates.
Total vibration value (vector sum of three directions) determined in accordance with EN 60745:
a_h, HD =Vibration emission value (hammer drilling into concrete)
a_h, Cheq = Vibration emission value (chiselling)
K_h,HD / Cheq = Uncertainty (vibration)
Typical A-effective perceived sound levels:
L_pa =Sound-pressure level
L_WA = Acoustic power level
K_pA, K_WA = Uncertainty (noise level)
L_pA(M) =measured noise level according to 2000/14/EG at the user's ear
L_WA(M) = Measured acoustic power level as per 2000/14/EG
L_WA(G) = acoustic power level as per2000/14/EC
During operation the noise level can exceed 80 dB(A).
Wear ear protectors!
Notice originale
L_pA =äänen painetaso
L_WA =äänen tehotaso
MHEV....: 2000/14/EF: Vurderingsprosedyre for samsvar iht. vedlegg VI (m < 15 kg). (Kontrollorgan: Slovenian Institute of Quality and Metrology, Trzaska cesta 2, SI-1000 Ljubljana, Slovenia (Notified Body No.: 1304)).
2. Forskriftsmessig bruk:
a_h, HD =vibrationsemission (hammerboring i beton)
a_h, Cheq = vibrationsemission (mejsling)
K_h,HD/Cheq=usikkerhed (vibration)
