| Product Type | Vibration training device (vibration plate) |
| Brand / Model | VitalMaxx / 07125 |
| Dimensions | 68 x 40 x 16 cm |
| Weight | 13 kg |
| Power Supply | 220 – 240 V~, 50/60 Hz, 200 W |
| Max. Load Capacity | 120 kg |
| Vibration Levels | 99 adjustable levels |
| Automatic Programs | 9 preset programs |
| Vibration Zones | 3 zones: Walking, Jogging, Running |
| Remote Control | Yes, with AAA 1.5 V batteries (included) |
| Included Accessories | 2 resistance bands with handles, exercise poster |
| Display | Remaining time, vibration level, calories burned |
| Protection Class | I |
| Cord Length | 1.5 m |
| Intended Use | Muscle strengthening through vibrations, household use only |
| Care and Cleaning | Wipe with a soft damp cloth and mild cleaner; unplug before cleaning |
| Safety | Automatic shutdown after set time, overload protection, main switch |
| Storage | In a dry place, protected from frost and sunlight, out of reach of children |
| General Information | Importer: DS Produkte GmbH, Germany; Customer Service: +49 38851 314650 |
Frequently Asked Questions - 07125 VitalMaxx
User questions about 07125 VitalMaxx
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fitness Equipment in PDF format for free! Find your manual 07125 - VitalMaxx and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 07125 by VitalMaxx.

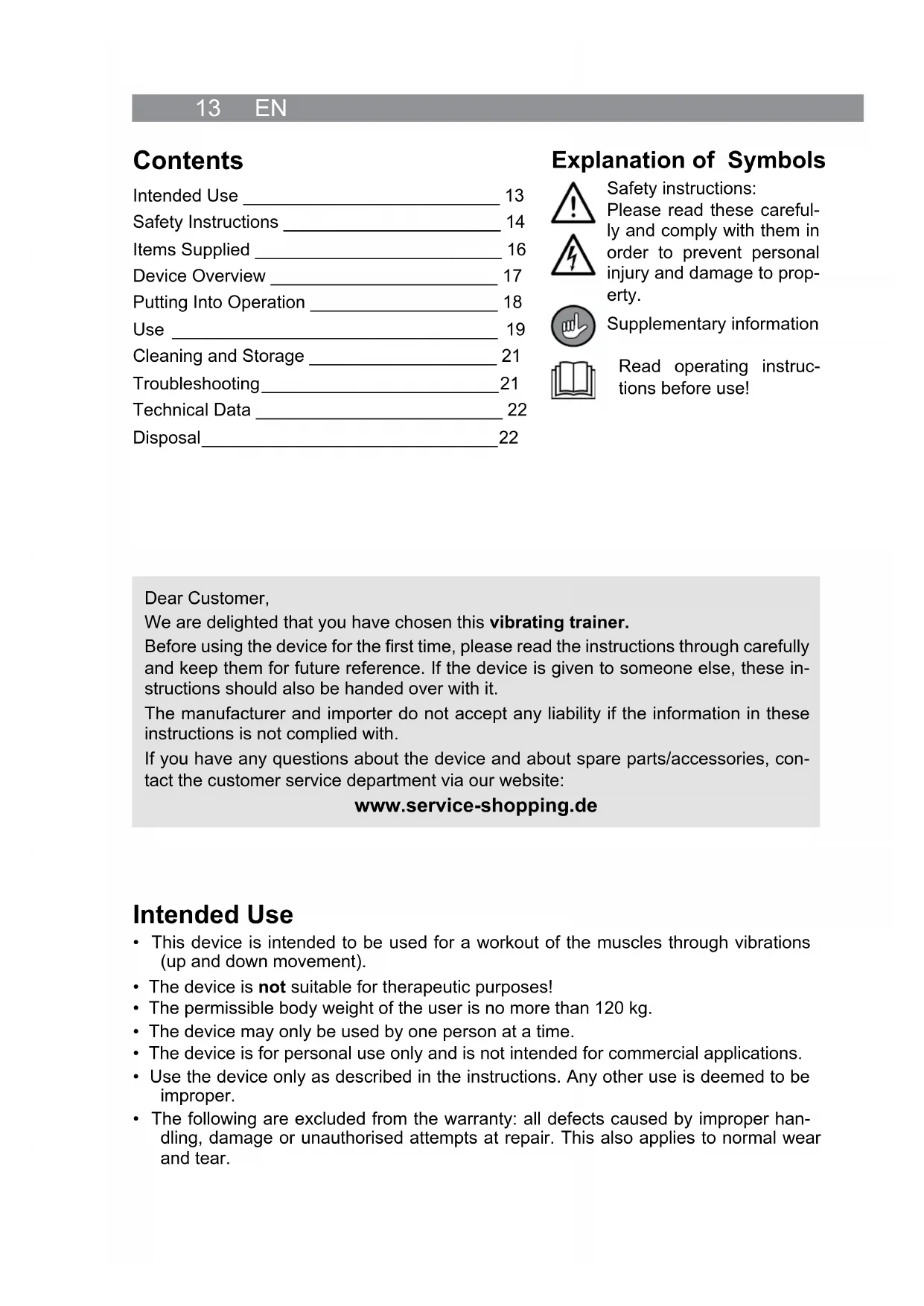

USER MANUAL 07125 VitalMaxx
www.service-shopping.de
Safety Instructions 14
Items Supplied 16
Device Overview 17
Putting Into Operation 18
Use 19
Cleaning and Storage 21
Troubleshooting 21
Technical Data 22
Disposal 22
Explanation of Symbols
Safety instructions:
Please read these carefully and comply with them in order to prevent personal injury and damage to property.
Supplementary information
Read operating instructions before use!
Dear Customer,
We are delighted that you have chosen this vibrating trainer.
Before using the device for the first time, please read the instructions through carefully and keep them for future reference. If the device is given to someone else, these instructions should also be handed over with it.
The manufacturer and importer do not accept any liability if the information in these instructions is not complied with.
If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website:
www.service-shopping.de
Intended Use
- This device is intended to be used for a workout of the muscles through vibrations (up and down movement).
- The device is not suitable for therapeutic purposes!
- The permissible body weight of the user is no more than 120kg .
- The device may only be used by one person at a time.
- The device is for personal use only and is not intended for commercial applications.
- Use the device only as described in the instructions. Any other use is deemed to be improper.
- The following are excluded from the warranty: all defects caused by improper handling, damage or unauthorised attempts at repair. This also applies to normal wear and tear.
Safety Instructions
This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and understand the dangers resulting from this.
Children must not play with the device.
- Cleaning and user maintenance may not be carried out by children without supervision.
Children younger than 8 years of age and animals must be kept away from the device and the mains cable.
- The device must always be disconnected from the mains power when it is left unattended and before assembling, disassembling or cleaning the device.
If the connecting cable to the mains for this device is damaged, it must be replaced with a special connecting cable which is available from the manufacturer or its customer service department.
- Do not make any changes to the device. If the device is damaged, it must be replaced by the manufacturer or customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.
Dangers of Injury
- Keep children and animals away from the packaging film. There is a danger of suffocation!
Make sure that the connected mains cable does not present a trip hazard.
Please consult your doctor before using the device if you belong to a health risk group, if you have not done any sport for some time, if you have balance problems, cardiovascular problems or orthopaedic problems. If necessary, coordinate your training programme with him.
-
Do not use the device if you have recently fractured a bone or have operation scars that have not yet healed.
-
Do not use the device if you have vein inflammation, thromboses, swellings or acute inflammation. Ask your doctor whether it is safe for you to use the device.
Pregnant women should not use the device or should use it only after consultation with their doctor.
Start on the slowest vibration level and increase the intensity only gradually. We explicitly point out that improper use of the device and excessive use can be detrimental to your health.
CAUTION! Stop using the device immediately if you suddenly feel weak or dizzy. If you feel sick, have pain in your chest or arms, an irregular heartbeat, shortness of breath or other unusual symptoms, seek medical attention immediately.
Each time before you start using the device, make sure that there is sufficient clearance around the device so that you cannot bump into walls, furniture, etc. during use.
The device may only be used by one person at a time.
Danger of Electric Shock and Fire
- Keep the device, the mains connecting cable and the remote control away from water or other liquids in order to avoid electric shocks. Never touch these parts with wet or damp hands. Should the device fall into water, switch off the power supply immediately. Do not try to retrieve the device which is connected to the mains power from the water!
Use and store the device only in closed rooms. Do not operate it outdoors, in rooms with high humidity or on hot surfaces. - Do not use the device if highly flammable gases are present in the air. Never operate the device in the vicinity of a gas source.
- Only ever place the device on a dry, even and firm surface. If you use the device on a carpet, make sure that the ventilation openings on the bottom of the device remain clear.
Make sure that the mains cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces. - Only ever connect the mains cable to a properly installed plug socket. The plug socket must also be readily accessible after connection. The mains voltage must match the technical data on the rating plate of the device. Only use suitable extension cables whose technical data is the same as that of the device.
- Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation or before a thunderstorm.
- When you want to remove the mains adapter from the socket, always pull the plug and not the cable.
The device must be switched off when you connect the mains cable or remove the mains cable.
Danger from Batteries
- Batteries can be deadly if swallowed. Therefore keep batteries and the remote control out of the reach of small children. If a battery is swallowed, seek medical assistance immediately.
Before inserting the batteries, check whether the contacts in the remote control and on the batteries are clean; clean them if necessary.
Use only the battery type specified in the technical data. Use high-performance alkaline batteries.
Always replace all the batteries at the same time. Do not use batteries of different types or brands, or batteries with different capacities. When replacing batteries, note the correct polarity (+/-) .
Take the batteries out of the remote control when they are discharged or if the device is not going to be used for a prolonged period. This will prevent any damage that might occur if a battery leaks.
Should a battery have leaked, do not allow your skin, eyes and mucous membranes to come into contact with the battery acid. If you touch battery acid, rinse the affected sites with abundant fresh water immediately and contact a doctor as soon as possible.
- Remove dead batteries from the remote control immediately. Clean the contacts before you insert a new battery.
Batteries must not be recharged or reactivated by other means, dismantled, thrown into a fire, immersed in fluids, or short-circuited.
Avoiding Damage to Material, Property and the Device
The maximum loading capacity for the device is 120kg . Do not exceed this so that you do not damage the device.
Protect sensitive floor coverings on which the device is placed with a mat.
Always check the device and accessories for damage before putting them into operation. If the device, the mains cable or the remote control shows visible signs of damage, the device must not be used.
Do not drop the device or allow it to be knocked violently.
- Do not use the device if it has malfunctioned, been dropped or fallen into water. Have the device checked by a specialist before you start using it.
- Maintain a sufficient distance from heat sources such as radiators, fireplaces or ovens in order not to damage the device.
- Do not expose the device to extreme temperatures, wide temperature fluctuations, open fire, direct sunlight, moisture or wet conditions.
Only the accessory parts supplied by the manufacturer should be used. If accessory parts which are not authorised by the manufacturer are used, all warranty and guarantee claims are void.

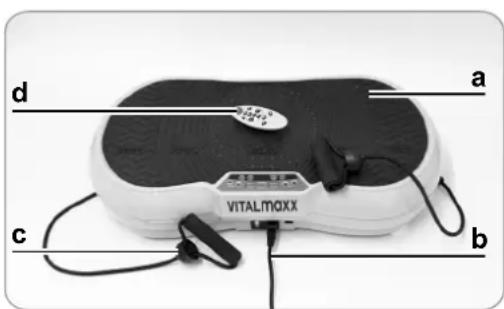

Items Supplied
a Vibrating training device (1 x)
b Mains cable (1 x)
c Expander bands with grips (2 x)
d Remote control (1 x)
Not shown:
- Batteries (1.5 V, AAA type) (2 x)
- Poster with suggested exercises
These operating instructions

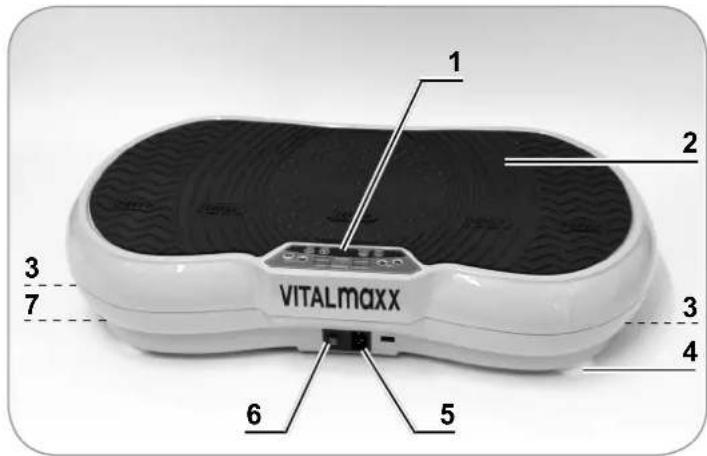

Device Overview
1 Control panel
2 Vibrating plate with 3 zones: WALKING lighter vibrations JOGGING medium vibrations RUNNING strong vibrations
3 Mounting eyelets for the expander bands (on the bottom)
4 Feet
5 Socket for the mains cable
6 1/0 main power switch
7 Transport castor (on the bottom)

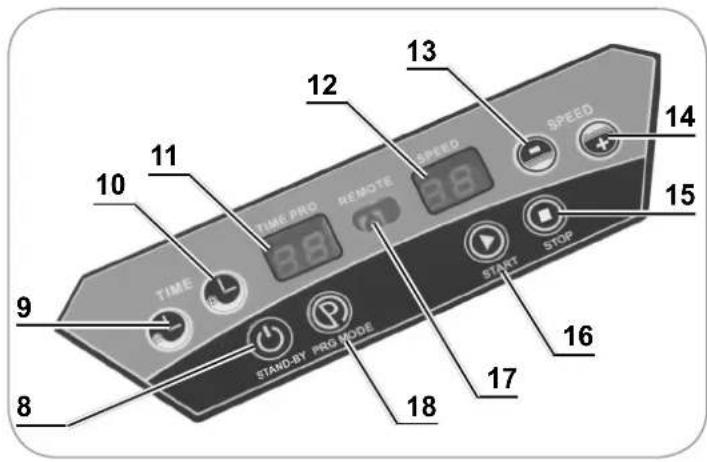

Control Panel
8 button: Stand-by on/off
9 TIME - button: Reduce workout time
10 TIME + button: Increase workout time
11 TIME PRO display: remaining time in minutes, active programme
12 SPEED display: Vibration level, calorie consumption
13 SPEED - button: decrease vibration level
14 SPEED + button: increase vibration level
15 button: stop
16 button: start
17 Receiver (remote control)
18 Programme selection button

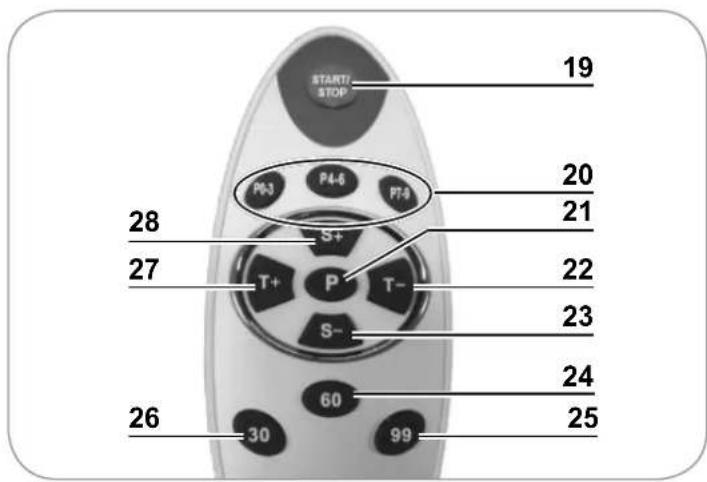

Remote Control
19 START/STOP Start and stop
20 Programme selection buttons
21 P programme selection button
22 T- reduce workout time
23 S- decrease vibration level
24 60 set speed level 60
25 99 set speed level 99
26 30 set speed level 30
27 T+ increase workout time
28 S+ increase vibration level
Putting Into Operation
CAUTION!
- Keep children and animals away from the packaging material. There is a danger of suffocation!
Only ever place the device on a dry, even and firm surface. If you use the device on a carpet, make sure that the ventilation openings on the bottom of the device remain clear. -
Protect sensitive floor coverings on which the device is placed with a mat if necessary.
Each time before you start using the device, make sure that there is sufficient clearance around the device so that you cannot bump into walls, furniture, etc. during use. -
Unpack all parts and check the items supplied for completeness (see chapter "Items Supplied" on page 16) and transport damage. If you find any damage to the components, do not use them (!), but contact the customer service department.
- Insert batteries into the remote control (see below).
- Place the device on a level floor surface. Make sure that it is a sufficient distance from walls or furniture etc. on all sides so that you have enough space for your workout.
-
If you want to use the expander bands, turn the device over so that the bottom is pointing upwards. Attach the spring hooks to the mounting eyelets. Then place the device back on its feet. Otherwise continue with the next step.
-
First connect the mains cable to the socket of the device and then to a properly installed, easily accessible plug socket. The mains voltage must match the technical data on the rating plate of the device. Ensure that it is not possible for others to trip over the connected mains cable or the device itself.
Inserting Batteries into the Remote Control
- Open the battery compartment on the back of the remote control: Press the catch toward the battery compartment cover and remove the cover.
- Insert two 1.5V batteries of the AAA type into the battery compartment. Pay attention to the correct polarity (+ / -) .
-
Replace the battery compartment cover and flip it shut.
-
Replace the batteries when the performance of the remote control starts to wane.
Use
CAUTION!
Please consult your doctor before using the device if you belong to a health risk group, if you have not done any sport for some time, if you have balance problems, cardiovascular problems or orthopaedic problems. If necessary, coordinate your training programme with him.
Pregnant women should not use the device or should use it only after consultation with their doctor.
Start on the slowest vibration level and increase the intensity only gradually. We explicitly point out that improper use of the device and excessive use can be detrimental to your health.
- Stop using the device immediately if you suddenly feel weak or dizzy. If you feel sick, have pain in your chest or arms, an irregular heartbeat, shortness of breath or other unusual symptoms, seek medical attention immediately.
- Do not kneel, stamp or jump on the vibrating plate to prevent injuries and damage to the device.
- Do not stand on just one side of the vibrating plate, because the device would not work properly and could tip over.
Do not work out on a full stomach.
The device may only be used by one person at a time.
Training Programmes
Nine automatic training programmes are stored in the device. Each programme has a different sequence of different vibration strengths. Programmes 0 and 1 are intended for beginners.
For a varied workout, we recommend that you choose a training programme. Proceed as follows to do this:
- After switching on the device, press button on the control panel or the P button on the remote control repeatedly until the programme number (0 to 9) that you want appears on the TIME PRO display on the control panel.
- You can use the P0-3, P4-6 and P7-9 buttons on the remote control to access the programmes faster. For example, when you press the P7-9 button, the device skips directly to programme 7. You can switch to the next programme in the sequence by pressing the button again.
- To start the programme you have chosen, press the START/STOP button on the remote control or the button on the device.
Basic Use of the Device
Only basic use of the device is described below. The various possible applications and exercises are explained on the poster supplied with the device.
- Flip the I/0 main power switch to position I. It lights up and the device is supplied with power. 00 appears on the SPEED display. If the device is in stand-by mode, bars flash on both displays. You can use the button on the control panel to switch stand-by mode on and off.
The device can be controlled both with and without the remote control. To make it easier to operate, we recommend using the remote control. Direct it towards the receiver (REMOTE) of the device.
- Pick up the remote control or the expander bands if necessary.
-
Stand on the vibrating plate. When you first use it, stand with both feet on the inner zone (WALKING). This is where the vibrations are weakest. Subsequently you can if you wish stand on the middle zones (JOGGING) or outer zones (RUNNING) where the vibrations are stronger. Distribute your weight evenly on both feet.
-
You can then:
-
select a training programme in the manner described in the "Training Programmes" on page 19 section,
-set the workout time with theT-/+ buttons (remote control) or the TIME -/+ buttons (device) or -
start the device straight away (see next step). The preset workout time until the automatic stop is then 10 minutes.
-
To start the device, press the START/STOP button (remote control) or the button (device). The device then begins to vibrate. On the two displays you will then see alternately:
-
TIME PRO display: remaining workout time in minutes; active programme and C0 . If C0 is displayed, the calorie consumption appears next to it in the SPEED display.
-SPEEDdisplay: active vibration level and calorie consumption (up to 99 Kcal) if C0 (or C1 - C3) appears in the TIME PRO display. If during a workout you consume more than 99 Kcal, the counter starts at 0 again, and C1 then appears in the TIME PRO display. Add the C1 value to 99 to calculate the calorie consumption. -
Once you have selected a training programme, no further settings can be made.
Otherwise you can set the vibration level to between 1 and 99 using the buttons T-/+ (remote control) and SPEED -/+ (device). You can use the 30, 60 and 99 buttons on the remote control to skip directly to the respective vibration level.
- The device stops automatically after the preset time has elapsed. However, you can stop it manually at any time using the buttons START/STOP (remote control) or device).
- After finishing your workout, step off the vibrating plate, flip the I/0 main power switch to position 0 and pull the mains plug out of the plug socket.
- Clear away the device so that it does not present a trip hazard. Use the transport castor on the bottom of the device. Lift it up at the opposite end of the housing and hold it an angle of 45^ . It can now roll.
- We recommend that you then do a few loosening-up exercises.
Cleaning and Storage
CAUTION!
Remove the mains plug from the plug socket before doing any cleaning.
Ensure that the device, the mains cable and the remote control cannot fall into water or become wet.
- Do not use any caustic or abrasive cleaning agents or cleaning pads to clean the device.
- Wipe the device and accessories with a damp, soft cloth and a little mild cleaning agent if required. Then dry them thoroughly.
- Store the device in a dry place that is protected from frost and direct sunlight and is not accessible to children and animals.
Troubleshooting
If the device stops working properly, first check whether you are able to correct the problem yourself.
Do not attempt to repair a defective electrical device yourself!
| Problem Possible cause/solution | |
| The device does not work, the I/0 main power switch does not light up. | Is the plug inserted in the device and in the plug socket correctly? Is the plug socket defective? Try another plug socket. Check the fuse of your mains connection. |
| The device switches off before the set workout time has elapsed. | The device has been overloaded. Flip the I/0 main power switch to position I. Wait a moment before you switch it on again. Please note that the device can hold a max. load of 120 kg. This weight must not be exceeded for the device to work properly. |
| The device makes unusual noises or does not vibrate correctly. | Is the weight distributed unevenly on the vibrating plate? Is just one side of the device loaded? The weight on both halves of the device must be balanced for the device to be able to work properly. Is the device overloaded? Please note that the device can hold a max. load of 120 kg. This weight must not be exceeded for the device to work properly. |
Technical Data
Article number: Z 07125
Model number: JF-CFM15
Voltage supply: device: 220 - 240V 50 / 60Hz
remote control: 3V DC (2 x 1.5 V batteries of the AAA type)
Power: 200 W
Protection class: I
Max. loading capacity: 120kg
Device dimensions: 68 × 40 × 16 cm
Device weight: 13 kg
Cable length: 1.5 m
Vibration levels: 99
Programmes: 9 auto programmes
Disposal
The packaging material is recyclable. Please dispose of it in an environmentally friendly manner and take it to a recycling centre.
Dispose of the device in an environmentally friendly manner. It should not be disposed of in the normal domestic waste. Dispose of it at a recycling centre for used electrical and electronic devices.
You can obtain more information from your local authorities.
Non-rechargeable and rechargeable batteries should be removed prior to disposal of the device and disposed of separately from the device. To protect the environment, non-rechargeable and rechargeable batteries may not be disposed of with normal household waste, but must be taken to suitable collection points. Also note the relevant statutory regulations governing the disposal of batteries.
Customer Service / Importer:
DS Produkte GmbH
Am Heisterbusch 1
19258 Gallin
Germany
Tel.: +49 38851 314650
(Calls to German landlines are subject to charges. The cost varies depending on the service provider.)
Contenu
Chere cliente, cher client,
www.service-shopping.de
www.service-shopping.de
