09888 - Grill plate Maxxmee - Free user manual and instructions

Brand	Maxxmee
Model	09888
Product type	Multi-grill (grill plate, raclette, rotisserie)
Power supply	220-240 V ~ 50/60 Hz
Power	1200 W max.
Protection class	I
Cooking plate	Reversible: smooth side (pancakes, eggs) and ridged side (grilling)
Rotisserie skewers	9 rotating skewers, max capacity 100 g per skewer
Raclette pans	6 pans included
Included accessories	Appliance body, 9 rotisserie skewers, 6 raclette pans, 6 wooden spatulas, extractor, chassis, cooking plate, grease drip tray, instruction manual
Usage	Grilling, roasting, gratins, raclette, shashliks
Cleaning and maintenance	Body and chassis: wipe with damp cloth; other parts: dishwasher safe or wash with hot water; do not immerse the body
Safety	Hot surfaces, do not cover, do not use near flammable materials, unplug after use
Repairability	Do not repair yourself; contact customer service if malfunction
Warranty	Excludes misuse, deterioration, normal wear
Item reference	09888
Model number	K2

Frequently Asked Questions - 09888 Maxxmee

How to clean the cooking plate?

Let it cool completely. Wash with hot water and dish soap or in the dishwasher. Do not use abrasive sponges to preserve the non-stick coating.

The rotisserie skewers are not turning, what should I do?

Check that the appliance is on a flat surface and that the skewers are properly engaged in the chassis slots. Reduce the load if the skewers are too heavy (max 100 g per skewer).

Can I use the appliance without the chassis?

Yes, for raclette, you can place the drip tray directly on the chassis. Cooking will be faster as the pans are closer to the heating element.

How to change the side of the cooking plate?

Lift the cooled plate and turn it over to use the smooth side (pancakes, eggs) or the ridged side (grilling). Place it back on the appliance body.

The appliance emits an unpleasant odor, is this normal?

Yes, this may happen during the first uses due to manufacturing residues. Heat the appliance empty for a few minutes after a first cleaning; the odor will disappear after several uses.

What utensils should I use on the plate?

Use wooden or heat-resistant plastic utensils. Avoid metal or sharp edges that could scratch the non-stick coating.

Can I wash the appliance body in the dishwasher?

No, the appliance body and chassis are not dishwasher safe. Wipe them with a damp cloth. Other accessories (pans, spatulas, plate) are dishwasher safe.

How to use the extractor for the chassis?

Press the metal ends of the extractor and insert them into the front openings of the chassis. Pull or push by the handle to extract or replace the chassis.

What is the maximum power of the appliance?

The appliance has a maximum power of 1200 W. Plug it into a 220-240 V grounded outlet, without using an extension cord longer than 3 m.

What to do if the heating element stays on?

The indicator light turns off when the selected temperature is reached. If it stays on permanently, check the thermostat setting. If the problem persists, contact customer service.

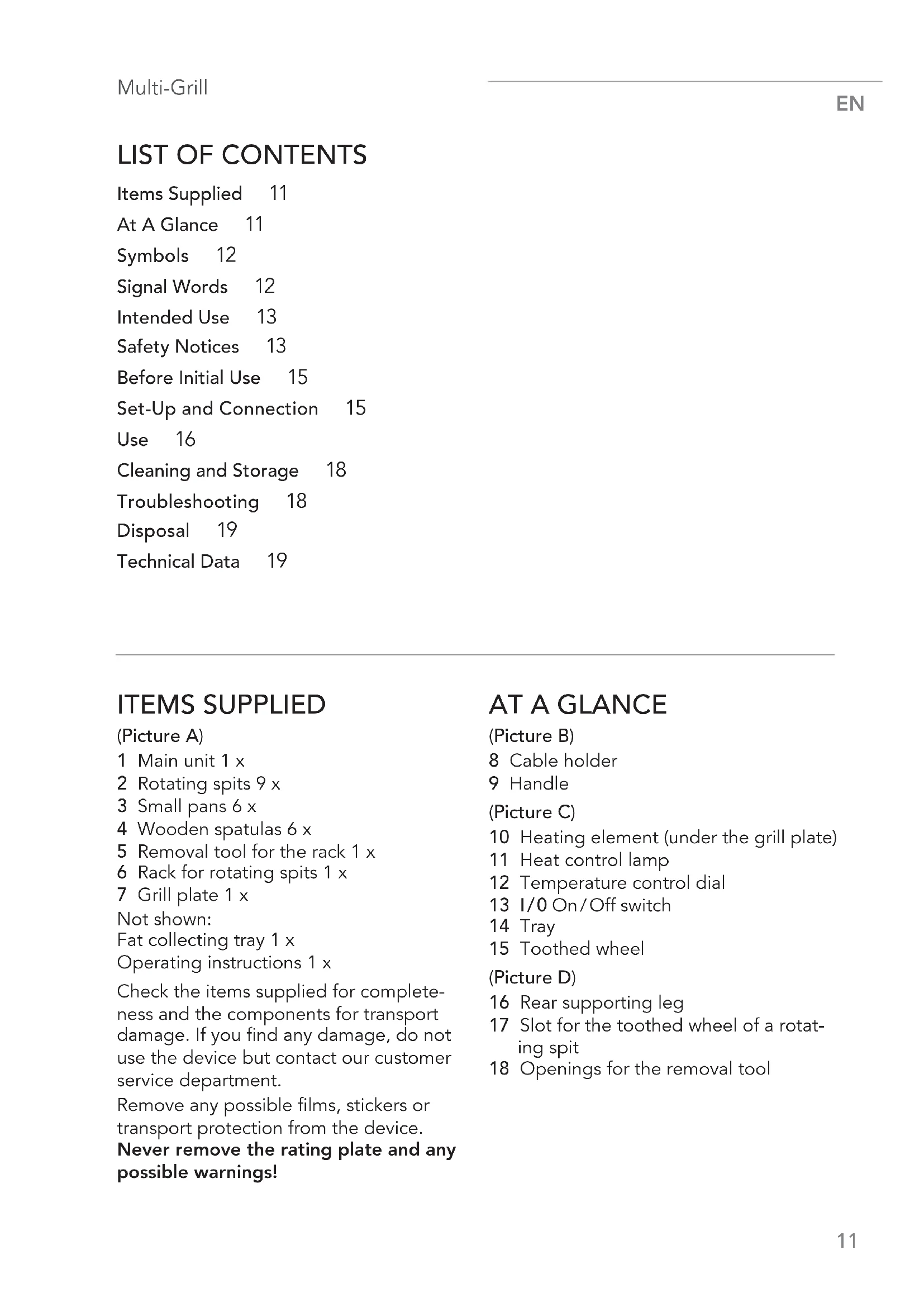

USER MANUAL 09888 Maxxmee

Before Initial Use 15

Set-Up and Connection 15

Use 16

Cleaning and Storage 18

Troubleshooting 18

Disposal 19

Technical Data 19

ITEMS SUPPLIED

(Picture A)

1 Main unit 1 x
2 Rotating spits 9 x
3 Small pans 6 x
4 Wooden spatulas 6 x
5 Removal tool for the rack 1 x
6 Rack for rotating spits 1 x
7 Grill plate 1 x

Not shown:

Fat collecting tray 1 x

Operating instructions 1 x

Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.

Remove any possible films, stickers or transport protection from the device.

Never remove the rating plate and any possible warnings!

AT A GLANCE

(Picture B)

8 Cable holder
9 Handle

(Picture C)

10 Heating element (under the grill plate)
11 Heat control lamp
12 Temperature control dial
13 I/0 On/Off switch
14 Tray
15 Toothed wheel

(Picture D)

16 Rear supporting leg
17 Slot for the toothed wheel of a rotating spit
18 Openings for the removal tool

Dear Customer,

We are delighted that you have chosen the MAXXMEE multi-grill.

With this grill, you can cleverly combine tasty raclette, traditional grilling and delicious spit-roasted dishes. The grill plate on top can be turned over: the smooth side is ideal for cooking pancakes or fried eggs, for example, and the rippled side can magically produce characteristic grilled streaks on your steak. Below this are 9 rotating spits which turn automatically and can easily be removed. To enjoy a delicious raclette experience with the whole family, you simply place the fat collecting tray on the rack for rotating spits and then insert the small pans with your own individual toppings. The delicacies can easily be slid out of the small pans with the wooden spatulas that are also provided.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: www.dspro.de/kundenservice

We hope you have a lot of fun with your MAXXMEE multi-grill.

Information About the Operating Instructions

Before using the device for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

SYMBOLS

Danger symbols: These symbols indicate possible dangers. Read the associated safety notices carefully and follow them.

Supplementary information

Read operating instructions before use!

Circuit symbol for alternating current

Caution: Hot surfaces!

Suitable for use with food.

SIGNAL WORDS

Signal words indicate hazards if the associated notices are not followed.

DANGER – high risk, results in serious injury or death

WARNING – medium risk, may result in serious injury or death

CAUTION – low risk, may result in minor or moderate injury

NOTICE – may result in risk of damage to material

INTENDED USE

■ The device is intended to be used for gratinating, frying and grilling food.
■ Do not use the device for heating!
■ The device is for personal use only and is not intended for commercial or domestic-like applications, e.g. in hotels, bed and breakfasts, offices, staff kitchens or similar places.

■ Use the device only for the specified purpose and as described in the operating instructions. Any other use is deemed to be improper.
■ The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.

SAFETY NOTICES

WARNING: Note all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and / or injuries.

This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
■ Children must not play with the device.
■ Cleaning and user maintenance must not be carried out by children, unless they are older than 8 years of age and are supervised.
■ Children younger than 8 years of age and animals must be kept away from the device and the connecting cable.

CAUTION: Hot surface! The device and accessories will become very hot during use. Do not come into contact with heated parts while or after using the device! Only ever touch the handles and dials and use the removal tool while the device is in operation or immediately after it has been switched off. Use oven gloves if necessary. Wait until the device has cooled down fully before it is transported, cleaned or stored away.

■ The device must always be disconnected from the mains power when it is left unattended and before it is transported, assembled, disassembled or cleaned.

• Do not make any modifications to the device. Also do not replace the connecting cable yourself. If the device, the connecting cable or the accessories of the device are damaged, they must be replaced by the manufacturer, customer service department or a specialist workshop in order to avoid any hazards.
  ■ The device is not designed to be operated with an external timer or a separate remote control system.
  ■ Follow the cleaning instructions in the “Cleaning and Storage” chapter!

DANGER – Danger of Electric Shock

■ Use and store the device only in closed rooms.
■ Do not use or store the device in rooms with high humidity.
■ Never immerse the main unit and the connecting cable in water or other liquids and ensure that these components cannot fall into water or become wet.
If the main unit falls into water, pull the mains plug out of the plug socket. Only after this should you retrieve the main unit from the water. Never attempt to pull it out of the water while it is connected to the mains power!
■ Never touch the device and the connecting cable with wet hands when the device is connected to the mains power.
■ Do not use the main unit if it has malfunctioned, fallen or been dropped into water. Have it checked in a specialist workshop before using it again.

WARNING – Danger of Fire

- Do not operate the device in the vicinity of combustible material. Do not place any combustible or easily meltable materials (e.g. cardboard, paper, wood, plastic) in or on the device.

■ Do not cover the device during operation.
In the event of a fire: Do not extinguish with water! Smother the flames with a fireproof blanket or a suitable fire extinguisher.

WARNING – Danger of Injury

• Keep children and animals away from the packaging material. There is a danger of suffocation.
  ■ Make sure that the connecting cable is always kept out of the reach of small children and animals. There is a danger of strangulation.
  ■ Hot steam can escape from the device during operation. You should therefore keep your head and hands out of the danger zone. There is a danger of scalding from heat and hot steam.
  ■ Be careful when placing on and removing the food! If necessary, use kitchen tongs made of plastic or wood. There is a danger of burns.
  ■ The device must not be moved during operation. There is a danger of burns.
  ■ Make sure that the connecting cable does not present a trip hazard. It may not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.

NOTICE – Risk of Damage to Material and Property

• Do not operate the device for a long period of time without any contents to prevent any damage to the non-stick coating.
  ■ Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation, when there is a power cut or before a thunderstorm.
  ■ When you pull the mains plug out of the plug socket, always pull on the mains plug and never the mains cable!
  ■ Never pull or carry the device by the connecting cable.
  ■ Protect the device from other heat sources, naked flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.
  ■ Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.
  ■ Do not place heavy objects on the device or the connecting cable.

BEFORE INITIAL USE

1. Clean all the accessories of the device. To do this, follow the instructions in the "Cleaning and Storage" chapter.
2. Place the grill plate (7) on the main unit (1) and heat it up for a few minutes to remove any possible production residues from the grill plate. To do this, follow the instructions in the "Set-Up and Connection" and "Use" chapters.

When the device is first used, production-related additives may cause a small amount of smoke and / or an odour to be produced. This is normal and not a device defect.

1. Clean the grill plate again.

SET-UP AND CONNECTION

Please Note!

• Check the device and the connecting cable for any damage each time before you start using it. Use the device only if it is undamaged and in working order.
  ■ Only connect the device to a plug socket that is properly installed and matches the technical data of the device. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
• Do not use the device with cable extension reels or extension cables which are longer than 3 m.
• Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).

EN

■ Make sure that the connecting cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces (including those of the device!).

■ Ensure there is sufficient clear space on all sides. Do not place the device below kitchen wall units or similar cupboards. The rising steam could cause damage to them!

1. Set up the main unit (1) on a table or another flat, stable, heat-resistant surface that is easy to clean. If you are intending to prepare ke-babs, we recommend placing a mat under the device to provide protection from dripping fat.

2. Place the rack for rotating spits (6) on the tray (14) in the bottom of the main unit. Important: The toothed wheel on the side of the rack (15) must engage in the toothed wheel of the main unit, and the rack must engage in the two locking catches in the tray.

3. To prepare kebabs, lift up the rear supporting leg (16) of the rack and slide the fat collecting tray underneath until it touches the front of the rack.

For raclette place the fat collecting tray ON the rack.

The rack is not necessarily required for raclette. However, the preparation time is reduced by the smaller distance between the small pan (3) and heating element (10).

1. The grill plate (7) has a rippled side, e.g. for meat, fish, vegetables, mushrooms, and a smooth side, e.g. for pancakes, fried eggs etc. Place the grill plate on the main unit with the side that you want at the top.

Even if the grill plate is not being used, it should be placed on the main unit to prevent any loss of heat.

1. Fully unwind the connecting cable and plug the mains plug into a plug socket.

USE

Please Note!

■ Additional kitchen utensils used to turn and remove the food must be heat-resistant and be made of wood or plastic. Metal objects or other sharp-edged objects could damage the non-stick coating of the grill plate or the small raclette pans.

■ Ensure that there is sufficient ventilation while the device is in operation.

Although the grill plate (7) has a non-stick coating, we still recommend that you lightly grease it. Do not use any cooking spray as it can attack the non-stick coating!

Basic Use

1. When the device has been set up and connected correctly (see the "Set-Up and Connection" chapter), flip the I/O On/Off switch (13) to the I position to switch on the device.

2. Turn the temperature control dial (12) to the highest setting and allow the device to heat up. The heat control lamp (11) lights up during heating. It goes out once the set temperature level has been reached.

3. The temperature can then be reduced as you require.

4. Prepare the food on the device (see the "Raclette and Frying" and "Kebabs" sections).

At the same time as raclette or kebabs, the grill plate can be used for frying mushrooms, vegetables or meat. Use a brush to dab some cooking oil onto the grill plate beforehand so that the food does not become stuck to it.

1. After use, flip the I/O On / Off switch to the 0 position and pull the mains plug out of the plug socket.
2. Allow the device and accessories to cool down and then clean them (see the "Cleaning and Storage" chapter).

Raclette and Frying

Please Note!

■ Always place down the small pans on heat-resistant surfaces immediately after use! Do not place any empty small pans back in or on the heated device.
■ Only ever hold the small pans by the handles and always allow them to cool down before they are filled with new ingredients.
- Do not slide the small pans too far into the device to prevent any material damage to the handles.

We recommend that you only season the ingredients after preparation as the herbs and spices can burn if they get too hot.

1. Prepare all the ingredients for the raclette.
2. Heat up the device in the manner described in the "Basic Use" section.
3. Meanwhile place the ingredients on the small pans (3). Do not overfill them to ensure that the food does not touch the heating element (10).

4. As soon as the device has heated up, place the filled small pans to be gratinated on the fat collecting trays beneath the heating element.

5. Regulate the temperature as you require.

6. You can use the wooden spatulas which are supplied (4) to scoop the cooked food from the small pans onto plates.

Kebabs

Please Note!

■ Only ever move the rack for rotating spits with the removal tool when it is hot.
■ Be careful when handling the rotating spits in order to prevent any injuries!

1. Place pieces of meat, fish, vegetables etc. on the rotating spits (2) as you wish. The pieces should not be too big or too heavy so that the spits can rotate without being impeded. A rotating spit should be loaded with no more than 100 g.
2. Heat up the device in the manner described in the "Basic Use" section.
3. Press together the metal ends of the removal tool (5) and plug them into the front openings (18) in the rack for rotating spits (6).
4. Hold the removal tool by the handle and pull the rack halfway out of the device.
5. Insert the rotating spits into the rack as follows: Place the tip of a rotating spit on the rear holder and insert the toothed wheel of the rotating spit into the slot (17) on the front top side of the rack (Picture E).
6. Slide the rack back into the main unit using the removal tool. If it fits correctly, the rotating spits rotate.
7. After cooking, pull the rack halfway out and remove the rotating spits.

CLEANING AND STORAGE

Please Note!

■ Used cooking oils and cooking fats are not to be poured down the drain and must be disposed of in the domestic waste.

■ Never spray cold water onto the hot parts of the device during or immediately after use. This could damage the non-stick coating!

■ Do not spray cleaning agents directly onto the device.

■ The main unit and the rack for rotating spits are not dishwasher-safe.

■ Do not immerse the main unit in water.

■ Do not use any caustic or abrasive cleaning agents or abrasive sponges to clean the device. These could damage the surface.

Clean the device and the used accessories immediately after each use to prevent germ formation. Do not allow any food residues to dry on.

1. Make sure that the device has completely cooled down and has been disconnected from the mains power!

2. Remove all food residues.

3. Wipe down the main unit (1) and the rack for rotating spits (6) with a damp cloth and detergent if necessary. The rack can also be rinsed under running water.

4. Clean all other parts with detergent in warm water or in the dishwasher.

5. Allow all parts to dry completely or dry them with a tea towel.

6. Store the device in a cool and dry place which is out of the reach of children and animals.

TROUBLESHOOTING

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps below, contact the customer service department.

Do not attempt to repair an electrical device yourself!

The device does not work.

The mains plug is not inserted in the plug socket correctly.

▶ Correct the fit of the mains plug.

The plug socket is defective.

▶ Try another plug socket.

There is no mains voltage.

▶ Check the fuse of the mains connection.

The fuse in the fuse box is triggered.

Too many devices connected to the same circuit.

▶ Reduce the number of devices in the circuit.

The rotating spits (6) do not rotate.

The device is tilted.

▶ Place the device on a horizontal surface.

The rotating spits are not correctly inserted.

▶ Correct the fit. To do this, follow the instructions in the "Use" chapter – "Kebabs".

The rotating spits are overfilled or too heavily loaded.

▶ Reduce the number of pieces of food on the rotating spits.

During use, an unpleasant smell is detected.

The device is being used for the first time.

▶ A smell often develops when new devices are first used. The smell should disappear once the device has been used several times.

The device is dirty.

▶ Clean the device.

The small raclette pans (6) are overfilled, which means that their contents are touching the heating element (10) and burning on it.

▶ Reduce the quantity of food in the small raclette pans.

DISPOSAL

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.

TECHNICAL DATA

Article number: 09888

Model number: K2

Power supply: 220 – 240 V \~ 50 / 60 Hz

Power: max. 1200W

Protection class: I

ID of operating instructions: Z 09888 M DS V1 0620 md

All rights reserved.

SOMMAIRE

Composition 21

Aperçu général 21

Symboles 22

WAARSCHUWING – Brandgevaar

WAARSCHUWING – Verwon- dingsgevaar

De contactdoos is defect.
