| Product type | Digital contact grill |
| Brand | Maxxmee |
| Model | 09550 / HRG1026 |
| Power supply | 220-240 V ~ 50-60 Hz, 2000 W |
| Protection class | I |
| Cooking programs | 6 preset programs: burger, chicken, sandwich, sausage, meat, fish |
| Manual mode | Yes, up to 200 °C |
| Defrost | Yes, dedicated function |
| Countdown timer | With color LED indicator (green, yellow, orange, red) |
| Doneness level | 4 levels: rare, medium-rare, medium, well-done |
| Automatic preheating | Yes |
| Cooking plates | Removable, non-stick coating |
| Drip tray | Removable |
| Cleaning | Plates and tray dishwasher safe |
| Safety | Automatic safety shut-off, hot surfaces, locking |
| After-sales service | Contact via website |
| Spare parts | Available |
| Warranty | Household use only, exclusion for improper use |
| Weight (approx.) | Approximately 5.5 kg |
| Dimensions (approx.) | Approximately 40 x 30 x 15 cm |
Frequently Asked Questions - 09550 Maxxmee
User questions about 09550 Maxxmee
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Grill plate in PDF format for free! Find your manual 09550 - Maxxmee and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 09550 by Maxxmee.
USER MANUAL 09550 Maxxmee
'Calls to German landless are subject in your province's charge.
SERVICE APRÈS-VENTE IMPORTATEUR
DS Proclusa GmbH - Am Holsterbusch 1 + 19250 Gallin - Allemagne € +47 3685 314652
Gebrauchsanleitung
Mode d'emploi
Operating instructions
IMPORTANT NOTICES! PLEASE KEEP FOR REFERENCE!
On the fold-out page you will find all illustrations referenced in these operating instructions. Always leave the fold-out page open when reading the operating instructions.
Page 10
AVIS IMPORTANTS! À CONSERVER IMPÉRATIVEMENT!

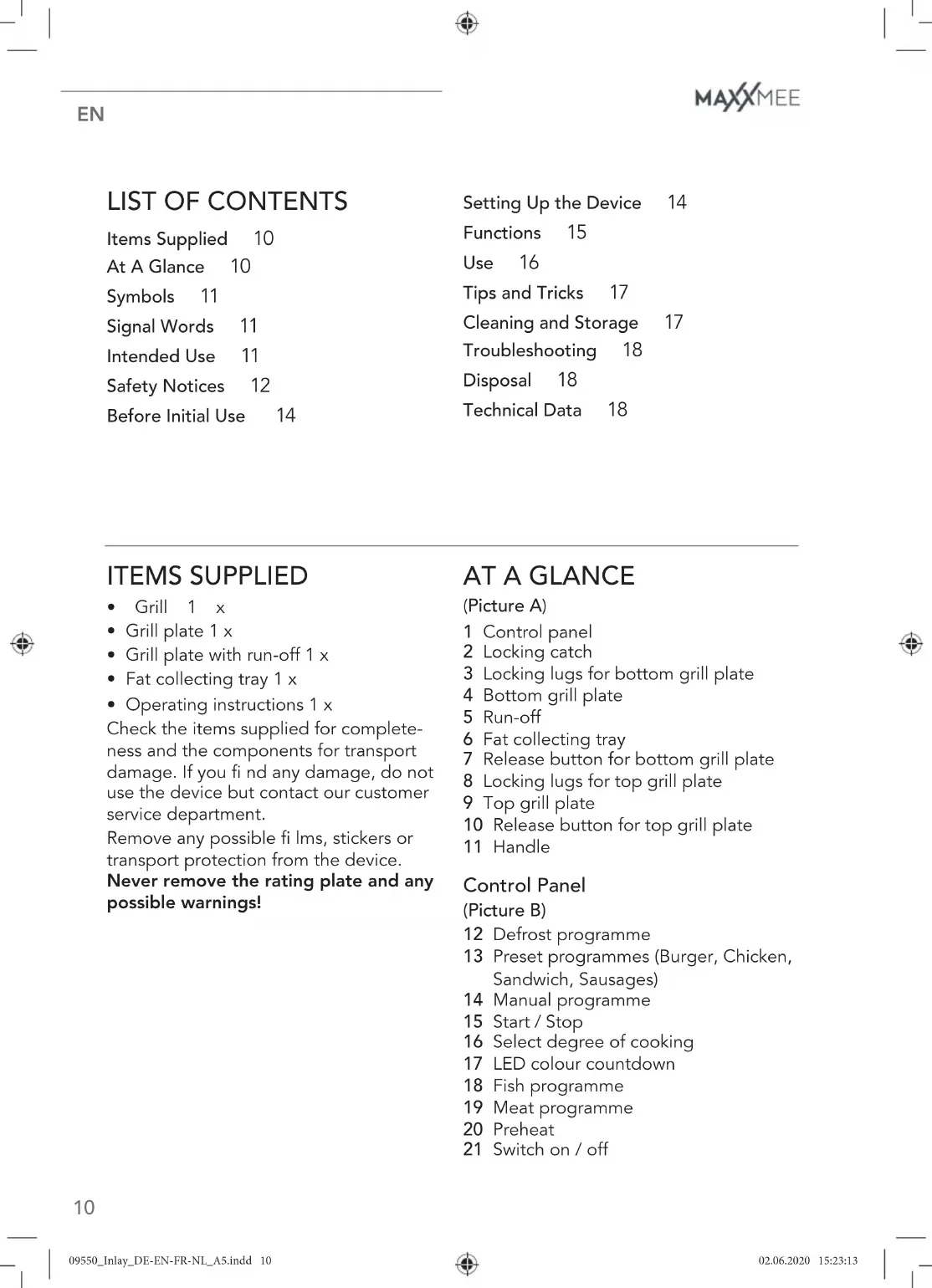

Before Initial Use 14
Setting Up the Device 14
Functions 15
Use 16
Tips and Tricks 17
Cleaning and Storage 17
Troubleshooting 18
Disposal 18
Technical Data 18
ITEMS SUPPLIED
- Grill 1 x
- Grill plate 1 x
- Grill plate with run-off 1 x
- Fat collecting tray 1 x
- Operating instructions 1 x
Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.
Remove any possible films, stickers or transport protection from the device.
Never remove the rating plate and any possible warnings!
AT A GLANCE
(Picture A)
1 Control panel
2 Locking catch
3 Locking lugs for bottom grill plate
4 Bottom grill plate
5 Run-off
6 Fat collecting tray
7 Release button for bottom grill plate
8 Locking lugs for top grill plate
9 Top grill plate
10 Release button for top grill plate
11 Handle
Control Panel
(Picture B)
12 Defrost programme
13 Preset programmes (Burger, Chicken, Sandwich, Sausages)
14 Manual programme
15 Start / Stop
16 Select degree of cooking
17 LED colour countdown
18 Fish programme
19 Meat programme
20 Preheat
21 Switch on / off
Dear Customer,
We are delighted that you have chosen the MAXXMEE digital contact grill. It allows you to prepare fi sh, steaks, sandwiches, burgers, sausages and poultry just like a professional. Simply select one of the grill programmes, place the food to be cooked on the grill, fl ip it shut and wait. The LED colour countdown indicates to you when your grilled food is ready to be eaten.
If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: www.dspro.de/kundenservice
We hope you have a lot of fun with your MAXXMEE digital contact grill.
Information About the Operating Instructions
Before using the device for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.
SYMBOLS
Danger symbols: These symbols indicate possible dangers. Read the associated safety notices carefully and follow them.
Supplementary information
Read operating instructions before use!
Circuit symbol for alternating current
Caution: Hot surfaces!
Suitable for use with food.
CAUTION warns of slight to moderate injuries
NOTICE warns of material damage
INTENDED USE
■ The device is intended to be used for frying and grilling food.
■ The device is for personal use only and is not intended for commercial or domestic-like applications, e.g. in hotels, bed and breakfasts, offices, staff kitchens or similar places.
■ Use the device only for the specified purpose and as described in the operating instructions. Any other use is deemed to be improper.
■ The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.
SIGNAL WORDS
DANGER warns of serious injuries and danger to life
WARNING warns of possible serious injuries and danger to life
SAFETY NOTICES
WARNING: Note all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fi re and / or injuries.
This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
■ Children must not play with the device.
■ Cleaning and user maintenance must not be carried out by children, unless they are older than 8 years of age and are supervised.
■ Children younger than 8 years of age and animals must be kept away from the device and the connecting cable.
CAUTION: Hot surface! The device will get very hot during use. It is essential to make sure that no heated parts are touched while using and after using the device. Only ever touch the handle and the control panel while the device is in operation or immediately after it has been switched off. Only transport or store away the device when it has cooled down completely. Use appropriate oven gloves.
■ The device is not designed to be operated with an external timer or a separate remote control system.
If the device or the connecting cable are damaged, they must be replaced by the manufacturer, customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.
It is essential to follow the cleaning instructions in the "Cleaning and Storage" chapter!
DANGER – Danger of Electric Shock
■ Use the device only in closed rooms.
■ Do not use the device in rooms with high humidity.
■ Never immerse the device and the connecting cable in water or other liquids and ensure that these components cannot fall into water or become wet.
If the device does fall into water, switch off the power supply immediately. Do not attempt to pull the device out of the water while it is connected to the mains power!
■ Never touch the device and the connecting cable with wet hands when the device is connected to the mains power.
WARNING – Danger of Fire
■ Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
- Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fi re).
■ Do not use the device in conjunction with extension cables.
■ Do not operate the device in the vicinity of combustible material. Do not place any combustible or easily meltable materials (e.g. cardboard, paper, wood, plastic) in or on the device.
■ Do not cover the device during operation in order to prevent it from catching fi re. Ensure that there is suffi cient ventilation while the device is in operation.
■ Do not place food wrapped in cling fi lm, plastic bags or paper on the grill plate.
■ Do not use the device for heating.
In the event of a fi re: Do not extinguish with water! Smother the fl ames with a fi reproof blanket or a suitable fi re extinguisher.
WARNING – Danger of Injury
- Keep children and animals away from the packaging material. There is a danger of suffocation.
■ Make sure that the connecting cable is always kept out of the reach of small children and animals. There is a danger of strangulation.
■ Hot steam can escape from the device during operation. You should therefore keep your head and hands out of the danger zone. There is a danger of scalding from heat and hot steam.
■ The grill plate of the device will become very hot. Be careful when placing on and removing the food! If necessary, use kitchen tongs made of plastic or wood. There is a danger of burns.
■ The device must not be moved during operation. There is a danger of burns.
■ Make sure that the connecting cable does not present a trip hazard. It may not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.
EN
NOTICE – Risk of Damage to Material and Property
■ Only connect the device to a plug socket that is properly installed and matches the technical data of the device. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
■ Make sure that the connecting cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces (this also applies to the hot surfaces of the device!).
■ Only use heat-resistant utensils to place and remove the food. Keep metal objects or other sharp objects away from the device. These objects could damage the non-stick coating of the grill plates. We recommend the use of heat-resistant kitchen utensils made from wood or plastic.
■ Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation, when there is a power cut or before a thunderstorm.
■ Never pull or carry the device by the connecting cable.
■ When you pull the mains plug out of the plug socket, always pull on the mains plug and never the mains cable!
■ Protect the device from other heat sources, naked flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.
■ Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.
BEFORE INITIAL USE
There may still be some production residues on the device. To avoid harmful effects to your health, clean the device thoroughly before you first use it and then heat it up for a few minutes. To do this, follow the instructions in the "Cleaning and Storage", "Setting Up the Device" and "Use" chapters.
When the device is first used, production-related additives (e.g. grease) may cause a small amount of smoke and / or an odour to be produced. This is normal and not a device defect.
SETTING UP THE DEVICE
Please Note!
■ Do not place the device below kitchen wall units or similar cupboards. The rising steam could cause damage to them!
■ The device may only be operated in a horizontal position, never on its side or tilted.
-
Always set up the closed device with a clear space at the sides (at least 20 cm) and clear space above it (at least 30 cm) on a flat, solid and heat-resistant surface that is resistant to fat splashing.
-
Insert the grill plates (4 and 9) into the device: To do this, place one grill plate at a slight angle with the recesses into the locking lugs (3 and 8) on the device and press down. The grill plate must engage audibly (Picture C).
-
Insert the fat collecting tray (6) into the bottom of the housing.
FUNCTIONS
Switch On / Off and Start / Stop
The device is switched on or off via the fi eld(21).
The preheating / grilling process is started or stopped via the fi eld ▶ (15).
The grilling process cannot be paused! If it is ended via the fi eld, it has to be completely restarted.
Preheating
The device automatically preheats fi rst on each mode (apart from manual mode), which is indicated by the fi eld ^SS (20) fl ashing. The device has only reached the desired temperature for the selected mode once you hear 4 short and 1 long beep.
Preset Modes
The device has 6 preset modes (13, 18 and 19) on which the temperature is set automatically.
ideal for burgers
ideal for grilled chicken, chicken breast fi llets or similar
ideal for sandwiches, baguettes or similar
ideal for all kinds of sausages
ideal for all kinds of meat
ideal for all types of fi sh that can be grilled
In Meat and Fish modes, the degree of cooking you want must also be chosen before starting the grilling process.
Manual Mode
The device also offers the option of setting a manual mode via the fi eld ^M (14) in order, for example, to grill desserts, vegetables or something else. In this mode, the preheating phase does not take place and the device heats up from room temperature to max. 200°C.
Degree of Cooking
The degree of cooking that you want in modes (19) and (18) must be chosen after fi nishing the preheating via the select degree of cooking fields (16): rare – medium – well – well done.
Please bear in mind: This categorisation relates to a steak that is approx. 4 cm thick (300 g) (Picture D).
The particular degree of cooking is always dependent on the type, quality, origin and thickness of the chosen food (see also the "Tips and Tricks" chapter). You need to make an adjustment for the individual food and check the cooked result!
Defrosting
To defrost food, you can select the "Defrost" function via the fi eld (12). In this case, the temperature in the device increases slowly from room temperature to no more than 250°C – this ensures that the food defrosts gently.
LED Colour Countdown
The LED colour countdown (17) indicates the progress of the grilling process: green approx. 0 - 25%
yellow approx. 25 - 50%
orange approx. 50 - 75%
red approx. 75 - 100%
EN
USE
Please Note!
■ The device must not be left unattended during operation!
In the interest of your own safety, inspect the device and the connecting cable for damage each time before you use it. Use the device only if it is in working order.
Although the grill plates (4, 9) have a non-stick coating, we still recommend that you lightly grease them before first use. Do not use any cooking spray as it can attack the non-stick coating!
- Connect the device to a plug socket. Make sure that the connecting cable is not jammed between the grill plates. A beep is heard.
- Flip the device shut.
- Touch the fi eld(21) to switch on the device. All functions on the control panel (1) briefl y light up once and then go out again.
The fi elds , and (13, 14, 18, 19) remain illuminated. - Select the function you require from these fi elds (see the "Functions" chapter). With all functions, apart from manual mode, the fi elds(20) and ▶(15) fl ash.
If the food you have chosen needs to be defrosted fi rst, touch the fi eld (12) and place the food in the device.
- Touch the fi eld to start the pre-heating process. The fi eld and the fi eld for the chosen food fl ash.
- The device heats up to the correct temperature. The preheating process
is fi nished as soon as you hear 4 short beeps and 1 long beep.
-
Open the device and place the food that is to be prepared on the bottom grill plate.
-
Close the device again.
-
In Meat and Fish modes, choose the degree of cooking you want via the select degree of cooking fi elds (16) (see the "Functions" chapter).
-
Touch the fi eld▶ to start the grilling process. The field ▶ and the field for the selected food light up constantly and the LED colour countdown (17) switches on. The grilling process is fi nished when the LED colour countdown is red and you hear 4 short beeps and 1 long beep.
We recommend checking from time to time during the grilling process whether the food has already reached the degree of cooking you want.
- Open the device and remove the food.
Please Note: Use only heat-resistant wooden or plastic utensils to remove the food. - After the device has been used, disconnect it from the mains power and allow it to cool before it is cleaned.
TIPS AND TRICKS
- Not all meat or fish is the same.
The fl avour is dependent on lots of different factors – the type, origin, fi shing method, rearing of the animal and so on ... The rule when grilling is therefore: Quality over quantity! As you also can and should enjoy grilled meat and grilled fi sh on its own or with just a few herbs and spices, it is well worth spending a bit more money when you make your choice.
- The grilled result is also dependent on the size and thickness of the meat or fi sh – here you should always have a look from time to time during the grilling process to see whether the chosen settings also perfectly suit this piece of meat or fi sh.
- When you are grilling round food-stuffs, such as sausages, corn on the cob etc., the grilling process usually takes a little longer owing to the small contact surface. We recommend turning the food 90° one or two times so that it is deliciously seared all the way round.
- If you are grilling several times in quick succession, we recommend giving the grill plates a rough clean with a brush in between times to prevent any food from burning into them and also prevent too much smoke being produced.
- You should only season meat or fish after the grilling process so that the herbs or spices do not burn on the grill and thus alter the fl avour.
CLEANING AND STORAGE
Please Note!
■ No liquid must get into the device. Never immerse the device in water!
■ The device is not dishwasher-safe.
■ Never spray cold water onto the grill plates during or immediately after use of the device. This could damage the non-stick coating!
■ Do not use any sharp or abrasive cleaning agents or cleaning pads to clean the device. These may damage the surfaces.
Clean the device immediately after every use to prevent the formation of germs. Do not allow any food residues to dry on.
- Make sure that the device has completely cooled down and has been disconnected from the mains power!
- Remove the grill plates (4 and 9) from the device (see the "Setting Up the Device" chapter).
- Pull the fat collecting tray (6) out of the bottom of the housing and empty it.
- Clean the grill plates and the fat collecting tray with a little detergent and warm water or in the dishwasher.
To ensure a particularly long useful life, we recommend cleaning the grill plates with a sponge and a little detergent.
- Wipe down the housing with a damp cloth.
- Then dry off the device with a soft cloth.
- Close the device and fix the grill plates with the locking catch (2).
- Store the device in a dry, clean, frost-free place so that it is out of the reach of children and animals.
EN
TROUBLESHOOTING
If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps below, contact the customer service department.
Do not attempt to repair an electrical device yourself!
The device does not work.
The mains plug is not inserted in the plug socket correctly.
▶ Correct the fit of the mains plug.
The plug socket is defective.
▶ Try another plug socket.
There is no mains voltage.
▶ Check the fuse of the mains connection.
The device switches off during the grilling process.
The device was opened for quite a long time in order for example to test how well cooked the food is.
▶ Make sure that the device is not opened for too long as it has an automatic safety shutoff.
During use, an unpleasant smell is detected.
The device is being used for the first time.
▶ A smell often develops when new devices are first used. The smell should disappear once the device has been used several times.
The device is dirty.
▶ Clean the device.
The fuse in the fuse box is triggered.
Too many devices connected to the same circuit.
▶ Reduce the number of devices in the circuit.
DISPOSAL
Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.
This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an offi cially approved waste disposal company.
TECHNICAL DATA
Article number: 09550
Model number: HRG1026
Power supply: 220 – 240 V \~ 50 – 60 Hz
Power: max. 2000 W
Protection class: I
ID of operating instructions: Z 09550 M DS V1 0620 uh
All rights reserved.
SOMMAIRE
Composition 19
Aperçu général 19
Symboles 20
WAARSCHUWING – Brandgevaar
WAARSCHUWING – Verwon- dingsgevaar
De contactdoos is defect.
