Product type	Electric massage device
Brand	VitalMaxx
Model	03774 (YC-303D5)
Supply voltage	12 V DC (via power adapter)
Power	24 W
Protection class	III
Timer	Automatic shut-off after 15 minutes
Main functions	Kneading massage, infrared heat, vibration, 3 speeds, direction change
Number of massage heads	2 (each with 2 balls)
Control panel	Integrated with ON/OFF, direction change, speed, heat, vibration buttons
Attachment	Straps and belt (included)
Dimensions (approx.)	35 x 20 x 10 cm
Weight (approx.)	1.2 kg
Cover material	Faux leather or fabric (not specified)
Color	Black/gray
Care and cleaning	Wipe with a damp cloth, then dry. Do not use abrasive products.
Safety features	Automatic shut-off, overheating protection, use out of water
Included accessories	Power adapter, belt, straps
After-sales service	DS Produkte GmbH, Germany, Tel. [phone]
Warranty	Legal warranty, excludes normal wear and misuse

Frequently Asked Questions - 03774 VitalMaxx

How to start the massage?

Plug the power adapter into an outlet, place the device on the area to be massaged, then press the ON/OFF button. Then select the desired functions on the control panel.

What is the maximum continuous use time?

The device automatically shuts off after 15 minutes. Do not use for more than 30 consecutive minutes, and do not massage the same muscle group for more than 15 minutes.

The heat function does not work, what to do?

Make sure the Heat button is activated on the control panel. If the problem persists, check the power supply and contact after-sales service.

Can I use the device on the stomach or legs?

Yes, the device is designed for the neck, back, as well as the stomach, pelvis, and leg muscles. Follow the instructions in the user manual.

How to clean the device?

Unplug the device before cleaning. Wipe it with a damp cloth, then dry it with a dry cloth. Do not use corrosive or abrasive products.

The device makes noise, is this normal?

Yes, some mechanical noise is normal due to motor operation. It is not a defect.

Can I use the device if I have a pacemaker?

No, people with a pacemaker or medical implant should consult a doctor before use.

How to adjust the massage speed?

Use the Speed button on the control panel to choose between three levels: low, medium, or high.

The device gets too hot, what to do?

Stop the device and unplug it. Let it cool down completely. Avoid prolonged use without breaks.

Where can I buy spare parts?

Contact after-sales service at the address indicated in the manual. The manufacturer can supply parts such as the power adapter.

USER MANUAL 03774 VitalMaxx

Woman wearing a vitalmaxx life vest with a headband, smiling at the camera (no text or symbols visible on the device itself)

03774

DE

Gebrauchsanleitung

ab Seite 3

EN

Instruction manual

starting on page 12

FR

Mode d'emploi

www.service-shopping.de

Vertical control panel with six function icons (power, refresh, scroll, steam, etc.) in grayscale, no text or labels visible.

Back view of a person with an updo hairstyle, wearing a sleeveless top (no text or symbols visible)

Back view of a person wearing a full-body medical-style shoulder brace (no text or symbols visible)

Close-up of a person's lower back showing a soft, rounded cushion or cushion (no text or symbols visible)

Close-up of a person's torso and arm, showing a white object with a gray handle and dark clothing (no text or symbols visible)

Person wearing a white sash bandage, viewed from the side (no text or symbols visible)

Close-up of a person performing a seated leg stretch or exercise (no text or symbols visible)

Close-up of a person wearing a white safety vest (no visible text or symbols)

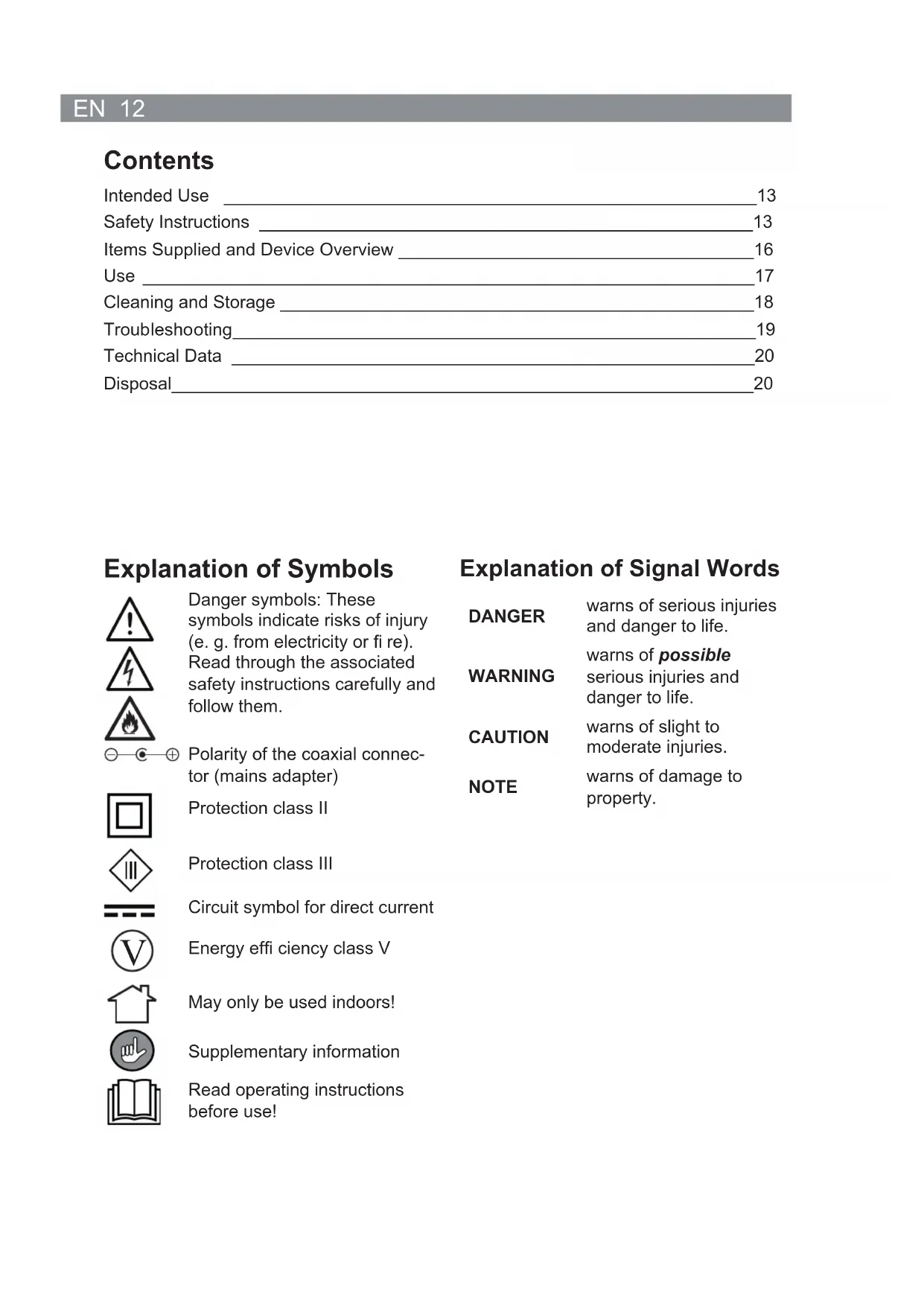

Safety Instructions 13

Items Supplied and Device Overview 16

Use 17

Cleaning and Storage 18

Troubleshooting 19

Technical Data 20

Disposal 20

Explanation of Symbols

Danger symbols: These symbols indicate risks of injury (e. g. from electricity or fire). Read through the associated safety instructions carefully and follow them.

Polarity of the coaxial connector (mains adapter)

Protection class II

Protection class III

Circuit symbol for direct current

Energy efficiency class V

May only be used indoors!

Supplementary information

Read operating instructions before use!

Explanation of Signal Words

DANGER

warns of serious injuries and danger to life.

WARNING

warns of possible

serious injuries and danger to life.

CAUTION

warns of slight to moderate injuries.

NOTE

warns of damage to property.

Dear Customer,

We are delighted that you have chosen this massage device.

Before using the device for the first time, please read the instructions through carefully and keep them for future reference. If the device is given to someone else, these instructions should also be handed over with it.

The manufacturer and importer do not accept any liability if the information in these instructions is not complied with.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website:

www.service-shopping.de

Intended Use

• This device is intended to be used for loosening the neck and back muscles and delivers relaxation. The device may also be used to massage abdominal, buttock and leg muscles. It is not a replacement for medically required treatment.
• The device is for personal use only and is not intended for commercial applications.
• The device should only be used as described in these instructions. Any other use is deemed to be improper.
• The following are excluded from the warranty: all defects caused by improper handling, damage or unauthorised attempts at repair. This also applies to normal wear and tear.

Safety Instructions

This device should not be used by people (including children) with impaired sensory or mental faculties or who do not have adequate experience and/or knowledge of such devices, unless they are supervised by a person responsible for their safety, or have received instructions from such a person on how to use the device.
■ Children must be supervised to ensure that they do not play with the device.
- The device has a heating function. People who are sensitive to heat must be careful when using the heating function.
- Keep sharp and pointed objects away from the device to ensure that it is not damaged.
- The device must always be disconnected from the mains power when it is left unattended and before cleaning it.

In the interest of your own safety, you should inspect the device for damage each time before you use it. It may only be used if it has no visible signs of damage!
If the device, the mains cable or the mains adapter of the device is damaged, it must be replaced by the manufacturer or customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.

Health-Specific Instructions

■ Only use the device if you have no physical illnesses or ailments.
The following people may use the device only after consultation with their doctor:

—people who wear a pacemaker or similar medical implants;
—people with heart disease or who suffer from epilepsy;
—people who have back complaints or spinal disorders;

- people who suffer from osteomyelitis, bone inflammation (in particular if the spinal column is damaged) or from osteoporosis;

—women who are pregnant or have just given birth;
—people who suffer from circulation problems or thrombosis;

- people who have undergone an operation for which the treatment is not yet complete;

—people with physical abnormalities;
—people who have a malignant tumour.

If you are unsure whether the device may be used, consult a responsible doctor.
- Do not use the device near to or on injuries, swelling, skin irritations, infected skin, warts, fungal infections, abnormal changes in the skin or body parts with no feeling.
The device must not be used for longer than 30 minutes continuously. Do not massage one group of muscles for longer than 15 minutes.
If you experience an unpleasant sensation while you are using the device, stop performing the massage immediately!
- Do not fall asleep while you are using the device!
- Do not use the device before going to bed. The massage has a stimulating effect, which may lead to problems getting to sleep.

DANGER – Danger of Electric Shock from Water!

■ Use and store only in closed rooms.
- Do not use the device in rooms with high humidity.

• Never immerse the device, mains cable or mains adapter in water or other liquids and ensure that they cannot fall into water or become wet.
• Should the device fall into water, switch off the power supply immediately. Do not attempt to pull the device out of the water while it is still connected to the mains power!
• Never touch the device, mains cable or mains adapter with wet hands when these components are connected to the mains power.

WARNING – Danger of Electric Shock from Damage and Inappropriate Use!

• Only connect the mains adapter to a plug socket with safety contacts that is properly installed and matches the technical data of the device. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
• Only use suitable extension cables whose technical data is the same as that of the device.
  In the event of damage / faults (e.g. unusual noises, odour or smoke development) and in a thunderstorm, switch the device off immediately and pull the mains adapter out of the plug socket.
• The device must be switched off when inserting or removing the mains adapter. Always pull the mains adapter and never the mains cable to disconnect the device from the mains power.

WARNING – Danger of Injuries!

• Danger of strangulation! Make sure that the mains cable is always kept out of the reach of small children and animals.
  The device should only be used and stored out of the reach of children and animals. The mains cable must also be kept out of the reach of children and animals. Otherwise they might use the cable to pull the device down on themselves.
• Danger of corrosive injury! (Rechargeable) batteries can be life-threatening if swallowed. Therefore keep (rechargeable) batteries and the remote control out of the reach of young children. If a (rechargeable) battery has been swallowed, you must seek immediate medical attention.
• Danger of corrosive injury! the (rechargeable) battery has leaked, do not allow your skin, eyes and mucous membranes to come into contact with the battery acid. If you touch battery acid, rinse the affected sites with abundant fresh water immediately and contact a doctor as soon as possible.
• Do not insert any fingers or other body parts into the device. Do not open the zip during use.
• Danger of falling! Make sure that the connected mains cable does not present a trip hazard.

WARNING – Danger of Fire!

• Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes and substances in the air.
• Do not use the device under a blanket or similar item or in the vicinity of combustible material.
  In the event of a fire: Do not extinguish with water! Smother the flames with a fireproof blanket or a suitable fire extinguisher.

NOTICE – Risk of Damage to Material and Property

■ Do not lie or stand on the device.
■ Protect the device from heat, naked flames, direct sunlight, extreme temperatures, moisture and collisions.
- Do not use any corrosive or abrasive cleaning agents to clean the device. These can damage the surface.
- Keep the device in a dry place at temperatures of between 0 and 40°C.

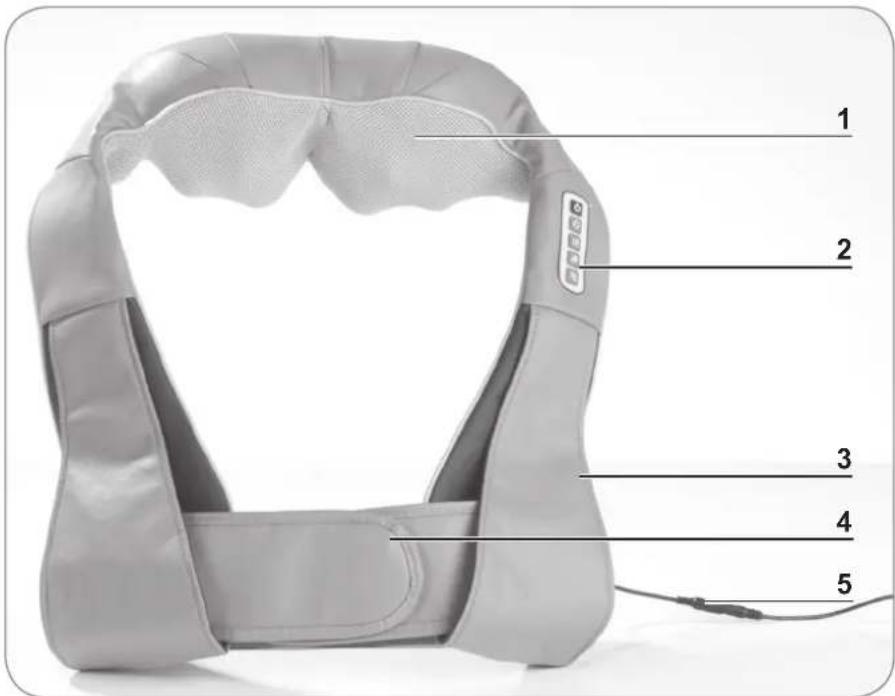

Items Supplied and Device Overview

PLEASE NOTE!

■ WARNING – Danger of suffocation! Keep children and animals away from the packaging material.

• Unpack all parts and check the items supplied for completeness and transport damage. If you find any damage to the components, do not (!) use them, but contact our customer service department.
• Remove all possible transport restraints and protective fi lms.

1 2 3 4 5

1 2 x 2 massage balls incl. heating and red light element
2 Control panel
3 Hand loops
4 Connecting cable
5 Belt

Not shown:

- Mains adapter

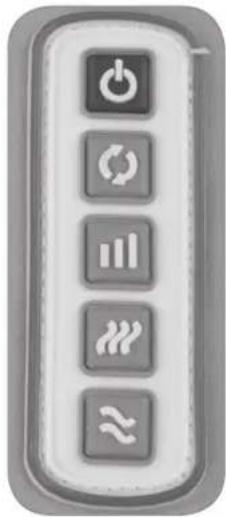

Control Panel

The control panel allows you to adjust the following settings:

Vertical control panel with six function icons (power, refresh, scroll, heat, etc.) in grayscale, no text or labels visible.

ON/OFF - switch the massage on and off, the device changes direction every minute, the red light and heat function are automatically switched on

Change of direction - the massage device massages continuously either clockwise or anticlockwise

Speed - the speed can be set to three levels (slow, medium, fast)

Heat - the red light and heat function can be switched off or on

Vibration - additional vibration can be switched off or on

Use

PLEASE NOTE!

No pressure should be exerted on the device as this will slow down or stop the massage and the device could be damaged. Do not stand or lie on the device.
- Do not use the device for longer than 30 minutes without stopping.
■ Do not massage one group of muscles for longer than 15 minutes.
For reasons of hygiene, avoid direct contact of the skin with the device wherever possible. It should not come into contact with skin that has had cream or oil applied to it.
A tingling sensation/itching during or after the massage is normal due to the circulation-boosting effect.

We recommend that you wait an hour after mealtimes before using the device.

Areas of Application

When this device performs a massage, two massage heads massage the muscles twice. This is intended to relax them and boost circulation. The device is designed in particular for use on the upper back area (in particular the neck). But it can also be used to massage abdominal, buttock and leg muscles.

Back view of a person with an updo hairstyle, wearing a white top (no text or symbols visible)

Back view of a person wearing a full-body medical-style shoulder brace (no text or symbols visible)

Close-up of a person's lower torso and upper torso, showing anatomical contours (no text or symbols visible)

Neck and shoulders Back Abdomen

Close-up of a person's torso and arm holding a white object (no visible text or symbols)

Close-up of a person's lower back wearing a white bandage (no text or symbols visible)

Close-up of a person performing a seated leg stretch or exercise (no text or symbols visible)

Buttocks Thighs Calves

Close-up of a person wearing a white safety vest with 'BODER' branding (no visible text or symbols on the torso)

The belt can be used to fix the device to the body. To do this, place the belt (5) through the hand loops (3). This provides more freedom of movement without the device slipping quickly.

Operating the Device

1. Connect the mains adapter to the connecting cable (4) on the device.
2. Insert the mains adapter into an easily accessible socket.
3. Place the massage balls (1) of the device onto the part of the body which is to be massaged (see the “Areas of Application” section). For a shoulder or back massage, place the straps of the device around your shoulders and fix them in place either with the belt (5) or with your hands. To do this, place either your arms or the belt (5) through the hand loops (3). If necessary, close the belt (5) with the hook and loop fastener.
4. Press the ON/OFF button to start the massage. Use the control panel (2) to select the function you want (see the "Items Supplied and Device Overview" chapter, "Control Panel" section).
5. After 15 minutes the device automatically switches off. To switch it off sooner, press the ON / OFF button.
6. Pull the mains adapter out of the plug socket and clean the device if necessary.

Cleaning and Storage

PLEASE NOTE!

The device may not be connected to the mains and must be completely switched off for cleaning and maintenance!
- Do not use any caustic or abrasive cleaning agents for cleaning. These can damage the surface.

• Wipe down the device just with a damp cloth if necessary. Then wipe it down fully with a dry cloth.
• Do not wind the mains cable around the device or the mains adapter.
• Keep the device in its respective packaging in a dry place which is protected from sunlight and is not accessible to children and animals.

Troubleshooting

If the device does not work properly, first check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps that are listed, contact the customer service department.

Do not attempt to repair a defective electrical device yourself!

Problem Possible cause Fix
The device does not work.	The ON / OFF button was not pressed correctly.	Press the ON / OFF button again.
	The mains adapter is not inserted in the plug socket or the connecting cable (6) is not connected correctly to the mains cable of the mains adapter.	Correct the fi t.
	The plug socket is defective. Try another one.
	The device has switched off automatically after operating for 15 minutes.	Press the ON / OFF button again.
	The fuse is defective.	Check the fuse of the mains connection.
	The mains adapter is defective.	Try another mains adapter if necessary. Otherwise contact our customer service department.
No heat is produced.	Red light and heat are not switched on.	Press the Heat button to switch on the red light and heat as well.
The device gets too warm.	The device was in operation several times in succession for 15 minutes / too long in each case.	Pull the mains adapter out of the plug socket and allow the device to cool down.
The device makes noises.	No error.	Operating noises are a normal consequence of the mechanics and not a defect.
Smoke emerges from the device.	The device is defective.	Pull the mains adapter out of the plug socket immediately and contact the customer service department.

Technical Data

Model number: YC-303D5

Article number: 03774

Voltage supply: 12 V

Power: 24

Timer: 15

Protection class: III

Mains adapter

Model number: KYL-01202000O

Input: 100 – 240 V \~ 50 / 60 Hz, 0,2 A

Output: 12 V DC, 2 A, 24 W (max.)

Protection class: II

Customer Service / Importer:

DS Produkte GmbH

Am Heisterbusch 1

19258 Gallin inutes

Germany

Tel.: [phone]

(Calls to German landlines are subject to charges. The cost varies depending on the service provider)

Disposal

The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and take it to a recycling centre.

Dispose of the device in an environmentally friendly manner, it should not be added to general household waste. Dispose of it at a recycling centre for used electrical and electronic devices. More information is available from your local authorities.

Contenu

www.service-shopping.de

Close-up of a control panel with five function icons (power, refresh, scroll, steam, etc.) arranged vertically (no text or labels visible)

Back view of a person with an updo hairstyle, wearing a sleeveless top (no text or symbols visible)

Back view of a person wearing a full-body medical-style shoulder brace (no text or symbols visible)

Side view of a person's lower body showing a bandage or cushion (no text or symbols visible)

Close-up of a person's torso and arm, showing a white object with a gray handle (no text or symbols visible)

Close-up of a person's lower torso wearing a white bandage (no text or symbols visible)

Close-up of a person performing a seated leg stretch or exercise (no text or symbols visible)

Bassin Cuisses Mollets

Close-up of a person's torso wearing a white high-temperature vest (no visible text or symbols)

www.service-shopping.de

Doelmatig gebruik

WAARSCHUWING – Verwondingsgevaar!

WAARSCHUWING – Brandgevaar!

Close-up of a control panel with six function icons (power, refresh, scroll, steam, etc.) arranged in a row (no text or labels visible)

Back view of a person with hair tied up in a bun, wearing a white top (no text or symbols visible)

Back view of a person wearing a full-body medical sutured top (no text or symbols visible)

Close-up of a person's lower torso and upper torso, showing a bandage and waist area (no text or symbols visible)

Close-up of a person's torso and arm, showing a white object with a gray band (no text or symbols visible)

Side view of a person wearing an open wristband (no text or symbols visible)

Close-up of a person performing a seated leg press or exercise pose (no visible text or symbols)

Zitvlak Bovenbenen Kuiten

Front view of a person wearing a full-body medical harness (no visible text or symbols)
