04877 - Massage device VitalMaxx - Free user manual and instructions

Product type	Massage seat
Reference	04877
Model	CF-2602
Power supply	12 V DC
Power consumption	9.6 W
Power adapter input	100 – 240 V ~ 50 / 60 Hz
Power adapter output	12 V DC, 800 mA
Protection class	II
Massage zones	Upper back, lower back, hips (with heating), thighs
Massage types	Kneading, rolling, tapping, pulsation, automatic mode
Number of programs	5 (including one Auto mode)
Intensity levels	4
Heating function	Yes, can be activated separately (hips)
Timer	15, 30 or 60 minutes
Dimensions (approx.)	Approx. 50 x 40 x 10 cm
Weight (approx.)	Approx. 2 kg
Cover material	Synthetic fabric
Cleaning	Slightly damp cloth, no abrasive products
Safety	Automatic shut-off, overheating protection, seated use only
Included accessories	Massage seat, power adapter, manual
After-sales service	DS Produkte GmbH, Germany, phone [phone]

Frequently Asked Questions - 04877 VitalMaxx

What massage types are available?

The device offers 5 programs: kneading, rolling, tapping, pulsation and an Auto mode that automatically alternates between the four types.

How do I activate the heating function?

Press the HEAT button on the control unit. An LED lights up to confirm. Heat spreads to the hips.

Can I use this massage seat on a chair?

Yes, the massage seat can be attached to a chair using the elastic straps on the back of the backrest to prevent slipping.

What is the recommended massage duration?

We recommend a session of 15 minutes. You can set the timer to 15, 30 or 60 minutes using the TIMER button.

Can I use the device lying down?

No, the device must be used only in a seated position. Do not lie on it or use it in bed.

How do I clean the massage seat?

Unplug the device and let it cool down. Clean it with a slightly damp cloth. Do not use abrasive or caustic products. Never immerse the device in water.

Can the device be used by people with a pacemaker?

People with a pacemaker should consult their doctor before use.

What should I do if the device does not turn on?

Check that all cables are connected, the power adapter is plugged into a working outlet, and press the PWR button. If the problem persists, contact after-sales service.

Can I use the device with a non-original power adapter?

No, use only the supplied power adapter (model XH1200-0800wG). Using another adapter may damage the device or pose a hazard.

How should I store the device after use?

Allow the device to cool down if the heating function was used. Fold it without force and store it in a dry place away from sunlight, out of reach of children and animals.

USER MANUAL 04877 VitalMaxx

Black office chair with leather backrest and visible armrest, no text or symbols present

04877

DE EN FR NL

Gebrauchsanleitung

ab Seite 3

Instruction manual

starting on page 11

Mode d'emploi

www.service-shopping.de

Safety Instructions 12

Items Supplied 15

Device Overview 15

Before Initial Use 16

Use 16

Cleaning and Storage 16

Troubleshooting 17

Technical Data 18

Disposal 18

Explanation of the Symbols

Danger symbols: These symbols indicate risks of injury (e.g. from electricity or fi re). Read through the as-sociated safety instructions carefully and follow them.

Only use indoors!

Polarity of the coaxial connector (mains adapter)

Circuit symbol for direct current

Energy efficiency class V

Protection class III

Protection class II

Do not wash

Supplementary information

Read operating instructions before use!

Explanation of the Signal Words

DANGER warns of serious injuries and danger to life

WARNING warns of possible serious injuries and danger to life

CAUTION warns of slight to moderate injuries

NOTICE warns of damage to property

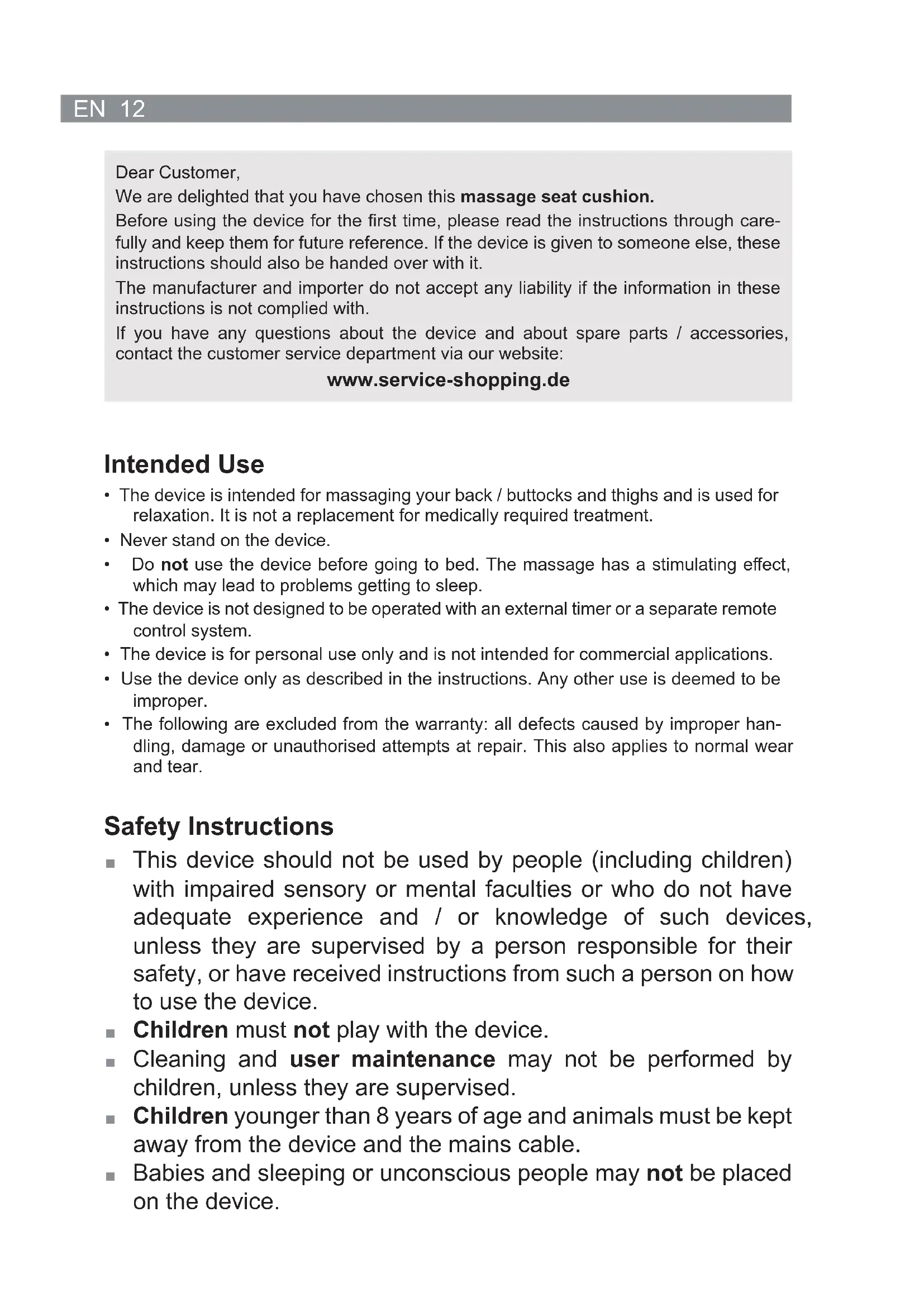

Dear Customer,

We are delighted that you have chosen this massage seat cushion.

Before using the device for the first time, please read the instructions through carefully and keep them for future reference. If the device is given to someone else, these instructions should also be handed over with it.

The manufacturer and importer do not accept any liability if the information in these instructions is not complied with.

If you have any questions about the device and about spare parts / accessories, contact the customer service department via our website:

www.service-shopping.de

Intended Use

• The device is intended for massaging your back / buttocks and thighs and is used for relaxation. It is not a replacement for medically required treatment.
• Never stand on the device.
• Do not use the device before going to bed. The massage has a stimulating effect, which may lead to problems getting to sleep.
• The device is not designed to be operated with an external timer or a separate remote control system.
• The device is for personal use only and is not intended for commercial applications.
• Use the device only as described in the instructions. Any other use is deemed to be improper.
• The following are excluded from the warranty: all defects caused by improper handling, damage or unauthorised attempts at repair. This also applies to normal wear and tear.

Safety Instructions

This device should not be used by people (including children) with impaired sensory or mental faculties or who do not have adequate experience and / or knowledge of such devices, unless they are supervised by a person responsible for their safety, or have received instructions from such a person on how to use the device.

■ Children must not play with the device.

- Cleaning and user maintenance may not be performed by children, unless they are supervised.

■ Children younger than 8 years of age and animals must be kept away from the device and the mains cable.

■ Babies and sleeping or unconscious people may not be placed on the device.

• When the heat function is switched on, the device has a hot surface. People who due to illness or for other reasons are not sensitive to heat must not use the heat function.
• Do not use the device if the massage mat is still damp. It must be completely dry before the device can be switched back on again.
• Do not switch on the device when it is folded up and allow the device to cool down before you fold it up and store it away.
• Do not insert any safety pins, drawing pins or other pointed objects into the device.
• Do not use the mains adapter with another device and never use the device with another mains adapter.
• The device should only be used and stored out of the reach of children and animals. Improper use can lead to injuries and electric shock.
• The device must always be disconnected from the mains power when left unattended and before cleaning it.
• Check the device for damage each time before you use it. Only use the device if the device, mains cable and mains adapter have no signs of damage! If the device, the mains cable or the mains adapter are damaged, they must be replaced by the manufacturer, customer service department or a specialist workshop in order to avoid any hazards.
• Follow the instructions in the “Cleaning and Storage” chapter!

Dangers for the Following Groups of People

■ Pregnant women should not use the device or use it only after consultation with their doctor.
■ People with a pacemaker may use the device only after consultation with their doctor.
■ People who have no feeling in their neck or back or people with circulation problems may not use the device.
- Do not use the device on swelling or sore areas of skin.
If you have any concerns about your health, consult a doctor before using the device.

DANGER – Danger of Electric Shock from Water

• Use and store the device only in closed rooms. Do not operate the device in rooms with high humidity.

• Never immerse the device in water or other liquids! Ensure that the device, the mains cable and the mains adapter cannot fall into water or become wet.

• Should the device fall into water, switch off the power supply immediately. Do not attempt to pull the device out of the water while it is still connected to the mains power!

• Never touch the device, mains cable or mains adapter with wet hands when these components are connected to the mains power.
• Do not use the device if it has malfunctioned or been dropped in water. Have it checked in a specialist workshop before using it again.

WARNING – Danger of Electric Shock from Damage and Inappropriate Use

The mains adapter should only be connected to a properly installed socket with safety contacts. The socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the rating plate of the device and the mains adapter.
- Only use suitable extension cables whose technical data is the same as that of the device and the mains adapter.
- The device must be switched off when the mains adapter is pulled out or inserted into the plug socket.

WARNING – Danger of Injury

■ Danger of Suffocation! Keep children and animals away from the packaging material.
■ The device may only be used by people who are able to handle the controller.
- Danger of tripping! Make sure that the connected mains cable does not present a trip hazard.

WARNING – Danger of Fire

• Do not use the device in rooms containing easily ignitable or explosive substances.
• To prevent overheating, do not use the device under a blanket or similar cover. Do not place the mains cable or the controller on or beneath the device during operation.
  ■ Unwind the mains cable fully before connecting the mains adapter.

NOTICE – Risk of Damage to Material and Property

• Keep the device away from sharp objects.
  ■ The device may only be used when you are seated.
  ■ Make sure that the mains cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces..
  ■ Switch off the device and pull the mains adapter out of the plug socket if an error occurs during operation or before a thunderstorm.
• When the mains adapter is removed from the plug socket, always pull on the mains adapter and never the mains cable.
• Do not pull or carry the device by the mains cable. Never wind the mains cable around the device or the mains adapter.
  Use only original spare parts from the manufacturer. If accessory parts which are not authorised by the manufacturer are used, all warranty and guarantee claims are void.

■ Never place heavy objects on the device or the mains cable.
- Protect the device from heat sources, naked flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.

Items Supplied

• 1 massage seat with controller
- 1 mains adapter

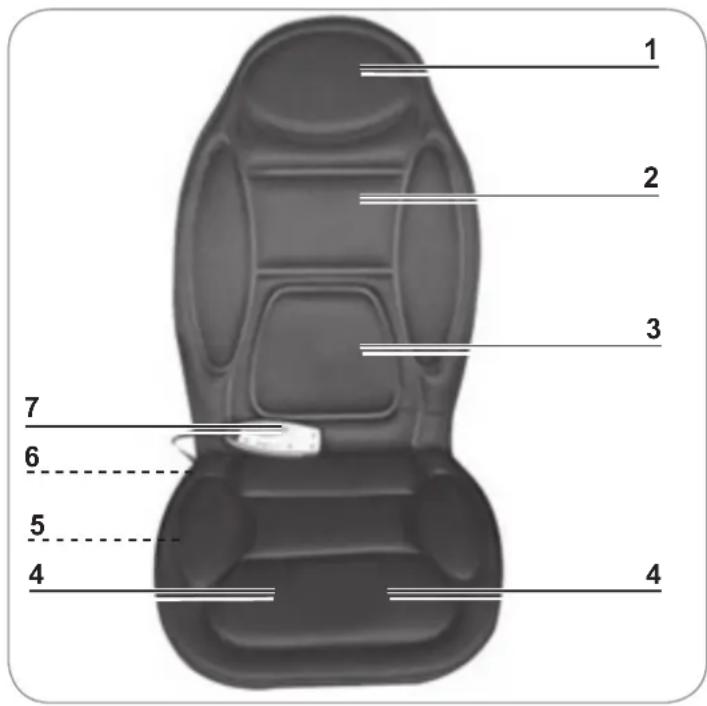

Device Overview

1 2 3 7 6 5 4 4

1 Upper back massage zone
2 Lower back massage zone
3 Hips massage zone with heat that can be activated
4 Thighs massage zone
5 Storage bag for the controller (not shown)
6 Connecting socket for the mains adapter cable (not shown)
7 Controller
On the back (not shown):
- Fastening elastic bands

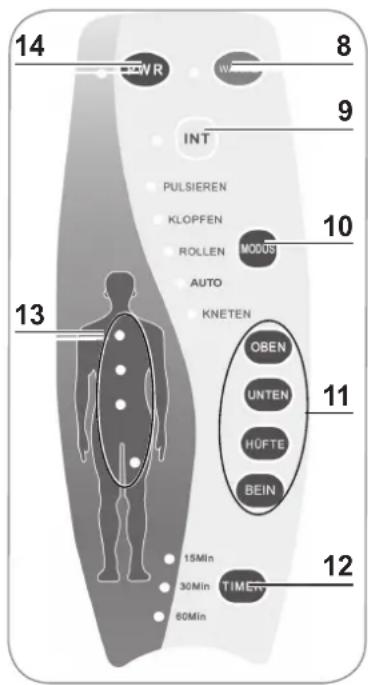

Controller

By pressing the buttons on the controller, you can select the following functions:

14 WR W 8 9 INT PULSIEREN KLOPFEN ROLLEN MODUS 10 AUTO KNETEN OBEN UNTEN HÜFTE BEIN 11 13 12 15Min 30Min TIMEN 60Min

8 WÄRME (HEAT) Switch the heat on and off

9 INT Set the massage strength. There are 4 intensity levels.

10 MODUS (MODE) Switch forward to the next massage programme. There are a total of 5 massage programmes, including AUTO, in which the 4 different types of massage are run through automatically.

11 OBEN (UPPER) / UNTEN (LOWER) / HÜFTE (HIPS) / BEIN (LEG) Deactivate and reactivate individual massage zones.

12 TIMER Select the duration of the massage. After 15, 30 or 60 minutes, the device switches off automatically.

13 LEDs indicate the activated massage zones.

14 PWR Switch the device on and off. After switch-on, the AUTO programme is automatically activated for all massage zones.

The activated function is indicated by the respective LEDs.

Before Initial Use

1. Check the items supplied for completeness (see "Items Supplied" chapter) and any transport damage. If you find any damage to the components, do not (!) use them, but contact our customer service department.
2. Remove any films or stickers that may be present from the device and accessories.

Use

PLEASE NOTE!

• Do not use it in bed. Do not fall asleep during use.
  The device must not be folded up or covered when it is switched on. Do not place the mains cable or the controller on or beneath the device during operation.

• Place the massage seat cushion on a chair, for example, and pull the fastening elastic bands over the backrest so that the seat cushion does not slip.

• Connect the mains cable to the connecting socket on the device and insert the mains plug of the adapter into an easily accessible plug socket.
• Sit down on the massage seat cushion and lean back.
• Take the controller in your hand and press the PWR button. The AUTO massage programme will then start. By pressing the buttons on the controller, you can set the massage to your liking and activate the heat function (see the "Device Overview" chapter – "Controller"). You can also switch on the heat function exclusively by pressing the WÄRME (HEAT) button instead of the PWR button.
• Set the massage / heating duration (15, 30 or 60 minutes) with the TIMER button. We recommend that you choose 15 minutes.
• You can keep the controller inside the pocket on the side of the device during use.
• When the set time has elapsed, the device switches off automatically. You can also switch it off at any time by pressing the PWR button.
• Remove the mains adapter from the plug socket and disconnect the cable from the device.
• Allow the device to cool down if the heat function was activated before you put it away or clean it (see "Cleaning and Storage" chapter).

Cleaning and Storage

PLEASE NOTE!

Before commencing the cleaning, note the safety instructions in the “Safety Instructions” chapter!
- Do not use any sharp or abrasive cleaning agents or cleaning pads to clean the device. These could damage the surfaces.

- Make sure that the device is not connected to the mains power and has cooled down.

- Clean the device only with a slightly damp cloth.

17 EN

• When storing it away, do not press the device together too strongly and do not use force. It could be damaged.
• Keep the device in its respective packaging in a dry place which is protected from sunlight and is not accessible to children and animals.

Troubleshooting

If the device stops working properly, first check whether you are able to correct the problem yourself. If the problem cannot be solved with the steps that are listed, contact the customer service department.

Do not attempt to repair a defective electrical device yourself!

Problem Possible cause Solution
The device does not work.	The device is not receiving any power supply.	Check whether all cables are correctly connected to each other.the mains adapter is inserted in the plug socket..the plug socket is defective.the fuse of your mains connection is inserted.
	The PWR button was not (correctly) pressed.	Press the PWR button.
	All massage zones are deactivated on the controller.	Press the button for a massage zone to activate it. The associated LED ought to light up.
No heat is produced.	The device is not switched on.The heat function is not switched on.	Press the PWR button. The LED must light up.Press the WÄRME (HEAT) button. The LED must light up.

Technical Data

Article number: 04877

Model: CF-2602

Voltage supply: 12 V DC

Power: 9.6

Mains adapter:

Mains adapter:

Model: XH1200-0800wG

Input voltage: 100 – 240 V \~ 50 / 60 Hz

Output voltage: 12 V DC, 800 mA

Protection class: II

Customer service / importer:

DS Produkte GmbH

Am Heisterbusch 1 19258 Gallin

Germany

Tel.: [phone]

(Calls to German landlines are subject to charges. The cost varies depending on the service provider.)

Disposal

Dispose of the packaging material in an environmentally friendly manner and take it to a recycling centre.

Dispose of the device in an environmentally friendly manner at a recycling centre for used electrical and electronic devices. It should not be disposed of in the normal domestic waste.

You can obtain more information from your local authorities.
