Product Type	Folding leisure scooter
Brand	Puky
Model	Speedus One
Category	Leisure vehicle according to EN 14619 Cat. A
Permissible total weight	100 kg (max) / 20 kg (min)
Users	Single person only
Brake	Rear brake operated by foot pressure
Handlebar adjustment	Height adjustable with locking lever and safety stop
Folding	Folding mechanism with lever and safety lock
Steering angle limitation	Yes, to prevent front wheel skidding
Kickstand	Foldable kickstand for parking
Tires	Inflatable tires (pressure indicated on sidewall)
Maintenance	Clean with soapy solution and soft cloth; lubricate bearings
Wear parts	Brakes, tires with bearings, handlebar grip
Spare parts	Original PUKY, available from specialist retailers
Warranty	Legal warranty for hidden defects; excludes damage due to improper use or normal wear
Manual	48 pages, available in multiple languages
Assembly	Delivered assembled (folded); unfolding by an adult
Safety	Wear closed shoes and protective gear (helmet, gloves, knee pads)
Prohibited use	Jumps, off-road, high curbs, near stairs or water
Cleaning	Do not use high-pressure cleaner
Storage	Away from moisture and corrosive substances (salt, sea water, fertilizers)

Frequently Asked Questions - Speedus One Puky

What is the maximum weight supported by the Speedus One scooter?

The permissible total weight is 100 kg maximum and 20 kg minimum. The scooter is designed for a single person.

How to fold and unfold the scooter?

First unscrew the transport safety (image 1). To unfold, fold the handlebar lever downwards, then push it against the frame until the safety lock engages (image 2). To fold, unlock the safety next to the lever, then turn the handlebar downwards and pull it out with a lever motion (image 8).

How to adjust the handlebar height?

Open the handlebar locking lever by moving it away from the kickstand. Pull the handlebar to the desired height, then push the lever fully to lock it. The lever should leave an impression on your finger. To adjust the tightness, turn the opposite screw: right to tighten, left to loosen (image 4a).

What regular maintenance is required?

Check before each use for wear of parts and tightness of screws. Clean with a slightly soapy solution and a soft cloth. Lubricate the bearings with bicycle oil. Check the brake and tire pressure (indicated on the sidewall). Immediately replace worn parts with original PUKY parts.

Can I use the scooter in the rain?

It is not recommended as the braking effect of the rear brake is reduced in rain or humidity. Use the vehicle only on flat, clean, and dry surfaces.

What safety precautions should be taken?

Always wear closed shoes and protective gear (helmet, gloves, knee pads). Avoid stairs, slopes, swimming pools, and other bodies of water. Do not perform jumps and do not use the scooter in the dark. Check that all fastening elements are securely fixed before starting.

Where can I find spare parts?

Original PUKY spare parts are available from specialist retailers or via www.puky.fr. Only use original parts to ensure safety.

Is the scooter suitable for off-road use?

No, the Speedus One scooter is not designed for off-road use. It should be used on flat, clean, and dry surfaces. Jumps and crossing high curbs are prohibited.

How to clean the scooter without damaging it?

Do not use a high-pressure cleaner. Clean with a slightly soapy solution, then wipe with a soft cloth. Keep the vehicle away from corrosive substances (salt, sea water, fertilizers) and store it in a dry place.

How does the brake work?

To brake, press with your foot on the brake located above the rear wheel. Caution: the brake may become hot with continuous use. Avoid touching it after intense braking.

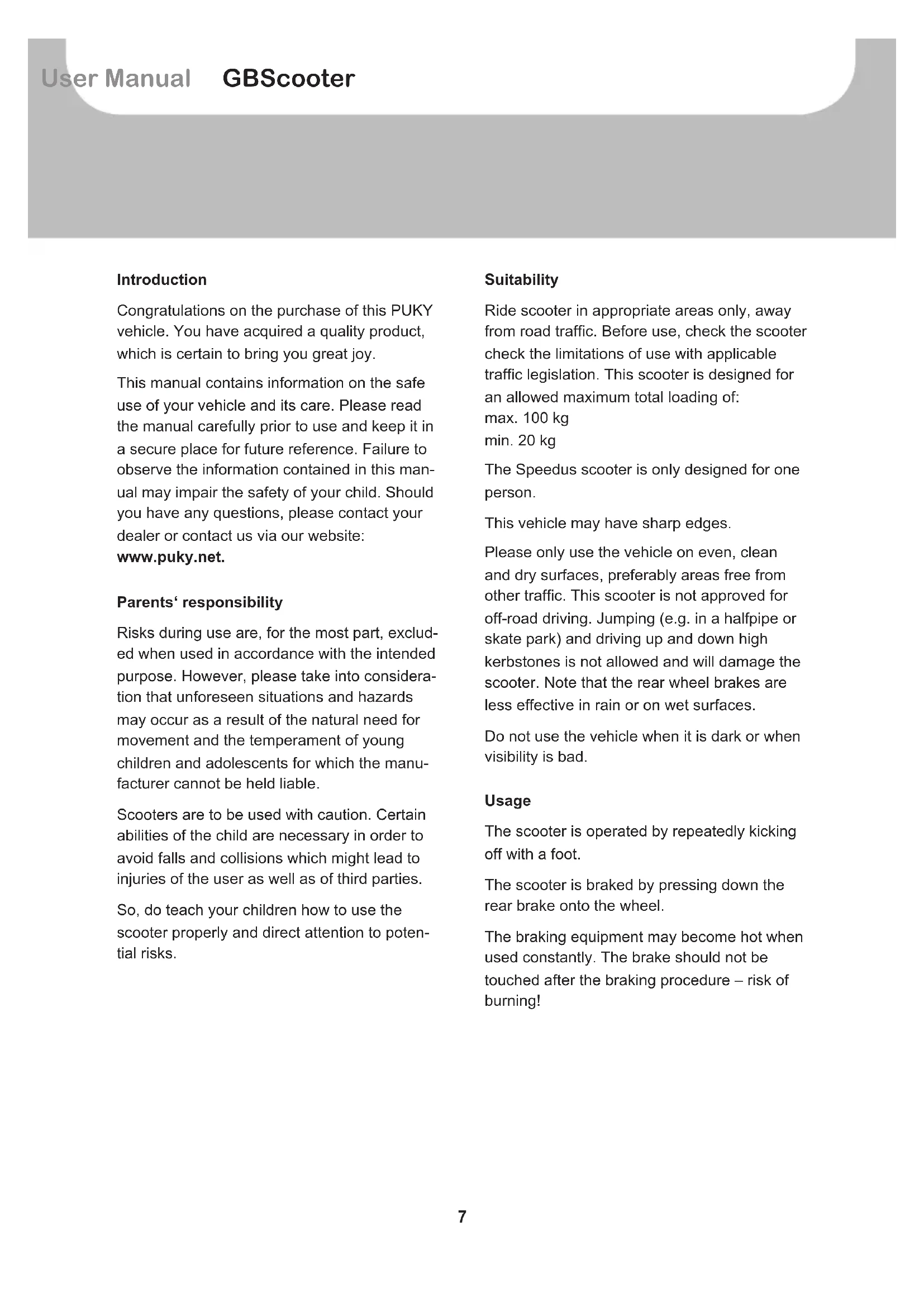

USER MANUAL Speedus One Puky

Please read carefully before using the scooter for the first time and keep in a safe place for future reference!

Congratulations on the purchase of this PUKY vehicle. You have acquired a quality product, which is certain to bring you great joy.

This manual contains information on the safe use of your vehicle and its care. Please read the manual carefully prior to use and keep it in a secure place for future reference. Failure to observe the information contained in this manual may impair the safety of your child. Should you have any questions, please contact your dealer or contact us via our website:

www.puky.net.

Parents' responsibility

Risks during use are, for the most part, excluded when used in accordance with the intended purpose. However, please take into consideration that unforeseen situations and hazards may occur as a result of the natural need for movement and the temperament of young children and adolescents for which the manufacturer cannot be held liable.

Scooters are to be used with caution. Certain abilities of the child are necessary in order to avoid falls and collisions which might lead to injuries of the user as well as of third parties.

So, do teach your children how to use the scooter properly and direct attention to potential risks.

Suitability

Ride scooter in appropriate areas only, away from road traffic. Before use, check the scooter check the limitations of use with applicable traffic legislation. This scooter is designed for an allowed maximum total loading of: max. 100kg min. 20kg

The Speedus scooter is only designed for one person.

This vehicle may have sharp edges.

Please only use the vehicle on even, clean and dry surfaces, preferably areas free from other traffic. This scooter is not approved for off-road driving. Jumping (e.g. in a halfpipe or skate park) and driving up and down high kerbstones is not allowed and will damage the scooter. Note that the rear wheel brakes are less effective in rain or on wet surfaces.

Do not use the vehicle when it is dark or when visibility is bad.

Usage

The scooter is operated by repeatedly kicking off with a foot.

The scooter is braked by pressing down the rear brake onto the wheel.

The braking equipment may become hot when used constantly. The brake should not be touched after the braking procedure - risk of burning!

It is necessary to wear closed shoes. When using the scooters, PUKY recommends the wearing of adequate protection clothing, i.e. helmet, gloves, knee- and elbow-protectors. The vehicle must not be driven in the vicinity of stairs, slopes, steep terrain, swimming pools, or other bodies of water. Stairs in the vicinity must be secured to prevent children from riding up or down them on the vehicle.

Before starting off: Check all connectors and wear parts are intact and secure, e.g. the folding mechanism and height adjustment of the handlebar.

Make sure that the stand is securely folded in during use.

The scooter has a steering angle limiter to prevent the front wheel from spinning.

The legal liability for material defects applies.

Damages caused by inappropriate use, the effects of force, insufficient maintenance or due to normal wear and tear are excluded from the liability of material defects.

CE mark

The Speedus scooter is an item of leisure time equipment according to EN 14619 cat. A and not a toy (no CE-identification mark).

Type label

The type label is attached to the underside of the footplate. Please record the information on the identification plate in the cycle passport at the end of this manual so that you have all the information you need in the event of any questions or when ordering spare parts.

Maintenance and care

Examine the vehicle at regular intervals for any wear, and to check that the screws are still properly tightened. Self-tightening nuts are hard to loosen and must be replaced after complete disassembly!

Pay particular attention to the torsional strength of the handle bar and the correct positioning of the screws.

Do not pull the handlebar further than the end stop (minimum insertion depth).

In order to maintain the high, design-specified safety levels, all worn or defective parts are to be immediately replaced by original PUKY spare parts. For safety reasons, the vehicle should not be used until it has been fully repaired. Bent or deformed parts should not be repaired but instead should be replaced.

Wear-and-tear-parts: brake, tyre incl. bearing, handlebar grip.

Replacing wheels

Replacement wheels can be obtained from your specialist dealer or by contacting us via the Internet using www.puky.net.

The vehicle must not be cleaned with a high-pressure cleaner. Clean the vehicle using a mild soapy solution and carefully wipe dry using a soft cloth. Keep the vehicle away from corrosion-promoting materials (road salt, sea water, fertiliser). The vehicle must not be stored in damp conditions. Apply standard bicycle oil to the bearings from time to time.

Check braking effect (if applicable). The braking surface should be free from grease, otherwise braking effect cannot be guaranteed. Ensure air pressure in tyres is correct (recommended air pressure will be found on the lateral faces of the tyre).

Similar to car tyres, considering vulcanised India rubber there is a risk that stains may form in areas where tyres contact the floor covering. Please protect contact face between floor and tyre.

Valve caps need to be firmly tightened and kept away from children's reach (danger of swallow up).

Unpacking and scope of delivery

Do not use any sharp objects when opening the packaging and removing protective material. By doing so, you may damage the paint or parts of the vehicle.

■ Remove all parts from the packaging.
Remove the protective material. Keep all packaging material out of reach of children - there is a risk of suffocation.
Examine the package for completeness and proper condition. If anything is missing, please contact your dealer before you start to assemble the vehicle.

Assembly

The assembly instructions can be found on the last pages of this manual.

No tools are required for setup. The scooter is delivered in the transport position (folded up).

Small parts must be kept out of the reach of small children. There is a danger of suffocation as a result of swallowing the parts. Also keep all packaging material out of reach of children.

The scooter must be opened for the first time with great caution and by an adult to avoid any potential subsequent accidents or injuries.

Please take a sufficient amount of Please contact your dealer or a workshop if you have any questions.

Figure A: Contents

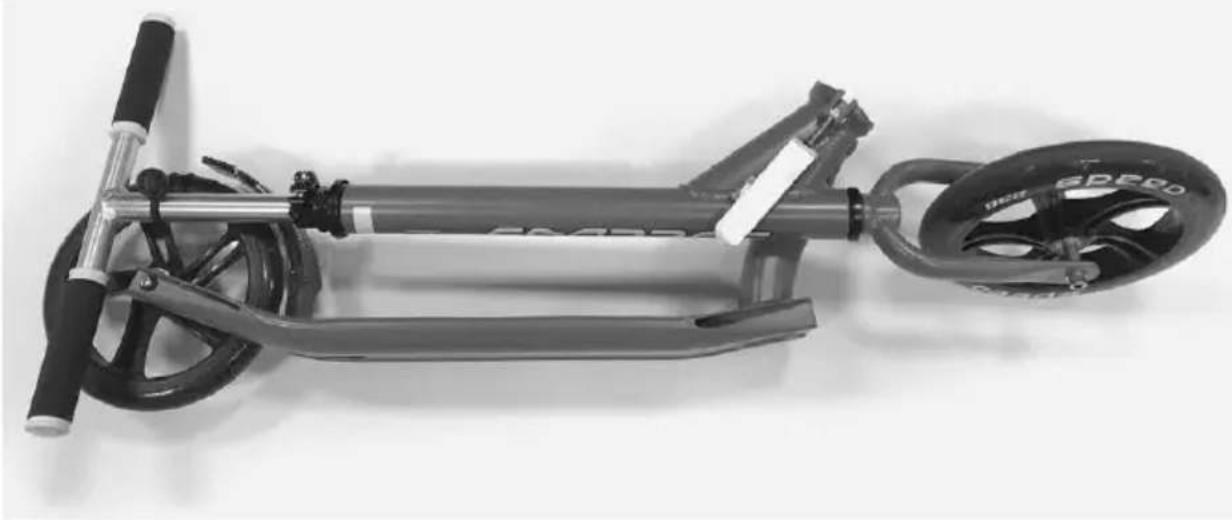

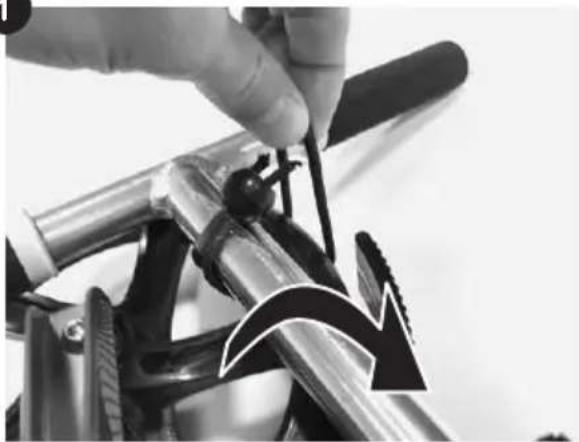

Figure 1: Loosen the transport lock and unfold the scooter.

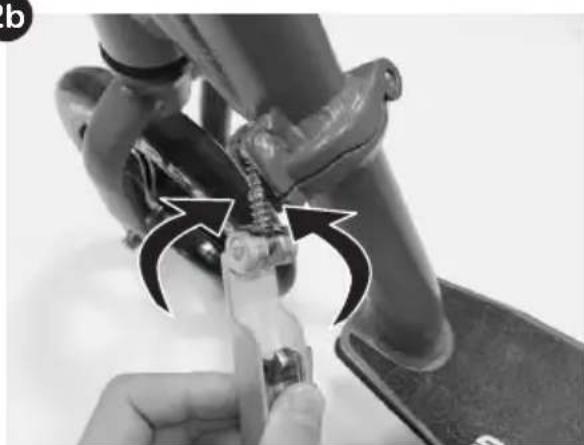

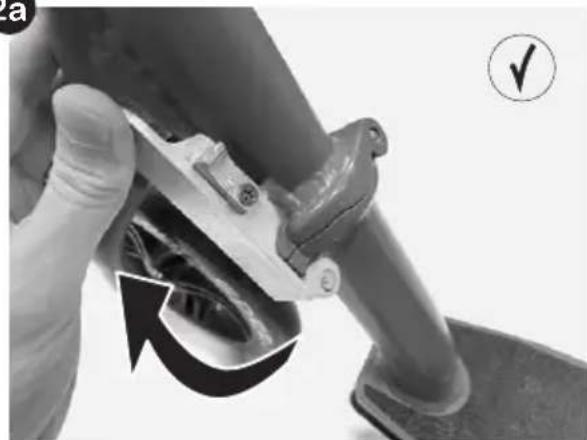

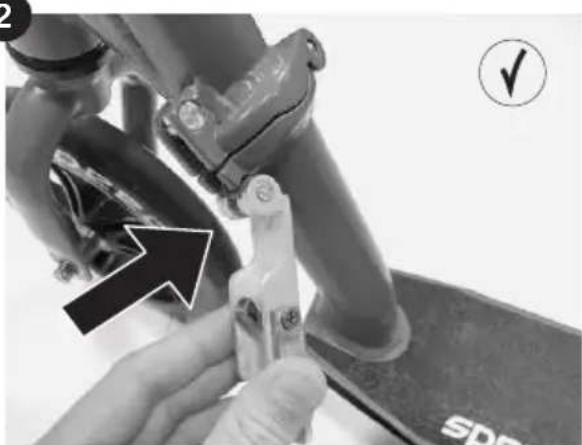

Figure 2: Close the articulated lever by clipping it underneath. Then press the lever upwards against the frame until the safety lock noticeably clicks into place (Figure 2a). Important: If it is not possible to close the lever or the joint wobbles still, open the lever again (Figure 8). Adjust the lever by turning it: clockwise rotation = tighter or anti-clockwise rotation = looser (Figure 2b). Repeat this process until the lever can be pushed tightly and firmly upwards against the frame, the lock clicks into place and the joint no longer wobbles.

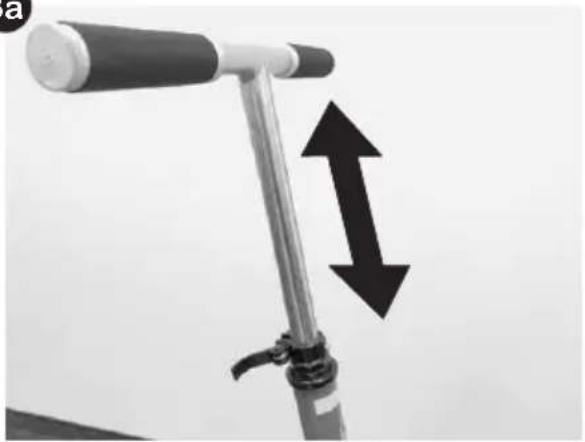

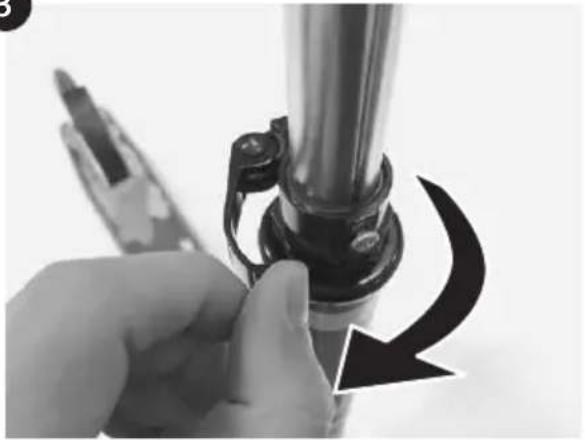

Figure 3: Open the lever on the steering lock by pulling it away from the handlebar. Adjust to the desired height by pulling out the handlebar.

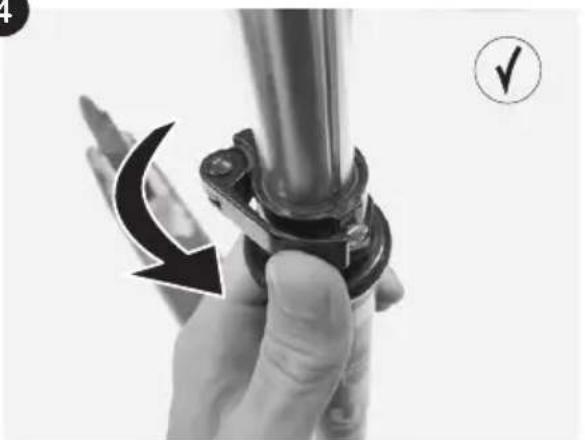

Figure 4: Push the lever on the steering lock around the handlebar to fix the steering. Important: The lever must be stiff (make an imprint in your fingers). The handlebar is only suitably firm if it can no longer moved upwards or downwards. To adjust, open the steering lock again and turn the opposite screw, clockwise = tighter or anti-clockwise = looser

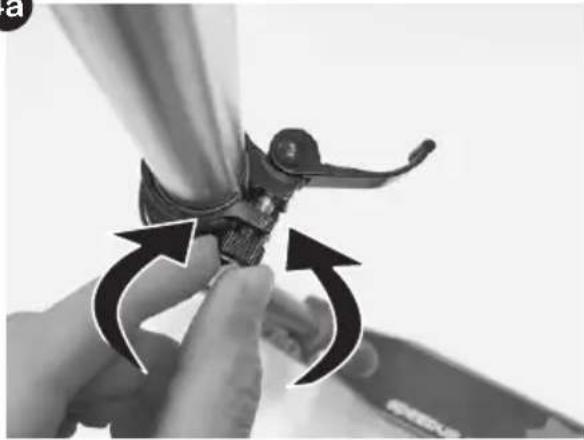

(Figure 4a), until the lever is pushed tighter against the handlebar. Repeat this process until the handlebar is fixed securely.

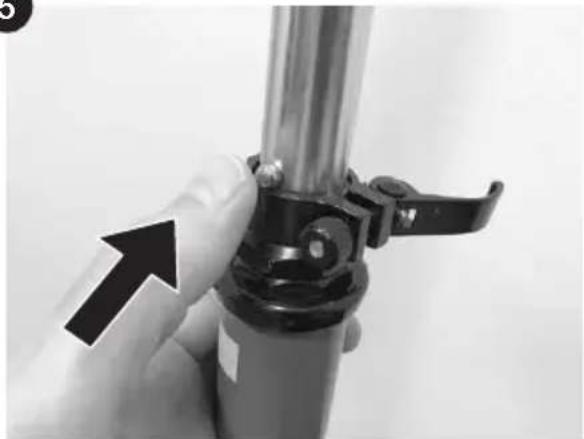

Figure 5: In the highest handlebar position an additional lock clicks into place to indicate when the minimum insertion depth has been reached. To reinsert the handlebar, the pin must be carefully pushed in.

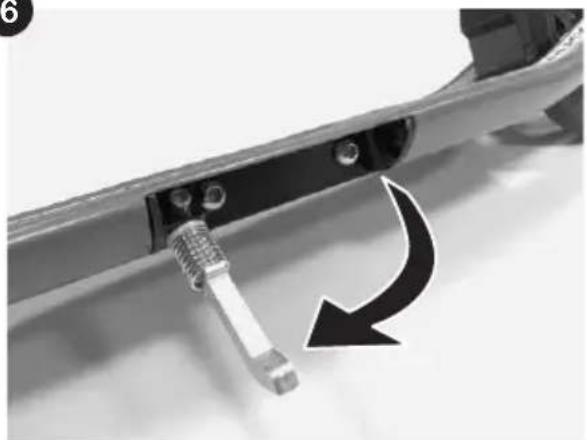

Figure 6: Fold out the stand and place the scooter on it.

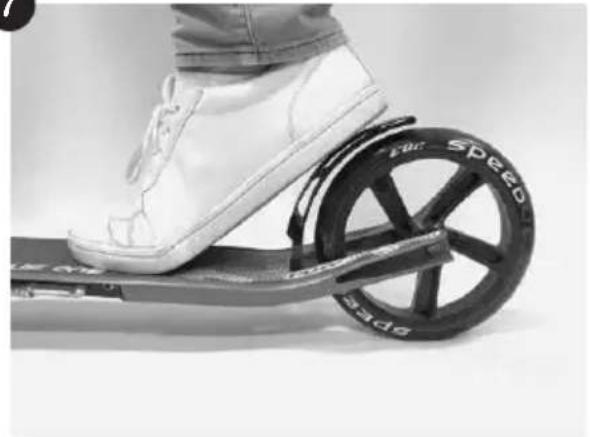

Figure 7: Brake by pressing your foot down on the rear brake.

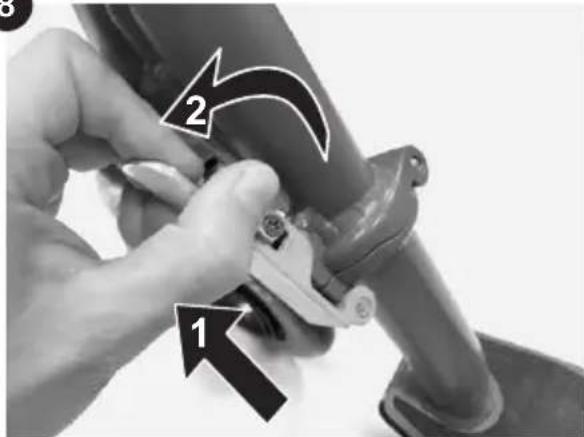

Figure 8: Loosen the steering lock by initially pushing up on the lock. You can then turn the lever downwards and lever it out.
