POWX00410 - Screwdriver PowerPlus - Free user manual and instructions
Find the device manual for free POWX00410 PowerPlus in PDF.
| Product type | Cordless screwdriver (driver) |
| Brand | PowerPlus |
| Model | POWX00410 |
| Rated voltage | 7.2 V |
| No-load speed | 230 rpm |
| Battery capacity | 1300 mAh (Li-ion) |
| Charging time | 3 to 5 hours |
| Sound pressure level (LpA) | 65 dB(A) |
| Sound power level (LwA) | 76 dB(A) |
| Vibration level (aw) | 0.5 m/s² (K=1.5 m/s²) |
| Chuck type | Magnetic bit holder |
| Included bits | PZ1, PZ2, PZ2, PZ3, PH1, PH2, PH2, PH3, SL3, SL4, SL6, SL8 (25 mm) |
| Charger included | Yes |
| Work light | Yes, with on/off switch |
| Adjustable angle | Yes, by rotating the handle |
| Battery protection | Deep discharge protection (protection circuit) |
| Intended use | Drilling and screwing in wood and plastic (non-professional use) |
| Required safety equipment | Safety glasses, hearing protection if >85 dB(A) |
| Warranty | 36 months (excluding battery, charger, accessories) |
| Maintenance | Clean ventilation slots with a soft cloth and soapy water |
Frequently Asked Questions - POWX00410 PowerPlus
User questions about POWX00410 PowerPlus
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Screwdriver in PDF format for free! Find your manual POWX00410 - PowerPlus and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. POWX00410 by PowerPlus.
USER MANUAL POWX00410 PowerPlus
FR FRANÇAIS TRADUCTION DU MODE D'EMPLOI D'ORIGINE
EN ENGLISH ORIGINAL INSTRUCTION MANUAL
1 TOEPASSINGSGEBIED 2
2 BESCHRIJVING (FIG. A)....2
3 INHOUD VAN DE VERPAKKING....2
4 TOELICHTING VAN DE SYMBOLEN 2
5 ALGEMENE VEILIGHEIDSVOORSCHRIFTEN 3
5.1 Werkplaats ....3
5.2 Elektrische veiligheid....3
5.3 Veiligheid van personen....3
5.4 Zorgvuldige omgang met en gebruik van elektrisch gereedschap ....4
5.5 Service....4
6 GEREEDSCHAPSPECIFIEKE VEILIGHEIDSVOORSCHRIFTEN 4
2 BESCHRIJVING (FIG. A)
1 APPLICATION 2
2 DESCRIPTION (FIG A) 2
3 PACKAGE CONTENT LIST....2
4 SYMBOLS 2
5 GENERAL POWER TOOL SAFETY WARNINGS....3
5.1 Working area....3
5.2 Electrical safety 3
5.3 Personal safety 3
5.4 Power tool use and care....4
5.5 Service....4
6 MACHINE-SPECIFIC SAFETY WARNINGS....4
7 OPERATION....5
7.1 Charging procedure....5
7.2 Battery power status display 5
7.3 Inserting and extracting bits....5
7.4 On/Off trigger 6
7.5 Changing the angle of the tool....6
7.6 Working spot light 6
7.7 Screw insertion....6
7.8 Screw removal 6
8 CLEANING AND MAINTENANCE 6
8.1 Cleaning 6
8.2 Maintenance....6
9 TECHNICAL DETAILS....7
10 NOISE....7
11 WARRANTY....7
12 ENVIRONMENT 8
13 DECLARATION OF CONFORMITY 8

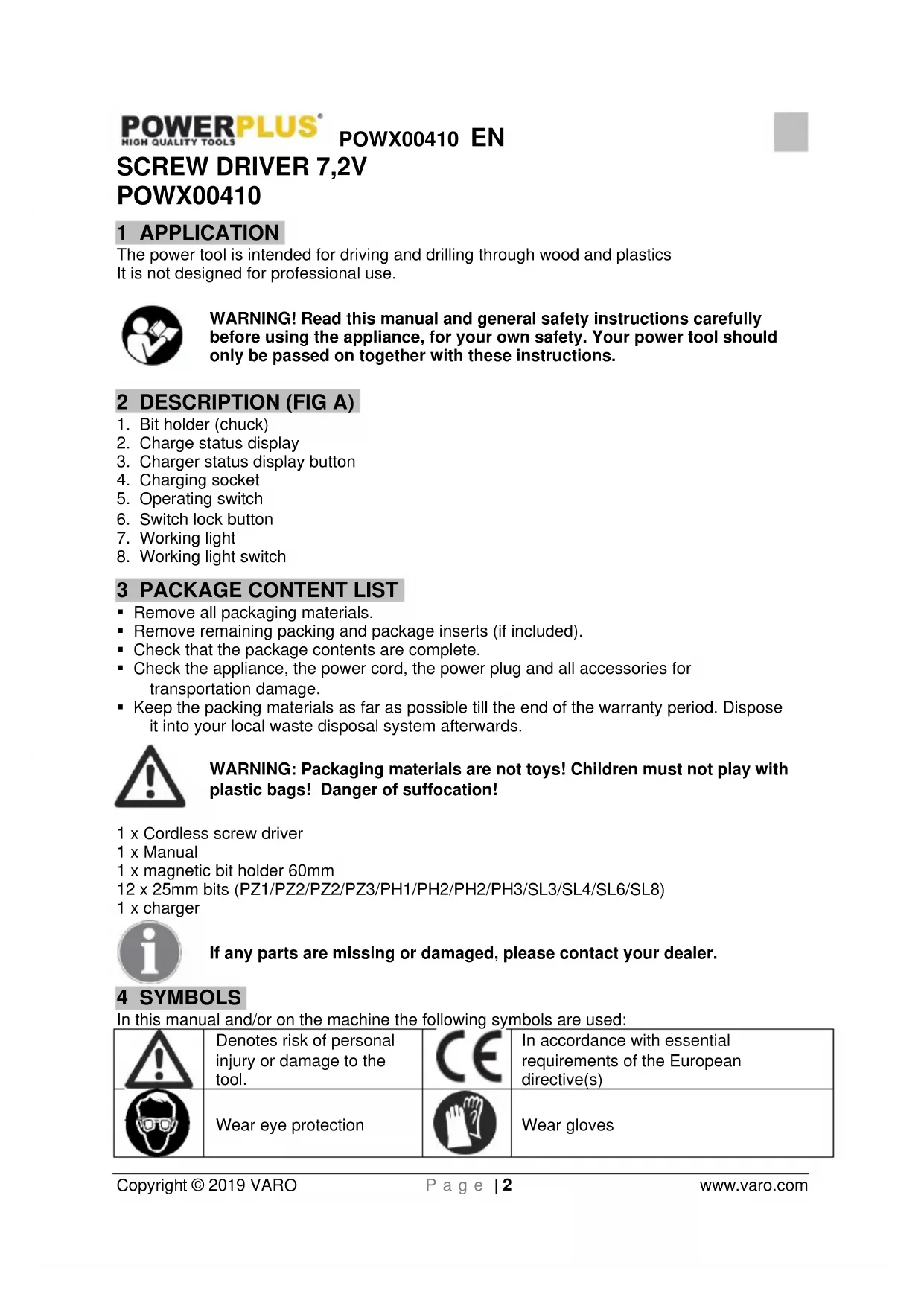

SCREW DRIVER 7,2V POWX00410
1 APPLICATION
The power tool is intended for driving and drilling through wood and plastics. It is not designed for professional use.
WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.
2 DESCRIPTION (FIG A)
- Bit holder (chuck)
- Charge status display
- Charger status display button
- Charging socket
- Operating switch
- Switch lock button
- Working light
- Working light switch
3 PACKAGE CONTENT LIST
- Remove all packaging materials.
- Remove remaining packing and package inserts (if included).
- Check that the package contents are complete.
- Check the appliance, the power cord, the power plug and all accessories for transportation damage.
- Keep the packing materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.
WARNING: Packaging materials are not toys! Children must not play with plastic bags! Danger of suffocation!
1 x Cordless screw driver
1 x Manual
1 x magnetic bit holder 60mm
1 x charger
12 x 25mm bits (PZ1/PZ2/PZ2/PZ3/PH1/PH2/PH2/PH3/SL3/SL4/SL6/SL8)
If any parts are missing or damaged, please contact your dealer.
4 SYMBOLS
In this manual and/or on the machine the following symbols are used:
 | Denotes risk of personal injury or damage to the tool. |  | In accordance with essential requirements of the European directive(s) |
 | Wear eye protection |  | Wear gloves |
Read manual before use
5 GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
5.1 Working area
- Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
- Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.
5.2 Electrical safety
- Always check that the power supply corresponds to the voltage on the rating plate.
- Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.
- Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of an electric shock if your body is earthed.
- Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an electric shock.
- Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.
- When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of an electric shock.
- If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.
5.3 Personal safety
- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.
- Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
- Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
- Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.
- Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.
- Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.
If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.
5.4 Power tool use and care
- Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
- Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.
- Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
- Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.
5.5 Service
- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.
6 MACHINE-SPECIFIC SAFETY WARNINGS
- Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
- Protect the battery charger from rain and moisture. The penetration of water in a battery charger increases the risk of electric shock.
- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery, it may create a risk of fire when used with another battery.
- Do not charge other batteries. The battery charger is suitable only for charging our lithium ion batteries within the listed voltage range. Otherwise there is danger of fire and explosion.
- Keep the battery charger clean. Contamination may cause the danger of electric shock.
- Check the battery charger, cable and plug each time before using. Do not use the battery charger when defects are detected. Do not open the battery charger yourself and have it repaired only by qualified personnel using original spare parts. Damaged battery chargers, cables and plugs increase the risk of electric shock.
- Do not operate the battery charger on easily inflammable surfaces (e.g. paper, textiles, etc.) or in combustible environments. There is danger of fire due to the heating of the battery charger during charging.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not open the battery yourself. There is danger of a short circuit.
- Protect the battery against heat, e.g., including against continuous sun irradiation and fire. There is a danger of explosion.
- Do not short-circuit the battery. There is a danger of explosion.
- In case of damage and improper use of the battery, vapors may be emitted. In case of complaints, provide for fresh air and consult a physician. The vapors can irritate the respiratory system.
7 OPERATION
7.1 Charging procedure
The battery charger supplied matches to the battery installed in the machine. Do not use other battery chargers.
The Li-ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The bit holder no longer moves.
If the On/Off switch is subject to continued use, the battery can be damaged.
The charging process starts as soon as the mains plug of the battery charger is inserted in the socket and the machine is then connected to the battery charger.
The battery charge indicator lights up red to indicate the charging procedure. The battery is fully charged as soon as the charger indicator lights up green.
During the charging procedure, the handle of the machine warms up. This is normal.
When the charging is finished, disconnect the battery charger from the socket.
Do not use the machine during the charging procedure.
7.2 Battery power status display
By pressing charger status display button (3).
The charge status is displayed by three multi-colored LED's:
- Red LED is on <20%
■ Red + yellow LED's are on 20%-70% - All three LED's are on >70%
Once only the red LED is lit, the screwdriver must be re-charged.
7.3 Inserting and extracting bits
Important! Always turn off the switch before you change the screw bit to avoid unintentional starting of the machine. When the machine is completely stopped, insert or extract the screw bit.
Only use tool bits which can be securely fastened in the chuck and for which the bits has been designed.
Before using the machine check whether the screw-bit is inserted correctly. Avoid over-tightening screws, otherwise the screw head may be damaged or stripping of the threads may occur.
7.4 On/Off trigger
Use the On/Off trigger to start the machine and keep holding it for continuous operation.
To switch the machine off, release the On/Off trigger
7.5 Changing the angle of the tool
The tool's angle can be changed by turning the handle up or down.
To change the tool's angle, stop the machine.
Do not change the angle of the tool, when it is operating!
7.6 Working spot light
Turn the working light switch to the ON position, the working light will light up.
Turn the working light switch to the OFF position, the working light goes out.
7.7 Screw insertion
Insert the screw-bit into the slot in the head of the screw. Hold the screw bit perpendicular to the head of the screw, otherwise the screw or the screw head may be damaged. Press the screw bit against the screw with a constant pressure while driving in the screw by pulling or pushing the ON/OFF switch up or down
When the screw is completely screwed in, hold the machine firmly and release the On/Off trigger, otherwise the screw or the screw head may be damaged. If the On/Off trigger is not released immediately a high torque could also damage the screw-bit or the screwdriver.
7.8 Screw removal
Insert the screw-bit into the slot in the head of the screw. Hold the screw-bit perpendicular to the head of the screw, otherwise the screw or the screw head may be damaged. Press the screw bit against the screw with a constant pressure while removing the screw pulling or pushing the ON/OFF switch up or down
8 CLEANING AND MAINTENANCE
8.1 Cleaning
- Keep the ventilation slots of the machine clean to prevent overheating of the engine.
- Regularly clean the machine housing with a soft cloth, preferably after each use.
- Keep the ventilation slots free from dust and dirt.
- If the dirt does not come off use a soft cloth moistened with soapy water.
- Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.
8.2 Maintenance
Attention! Always switch off the screwdriver and lock the switch in the OFF position before carrying out any work on the machine.
9 TECHNICAL DETAILS
| Model nr. | POWX00410 |
| Rated voltage | 7,2V |
| No – load speed | 230 rpm |
| Battery capacity | 1300 mAh |
| Charging time | 3 – 5 hours |
10 NOISE
Noise emission values measured according to relevant standard. (K=3)
Acoustic pressure level LpA 65 dB(A)
Acoustic power level LwA 76 dB(A)
ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).
aw (Vibration)
0,5 m/s²
K = 1,5m / s^2
11 WARRANTY
- This product is warranted for a 36-month period effective from the date of purchase by the first user.
- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation
- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.
- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
- Repairs may only be carried out by an authorized customer service centre for Powerplus tools.
- You can always obtain more information at the number 00 32 3 292 92 90.
- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.
- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.
- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.
- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.
- Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.
- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).
- Your purchase receipt must be kept as proof of date of purchase.
- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-molded case if applicable to the unit), accompanied by proof of purchase.
12 ENVIRONMENT
Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.
13 DECLARATION OF CONFORMITY
VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,
Product: Screw driver 7,2V
Trade mark: POWERplus
Model: POWX00410
is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.
European Directives (including, if applicable, their amendments up to the date of signature);
2011/65/EU
2014/30/EU
2006/42/EC
European harmonized standards (including, if applicable, their amendments up to the date of signature);
EN60745-1:2009
EN60745-2-2:2010
EN55014-1:2017
EN55014-2:2015
EN61000-3-2:2014
EN61000-3-3:2013
Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.
The undersigned acts on behalf of the company CEO,
Hugo Cuypers
Regulatory Affairs – Compliance Manager
Lier, 28/09/2018
Regulatory Affairs – Compliance Manager
Lier, 28/09/2018
3 FÖRPACKNINGSINNEHÅLL
2 POPIS (OBR. A)....2
3 OBSAH BALENIA....2
4 SYMBOLY 2
5 VŠEOBECNÉ BEZPEČNOSTNÉ VAROVANIA PRE ELEKTRICKÉ NÁRADIE ....3
5.1 Pracovná plocha....3
The tool's angle can be changed by turning the handle up or down.
Turn the working light switch to the ON position, the working light will light up. Turn the working light switch to the OFF position, the working light goes out.
7.7 Privijanje vijaka
Vijačni nastavek vstavite v režo na glavi vijaka. Vijačni nastavek držite pravokotno ob glavo vijaka, sicer lahko glavo ali vijak poškodujete. Med vijačenjem vijačni nastavek enakomerno pritiskajte ob vijak the screw by pulling or pushing the ON/OFF switch up or down
WWW.VARO.COM
DESIGNED AND MARKETED BY VARO
©copyright by varo
VARO - VIC. VAN ROMPUY nv
JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM
OFFICES:
