MCC35 - Refrigerator Mestic - Free user manual and instructions

Product type	Portable electric cooler / Car fridge
Capacity	35 L
Power supply	12 V / 24 V (DC) or 100-240 V (AC) via adapter
Energy consumption	0.24 kWh/24h
Rated power	60 W
Net weight	15 kg
Refrigerant	R1234yf (24 g)
Insulation	C5H10
Climate class	SN, N, ST, T
Temperature range	-20 °C to 20 °C
Main functions	Max mode (fast cooling), Eco mode (energy saving), screen lock, USB port 5 V / 2.1 A, battery voltage detection, 3-level battery protection (H/M/L)
Maintenance and cleaning	Clean with a slightly damp cloth and mild detergent; defrost regularly by draining water through the plug
Safety	Battery protection with automatic shutdown, error codes (F1-F8) for diagnostics, do not use non-recommended accessories, do not immerse in water
Spare parts and repairability	Do not repair yourself; contact the manufacturer or a qualified technician
General information	Warranty included; complies with EU directives; domestic and vehicle use

Frequently Asked Questions - MCC35 Mestic

How to turn the MCC35 cooler on and off?

Press the Power button to turn on. To turn off, hold the same button for 3 seconds.

How to set the temperature?

Make sure the screen is unlocked. Press the + or - buttons to set the temperature between -20 °C and 20 °C. The screen flashes then freezes after 3 seconds.

What does error code F1 mean?

F1 indicates low battery protection. Charge the battery or lower the protection level (H/M/L) using the SET button.

How to use battery protection?

Unlock the screen, hold SET for 3 seconds. Press SET to choose between H (high, recommended for vehicle), M (medium, for external battery), or L (low). Factory setting is H.

How to defrost the cooler?

Remove food, turn off the device, open the lid and let the frost melt. Drain water through the drain plug or with a cloth.

Can I plug the cooler into a 230 V mains?

Yes, use the supplied mains adapter (100-240 V AC). Never connect both sources (DC and AC) at the same time.

How to lock/unlock the screen?

The screen locks automatically after 10 seconds of inactivity (lock icon). To unlock, hold the unlock button for 2 seconds.

What to do in case of error code F2?

F2 means fan overload protection. Cut the power for 30 minutes, then restart. If the problem persists, contact customer service.

How to clean the inside of the cooler?

Unplug the device. Use a slightly damp cloth with a mild detergent. Dry all surfaces with a dry cloth. Never use abrasive products.

What is the power consumption of the cooler?

The consumption is 0.24 kWh/24h in normal operation. The rated power is 60 W.

USER MANUAL MCC35 Mestic

mestic 35 L -18°C +10°C Cooling 2 L AC 220-240 V DC 12-24 V KG 15 kg Relax... it's mestic°

Gebruiksaanwijzing NL User instructions EN Bedienungsanleitung DE Mode d'emploi FR

Instrucciones de uso ES Istruzioni per l'uso IT Betjeningsvejledning DK

Bruksanvisning SE Bruksanvisning NO

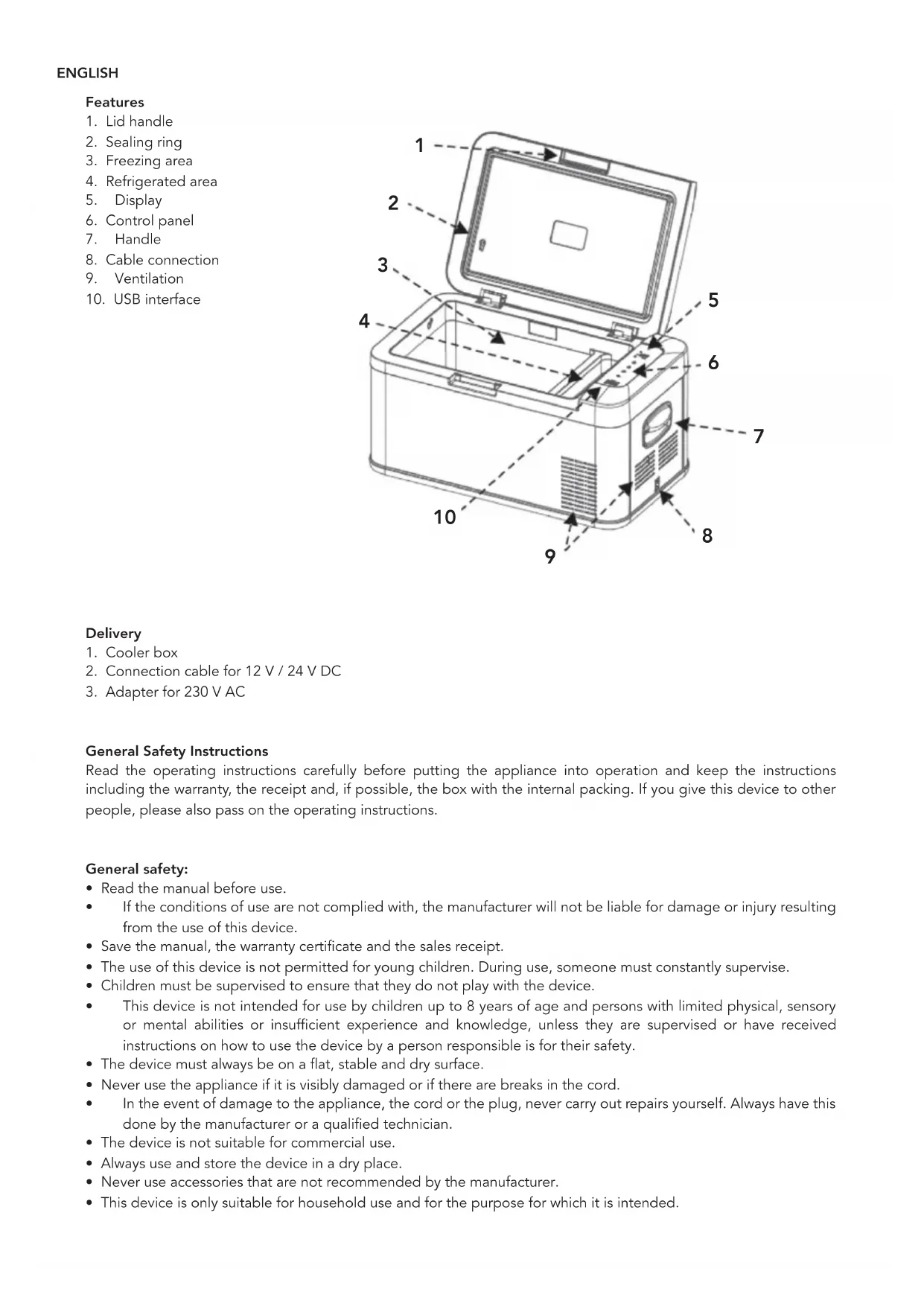

Technical diagram of a device with numbered parts for identification and assembly reference.

Levering

1. Lid handle
2. Sealing ring
3. Freezing area
4. Refrigerated area
5. Display
6. Control panel
7. Handle
8. Cable connection
9. Ventilation
10. USB interface

Technical diagram of a device with numbered parts for identification and assembly reference.

Delivery

1. Cooler box
2. Connection cable for 12 V / 24 V DC
3. Adapter for 230 V AC

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General safety:

• Read the manual before use.
• If the conditions of use are not complied with, the manufacturer will not be liable for damage or injury resulting from the use of this device.
• Save the manual, the warranty certificate and the sales receipt.
• The use of this device is not permitted for young children. During use, someone must constantly supervise.
  • Children must be supervised to ensure that they do not play with the device.
• This device is not intended for use by children up to 8 years of age and persons with limited physical, sensory or mental abilities or insufficient experience and knowledge, unless they are supervised or have received instructions on how to use the device by a person responsible is for their safety.
• The device must always be on a flat, stable and dry surface.
• Never use the appliance if it is visibly damaged or if there are breaks in the cord.
• In the event of damage to the appliance, the cord or the plug, never carry out repairs yourself. Always have this done by the manufacturer or a qualified technician.
• The device is not suitable for commercial use.
  • Always use and store the device in a dry place.
• Never use accessories that are not recommended by the manufacturer.
• This device is only suitable for household use and for the purpose for which it is intended.

Safety in use

• Always remove the plug from the device when it needs to be maintained or cleaned.

- Never use the device in the vicinity of hot or hot objects.

- Prevent the device from coming into contact with rain.

- Do not place other electrical devices in the device.

- Do not place chemical or explosive agents in the device.

- Only use the DC 12 V or 230 V connection cable. NOTE: never use both energy sources at the same time.

- Defrost the device regularly to ensure that the device functions optimally.

- Do not pull on the connecting cord, but pull on the plug to remove the cord from the socket.

- If the cool box is connected to the AC/DC socket, disconnect your cool box and other consumers from the battery before you connect a fast charger

- If the cool box is connected to the AC/DC socket; switch off the cool box or break the connection when you switch off the engine. The battery can be discharged otherwise.

- Pay attention! That the heat that arises during the operation of the cool box can be properly dissipated.

- Enough distance between product and objects and walls.

- Never immerse the device in water

- Ventilation slots are not covered at all times.

Use

• Remove all packaging materials from the device.
• Place the device on a flat and stable surface with at least 10 cm of free space on each side.
• Do not switch the appliance on immediately after you transport it, where the cool box has been tilted more than -30°. This could cause damage to the cooling system. The device must first stand upright for 30 minutes so that the coolant can be collected again in the compressor. This prevents the compressor from running dry.
• Look at the above user conditions before use.
• For hygienic reasons, you must clean the inside and outside of the appliance with a damp cloth before using your cool box.
• Connect the cooler box.

-20°C 14.7V MAX 1 2 3 3 4 5

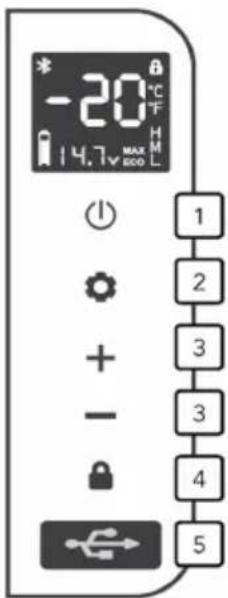

Control panel

1. Power ON/OFF: press to switch ON, long press for three seconds to switch OFF.
2. Fast cooling / energy saving mode: In the unlocked state, press the set button to quickly switch between cooling mode MAX and energy saving mode ECO.
3. Temperature adjustment: press the + or - button to adjust the temperature, the adjustment range is minus 20 degrees Celsius to 20 degrees Celsius; After the adjustment, the display will stop blinking after 3 seconds. The temperature is now set, after which the display jumps back to the current temperature.
4. Screen lock / unlock: the control panel locks the screen automatically within 10 seconds without any touch, the screen displays this; press any button in the Lock screen status, theft flashes on the screen; press and hold the release button for 2 seconds to unlock
5. USB charging port: 5 V, 2.1 A, for charging digital devices such as mobile phones and tablets

Battery power detection

The cooler box has the function of current detection of the battery voltage when the cooler box is switched on and the voltages below correspond to the following electrical quantity icons.

NO. 12 V voltage 24 V voltage	Power display
0 U≤10.2 U≤22.3
1 9.6≤U≤10.7 21.4≤U≤23.2
2 10.2≤U≤11.1 22.2≤U≤24.0
3 10.7≤U≤11.6 23.1≤U≤24.9
4 11.2≤U≤11.7 23.9≤U≤25.7
5 U≥12.1 U≥24.7

Battery check

1. Battery protection function for the cooler with three-class battery protection function, can automatically check the battery voltage of the vehicle, before the electricity consumption will affect the normal functions of the car. The cool box will stop automatically to ensure that the car's battery does not run out.
2. Method for adjusting the battery protection: Unlock the cool box by holding down the release button after which you press and hold SET for 3 seconds to show the current battery protection position of the refrigerator. By tapping the SET button, it is adjusted to the desired H-high, M-middle or L-low. The factory setting is H-high.
3. Battery protection voltage parameter value and the remaining power is displayed on the screen.

Settings	12 V voltage 24 V voltage				Remaining battery display
	Disconnection voltage	Reconnection voltage	Disconnection voltage	Reconnection voltage
L-low 8.5 V	10.9 V 21.3 V 22.7 V
M-middle	10.1 V 11.4 V	22.3 V 23.7 V
H-high	11.1 V 12.4 V	24.3 V 25.7 V

Tip: It is recommended to set the H-high when the cool box is connected to a vehicle, otherwise the car's battery may be too empty and affect the normal ignition of the car; When connecting the cool box to an external or backup battery, it is recommended to set the M-middle range so that the cool box can work longer.

Tip: Due to the difference in the output voltage of different cars, such as the car refrigerator, the input voltage is too low for normal cooling (the error code on the screen shows F1), the battery protection equipment can be reduced by one.

The meaning of the error code on the screen and how to deal with it

Code Type of error Solution
F1 Low battery protection Charge the battery or lower the battery protection position
F2 Fan overload protection		Turn off the power for 30 minutes and then restart. If it appears again, please contact the after sales staff
F3	Compressor start - Frequently protection	Turn off the power for 30 minutes and then restart. If it appears again, please contact the after sales staff
F4	The compressor speed is too low or the load is too large	Turn off the power for 30 minutes and then restart. If it appears again, please contact the after sales staff
F5	Control module overheat protection	Place the cool box in a well-ventilated place, turn it off for 30 minutes, and then restart it. If it appears again, please contact the after-sales staff
F6 Controller hardware failure Shut down and restart; if it appears again, please contact the after sales staff
F7	Temperature head short circuit	Place the cool box in a well-ventilated place, turn it off for 30 minutes, and then restart it. If it appears again, please contact the after-sales staff
F8 Temperature head open		Place the cool box in a well-ventilated place, turn it off for 30 minutes, and then restart it. If it appears again, please contact the after-sales staff

Cleaning

• Before cleaning, remove the products from the device and remove the plug from the power supply. Only clean with a slightly damp cloth, if necessary a non-aggressive cleaning agent can be used. After cleaning, always dry all wet surfaces with a dry cloth.
• Never use sharp or abrasive products to clean the device.
• Defrost the cool box: frost can settle on the evaporator or inside of the cool box due to humidity, this can reduce the cooling capacity. The cool box must be defrosted in time. As follows

• Take the products out of the cool box
- Switch off the device
- Open the lid
- Sweep up the melt water or drain the melt water through the plug.

Recycling

This product bears the selective sorting symbol for waste electrical and electronic equipment This means that this product must be handled pursuant to European Directive (2012/19/EU) in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

Declaration of conformity

Hereby Gimeg Nederland B.V. declares that the device MCC-35, applies all basic requirements and other relevant regulations listed in the European directive for electromagnetic compatibility (2014/30/EU) and low voltage directive (2014/35/EU). If you require a full declaration of conformity, you can contact the adress listed on the backside of this manual

Technical product information
Product name MCC-35
Volume 35L
Climate classification SN, N, ST, T
Refrigerant quantity R1234yf (24g)
Foam vesicant	C5H10
Net weight	15 kg
Main voltage	12 V / 24 V (DC), 100-240 V (AC)
Rated current	5 A/2.5 A (0,24 kWh/24h) (DC), 1.2 A - 0.5 A (AC)
Rated power	60 W
Consumption of energy	0,24 kWh/24h

DEUTSCH

Bestandteile

Technical diagram of a device with numbered parts for identification and assembly reference.

Lieferung

Technical diagram of a device with numbered parts for identification and assembly reference.

Livraison

Technical diagram of a device with numbered parts for identification and assembly reference.

Suministro

Technical diagram of a device with numbered parts for identification and assembly reference.

Erogazione

Technical diagram of a device with numbered components for identification

Levering

Technical diagram of a device with numbered parts for identification and assembly reference.

Leverans

1. Kylbox
2. Anslutningskabel för 12 V / 24 V DC
3. Adapter för 230 V AC

Technical diagram of a device with numbered parts for identification and assembly reference.

Levering

1. Kjøleboks
2. Tilkoblingsledning for 12 V / 24 V DC
3. Adapter for 230 V AC
