| Product type | Fan heater |
| Brand | Brandson |
| Model | 304416 |
| Power supply | 220-240 V AC / 50 Hz |
| Power consumption | 2000 W |
| Heating levels | 2 |
| Heating modes | 3 (including ECO) |
| Ambient temperature range | 0-40°C |
| Adjustable temperature | Yes |
| ECO mode | Yes (target temperature 24°C) |
| Oscillation | Yes (on/off) |
| Timer | Yes (up to 4 hours) |
| Remote control | Yes (with 2 AAA 1.5V batteries) |
| Display screen | Yes |
| Tip-over protection | Yes |
| Overheat protection | Yes |
| Safety distance (objects) | 30 cm minimum |
| Safety distance (flammable objects) | 90 cm minimum |
| Use | Indoors only, on a flat surface |
| Cleaning | Dry cloth, do not immerse |
| Package contents | Fan, remote control, instruction manual |
| Minimum age of use | 8 years under supervision |
Frequently Asked Questions - 304416 Brandson
User questions about 304416 Brandson
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heating in PDF format for free! Find your manual 304416 - Brandson and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 304416 by Brandson.
USER MANUAL 304416 Brandson
This product is only designed for use inside well insulated rooms or for occasional use.
Usage and safety instructions
- Read the manual completely before using the product!
- Before using the fan heater, check whether the voltage indicated on the rating plate matches that of your mains supply!
- Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!
- Never block the fan of the appliance. This could damage the appliance or result in a fire or electric shock!
- Never block the air inlet of the fan heater!
- Disconnect the plug from the power source if the appliance is not being used! Do not leave the fan heater unattended!
- This appliance emits a lot of heat during operation. Therefore, touch only the operating controls. In case of
doubt, use heat-resistant gloves.
- Keep flammable materials such as pillows, paper, clothing, curtains or other highly flammable objects away from the fan heater!
- This appliance is intended for personal use only!
- Caution! The fan heater is not suitable to be used in confined areas if they are occupied by persons who are not able to leave the room or the vehicle by themselves.
- Cleaning and user maintenance should not be carried out by children without supervision.
- This appliance can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or
experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers.
• Children should not play with the appliance!
- CAUTION! Some parts of the product may become very hot and cause burns. Be very careful if children or frail persons are present.
- Never immerse it in water for cleaning. Wipe the body with a dry cloth.
- Place the appliance at least 30 cm from other objects.
- Use this product only on a flat surface.
- Disconnect the appliance from the mains when it is not being used or when cleaning it.
- Keep the product at least 90 cm away from flammable materials, such as
furniture, curtains, bedding, clothing or paper.
- Never allow the cable to come in contact with hot or damp surfaces.
- Do not turn on the appliance if you find a defect in the power cord. Contact the manufacturer of the product in such cases.
- This appliance is suitable only for properly isolated spaces or for occasional use.
- The appliance should always be placed on a flat, level surface using the tilt protection at the bottom!
- Do not use the heater in the immediate vicinity of a bathtub, a shower or a swimming pool.
- If the mains power cable of this appliance is damaged, it should be replaced by the manufacturer, his after-sales service personnel or by an equally qualified person, so as to prevent any risk.
- Children younger than 3 years should be kept away from it, unless they are under constant supervision.
- Children between 3 and 8 years may switch the appliance on and off only when they are supervised or have been instructed concerning the safe use of the appliance and have understood the resulting risks, provided that the appliance is placed or installed in its normal usage position.
- Children between 3 and 8 years should not insert the plug into the socket, should not regulate the appliance, should not clean and / or carry out user maintenance.
- The heater should not be placed immediately below a wall socket.
- Never cover the openings of the appliance!
- This product is suitable only for well isolated spaces or for occasional use.
Thank you for choosing a Brandon product. Please read the following user manual carefully so as to be able to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.
1. Scope of delivery
- Fan heater
- Remote control
- User manual
2. Technical data
| Power supply 220-240 V AC / 50 Hz | |
| Power consumption 2000 W | |
| Features • 2 heat settings | • Display• Oscillation option• Timer function |
| Ambient temperature 0-40°C |
3. Function
The Brandon fan heater is a practical alternative compared to a conventional heater. Warm up the desired area using the fan heater so that low temperatures become a thing of the past.

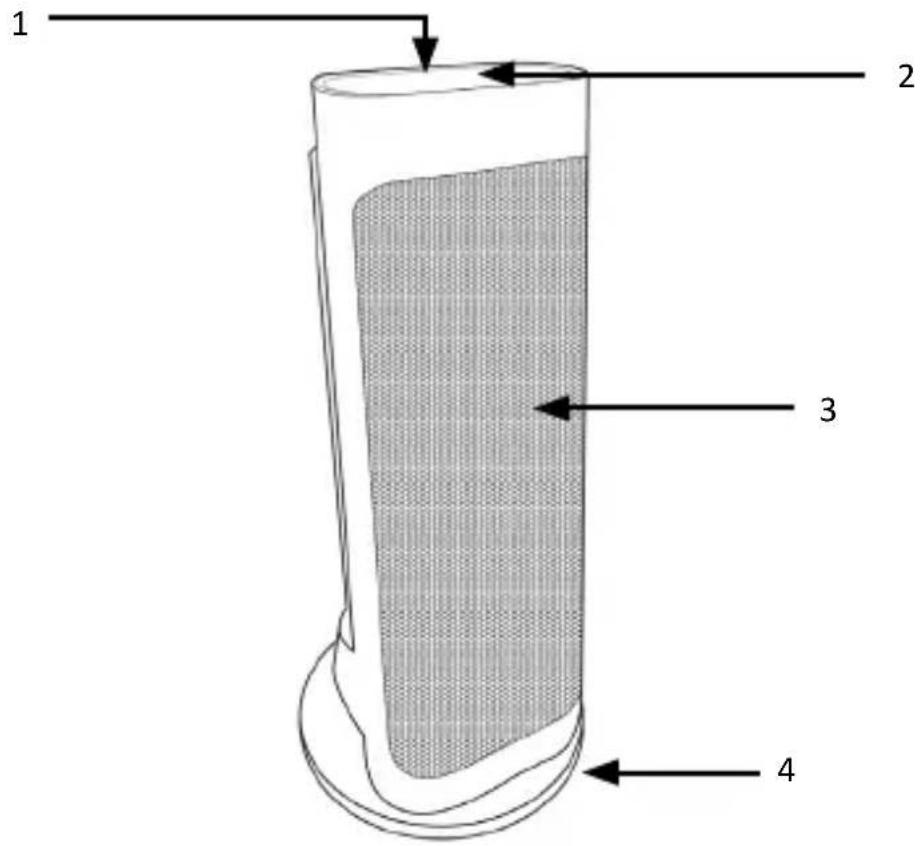

4. Product details
| 1 Operating controls | |
| 2 Display | |
| 3 Heating elements | |
| 4 Stand | |


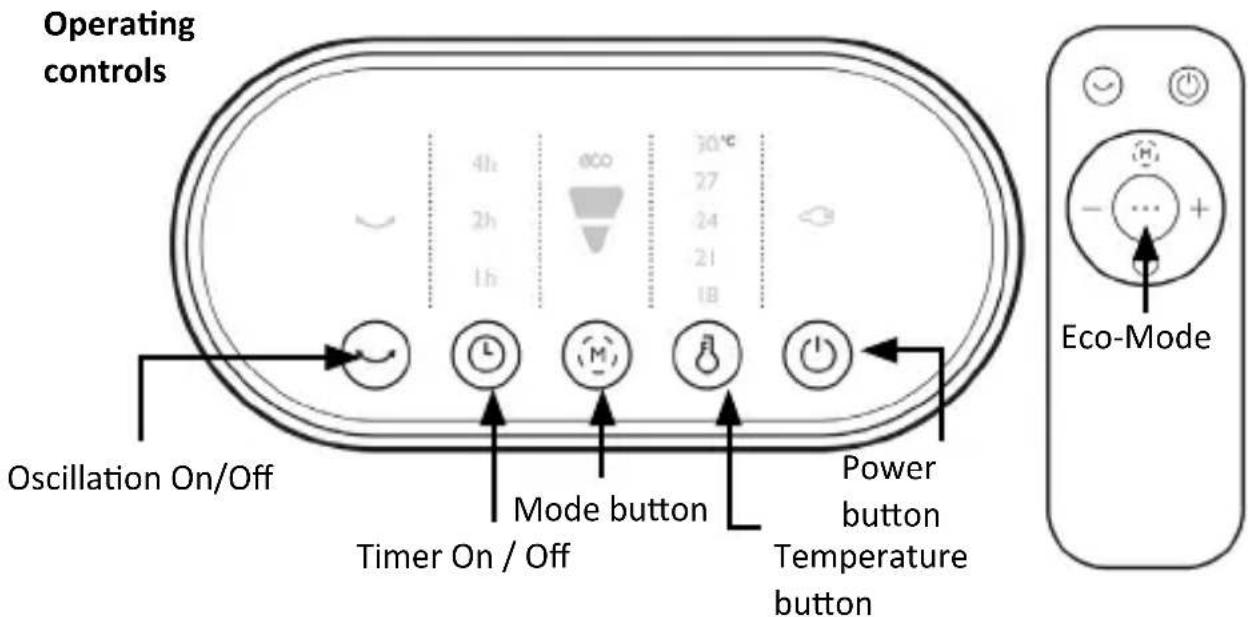

Operating controls 4h 2h 1h 30°C 27 24 21 18 Oscillation On/Off Timer On / Off Mode button Power button Temperature button Eco-Mode5. Initial use
Take the appliance out of the package and remove all the packaging material. Place the fan heater on a level and flat surface so that the tilt protection at the bottom is not actuated. Connect the appliance to a 220-240V AC socket.
To start the fan heater, press the "Power" button on the control panel or on the remote control. The fan heater now starts to heat. Press the "Temperature" button to adjust the desired temperature. The display shows the set temperature above the button on the fan heater. The heater will start heating if the set temperature is higher than the room temperature. The fan heater has 3 heating modes.
You can navigate through the different heating modes by pressing the "Mode" button.
6. ECO mode
The default setting of the temperature in this mode is 24^ C when the ECO energy saving mode is selected. Based on the current temperature and the target temperature of 24^ C, the heater automatically selects the heating level to reach the target temperature.
7. Remote control
Use 2x 1,5V AAA batteries for the remote control. All the functions that can be performed using the remote control have the identical function as those on the control panel of the fan.
8. Oscillation
To turn the oscillation on or off, press the "Oscillation" button on the control panel at the top of the fan or on the remote control.
9. Timer function
You can enable the timer function by pressing the "Timer" button. The currently configured timer stage is displayed.
10. Tilt protection
Thanks to the tilt protection at the bottom of the heater, it switches off automatically if the appliance tilts over. Please place the appliance only on even and flat surfaces.
11. Overheating
WARNING: The heater should not be covered to avoid overheating.
Overheating generally occurs only if one of the openings of the fan heater is covered, blocked or clogged. This appliance has overheating protection. The heater switches off automatically once the overheating temperature is reached. If the appliance is therefore turned off for this reason, disconnect the plug and wait for 30 minutes. Then try to switch it on again. Please contact customer service if this does not happen. After switching off the appliance, the fan continues to run in cooling phase until it completely shuts down.
12. Cleaning and maintenance
Disconnect the product from the power supply before cleaning or maintenance. Do not use any aggressive or chemical cleaning agents. Use a dry, soft cloth.
Ensure that you do not touch the heater elements when cleaning!
13. Safety instructions and disclaimer
Never try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components.
Check the appliance for damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the appliance, which is not carried out by the original supplier, will void any warranty and guarantee claims. The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.
14. Disposal instructions
In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.
According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.
15. Instructions for battery disposal
In conjunction with the sale of batteries along with the supply of appliances that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.
The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.
WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761
The company WD Plus GmbH hereby certifies that the appliance 304416/305024 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover. Or from the following Internet address: https://downloads.ganzeinfach.de/
NO CUBRIR
| Model identifier(s): WDP-304416 / 305024 | ||||||
| Item | Symbol | Value | Unit | Item | Unit | |
| Heat output | Type of heat input, for electric storage local space heaters only (select one) | |||||
| Nominal heat output | P_nom | 2,0 | kW | manual heat charge control, with integrated thermostat | No | |
| Minimum heat output (indicative) | P_min | 1,2 | kW | manual heat charge control with room and/or outdoor temperature feedback | No | |
| Maximum continuous heat output | P_max,c | 2,0 | kW | electronic heat charge control with room and/or outdoor temperature feedback | No | |
| Auxiliary electricity consumption | fan assisted heat output | No | ||||
| At nominal heat output | el_max | 2,008 | kW | Type of heat output/room temperature control (select one) | ||
| At minimum heat output | el_min | 1,251 | kW | single stage heat output and no room temperature control | No | |
| In standby mode | el_sb | 0,34 | W | Two or more manual stages, no room temperature control | No | |
| with mechanic thermostat room temperature control | No | |||||
| with electronic room temperature control | Yes | |||||
| electronic room temperature control plus day timer | No | |||||
| electronic room temperature control plus week timer | No | |||||
| Other control options (multiple selections possible) | ||||||
| room temperature control, with presence detection | No | |||||
| room temperature control, with open window detection | No | |||||
| with distance control option | No | |||||
| with adaptive start control | No | |||||
| with working time limitation | No | |||||
| with black bulb sensor | No | |||||
| Contact details | WD Plus GmbHWohlenbergstraße 16 - 30179 Hannover | |||||
