USER MANUAL 02363 Gourmetmaxx

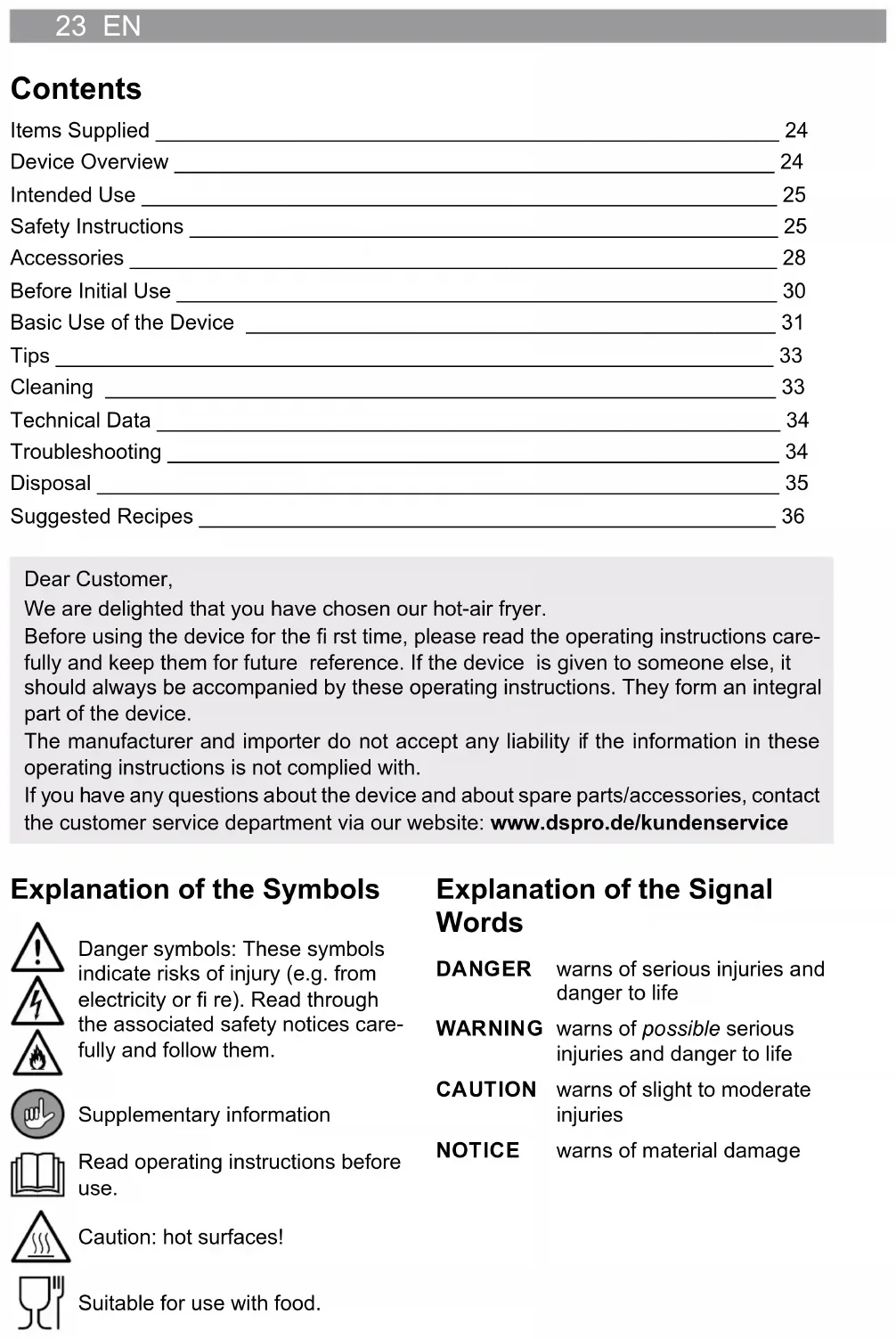

verlängern. Alle Rechte vorbehalten.DE 2223 EN Contents Items Supplied _____________________________________________________ 24 Device Overview ___________________________________________________ 24 Intended Use ______________________________________________________ 25 Safety Instructions __________________________________________________ 25 Accessories _______________________________________________________ 28 Before Initial Use ___________________________________________________ 30 Basic Use of the Device _____________________________________________ 31 Tips _____________________________________________________________ 33 Cleaning _________________________________________________________ 33 Technical Data _____________________________________________________ 34 Troubleshooting ____________________________________________________ 34 Disposal __________________________________________________________ 35 Suggested Recipes _________________________________________________ 36 Dear Customer, We are delighted that you have chosen our hot-air fryer. Before using the device for the fi rst time, please read the operating instructions care- fully and keep them for future reference. If the device is given to someone else, it should always be accompanied by these operating instructions. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with. If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: www.dspro.de/kundenservice Explanation of the Symbols Danger symbols: These symbols indicate risks of injury (e.g. from electricity or fi re). Read through the associated safety notices care- fully and follow them. Supplementary information Read operating instructions before use. Caution: hot surfaces! Suitable for use with food. Explanation of the Signal Words DANGER warns of serious injuries and danger to life WARNING warns of possible serious injuries and danger to life CAUTION warns of slight to moderate injuries NOTICE warns of material damageEN 24 Items Supplied (See front fold-out page for illustrations) 1 Main unit (1 x) 2 Rotating basket (1 x) 3 Rotating spit fork with locking screw (2 x) 4 Shaft (of the rotating spit or rack for skewers) (1 x) 5 Removal tool (1 x) 6 Rack wheel with locking screw (for skewers) (2 x) 7 Skewer (10 x) 8 Fat collecting tray / baking tray (1 x) 9 Baking rack (3 x) Operating instructions (1 x) Device Overview (See front fold-out page for illustrations) Main Unit 10 On / Off switch 11 Control dial for setting the temperature and time 12 Lighting 13 Support for the shaft and the rotating basket (right) 14 Rails 15 Door 16 Cooking space 17 Holder for the shaft and the rotating basket (left) 18 Heating element 19 Control panel 20 Air outlet openings 21 Air inlet slots Control Panel 22 Display (alternating display of temperature and remaining cooking time during oper- ation) 23 Operating lamps (lighting up successively: device is in operation; fl ashing: operation has been interrupted) 24 8 programs 25 Switch the light in the device on/off 26 Switch rotating function (rotating basket, rotating spit, rack for skewers) on/off 27 Temperature control – hold down to switch between the °C and °F units; press briefl y and the temperature can be set with the control dial 28 Set the cooking time: press briefl y, then set the cooking time with the control dial25 EN Intended Use

• This device works with hot air and is not a conventional fryer that is fi lled with oil or deep-frying fat. It is suitable for frying, baking, grilling, drying, keeping warm or de- frosting food. It generally works like a conventional fan oven.

• The device is for personal domestic use only and is not intended for commercial applications.

• The device should only be used as described in these instructions. Any other use is deemed to be improper. Incorrect operation and incorrect handling may cause faults with the device and cause injury to the user.

• The following are excluded from the warranty: all defects caused by improper han- dling, damage or unauthorised attempts at repair. The same applies to normal wear and tear. Safety Instructions

WARNING: Read all safety notices, instructions, illustra-

tions and technical data provided with this device. Fail- ure to follow the safety notices and instructions may result in electric shock, fi re and / or injuries. ■ This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions. ■ Children must not play with the device. ■ Cleaning and user maintenance may not be performed by children, unless they are older than 8 years of age and are supervised. ■ Children younger than 8 years of age and animals must be kept away from the device and the connecting cable. CAUTION: Hot Surfaces! The device and accessories will become very hot during use. Do not come into contact with heated parts while or after using the device! Only touch the handles and control knobs while the device is in operation or immediately after it has been switched off . Wait until the device has cooled down fully before it is transported, cleaned or stored away. Use oven gloves and the removal tool if necessary when handling the hot accessories.EN 26 ■ Never immerse the main unit and connecting cable in water or other liquids and ensure that they cannot fall into water or be- come wet. There is a danger of electric shock from water. ■ Do not pour any liquids (e.g. oil or water) directly into the device or the rotating basket or place a liquid-fi lled vessel into the de- vice. It works exclusively with hot air. ■ Never use the open door as a deposit surface, e.g. for the rotat- ing basket! Hot accessories could damage the door. In addition, the device could tip over and present a risk of injury. ■ The device must always be disconnected from the mains power when it is left unattended and before transporting, assembling, disassembling and cleaning the device. ■ Do not make any modifi cations to the device. Also do not replace the connecting cable yourself. If the device, the connecting ca- ble or the accessories of the device are damaged, they must be replaced by the manufacturer, customer service department or a specialist workshop in order to avoid any hazards. ■ The device is not designed to be operated with an external timer or a separate remote control system. ■ Note the cleaning instructions in the “Cleaning” chapter! DANGER – Risk of Electric Shock ■ Use and store the device only in closed rooms. Do not operate the device in rooms with high humidity. ■ Should the main unit fall into water, cut off the power supply immediately. Do not attempt to pull the device out of the water while it is still connected to the mains power! Have the device checked in a specialist workshop before using it again. ■ Never touch the device or the connecting cable with wet hands when these components are connected to the mains power. WARNING – Danger of Fire ■ Do not use the device in rooms containing easily ignitable or explosive substances. ■ Do not operate the device in the vicinity of combustible material. Do not place any combustible materials (e.g. cardboard, paper or plastic) on or in the device. ■ Do not connect the device along with other consumers (with a high wattage) to a mul- tiple socket in order to prevent overloading and a possible short circuit (fi re). ■ Do not insert anything into the ventilation openings of the device and make sure that these do not become clogged.27 EN ■ Make sure that foodstuff s containing oil and fats are not overheated. Do not place any vessels fi lled with oil or other liquids into the device. ■ Do not cover the device during operation in order to prevent it from catching fi re. ■ In the event of a fi re: Do not extinguish with water! Smother the fl ames with a fi re blanket or a suitable fi re extinguisher. WARNING – Danger of Injury ■ Keep children and animals away from plastic bags and fi lms. There is a danger of suff ocation. ■ Make sure that the mains cable is always kept out of the reach of small children and animals. There is a danger of strangulation. ■ Make sure that the connected mains cable does not present a trip hazard. The mains cable must not hang down from the surface on which the device is placed in order to prevent the device from being pulled down. ■ Take care when opening the door! There is a danger of scalding from hot steam. NOTICE – Risk of Damage to Material and Property ■ The device should only be connected to a properly installed socket with safety con- tacts. The socket must be readily accessible so that the connection to the mains can quickly be isolated. The mains voltage must match the technical data of the device. ■ Do not use any extension cables. ■ Unwind the mains cable fully before connecting up the device. ■ The device must be switched off when inserting or removing the mains plug. ■ Remove the mains plug if a fault occurs during operation or before a thunderstorm. ■ Always check the device for damage before putting it into operation. The device should only be used when it is fully assembled, undamaged, and in working order! ■ Always place the device on a dry, even, fi rm and heat-resistant surface. Never place the device on a soft surface. The ventilation slots on the bottom of the device must not be covered. Otherwise it could overheat and be damaged. ■ Do not place the device on or next to heat sources such as hobs or ovens. Keep naked fl ames, e.g. burning candles, away from the device and the connecting cable. ■ Do not expose the device to extreme temperatures, persistent moisture, direct sun- light or impacts. ■ Keep the device in a dry place at temperatures of between 0 and 40°C. ■ Make sure that the connecting cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces (e.g. of the device). ■ When removing the mains plug from the plug socket, always pull on the mains plug and never the mains cable. Do not pull or carry the device by the mains cable. ■ Never place objects on the device. ■ Use only original spare parts from the manufacturer. If accessory parts which are not authorised by the manufacturer are used, all warranty and guarantee claims are void. ■ Do not use the device if it has malfunctioned, fallen or been dropped in water. Have it checked in a specialist workshop before using it again.EN 28 Accessories (See fold-out page at the back for illustrations) Fat Collecting Tray / Baking Tray The fat collecting tray (8) should always be inserted so that any dripping fat, crumbs or other food residues can be collected in it. It is slid right into the bottom of the cooking space (16). The fat collecting tray can also be used as a baking tray. It has food placed on it and is pushed onto the middle rails (14). Baking Racks The baking racks (9) are intended for drying. However, they can also be used for crisp- ing, warming up etc. The baking racks are slid onto the rails (14) in the cooking space (16) (see Illustration A). The heating element (18) is located at the top of the cooking space, i.e. the higher up a baking rack is placed, the more intense the heat is from above. In the top section, the food is cooked faster and crispier. The middle position should be chosen to achieve even heating from all sides. The bottom rails are suitable for gentle cooking. Skewers with Rack Pieces of meat, fi sh, vegetables etc. are placed on the skewers (7) as you wish and grilled in the device. The skewers can either be placed on the baking racks (9) or inserted into the associated rack. In the rack, they are turned during grilling. Assemble the rack for skewers and insert into the device: PLEASE NOTE! ■ The shaft contains two small round notches. They mark the outermost position of the locking screws. These must not be attached any further than the outer ends of the shaft to ensure that smooth operation is possible. ■ Be careful when handling the skewers in order to prevent any injuries!

1. Slide the rack wheel (6) with the L marking onto the left-hand end of the shaft with

just one notch (see Illustration B1). The locking screw of the rack wheel is directed outwards.

2. Fix the rack wheel gently with the locking screw. The shaft contains a small round

notch for the tip of the locking screw. Do not tighten it too much so that the rack wheel can be moved if necessary after attaching the skewers.

3. Mount the second rack wheel on the shaft in the same way (see Illustration B1).

4. Place the tip of a skewer with food on it through the round hole in the left-hand rack

wheel (see Illustration B2).

5. Press together the other end (the clip) of the skewer slightly, slide it into the opposite

notch in the right-hand rack wheel and allow it to engage (see Illustration B2).

6. Fit the rest of the skewers in the same way (see Illustration B2). IMPORTANT: If not

all 10 skewers are used, they must be distributed evenly (always two opposite) so that the rack can rotate.29 EN

7. Tighten the locking screws of the rack wheels.

8. Plug the left-hand end of the shaft as far as it will go into the round holder on the

left-hand side of the cooking space (16) (see Illustration B3). Then hang the other end of the shaft into the support on the right-hand side of the cooking space (see Illustration B4).

9. Check that it fi ts securely. The rack must not be able to rotate about its own axis when

the device is switched off . If this is not the case, plug the left-hand end of the shaft deeper into the holder. After use, remove the hot rack from the cooking space using the removal tool (5) (see the “Removal Tool” section). To remove the skewers from the rack, press together the clips. It is essential that you use oven gloves to do this! Rotating Spit The rotating spit consists of the shaft (4) and two rotating spit forks (3). The rotating spit is suitable for grilling large pieces of meat, e.g. chicken, grilled or roast pork. Assemble the rotating spit and insert it into the device: PLEASE NOTE! ■ The shaft contains two small round notches. They mark the outermost position of the locking screws. These must not be attached any further than the outer ends of the shaft to ensure that smooth operation is possible. ■ Do not place any pieces that are too large onto the rotating spit so that it can rotate without any hindrance.

1. Slide one of the rotating spit forks onto the shaft and lock it with the locking screw.

The shaft contains a small round notch for the tip of the locking screw. In the case of smaller pieces of food, the rotating spit forks can be secured more centrally on the shaft.

2. Slide the items you want to grill onto the rotating spit.

3. Slide the other rotating spit fork onto the shaft and lock it with the locking screw.

4. Plug the left-hand end of the shaft with just one notch (see Illustration C1) as far as

it will go into the round holder on the left-hand side of the cooking space (16). Then hang the other end of the shaft into the support on the right-hand side of the cooking space.

5. Check that it fi ts securely. The rotating spit must not be able to rotate about its own

axis when the device is switched off . If this is not the case, plug the left-hand end of the shaft deeper into the holder. After use, remove the hot rotating spit from the cooking space using the removal tool (5) (see the “Removal Tool” section). Always use oven gloves to remove the rotating spit forks and take off the grilled items. Rotating Basket In the rotating basket (2), the food is rotated during cooking so that it becomes crispy on all sides. The rotating basket is particularly suitable for preparing chips or other potato products, small pieces of vegetables and meat as well as frozen products, e.g. chicken nuggets or squid rings.EN 30 Fill the rotating basket and insert it into the device:

1. Open the fl ap of the rotating basket (see Illustration D).

2. Fill the rotating basket no more than ¾ full with food. It should not be too full to ensure

that the food is cooked evenly.

3. Close the fl ap and ensure that it is shut correctly so that it does not open during use.

4. First insert the left-hand side with the L marking of the rotating basket into the cooking

space (16) (see Illustration C1). To do this, plug the left end (with just one notch) of the shaft as far as it will go into the round holder on the left-hand side of the cooking space. Then hang the other end (with two notches) of the shaft into the support on the right-hand side of the cooking space.

5. Check that it fi ts securely. The rotating basket must not be able to rotate about its own

axis when the device is switched off . If this is not the case, plug the left-hand end of the shaft deeper into the holder. After use, remove the hot rotating basket from the cooking space using the removal tool (see the “Removal Tool” section). Always use oven gloves to open and empty the rotating basket. Removal Tool The hot rotating basket, rotating spit or the hot rack containing skewers is taken out of the cooking space using the removal tool (5).

1. Place the ends of the removal tool under the shaft (see Illustration E).

2. First lift up the right-hand side of the shaft and move it forwards a little until the left

end of the shaft is released from the holder.

3. Carefully lift the rotating basket, rotating spit or the rack out of the cooking space (16)

and place down on a heat-resistant surface. Before Initial Use

1. Check the items supplied for completeness (see the "Items Supplied" chapter) and

possible transport damage. If you fi nd any damage, do not use the device (!), but rather contact the customer service department.

2. Remove any possible fi lms, stickers or transport protection from the device. Never

remove the rating plate and any possible warnings!

3. The device should be used for the fi rst time without any food in it as it may produce

some smoke or odours due to coating residues. Allow the device to heat up on the highest temperature setting for approx. 15 minutes without any food in it (see the "Basic Use of the Device" chapter).

4. Thoroughly rinse all accessories. Follow the instructions in the "Cleaning" chapter to

do this.31 EN Basic Use of the Device PLEASE NOTE! ■ CAUTION – Danger of burns! All inserts will become extremely hot in the device. It is essential to use oven gloves to remove them. Use the removal tool for the rotating basket, rotating spit and the rack for skewers. ■ Do not place food that is still packed in plastic wrap or plastic bags in the device. ■ Only ever place down the hot accessories on a heat-resistant surface. ■ Make sure that the food that you would like to prepare does not come into contact with the heating element of the device. The door (15) of the device must be closed for settings to be made and buttons to be pressed. The device has overheating protection. It switches off if it is overloaded. In this case, pull the mains plug out of the plug socket and allow the device to cool down completely.

1. Place the main unit (1) on the kitchen unit or another dry, clean, fl at and non-heated

work surface. Ensure that there is suffi cient clear space at all sides, especially at the air outlet openings.

2. Completely unwind the mains cable and plug the mains plug into a plug socket.

3. Open the door (15). If the fat collecting tray (8) is not to be used as a baking tray, slide

it into the bottom of the cooking space (16).

4. Select a suitable accessory for the food that is to be prepared (see the “Accessories”

5. Process the food and place it on / in the accessory. Attach this accessory in the de-

vice (see the “Accessories” chapter).

the button until the unit you want is shown on the display.

9. Either set the temperature and cooking time manually or select one of the 8 pro-

grammes. Manual setting: Touch the button briefl y and then use the control dial to set the temperature. Touch the button (28) briefl y and use the control dial to choose the cooking time.EN 32 Choose a programme: Touch the required programme symbol (24). When it fl ashes, the programme is ac- tivated. When the symbol is touched again, the selection is cancelled. The symbols represent the following presettings: Symbol Programme Temperature Cooking time Chips 200°C (400°F) 20 min Steaks / cutlets 200°C (400°F) 20 min Fish 200°C (400°F) 10 min Shrimps 200°C (400°F) 10 min Chicken 190°C (380°F) 25 min Rotary grilling (with automatic rotating function) 200°C (400°F) 45 min Baking 175°C (350°F) 30 min Drying 70°C (140°F) 8 h (30 min – 24 h) The temperatures and cooking times which are set for the programmes are mere- ly averages and should be adjusted if necessary. As the ingredients diff er due to their origin, size, shape, quality and brand, the actual cooking temperatures and times may vary. Make sure before serving that meat and poultry are thor- oughly cooked. To change the temperature or cooking time of a selected programme, touch the or button as you would for manual setting and use the control dial to set a value.

10. Press the On / Off switch to switch on the device. Successively illuminating operating

lamps (23) indicate that the device is operating. If operation is interrupted, they fl ash.

11. If the rotating basket, rotating spit or the rack for skewers is used, touch the but-

ton (26) to start the rotating function. (Touching the button again will stop the rotating function.) Until you are properly familiar with the device, the condition of the food should be checked in between times to ensure that it does not burn. To do this, switch on the light using the button (25) or open the door. When the door is opened, oper- ation is interrupted automatically and the light switches on. Operation is resumed once the door is closed.

12. Once the cooking time has elapsed, the device switches off automatically and a beep

is heard. If the device is to be stopped prematurely, press the On / Off switch. To switch off the device entirely, hold down the On / Off switch until the displays on the control panel have gone out.33 EN

13. Carefully open the door and take the cooked items out of the device. Only ever take

out the rotating basket, rotating spit or the rack for skewers using the removal tool (5).

14. Remove the mains plug from the plug socket after use.

15. Allow the used accessories and device to cool down and then clean them (see the

“Cleaning” chapter). Tips

• Generally it is not necessary to preheat the device. When preparing food which is to be ready “on the dot”, it is advisable to extend the cooking time by 3 minutes.

• Cooking times are dependent on the size and quantity of the food and on the cooking temperature. However, in general the cooking times are shorter than in a convention- al oven. Start with shorter cooking times and then adapt the cooking times to your personal taste.

• Generally no oil is required for preparing food. You can add oil to your food to en- hance the taste by spraying your food with a little oil from the oil atomiser.

• When preparing mass-produced frozen products, you should follow the times and temperatures specifi ed by the manufacturer. Before the specifi ed cooking time elaps- es, check whether the food is already cooked through because the cooking time can be slightly shorter than in a conventional oven. Cleaning PLEASE NOTE! ■ Pull the mains plug out of the plug socket and allow the device and accessories to cool down before doing any cleaning. ■ Surfaces could be damaged! Do not use any corrosive or abrasive cleaning agents or scouring sponges to clean the device. Clean the main unit (1) and the used accessories immediately after each use to prevent germ formation. Do not allow food residues to dry on.

1. Do not immerse the main unit and door in water or other liquids! Do not place

them in the dishwasher! If necessary, clean them with a damp cloth and a little detergent.

2. Rinse all other used parts with detergent and warm water or in the dishwasher. In

the case of stubborn dirt, we recommend soaking the accessories in warm water and detergent beforehand.

3. Allow all parts to dry completely or dry them with a tea towel.EN 34

Technical Data Article number: 02095 (black); 02363 (red) series „Kochwerk“: 04180 (black); 04184 (red); 04189 (anthracite) Model number: RA-001 Power supply: 220-240 V~ 50-60 Hz Power: 1800 W Protection class I Capacity: 9 l Timer: Up to 60 minutes; “Drying” programme: 30 minutes – 24 hours Temperature setting: 65°C – 200°C (130°F – 400°F) Manual ID Z 02095_ 02363_ 04180_ 04184_ 04189 M DS V4 1019 Troubleshooting If the device does not work properly, fi rst check whether you are able to rectify the prob- lem yourself. If the problem cannot be solved with the following steps, contact the cus- tomer service department. Do not attempt to repair an electrical device yourself! Problem Possible cause Fix The device does not work. The displays on the control panel do not switch on. The mains plug is not inserted correctly in the plug socket. Push the mains plug into the plug socket as far as it will go. The plug socket is defective. Try another plug socket. No mains voltage is present. Check the fuse of the electrical distributor (fuse box). The overheating protection has been triggered. Pull the mains plug out of the plug socket and allow the device to cool down completely. Then try again. If the device still cannot be switched on, contact the customer service depart- ment. The fuse in the elec- trical distributor (fuse box) is triggered. Too many devices connect- ed to the same circuit. Reduce the number of devices in the circuit.35 EN Problem Possible cause Fix The food has not been cooked evenly. Diff erent items of food with diff erent cooking times have been prepared at the same time. Place food with a longer cook- ing time in the device fi rst, then add ingredients with a shorter cooking time later. Items of food which require diff erent cooking tempera- tures have been prepared at the same time. Prepare items of food with diff erent cooking temperatures one after the other. The set cooking time was too short or the temperature too low. Increase the cooking time or temperature. The rotating basket or bak- ing rack is overfi lled. Reduce the amount of food. The items of food are piled on top of one another. Spread the food and mix it around from time to time. The food is slightly burnt. The selected temperature is too high or the cooking time too long. Reduce the temperature or cooking time. Chips made from fresh potatoes are not crispy. The potatoes contain too much water. Cut the potatoes into narrower pieces. Dab the potato pieces dry with some kitchen towel and then trickle a little cooking oil over them. During use, an unpleasant smell is detected. The device is dirty. Follow the instructions in the "Cleaning" chapter. The device is being used for the fi rst time. A smell often develops when new devices are fi rst used. The smell should disappear once the device has been used several times. Disposal Dispose of the packaging material in an environmentally friendly manner so that it can be recycled. The device is governed by the European Directive 2012/19/EU on waste electri- cal and electronic equipment (WEEE). Do not dispose of the device as normal domestic waste, but rather in an environmentally friendly manner via an offi cially approved waste disposal company.EN 36 Suggested Recipes PLEASE NOTE! ■ Before you start preparing any food, it is essential to read the “Accessories” and “Basic Use of the Device” chapters to familiarise yourself with the way that the device works. This knowledge will then enable you to prepare lots of diff erent dishes follow- ing any recipes you want. The temperatures and cooking times specifi ed in the following suggested recipes are guideline fi gures. As the ingredients diff er due to their origin, size, shape and quality, the settings actually required may vary. It is important to check how the food is cooking from time to time and adjust the temperature or cooking time. Make sure before serving that meat and poultry are thoroughly cooked. Shashlik, Russian style Resting time: approx. 1 day Ingredients: 1 kg Pork neck or lamb 1 Large onion ½ tsp. Sugar 1 tbsp. Vinegar 1 tbsp. Oil 2 tbsp. Strained tomato(es) 2 Bay leaves To taste Salt, black pepper, cayenne pepper Preparation:

1. Cut the meat into cubes roughly 2 x 2 cm in size.

2. With the exception of the onion, mix together the rest of the ingredients to make a

marinade and mix with the meat.

3. Allow it to rest in the fridge for at least six hours, ideally overnight. Stir it around a

4. Chop the onion into rings.

5. Slide the marinated meat and the onion rings onto the skewers.

6. Fit the skewers in the rack and insert it into the cooking space.

7. Start the “Steaks/cutlets” programme.

8. Press the button to activate the rotating function.

9. Check how cooked the food is in between times. Adjust the cooking temperature and

cooking time if necessary.37 EN Homemade Chips Ingredients: 4 large Potatoes (waxy) 1 – 2 tbsp. Cooking oil To taste Salt Preparation:

1. Peel the potatoes and cut them into sticks of equal size.

2. Thoroughly wash the potatoes and then dry them off .

3. Add 1 – 2 tbsp. of oil to the potatoes and mix in. It is not essential to add oil. However,

adding oil will make the chips crispier and give them a more intense fl avour.

4. Place the sliced potato chips into the rotating basket.

5. Insert the rotating basket into the cooking space.

6. Start the “Chips” programme.

7. Press the button to activate the rotating function.

8. The chips are cooked when they are golden brown. Reduce the temperature if

necessary if the chips start to get too dark. If they are not cooked after the end of the programme, extend the cooking time and adjust the temperature if necessary.

• Mix your favourite herbs and spices into the oil before adding it. This will allow you for example to prepare tasty curry or paprika-fl avoured chips. There are no limits to your imagination.

• Depending on how thick you cut your potatoes, you can vary between potato wedges and thick or thin chips. The thicker the potatoes are cut, the longer the cooking time.

• Use waxy potatoes. Young potatoes contain more water and therefore take longer to cook and it is possible that they may not go as crispy.

• Wash the chopped-up potatoes with cold, clear water to remove any excess starch in the potatoes. IMPORTANT: Then thoroughly dry the potatoes. The less moisture is present, the crispier the chips will become.

• Preboiled potatoes will cook more evenly! Cut the potatoes into small sticks and preboil them for around fi ve minutes. This will prevent the chips from be- ing crispy on the outside but not fully cooked on the inside.

• If you want to prepare frozen chips, there is no need to add any oil as most fro- zen products are generally pre-fried! If you are going to prepare frozen chips or other frozen convenience products, follow the manufacturer's specifi cations on the packaging.EN 38 Cod Fillet with Garlic Herb Crust Ingredients: 100 g Cod fi llet 1 – 2 Egg white 1 Garlic clove 1 tbsp. Chopped basil 1 tsp. Paprika powder To taste Sea salt, pepper ½ cup Breadcrumbs Preparation:

1. Peel the garlic and squeeze through a garlic press.

2. Mix together the garlic, the rest of the herbs and breadcrumbs in a bowl.

3. Separate off the egg white and pour it into a separate bowl.

4. Dip the cod fi llet in egg white and then coat it in the garlic and herb breadcrumb

6. Insert the baking rack into the device.

Coconut Prawns Ingredients: 12 Prawns (peeled and cleaned) For the breadcrumb coating: ½ cup Flour ½ cup Coconut fl akes ½ cup Breadcrumbs 1 – 2 Egg white Preparation:

1. Add the coconut fl akes and the breadcrumbs in a ratio of 1:1 to a small bowl and mix

the ingredients together.

2. Pour the fl our into a separate bowl.

3. Separate off the egg white and pour it into another separate bowl.

4. First roll the prawns in the fl our, then dunk them in the egg white and then roll them in

the coconut fl ake breadcrumb coating.

5. Spread the prawns on the baking rack.

6. Insert the baking rack into the device.

7. Start the “Shrimps” programme.

8. The prawns are ready for serving when they have developed a lovely golden brown

colour. If the prawns are not yet cooked after the set time has elapsed, extend the cooking time.39 EN Spicy Chicken Legs Ingredients: 4 – 6 Chicken legs 2 – 3 tbsp. Olive oil 1 Garlic clove 1 tsp. Sugar 1 tsp. Chilli powder or paprika powder To taste Salt, pepper Preparation:

1. Peel the garlic and squeeze through the garlic press.

2. Mix the clove of garlic with sugar, chilli/paprika powder, salt, pepper and oil.

3. Rub the marinade into the chicken legs and allow it to infuse for at least 20 minutes.

4. Place the chicken legs on the baking rack in the middle position.

5. Start the “Chicken” programme.

6. Check how cooked the food is in between times. The cooking time may vary depend-

ing on the size of the chicken legs. Adjust the cooking temperature and cooking time accordingly if necessary. Chicken Breast Strips in Breadcrumbs Ingredients: 2 Chicken breast fi llets 1 – 2 Egg white ½ cup Flour for breadcrumbs ½ cup Breadcrumbs ½ tsp. Salt ½ tsp. Pepper Preparation:

1. Separate off the egg white.

2. Place the egg white, fl our and breadcrumbs in three separate bowls.

3. Chop each of the chicken breast fi llets into strips of equal sizes.

4. Season the chicken breast fi llet strips with salt and pepper, roll in the fl our, then dip

them in egg white and roll in the breadcrumb coating.

5. Place the chicken breast fi llet strips on the baking rack.

6. Insert the baking rack into the device.

7. Start the “Chicken” programme.

8. Check in between times whether the chicken breast strips are cooked through and

reduce or extend the cooking time if necessary.EN 40 Skewered Grilled Chicken Resting time: approx. 1 day Ingredients: 1 Chicken, fresh, as fat as possible 1 pinch Salt 1 pinch Pepper, white, ground 1 pinch Thyme, crushed 2 Medium apples, tart 2 Medium onion(s), cut into quarters 2 cloves Garlic 50 ml Oil 10 g Spice mixture (roast chicken spice) Preparation:

1. Wash the chicken and dab it dry.

2. Mix the spices together and season the abdomen of the chicken with the mixture.

3. Place the chopped apples, onions and garlic slices in the abdomen.

4. Seal up the chicken with string or cooking pins.

5. Place the chicken in an appropriate vessel. Massage oil and roast chicken spice into

the skin. Marinate in the fridge for roughly 12 to 24 hours.

6. Slide the fat collecting tray onto the bottom rail in the device.

7. Fix the chicken on the rotating spit.

8. Attach the rotating spit in the device.

9. Start the “Rotary grilling” programme.

10. If the chicken is not yet golden brown and crispy after the end of the programme, start

the programme again. The grilled chicken tastes delicious with chunks of bread. The stuffi ng in the chicken can be eaten but does not have to be. Apple Turnovers Ingredients: 1 – 2 Apples 1 roll Puff pastry from the refrigerated cabinet 50 g Brown sugar 2 tbsp. Flour 1 – 2 tbsp. Lemon juice To taste Cinnamon Preparation:

1. Peel the apples, remove the cores and cut them into small pieces.

2. Mix together the pieces of apple, fl our, sugar and lemon juice and add cinnamon to

3. Roll out the puff pastry and divide it into pastry squares with an edge approx. 10 cm

5. Brush a little water onto the edge of the pastry and fold it up into triangles. Firmly

press down the edge of the pastry.

6. Spread the apple turnovers on the baking rack.

7. Insert the baking rack into the device in the middle position.

8. Start the “Baking” programme.

9. Before the cooking time elapses, check whether the apple turnovers are golden

brown and take them out before the end of the cooking time if necessary. If the apple turnovers appear too light, extend the cooking time. Banana Chips Ingredients: To taste Bananas Preparation:

1. Peel the bananas and cut them into slices 2 – 3 mm thick. The thinner they are, the

faster they will dry.

2. Spread the banana slices on the baking racks.

3. Insert the baking rack into the device.

4. Start the “Drying” programme and set the cooking time to 6 hours.

5. Check from time to time whether the banana slices are dry. They will feel slightly

leathery when they are done. Basic Recipe for 12 Muffi ns Ingredients: 80 g Butter 200 g Flour 1 pack Vanilla sugar

0.5 pack Baking powder

3 Eggs 140 g Sugar 140 ml Milk 12 Muffi n moulds Preparation:

1. Beat the eggs to a froth in a bowl. Gradually add the sugar with the vanilla sugar.

Add the butter cut into fl akes. Whisk to a good froth until you can no longer see any butter fl akes.

2. Stir in the milk alternately with the fl our and the baking powder.

3. Pour the mixture into each of the muffi n moulds up to half full.

4. Spread the muffi n moulds on the baking racks.

5. Insert the baking racks into the device in the middle / bottom position.

6. Start the “Baking” programme.

7. Before the cooking time elapses, check whether the muffi ns are cooked and take

them out before the end of the cooking time if necessary.EN 42 American Cutlet Ingredients: 4 Pork cutlet(s) (preferably neck cutlets) 2 tbsp. Butter 2 Onion(s), cut into rings 3 tbsp. Sugar, brown 1 tsp., heaped Salt 1 tsp., level Pepper 3 tbsp. Vinegar 3 tbsp. Lemon juice To taste Ground chilli fl akes 1 pinch Cayenne pepper 2 tsp. Mustard 1 tsp. Paprika powder, smoked 1 1/2 cups Tomato ketchup 2 tbsp. Worcester sauce 1 cup Water Preparation:

1. Place the cutlets on the baking rack (fat collecting tray).

2. Mix together the lemon juice, vinegar, salt and pepper.

3. Melt the butter in a small pan and fry off the onions in it.

4. Add the sugar, allow it to caramelise a little and deglaze with the lemon juice mixture.

5. Bring to the boil and pour over the cutlets.

6. Stir together the tomato ketchup with the water and the Worcester sauce. Mix togeth-

er the rest of the spices thoroughly with the whisk.

7. Pour this sauce over the cutlets.

8. Slide the backing rack onto the middle rail in the cooking space.

9. Start the “Steaks/cutlets” programme.

10. If the cutlets are not covered by the sauce, pour the sauce over them from time to

11. Check how cooked the food is shortly before the end of the programme. Extend the
