USER MANUAL 11229 Gourmetmaxx

DS Produkte GmbH - An Heiterbuch 1, 19258 Callin - Germany ^空 = 4938851314652
Calls to German and lines are subject to your provider's charges.

SERVICE APRÉS-VENTE IMPORTATEUR

DS Produkte GmbH - Am Heisterbusch 5 - 19258 Galin - Altmagne ^ 念 49 38851 314650

Operating instructions

Mode d'emploi

Gebruiksaanwijzig

IMPORTANT NOTICES!
PLEASE KEEP FOR REFERENCE!

On this fold cut pages you will find all illustrations, references in these operating instructions. Open the page before reading the operating instructions.

Page 12

AVIS IMPORTANTS!
A CONSUMER IMPERATIVEMENT!

Ideal fur Pizza, Kuchen, Brot etc.

Temperatur: 160^

Garzeit: 25 Minutes

Programm Fleisch (10)

Before Initial Use 16

Set-Up and Connection 17

Accessories 17

Functions 17

Tips 18

Use 18

Cleaning and Storage 19

Troubleshooting 20

Disposal 21

Technical Data 21

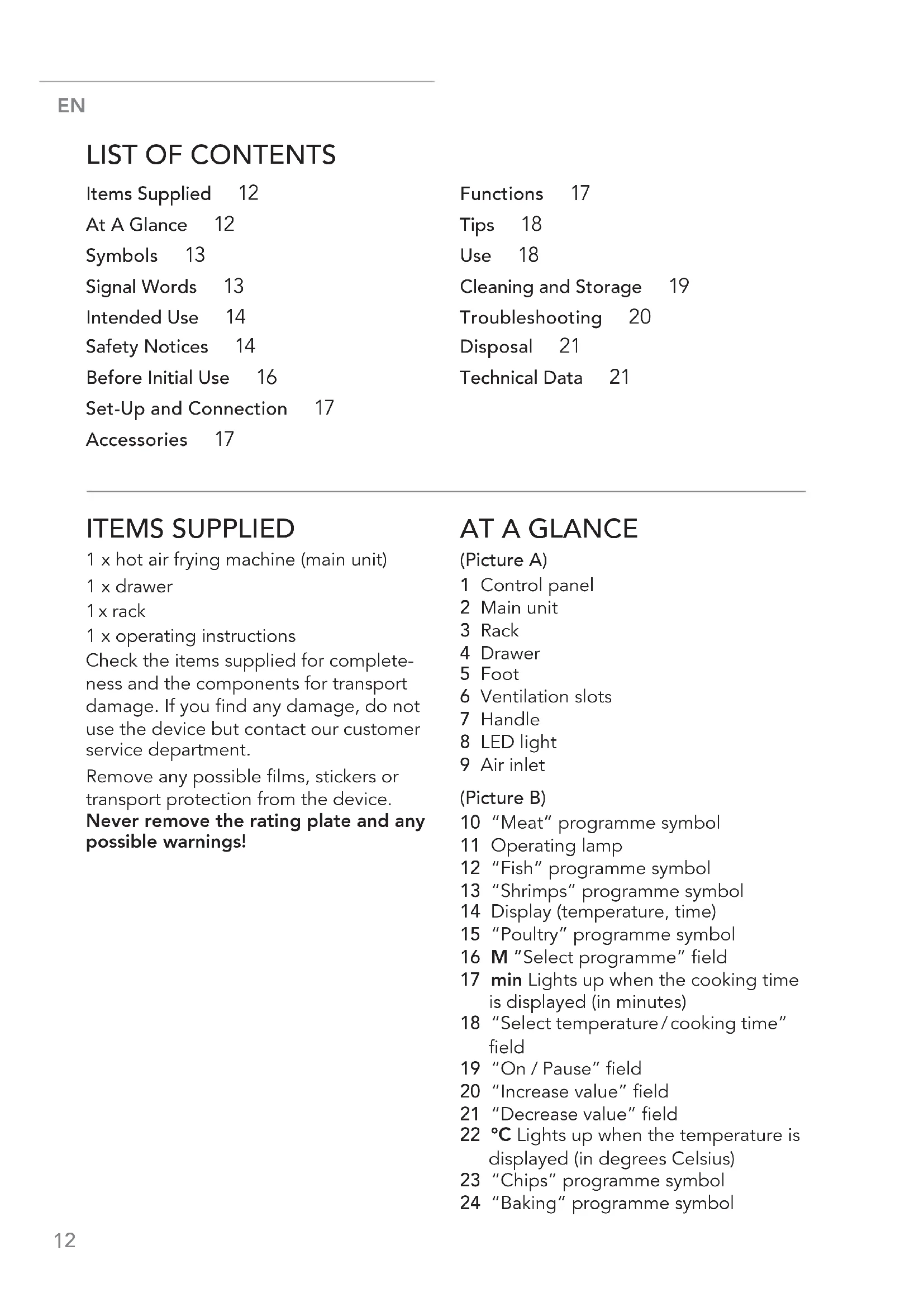

ITEMS SUPPLIED

1 x hot air frying machine (main unit)

1 x drawer

1x rack

1 x operating instructions

Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.

Remove any possible films, stickers or transport protection from the device.

Never remove the rating plate and any possible warnings!

AT A GLANCE

(Picture A)

1 Control panel
2 Main unit
3 Rack
4. Drawer
5 Foot
6 Ventilation slots
7 Handle
8 LED light
9 Air inlet

(Picture B)

10 "Meat" programme symbol
11 Operating lamp
12 "Fish" programme symbol
13 "Shrimps" programme symbol
14 Display (temperature, time)
15 "Poultry" programme symbol
16 M "Select programme" field
17 min Lights up when the cooking time is displayed (in minutes)
18 "Select temperature/cooking time" field
19 "On / Pause" field
20 "Increase value" field
21 "Decrease value" field
22 °C Lights up when the temperature is displayed (in degrees Celsius)
23 "Chips" programme symbol
24 "Baking" programme symbol

Dear Customer,

We are delighted that you have chosen the digital hot air frying machine.

The clever combination of fast-circulating hot air and a heating element cooks your favourite food not just extra fast and gently, but also requires much less energy and fat than conventional devices. The 6 preset programmes allow you to cook easily with guaranteed success every time: chips, shrimps, cake, poultry, meat and fish. Simply select on the touch display – the frying machine does the rest.

If you have any questions about the device and about spare parts / accessories, contact the customer service department via our website: www.ms-group.de/kundenservice

Information About the Operating Instructions

Before using the device for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

IMPORTANTNOTICES! PLEASE KEEP FOR REFERENCE!

SYMBOLS

Danger symbols: These symbols indicate possible dangers. Read the associated safety notices carefully and follow them.

Supplementary information

Read the operating instructions before use!

Caution: hot surfaces!

Suitable for use with food.

Alternating current

SIGNAL WORDS

Signal words indicate hazards if the associated notices are not followed.

DANGER - high risk, results in serious injury or death

WARNING - medium risk, may result in serious injury or death

CAUTION - low risk, may result in minor or moderate injury

NOTICE - may result in risk of damage to material

INTENDED USE

The device is intended to be used for grilling, baking, defrosting and warming up food.
The device operates with hot air. It is not a conventional fryer in which food is deep-fried using oil.
The device is not suitable for preparing liquid dishes such as soups, sauces or stews!

The device is for personal use only and is not intended for commercial or domestic-like applications, e.g. in hotels, bed and breakfasts, offices, staff kitchens or similar places.
Use the device only for the specified purpose and as described in the operating instructions. Any other use is deemed to be improper.
The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.

SAFETYNOTICES

WARNING: Note all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and/or injuries.

• This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and / or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
  Children must not play with the device.

• Cleaning and user maintenance must not be carried out by children, unless they are older than 8 years of age and are supervised.
  Children younger than 8 years of age and animals must be kept away from the device and the connecting cable.

• Never immerse the main unit and the connecting cable in water or other liquids, and ensure that these components cannot fall into water or become wet. There is a danger of electric shock!

CAUTION: hot surfaces!

The device and accessories will become very hot during use. Do not come into contact with heated parts while or after using the device! Only ever touch the handle and the control panel while the device is in operation or immediately after it has been switched off. Wait until the device has cooled down fully before it is transported, cleaned or stored away. Use oven gloves when handling the hot accessories.

• The device must always be disconnected from the mains power when it is left unattended and before transporting or cleaning the device.
• Do not make any modifications to the device. Also do not replace the connecting cable yourself. If the device, the connecting cable or the accessories of the device are damaged, they must be replaced by the manufacturer, customer service department or a specialist workshop in order to avoid any hazards.
  The device is not designed to be operated with an external timer or a separate remote control system.
• Follow the instructions in the "Cleaning and Storage" chapter!

DANGER - Danger of Electric Shock

Use and store the device only in closed rooms.
- Do not use and store the device in rooms with high humidity.
- Never touch the device and the connecting cable with wet hands when the device is connected to the mains power.
If the device falls into water while it is connected to the mains power, pull the mains plug out of the plug socket immediately. Only after this should you retrieve the device from the water. Never attempt to pull it out of the water while it is connected to the mains power!

If the device has fallen into water or other liquids, do not use it. Before using it again, have it checked by the manufacturer, customer service department or an authorised distributor in order to avoid possible hazards.

WARNING - Danger of Fire

• Do not pour any liquids (e.g. oil or water) directly into the device or the drawer or place a liquid-filled vessel into the device. It works exclusively with hot air. Do not operate the device in the vicinity of combustible material. Do not place any combustible materials (e.g. cardboard, paper, plastic) on or in the device.

• Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).

• Do not use any extension cables.
• Do not cover the device during operation in order to prevent it from catching fire. Do not insert anything into the ventilation openings of the device and make sure that they do not become clogged.
  In the event of a fire: Do not extinguish with water! Smother the flames with a fireproof blanket or a suitable fire extinguisher.

WARNING - Danger of Injury

• Keep children and animals away from the packaging material. There is a danger of suffocation.
  Make sure that the connecting cable is always kept out of the reach of small children and animals. There is a danger of strangulation.
  Make sure that the connecting cable does not present a trip hazard. It may not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.
  Hot steam can escape from the device during operation and when the drawer is pulled out. You should therefore keep your head and hands out of the danger zone. There is a danger of scalding from heat, hot steam or condensation.

NOTICE - Risk of Damage to Material and Property

Make sure that the steam which emerges does not come into direct contact with electrical devices and equipment containing electrical components.
If a fault occurs during operation, pull out the mains plug. Otherwise always switch off the device first before the mains plug is pulled out.
Always pull the mains plug and never the mains cable when disconnecting the device from the mains power.
- Do not pull or carry the device by the connecting cable.
- Protect the device from other heat sources, naked flames, persistent moisture, direct sunlight or impacts.
- Keep the device in a dry place at temperatures of between 0 and 40^ .
- Never place objects on the device or the connecting cable.
Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.

BEFORE INITIAL USE

1. Wipe down the device with a clean, damp cloth. Clean the drawer (4) and the rack (3) with detergent and warm water. The rack is also dishwasher-safe.
2. The device should be used for the first time without any food in it as it may produce some smoke or odours due to coating residues. To do this, follow the instructions in the "Set-Up and Connection" and "Use" chapters and allow the device to heat up on the highest temperature setting for approx. 15 to 20 minutes without any food in it.
3. Then clean it again (see the "Cleaning and Storage" chapter).

SET-UP AND CONNECTION

Please Note!

• Do not place the device below kitchen wall units or similar cupboards. The rising steam could cause damage to them!
• Only connect the device to a plug socket that is properly installed and matches the technical data of the device. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.

• Never place the device on a soft surface. The ventilation openings on the bottom of the device must not be covered. Otherwise it could overheat and be damaged.
  Make sure that the connecting cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces (e.g. of the device).

• Place the device on the kitchen unit or another dry, clean, flat and heat-resistant work surface. Ensure there is sufficient clear space on all sides (at least 20cm to the sides and 50~cm above).

• Completely unwind the connecting cable and plug it into a properly installed plug socket that is easily accessible.

The LED light (8) lights up blue as soon as the device is supplied with power. In addition, you will hear two beeps, all elements on the control panel (1) light up once and then go out again, apart from the operating lamp (11).

ACCESSIONS

Drawer

The food is prepared in the drawer (4). It must be inserted in the main unit (2) when the device is put into operation.

Rack

The rack (3) should be inserted in the drawer (4) when the device is in use so that the air circulation function is not impaired.

A small casserole or baking tin can also be placed on the rack for baking.

FUNCTIONS

The device features manual setting of the temperature and cooking time as well as 6 preset programmes.

The control panel is activated by touching the field . If the control panel is not touched for longer than 60 seconds, the device switches back to stand-by mode.

Preset Programmes

To select a programme, keep touching the field M (16) until the symbol for the programme you want lights up.

Chips programme (23)

Ideal for chips, potato crisps etc.

Temperature: 200^

Cooking time: 15 minutes

Baking programme (24)

Ideal for pizza, cakes, bread etc.

Temperature: 160^

Cooking time: 25 minutes

Meat programme (10)

Ideal for all types of meat, apart from poultry, especially for steak, chop etc.

Temperature: 180^ C

Cooking time: 20 minutes

Fish programme (12)

Ideal for fish, fish fingers, etc.

Temperature: 180^

Cooking time: 15 minutes

Shrimps programme (13)

Ideal for scampi, mussels etc.

Temperature: 180^

Cooking time: 15 minutes

Poultry programme (15)

Ideal for all types of poultry, whether breast, leg, wing etc.

Temperature: 200^

Cooking time: 20 minutes

The times and temperatures which are set for the programmes are merely suggestions. They should be manually adjusted if necessary to ensure that the food (in particular poultry) is fully cooked. Adjustments can also be made during the heating process.

Manual Setting

The temperature and cooking time settings can be made via the fields

• (increase; 20) and - (decrease; 21).

Temperature:

• preset: 160^ C
  can be set from 80 - 200^

Cooking time:

• preset: 15 minutes
  can be set from 1-60 minutes

These settings can be made both before the start of the heating process and during it.

To scroll through the values quickly, leave your finger on the respective field.

TIPS

• Generally no oil or only a small amount of oil is required for preparing food. You can add oil to your food to enhance the taste by spraying your food with a little oil from the oil atomiser.
• The cooking time is dependent on the size and quantity of the food and on the cooking temperature. However, in general the cooking time is shorter than in a conventional oven. Start with a shorter cooking time and then adapt the cooking time to your personal taste.
• When preparing mass-produced frozen products, you should follow the times and temperatures specified by the manufacturer. Before the specified cooking time elapses, check whether the food is already cooked through because the cooking time can be slightly shorter than in a conventional oven.
• With some food (e.g. chips and similar items), it is advisable to mix the food around from time to time to obtain an even cooking result.

USE

This device operates with hot air. It is not a conventional fryer in which food is deep-fried using lots of oil! In general, you can prepare all dishes that can also be prepared in a conventional fan oven. For good results, read through the "Tips" chapter.

Please Note!

• Do not use the device for longer than 3 hours without a break.
  Do not use the device for a lengthy period without food in the drawer.

• Do not place food that is still wrapped in cling film or plastic bags into the device.
  The device must not be moved during operation.
  Make sure that the food does not come into contact with the heating element of the device.

• Fill the drawer no more than 13 full so that the hot air can circulate optimally inside the cooking chamber.
  Make sure that foodstuffs containing oil and fats are not overheated.
  If smoke rises from the device, pull out the mains plug immediately. One exception is the first time the device is used without any food (see the "Before Initial Use" chapter).
  Always place the drawer and the rack if applicable on a heat-resistant surface after use.

• Get ready the food that is to be prepared.

• Place the rack (3) on its silicone feet in the drawer (4).
• Place the food in the drawer.
• Insert the drawer into the main unit (2).
• Connect the device to a plug socket (see the "Set-Up and Connection" chapter).
• Touch the field to activate the display (14) of the control panel. The cooking time in minutes and the cooking temperature in ^ C flash alternately.
• Either manually adjust the cooking time and temperature or select one of the 6 programmes (see the "Functions" chapter).
• Touch the field Driefly to start the cooking process. If the cooking process is to be interrupted, touch the field Driefly again. The control lamp of the field

flashes while the cooking process is paused.

If the drawer is pulled out, the cooking process is interrupted. It resumes after the drawer is inserted.

1. Once the set cooking time has elapsed, 00 appears on the display and a series of beeps are heard.

Touch switch off the beeps and the device.

The fan continues to run for a little while. All elements on the control panel then go out.

1. Pull the drawer out of the main unit by the handle and place it down on a heat-resistant surface.
2. Take the food out of the drawer.
3. Allow the device and accessories to cool down and then clean them (see the "Cleaning and Storage" chapter).

CLEANING AND STORAGE

Please Note!

The main unit and the drawer are not dishwasher-safe.
- Do not use any sharp or abrasive cleaning agents or cleaning pads. These may damage the surfaces.

Clean the drawer (4), the rack (3) and if necessary the main unit (2) after every use to prevent germ formation and to prevent food residues from burning on. Do not allow any food residues to dry on.

1. Make sure that the device has been disconnected from the mains power.
2. Rinse the drawer and the rack with detergent and warm water. Allow any burned-on food to soak in warm water with a little detergent beforehand. The rack can be cleaned in the dishwasher.

EN

1. If the heating element is dirty, wipe it down with water and use a little detergent if necessary.
2. Wipe down the main unit and the connecting cable with a damp cloth if necessary.
3. Allow all parts to dry completely or dry them off.
4. Store the device and all accessories away in a clean, dry location that is out of the reach of children and animals when not in use for a prolonged period.

TROUBLESHOOTING

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps below, contact the customer service department.

Do not attempt to repair an electrical device yourself!

The device does not work.

The mains plug is not inserted in the plug socket correctly.

Correct the fit of the mains plug.

The plug socket is defective.
Try another plug socket.

There is no mains voltage.

Check the fuse of the mains connection.

The drawer (4) is not fitted correctly in the main unit (2).

The drawer must be fully inserted in the main unit so that the device can start the heating process.

The overheating protection has been triggered.

Pull the mains plug out of the plug socket and allow the device to cool down completely. Then try again.

The fuse in the fuse box is triggered.

Too many devices connected to the same circuit.

Reduce the number of devices in the circuit.

The food has not been cooked evenly.

Different items of food with different cooking times have been prepared at the same time.

Place food with a longer cooking time in the device first, then add ingredients with a shorter cooking time later.

Items of food which require different cooking temperatures have been prepared at the same time.

Prepare items of food with different cooking temperatures one after the other.

The set cooking time was too short or the temperature too low.

Increase the cooking time or temperature.

The drawer (4) is too full.

Reduce the amount of food. Fill the drawer no more than 13 full with food.

The items of food are piled on top of one another.

• Spread the food and mix it around from time to time.

Chips made from fresh potatoes are not crispy.

The potatoes contain too much water.

Cut the potatoes into narrower pieces. Dab the potato pieces dry with some kitchen towel and then trickle a little cooking oil over them.

During use, an unpleasant smell is detected. /Smoke emerges from the device.

The device is dirty.

Follow the instructions in the "Cleaning and Storage" chapter.

The device is being used for the first time.

A smell often develops when new devices are first used. The smell should disappear once the device has been used several times.

Too much oil or fat.

Remove excess oil or fat.

DISPOSAL

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

The adjacent symbol (crossed-out bin underlined) means that used devices should not be disposed of in the domestic waste, but should instead be taken to special collection and return systems.

Owners of used devices from private households can take them free of charge to the collection points of the public waste disposal authorities or the disposal points which are set up by manufacturers and distributors under the Electrical Equipment Act. Businesses which market electrical and electronic devices are also obliged to take back used devices.

TECHNICAL DATA

Article number: 11229

Model number: HIC-AF-8062D1

Power supply: 220 - 240V 50 / 60Hz

Power: 1400W

Protection class: I

Capacity: max. 3 litres

Temperature setting: 80^ to 200^

Timer: up to 60 minutes

ID of operating instructions: Z 11229 M DS V1.1 1122 as

All rights reserved.

SOMMAIRE

Composition 22

Apercu general 22

Symboles 23

Chere cliente, cher client,

Attention: surfaces chaudes!

Temperature: 160^

Temperature: 180^

La protection anti-surchauffe a ete declenchee.

WAARSCHUWING - Brandgevaar

De contactdoos is defect.

De lade (4) is te vol.
