USER MANUAL eScooter E125S SEGWAY
Segway eScooter
User Manual
E series
- Overview 01
- Package and Functions 05
- First Use 12
- Learn to Ride 14
- Installation of Lithium-ion Battery 14
- Charge the Battery 16
- Common Failures and Solutions 17
- Maintenance 18
- Specifications 21
- Certifications 23
- Trademark and Legal Statement 23

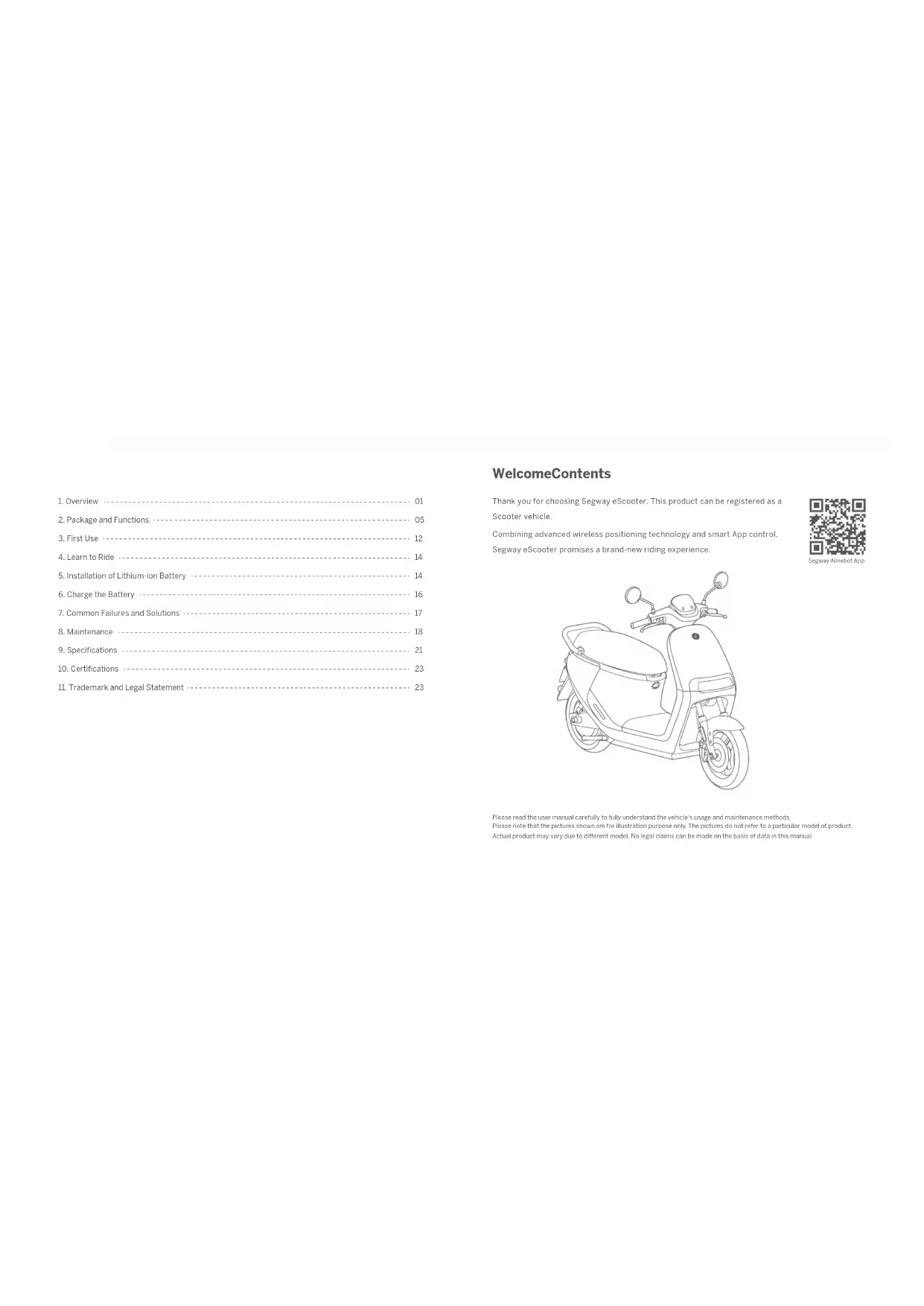

WelcomeContents
Thank you for choosing Segway eScooter. This product can be registered as a Scooter vehicle.
Combining advanced wireless positioning technology and smart App control, Segway eScooter promises a brand-new riding experience.


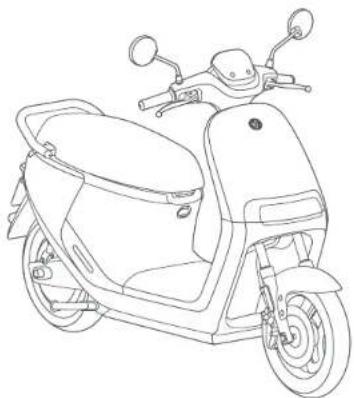

Line drawing of a scooter with front wheel, backrest seat, and side-mounted scooters (no text or symbols)
Please read the user manual carefully to fully understand the vehicle's usage and maintenance methods. Please note that the pictures shown are for illustration purpose only. The pictures do not refer to a particular model of product. Actual product may vary due to different models. No legal claims can be made on the basis of data in this manual.
1. Overview
IMPORTANT
For the purpose of emphasis, the words and symbols of "WARNING" (▲) "CAUTION" (⊗) and "NOTE (*) have special meanings. Pay extra attention to information highlighted by these signals: WARNING ▲ indicates a potential hazard that could result in death or serious injury. CAUTION ✉ indicates a potential hazard that could result in minor or moderate injury. NOTE (*) indicates information that makes installation and maintenance easier.
\* NOTE
You must thoroughly understand the user manual before riding the Segway eScooler. This manual should be considered as a permanent part of the vehicle and should remain with the vehicle if or when ownership is changed.
NOTE
Read the Service and Maintenance Record thoroughly so you understand the coverages under which your vehicle is covered, as well as your rights and responsibilities.
WARNING
- Check and obey all local laws or regulations of Lle Scooter driving in your region or country.
- Do not ride through deep water, submerge the vehicle or wade in water for a long time. The battery will be damaged and it will cause serious damage to the scooter.
- You must wear a helmet and protective gear when riding at all times.
- Improper decorations and modifications may result into fatal injury. We strongly advise that you do not modify your Segway eScooter or remove any original equipment. Changing its original design or operation will be dangerous and will void the warranty.
- Do not use a high-pressure washer hose directly on the electrical components.
Riding Safety
- Remember that whenever you ride this product, you risk injury from loss of control, collisions, and falls.
D102
To reduce the risk, you must read and follow all "CAUTION" and "WARNING" notices. Please understand that you can reduce the risk by following the instructions and warnings in this manual, but you cannot eliminate all the risks. Please use common sense when riding.
- In order to master riding skills, practice is necessary. Use with caution to avoid falls or collisions causing injury to yourself or others. Neither Ninebot Inc., which means Ninebot (Beijing) Tech Co., Ltd. and its subsidiaries and affiliates nor Segway Inc. would be responsible or liable for any injuries, damage or legal disputes caused by rider's inexperience or failure to follow the instructions indicated in this manual.
- When entering public places, always comply with the local laws and regulations.
● In places without laws regarding Scooter, comply with the safety guidelines outlined in this manual.
- Do not modify the scooter or change parts by yourself. Use only Ninebot or Segway approved parts and accessories. Any modifications to your scooter could interfere with its operations, result in serious injury and/or damage, or void the Limited Warranty. If you need to replace any component, please contact after-sales service or an authorized dealer.
- If the scooter makes abnormal sounds or signals an alarm, stop riding immediately. Contact after-sales service for advice.
Who Should Not Ride:
Those who should not ride Segway eScooter include:
I. Underaged people (According to local laws and regulation).
II. Anyone under the influence of alcohol, drugs, or intoxicants.
III. Anyone who suffers from diseases that put them at risk if they engage in strenuous physical activity.
IV. Pregnant women.
V. Those with compromised mental abilities who cannot understand the risks and proper operation of the vehicle.
Riding Surfaces and Environment:
- Do not ride in bad weather
- Slow down and ride with care on complex road conditions. Segway eScooter might lose control if ridden at high speeds to pass obstacles, bumpy roads, low traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel, and ice), when riding on slopes or making sharp turns.
- When riding in rainy or snowy weather, the traction is reduced and the braking distance is increased. For your safety, please drive slower and brake earlier to reduce the risks of loss of control and falls.
Before Riding:
- Before each ride, inspect the brakes system and tire conditions and make sure there are no loose or damaged parts.
- DO NOT allow anyone to ride the scooter on their own unless they have carefully read this manual. The safety of a new rider is your responsibility. Assist new riders until they are comfortable with the basic operations. Make sure each new rider has gone through the New Rider Tutorial and is made fully aware of the safety precautions.
- When the remaining battery is less than 20%, charge the scooter in time with the original charger. Please regularly check the lights, tire pressure, tire tread, brake cable, rear view mirrors and other components function properly.
Instructions on Riding and Usage:
● ONLY ride on flat paved surfaces. DO NOT accelerate or brake abruptly when driving.
- Stay alert when driving and always keep a safe distance from other vehicles. Slow down when entering a new environment.
- Please hold the handlebar with both hands to avoid serious injuries due to loss of balance or falling. DO NOT use a cell phone, camera, headphones, earbuds or perform any other activities while riding.
- Slow down when approaching intersections, motorways, corners, doors, etc. Yield the right of way for pedestrians, bicycles and motor vehicles.
- If any abnormality occurs, stop riding immediately and contact the after-sales service in time. DO NOT ride before the cause of the abnormality is found out and repaired.
● Always park the vehicle on a flat surface after turning it off. Otherwise the vehicle may slip and cause harm to you or others.
Warnings and Precautions
Potential safety hazards involved
Avoid all dangerous driving activities!
DG NOT under the influential
Canal low other vehicles.
Slow down and ride with care on
sample road conditions.
Always park the vehicle on a flat surface, otherwise the vehicle may slip or rip near causing harm to yourself or others.
Never use Segway October to carry any charge.
SO NOT drive during bad weather or when adjusted.
Ricemistry and
abnormally.
Δ
Name charges are the half-year charge left in the seat bucket
DO NOT use mobile phones, carers,
headphones, ear pugs and the like when riding.
Vehicle
Accessories
user manual × 1 CD records and performance Record × 1
(4) g / h will now consider the
Hist or charge × 1
广力云智慧零售收银系统
Kary×2
©19
molecular controls 2
When unpacking, please check if all items are in good condition. If there are any missing or defective parts, please contact your dealer or the after-sales service.
To avoid damage to vehicle parts or to avoid accidents, please consult with your dealer for service and vehicle adjustment.
05 06

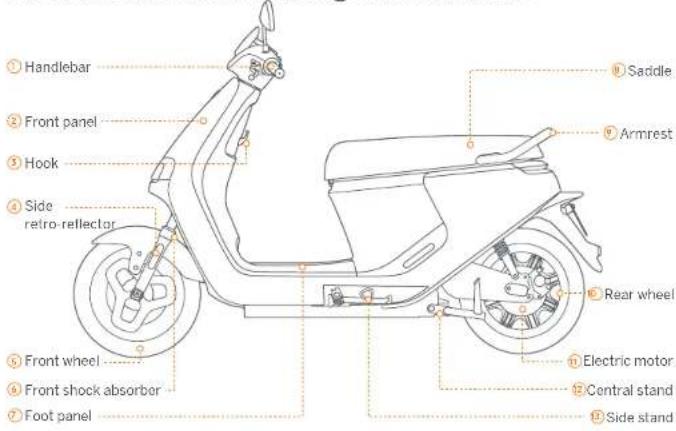

Parts and Functions2. Package and Functions
② Front panel
③ Hook
④ Side retro-reflector
⑤ Front wheel
⑥ Front shock absorber
⑦ Foot panel
⑧ Saddle
⑨ Armrest
⑩ Rear wheel
⑪ Electric motor
⑫ Central stand
⑬ Side stand
① Functions of the Remote Control
Follow the instructions of step 1 in "First Use". The remote control can work when the scooter is powered on and the distance between the remote control and the scooter body is no greater than 10m .
- Gn/Off button
(a) When the scooter is all, please his button to power it on.
(b) When the scooter is on, press this button to power it off.
- Lock burton
(a) When the socket is off, press this button to lock it.
(b) When the socket is on, press this button to power off and lock it.
Operation indicator
Press any button if the indicator lights up, it means the remote control works properly.


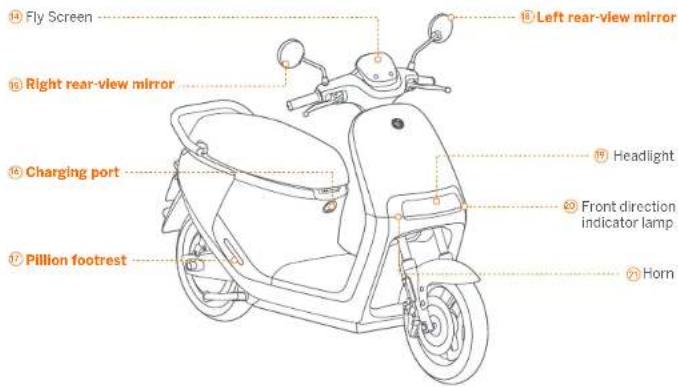

Fly Screen
Right rear-view mirror
Charging port
Pillion footrest
Left rear-view mirror
Headlight
Front direction indicator lamp
Horn
⑤⑧ Rear-view mirror installation
a. Unscrew bolt B as shown in the picture.
b. Mount onto the handlebar and affix the bolt.
c. Screw the rear-view mirror into the bolt counterclockwise. Turn bolt A until it comes into contact with bolt B.
d. Tighten the bolts in the opposite direction with the wrenches. Slide down the protector to cover the bolts.
Charging port
Charge the Vehicle
Please power off Segway eScooter before charging.
Open:
Push the footrest and it will pop out automatically.
The charger indicator turns green when the battery pack is fully charged.
Close:
Push the footrest inward.

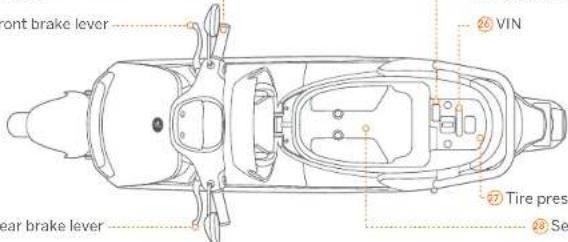

2 Throttle
23 Front brake lever
VIN
ear brake lever
Tire press
Seat
25 Foot panel switch
26 VIN
26 VIN
26 VIN
26 VIN
26 VIN
26 VIN
26 VIN
26 VIN
26 VIN
26 VIN
26 VIN
26 VIN
26 VIN
26 VIN
26 VIN
26 VIN
NIA 92
26 VIN
26 VIN
26 VIN
26 VIN
26
26
26
26
26


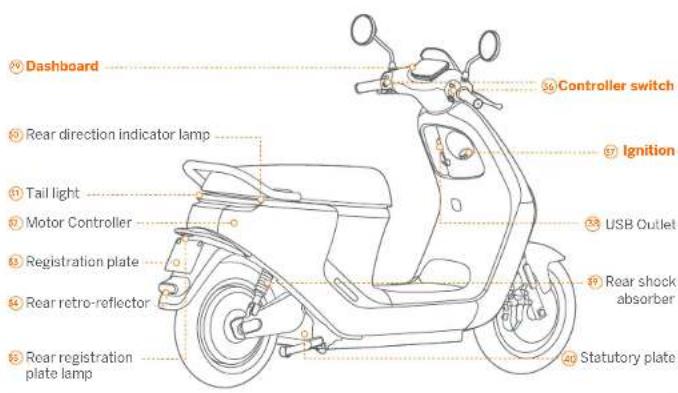

Dashboard
Rear direction indicator lamp
Tail light
Motor Controller
Registration plate
Rear retro-reflector
Rear registration plate lamp
Controller switch
Ignition
USB Outlet
Rear shock absorber
Statutory plate

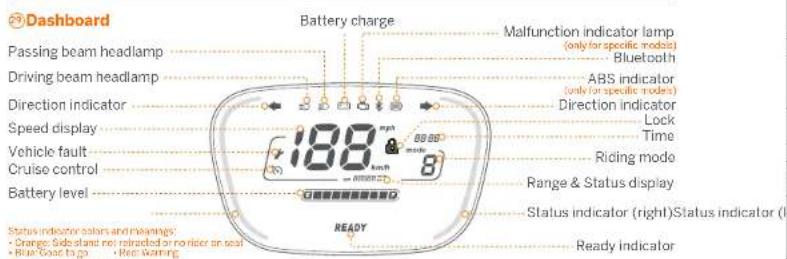

Passing beam headlamp
Driving beam headlamp
Direction indicator
Speed display
Vehicle fault
Cruise control
Battery level
Battery charge
Malfunction indicator lamp
(only for specific modes)
Bluetooth
ABS indicator
(only for specific modes)
Direction indicator
Lock
Time
Ricing mode
Range & Status display
Status indicator (right)Status indicator (l)
Ready Indicator
Status indicator colors and meanings:
• Orange Side stand not retracted or no rider on seat
• Blue Coat to go • Red Warning
| Symbol Name Description Details Symbol |
| READY | READY indicator When | READY is on, the vehicle is good to go. | When the side stand is folded up and a person sits on the seat, press the Auto Key, and READY is on |
| Direction indicator (Left/Right) | 1. Flash when the left/right turn button is pressed.
2. When both direction indicators (left and right) lights up simultaneously with the warning indicator, the vehicle is in a warning state. | 1. When toggled (at left combination switch) to the left/right, the left/right turn signal turns on. Press again to turn off the turn signal.
2. When pressed (at right combination switch), the left/right turn signal and this indicator will flash to alert pedestrians and other vehicles, press again to remove the warning. |
| Driving beam headlamp | The high beam is on when it lights up. | Find it button at left combination switch, toggle to light up the high beam. |
| Passing beam headlamp | The low beam is on when it lights up. |
| Battery charge | The battery power is low and needs charging when it lights up. | When the battery power is low, this indicator lights up and the battery level bar on the dashboard flashes. |
| Malfunction indicator lamp | The indicator light will light up when the vehicle has a malfunction. | This indicator will flash once when powering on. This indicator will light up when the vehicle has a malfunction, and the error code will be displayed on the dashboard. |
| Bluetooth | The vehicle is connected to a phone when it lights up. |
| ABS indicator | The indicator light is on when the vehicle working normally. | If the symbol stays on when the speed is >5 km/h, it means there is an error in the ABS. |
| Cruise control | The vehicle is in cruise control when it lights up. | During riding, press (at the left combination switch) to lock the current vehicle speed. Turn the throttle or brake lever to remove the cruise control. |
| Vehicle failure | When the icon flashes, the vehicle has a malfunction. |
| Vehicle lock | The vehicle is locked when the icon lights up. | Press on the Remote Control to lock the vehicle. Press to unlock the vehicle, at the same time, this indicator off. |
| Speed display | 1. Indicates the current speed.
2. Displays the error code when there is a malfunction. | mph: Imperial unitskm/h: Metric unit |
| Clock | Indicates current time. |
| Range | Indicates the total distance traveled. | miles: Imperial unitskm - Metric unit |
| Status display | Last: While the vehicle is locked, insert the key and turn to ON mode after: The vehicle is still at ON mode when trying to turn to via remote control or by pressing the Auto button. Next: The throttle is turned while the side is supported. Off: The throttle is turned while charging next: The throttle is turned when there is no order. |
| Symbol Name Description | CommentsSymbol | |
| B | Riding mode | Indicates the current gear. |
| Remaining battery level | Bars of remaining battery. |
3.6 Controller switch
Left combination switch
Right combination switch
Passing/Driving
beam switch
Turn signal switch
Cruise switch
Horn switch
Right c
Riding mode switch
Hazard warning
switch
Auto key
Symbol Symbol Name Meaning
  | Passing/Driving beam switch | 1. Toggle it to the right to activate the high beam; toggle it to the center to turn off the high beam. 2. Slide it all the way to the left to turn on the overtaking signal; Release to cancel the overtaking signal. |
 [GC6H] [K9Y4]    | Turn signal switch | When toggled to the left, the left turn signal turns on. The button resets automatically after releasing. Toggle it to the center and press to turn off the left turn signal When toggled to the right, the right turn signal is on. The button resets automatically after releasing. Place it at the center and hold down to turn off the right turn signal. |
[76SY]  | Cruise switch | When pressed, the horn is sounded to alert pedestrians or other vehicles. |
| [2XYH] [KTZY] | Riding mode switch | Press "+/-" to increase the mode (higher speed), and press "-/-" to decrease the mode (lower speed) |
  [A3BZ] [ZX08] [KBHT] | Auto key | When the vehicle is on, double-press to open the seat bucket or press and hold to switch off the vehicle. If the AirLock is enabled in the App, hold this button while the paired phone is within range to turn on the vehicle. When the side island is folded up and the rider is on the seat, press this key and READY indicator is on. |
| Hazard warning switch | When the button is pressed, both the left and right turn signals will flash to alert pedestrians and other vehicles. |
⑦ Ignition
OFF position
The vehicle is powered off.
ON position
The vehicle is powered on.
OPEN position
Rotate left to open the seat bucket.
LOCK position
Turn the handlebar to the very left, then turn the key to the left end while pressing it down, so that the handlebar is locked.
3. First Use
For your safety, please go through the New Rider Tutorial in Segway-Ninebot App.
① Turn on
a. Open the seat bucket with your key, and pull the foot panel switch to unlock it.
b. Lift the lid.
c. Connect the battery plug.
d. Close the lid.
② Powering-on and activation
a. Power on:
Option 1: Power on with the key [see37 Ignition].
Option 2: Press the ON button on the remote control [see④ Functions of the Remote Control for details].
Option 1
Option 2
b. Activation:
Enable AirLock: Enable Bluetooth on your phone, scan the QR Code on the dashboard to download and install the app > register and log in > click "Search device" > Connect. Follow the instructions to bind your Segway eScooter.
© How to power on/lock the vehicle after activation
There are four ways to power on/lock the vehicle.
Option 1: Use the remote control: Press ON/OFF button to unlock and power on the vehicle; press the lock button to power off and lock. [See④ Functions of the Remote Control for details]
Option 2: Use the key: Insert the key and turn it clockwise to ON position to power on or counterclockwise to LOCK position to lock. [see37 Ignition]
Option 3: Press the Auto button [see③6 Controller Switch]
Option 4: Via the Segway-Ninebot app as shown below:
1. Press the On/Off button on the vehicle homepage.
2. Press "Confirm" on the popped-up window.
3. When the indicator on the dashboard is pre-light, press and hold the Auto button to power on/lock the vehicle.
4. Learn to Ride
a. When powered on via the App, sit on the cushion and retract the side stand.
b. Press the Auto Key.
c. The "Ready" indicator lights up. d. Squeeze the throttle inwards to go.
5. Installation of Lithium-ion Battery
For E110SE / E110S:
NOTE: Before installation, make sure there is no foreign object in the battery compartment and there is only one plug inside.
-
Place the battery in.
-
Connect the battery plug.
For E125S:
NOTE: Before installation, make sure there are no foreign objects in the battery compartment with two plugs inside.
1. Place the battery (a) in.
2. Push the battery (a) to the inner end.
3. Connect the battery plug on the corresponding side.
4. Place the battery (b) in the compartment.
5. Connect the battery plug(s). \* The battery (a) means the first battery; (b) is for
6. Charge the Battery
3. Connect the charging cable to the charging port on the battery and then plug into a power socket.
\* The indicator on the battery charger shows solid red when charging and turns green when finished.
^+ For how to charge the vehicle, see [16 Charging Port] at page 8.
- Common Failures and Solutions
| Fault | Possible causes | Solution |
| Error code-10 | Controler communication error | Check the controller, dashboard and real-time wiring. |
| Error code-11 | Underchriage protection of motor controller | Change the vehicle before use. |
| Error code-12 | Motor tool sensor fault |
| Error code-13 | Controller MOS bus fault | Check the throttle, motor, motor controller and related wiring. |
| Error code-14 | Throttle abnormality |
| Error code-15 | Drain switch abnormality | Check the brake issues, motor controller and related wiring. |
| Error code-16 | Error in solving configuration settings | Please contact after sales service or an authorized dealer. |
| Error code-17 | Discontinued communication error | Check the ECU winding inside the dashboard. |
| Error code-18 | Lead and sampling board communication error | Check the lead jack sampling board and the related wiring. |
| Error code-19-30 | Lithium combustion abnormality | Check the, lubricants, battery and related wiring. |
| Error code-20 | Program restructive error | Update the program. |
| Error code-24 | Aluminum vehicle temperature | Check the temperature sensors of the dashboard. |
| Error code-25 | Discontinued and ECU communicate error | Check the discharge ECU and related wiring. |
| Error code-26 | Work central core filter signals | Make sure the vehicle is parked in an open space outdoors. |
| Error code-27 | Low battery control controller | Connect the battery and keep the main switch on for load 5 years. |
| Error code-28 | Electric switch error | Check if the electric switch can be short-circuit or broken. |
| Error code-40 | AHRS calculator and heading reference system error | Please contact after sales service or an authorized dealer. |
| Error code-41 | Stem lock not released | Turn all the vehicle and power it again. |
| Error code-42 | Inward or moving ECU certificate | Replace ECU. |
| Error code-43 | The vehicle was in a crash or divergent impact | If this a cable alarm pressure check the dashboard. If there was an sejection, turn off the vehicle and power it again. |
| Vac battery | Battery rod connected properly | Check if the main plug of the battery is properly connected. |
| The main switch is off | Turn on the main carbon. |
| Brown lamp | Replace the lamp. |
| Short range | inductive eye type pressure | Check the eye pressure, 1.0 bar for front wheel and 2.0 bar for rear wheel. |
| Low battery failure in battery change | Fully change the battery in time. |
| Frequent alarms, breakers or overloading | Maintain pulse ringing signals and DD DOT enclosed the main paydown. |
| Battery failure | Please contact after sales service or an authorized dealer. |
| Other faults | If you are more or malfunctioned that cannot be solved by the instn, claims above, or the issue cannot be identified. | |
| Smart server rail available, including AHLock, scooter-locating EOS emergency radio, D/A upgrade, status price euro, within nominal and battery info, vehicle/battery loss report, publications, pricing restored and statutes, etc. | 1. The integrated SIM card in ECU has expired. (A case) vehicle comes with a limited time. The actual service from the side of our system. The SIM card info will be entered within 3 months (part expiry). 2. ECU error | 1. Within three months after the expiry. You may renew your own-enabled server to "All-electron Services - Smart Services" in the Speedway Network App. When assessing the 5-month limit, you need to pay above select the ECU. 2. Replace ECU. |
8. Maintenance
Cleaning and maintenance
Cleaning
Wash with water and neutral detergent and use a soft and wet cloth to clean.
CAUTION
DO NOT clean with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may damage the appearance and internal structure of the vehicle. DO NOT rub with sandpaper or metal brush.
WARNING
Before cleaning, make sure the vehicle is powered off.
Storage
Store in a dry and cool place indoors and avoid sunlight and rain, so as to avoid oxidation and shorten the service life. Disconnect the battery plug for long-time storage to prevent over-discharge.
Motor
- When driving through puddles or pools of water, make sure that the water level should not exceed the central axis of the rear wheel.
- Regularly check the motor. In case of any loose objects, tighten immediately.
- Clean the vehicle regularly to prevent particles from entering the motor and affecting its normal function. Do not spray water directly during cleaning.
- Inspect if there are any scratches on the motor and whether there is any abnormal noise when the motor is running. In case of any abnormality, contact after-sales service or your dealer.
Battery
- In case of any malfunction with battery, please contact the after-sales service or an authorized dealer.
-
DO NOT drain the battery. It is recommended to keep the battery level above 15%. Charge after each ride to prolong the service life of the battery.
-
It is strictly prohibited to disassemble the battery. There is a danger of electric shock, short circuit, fire, explosion, etc.
- When the battery indicator bars are all lit up or the charger indicator turns green, it means the battery is fully charged.
- If you are not going to use the vehicle for a long time, take out the battery after it is fully charged, place in a dry and well-ventilated place, and charge it every two months.
- DO NOT store the battery in a place where there is a risk of falling. Falling may cause battery damage and short circuit, fire and explosion.
Battery Charger
Before charging:
- The charger should ONLY be used to charge the original vehicle. It is strictly prohibited to charge non-rechargeable batteries.
- To prevent the electronic components inside the charger from loosening, DO NOT place the charger inside the vehicle.
- The power supply voltage should be 200-240V AC.
- Should you discover any wire damage or loose connector, stop using the Segway eScooter.
During charging:
- Place the vehicle in a safe place away from the elements.
- Connect to the battery or vehicle charging port first, and then plug into the power socket.
- When there is an unusual smell, sound or light display, stop charging immediately and contact after-sales service.
After charging:
- When the battery is full, disconnect from the power socket first and then unplug from the battery/vehicle.
- After the charger cools down, place it in a safe place inaccessible to children.
WARNING
- Ensure good ventilation during charging. Stay away from fire or explosive materials!
- High voltage in the charger! DO NOT disassemble or replace parts of the charger.
- DO NOT connect the charger to the power supply for a long time. Unplug from the power socket when not charging. DO NOT use the charger to charge multiple vehicles.
- Regularly inspect the charger for damage to the cord, plug, enclosure and other parts. If any damage is found, stop using until it is repaired or replaced.
- The external cable of the charger cannot be replaced; if the cord is damaged, the charger must be discarded and replaced by a new one.
- The charger should be handled with care.
Others
● Tires supplied with the product are to be mounted on the wheel by a professional repairer. Removing the wheels is complicated and incorrect assembly can lead to instability and malfunctions.
- You may find the limited warranty information in the service and maintenance record booklet.
- Efforts have been made to simplify wording in the user manual for users. Where an action appears too complicated for a user, he/she is advised to contact an authorized or a specialized repairer or customer service.
- For maintenance record and limited warranty, please refer to Segway eScooter Service and Maintenance Record.
NOTICE: INSURANCE
YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS INVOLVING THE USE OF THIS ESCOOTER. TO DETERMINE IF COVERAGE IS PROVIDED, PLEASE CONTACT YOUR INSURANCE COMPANY OR AGENT.
- Specifications
| Product Name | Segway eScoaler E10SE Segway | eScoaler E10S Segway eScoaler E12SS |
| Vehicle Parameters | Dimensions (LxWxH) | 1876 x 675 x 1169 mm | 1876 x 675 x 1169 mm | 1856 x 675 x 1169 mm |
| Vehicle Weight(batteries not included) | 75 kg 78 kg 30 kg | | |
| Wheelbase | 1365 mm | 1365 mm | 1365 mm |
| Max. Speed | 25 km/h | 45 km/h | 25 km/h | 45 km/h | 25 km/h | 45 km/h |
| Dachric Range(WMTC Stages3)* | 59 km | 49 km | 47 km | 40 km | 102 km | 81 km |
| Typical range* | 84 km | 65 km | 73 km 123 km | 57 km | | 106 km |
| Energy Consumption | 30 Wh/km | 37 Wh/km | 28 Wh/km | 37 Wh/km | 28 Wh/km | 39 Wh/km |
| Max. Motor Output Power | 1.5 kW | 1.5 kW | 3 kW |
| Max. Torque for Drive Wheel | 88 N·m | 88 N·m | 120 N·m |
| IP Rating | IPX5 | IPX5 | IPX5 |
| Space under Seat | 27 L | 27 L | 27 L |
| Seats | For two persons | For two persons | For two persons |
| Battery | Battery Type | Li-Ion | Li-Ion | Li-Ion |
| Charging Time | 3-6 hours | 4-5 hours | 4 hours |
| IP Rating | IPX7 | IPX7 | IPX7 |
| Capacity | 38 Ah | 30 Ah | 30 Ah × 2 |
| Weight | 11 kg | 11 kg | 11 kg × 2 |
| Rated Voltage | 48 V | 48 V | 48 V |
| Battery Energy | 1824 Wh | 1440 Wh | 2850 Wh |
| Charger | Nominal Power | 420 W | 420 W | 1120 W |
| Charger Input Voltage | 200-240V-50Hz 3.0A MAX | 200-240V-50Hz 3.0A MAX | 200-240V-50/60Hz 6.5A MAX |
| Charger Output Voltage | 52.5 V | 52.5 V | 54.2 V |
| Tyre | Tyre Type | Front: 80/90-12, tubelass tyre | Front: 80/90-12, tubelass tyre | Front: 100/70-12, tubelass tyre |
| Rear: 90/80-12, tubeless tyre | Rear: 90/80-12, tubeless tyre | Rear: 120/70-12, tubeless tyre |
| Standard Tire Pressure | Front: 200 kPa | Front: 200 kPa | Front: 200 kPa |
| Rear: 220 kPa | Rear: 220 kPa | Rear: 220 kPa |
| Strakes | Front brake | Disc | Disc | Disc |
| Rear brake | Disc | Disc | Disc |
| Product Name Segway eScopler E110SE Segway eScopler E110S Segway eScopler E125S |
| Dashboard | Digital | Digital & VA panel | Digital & VA panel | Digital & VA panel |
| Power Indicator | 10-Segment display | 10-Segment display | 10-Segment display |
| Smart Features | AirLock | Yes | Yes | Yes |
| Handlebar Lock | Yes | Yes | Yes |
| Seat Trunk Lock | Yes | Yes | Yes |
| Sost Detection | Yes | Yes | Yes |
| Kickstand Detection | Yes | Yes | Yes |
| OTA | Yes | Yes | Yes |
| AHRS | Yes | Yes | Yes |
| Built-in IoT | Yes | Yes | Yes |
| Cruise mode | Yes | Yes | Yes |
| Smart BMS 8.0 | Yes | Yes | Yes |
*WMTC criteria: 75kg/load = 5kg, 175m = 0.05m, max wind speed of 3m/s with a minimum air temperature of 5°C and a maximum of 35°C.
*Typical range: The accumulated range of the vehicle (20 km/h or 40 km/h version) tested at their respective maximum speed with 160 lbs (75 kg), 77°F (25°C), wind speed < 3m/s on a paved road until no more power remains.
*Some of the factors that affect range include: rider weight, number of starts and stops, ambient temperature, etc.
e.g. (E10SE) maximum achievable range of about 97 km at a constant speed of 20 km/h with 75–5 kg load in about 25 °C temperature.
e.g. (EJ10S) maximum achievable range of about 75 km at a constant speed of 20 km/h with 75 ± 5 kg load in about 25 °C temperature.
e.g. (E1255) maximum achievable range of about 140 km at a constant speed of 20 km/h with 75 = 5 kg load in about 25 °C temperature.
10. Certifications
This product is certified to EU No 168/2013.
The battery complies with UN/DOT 38.3.
The Radio Equipment Directive
CE
Segway-Ninebot EMEA
EU Contact Address for regulatory topics only: Dynamostraat 7, 1014 BN Amsterdam, The Netherlands
Hereby, Nine Tech Co., Ltd. declares that the wireless equipment listed in this section are in compliance with the essential requirements and other relevant provisions of the RED Directive 2014/53/EU.
| Bluetooth | Frequency Band(s) | 2.4000–2.4835GHz |
| Max. RF Power | 10 mW |
11. Trademark and Legal Statement
Ninebot, Ninebot AirLock, RideyGo! are the registered trademark or trademark of Ninebot (Tianjin) Tech Co., Ltd; Segway and the Rider Design are the registered trademarks of Segway Inc., Bluetooth is the registered trademark of BLUETOOTH SIG, INC.; Android. Google Play are trademarks of Google Inc., App Store is a service mark of Apple Inc.. The respective owners reserve the rights of their trademarks referred to in this manual.
We have attempted to include descriptions and instructions for all the functions of the Segway eScooter E110SE, E110S, E125S at the time of printing. However, due to the constant improvement of product features and changes of design, your Segway eScooter may differ slightly from the one shown in this document. Visit the Apple App Store (iOS) or the Google Play Store (Android) to download and install the App.
Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the Segway eScooter product and documentation without prior notice.
© 2020 Ninebot (Beijing) Tech Co., Ltd. All rights reserved.
Legal Statement:
-
Please read the User Manual carefully and learn how to ride Segway eScooter. As a means of transport, Segway eScooter carries all the same potential risks as those of any other vehicles. There are risks of losing control, collisions and falls when riding. In order to minimize the risks, you're obliged to read the User Manual carefully before your riding. It covers most knowledge about how to ride the eScooter safely and how to take appropriate precautions. If it is difficult for you to fully follow the riding instructions of the User Manual, please do not attempt to ride Your eScooter casually.
-
Please check and obey your local laws or regulations. It is User's responsibility to comply with all laws pertaining to the use of electric scooter in your jurisdiction. Various countries or regions have different laws and regulations about electric scooters, please note:
(1) A helmet may be legally required by local law or regulation in your jurisdiction.
(2) A Driving and/or Vehicle License of scooter may be legally required by local law or regulation in your area
(3) Your scooter may not be allowed to be driven on motorway or highway.
(4) Carrying pillion passenger(s) may be restricted in your jurisdiction. You can gain further guidance from the (local) government in your country or region.
-
Please insure yourself timely upon purchase of the product to minimize the risks of use.
-
Please check whether Your eScooter and its accessories are in good conditions immediately when you receiving them.
-
All components of Segway eScooter must be properly installed as per in the User Manual. Inappropriate installation may lead to loss of control, collisions and falls.
-
The product may contain removable components and small parts. Please keep it out of the reach of children to avoid choking hazard.
-
Before using Your eScooter, please check its tire pressure, battery level and vehicle installation status and all functional parts. Check whether the front and rear brakes function properly and ensure that the brake cable is not damaged. Brake cable should have the right tension. Screws, nuts, bolts and other fasteners must be checked. Make sure there's no loose part. If any abnormality is found, please stop using it immediately and contact our after-sale service for help.
-
You should always be cautious and maintain a proper speed when riding. Avoid speeding, overloading or performing stunts of any kind. Do not try to touch the tires with your hands or feet when riding.
-
Do not dispose of this product in a landfill, by incineration, or by mixing with household trash. Serious danger/injury can occur because of the electrical components and the battery. For information about battery and electrical waste, please contact your household waste disposal service, your local or regional waste management office, or your point-of-sale.
-
Try not to use any non-original accessories, and never dismantle or modify the product without authorization. All damage and loss arising therefrom will be your sole responsibility.
-
SEGWAY is subject to no compensation responsibility of any claim, liability and loss that arises (or may arise) from violating any of the abovementioned clauses. The User(s) should undertake all and any unpredictable or inevitable risks during riding.
-
After purchase, you may either use the product according to the abovementioned clauses, or return the Product as per the "Warranty Policies". In the case of a return, please ensure that both the Product and the packaging thereof are in good conditions for resale.
-
This document should be considered as a permanent part of the product and should remain with the vehicle when it is resold.
Thank you again for choosing Segway eScooter!
eScooter Segway Manuel
d'Utilisation
Série E
The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.segway.com or check the Segway-Ninebot App to download the latest user materials. In order to activate your Segway eScooter and obtain the latest updates and safety instructions, you must install the Segway Ninebot App.
SEGWAY
Contenus
No PAS certification required.
An para contemap de allos centricles.
Accessories
R.5018.40
ゴムにはゼロム×1
⑰ Repose-pied passager
Ouvrir :
Accessoires
Cortical
Битура-ен
法定代表人：
CCC×1
[Unreadable]
ral
10
[Unreadable]
d t
dhs
71m
六天
A1
376
办公
I HET
C
m = 311
m = 311
m = 311
E4
also
< 21
0119
vjs
[Unreadable]
1
handling × 1
onderhoudsoverz
[Illegible]
。
[Non-Text]
(五)
-
[Non-Text]
-
2.
[Non-Text]
[Non-Text]
[Non-Text]
。
广力云
1
et
vite
[Unreadable]
[Unreadable]
n
ec|
: d
-
[Non-Text]
[Non-Text]
-
m = 311
| Polar product: Espany e Scotior EL02E Espany e Scotior EL05 Espany e Scotior EL06 | |
| Cash/Card | Display | Display & VA current | Display & VA current | Panel non-impacted V4 |
| Verim reparamedate | Display and 10 segments | Display and 10 segments | Display and 10 segments |
| Smart function | Arlock | a | a | a |
| Standard | a | a | a |
| Spot pushbutton | a | a | a |
| Distratcic | a | a | a |
| Scandarabidelactine | a | a | a |
| C7A | a | a | a |
| A-RS | a | a | a |
| Imagereride in I | a | a | a |
| Gative control | a | a | a |
| Smart EMS 6.3 | a | a | a |
* VIVU-ertrile 70 kg tides in 1 kg 1.5 gm 1.005 mmol, 2000000000000000000000000000000000000000000000000000000000000000000000
The moment is a series of four years ago, the first year has been given by the first time. The second year has been given by the second time.
