Ninebot eKickScooter ZING C20 - Scooter SEGWAY - Free user manual and instructions

Product Type	Electric scooter for children/teenagers
Brand	Segway
Model	Ninebot eKickScooter ZING C20
Dimensions (L x W x H)	36.2 × 15.7 × 40.2 inches (approx. 92 × 40 × 102 cm)
Net weight	10.6 kg (23.4 lbs)
Maximum load	50 kg (110 lbs)
Recommended age	From 10 years old
Recommended height	140 to 180 cm
Maximum speed	16 km/h (10 mph) in Turbo mode
Range	Approximately 20 km (12.4 miles)
Battery	Lithium-ion, 108 Wh, 5000 mAh
Charging time	Approximately 6 hours
Motor	150 W nominal / 260 W max
Brake	Rear manual brake
Tires	Tubeless, synthetic rubber
Frame	Steel
Protection	IPX4 (splash resistant)
Operating temperature	-10°C to 40°C (14°F to 104°F)
Charger	Input 100-240 V, output 25.2 V / 1.0 A
Main features	3 driving modes (Turbo, Safe, Cruise), electronic throttle, battery indicator, ambient light
Maintenance and cleaning	Clean with a soft damp cloth; lubricate bearings; regularly check brakes and tires
Safety	Helmet and protective gear mandatory; adult supervision required; do not use on roads or in wet conditions
Spare parts and repairability	Tires, brake, battery (non-user-replaceable), charger – contact customer service; repair by approved professional
General information	Leisure use only; comply with local laws; limited warranty; QR code activation required before first use

Frequently Asked Questions - Ninebot eKickScooter ZING C20 SEGWAY

How to activate the scooter before first use?

Scan the QR code on the scooter using your smartphone and follow the instructions to remove the initial speed limit (5 km/h).

What is the maximum speed and how to change modes?

The maximum speed is 16 km/h in Turbo mode. Press the power button to switch between Turbo (solid light), Safe (fast blinking), and Cruise (slow blinking) modes.

What are the recommended weight and age for using this scooter?

The scooter is designed for users 10 years and older, weighing between 20 and 50 kg (44-110 lbs) and measuring between 140 and 180 cm.

How to charge the battery and how long does it take?

Open the charging port cover, plug the provided charger (25.2 V / 1.0 A) into a wall outlet. The charger indicator changes from red (charging) to green (fully charged) in about 6 hours.

What is the actual range and what factors affect it?

The advertised range is approximately 20 km under ideal conditions (load 50 kg, 25°C, average speed 60% of max). It decreases with rider weight, frequent starts/stops, temperature, and terrain.

What protective gear is necessary?

Always wear an approved helmet, knee pads, and elbow pads. The manual also recommends closed-toe shoes and sportswear. Adult supervision is required.

How to maintain and clean the scooter?

Clean with a soft damp cloth; avoid alcohol, gasoline, or solvents. Lubricate the wheel bearings with oil. Regularly check the brakes, tires, and for any foreign objects.

What to do in case of malfunction or alarm?

If the scooter emits an abnormal beep or the indicator blinks red, stop riding immediately. Consult the manual and contact Segway customer service if the problem persists.

Can I ride in rain or at night?

No, the scooter is rated IPX4 (splash resistant) but submersion can damage the battery. Avoid rain, snow, and low visibility conditions (dawn, dusk, night).

How to fold or disassemble the scooter for transport?

For the C20 model: turn off the scooter, loosen the safety clamp and the folding clamp, fold the stem backward and lock the latch into the mudguard loop. Hold the stem to carry it.

USER MANUAL Ninebot eKickScooter ZING C20 SEGWAY

Before first use, please scan the QR code on the scooter to activate it.

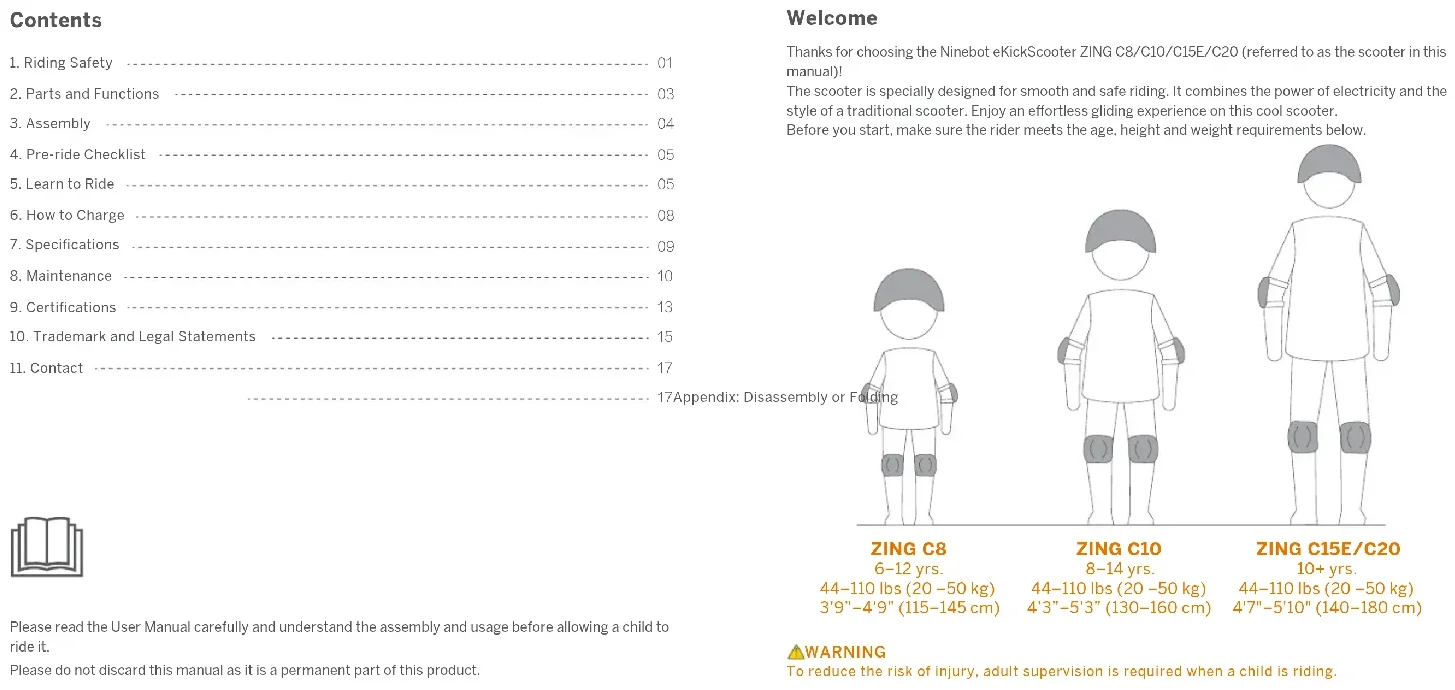

Contents

1. Riding Safety 01
2. Parts and Functions 03
3. Assembly 04
4. Pre-ride Checklist 08
5. Learn to Ride 05
6. How to Charge 08
7. Specifications 09
8. Maintenance 10
9. Certifications 13
10. Trademark and Legal Statements 15
11. Contact 17

Welcome

Thanks for choosing the Ninebot eKickScooter ZING C8/C10/C15E/C20 (referred to as the scooter in this manual)!

The scooter is specially designed for smooth and safe riding. It combines the power of electricity and the style of a traditional scooter. Enjoy an effortless gliding experience on this cool scooter.

Before you start, make sure the rider meets the age, height and weight requirements below.

ZING C8 6–12 yrs. 110 lbs (20 –50 kg) -4' 9" (115–145 cm) ZING C10 8–14 yrs. 44–110 lbs (20 –50 kg) 4' 3"–5' 3" (130–160 cm) ZING C15E/C20 10+ yrs. 44–110 lbs (20 –50 kg) 4' 7"–5' 10" (140–180 cm)

Please read the User Manual carefully and understand the assembly and usage before allowing a child to

ride it.

Please do not discard this manual as it is a permanent part of this product.

WARNING

To reduce the risk of injury, adult supervision is required when a child is riding.

1 Riding Safety

The product is for recreation only. It is not intended for transportation. Do not modify the scooter in any way to change the purpose for which it was designed. In order to master riding skills, the rider needs to practice. Use with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.

② Segway Parties are not responsible for any injuries, damages or legal disputes caused by a rider's inexperience or failure to follow the instructions in this manual.

Remember that whenever you ride the scooter, you risk injury from loss of control, collisions, and falls. To reduce the risk, you must read and follow all "CAUTION" and "WARNING" notices. Please understand that you can reduce the risk by following the instructions and warnings in this manual, but you cannot eliminate all the risks. Please use common sense when riding.

The assembly and adjustment should ONLY be done by adults. The scooter contains small parts which can pose a choking hazard. To avoid suffocation, do not allow children to touch plastic covering. Children must always be under parental supervision. Children under the age of 6 must be kept away from the product.

DO NOT allow anyone to ride the scooter on his/her own unless he/she, and the supervising adults, have carefully read this manual. It's your responsibility to assure a new rider's safety. Assist new riders until they are familiar with the basic operation of the scooter. The rider must wear a helmet and other protective gear. When you give the product to others, please deliver the User Manual together.

WARNING

Protective equipment should be worn. Not to be used in traffic. 50 kg max.

This toy is unsuitable for children under 6 years due to its maximum speed.

Never hitch a ride with another vehicle.

Riding Surfaces and Environment:

● This scooter is designed for riding on flat, dry, paved surfaces. Please ride in an open outdoor space. Make sure there are no pedestrians, skateboards, bikes, scooters and other riders in your surroundings.

- Never use in roadways, near motor vehicles, near steep inclines or steps, swimming pools or other bodies of water. Avoid construction sites, sudden surface changes, drainage grates, potholes, cracks, hydrants, parked cars, speed bumps and other obstacles. Don't ride on loose grounds (such as rocks, gravel or sand).

- Do not ride in extreme temperature conditions or in low visibility, such as at dawn/dusk or at night. Do not ride in the snow or in the rain. Submersion in water may cause battery damage, catch fire or even explode.

When Riding:

● One rider ONLY!

● Always wear a helmet and other protective gear (such as elbow pads and knee pads) when riding the scooter. Use an approved bicycle or skateboard helmet that fits properly with the chin strap in place, and provides protection for the back of your head.

- DO NOT bypass. Slow down when entering unfamiliar areas. Use caution when riding in areas with trees, posts, or fences. Always slow down when turning.

• Be alert and aware of the surroundings both far ahead and in front of you when riding. Your eyes are your best tool for safely avoiding obstacles and low traction surfaces (including, but not limited to wet ground, loose sand, loose gravel, and ice).
• Avoid sudden acceleration and deceleration. Never ride faster than the designed top speed (the top speed can be affected by rider weight, battery level, incline, etc.). As with other vehicles, faster speeds require longer braking distance. Sudden braking on low traction surfaces could lead to wheel slip or falls. Be cautious and always keep a safe distance between you and others when riding.
• Keep both hands on the handlebar and do not carry cargo of any kind. DO NOT use a cell phone, camera, headphones, carbuds or perform any other activities while riding. DO NOT ride downhill.
• Do not touch moving or spinning wheels. Keep your hair, clothing, or similar articles from coming in contact with the moving parts.
• Please get off the scooter and walk along with it when you encounter special road surfaces such as speed bumps and potnoles.

WARNING

If the scooter makes abnormal sound or signals an alarm, stop riding immediately. Do NOT take your hands off the handlebar and DO NOT ride with one hand or on one foot. DO NOT use mobile phones or wear headphones while riding. DO NOT press the electronic throttle when you walk along with the scooter.

Who Should Not Ride:

1. Anyone under the influence of alcohol, drugs, or intoxicants.

II. Anyone who suffers from diseases (especially in the head, heart, back and neck) that put them at risk if they engage in strenuous physical activity.

III. Anyone who has a health condition that would interfere with their ability to maintain balance.

IV. Anyone whose age, height and weight is outside the stated limits (see Specifications).

V. Those with compromised mental abilities who cannot understand the risks and proper operation of the vehicle.

VI. Anyone who is pregnant.

Safe Use:

WARNING

• Do not ride the scooter when the ambient temperature exceeds the operating temperature of the product (see Specifications), because low/high temperatures can decrease vehicle performance and even lead to accidents.
  ● Always park with the kickstand on a flat and stable surface. Once the scooter is on its stand, check its stability to avoid any risk of falling (by slip, wind or slight jolt). Do not park in a busy area, but rather along a wall.
• It is recommended to conduct regular maintenance of the scooter (see Maintenance).
• Please read the User Manual before charging the battery (see How to Charge).
  ● Only use the charger specified by the manufacturer. Only use the battery supplied by the manufacturer.
  ● Never allow your child to touch any vehicle parts with gaps such as the folding mechanism, fender, wheels, the brake system, etc. Do not touch the brake or hub motor after riding, so as to avoid burns due to increased temperature.

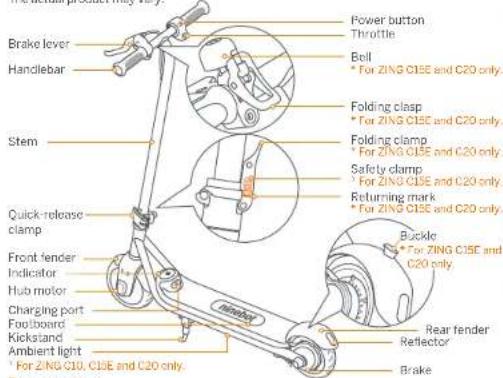

2 Parts and Functions

Please familiarize yourself with each part. This manual uses CIO as an example and pictures are for illustration purposes only. The actual product may vary.

Brake lever Handlebar Stem Quick-release clamp Front tender Indicator Hub motor Charging port Footboard Kickstand Ambient light For ZING C10, C15E and C20 only. Power button Throttle Bell * For ZING C15E and C20 only. Folding clasp * For ZING C15E and C20 only. Folding clamp * For ZING C15E and C20 only. Safety clamp * For ZING C15E and C20 only. Returning mark * For ZING C15E and C20 only. Buckle * For ZING C15E and C20 only. Rear tender Reflector Brake

Accessories

Battery charger

5 mm Allen wrench * For ZING CASE and C20 only

Power button

Press the button to power on or change riding modes. The Turbo mode is set as default when turned on, Hold for 2s to power off.

		Turbo modeModel	Cruise mode Safe mode
Max. speed	ZING C8		10 mph (15 km/h)	6.2 mph (10 km/h)10 mph (16 km/h)
	ZING C10		10 mph (15 km/h) 6.2	mph (10 km/h)10 mph (16 km/h)
	ZING C55/C20		10 mph (16 km/h) 6.2	mph (10 km/h)10 mph (16 km/h)
Indicator			blink slowly, with 2 beeps	blink fast, with 3 beepssolid, with 1 beep
Ambient light (for ZING C10, C15E and C20 only)			blue pulsing red pulsing/full-colour pulsing

Battery indication

The color of the indicator shows the battery level: ≥10% white, <10% red.

* When an abnormality occurs, the indicator will flash and an alarm will start beeping.

3 Assembly

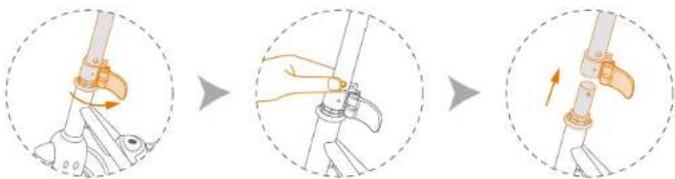

ZING C8, ZING C10

Press the quick-release button and insert the stem into the front fork. The button will pop out automatically.

Out automatically. Quick-release button CLICK

Flip the quick-release clamp to the closed position to secure the stem.

NOTE: If the stem is shaky, you can adjust the knob to tighten it.

ZING C15E, ZING C20

Align the positioning groove with the positioning screw, then slide the screw into the groove and insert the stem to the bottom.

Folding clamp Positioning groove Positioning screw

Make sure the folding clamp is closed when installing. Tighten the two screws alternately several times.

Once tightened, attempt to wiggle the handlebar to ensure it is safely secured.

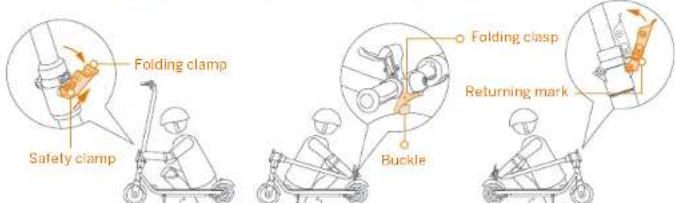

Appendix: Folding clamp Open: Push and hold the safety clamp to the top and then open the folding clamp. Lock: Lock the folding clamp until the safety clamp reaches the returning mark.

Folding clamp Safety clamp Returning mark

WARNING

Power off the scooter before assembling. The brake cable should not wrap around the stem.

4 Pre-ride Checklist

√ Make sure there are no loose fasteners and damaged components. Check all functional parts like the frame, handlebar, tires and make sure the steering system is well adjusted. Ensure that all locking devices are engaged.
√ Check the brake for proper function. When you squeeze the brake lever, there should be positive braking action.
Battery: if the battery level is low (the indicator is red), please fully charge the battery to ensure safe riding. Always
- Wear a helmet and protective equipment like knee pads and elbow pads.
√ Always wear shoes and proper outfit (sports shoes and clothes are recommended). Never ride barefoot or in sandals. Long hair should be tied back to prevent it from blocking your vision.
Do not attempt your first ride in any area where you might encounter children, pedestrians, pets, vehicles, bicycles, or
- Other obstacles and potential hazards.
√ Check and obey local traffic laws and regulations for scooters. CAUTION: If you have any concern over the safety of the product and/or there is a symptom of abnormality, please stop using the product immediately and contact customer service for support.

5 Learn to Ride

WARNING

Always wear a helmet and other protective gear to minimize any possible injury in the learning process. To reduce the risk of injury, adult supervision is required.

Illustration of two people: one standing with knee pads, the other riding a scooter (no text or symbols)

Turn on the scooter. If the indicator is red, please charge immediately (see How to Charge).

Please scan the QR code on the scooter to activate it before your first ride.

For the safety of the rider, please ride in Safe mode until the rider is comfortable enough to use Turbo mode.

Power button Indicator

Hold the handlebar firmly with both hands. Place one foot on the footboard and start kicking with the other foot.

Illustration of a person using a scooter with an inset showing hand positioning (no text or symbols)

When the scooter starts cruising, place both feet on the footboard and keep your balance.

Accelerate and Decelerate

	Cruise mode(indicator blinks slowly)	Turbo mode(indicator is always on )	Safe mode(indicator blinks fast )
Acceleration Press is the throttle slightly go
Deceleration		Release the throttle and squeeze the brake leverSqueeze

Accelerate

Illustration showing a person using a scooter with an orange tool inside, accompanied by a magnified inset of the hand.

NOTE: The motor will not engage before the speed reaches 1.9 mph (3 km/h).

Turbo mode/ Safe modeCruise mode

Decelerate

rate

Illustration of a person using a scooter with an inset showing a scooter being pulled out (no text or symbols)

Turbo mode/ Safe mode Cruise mode

WARNING

Stay alert and avoid abrupt acceleration or deceleration. Otherwise you risk serious injury due to imbalance, loss of traction and falls. DO NOT perform stunts of any kind. Both tires must remain on the ground at all times.

To turn, shift your body and turn the handlebar slightly.

Three identical line drawings of a person in standing pose with motion arrows indicating direction (no text or symbols)

WARNING
Do not turn the handlebar violently when riding.

When the scooter has stopped cruising, step off one foot at a time. Be extra cautious when dismounting for the first time.

WARNING
Stay calm and do not jump off the scooter.

6 How to Charge

CAUTION

Only allow children at least 8 years old to use the battery charger. Give sufficient instruction so that the child is able to use the battery charger in a safe way and explain that it is not a toy and must not be played with.

Charging steps

Open the charging port cover.

2 Insert the charging plug and connect to the power socket.

Close the charging port cover when finished

Charger indicator: Red: charging Green: full

WARNING

• Use only the charger specified by the manufacturer. Other types can burst and catch fire.
• Do not attempt to charge your scooter if the charger or the power outlet is wet.
• When there is abnormal smell, sound or light display, stop charging immediately and contact after-sales service.
• Keep away from flammable and explosive materials when charging, and place the scooter in a place out of the reach of children.
• When not charging, disconnect the charger from the power socket.
• Do not try and recharge non-rechargeable batteries because of the danger of eruption.

7 Specifications

Item		ZING C8 ZING C10 ZING C15E ZING C20
Weight and Size	Net Weight Approx. 17.4 lbs (7.9 kg) Approx. 17.9 lbs (8.1 kg) Approx. 23.4 lbs (10.6 kg)
	Length × Width × Height	Approx. 31.5 × 13.7 × 33.4 in (800 × 350 × 850 mm)	Approx. 31.5 × 15.7 × 37.4 in (800 × 400 × 950 mm)	Approx. 36.2 × 15.7 × 40.2 in (920 × 400 × 1020 mm)
Rider Requirement	Payload	44-110 lbs (20-50 kg)
	Recommended Age	6-12 yrs. 8-14 yrs.		10+ yrs.
	Recommended Height	3'9"-4'9" (115-145 cm) 4'3"-5'3" (130-160 cm)		4'7"-5'10" (140-180 cm)
Vehicle Parameters	Max. speed	Approx. 10 mph (16 km/h)
	Typical Range1	Approx. 6.2 miles (10 km)		Approx. 12.4 miles (20 km)
	Traversable Terrain	Flat surface, paved road; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
	Operating Temperature	14-104°F (-10-40°C)
	Storage Temperature	4-122°F (-20-50°C); 41-86°F (5-30°C) recommended
	IP Rating	IPX4
	Charging Time Approx. 3 h			Approx. 6 h
Battery Pack	Battery Type	Lithium-ion battery
	Nominal Voltage	21.6 V =
	Charging Temperature	32-113°F (0-45°C); 30-95°F (10-35°C) recommended
	Nominal Capacity / Energy	2500 mAh / 54 Wh		5000 mAh / 108 Wh
	Battery Management System	Over-heating, short circuit, over-current and over-charge protection
Motor	Nominal Power 120 W (0.12 kW)			150 W (0.15 kW)
	Max. Power 180 W (0.18 kW)			260 W (0.25 kW)
Battery Charger	Input Voltage	100-240 V-
	Max. Output Voltage	25.2 V =
	Rated Output	24.2 V = 1.0 A
	Output Power	24.2 W (0.02 kW)
Others	Braking Method	Hand-operated brake
	Tires	Solid tire; material: synthetic rubber
	Frame Material	Steel
	Handlebar Material	TPR
	Foot Pad Material	Sandpaper	Silicone

[1] Typical Range: tested while riding with a full battery. 110 lbs (50 kg) load, 77°F (25°C). 60% of max. speed on average on pavement.

* Some of the factors that affect range include: rider weight, number of starts and stops, ambient temperature, etc.

8 Maintenance

Maintenance should be carried out by an adult regularly.

Cleaning

Use a soft and wet cloth to clean. Stains hard to remove can be scrubbed with a toothbrush and toothpaste, then wiped off with a soft and wet cloth.

To prevent jamming to the wheels, wheel bearings, or brakes, please clean and check these areas (as shown in the gray highlighted areas below) for dirt and other foreign objects.

Wheel bearing

Technical diagram of a mechanical assembly with no visible text or symbols

First clean up the foreign objects, and then wipe clean with a soft wet cloth. Lubricate both sides of the bearing with lubricating oil or machine oil. If the problem still exists, please contact customer service.

CAUTION: To avoid the accumulation of foreign objects, DO NOT ride on muddy, dusty, grassy or slippery roads.

Do not clean your scooter with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may damage the appearance and internal structure of your scooter. Do not wash your scooter with a power washer or hose.

WARNING

• Do not dispose of this product in a landfill, by incineration, or by mixing with household trash. Serious danger/injury can occur because of the electrical components.
• Before cleaning, make sure the scooter is powered off, the power cord is unplugged, and the rubber cap on the charging port is tightly sealed; otherwise you may damage the electrical components.

Storage

Before storage, please turn off the scooter and fully charge it to avoid over-discharge, which will cause permanent damage. Charge the scooter every 30 days for long-time storage.

Store in a cool and dry place indoors. Exposure to sunlight and temperature extremes (both hot and cold) will accelerate the aging process of the vehicle components and may permanently damage the battery. If the temperature of the storage environment is lower than 32^ F ( 0^ C), do not charge it until after placing it in a warm environment, preferably over 50^ F ( 10^ C).

WARNING

• Prolonged exposure to UV rays, rain and the elements may damage the enclosure materials.
• Store indoors when not in use.
• Keep away from fire!

Battery

A well-maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid draining the battery. When at 72°F (22°C), the battery performance is at its best and the vehicle can achieve a longer range. Electronics inside the battery record the charge-discharge condition of the battery: damage caused by over-charging or over-discharge will not be covered by the Limited Warranty.

WARNING

• For information about battery and electrical waste, please contact your household waste disposal service, your local or regional waste management office, or your point-of-sale.
  ● The battery is not replaceable. Do not attempt to replace or disassemble the battery. Do not dismantle or puncture the casing. Keep away from metal objects to prevent short circuit.
  ● Risk of fire and electric shock. No user serviceable parts.
• Do not store or charge the battery at temperatures outside the stated limits (see Specifications).
  ● Never charge in areas forbidden by law.

Battery Charger

Regularly examine the charger for damage to the cord, plug, enclosure and other parts. If any damage is found, stop using until it is repaired or replaced.

WARNING

Risk of electric shock. Do not disassemble the case or touch the metal contacts. Charge Li-ion batteries ONLY!

Cable Tension Adjustment

When the brake is too tight or loose, you can thread in/out the brake cable adjuster.

Tighten the brake Loosen the brake

Others

● Before lifting, moving, or otherwise transporting the scooter, turn it off and fold the scooter. Handle with care and avoid violent force, such as throwing and heavy pressure. Keep away from fire and water.
● Tires supplied with the product are to be mounted on the wheel by a professional repairer. Removing the wheels is complicated and incorrect assembly can lead to instability and malfunctions.

In case of accidents or breakdown, contact an authorized repairer if the product is still under warranty. If it's not, you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers from customer service available at www.segway.com.

Efforts have been made to simplify wording in the user manual for users. Where an action appears too complicated for a user, he/she is advised to contact an authorized or a specialized repairer or customer service.

NOTICE: INSURANCE

YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS INVOLVING THE USE OF THIS SCOOTER, TO DETERMINE IF COVERAGE IS PROVIDED, PLEASE CONTACT YOUR INSURANCE COMPANY OR AGENT.

9. Certifications

For Model: ZING C8, ZING C10, ZING C15E, ZING C20

The battery complies with UN/DOT 38.3.

ZING C8, ZING C10. ZING C20 are certified to ANSI/CAN/UL-2272 by TUV

European Union Compliance Statement

Important WEEE information

WEEE Disposal and Recycling Information Correct Disposal of this product. This marking indicates that this product should not be disposal with other household wastes throughout the EU.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsible to promote the sustainable reuse of materials resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Battery recycling information for the European Union

Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC and amendment 2013/56/EU concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the European Union. This label is applied to various batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive.

In accordance with the European Directive 2006/66/EC and amendment 2013/56/EU, batteries and accumulators are labeled to indicate that they are to be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators must not dispose of batteries and accumulators as unsorted municipal waste, but use the collection framework available to customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances.

Before placing electrical and electronic equipment (EEE) in the waste collection stream or in waste collection facilities, the end user of equipment containing batteries and/or accumulators must remove those batteries and accumulators for separate collection.

Electromagnetic Compatibility Directive

Ninebol (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Directive 2014/30/EU.

The Safety of Toy Directive

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Toy Directive 2009/48/EC.

Restriction of the use of certain hazardous substances (RoHS) Directive

Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, conts, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2.0").

EU Authorised Representative:

Segway-Ninebot Europe

Dynamostraat 7, 1014 BN Amsterdam, The Netherlands

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: ZING C8, ZING C10, ZING C15E, ZING C20 comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility 2014/30/EU The Safety of Toy Directive 2009/48/EC and the RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863.

UK Authorised Representative: UKCA Experts Ltd.

Dept 302, 43 Owston Road Carcroft, Doncaster, DN6 8DA. United Kingdom

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: ZING C8, ZING C10, ZING C15E, ZING C20 comply with the essential requirements and other relevant provisions of Electromagnetic Compatibility Regulations 2016, Toys (Safety) Regulations 2011 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.

The declaration of conformity can be viewed at the following address: http://eu-en.segway.com/support-instructions

10. Trademark and Legal Statements

Ninebot is the registered trademark of Ninebot (Beijing) Tech. Co., Ltd; Segway and the Rider Design are the registered trademarks of Segway Inc.; The respective owners reserve the rights of their trademarks referred to in this manual.

We have attempted to include description and instruction for all the functions of the Ninebot eKickScooter at the time of printing. However, due to constant improvement of product features and changes of design, your scooter may differ slightly from the one shown in this document. Visit www.segway.com to download the latest user materials.

Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not applicable to your unit. The manufacturer reserves the right to change the design and functionality of the scooter product and documentation without prior notice.

©2022 Ninebot (Beijing) Tech Co., Ltd. All rights reserved.

Legal Statement

IMPORTANT: Ninebot ekickScooter (the "product") is an off road product rather than a means for transportation. Be aware, the user shall agree to read the entire user manual and fully understand its content (especially the parts related to the safety riding).

1. The "Segway parties" mentioned above and below is the Manufacture ("Ninebol") Segway-Ninebol Europe. ("Segway") and their affiliates (including but not limited to their parent company, subsidiary, affiliated companies, predecessor, subsequent company, administrators, successors, assigns, officers, directors, managers, employees, members, shareholders, and agents, attorneys, insurers).
2. This product can be dangerous to a user, other persons, and property in proximity to that. The user shall assume all the risks and losses in connection with the product (especially for those related to and/or arising out of violation of the instructions about warnings and caution statements). Such risks include but not limited to loss of control, failure of the product, and/or collusion) The consequences for such an incident can be severe, including but not limited to injuries, bodily injuries, death, and/or damages to property. Segway parties shall not be liable for any claim, liability, and loss related to such consequences if it is due to the user's assumption of risk.
3. The product is a means of entertainment and play. The user may not have the necessary and sufficient experience and skills to ride it, especially in complex environments and/or undesirable road. Such risk may increase if the user has physical and/or mental impairment or disability. Such risk may also increase if the user is not sufficiently familiar with the functions, features and performance of the product. Thus, new users shall learn and practice how to use this product property and safety.
4. The user shall regularly and periodically, as the circumstance requires, inspect and maintain the product. The user shall also conduct reasonable examination and inspection of the product every time before riding it. For instance, every time before riding the product, the user shall check and examine tire performance, battery level, and all functional parts. If

abnormality, discoloration or change of color of material (especially in an area that receives high stress when the product is in motion or junction), scratch, crack, loose fasteners, and/or missing parts (such as screw, bolts and/or nut) which strongly indicates that it is not safe to ride the product.

1. Since it is impossible to predict and/or anticipate all and every scenario, condition, and/or circumstances under which a product user may be exposed to risk and danger. the User Manual is not intended to be an exhaustive list on how to ride the product safety and/or avoid hazards related to the product. So, in addition, to adhere to the instructions, the user shall also ride and/or use the product with responsibility, carefulness, precaution, and best judgment.

2. The users shall check and obey the local laws or regulations over the product. The laws and regulations may be different in different jurisdictions. Apart from the others, such laws and regulations may include:
   a. A helmet may be legally required by local law or regulation in your jurisdiction.
   b. Your product is not be allowed to be driven on a motorway or highway.
   c. You may obtain more information related to legal requirements on the product from your local government.

3. The users shall immediately check whether the product and its accessories are in good condition upon receipt of the product.

4. All the separate components and parts of the products must be properly installed per the User Manual. Inappropriate installation and/or assembly may significantly increase the risk of loss of control, product failure, collisions, and falls. The product may contain removable components and small parts. Please keep them out of the reach of children to avoid choking hazards.

5. Do not dispose of this product in a landfill, by incineration, or by mixing with household trash. Serious danger/ injury can occur because of the electrical components and the battery. For information about battery and electrical waste, please contact your household waste disposal service, your local or regional waste management office, or your point-of-sale. The user shall not use any non-original accessories or dismantle or modify the product without authorization. All damages, injuries, and damages to property arising from that place will be your sole responsibility and risk.

6. Segway Parties reserve the right to make changes to the product, release firmware updates, and update this manual at any time. Segway parties may make improvements and changes to this user manual necessitated by typographical errors, inaccuracies of current information, or modifications to programs and/or equipment at any time and without notice. Such changes will, however, be incorporated into new editions of this user manual. All illustrations are for illustration purposes only and may not accurately depict the actual device. Actual product and functions may vary. Due to the update of the product, there may be some deviations in color, appearance, and other aspects between the product listed in this manual and the product you purchased. Please refer to the actual product.

7. This document should be considered as a permanent part of the product, and it shall be provided to the user together with the product all the time.

Thank you again for choosing Ninebot eKickScooter!

11. Contact

Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your scooter.

Europe, Middle East and Africa:

Segway Ninebot Europe, Dynamostraat 7, 1014 BN Amsterdam, The Netherlands

Website: www.segway.com

Have your scooter serial number on hand when contacting Segway.

You can find the serial number on the underside of your scooter.

Appendix: Disassembly or Folding

How to disassemble ZING C8, ZING C10

1 Loosen the quick-release clamp.
2 Press the quick-release button
3 Lift the stem up to detach it from the front fork.

Three-step diagram showing a mechanical assembly process: step 1 with tool insertion, step 2 with hand holding a component, and step 3 with directional arrow (no text or symbols)

Folding and Unfolding ZING C15E, ZING C20

Note: The following steps should be operated after powering off the scooter.

Folding clamp Safety clamp Folding clasp Returning mark Buckle

Folding

Hold the stem, loosen the safety clamp and the folding clamp.

Fold the stem and lock the folding clasp into the buckle on the rear fender.

Unfolding

Lift the folding clasp out of the buckle. Upright the stem and secure the folding clamp.

* The safety clamp should reach the returning mark when the folding clamp is secured.

Two identical line drawings of a person holding two scooters, viewed from behind (no text or symbols)

Carrying

After folding the scooter, grip it tightly and hold the stem to carry it.

There are safety risks associated with riding scooters. Before the first use, the speed is limited to 3.1 mph (5 km/h) with the indicator light flashing and a buzzer warning sound. Please be sure to scan the QR code on the scooter, then follow the instructions to remove the speed limit.

Ninebot eKickScooter

ZING C8/C10/C15E/C20

Manuel utilisateur

Actual product functions may not conform to the manual due to technical and firmware updates. For the latest feature introduction and safety guide, please visit www.segway.com.

ninebot®

Illustration of two people, one standing and one riding a scooter (no text or symbols)

Illustration of a person pushing a scooter with a magnified inset showing the seat detail (no text or symbols)

Illustration of a person using a scooter to interact with a hand gesture (no text or symbols present)

Illustration of a person using a scooter to interact with a thought bubble showing an airplane (no text or symbols present)

Illustration of a person using a scooter to interact with a device, showing motion lines and vibration (no text or symbols)

Three identical line drawings of a person in motion, showing vertical alignment with arrows indicating motion direction (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Segway-Ninebot Europe

Three-step diagram showing a mechanical device being adjusted, with no visible text or symbols.

Two identical line drawings of a person holding a scooter, viewed from behind (no text or symbols)

Transport

Close-up of the tool's tip application

ZING C15E, ZING C20

Illustration of two people: one standing with bandages, the other using a scooter (no text or symbols)

Line drawing of a person using a scooter with an inset showing hand positioning (no text or symbols)

Illustration of a person using a scooter with a thought bubble showing a hand gesture (no text or symbols)

HINWEIS:

Der Motor lauft

erst, nachdem eine

Geschwindigkeit

von 3 km/h erreicht

wurde.

Illustration of a person using a scooter to interact with a thought bubble showing an airplane (no text or symbols present)

Three identical line drawings of a human figure in motion, showing vertical and horizontal views with arrows indicating rotation (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Segway-Ninebot Europe

Dynamostraat 7, 1014 BN Amsterdam, The Netherlands

Three-step diagram showing a mechanical assembly process: step 1 with tool, step 2 with hand, and step 3 with lever (no text or symbols)

Two identical line drawings of a person holding a scooter, viewed from the side (no text or symbols)

Tragen

Three line drawings of a person wearing different body styles and knee pads (no text or symbols)

ZING C8
6-12 anni
44-110 libbre (20-50 kg) 3'9"-4'9" (115-145 cm)
44-110 libbre (20-50 kg) 4'3"-5'3" (130-160 cm)
44-110 libbre (20-50 kg) 4'7"-5'10" (140-180 cm)

ZING C10

8-14 anni

ZING C15E/C20

dai 10 anni in su.

AVVERTENZA

Illustration of two people: one standing with knee pads, the other riding a scooter (no text or symbols)

Illustration of a person using a scooter with an inset showing a close-up of the seat (no text or symbols)

Illustration of a person using a scooter to interact with a hand gesture (no text or symbols present)

Illustration of a person using a scooter to interact with a circular diagram showing a person interacting with the camera (no text or symbols present)

Three identical line drawings of a person in motion, showing vertical posture with arrows indicating movement direction (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Segway-Ninebot Europe

Dynamostraat 7, 1014 BN Amsterdam, Paesi Bassi

Three-step illustration showing a mechanical device being adjusted, with no visible text or symbols.

Two identical line drawings of a person holding a scooter, no text or symbols present

Trasporto

Illustration of two people, one standing and one on a scooter, both wearing helmets (no text or symbols)

Line drawing of a person using a scooter with an inset showing a close-up of the scooter's seat (no text or symbols)

Illustration of a person using a scooter to interact with a hand gesture (no text or symbols present)

NOTA:

El motor no se

accionará antes

de que la

velocidad llegue a

Modo Turbo/Modo SeguroModo crucero

Desacelerar

Illustration showing a person using a scooter with an inset image of a person holding a device labeled 'carar'.

Illustration of a person using a scooter to interact with a device, showing motion lines and a magnified view (no text or symbols)

Modo Turbo/Modo SeguroModo Crucero

ADVERTENCIA

Three identical line drawings of human figures in a row, with motion arrows indicating movement direction (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Segway-Ninebot Europe

Dynamostraat 7, 1014 BN Amsterdam, Países Bajos

Three-step diagram showing a mechanical assembly with arrows indicating motion (no text or symbols)

Two identical line drawings of a person holding a scooter, viewed from behind (no text or symbols)

Transporte

Line drawing of a person wearing a cap and two pants with bandages (no text or symbols)

OSTRZEŻENIE

Illustration of two people: one standing with knee pads, the other riding a scooter (no text or symbols)

Line drawing of a person pushing a scooter with an inset showing hand positioning (no text or symbols)

Illustration showing a person using a scooter with a magnified view of the hand holding an object, likely indicating a safety or safety concept.

Illustration of a person using a scooter to interact with a device, showing motion lines (no text or symbols)

Three identical line drawings of a person in different poses with motion arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Segway-Ninebot Europe

Dynamostraat 7, 1014 BN Amsterdam, Holandia

Three-step diagram showing a mechanical device being adjusted, with no visible text or symbols.

Two identical line drawings of a person holding a scooter, viewed from the side (no text or symbols)

Przenoszenie

Line drawing of two people, one standing and one on a scooter, both wearing helmets (no text or symbols)

Aan Uit knop Indicator

Diagram showing a person using a scooter with a magnified inset highlighting the hand holding a device labeled 'b'.

Illustration of a person using a scooter to interact with a thought bubble showing an airplane (no text or symbols present)

Illustration of a person using a scooter with a magnified inset showing motion (no text or symbols)

Turbo-modus/ Veilige modusCruise-modus

WAARSCHUWING

Three identical line drawings of a person in motion, showing vertical and horizontal positions with curved arrows indicating motion direction (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Segway-Ninebot EMEA.

Three-step illustration showing a hand holding a valve on a mechanical component, with no text or symbols present.

Two identical line drawings of a person holding a scooter, viewed from the side (no text or symbols)

Dragen
