Product type	External canister filter for aquarium
Brand	EHEIM
Model	Classic 2213
Category	Water filter
Use	Indoor, aquarium use only
Dimensions (L x W x H)	20.5 x 20.5 x 35.0 cm (approx.)
Weight	Approx. 2.8 kg (approx.)
Max. installation height	180 cm between water surface and filter bottom
Operating position	Vertical only
Tank material	Plastic
Seal	Rubber seal
Filter basket capacity	5 blue filter sponges, 1 white filter wadding, 1 carbon pad (or alternative filter media)
Pump type	Integrated pump in head
Connections	Hose on suction side (bottom) and pressure side (top), safety nuts
Priming	By priming bulb, universal accessory, or suction through discharge hose
Maintenance	Clean filter media and impeller at regular intervals
Cleaning	Pump parts cleanable with special brush (ref. 4009550); do not use dishwasher
Safety	Unplug before any intervention; cable non-replaceable; avoid water in plug
Spare parts	Available at EHEIM dealer (sponges, wadding, carbon, seal, impeller, etc.)
General information	Compliant with European standards; do not dispose of with household waste

Frequently Asked Questions - Classic 2213 EHEIM

How to install the EHEIM Classic 2213 filter?

Place the filter below the aquarium or lower than the water level. Assemble the discharge tube according to diagram A or B, assemble the suction tube with the strainer and attach it to the aquarium wall with suction cups. Connect the hoses: suction at bottom, pressure on pump head. Tighten the safety nuts.

How to prime the filter?

Three methods: 1) Use a priming bulb (ref. 4003540). 2) Use the universal installation accessory (ref. 4004300). 3) Suction through the discharge hose. Make sure the filter is full of water before plugging in.

What filter media are provided?

The filter comes with 5 blue filter sponges, 1 white filter wadding, and 1 carbon pad. You can also use EHEIM MECH, SUBSTRATpro, or SUBSTRAT filter media as alternatives.

How often should the filter be cleaned?

Clean the filter media every 4 to 6 weeks, but do not rinse all sponges on the same day to preserve bacteria. The carbon pad should be removed after 2 weeks and discarded. Clean the impeller and pump body with a special brush during periodic maintenance.

The filter makes noise at startup, is this normal?

Yes, a slight noise caused by residual air in the tank is normal at first. The air escapes gradually. Once water flows continuously, the noise disappears. If noise persists, check that the filter is properly primed and the impeller spins freely.

What are the important safety instructions?

Always unplug all devices before putting your hand in water. Before opening the filter, unplug it completely. Do not replace damaged cable. Prevent water from running down the cable to the plug (form a drip loop). Do not use outdoors.

Can I clean the parts in the dishwasher?

No, never clean the filter or its components in the dishwasher. Clean them by hand with running water and a special brush.

How to disassemble the pump head for maintenance?

Remove the power plug. Release the pump head lock and remove the pump parts. Use a screwdriver to extract the cooling channel. Clean all parts with the pump body brush (ref. 4009550) and reassemble in reverse order.

What is the maximum height between the aquarium and the filter?

The distance between the water surface and the filter bottom must not exceed 180 cm for optimal operation.

Where can I find spare parts?

Spare parts (sponges, wadding, carbon, seal, impeller, etc.) are available at your EHEIM dealer or online. The references are given in the manual: blue sponge ref. 2616131, white wadding ref. 2616135, carbon pad ref. 2628130.

USER MANUAL Classic 2213 EHEIM

Exterior view of a cylindrical industrial vessel with a metallic top and side flange (no visible text or symbols)

2213

Außenfilter D

External filter GB/USA

Filtre extérieur F

Buitenfilter NL

Ytterfilter S

Utvendig filter N

Ulkosuodattimet FIN

Udvendigt filter DK

Filtro esterno I

Filtro exterior E

Filtro exterior P

Εξωτερικό φίλτρο GR

Vn filtr CZ

Külszürő H

A ① ③ ⑤ ② ④ ⑧ ⑩ ⑨ ⑥ ⑧ ⑦

B

B1 a b c

B2 e d c b a

Technical line drawing of a mechanical device with internal components and a close-up view showing a component detail (no text or symbols)

D 10 cm

E

F A B

Diagram of a laboratory apparatus with tubing and a funnel, no visible text or symbols

Simple line drawing of a vertical pipe system with a container and a bottle, no text or symbols present.

Mechanical assembly diagram showing a motor and gear assembly with no visible text or symbols

I G₁

Vielen Dank

IMPORTANT SAFETY INSTRUCTIONS

WARNING — To guard against injury, basic safety precautions should be observed, including the following.

a) READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

b) DANGER — To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt repairs by yourself; return the appliance to an authorized service facility for service or discard the appliance.

1) If the appliance falls into the water, DON'T reach for it! First unplug it and then retrieve it. If electrical components of the appliance get wet, unplug the appliance immediately. (Non-immersible equipment only)
2) If the appliance shows any sign of abnormal water leakage, immediately unplug it from the power source. (Immersible equipment only).
3) Carefully examine the appliance after installation. It should not be plugged in if there is water on parts not intended to be wet.
4) Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or has been dropped or damaged in any manner.
5) To avoid the possibility of the appliance plug or receptacle getting wet, position aquarium stand and tank to one side of a wall-mounted receptacle to prevent water from dripping onto the receptacle or plug.

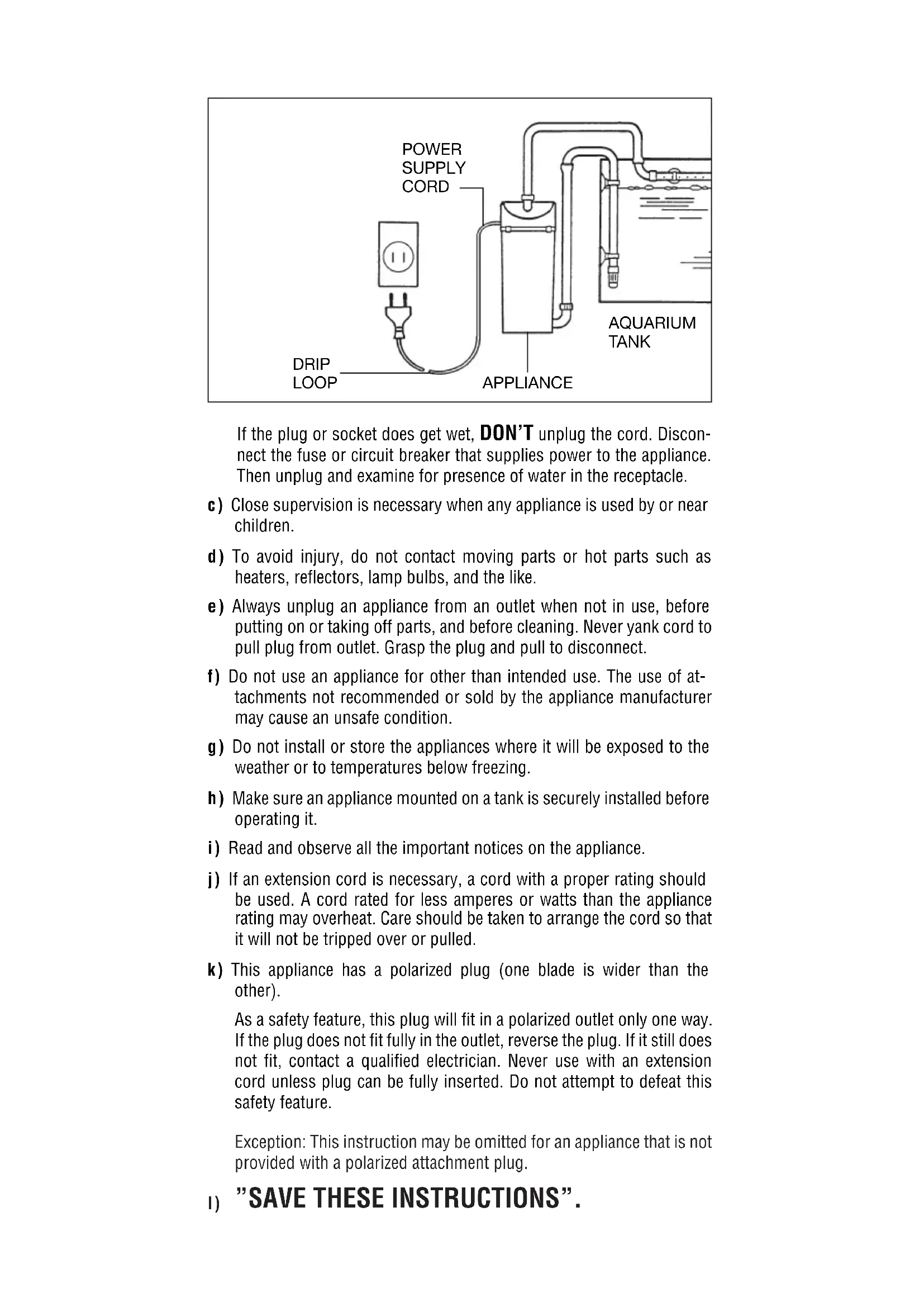

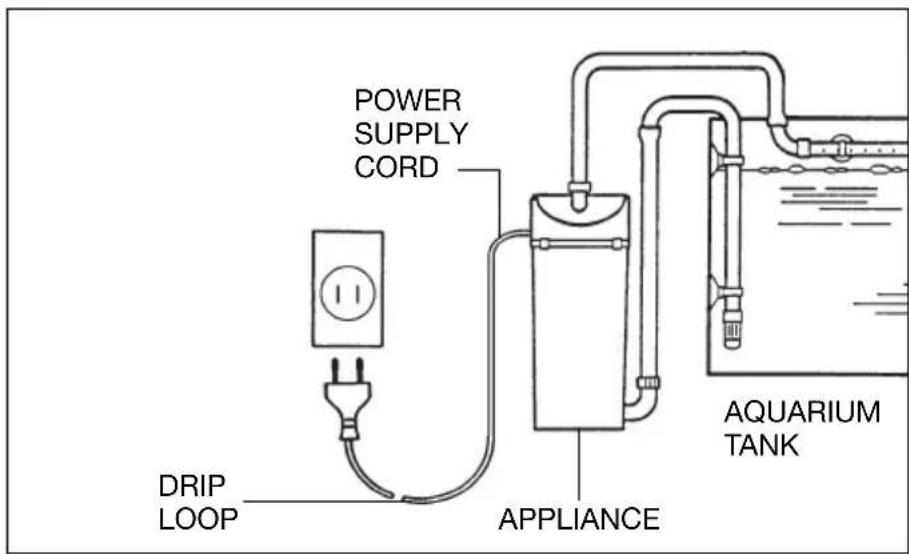

A "drip-loop", shown in the figure, should be arranged by the user for each cord connecting an aquarium appliance to a receptacle. The "drip-loop" is that part of the cord below the level of the receptacle, or the connector if an extension cord is used, to prevent water traveling along the cord and coming in contact with the receptacle.

POWER SUPPLY CORD DRIP LOOP APPLIANCE AQUARIUM TANK

If the plug or socket does get wet, DON'T unplug the cord. Disconnect the fuse or circuit breaker that supplies power to the appliance. Then unplug and examine for presence of water in the receptacle.

c) Close supervision is necessary when any appliance is used by or near children.

d) To avoid injury, do not contact moving parts or hot parts such as heaters, reflectors, lamp bulbs, and the like.

e) Always unplug an appliance from an outlet when not in use, before putting on or taking off parts, and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull to disconnect.

f) Do not use an appliance for other than intended use. The use of attachments not recommended or sold by the appliance manufacturer may cause an unsafe condition.

g) Do not install or store the appliances where it will be exposed to the weather or to temperatures below freezing.

h) Make sure an appliance mounted on a tank is securely installed before operating it.

i) Read and observe all the important notices on the appliance.

j) If an extension cord is necessary, a cord with a proper rating should be used. A cord rated for less amperes or watts than the appliance rating may overheat. Care should be taken to arrange the cord so that it will not be tripped over or pulled.

k) This appliance has a polarized plug (one blade is wider than the other).

As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Never use with an extension cord unless plug can be fully inserted. Do not attempt to defeat this safety feature.

Exception: This instruction may be omitted for an appliance that is not provided with a polarized attachment plug.

1) "SAVE THESE INSTRUCTIONS".

Many thanks

for purchasing your new EHEIM classic external filter. It gives you optimum performance with excellent reliability and great effectiveness.

Safety instructions

For indoor use only. For use with aquariums.

All electrical equipment in the water must be disconnected from the mains during care and maintenance work. It is imperative to disconnect the filter from the mains prior to opening it.

The connecting line of this device can not be replaced. When the line is damaged, the device must no longer be used.

Contact your specialised dealer or your EHEIM Service Centre.

This equipment is not intended for use by persons (including children) with limited physical, sensory or mental abilities or for persons with no experience or knowledge unless they are supervised by a person responsible for safety or unless they have received from such a person instructions on how to use the equipment.

Children should be supervised to ensure that they do not play with the equipment.

20 cm

Notice: These devices produce magnetic fields which might cause electronic and mechanical disturbances or damages.

This also refers to pacemakers. Please consult the manuals of medical equipment for the required safety margins.

Attention: Maintenance work presents the risk of crushing the fingers due to high magnetic forces.

For your own safety, we recommend to form a drip loop with the connection cable to prevent any water running along the cable from intruding into the socket.

When using a multiple socket or an external power supply unit, position them atop the filter's power connection.

Since a wide variety of varnishes and polishes are used when processing timer, the appliance feet can leave visible traces on furniture or parquet floors as a result of chemical reactions. Therefore the device should not be placed on unprotected wooden surfaces.

To achieve optimal operational safety there must be a maximum of 180 cm between the surface of the water and the bottom of the filter.

max. 180 cm

Attention: Filter must always be operated in an upright position only.

Take the necessary precautions when handling components that can discharge static electricity.

Do not clean the unit – or parts of it – in the dishwater. Not dishwater resistant!

Do not dispose of this product as normal household waste. Take it to your local refuse collection side.

The product is qualified in accordance with the respective national regulations and guidelines and meets EC standards.

Function

A ① Pump head ② filter canister ③ pressure side hose connection ④ suction side hose connection ⑤ filter media container ⑥ suction pipe ⑦ strainer ⑧ suction cups with clips ⑨ outlet elbow ⑩ outlet pipe.

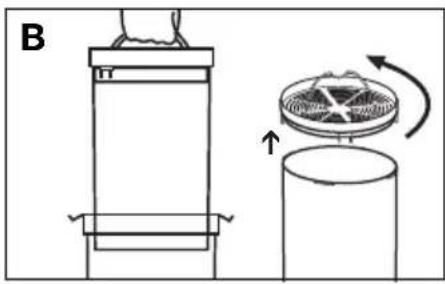

B Extract the filter media container with the handle and open the lid by turning it anti-clockwise.

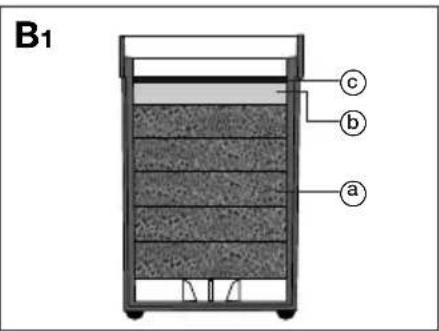

B1 Model with filter pads: Rinse all filter pads under running water and insert them into the filter media container according to the drawing: ① 5 coarse filter pads blue (order no. 2616131 / 3 pcs.), ② 1 fine filter pad white (order no. 2616135 / 3 pcs.), and ③ 1 carbon filter pad black (order no. 2628130 / 3 pcs.) as a top layer. The carbon filter pad adsorbs possible dissolved harmful substances after newly installing the filter. After a working time of approx. two weeks, the carbon filter pad should be removed.

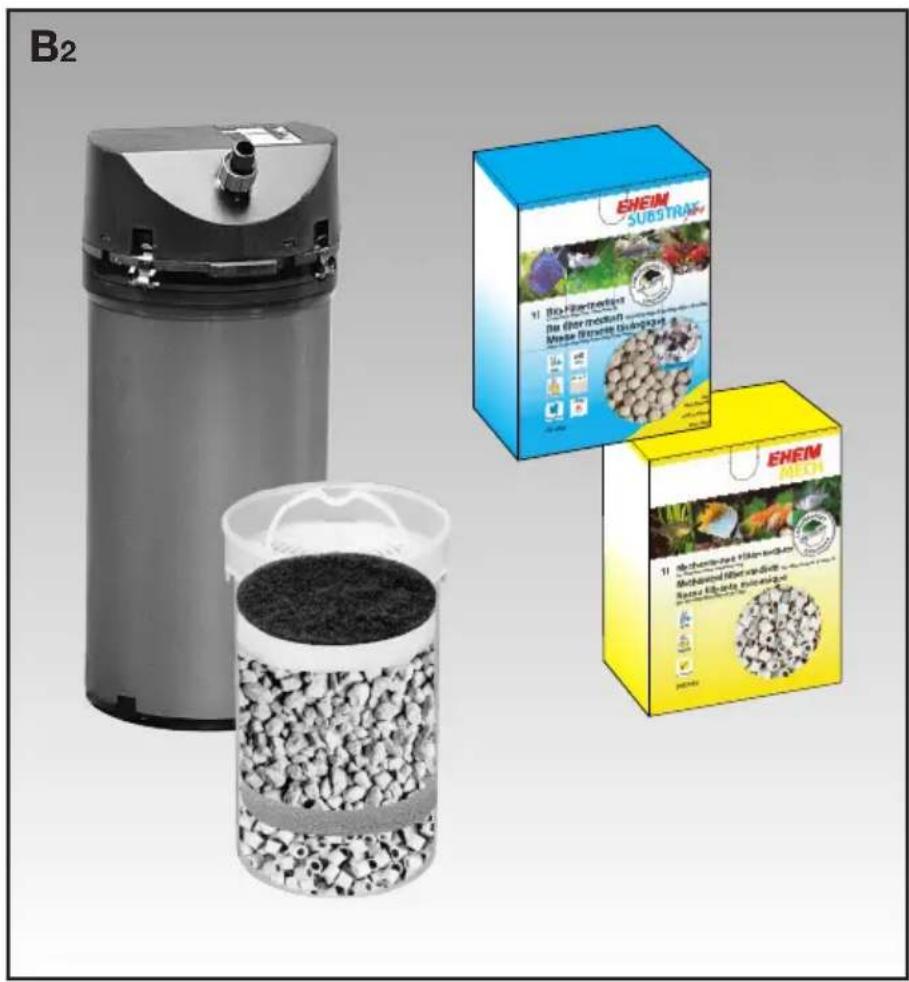

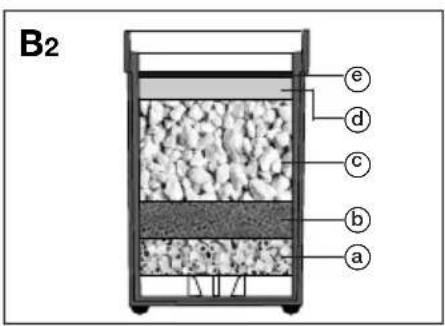

B2 Model with filter media: Fill the filter media container in the following order: ⓐ approx. 3-5 cm EHEIM MECH, ⓑ 1 coarse filter pad blue (order no. 2616131 / 2 pcs.), ⓒ EHEIM SUBSTRATpro or SUBSTRAT, ⓓ 1 fine filter pad white (order no. 2616135 / 3 pcs.), ⓔ 1 carbon filter pad black (order no. 2628130 / 3 pcs.). Afterwards rinse filter medi container under running water to remove residues.

Installation

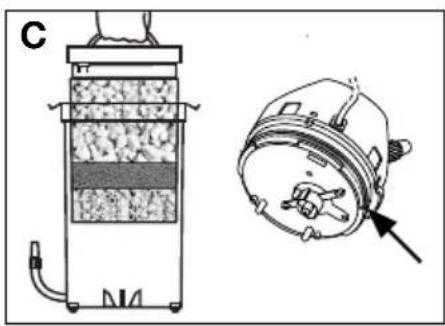

C Fit the lid of the filter media container, close it by turning clockwise and place into the filter canister. Put on the pump head and examine the o-ring for correct fitting. Close the clips.

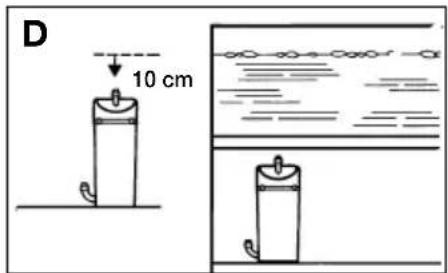

D Place filter underneath aquarium – it must be below water level.

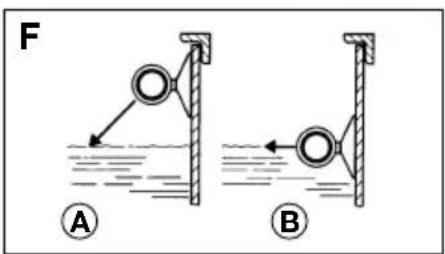

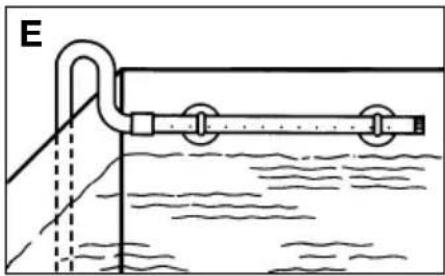

E/F Fit outlet pipe as per drawing A or B.

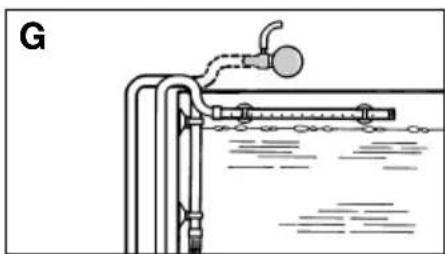

G Assemble suction pipe and strainer and attach to side of aquarium with 2 suction cups and fit hose connections to filter: suction side on bottom intake nozzle, pressure side on pump head. Fasten hoses with clamping nut (drawing K).

Putting into operation

There are 3 ways to prime the filter. 1) With the starter bulb (order no. 4003540), 2) with the Universal Installation Kit 1 (see G1, order no. 4004300) or 3) by sucking the hose on the pressure side.

Connect the pressure side hose to the outlet elbow and the spray bar while the filter fills with water. The pump can be switched on when water has filled the filter, and for a short time while trapped air is exhausted from the filter media a slight noise from the pump will be heard (this is normal). Fit the plug into the end of the spray bar after all the air bubbles have disappeared.

Important: When the filter media need cleaning or changing and the filter is taken away from the aquarium, please note the following points

1) The filter must have no water in it when reconnecting to the aquarium.
2) The pressure hose to the spray bar must be drained of water and the tap (if fitted) left open.
3) After connections are made the tap on the suction side can be opened (it holds the syphon). Water will flow into the filter expelling all air out of the spray bar, eliminating air locks and ensuring a perfect prime.

Servicing and maintenance

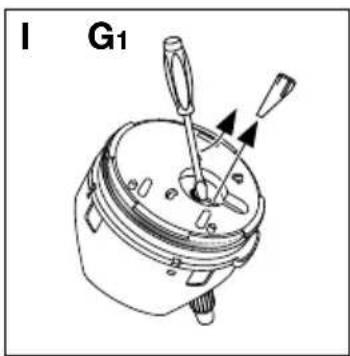

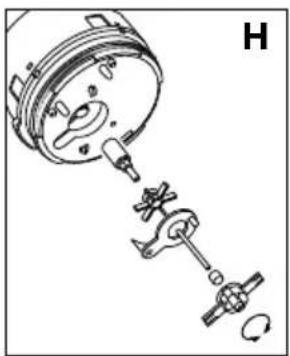

H/I Pull out mains plug. Release locking piece on pump head and remove pump parts as per drawing. Lift out cooling channel insert (I) with screwdriver. Clean all parts and then reassemble in the reverse order.

Note: All hose connections must be checked at regular intervals for correct fitting.

Attention: The impeller blades must rotate free on the impeller, and the impeller must spin freely on the ceramic shaft, so that the pump starts without trouble.

Français

EHEIM

Mercy beaucoup

Product photo of a water purifier with three circular filter units and a container filled with granular material (no text or symbols visible)

B2 EHEIM SUB9TRAS 1) Bio-Hydroxylase Na Gas-liquid Methane (Bromine) Solvent EHEIM EHEIM 1) Miochemicron 500 nmol/L Mechanical Bioremediates Methane (Bromine) Solvent

EHEIMclassic2213	230 V / 50 Hz240 V / 50 Hz	120 V / 60 Hz220 V / 60 Hz
Für Aquarien bis 250 l 250 IFor aquariums up toPour aquariums jusqu'àVoor aquaria tot 55 Imp. gal. 66 U.S. gal.För akvarier upp tillPer acquari fino a
Pumpenleistung 440 l/h 440 l/hPump outputDébit de la pompePompcapaciteit 97 Imp. gal./h 116 U.S. gal./hPumpkapacitetPotenza della pompa
Förderhöhe H max m 1,50 1,50Delivery head m wat. col.Hauteur de réf. m col. d'eauOpvoerhoogte m / wk 4 ft./ 11 inchesLyfthöjd m / vstPrevalenza mt. acqua
FiltervolumenFilter volumeVolume de la cuveFiltervolumeFiltervolymVolume filtro	3 l	3 l
Leistungsaufnahme WPower consumption WConsommation de courant WStroomverbruik WEffekt WAssorbimento W	8	8
AbmessungenDimensionsDimensionsAfmetingenMättuppgifterDimensioni	ø 160 x 355 mmø 6.3 x 13.9 inches
AufstellhöheInstallation heightHauteur de mise en placeOpstelhoogteHöjdavständAltezza dell'installazione	max. 180 cmmax. 5 ft./ 10 inches

Reproduction or copying – even parts thereof – only with the express permission of the producer.
