USER MANUAL AB 1000 Kärcher
Deutsch 3
English 7
Français 11
Italiano 16
Nederlands 20
Español 24
Português 28
Dansk 33
Norsk 37
Svenska 41
Suomi 45
Ελληνικά 49
Türkçe 54
Русский 58
Magyar 63
Čeština 67
Slovenščina 71
Polski 75
Românește 79
Slovenčina 83
Hrvatski 87
Srpski 91
Български 95
Eesti 100
Latviešu 104
Lietuviškai 108
Українська 112
Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners.
Proper use
- The ironing table has a steam suction and blower function and is mainly meant for steam ironing.
- Smaller steam cleaners can be directly attached to the holder of the ironing table in an intake (see Technical data for requirements). Appliances that do not fulfil these requirements must be placed on the floor.
- The steam cleaners are inserted at the socket of the ironing table; the iron can be placed on the heat-resistant rest on the ironing table.
Environmental protection
The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.
Notes about the ingredients (REACH)
You will find current information about the ingredients at:
www.kaercher.com/REACH
Disposal of Appliances
Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.
When the appliance is to be disposed off, please ensure that you first put it out of use (say, by cutting off the power cord and the plug).
Description of the Appliance
The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.
In the event of missing accessories or any transport damage, please contact your dealer.

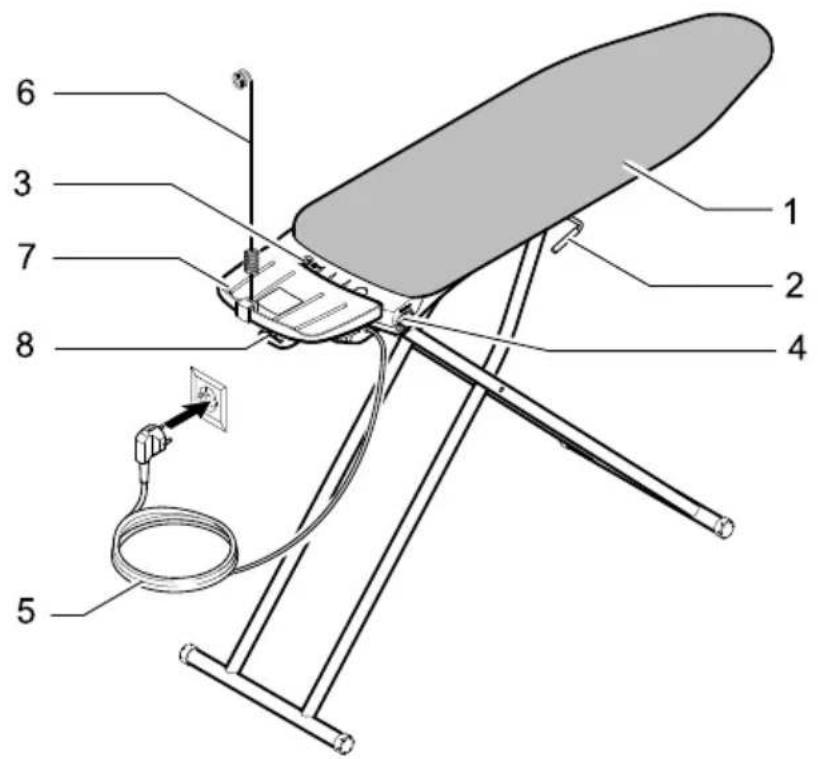

Note: Please refer to page 2 for figures of the appliance and the operation.
1 Ironing table cover
2 Lever for adjusting the height
3 On/off switch; simultaneously a switch for steam suction and blower function
4 Socket for steam cleaner
5 Power cord with plug
6 Flexible cable holder
7 Heat-resistant rest for iron
8 Holder for steam cleaner (steam cleaner is not part of standard delivery)
Specifications
| Voltage 230 - 240 V | |
| Max. connection output of socket | 2250 W |
| Ventilation 21 W | |
| Weight | 9.0 |
| Height adjustment 75 - | 100 cm |
| Dimensions, folded (L x B x H) | 165x46x15 cm |
| For the steam cleaners that are attached to the holder: | |
| Max. dimensions (L x B x H) | 360x240x290 m m |
| Max. weight 9.0 kg | |
| Your steam cleaner must be approved for operations in hanging and standing mode. | |
Safety instructions
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
⚠️Danger
■ The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.
- Check the power cord with mains plug for damage before every use. If the power cord is damaged, please arrange immediately for the exchange by an authorised customer service or a skilled electrician.
■ Never touch the mains plug and the socket with wet hands.
■ Always hold the plug rather than the cable when disconnecting the power cord.
⚠ Warning
■ The packaging material (plastic bag, thermocol, etc.) is a potential source of danger and should not reach the hands of children.
■ Do not bring electrical components (switch for ventilator, socket) with water.
■ Never immerse the appliance in water.
■ Do not let the mains cable hang down. Protect it against bending.
■ Do not apply steam to any electrical components while using the steam iron.
- Improper repairs can cause severe damage to the appliance and lead to cancellation of all warranty claims. Get the appliance repaired only from Kärcher Customer Service or authorised persons.
Caution
■ Use and store the ironing table out of the reach of children.
■ Pull out the power cord before leaving the room, before cleaning and maintenance and after each use.
■ Never move the ironing table when you are working at it.
■ The height adjustment lever of the ironing table must always be in a locked position. Do not operate the lever for height adjustment when you are ironing.
■ Use the ironing table only for the purpose that it is meant and not for piling things, for sitting, etc.
■ Do not iron wet clothes - iron only dry or moistened clothes.
■ No liability for damages can be assumed if the appliance has been put to improper use or has been used wrongly/ improperly.
Start up
Assembling the ironing table
Place the ironing table on firm even ground!

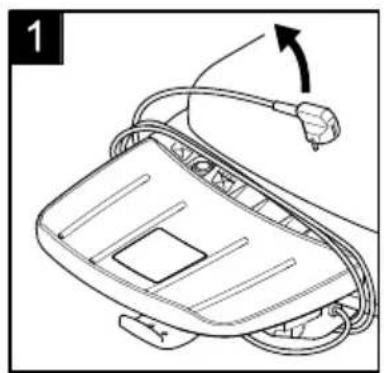

Illustration 1
→ Unwind the mains cable of the ironing table and slowly move the underframe towards the front. The ironing table unfolds and can be locked in the desired position. Then lower the ironing table on to the floor.

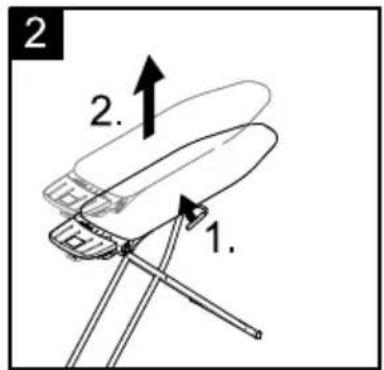

Illustration 2
The height of the ironing table can be adjusted in 6 phases (max. height of 100 cm) and allows you to iron while standing and sitting.
To adjust the height, hold the ironing surface with both the hands, raise the ironing table slightly and pull up the operating lever with one hand. (Lifting the ironing table slightly serves as a security function against accidental switch-on).
The ironing table is locked again only when you hear it locking in.

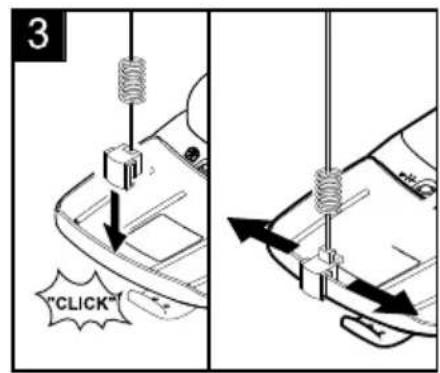

Illustration 3
→ Install the flexible cable holder; you can move it to the left or the right.
Connect the steam generator

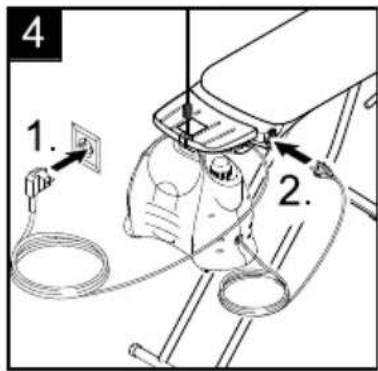

Illustration 4
→ Insert the power cord of the ironing table in a wall socket.
→ Start-up the steam cleaner according to the description.
→ Insert the power cord of the steam cleaner into the socket at the ironing table. This will ensure power supply to the steam cleaner.

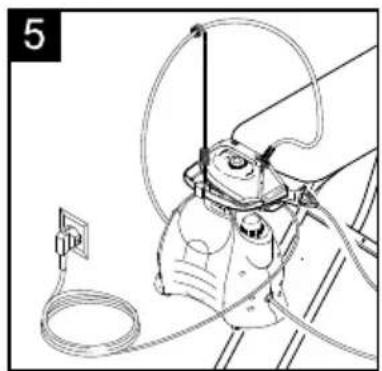

Illustration 5
→ Place the iron of the steam cleaner on the rest and clamp in the cable of the iron into the flexible cable holder.
Ironing table and steam cleaner are now ready for use.
Ironing
Please note and follow the following instructions to ensure safe use of the ironing table!
Notes:
Please ensure that you always follow the ironing instructions stitched on to your clothes along with the instructions and specifications given in the instructions handbook of the steam cleaner and the iron!
The blower must always be switched on while ironing with steam - otherwise there will be condense water formation.
When you shift between ventilator functions (blow out or suck in), there is short pause due to change in the rotational direction of the blower. Hence, wait for a couple of seconds before continuing.
During breaks in ironing, place the hot iron on the heat-resistant rest; please remember to first switch off the steam function.
Steam ironing with steam suction

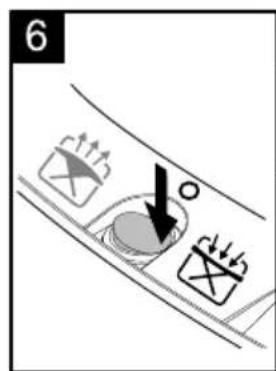

Illustration 6
→ Turn the appliance switch to the steam suction position.
Specific use of steam suction:
Shirts, trousers (with crease), pleated skirts, dinner jackets, tablecloths.
- Fixes the fabric on the table; thus acts against formation of crease.
- Causes the steam to penetrate better into the fibre - this reduces the time taken for ironing and gives better ironing results.
- Ensures a dry ironing table and also helps in drying the fabric while ironing.
Steam ironing using the blower function
Illustration 7
→ Turn the appliance switch to blower position.
Specific use of blower function:
Highly sensitive fabrics, silk blouses, pleats (tucks), frills, dinner jackets with lining.
- Ensures crease-free ironing of highly sensitive fabrics and clothes on an air cushion.
– Takes care of fine clothes.
Dry ironing
Illustration 8
The ventilator functions can also be switched off (on/off switch to position 0) when you want to dry iron.
Finish operation
→ Switch the steam cleaner and the ironing table off.
→ Pull out the power cord of the steam cleaner and the ironing table from the sockets.
→ Shut down the steam cleaner according to the instructions given in the manual and store it.

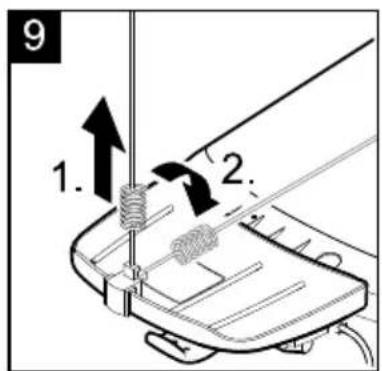

Illustration 9
→ Fold up the cable holder before you put away the ironing table.
Storing the ironing table

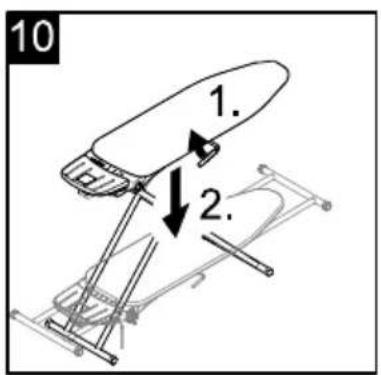

Illustration 10
→ Hold the ironing table with both the hands, raise it briefly and fold it together using the operating lever.

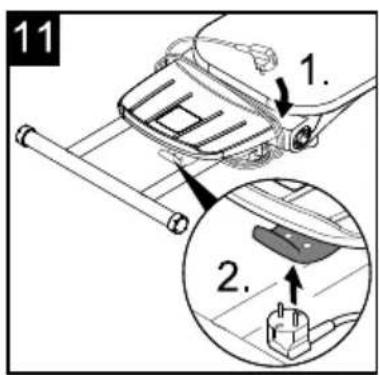

Illustration 11
→ Wind the power cord of the ironing table around the feet and rest taking large radii; press in the power cord in the recess provided for the same in the holder.
Note: Winding the power cord is simultaneously a safety mechanism against accidental unfolding of the ironing table.

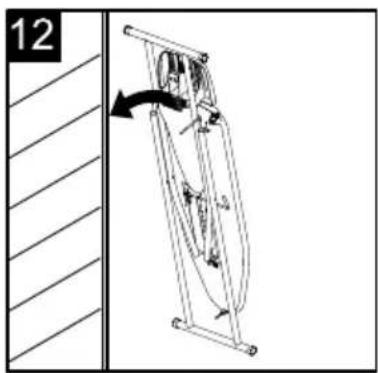

Illustration 12
The ironing table can be stored in a folded state (the iron rest is on the top). Stow away the ironing table in a safe manner to ensure that it does not tilt and fall! The transport safety lock allows you to fix the underframe in a folded state.
Maintenance and care
Cleaning the ironing table
Clean only when the power cord has been pulled out, the iron and steam cleaner have cooled down!
→ Wipe off the ironing table and the surfaces using a soft, moist cloth. Do not use any detergents!
Cleaning the ironing table cover
Note: Please observe the following symbols.
 | Do not wash |
 | Do not dry in dryer |
 | Iron hot (200°C) |
 | Do not dry clean |
 | Do not wet clean |
Changing the cover of the ironing table
The transparency of the special ironing table cover reduces on account of the ironing pressure and absorption of dust particles - this in turn reduces the performance of the ironing table.
→ The ironing table cover should be changed depending on the frequency of use (however, at least once a year).
Order number 2.884-969
Warranty
The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. (See address on the reverse)
