Product type	Floor stand for LED screen
Brand	Viewsonic
Model	LDSTND003
Compatibility	Only with ViewSonic Direct View LD108-121
Materials	Steel
Maximum height	Approximately 2000 mm
Width	Approximately 1500 mm
Depth	Approximately 800 mm
Total weight	Approximately 50 kg
Load capacity	Up to 100 kg
Casters	Yes, with brakes
Main functions	LED screen support, allows movement on casters
Installation	Requires assembly with provided tools (Allen key)
Included tools	Hex key (Allen)
Provided fixings	Bolts M6 x 80 mm, screws M6 x 10 mm, screws KM3 x 6 mm
Safety	Risk of tipping – roll only on flat surface, unlock wheels before moving, do not push the front of the screen
Maintenance	Clean with a dry cloth; do not use abrasive products
Spare parts	Bolts, screws, Allen key available as optional
Repairability	Repairable by a ViewSonic authorized technician
Warranty	2 years (according to manufacturer's conditions)

Frequently Asked Questions - LDSTND003 VIEWSONIC

What is the maximum weight supported by the LDSTND003 stand?

The stand is designed to support only the ViewSonic Direct View LD108-121 model. The total weight of the screen and stand must not exceed 100 kg.

Can I use this stand with other screens than the LD108-121?

No, according to the manual, this stand must only be used with ViewSonic Direct View LD108-121. Using it with other models may cause instability and injury.

How to assemble the floor stand?

Attach the left (C) and right (E) brackets to the lower crossbar (D) with M6 x 80 mm bolts (B) and the Allen key (A). Then attach the upper crossbar (F) to the brackets with four bolts. Tighten all bolts properly.

How to install the system control box?

Carefully unfold the control box panel, align it with the 6 holes on the lower crossbar, and secure it with 6 M6 x 10 mm screws. Install two additional screws to connect the two halves of the box.

How to install the central boxes?

Place the mounting brackets on the back of the central boxes as indicated. Lift each box onto the stand, secure the bracket into the channel of the upper crossbar, then screw with the provided screws. Lock the hooks with the hex tool.

How to install the LED modules?

Wear antistatic gloves. Install each LED module by matching the module numbers with those on the box. Ensure the modules are flush without any gaps. Tap gently if necessary.

How to clean the floor stand?

Use a soft, dry cloth to wipe dust. Do not use chemical or abrasive products that could damage the finish.

What to do if the stand tips over?

Make sure the wheels are unlocked before moving the stand. Never push the front of the screen. If the stand tips over, contact ViewSonic technical support for inspection.

Where to find spare parts for the LDSTND003?

The bolts, screws, and Allen key are included. For additional parts, contact a ViewSonic authorized dealer or visit the manufacturer's website.

How long does the stand warranty last?

The standard warranty is 2 years from the date of purchase. Check the specific terms on the ViewSonic website.

USER MANUAL LDSTND003 VIEWSONIC

Floor Stand (LD-STND-003)

Compatible with LD108-121

All-in-one Direct View LED Display

Quick Start Guide

快速安装说明

快速入門指南

KpaTKoe pyKOBoCTBO no haay pa60tbi

Floor Stand Installation

The floor stand is an optional accessory. Follow below instructions to assemble and install your LED Display onto the stand.

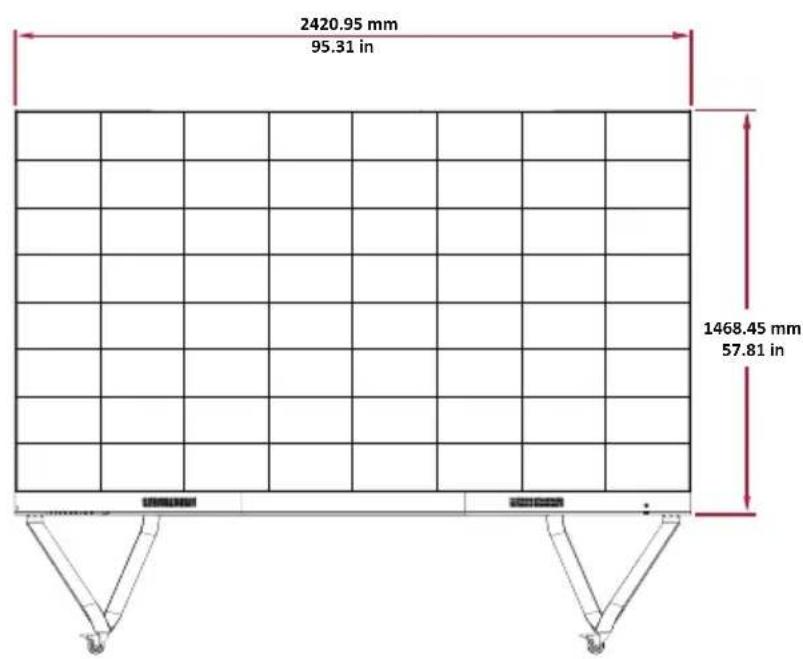

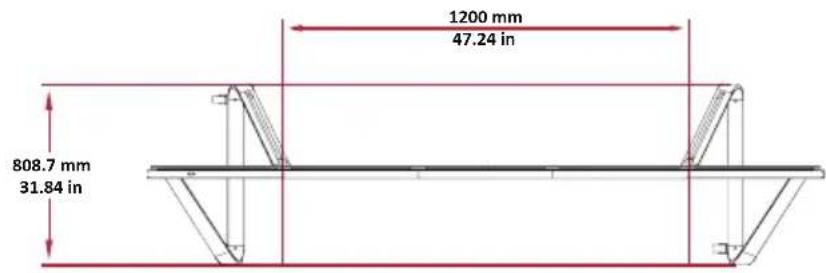

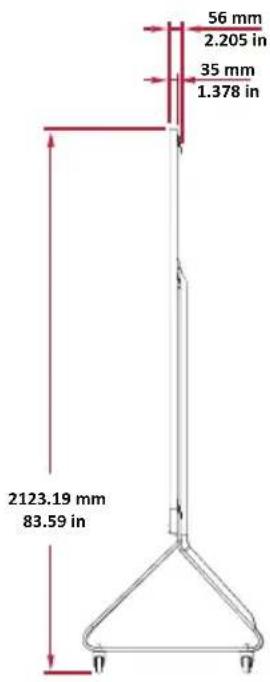

Component List

Letter Item Quantity Description
A 1 Hex Tool (Aller-wrench)
B 8 M6 x 80mm Bolt
C 1 Left Support
D 1 Bottom Cross Beam
E 1 Right Support
F 1 Top Cross Beam

CAUTION

• This Stand is to be used with ViewSonic Direct View LD108-121 only. Using this stand with other models may cause instability and injury.

TIPPING HAZARD!

• DO NOT roll the stand over cable, uneven, dirty, soft, or high incline surfaces.
• DO NOT push the front of the display. Always unlock the wheels before moving. Failure to comply with this caution may result in equipment damage and personal injury.

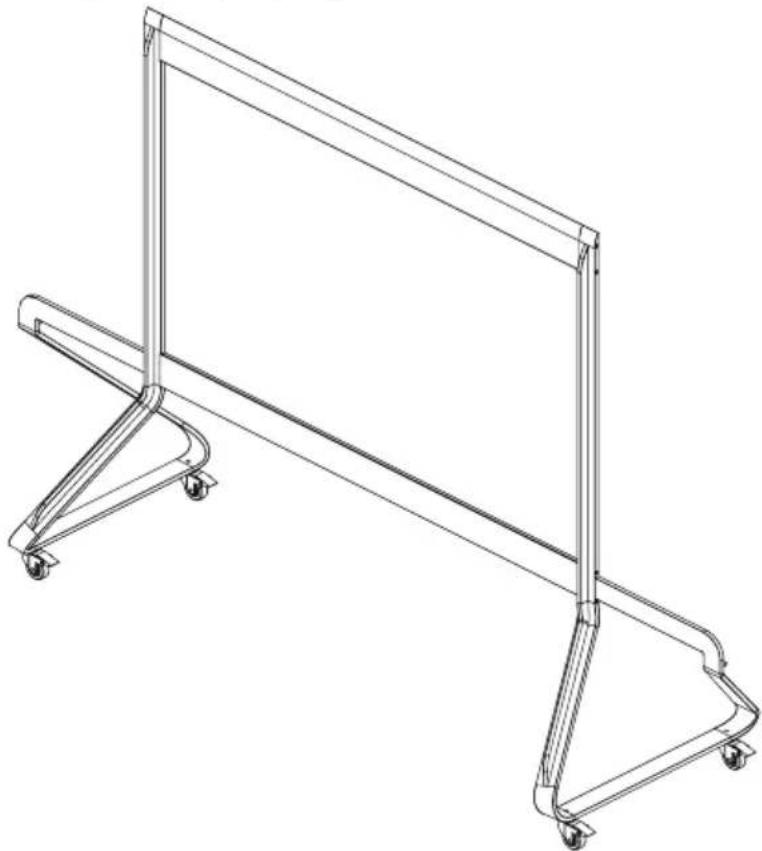

Assembling the Floor Stand

1. Connect the Left Support "C" to the Bottom Cross Beam "D" with two (2) M6 x 80mm bolts "B" and using an Allen wrench "A".

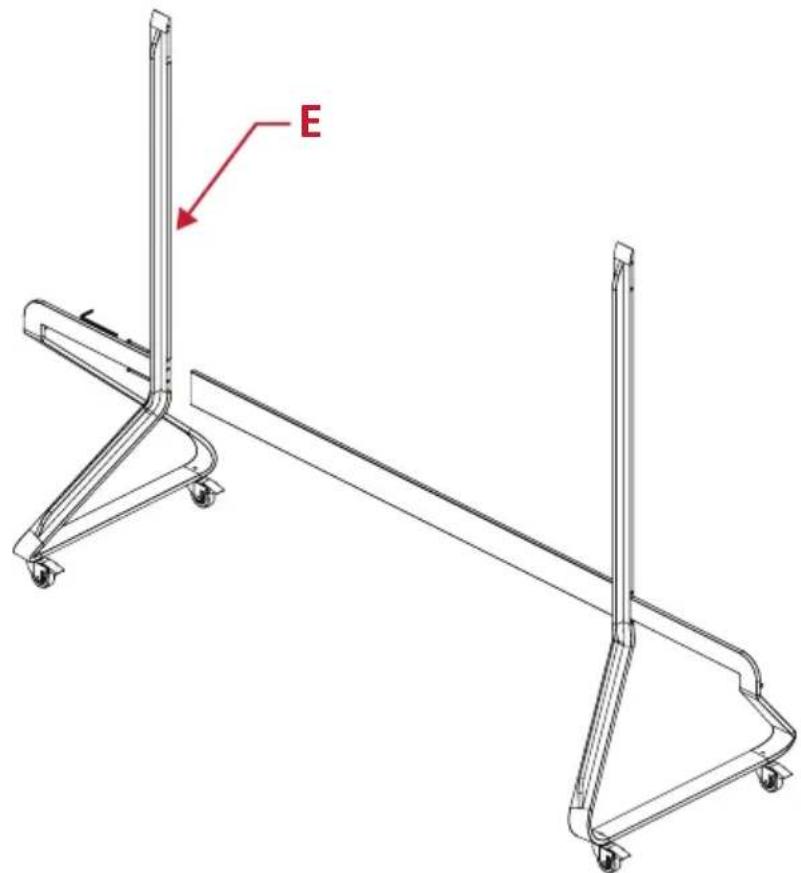

1. Connect the Right Support "E" with the Bottom Cross Beam with two (2) M6 x 80mm bolts.

1. Connect the Top Cross Beam "F" to the Left and Right Supports with four (4) M6 x 80mm bolts.

1. Ensure all bolts are tightened properly with an Allen wrench.

Connecting the System Control Box to the Floor Base

1. Carefully unfold the System Control Box panel. Ensure the main system control board is on the left.

NOTE: Use caution as the System Control Box panel is separated into two pieces with wires attached.

1. Align the System Control Box to the six (6) holes on the Bottom Cross Beam and secure it with six (6) M6x10mm screws.

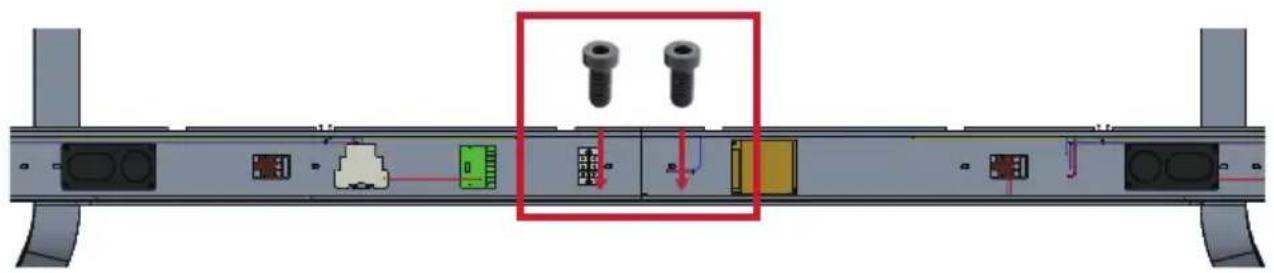

1. Install two (2) additional screws (M6x10mm) to connect the two halves of the System Control Box.

NOTE: Screws (M6x10mm) are placed in the accessory box of the LED Display.

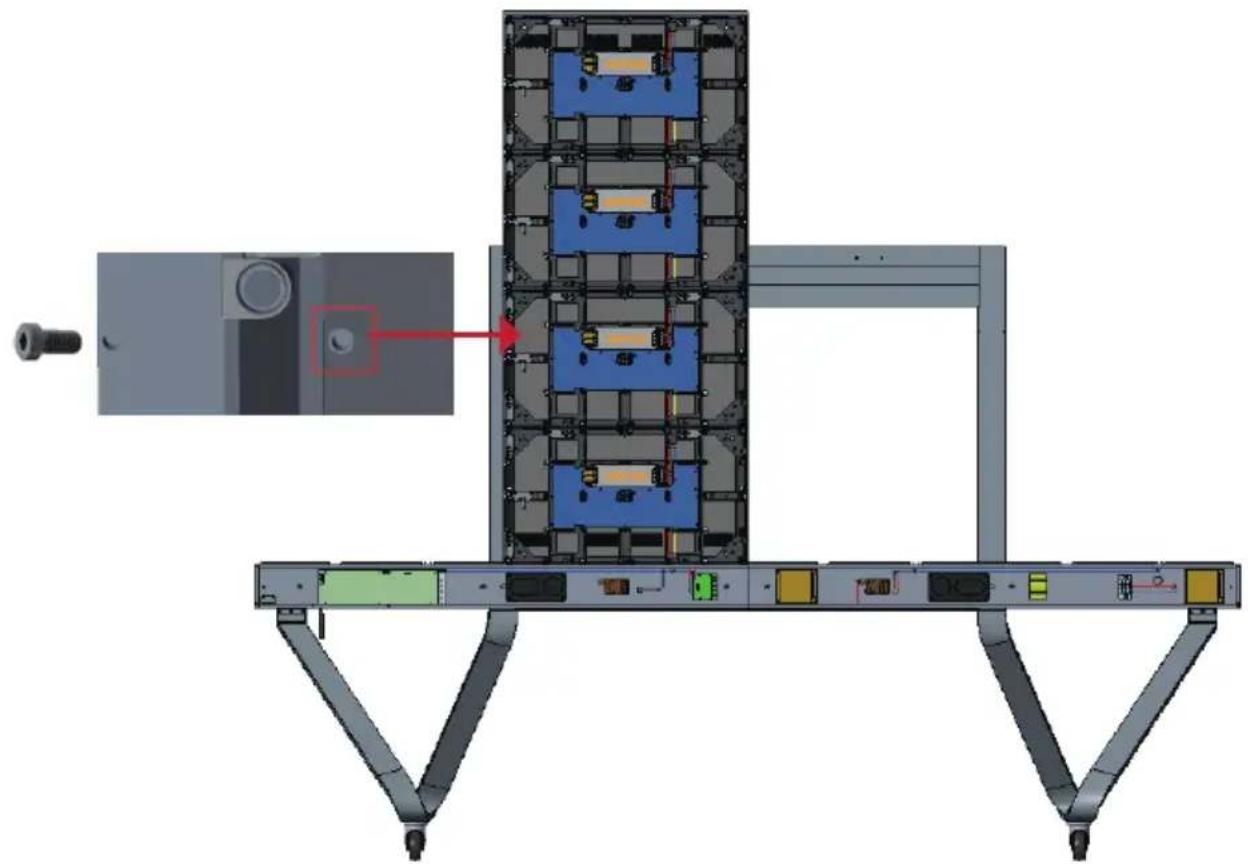

Installing the Middle Cabinets

1. Ensure the two (2) Mounting Brackets on the rear of the two (2) Middle Cabinets are positioned as shown below:

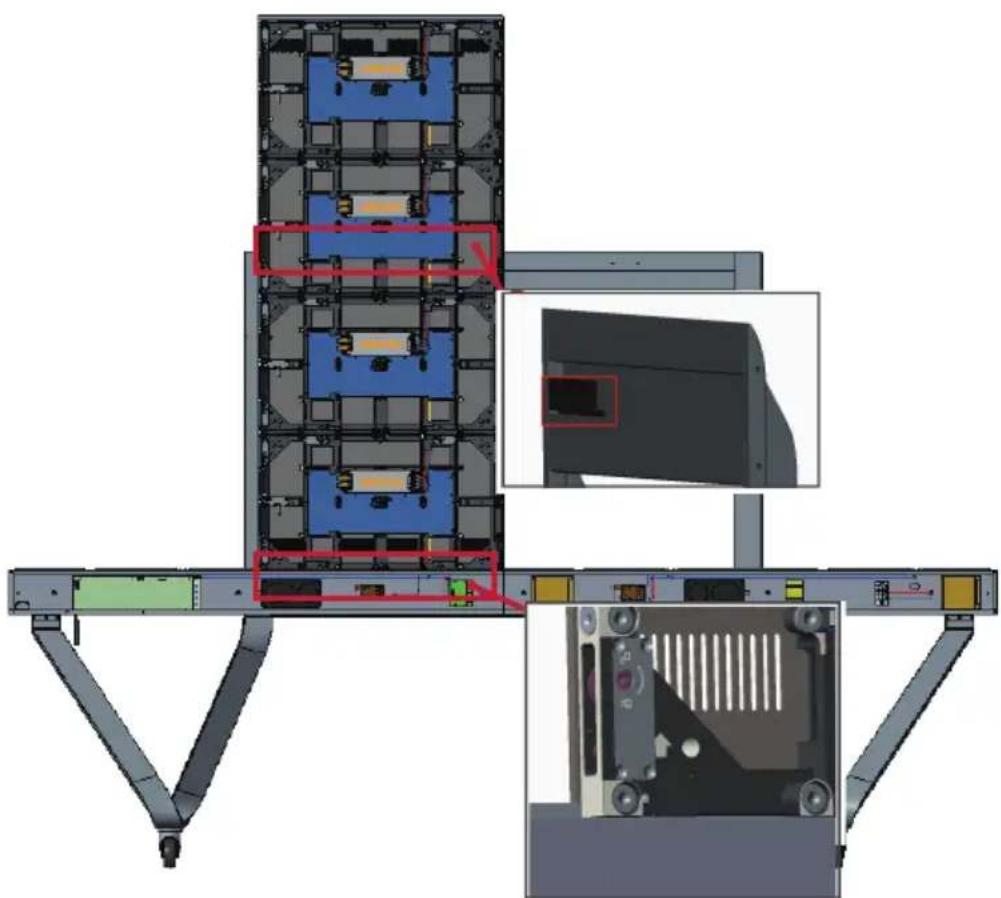

1. Carefully lift a Cabinet up onto the Floor Stand, securing the Mounting Bracket into the support channel of the Top Cross Beam. The bottom of the Cabinet will rest on the Bottom Cross Beam.

1. Secure the Cabinet to the Support with the provided screws (M6x10mm).

1. Push each Locking Bolt and lock each Hook with the hex tool to securely connect each cabinet together. It may be necessary to align the hole with an Allen wrench in order to engage the Locking Bolt.

NOTE: There are four (4) Locking Bolts and eight (8) Hooks between each cabinet.

Installing the Left and Right Cabinet

1. Carefully lift the Left and Right Cabinet up onto the Floor Stand, securing the Mounting Bracket into the support channel of the Top Cross Beam. The bottom of the Cabinet will rest on the Bottom Cross Beam.

NOTE: Ensure the holes of the Cabinet and the System Control Box are aligned.

1. Push each Locking Bolt and lock each Hook with the hex tool to securely connect the Left and Right Cabinet to the Middle Cabinets.
2. Secure the Left and Right Cabinet to the Support with the provided screws (M6x-10mm).

NOTE: There are four (4) Locking Bolts and eight (8) Hooks between each cabinet.

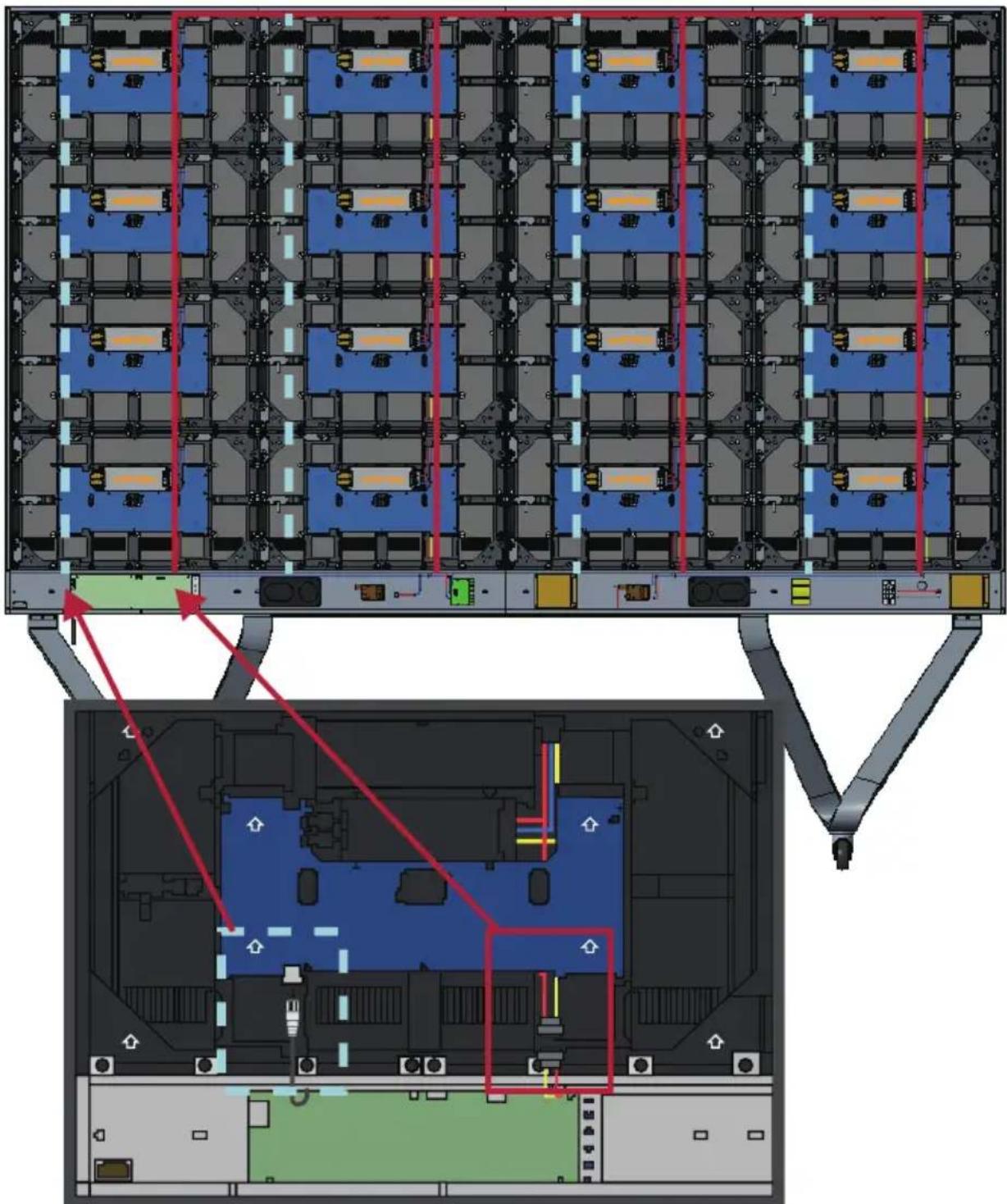

Connect the Network and Power Cables

Connect the Network and Power cables of each Cabinet to the System Control Box.

NOTE: There are four (4) Network and four (4) Power cables to connect.

Network 1

Network 2

Network 3

Network 4

Power

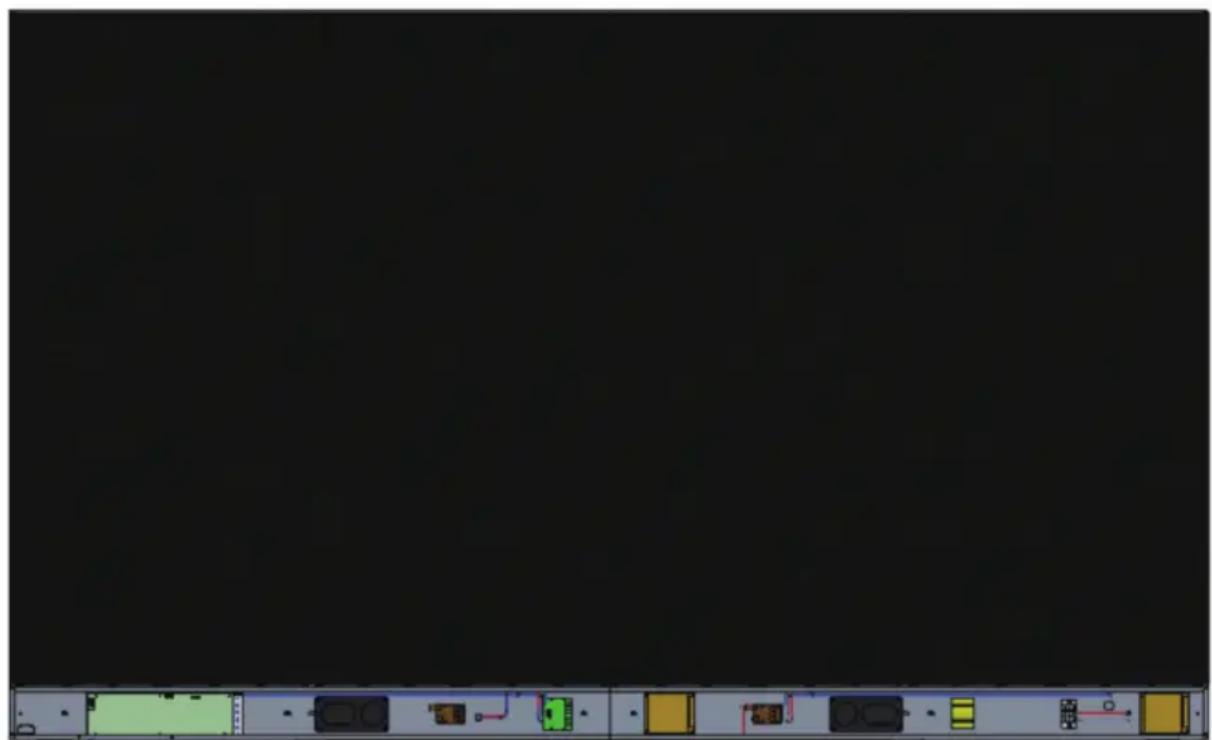

Installing the LED Modules

Install each LED Module onto the Cabinets, being sure to match the corresponding numbers on the Module to the Cabinet. Ensure each Module is flush and that there is little to no gap between each. It may be necessary to gently tap the module to make it flush.

CAUTION Please wear Anti-Static Gloves before handling the LED modules.

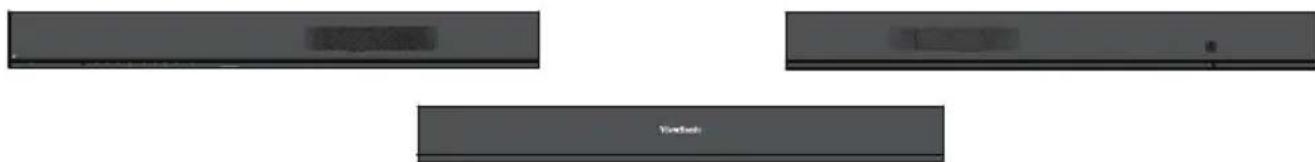

Installing System Control Box Covers

There are three (3) System Control Box Covers: Left, Middle, and Right.

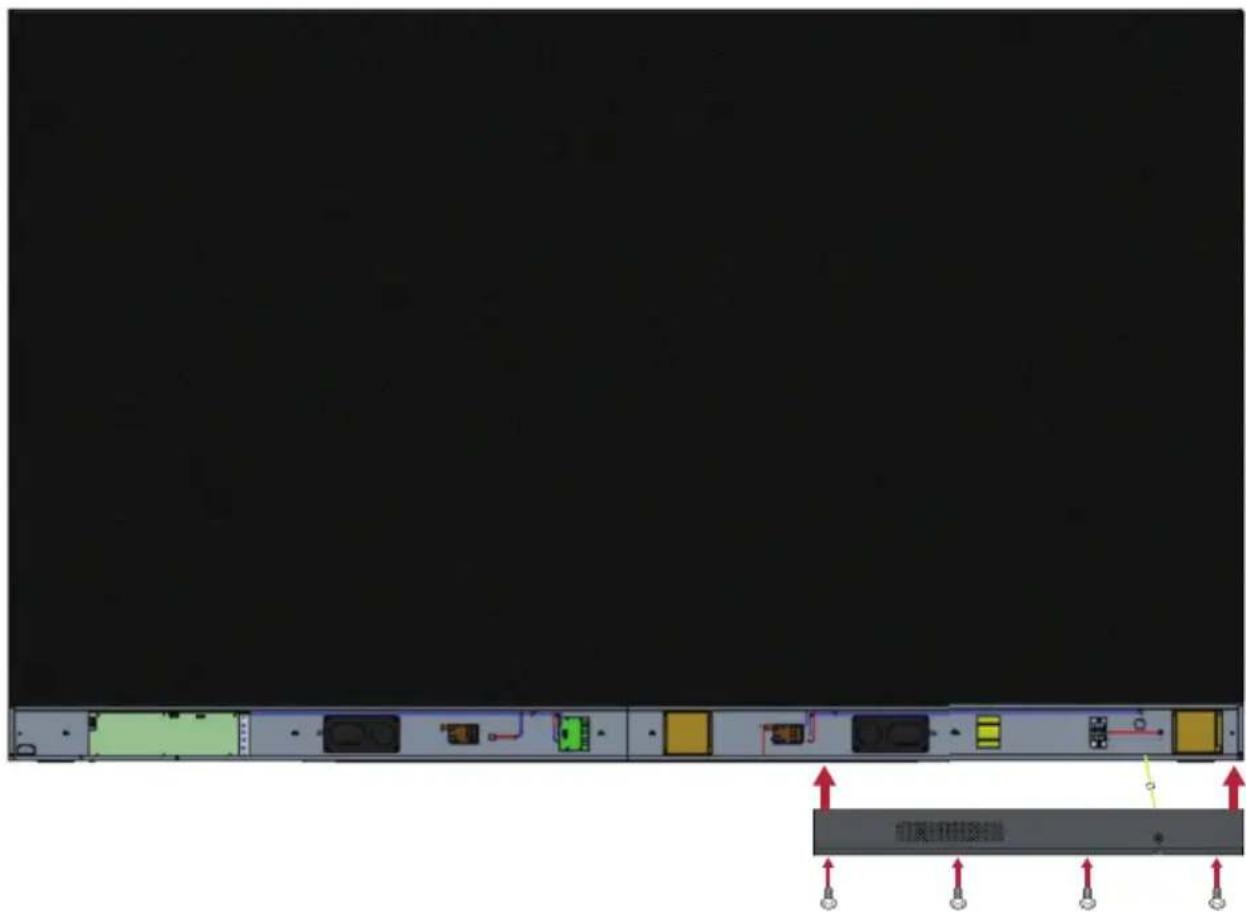

1. Begin by installing the Right Cover onto the System Control Box.

NOTE: Ensure the Power Button cable is connected to the System Control Box Power cable before securing the Cover.

1. After connecting the Power Button cable, ensure the Right Cover is properly aligned with the System Control Box; then secure it with the 12 provided screws (KM3x6mm).

NOTE: Screws (KM3x6mm) are placed in the accessory box of the LED Display.

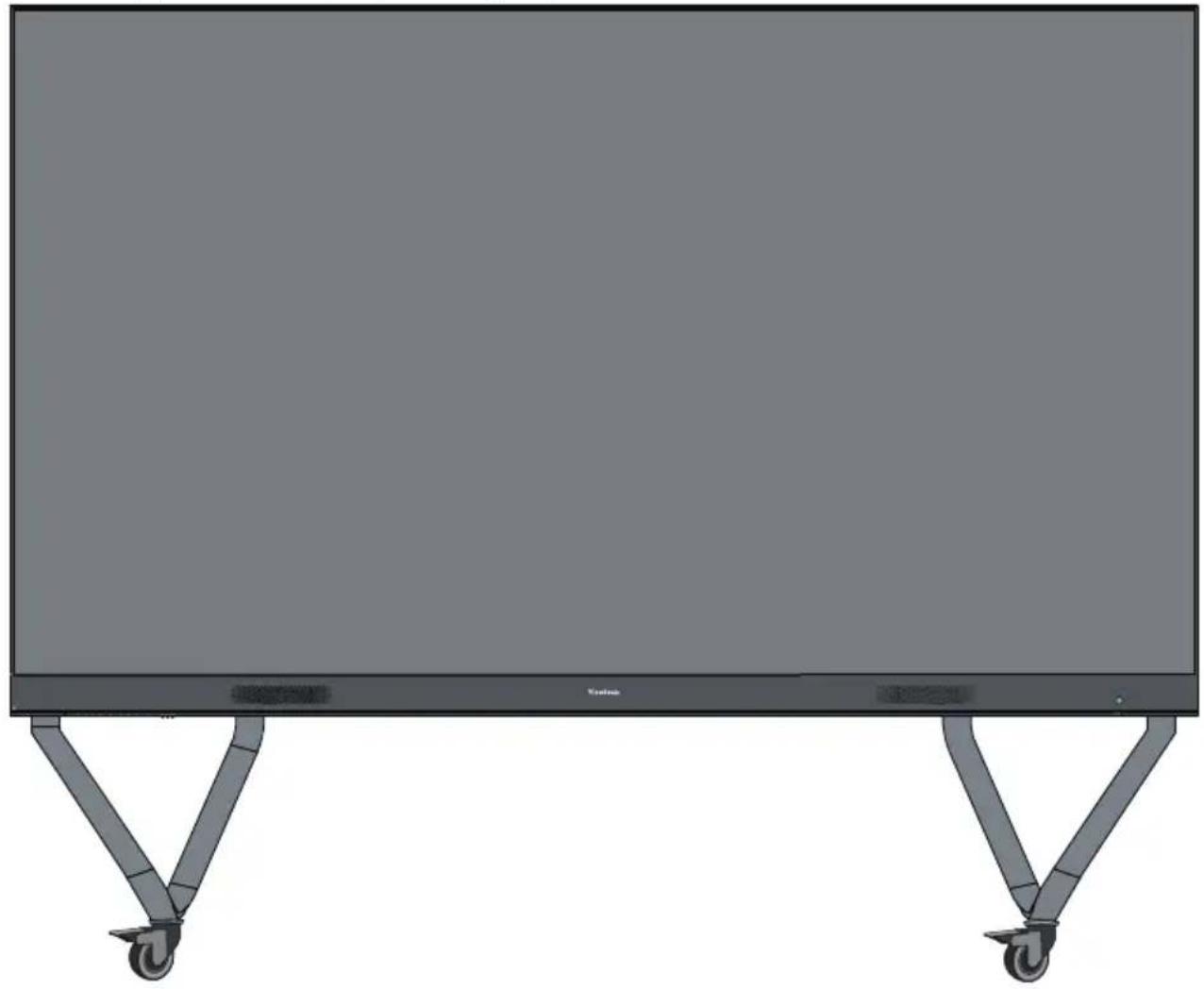

1. Repeat the above steps for the Middle and Left Cover. Once all of the Covers are secured, your LED Display is ready to power on.

落地支架安装

YcTaHOBKa CBeToaNoJNbIX MoyJeN

YCTAHOBITE KaJdbi CBeToIDNoHbIM MOyIb B KOpNyc, y6eINBWHscb, YTO COOTBeTCTByOUsne HOMepa, yKa3aHHbIe Ha MoUJe, COBnaJaOT Co HOMepom ShKaΦa. Y6eINTecb, yTO KaJdbi MOyIb YCTAHOBJIeH BPOBeHc DpyrHMn I MeKdY HmMn Het 3a30pa. Bo3MOxHo, notpe6yeTc8 OCTOpOxHo NOCTyAtb No MOyIHO, YTO6bl BBipOBHraTb ero.

BHIMAHNE! NokayuCTa, HadehTe aHTnCTaTnueckne nepaTkn nepepa60ToC o CBeTOdNOdHbIMN MOyIaMn.

YcTaHOBKa KpbIweK cnCTeMHoN KOPO6Kn ynpaBLeHnA

IMeetc3 (tpn) KpbIshKncn CnCTeMHoN KOPO6Kn ynpabHeHna: JeBa, CpeHra n IpaBaJ.

1. Hauhnte c yctaHOBKn npaBov KpbIshKn CnCTeMHoN KOPO6Kn ynpaBHeHna.

ПРИМЕЧАН. Перд зakpenlenem Крblшкуб endtecb,чTo Ka6eIb KhoNkn PtTahnnoPdKlnOueH K Ka6eHNo PtTahnna CnCTeMHoKopo6Kn ynpabLeHn.
