DDR1327DCS - TV wall mount Tripp Lite - Free user manual and instructions
Find the device manual for free DDR1327DCS Tripp Lite in PDF.
| Product Type | TV wall mount (dual desk mount) |
| Brand | Tripp Lite |
| Model | DDR1327DCS |
| Intended Use | Mounting two flat-panel displays on a desk |
| Load Capacity | Up to 22 lb (10 kg) per arm (estimated) |
| VESA Compatibility | 75x75 mm and 100x100 mm |
| Compatible Desk Thickness | 10 mm to 60 mm |
| Adjustability | 360° rotation, +90°/-80° tilt, 180° swivel |
| Main Material | Steel |
| Screws Included | M4x8, M5x8, washers |
| Tools Included | 6 mm and 4 mm hex key |
| Installation | Clamp and knob attachment to desk edge |
| Cable Management | Integrated clips for cable routing |
| Maintenance | Check tightness and integrity every 3 months |
| Warranty | 5-year limited |
| Usage | Indoor only |
| Net Weight | Approximately 2.5 kg (estimated) |
Frequently Asked Questions - DDR1327DCS Tripp Lite
User questions about DDR1327DCS Tripp Lite
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your TV wall mount in PDF format for free! Find your manual DDR1327DCS - Tripp Lite and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DDR1327DCS by Tripp Lite.
USER MANUAL DDR1327DCS Tripp Lite

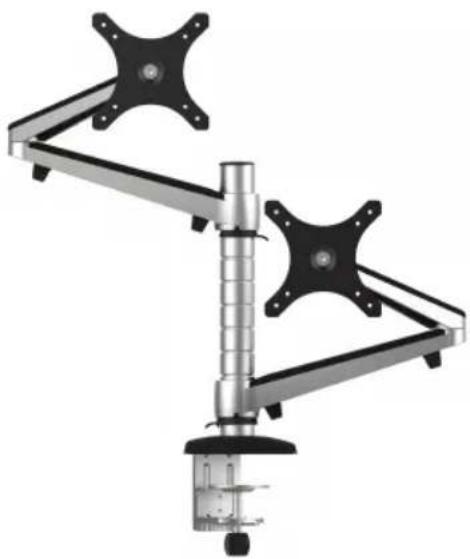

Dual Flat Screen Desk Clamp
MODEL: DDR1327DCS

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

75×75/100×100


PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a \$50 value!
www.tripplite.com/warranty


1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2014 Tripp Lite. All rights reserved.

WARNING
- Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have any questions regarding any of the instructions or warnings, please visit www.tripplite.com/support.
- This mounting bracket was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
- This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this manual.
- Make sure that the mounting surface can safely support the combined load of the equipment and all attached hardware and components.
- Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
- Tighten screws firmly, but do not over-tighten. Over-tightening can damage the items, greatly reducing their holding power.
- This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
Warranty & Product Registration
5-Year Limited Warranty
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).
WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.
PRODUCT REGISTRATION
Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Component Checklist
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit www.tripplite.com/support for service.

End Cap (x1)
Mounting Assembly (x2)

Collar (x3) Sleeve (x2) Knob (x2)



M4X8 (x8)

M5X8 (x8) Washer (x8)


6mm Hex Key (x1) 4mm Hex Key (x1)

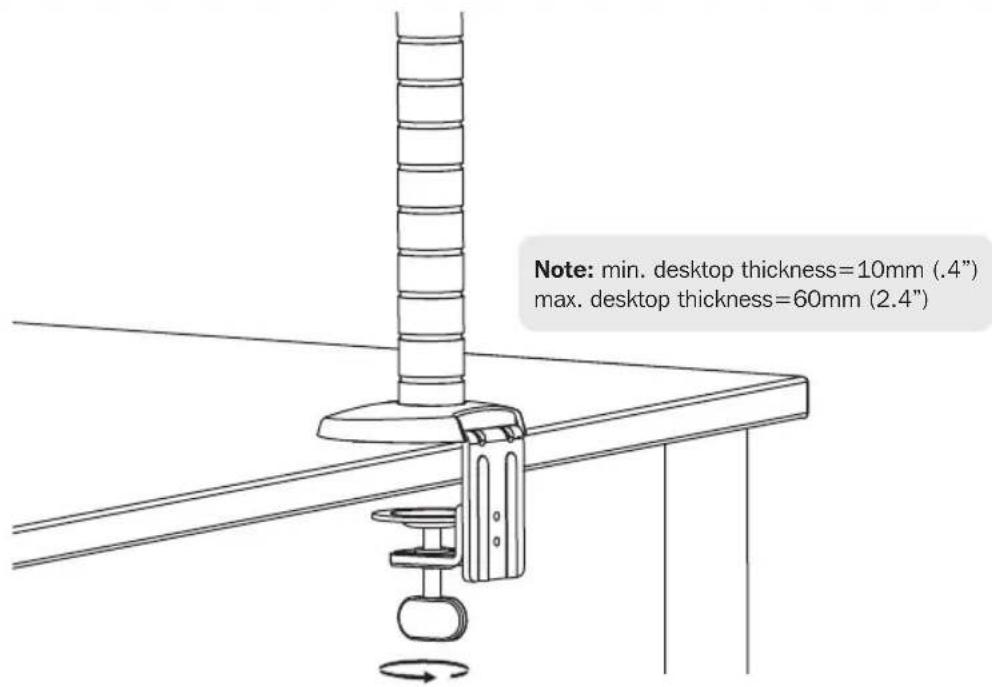

1. Install Desk Mount Assembly

- Determine approximate location for mount, keeping in mind display size, height adjustment and pitch/roll requirements.
- Slip the desk mount assembly over the edge of desk so that clamp fully contacts desk edge.
- Turn the knob to adjust the clamp to edge of desk and secure it tightly.

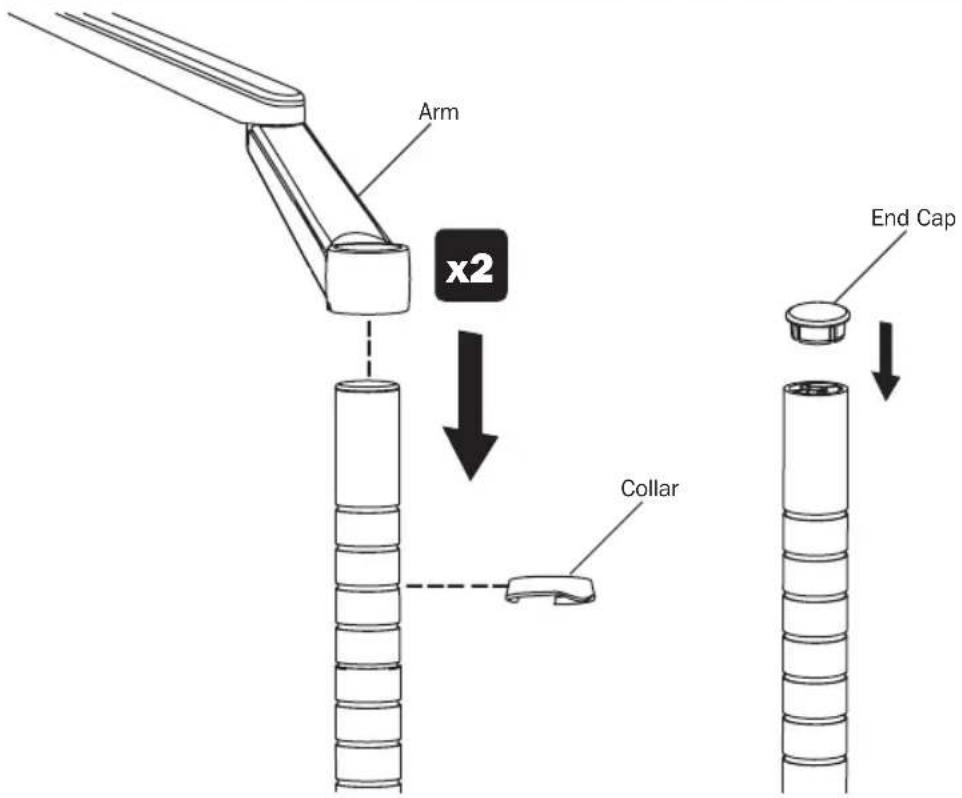

2. Install Arms

3. Install Displays

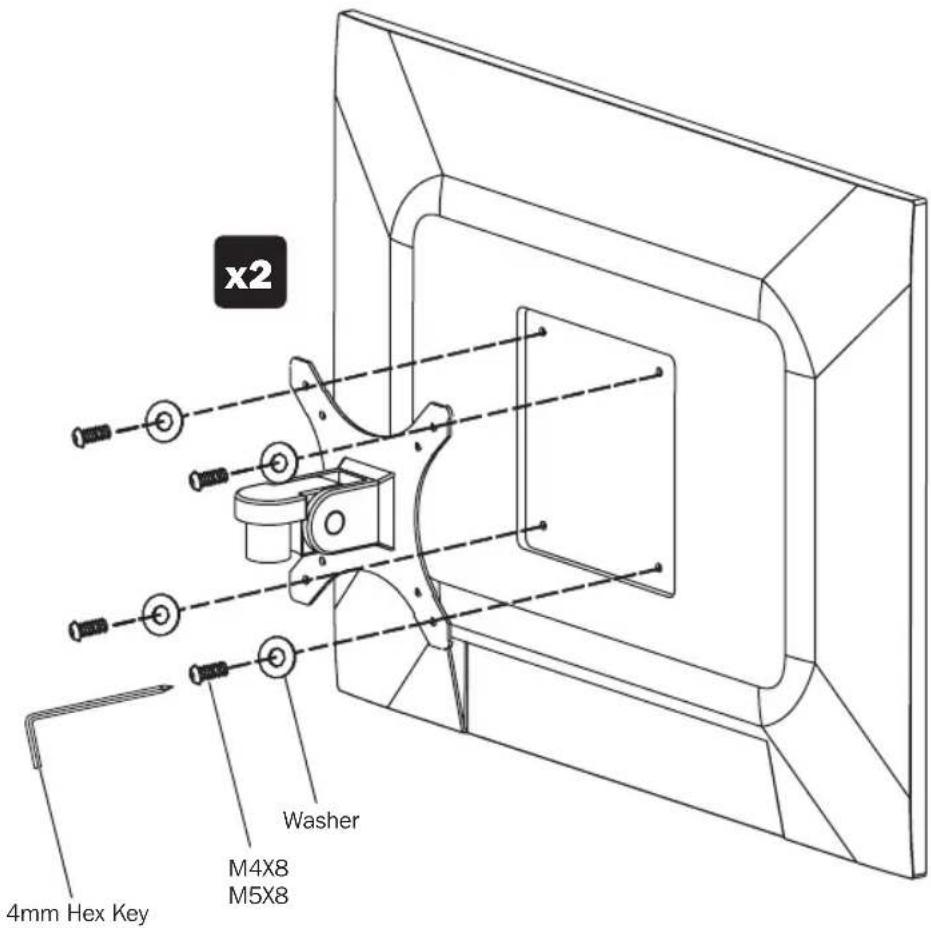

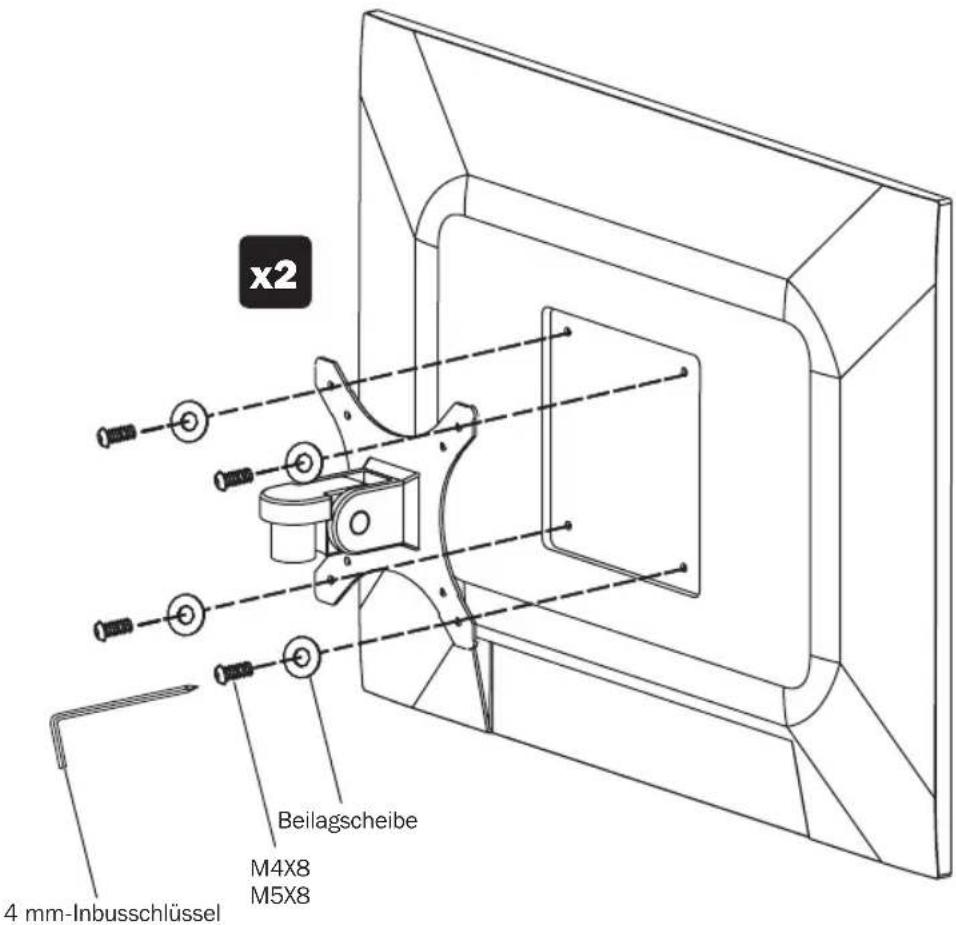

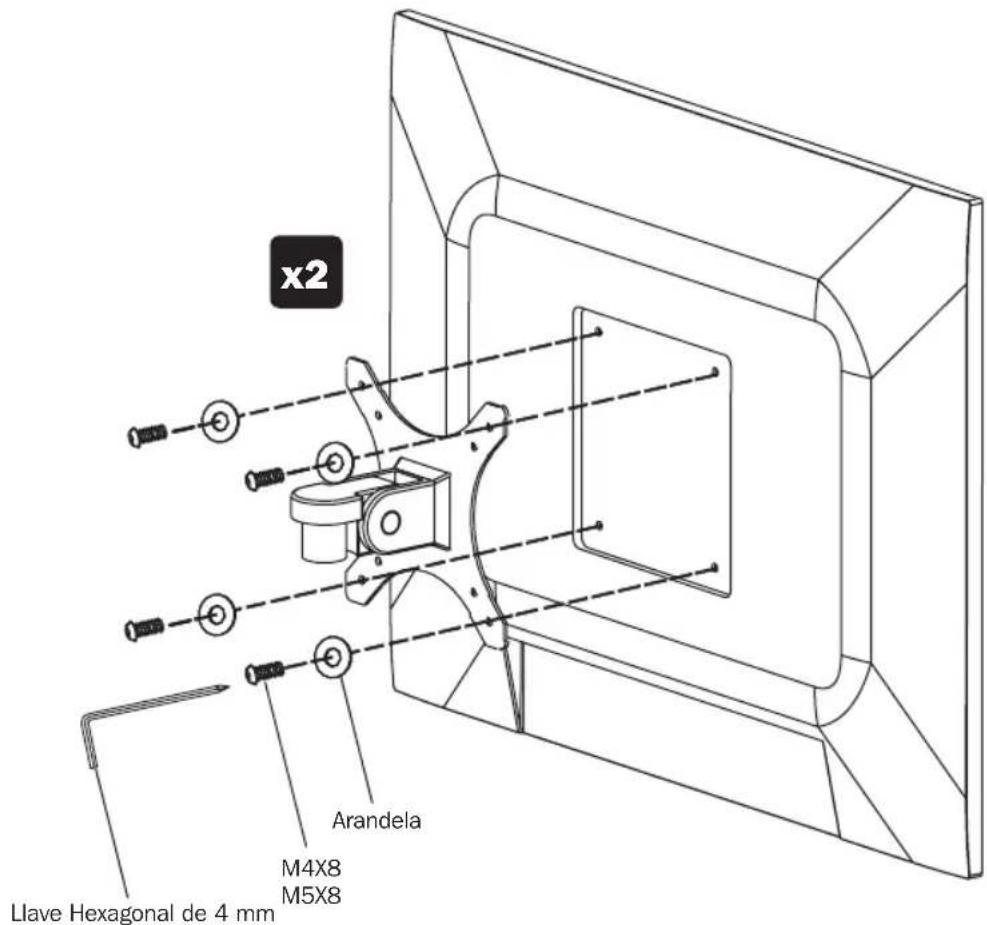

3-1 Attach Displays to Mounting Assemblies




Attach the display to the mounting assembly with the appropriate included screws. Do not over-tighten screws.
3. Install Displays

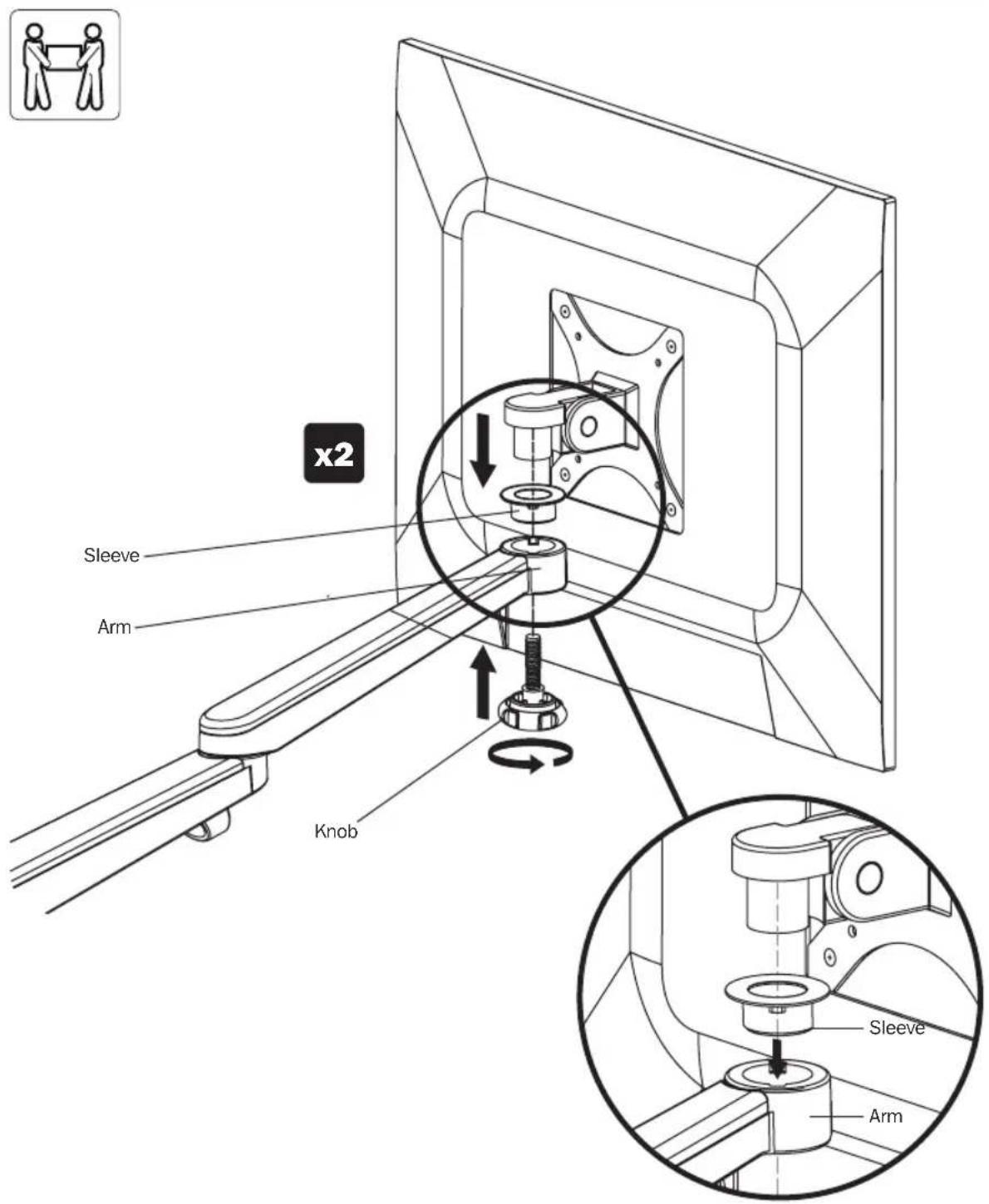

3-2 Attach Displays to Arms


Always use an assistant or mechanical lifting equipment to safely lift and position displays.
Make sure the display is safely secured before releasing.
Tighten knobs firmly, but do not over-tighten.
4. Route Cabling

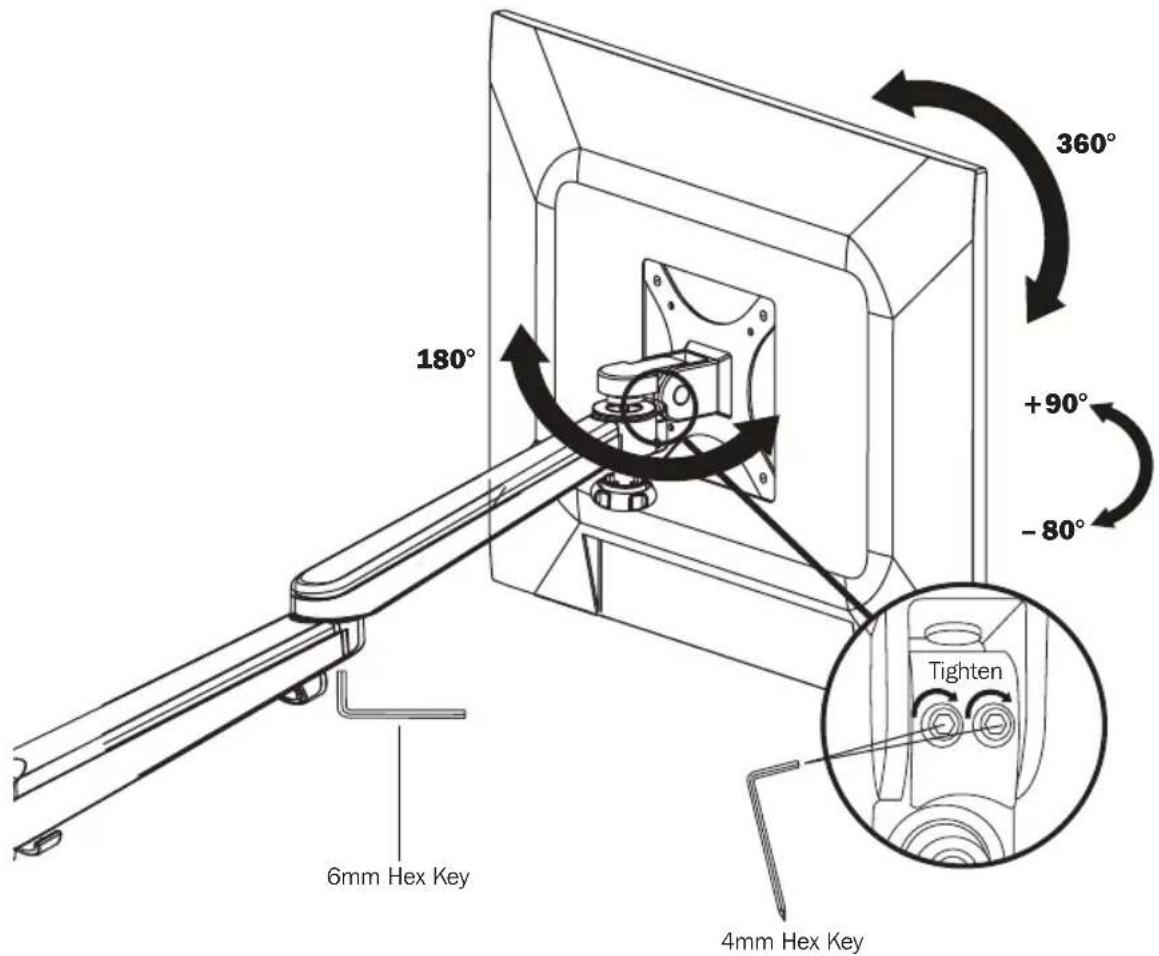

5. Adjustment


Once the displays are adjusted to their final desired position, tighten the bolts using the included hex keys.
Do not over-tighten bolts.
Maintenance
- Check that the bracket is secure and safe to use at regular intervals (at least every three months).
- Please visit www.tripplite.com/support if you have any questions.


1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Technical line drawing of a mechanical lever or support structure (no text or symbols)


1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

MISE EN GARDE : NE PAS EXCÉDER LA CAPACITÉ PONDÉRALE MAXIMUM INDIQUÉE. DES BLESSURES GRAVES OU DES DOMMAGES MATÉRIELS RISQUENT DE SE PRODUIRE!

75x75/100x100




1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Technical line drawing of a mechanical lever or support structure (no text or symbols)1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Technical line drawing of a mechanical lever or support structure (no text or symbols)1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Benutzerhandbuch

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Abschlusskappe (x1)

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
