Product Type	Single-mode MPO/MTP Patch Panel for Spine-and-Leaf Architecture
Model	N48LSS-32X32
Form Factor	1U (48.26 cm standard EIA width)
Connector Type	MPO/MTP (front spine ports and rear leaf ports)
Number of Ports	32 ports (16x16 configuration) or 32x32 depending on model
Power Supply	None (passive device)
Main Function	Replaces MPO/MTP to LC cross-connect, spine-and-leaf cable management
Cable Management System	Front and rear, with door and adjustable supports
Installation	19-inch rack mounting with extendable side brackets
Maintenance and Cleaning	Regular cleaning of optical connectors with appropriate kit
Safety	Use in accordance with instructions; do not use for life support devices
Spare Parts and Repairability	No detachable parts; repair by panel replacement
Warranty	Limited lifetime warranty (repair or replacement)
Operating Temperature	0 to 50 °C (estimate for passive equipment)
Relative Humidity	5 to 95% non-condensing (estimate)

Frequently Asked Questions - N48LSS32X32 Tripp Lite

What is the difference between the N48LSS-16X16 and N48LSS-32X32 models?

The N48LSS-16X16 model has 16 spine ports and 16 leaf ports (total 32), while the N48LSS-32X32 has 32 on each side (total 64). Check your port density requirements.

Is this panel compatible with multimode MPO cables?

No, this model is specifically designed for single-mode cables. Using multimode cables may cause signal loss.

How to install the panel in a rack?

Extend the front and rear side brackets, secure them with the provided screws, then mount the panel in a standard 19-inch rack (48.26 cm) and tighten the mounting screws.

Can I use this panel for an architecture other than spine-and-leaf?

Although designed for spine-and-leaf architecture, it can be used in other configurations respecting port orientations (spine front, leaf rear).

How to clean MPO/MTP connectors?

Use an optical connector cleaning kit with lint-free wipes and a tip suitable for MPO connectors. Avoid any contact with the ferrules.

Are there any wear parts to replace?

This panel contains no wear parts or consumables. Connectors should be protected from dust with the provided caps.

What is the warranty for this product?

Tripp Lite offers a limited lifetime warranty covering material and workmanship defects. If a problem occurs, contact support for a replacement.

Can I mount the panel in a position other than horizontal?

The panel is designed for horizontal rack mounting. Vertical mounting is not recommended as it could affect cable management.

What tools are needed for installation?

You will need a Phillips screwdriver for the mounting screws and possibly an Allen wrench for the brackets if provided.

How to identify the orientation of spine and leaf ports?

The spine ports are located on the front of the panel (facing the user), while the leaf ports are at the rear. Refer to the labels on the panel.

USER MANUAL N48LSS32X32 Tripp Lite

Spine-and-Leaf Singlemode MPO/MTP Panels, 1U

Models: N48LSS-16X16, N48LSS-32X32

Español 5 • Français 9 • Русский 13 • Deutsch 17

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

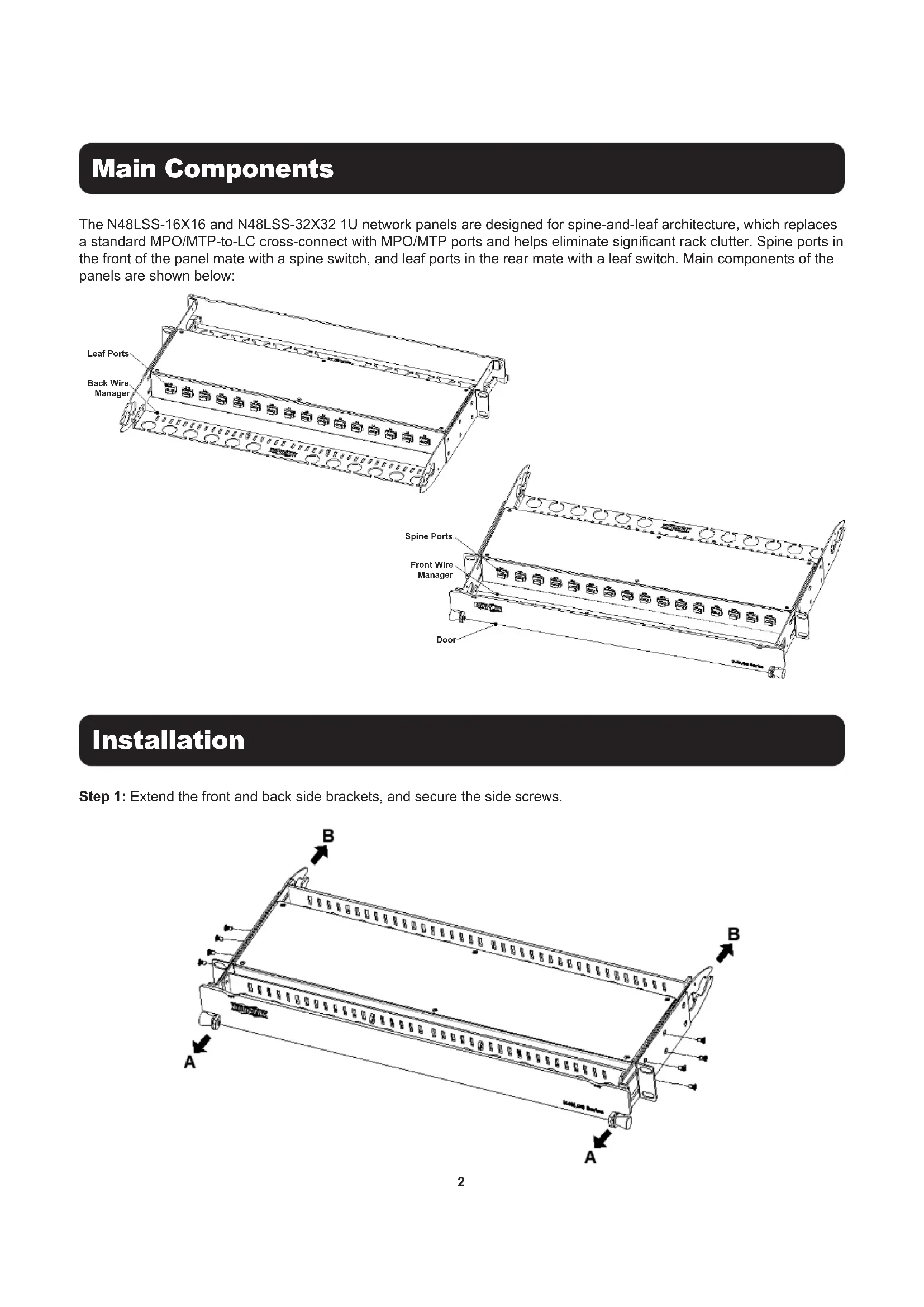

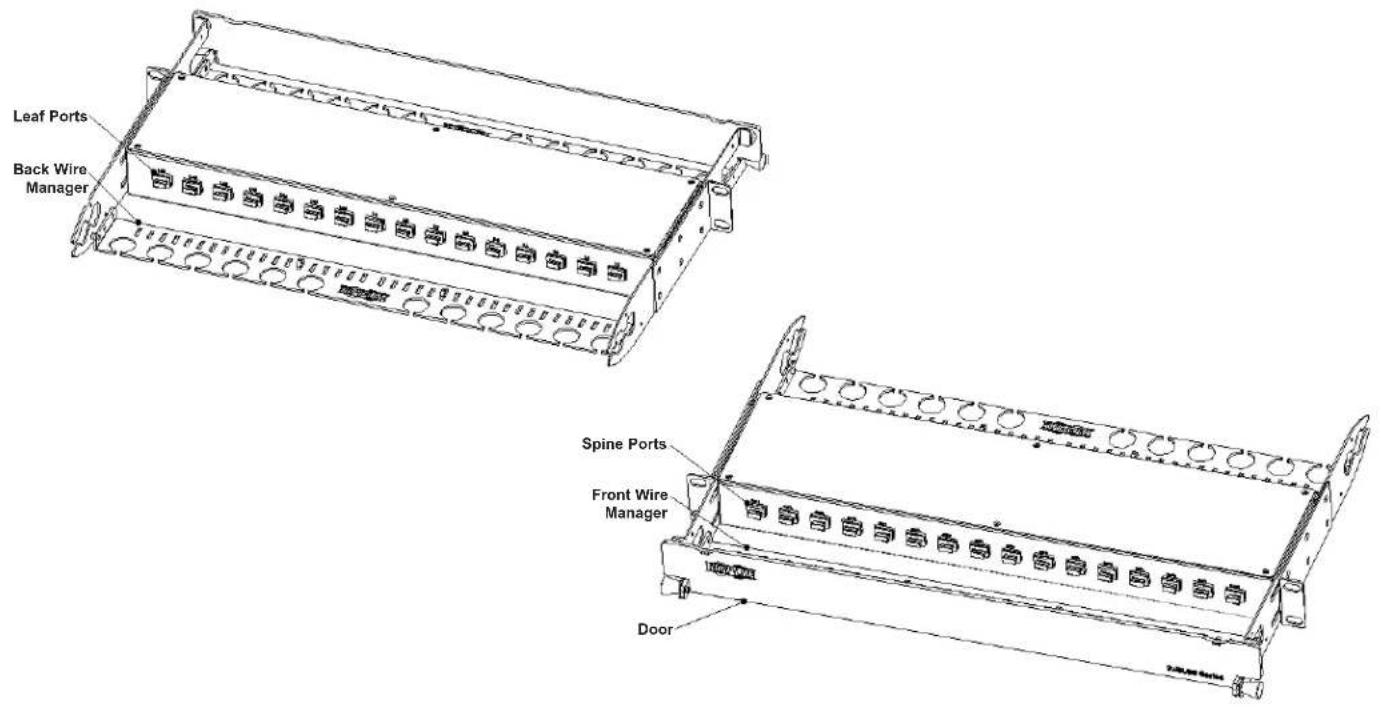

Main Components

The N48LSS-16X16 and N48LSS-32X32 1U network panels are designed for spine-and-leaf architecture, which replaces a standard MPO/MTP-to-LC cross-connect with MPO/MTP ports and helps eliminate significant rack clutter. Spine ports in the front of the panel mate with a spine switch, and leaf ports in the rear mate with a leaf switch. Main components of the panels are shown below:

Leaf Ports Back Wire Manager Spine Ports Front Wire Manager Door

Installation

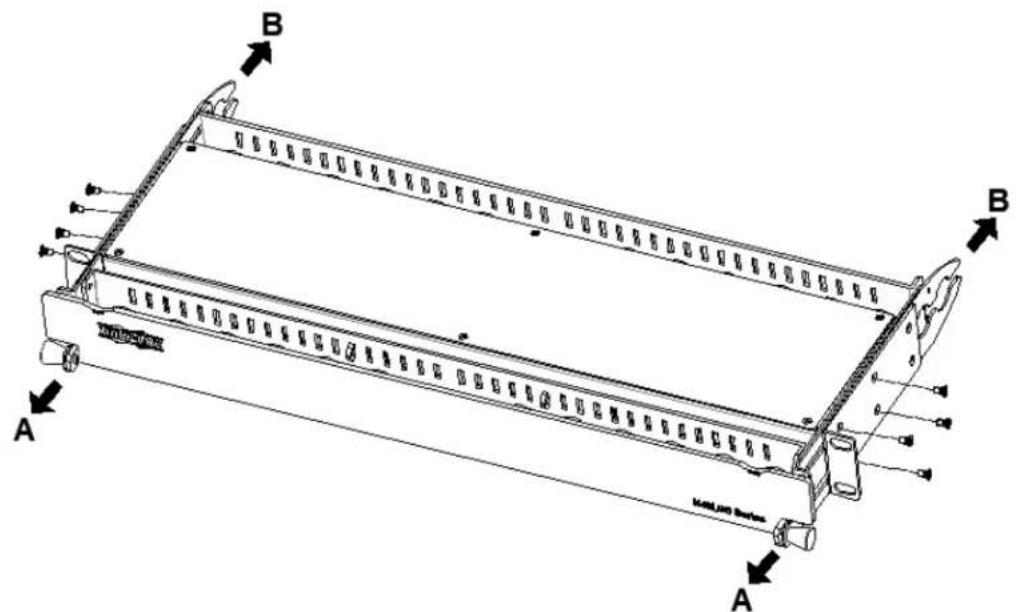

Step 1: Extend the front and back side brackets, and secure the side screws.

A B B A LADJ 2001 Server

Installation

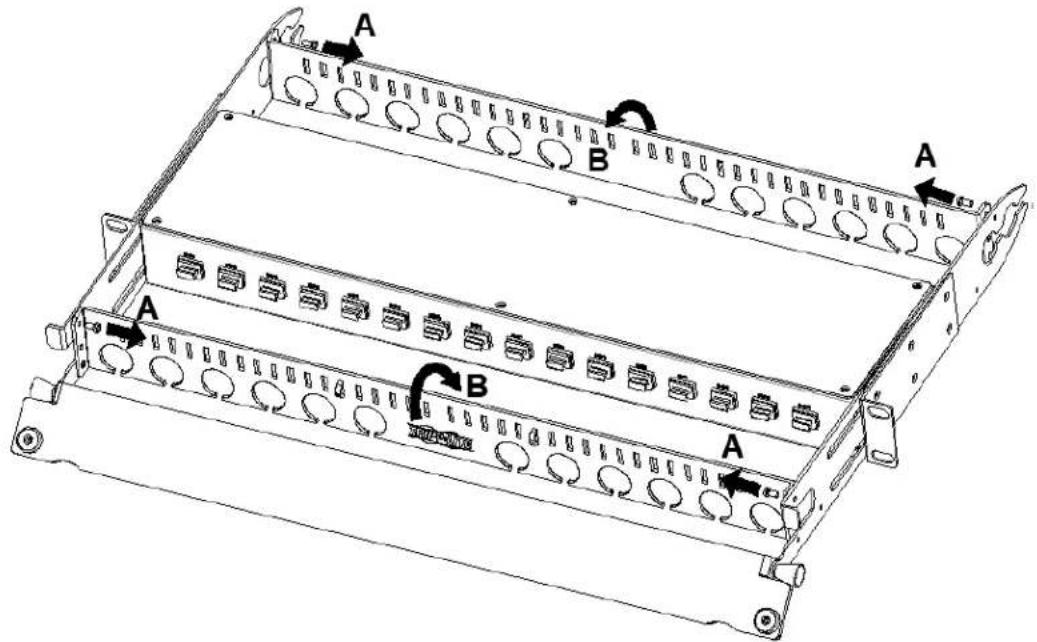

Step 2: Remove screws, rotate the front and back wire manager, and then tighten the screws.

A B A A B A

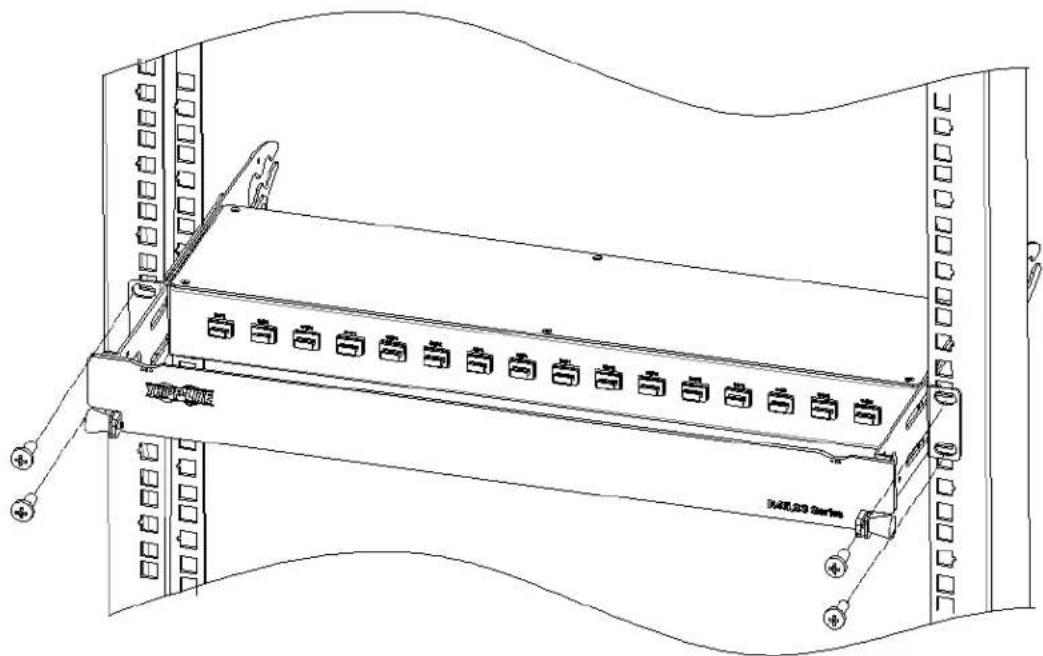

Step 3: Mount the panel into an EIA-standard 19-inch rack, and secure the screws.

Line drawing of a server rack unit with labeled ports and connectors (no text or symbols beyond labels)

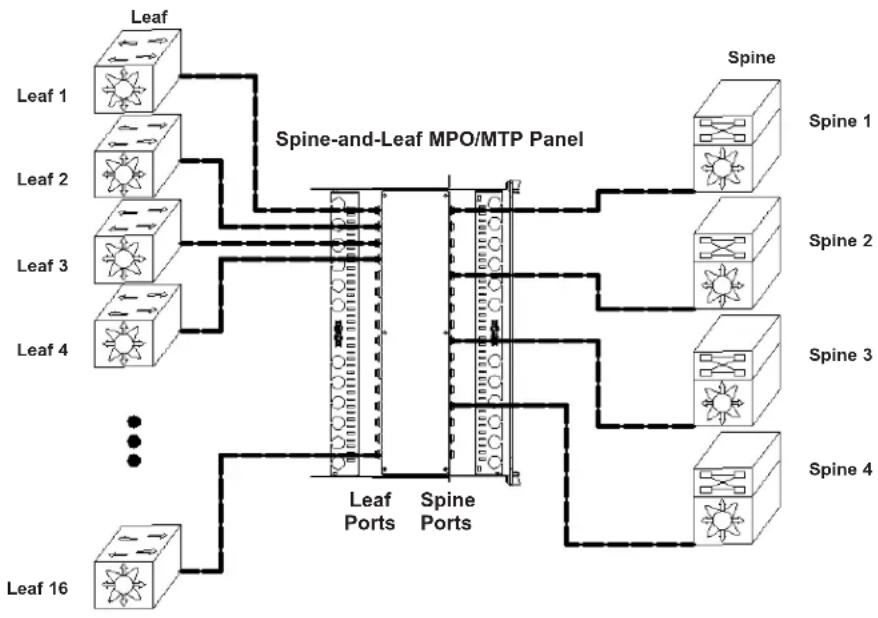

Network Mapping

Warranty and Product Registration

Limited Lifetime Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for its lifetime. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th St., Chicago, IL 60609. Seller will pay return shipping charges.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

*No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-216·93-3F64 RevA

Modelos: N48LSS-16X16, N48LSS-32X32

English 1 • Français 9 • Русский 13 • Deutsch 17

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609, EE. UU. • tripplite.com/support

Line drawing of a server rack with labeled components (no text or symbols beyond labels)

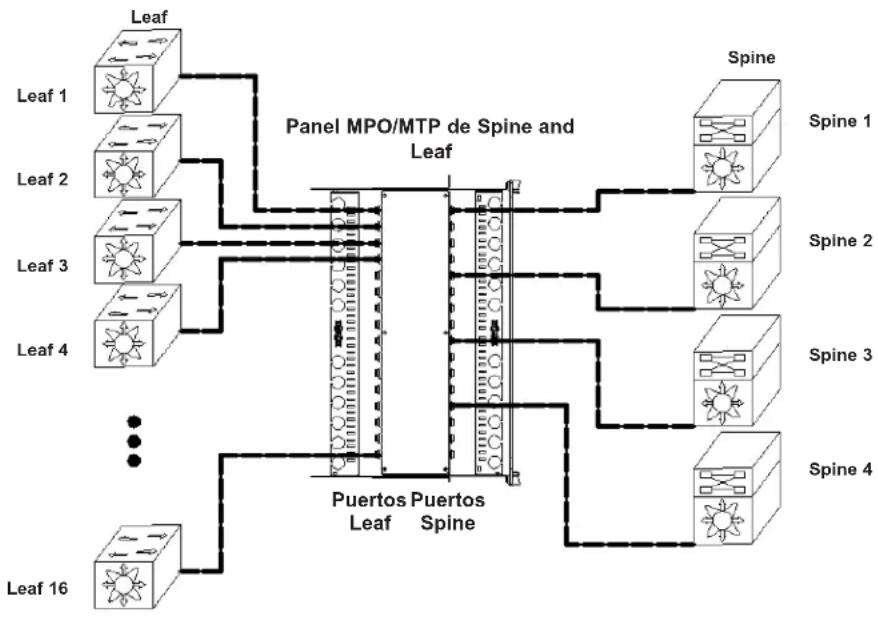

Mapeo de la Red

Garantía

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Line drawing of a server rack unit with labeled ports and connectors (no text or symbols beyond labels)

Schéma du réseau

Garantie

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-216 93-3F64 RevA

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Line drawing of a server rack unit with labeled ports and connectors (no text or symbols beyond labels)

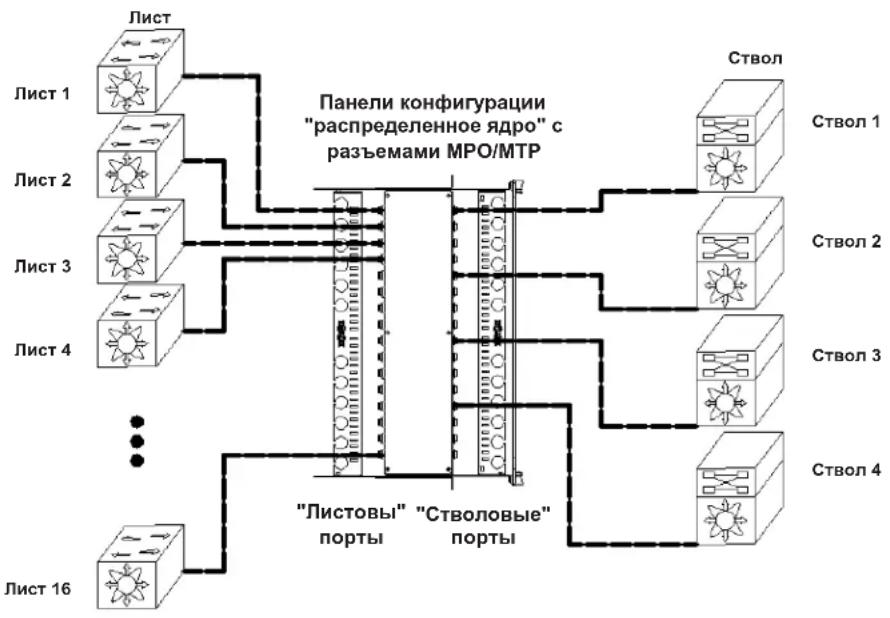

Топология сети

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-218·93-3F64_RevA

Bedienungsanleitung

Spine-and-Leaf Singlemode MPO/MTP-Panels, 1-HE

Modelle: N48LSS-16X16, N48LSS-32X32

English 1 • Español 5 • Français 9 • Русский 13

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Line drawing of a server rack with labeled components (no text or symbols beyond labels)

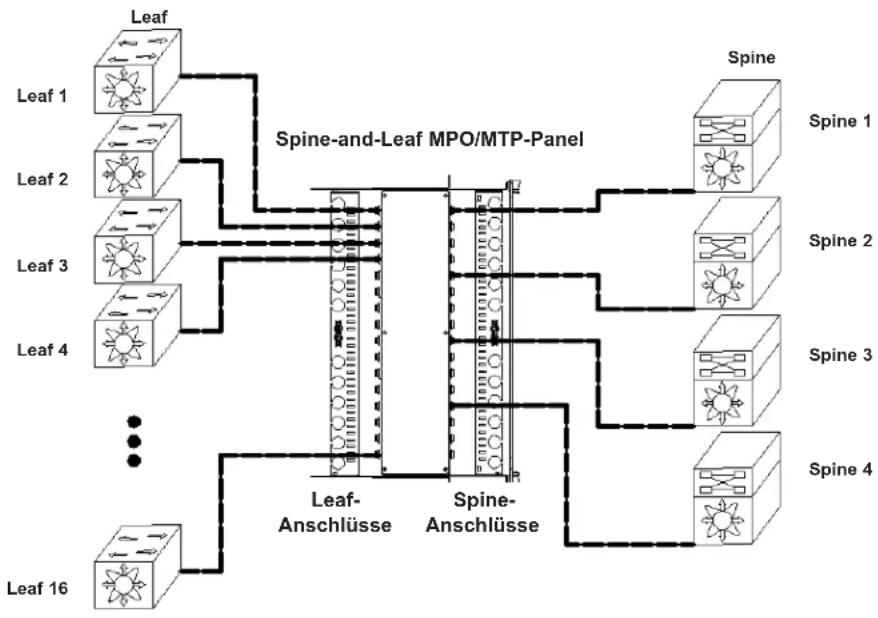

Netzwerkzuordnung

Garantie

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-216·93-3F64 RevA
