Product type	Inflatable pool game with water polo goal and basketball hoop
Brand	Crivit
Model	IAN 388686
Category	Inflatable games and toys
Basket dimensions	Approx. 59 x 49 cm (diameter x height)
Package contents	1 inflatable water polo goal, 1 net, 1 rope, 1 inflatable basketball hoop, 2 inflatable balls, 1 deflation hose, 1 repair patch, 1 instruction manual
Material	PVC (soft plastic)
Recommended age	From 3 years (caution: not suitable for children under 36 months)
Usage	Outdoors, in shallow water under adult supervision, family use
Inflation	With foot pump or hand pump, do not use compressor; inflate in order: lower chamber then upper chamber of the goal, then hoop, then balls
Safety	Do not climb, do not sit on, check for damage before each use, do not overinflate, avoid contact with sharp or hot objects
Care and cleaning	Clean with a damp cloth, do not use harsh chemicals; store deflated in a dry place at room temperature
Repair	Use the included repair patch: cut a piece 1.3 cm around the leak, press firmly; wait 20 min before reinflating
Warranty	3 years against material and manufacturing defects (excluding normal wear and misuse)
Customer service (France)	Tel.: [phone], E-mail: [e-mail]

Frequently Asked Questions - IAN 388686 CRIVIT

How to inflate the water polo goal and basketball hoop?

Use a foot pump or hand pump with suitable adapter. Inflate the lower air chamber of the goal first, then the upper, then the basketball hoop, and finally the balls. Do not use a compressor or compressed air.

What is the recommended age for this game?

This game is recommended for children from 3 years. It is not suitable for children under 36 months due to a risk of strangulation from the long rope.

Can this game be used in a deep pool?

No, it should only be used in shallow water and under adult supervision.

How to repair a leak on the inflatable game?

Completely deflate the item, clean the area around the leak, cut a piece of the repair patch (edges about 1.3 cm around the area), apply pressing firmly. Wait 20 minutes before reinflating. Do not use on seams.

How to clean and store the game?

Clean with a damp cloth and wipe dry. Never use harsh cleaning products. Store deflated in a dry, clean place at room temperature, valves closed. Avoid sharp objects during winter storage.

Is there a risk of discoloration with sunscreen?

Yes, sunscreens and alcohol-based care products can detach the colored PVC coating. Avoid any contact to prevent staining skin or clothing.

Should you overinflate the game?

No, do not overinflate as it may tear the seams. Close valves properly after inflation. Under strong sun, release some air if pressure increases.

What are the dimensions of the basketball hoop?

The inflatable basketball hoop measures approximately 59 cm in diameter by 49 cm in height.

Can the game be used by adults?

It is a children's toy for family use. It is not designed to support an adult's weight: do not climb or sit on it.

How to quickly deflate the game?

Pull the valve to open, then press the stem slightly to let air out, or insert the deflation hose provided to speed up the process.

USER MANUAL IAN 388686 CRIVIT

AUFBLASBARES POOL-TOR-UND-KORB-SET INFLATABLE POOL GOAL & HOOP SET SET DE BUTS ET PANIERS GONFLABLES

PDF ONLINE www.1idl-service.com

DE AT CH

AUFBLASBARES POOL-TOR-UND-KORB-SET

Gebrauchsanweisung

FR BE

SET DE BUTS ET PANIERS GONFLABLES

Instructions for use

NL BE

OPBLAASBARE ZWEMBADSET MET DOEL EN KORF

Gebruiksaanwijzing

CZ

SADA NAFUKOVACÍCH BRANEK A KOŠŮ DO BAZÉNU

Návod k použití

ES

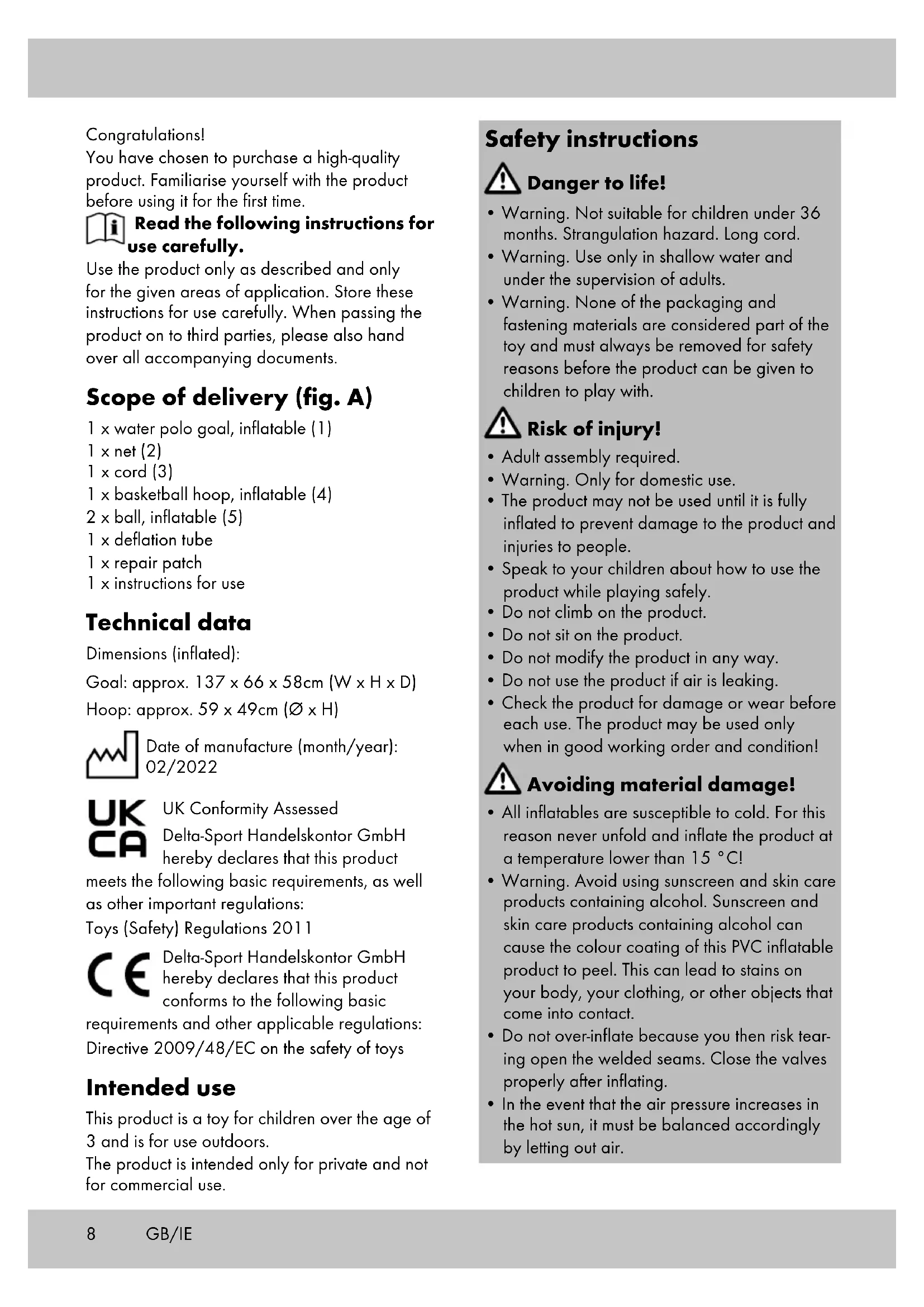

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Scope of delivery (fig. A)

1 x water polo goal, inflatable (1)
1 x net (2)
1 x cord (3)
1 x basketball hoop, inflatable (4)
2 x ball, inflatable (5)
1 x deflation tube
1 x repair patch
1 x instructions for use

Technical data

Dimensions (inflated):

Goal: approx. 137 x 66 x 58cm (W x H x D)

Hoop: approx. 59 x 49cm (∅ x H)

Date of manufacture (month/year): 02/2022

UK Conformity Assessed

Delta-Sport Handelskontor GmbH hereby declares that this product

meets the following basic requirements, as well as other important regulations:

Toys (Safety) Regulations 2011

Delta-Sport Handelskontor GmbH hereby declares that this product conforms to the following basic

requirements and other applicable regulations:

Directive 2009/48/EC on the safety of toys

Intended use

This product is a toy for children over the age of 3 and is for use outdoors.

The product is intended only for private and not for commercial use.

Safety instructions

Danger to life!

• Warning. Not suitable for children under 36 months. Strangulation hazard. Long cord.
• Warning. Use only in shallow water and under the supervision of adults.
• Warning. None of the packaging and fastening materials are considered part of the toy and must always be removed for safety reasons before the product can be given to children to play with.

Risk of injury!

• Adult assembly required.
• Warning. Only for domestic use.
• The product may not be used until it is fully inflated to prevent damage to the product and injuries to people.
• Speak to your children about how to use the product while playing safely.
• Do not climb on the product.
• Do not sit on the product.
• Do not modify the product in any way.
• Do not use the product if air is leaking.
• Check the product for damage or wear before each use. The product may be used only when in good working order and condition!

Avoiding material damage!

• All inflatables are susceptible to cold. For this reason never unfold and inflate the product at a temperature lower than 15^ !
• Warning. Avoid using sunscreen and skin care products containing alcohol. Sunscreen and skin care products containing alcohol can cause the colour coating of this PVC inflatable product to peel. This can lead to stains on your body, your clothing, or other objects that come into contact.
• Do not over-inflate because you then risk tearing open the welded seams. Close the valves properly after inflating.

• In the event that the air pressure increases in the hot sun, it must be balanced accordingly by letting out air.

• Make sure that the product, especially when inflated, does not come into contact with stones, gravel, or sharp objects and does not rub or scrape against anything as this can cause damage to the plastic foil.

• Use only the correct pump adapters to insert into the safety valves. The valves might otherwise be damaged.
• Do not over-inflate because you then risk tearing open the welded seams. Close the valves properly after inflating.
• Avoid contact with sharp-edged, hot, pointed or dangerous objects.

Assembly

The product should always be assembled by an adult. Please follow the individual assembly steps in the order indicated.

Inflation

WARNING!

• Always inflate the air chambers fully!
- Follow the correct sequence when inflating the air chambers.
- Avoid inflating the air chambers too much because there is the risk of over-stretching the welded seams or even tearing them open.
- Use standard commercial foot pumps or double-stroke piston pumps with matching adapter attachments to inflate the product.
- Do not use a compressor or compressed air bottles to inflate the product. This can lead to damage to the product.
• Make sure that the chambers are filled with air uniformly.
- Inflate each air chamber until it feels firm to the touch. When you press with your thumb against the air chamber it should still give a little.

Assemble in the following order:

1. Lower air chamber of the water polo goal
2. Upper air chamber of the water polo goal
3. Air chamber, basketball hoop
4. Balls

Proceed as follows to inflate:

1. Open the valve seal (1a) (fig. D).
2. Squeeze the valve stem (1b) together and inflate the air chamber until the product is sufficiently firm.
3. Close the valve seal and push in the valve by pressing lightly (fig. D).

Water polo goal: Stand the product on a firm surface and follow the assembly steps in figs. B-C.

Disassembly

Water polo goal: Untie the knots on the net and pull it out of the product hole by hole.

Deflation

1. Pull the valve out and open it.
2. Squeeze the valve stem together lightly so that the air can escape or insert the deflation tube into the valve to allow the air to escape rapidly.

Repairs

Minor cracks or holes can be repaired with the repair patch supplied.

Important! Do not inflate the product for 20 minutes after repair! Do not use the patch for cracks or holes on the seam.

1. Let the air out of the product completely.
2. Clean the area around the leak thoroughly. The area must be dry and free from grease.
3. Cut out a piece of the repair material that is big enough for its edges to overlap the damaged area by about 1.3cm.
4. Peel the patch off the paper, place it on the damaged area and press tight.

Storage, cleaning

When not in use, always store the product clean, dry, and not inflated at room temperature.

The valves should always be closed during storage. When storing for the winter do not place any sharp objects on the product and do not apply talcum powder.

Only clean the product with a damp cloth and wipe dry afterwards.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol - which is meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill.

This also applies to replaced and repaired parts. If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 388686_2107

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]
