Before reading, fold out the illustration page and get to know all of the functions of your unit.

① Fish's soft growth is wide on the wild is at least 100% of the

1 x Schraubschlüssel (11)

1 x Aufbauanleitung

Technische Daten

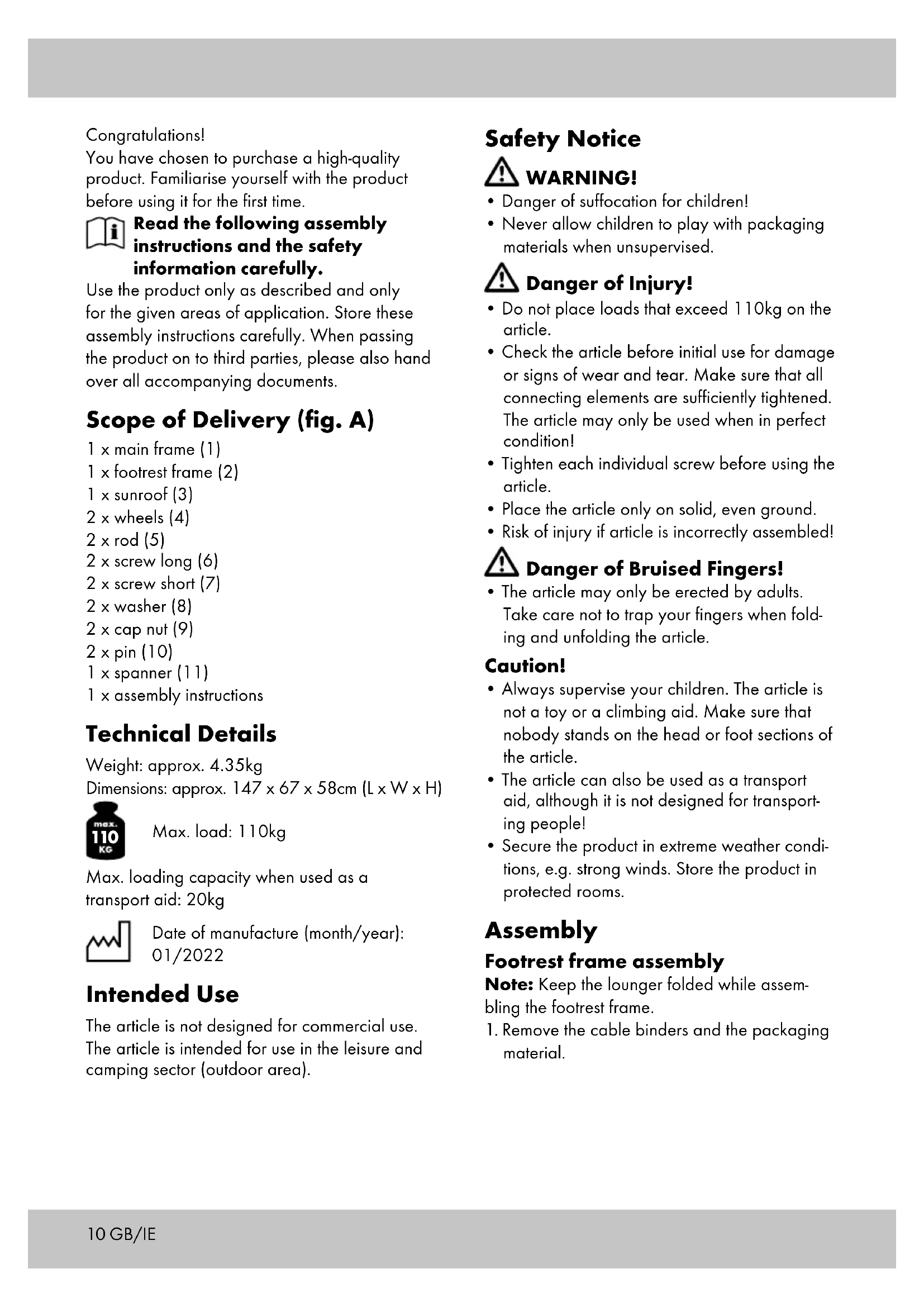

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following assembly instructions and the safety information carefully.

Use the product only as described and only for the given areas of application. Store these assembly instructions carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Scope of Delivery (fig. A)

1 x main frame (1)
1 x footrest frame (2)
1 x sunroof (3)
2 x wheels (4)
2 x rod (5)
2 x screw long (6)
2 x screw short (7)
2 x washer (8)
2 x cap nut (9)
2 × pin (10)
1 x spanner (11)
1 x assembly instructions

Technical Details

Weight: approx. 4.35kg

Dimensions: approx. 147 x 67 x 58cm (L x W x H)

Max. load: 110kg

Max. loading capacity when used as a transport aid: 20kg

Date of manufacture (month/year):

01/2022

Intended Use

The article is not designed for commercial use.

The article is intended for use in the leisure and camping sector (outdoor area).

Safety Notice

WARNING!

• Danger of suffocation for children!
- Never allow children to play with packaging materials when unsupervised.

Danger of Injury!

• Do not place loads that exceed 110kg on the article.
• Check the article before initial use for damage or signs of wear and tear. Make sure that all connecting elements are sufficiently tightened. The article may only be used when in perfect condition!
• Tighten each individual screw before using the article.
• Place the article only on solid, even ground.
• Risk of injury if article is incorrectly assembled!

Danger of Bruised Fingers!

- The article may only be erected by adults. Take care not to trap your fingers when folding and unfolding the article.

Caution!

• Always supervise your children. The article is not a toy or a climbing aid. Make sure that nobody stands on the head or foot sections of the article.
• The article can also be used as a transport aid, although it is not designed for transporting people!
• Secure the product in extreme weather conditions, e.g. strong winds. Store the product in protected rooms.

Assembly

Footrest frame assembly

Note: Keep the lounger folded while assembling the footrest frame.

1. Remove the cable binders and the packaging material.

2. Pull the inner rods (1b) out of the main frame (1a).

3. Insert the narrow ends of the inner rods into the end of the footrest frame (2) until the holes are directly above one another (fig. B).
4. Fix the inner rods and the footrest frame using the screws (6) (fig. C).
5. Insert the footrest frame into the main frame with the bracket facing downwards (fig. D).
6. Screw the cross bar (1c) to the footrest frame (fig. E).

Note: Make sure that the bracket on the foot-rest frame is facing downwards.

Wheel assembly

1. Insert the pin (10) into the hinge (1d). The pin should be inserted far enough into the hinge that the threaded hole and the hole on the axle rod are exactly above one another (fig. F - G).
2. Now fasten the short screw (7) in the threaded hole (fig. G).
3. The wheel (4) is now pushed onto the pin and fixed using the washer (8) and the cap nut (9) (fig. H). Use the included tools for this task.

Sunroof assembly

1. Loosen the pre-mounted locking screws and the sleeves from the rod (5).
2. Insert the longer screw through the main frame from the inside to the outside.
3. Attach the sleeve with the wider pipe insert and fasten the rod with the locking screw (fig. 1).
4. The sunroof (3) is fixed in the same way using the shorter screw and the sleeve with the narrower pipe insert.

Using as a Transport Aid

To use the article as a transport aid, fold the sun shade down so that it lies flat on the surface of the article, and then raise the foot frame (fig. J). The maximum carrying capacity is 20kg.

Adjusting the Angle

The angle of the backrest can be set to one of 5 levels (fig. K). Fold the back support completely flat down onto the seat and then pull up horizontally. You will hear audible ratchet sounds as you pull it up, enabling you to select the angle of inclination in individual steps. To reset the angle fold the backrest up past the vertical and then back down again.

Storage, cleaning

When not in use, always store the product clean and dry at room temperature. Only clean the product with a damp cloth and wipe dry afterwards.

IMPORTANT! Never clean the product with harsh cleaning agents. Maintenance! Check the bolted connections regularly.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol – which

is meant to reflect the recycling cycle – and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt.

The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.
