USER MANUAL 26091 PROCTOR SILEX

Visit proctorsilex.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

Questions Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Line drawing of a waffle oven with square grating (no text or symbols)

Waffle Baker Gaufrier Wafflera

English 2

Français 11

Español 21

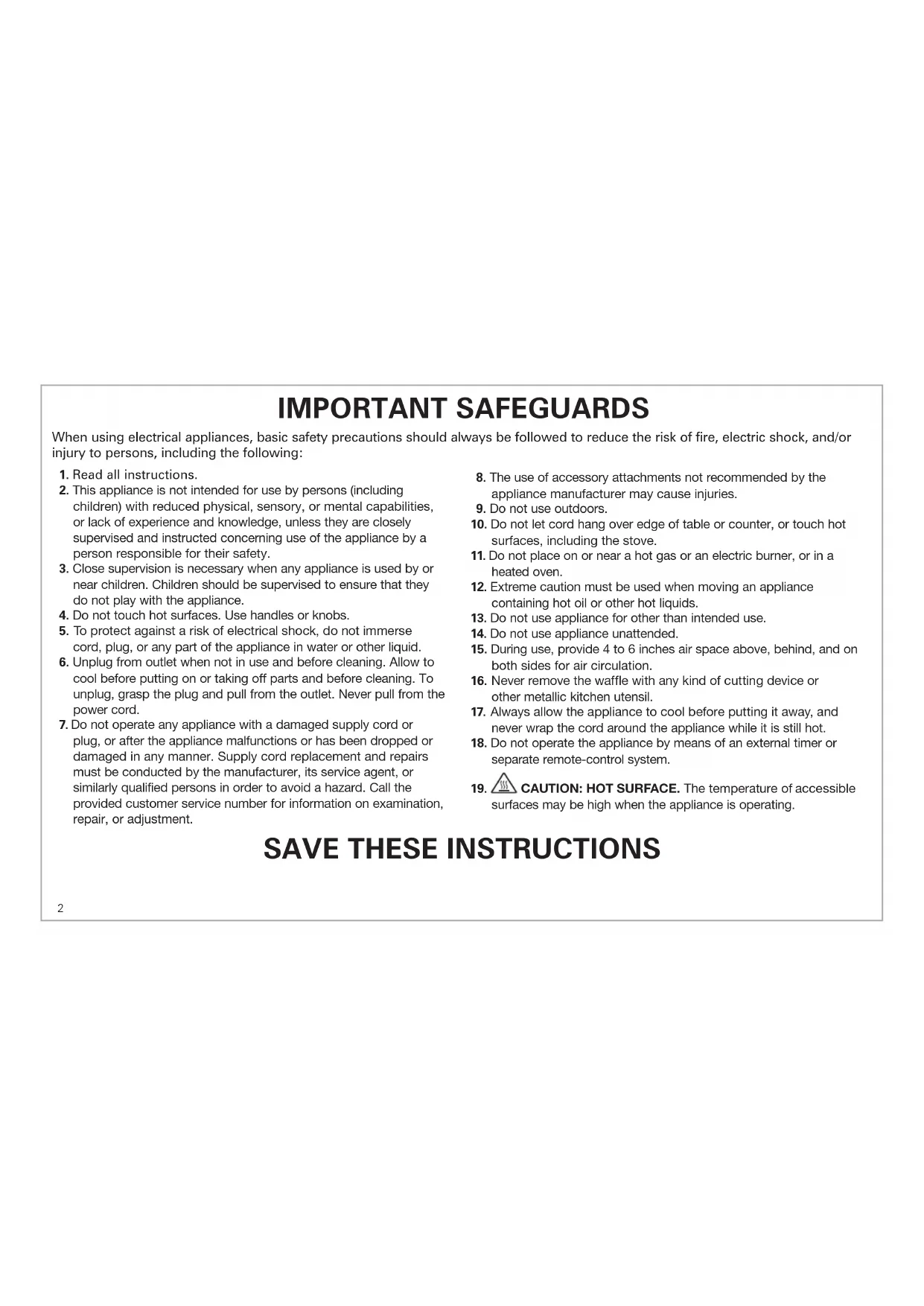

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs.
5. To protect against a risk of electrical shock, do not immerse cord, plug, or any part of the appliance in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

7. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
11. Do not place on or near a hot gas or an electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. Do not use appliance for other than intended use.
14. Do not use appliance unattended.
15. During use, provide 4 to 6 inches air space above, behind, and on both sides for air circulation.
16. Never remove the waffle with any kind of cutting device or other metallic kitchen utensil.
17. Always allow the appliance to cool before putting it away, and never wrap the cord around the appliance while it is still hot.
18. Do not operate the appliance by means of an external timer or separate remote-control system.
19. CAUTION: HOT SURFACE. The temperature of accessible surfaces may be high when the appliance is operating.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance is provided with either a polarized (one wide blade) or grounded (3-prong) plug to reduce the risk of electric shock. The plug fits only one way into a polarized or grounded outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. If the appliance is of the grounding type, the extension cord should be a grounding-type, 3-wire cord. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

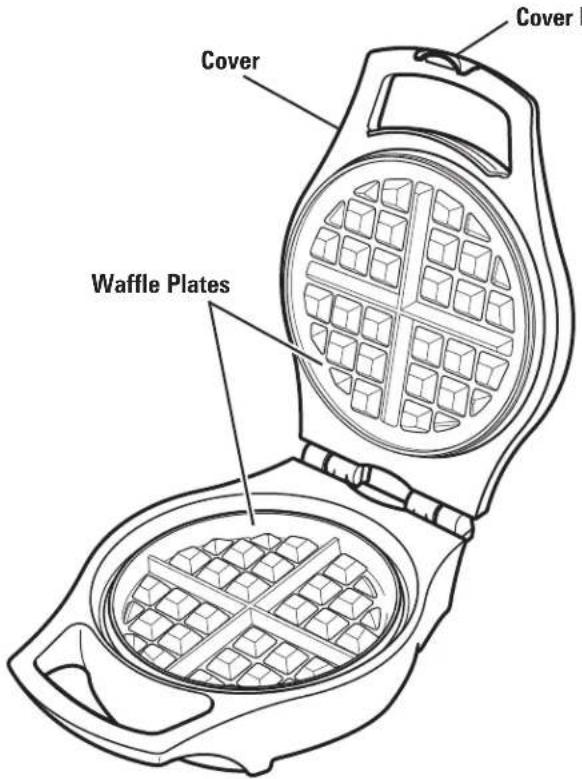

Parts and Features

BEFORE FIRST USE: Wipe the bottom and top cooking plates with a soapy, damp cloth. Rinse cloth; then wipe plates again.

Line drawing of a bowl with a handle (no text or symbols)

Premeasured Scoop

(makes a whole waffle) (1/2 to 2/3 cup [118 to 158 ml])

Red ON Light Green READY Light

Temperature Control (on certain models)

Cover Waffle Plates Cover

Cover Lock

3-Way Mess-Free Features

Illustration of a hand pouring liquid into a waffle (no text or symbols)

Use premeasured scoop for the perfect amount of batter.

Abstract curved line pattern with no text or symbols

Deep grids allow batter to go up to 50% of the height of the grids only, leaving room for waffle to rise while baking.

Abstract line drawing of a curved, symmetrical shape with no text or symbols

Overflow channel allows excess batter to go into the extra-deep overflow channels, if more batter is used or fruits are added.

How to Use

Line drawing of a hand pouring liquid into a waffle with a pan on the side (no text or symbols)

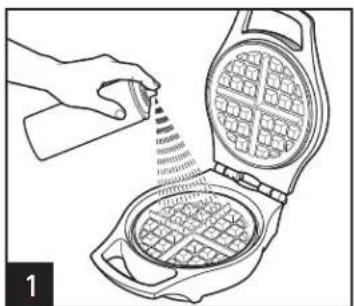

Spray or brush the cooking plates with vegetable oil.

Mi Pi'wir' READY 2

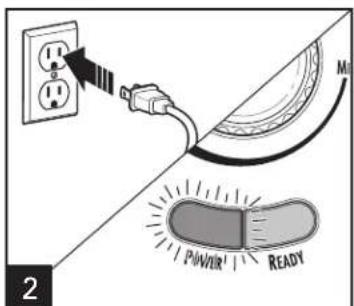

Plug cord into electrical outlet. The red ON light will glow.

CAUTION Burn Hazard.

Always use an oven mitt to protect hand when opening a hot waffle baker. Escaping steam can burn.

MAX 3

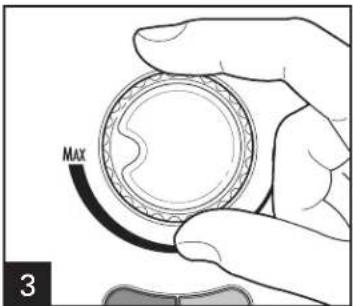

Choose desired temperature (MIN to MAX).

MI POWER READY 4

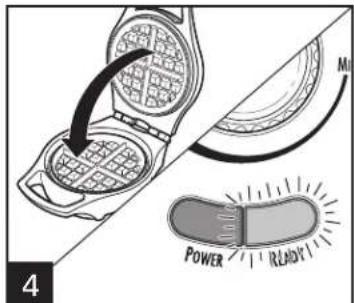

Preheat with cover closed until green READY light glows.

Line drawing of a waffle with an arrow indicating rotation (no text or symbols)

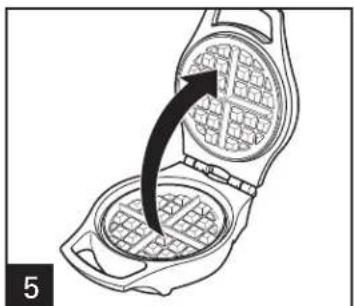

Raise cover.

Line drawing of a hand using a waffle to clean food from a pan (no text or symbols)

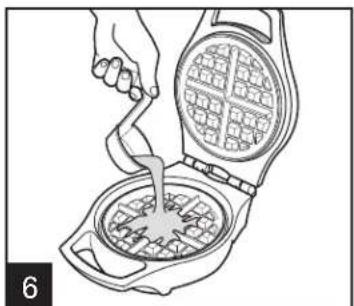

Pour one full premeasured scoop of batter onto center of cooking plate.

Line drawing of a waffle with a black arrow indicating the process (no text or symbols)

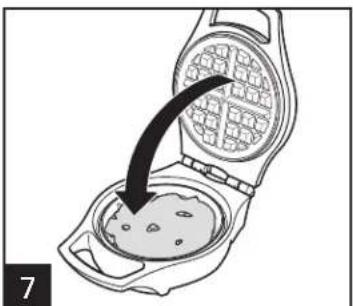

Lower cover.

POWER READY 8

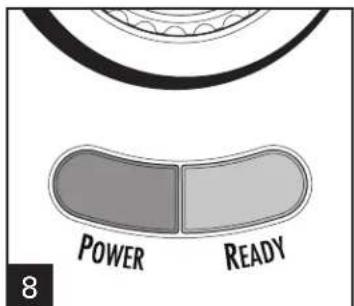

Once you pour the batter on the plates, the green READY light will turn off.

How to Use (cont.)

POWER READY

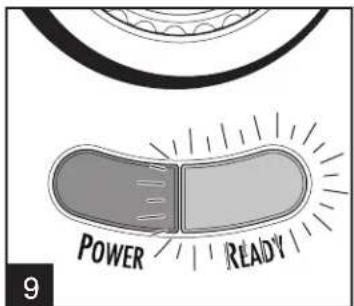

The green READY light will soon glow again. Waffles are done when the green READY light turns back on or when steaming stops.

Diagram showing a plug inserted into an electrical socket, with no text or symbols present.

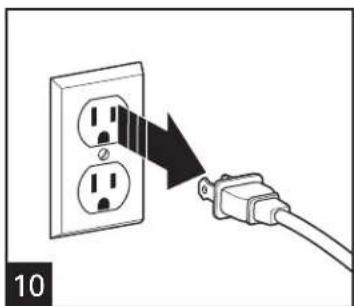

Unplug when cooking is completed.

Tips for Making Waffles

• Thickness of waffle batters may vary. Adjust amount of batter as needed.
- Most waffle recipes can be poured directly onto the nonstick waffle plates. Use a cooking spray for dessert waffles or any recipe with a lot of sugar. If your waffles start to stick, the plates may need to be scrubbed with a nylon brush to remove any cooked-on food particles.
- Waffles can be made ahead of time and kept warm in a 200°F (93°C) oven. Or let them cool and pack in an airtight container; store in refrigerator or freezer. They can be reheated in a microwave oven, a toaster oven, or regular oven.

• For soft, tender waffles, cook for about 5 to 6 minutes.
• For crisp, breakable waffles, cook for about 6 1/2 to 7 minutes.
• Most waffles are done in about 6 minutes. Some of the recipes which are made from scratch may take a little longer. Check for doneness at about 6 minutes. If the cover of the waffle baker doesn't lift up easily, then let it cook a minute more before checking again. Another indicator that the waffle is done is when the steaming stops.
• Only reheat whole waffles in toaster, on lowest setting.
• Do not use metal utensils since they will scratch the nonstick surface.

Care and Cleaning

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

Unplug and let cool.

Line drawing of a hand cleaning a circular object with a lid (no text or symbols)

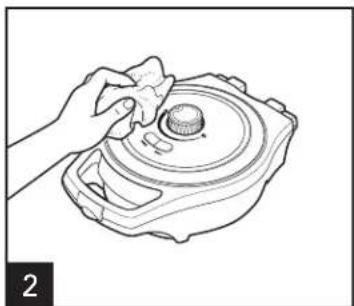

Wipe cooking plates and outside of unit with a damp, soapy cloth. Rinse cloth, wipe plates again, and dry.

WARNING Electrical Shock Hazard.

Disconnect power before cleaning. Do not immerse cord, plug, or unit in water or other liquid.

IF YOU LIVE IN A HIGH-ALTITUDE AREA:

The Extension service will have detailed information about cooking for your area. To locate the Cooperative Extension service in your county, please visit: http://www.csrees.usda.gov/Extension/.

NOTES:

• Only use wooden or plastic cooking utensils to prolong the life of the nonstick coating.
• Do not use metal scouring pads or abrasive cleaners. This will damage the nonstick coating.

Visit www.proctorsilex.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Recipes

Tips: Waffles can be frozen and then reheated. Make a large batch ahead of time and let cool on a cooling rack. Freeze in airtight storage bags; then heat in an oven or microwave oven.

Weekend Waffles

Ingredients:

1 cup (237 ml) flour

1 tablespoon (15 ml) baking powder

1 tablespoon (15 ml) sugar

1/4 teaspoon (1.3 ml) salt

3 eggs, separated

1 cup (237 ml) milk

4 tablespoons (59 ml) oil

1 teaspoon (5 ml) vanilla

Directions:

In a large bowl, whisk together flour, baking powder, sugar and salt. Set aside. Beat egg whites until stiff. Add milk and egg yolks to flour mixture. Stir until smooth. Add oil and vanilla to batter and mix well. Fold egg whites into the batter. Pour one premeasured scoop of batter into waffle baker. Cook 5 to 6 minutes or until golden brown.

Makes: 4–6 waffles

Buttermilk Waffles

Ingredients:

1 1/2 cups (355 ml) flour

1 1/2 teaspoons (7.4 ml) baking powder

1/2 teaspoon (2.5 ml) baking soda

1/2 teaspoon (2.5 ml) salt

1 1/2 cups (355 ml) buttermilk

6 tablespoons (89 ml) butter, melted

2 eggs, beaten lightly

Directions:

In a medium bowl, whisk together flour, baking powder, baking soda and salt; stir in buttermilk, butter and eggs, stirring until thoroughly mixed (batter will be thick). Pour one premeasured scoop of batter into waffle baker. Close lid and cook 6 to 7 minutes or until golden brown.

Makes: 4–6 waffles

Banana Sour Cream Waffles

Ingredients:

1 cup (237 ml) flour

1/2 teaspoon (2.5 ml) baking powder

1/4 teaspoon (1.3 ml) baking soda

1/4 teaspoon (1.3 ml) salt

1 egg, separated

1 cup (237 ml) sour cream

1/4 cup (59 ml) milk

1/4 cup (59 ml) butter, melted

1 ripe banana, mashed

Directions:

In a large bowl, whisk together flour, baking powder, baking soda and salt; set aside. In a small bowl, beat the egg white until light peaks form. Add egg yolk, sour cream, milk, butter and banana to flour mixture and mix well. Fold in egg white. Pour one premeasured scoop of batter into waffle baker. Cook 6 to 7 minutes or until golden brown.

Makes: 4–6 waffles

Crispy Ginger Ale Waffles

Ingredients:

2 cups (473 ml) buttermilk baking mix

1 1/2 cups (355 ml) ginger ale

2 tablespoons (30 ml) oil

Directions:

Whisk together buttermilk baking mix, ginger ale and oil. Let sit 5 minutes. Pour one premeasured scoop of batter into waffle baker. Bake 6 minutes.

Makes: 4 waffles

Recipes (cont.)

Cinnamon-Raisin Waffles

Ingredients:

1 cup (237 ml) flour
2 tablespoons (30 ml) brown sugar, packed
2 teaspoons (10 ml) baking powder
1 1/2 teaspoons (7.4 ml) cinnamon

Directions:

In a small bowl, whisk together flour, sugar, baking powder, cinnamon and salt. In a large bowl, beat egg, milk and oil. Add flour mixture to milk mixture, stirring until batter is just combined. Stir in raisins. Pour one premeasured scoop of batter into waffle baker. Cook 6 to 8 minutes or until golden brown.

Makes: 4–6 waffles

1/4 teaspoon (1.3 ml) salt
1 egg
1/2 cup (118 ml) milk
2 tablespoons (30 ml) oil
1/3 cup (79 ml) raisins

Chocolate Dessert Waffles

Ingredients:

1/4 cup (59 ml) vegetable shortening
1/2 cup (118 ml) sugar
1 egg
1/2 teaspoon (2.5 ml) vanilla
2/3 cup (158 ml) flour

3 tablespoons (44 ml) unsweetened baking cocoa
1 teaspoon (5 ml) baking powder
Pinch of salt (1/16 teaspoon [0.3 ml])
1/2 cup (118 ml) milk

Directions:

In a small mixing bowl, beat shortening and sugar until well blended. Add egg and vanilla; blend until smooth. Add remaining ingredients and mix until well blended. Batter will be thicker than normal waffle batter. Spray grids with nonstick cooking spray. Pour one premeasured scoop of batter into waffle baker. Cook 6 to 7 minutes. Serve with vanilla ice cream.

Makes: 3–4 waffles

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and three (3) years from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
