26060Y - Waffle Maker PROCTOR SILEX - Free user manual and instructions

Product type	Waffle maker
Brand	Proctor Silex
Model	26060Y
Power supply	120 V ~ 60 Hz
Power	Approximately 800 W (estimated)
Dimensions (L x W x H)	Approximately 25 x 20 x 12 cm (estimated)
Weight	Approximately 1.5 kg (estimated)
Plate material	Non-stick
Capacity	Approximately 125 ml (1/2 cup) batter per waffle
Cooking time	3 to 6 minutes per waffle
Indicator lights	Red power indicator (ON) and green preheat indicator (READY)
Flip function	Yes, for lighter and fluffier waffles
Use	Household use only
Care and cleaning	Wipe with a soapy damp cloth. Do not immerse. Do not use metal utensils.
Safety	Polarized plug, hot surface (do not touch), do not use with damaged cord
Spare parts and repairability	Contact customer service at 1-800-851-8900 (USA) or 1-800-267-2826 (Canada)
Warranty	1 year limited (defects in material and workmanship)

Frequently Asked Questions - 26060Y PROCTOR SILEX

How to use the Proctor Silex 26060Y waffle maker for the first time?

Before first use, wipe the cooking plates with a damp soapy cloth, rinse and wipe again. Plug in the appliance, the red light comes on. Preheat with lid closed until green light comes on. Pour about 125 ml of batter into the center of each plate, close and flip the waffle maker for lighter waffles. Cook 3 to 6 minutes until steam stops.

What do the red and green lights mean?

The red light (ON) comes on when the appliance is plugged in and stays on while powered. The green light (READY) comes on when cooking temperature is reached. Wait for green light before pouring batter.

Do I need to flip the waffle maker during cooking?

Flipping is optional but recommended for lighter and fluffier waffles. Hold the handles and flip the waffle maker to one side or from front to back, keeping it in contact with the counter. You can also use it without flipping.

How do I clean the waffle maker?

Unplug the appliance and let it cool completely. Wipe the plates and exterior with a soapy damp cloth, then rinse cloth and wipe again. Never use metal scouring pads, abrasive powders, or metal utensils to avoid damaging the non-stick coating.

Why won't the green light turn on?

Check that the appliance is properly plugged in and the red light is on. If the green light does not come on after several minutes, the waffle maker may not have reached temperature. Make sure the lid is fully closed during preheating. If problem persists, contact customer service.

Can I use metal utensils to remove waffles?

No, never use metal or sharp utensils as they will damage the non-stick coating. Use plastic, wood, or silicone utensils.

How do I store the waffle maker?

Let the appliance cool completely before storing. You can store it upright to save space. Never wrap the cord around the appliance while it is still hot.

What if waffles stick to the plates?

If waffles stick, spray cooking spray before pouring batter, especially for sweet recipes. You can also gently brush the plates with a nylon brush to remove cooked residue.

What is the warranty on the Proctor Silex 26060Y?

This product comes with a limited one-year warranty from the date of purchase against defects in material and workmanship. To make a claim, call 1-800-851-8900 (USA) or 1-800-267-2826 (Canada) or visit www.proctorsilex.com.

Can I use an extension cord with this waffle maker?

Yes, you can use an approved extension cord if the cord is too short. Its electrical rating must be equal to or greater than the appliance's. For grounded models, use a 3-wire grounding extension cord.

USER MANUAL 26060Y PROCTOR SILEX

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plug, or cooking unit in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or electrical and mechanical adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. To disconnect, remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. Do not use appliance unattended.
15. When using this appliance, provide 4 to 6 inches air space above, behind, and on both sides for air circulation. Do not use on surfaces where heat may cause a problem.

16. Never remove the waffle with any kind of cutting device or other metallic kitchen utensil.

17. Always allow the appliance to cool down completely before putting it away and never wind the cord around the appliance while it is still hot.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING! Shock Hazard: This product is provided with either a polarized (one wide blade) or grounded (3-prong) plug to reduce the risk of electric shock. The plug fits only one way into a polarized or grounded outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. If the appliance is of the grounding type, the extension cord should be a grounding-type, 3-wire cord. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another highwattage appliance on the same circuit with this appliance.

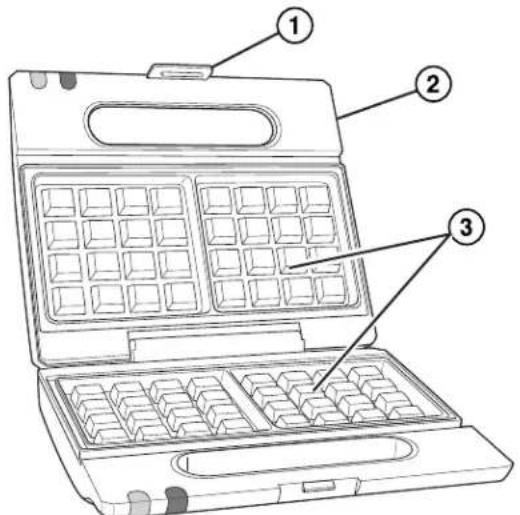

Parts and Features

1. Cover Lock
2. Cover
3. Waffle Plates
4. Green READY Light
5. Red POWER Light

4

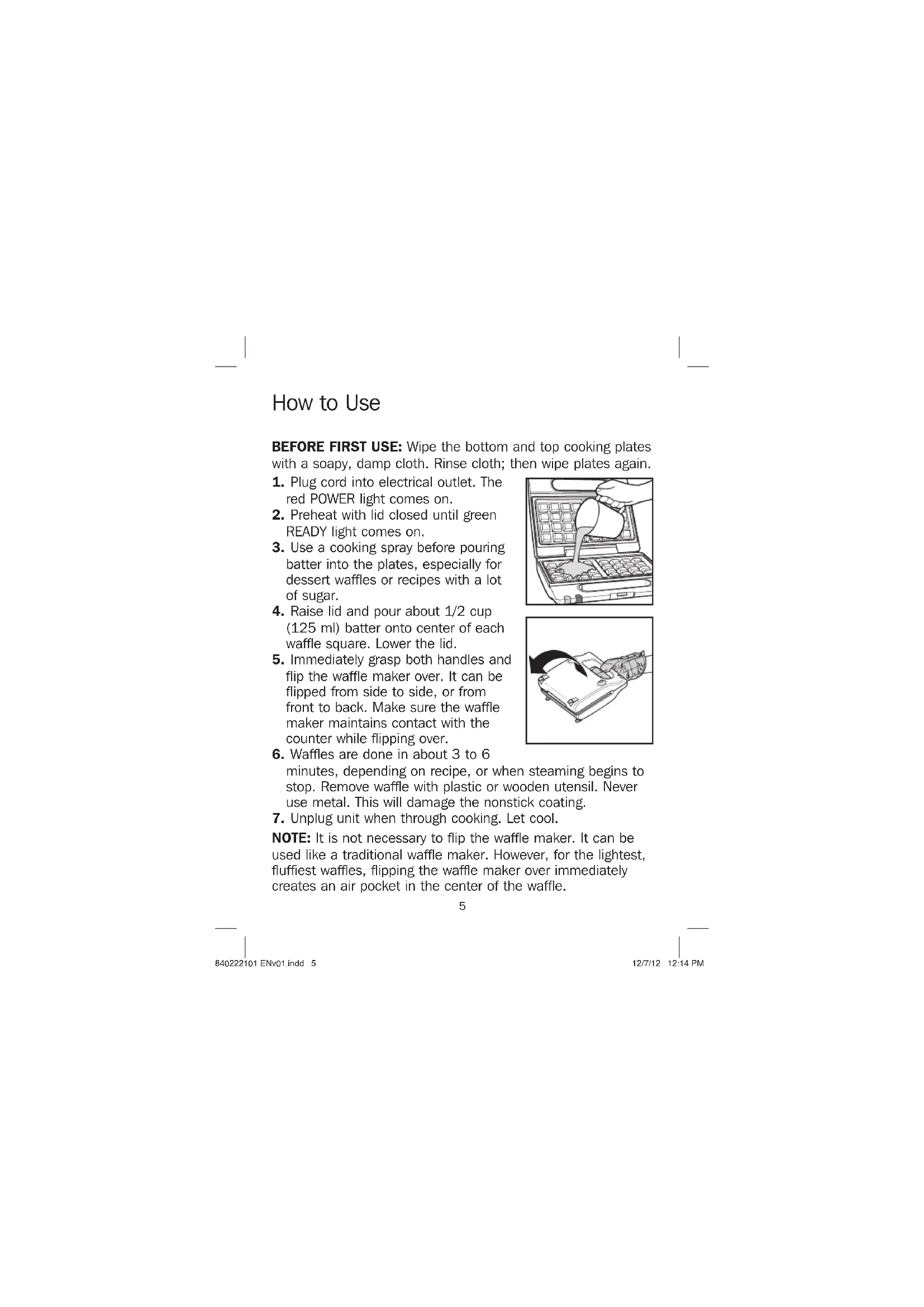

How to Use

BEFORE FIRST USE: Wipe the bottom and top cooking plates with a soapy, damp cloth. Rinse cloth; then wipe plates again.

1. Plug cord into electrical outlet. The red POWER light comes on.

2. Preheat with lid closed until green READY light comes on.

3. Use a cooking spray before pouring batter into the plates, especially for dessert waffles or recipes with a lot of sugar.

4. Raise lid and pour about 1/2 cup (125 ml) batter onto center of each waffle square. Lower the lid.

5. Immediately grasp both handles and flip the waffle maker over. It can be flipped from side to side, or from front to back. Make sure the waffle maker maintains contact with the counter while flipping over.

6. Waffles are done in about 3 to 6 minutes, depending on recipe, or when steaming begins to stop. Remove waffle with plastic or wooden utensil. Never use metal. This will damage the nonstick coating.

7. Unplug unit when through cooking. Let cool.

NOTE: It is not necessary to flip the waffle maker. It can be used like a traditional waffle maker. However, for the lightest, fluffiest waffles, flipping the waffle maker over immediately creates an air pocket in the center of the waffle.

POWER and READY Lights

The red POWER light comes on when the waffle maker is first plugged in. This light will stay on until the unit is unplugged. The green READY light comes on when the waffle maker has reached the desired temperature. For best results, wait until the READY light comes on before adding the waffle batter.

Waffle Maker Tips

• Most waffle recipes can be poured directly onto the nonstick cooking plates. Use a cooking spray for dessert waffles or any recipe with a lot of sugar. If your waffles start to stick, the plates may need to be scrubbed with a nylon brush to remove any cooked-on food particles.
• Waffles can be made ahead of time and kept warm in a 200^ (90^) oven.
• To store waffles, let cool and then pack in an airtight container. Store in refrigerator or freezer. Waffles can be reheated in a microwave oven, a toaster oven, or regular oven.
• Most waffles are done in about 3 to 6 minutes. Recipes made from scratch may take longer. Check for doneness when steaming begins to stop. If the lid doesn't lift easily, let waffle cook a minute more before checking again.

Care and Cleaning

WARNING

Electrical Shock Hazard.

To reduce the risk of electrical shock, do not immerse the cord, plug, or base in water or any other liquid.

1. Unplug from outlet and let cool.
2. Wipe cooking plates and outside of unit with a damp, soapy cloth. Rinse cloth and wipe plates again.
3. Do not use steel wool, scouring pads, or abrasive cleansers on any part of the unit. Never use sharp or pointed objects for cleaning purposes.
4. Always allow the appliance to cool down completely before storing. The unit can be stored upright to save space.

LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
