26070 - Waffle Maker PROCTOR SILEX - Free user manual and instructions

Product Type	Waffle Maker
Brand	Proctor Silex
Model	26070
Power Supply	120 V, 60 Hz
Power	900 W (estimated)
Dimensions (approx.)	30 x 20 x 12 cm
Weight (approx.)	2 kg
Plate Coating	Non-stick
Batter Capacity	158 to 177 ml (2/3 to 3/4 cup) per waffle
Number of waffles at once	1
Power Indicator	Red (lights up when powered on)
Preheat Indicator	Green (lights up when temperature is reached)
Preheat function	Yes, green light indicates appliance is ready
Power Cord	Polarized, standard length
Plug type	Polarized (wider blade)
Usage	Household use only
Maintenance	Wipe with a damp cloth, no metal or abrasives
Warranty	1 year limited (parts and labor)
Safety	Polarized plug, do not immerse, hot surface
Customer service	1.800.851.8900 (U.S.) / 1.800.267.2826 (Canada)

Frequently Asked Questions - 26070 PROCTOR SILEX

How to clean the Proctor Silex 26070 waffle maker?

Unplug the appliance and let it cool. Wipe the plates and exterior with a cloth soaked in soapy water, then rinse and wipe again. Never use metal scouring pads or abrasive powders.

What to do if waffles stick to the plates?

Spray cooking spray on the plates before pouring batter, especially for sweet recipes. If residues stick, clean the plates with a nylon brush after cooling.

How long does it take to cook a waffle?

About 5 to 8 minutes depending on the recipe. Cooking is done when steam stops escaping. For homemade batters, allow a few more minutes.

Can I use metal utensils on the plates?

No, never use metal utensils as they may damage the non-stick coating. Use plastic or wood.

What is the warranty on this waffle maker?

This product comes with a one-year limited warranty from the date of purchase, covering defects in materials and workmanship. Keep your receipt.

How to know if the waffle maker is preheated?

The green light (PREHEAT) comes on when the waffle maker has reached cooking temperature. Wait for it to turn on before pouring batter.

Can I use an extension cord with this appliance?

Yes, if necessary, use an approved extension cord with electrical ratings at least equivalent. Ensure it does not pose a tripping hazard.

Why does the green light turn on and off during cooking?

That's normal. The green light indicates the thermostat is maintaining temperature; it turns on and off but does not signal that the waffle is cooked.

Can I make waffles in advance and store them?

Yes, let them cool, then store them in an airtight container in the refrigerator or freezer. Reheat in the oven, microwave, or toaster.

Are there special precautions for high altitude?

Consult local extension services for high altitude cooking information. Cooking time may be slightly adjusted.

USER MANUAL 26070 PROCTOR SILEX

Mexico: 018007116100

www.proctorsilex.com.mx

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plug, or cooking unit in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or electrical and mechanical adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. To disconnect, remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. Do not use appliance unattended.
15. When using this appliance, provide 4 to 6 inches air space above, behind, and on both sides for air circulation. Do not use on surfaces where heat may cause a problem.

16. Never remove the waffle with any kind of cutting device or other metallic kitchen utensil.

17. Always allow the appliance to cool down completely before putting it away, and never wind the cord around the appliance while it is still hot.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING! Shock Hazard: This product is provided with either a polarized (one wide blade) or grounded (3-prong) plug to reduce the risk of electric shock. The plug fits only one way into a polarized or grounded outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. If the appliance is of the grounding type, the extension cord should be a grounding-type, 3-wire cord. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another highwattage appliance on the same circuit with this appliance.

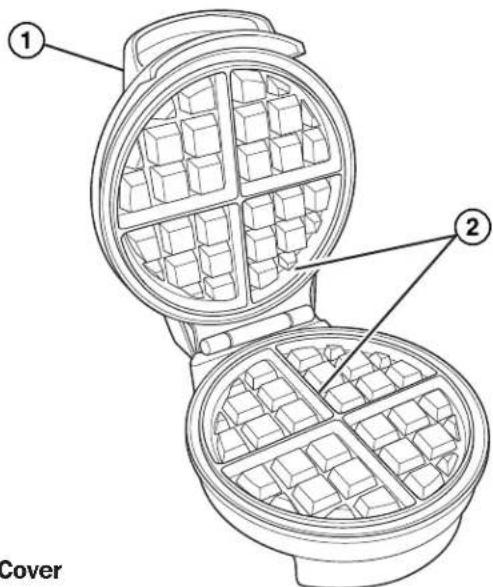

Parts and Features

1. Cover
2. Waffle Plates
3. Red POWER Light
4. Green PREHEAT Light

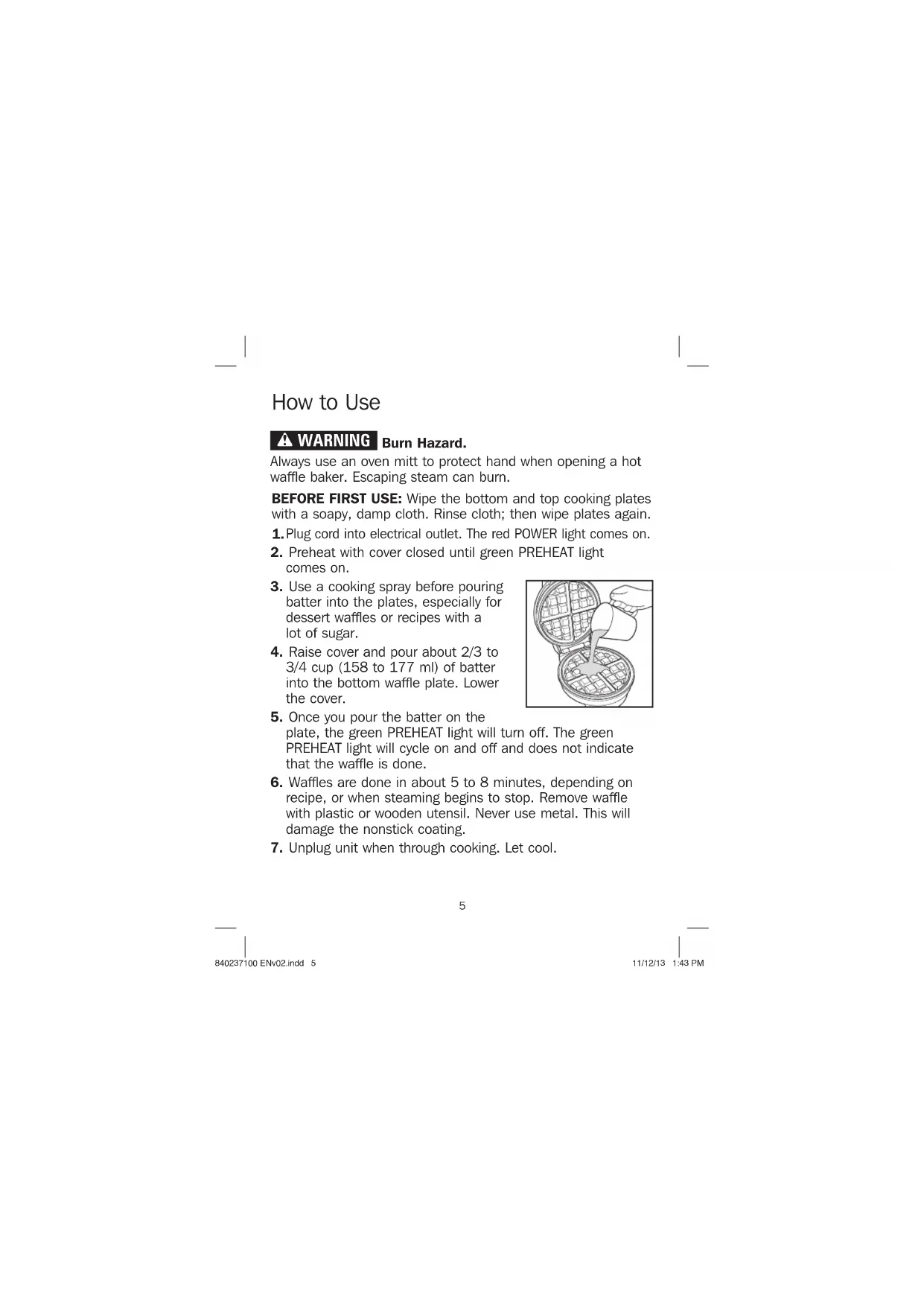

How to Use

WARNING Burn Hazard.

Always use an oven mitt to protect hand when opening a hot waffle baker. Escaping steam can burn.

BEFORE FIRST USE: Wipe the bottom and top cooking plates with a soapy, damp cloth. Rinse cloth; then wipe plates again.

1. Plug cord into electrical outlet. The red POWER light comes on.

2. Preheat with cover closed until green PREHEAT light comes on.

3. Use a cooking spray before pouring batter into the plates, especially for dessert waffles or recipes with a lot of sugar.

4. Raise cover and pour about 2/3 to 3/4 cup (158 to 177ml ) of batter into the bottom waffle plate. Lower the cover.

1. Once you pour the batter on the plate, the green PREHEAT light will turn off. The green PREHEAT light will cycle on and off and does not indicate that the waffle is done.
2. Waffles are done in about 5 to 8 minutes, depending on recipe, or when steaming begins to stop. Remove waffle with plastic or wooden utensil. Never use metal. This will damage the nonstick coating.
3. Unplug unit when through cooking. Let cool.

POWER and PREHEAT Lights

The red POWER light comes on when the waffle baker is first plugged in. This light will stay on until the unit is unplugged. The green PREHEAT light comes on when the waffle baker has reached the desired temperature. For best results, wait until the PREHEAT light comes on before adding the waffle batter. The green PREHEAT light will cycle on and off and does not indicate that the waffle is done.

Waffle Baker Tips

• Most waffle recipes can be poured directly onto the nonstick waffle plates. Use a cooking spray for dessert waffles or any recipe with a lot of sugar. If your waffles start to stick, the plates may need to be scrubbed with a nylon brush to remove any cooked-on food particles.
• Waffles can be made ahead of time and kept warm in a 200^ (90^) oven.
• To store waffles, let cool and then pack in an airtight container. Store in refrigerator or freezer. Waffles can be reheated in a microwave oven, a toaster oven, or regular oven.
• Most waffles are done in about 5 to 8 minutes. Recipes made from scratch may take longer. Check for doneness when steaming begins to stop. If the cover doesn't lift easily, let the waffle cook a minute more before checking again.

Care and Cleaning

WARNING Shock Hazard.

To reduce the risk of electrical shock, do not immerse the cord, plug, or base in water or any other liquid.

1. Unplug from outlet and let cool.
2. Wipe waffle plates and outside of unit with a damp, soapy cloth. Rinse cloth and wipe plates again.
3. Do not use steel wool, scouring pads, or abrasive cleansers on any part of the unit. Never use sharp or pointed objects for cleaning purposes.

IF YOU LIVE IN A HIGH-ALTITUDE AREA:

The Extension service will have detailed information about cooking for your area. To locate the Cooperative Extension service in your county, please visit: http://www.csrees.usda.gov/Extension/.

Recipes

TIPS: The Belgian waffle plates hold more batter than the traditional plates of a waffle baker. These recipes give a range of batter to use, for example, 2/3 to 3/4 cup (158 to 177 ml). The larger amount should be used for a Belgian waffle.

Waffles can be frozen and then reheated. Make a large batch ahead of time and let cool on a cooling rack. Freeze in airtight storage bags; then heat in an oven or microwave oven.

Basic Waffles

2 cups (473 ml) flour

134 cups (414 ml) milk

2 Tablespoons (30 ml) sugar

1/3 cup (79 ml) vegetable

1 Tablespoon (15 ml) baking

oil

powder

2 eggs

1 teaspoon (5 ml) salt

In a large bowl, combine flour, sugar, baking powder and salt; set aside. In a small bowl, whisk together milk, oil, and eggs. Gradually add milk mixture to flour mixture. Stir until just blended. Pour 2/3 to 3/4 cup (158 to 177 ml) of batter into waffle baker. Close cover and cook 6 to 7 minutes or until golden brown. Serves: 8

Basic Blueberry Waffles: After pouring batter onto waffle plates, sprinkle fresh blueberries over batter; then close cover. Do not stir berries into batter or you will have blue-gray waffles.

Test Kitchen Tips: Homemade waffle batter may take longer to cook than packaged pancake and waffle mix. The packaged mix waffles are done in about 5 minutes. Made-from-scratch recipes take a few minutes more.

Recipes (cont.)

Buttermilk Waffles

112 cups (355 ml) flour

112 teaspoons (7.4ml) baking powder

1/2 teaspoon (2.5 ml) baking soda

1/2 teaspoon (2.5 ml) salt

112 cups (355 ml) buttermilk
6 Tablespoons (89 ml) butter, melted
2 eggs, beaten lightly

In a medium bowl, whisk together flour, baking powder, baking soda, and salt; stir in buttermilk, butter, and eggs, stirring until thoroughly mixed (batter will be thick). Pour 2/3 to 3/4 cup (158 to 177 ml) of batter into waffle baker. Close cover and cook 6 to 7 minutes or until golden brown.

Serves: 4 to 6

Banana Sour Cream Waffles

1 cup (237 ml) flour

1/2 teaspoon (2.5 ml) baking powder

1/4 teaspoon (1.2 ml) baking soda

1/4 teaspoon (1.2ml) salt 1 egg, separated

1 cup (237 ml) sour cream
1/4 cup (59 ml) milk
1/4 cup (59 ml) butter, melted
1 ripe banana, mashed

In a large bowl, whisk together flour, baking powder, baking soda, and salt; set aside. In a small bowl, beat the egg white with a whisk until light peaks form. Add egg yolk, sour cream, milk, butter, and banana to the flour mixture and mix well. Fold in the whipped egg white. Pour 2/3 to 3/4 cup (158 to 177 ml) of batter into waffle baker. Close cover and cook 6 to 7 minutes or until golden brown. Serves: 4 to 6

Recipes (cont.)

Cinnamon-Raisin Waffles

1 cup (237 ml) flour

2 Tablespoons (30 ml) brown sugar, packed

2 teaspoons (10 ml) baking powder

1/4 teaspoon (1.2 ml) salt

112 teaspoons (7.4ml) cinnamon

In a small bowl, whisk together the flour, sugar, baking powder, salt, and cinnamon. In a large bowl, whisk together the egg, milk, and oil. Add the flour mixture to the milk mixture. Stir until the batter is just combined. Stir in the raisins. Pour 2/3 to 3/4 cup (158 to 177 ml) of batter into waffle baker. Close cover and cook 6 to 8 minutes or until golden brown. Serves: 4 to 6

Crispy Ginger Ale Waffles

2 cups (473 ml) baking mix (for example, Bisquick)

2 Tablespoons (30 ml) oil

112 cups (355 ml) ginger ale

Whisk together baking mix, oil, and ginger ale. Let sit 5 minutes. Pour 2/3 to 3/4 cup (158 to 177ml ) of batter into waffle baker. Close cover and cook 6 minutes or until golden brown.

Serves: 4

Recipes (cont.)

Chocolate Dessert Waffles

1/4 cup (59 ml) vegetable shortening
1/2 cup (118 ml) sugar
1 egg
1/2 teaspoon (2.5 ml) vanilla
2/3 cup (158 ml) flour
3 Tablespoons (44 ml) unsweetened baking soda

1 teaspoon (5 ml) baking powder
Pinch of salt (1/16 teaspoon [0.3 ml])
1/2 cup (118 ml) milk

In a small mixing bowl, cream shortening and sugar until well blended. Add egg and vanilla; blend until smooth. Add remaining ingredients and mix until well blended. Batter will be thicker than normal waffle batter. Spray plates with nonstick cooking spray. Pour 2/3 to 3/4 cup (158 to 177 ml) of batter into waffle baker. Close cover and cook 6 to 7 minutes. Remove and serve topped with vanilla ice cream.

Serves: 3 to 4

LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
