The grounding of the heating-hose has to be ensured at all times.Attention must be given during operation with inammable materials-> the device is not explosion-proof. The following points are to be observed in accordance with the operating manual before every start-up:1. Faulty units may not be used.2. Ensure earthing:3. Check the permissible operating pressure of the high-pressure hose and spray gun.4. Check all the connecting parts for leaks5. Use personal protective equipment (e.g. gloves, if necessary). Instructions for regular cleaning and maintenance of the unit are to be observed strictly.Observe the following rules before any work on the unit and at every working break:1. Relieve the pressure from the spray gun and high-pressure hose.2. Secure a Wagner spray gun with the securing lever at the trigger guard3. Switch the unit o. Ensure safety! Translation of the original operating instructions WARNING! Attention, danger of injury by injection! Airless units develop extremely high spray pressures.30 TempSpray-H326 / -H226 / -H126

1.3 Danger of explosion and re from sources of ignition

during spraying work ________________________ 31

1.4 Electric charge (spark and ame formation) ______ 31

1.5 Earthing of the object ________________________ 31

1.6 Protective earthing of the heating hose _________ 31

1.7 Use of units on building sites and workshops _____ 31

1.11 Cleaning the unit with solvents ________________ 32

1.12 Work or repairs at the electrical equipment ______ 32

2.2.1 Coating materials with sharp-edged additional

4.1.2 Cleaning preserving agent when starting-up of

operation initially ___________________________ 38

4.2.2 Cleaning preserving agent when starting-up of

operation initially ___________________________ 39

7.1 Cleaning the unit from the outside _____________ 41

9.3 Insulation test with 1000 volts DC during

device inspection by Service __________________ 43

10.2 Overview of TempSpray versions and spray packs _ 47

10.3 Spare parts list TempSpray-H326 / -H226 ________ 48

10.4 Spare parts list heating hose

FORMATION)Due to the ow speed of the coating material in the hose, there is the possibility of electro-static charging at the equipment.These can involve spark or ame formation at discharge. Therefore it is necessary that the Airless-unit is earthed according to directions at all time.

1.5 EARTHING OF THE OBJECT

The object to be coated must be earthed.(Building walls are usually earthed naturally)

1.6 PROTECTIVE EARTHING OF THE HEATING HOSE

In case of defect (of the heating conductor), protection against an electric shock is secured by the protective earthing of the heating hose. This earthing is implemented by the electric supply to a shock proof socketBe sure that the grounding of the shock proof socket, to which the heating-hose will be connected, is installed as prescribed and functioning.

1.7 USE OF UNITS ON BUILDING SITES AND

WORKSHOPSThe unit may only be connected to the mains network via a special feeding point with a residual-current device with INF ≤ 30 mA.Wagner‘s accessories program also includes a mobile operator protection device for the electronic supply, which can also be used with other electronical equipment.

AIRLESS SPRAYING All local safety regulations in force must be observed.The following sources are just a sample of those containing safety requirements for Airless spraying. a) The European Standard „Spray equipment for coating ma- terials – safety regulations „ (EN 1953: 1998). The safety regulations of the manufacturer of the Air-less unit are to be observed in order to ensure safe han-dling of the Airless high-pressure spraying unit. Observe the following additional safety instructions during operation with these specied heating-hoses:

EXPLOSION PROTECTIONDo not use the unit in work places which are covered by the explosion protection regula-tions.The unit is not designed to be explosion pro-tected.

DANGER OF EXPLOSION AND FIRE FROM SOURCES OF IGNITION DURING SPRAYING WORK There must be no sources of ignition such as, for example, open res, lit cigarettes, cigars or tobacco pipes, sparks, glowing wires, hot sur-faces, etc. in the vicinity. SAFETY REGULATIONS

1.8 HIGH PRESSURE HOSE

Attention, danger of injury by injection! Wear and tear and kinks as well as usage that is not appropriate to the purpose of the device can cause leakages to form in the high-pressure hose. Liquid can be injected into the skin through a leakage. High-pressure hoses must be checked thoroughly before they are used. Replace any damaged high-pressure hose immediately. Never repair defective high-pressure hoses yourself! Avoid sharp bends and folds: the smallest bending radius is about 20 cm. Do not drive over the high-pressure hose. Protect against sharp objects and edges. Never pull on the high-pressure hose to move the device. Do not twist the high-pressure hose. Do not put the high-pressure hose into solvents. Use only

FLASH POINTOnly spray coating materials with a ash point of at least 5 kelvin higher than the set tem-perature (minimum ash point is 21°C). The ash point is the lowest temperature at which vapors develop from the coating ma- terial. These vapors are sucient to form an inammable mixture over the air above the coating material.Electrostatic charging of spray guns and the high-pressure hose is discharged through the high-pressure hose. For this reason the electric resistance between the connections of the high-pressure hose must be equal or lower than 1 MΩ.The resistance of the TempSpray - H126 must be equal or low-er than 2 Ohm.32 TempSpray-H326 / -H226 / -H126

The permissible operating pressure for the spray gun, spray gun accessories, unit accessories and high-pressure hose must not fall short of the maximum operating pressure of 25 MPa (250 bar or 3625 psi).

1.11 CLEANING THE UNIT WITH SOLVENTS

When cleaning the unit with solvents, the heating of the heating hose has to be switched o, because an explosive gas/air-mixture can emerge in the hose. The solvent should never be sprayed or pumped back into a container with a small opening (bunghole). An explo- sive gas/air mixture can arise. The container must be earthed.

1.10 CLEANING THE UNIT

Danger of short-circuits caused by water in- gression! Never spray down the unit with high-pres- sure or high-pressure steam cleaners.

EQUIPMENT These may only be carried out by a skilled electrician. No li- ability is assumed for incorrect installation.

Unplug the power plug from the outlet before carrying out any repair work.

TempSpray-H326 and TempSpray-H226: Position the heating-hose drum close to the spray-painting device, without causing a risk of stumbling. Do not use the heating-hose drum, if the power cord is de- fect. TempSpray-H126: Assemble the governor housing to an adequate and su- ciently xed device connection. Don’t use the heating-hose, if the power cord is defect. SAFETY REGULATIONS a wet cloth to wipe down the outside of the hose. Lay the high-pressure hose in such a way as to ensure that it cannot be tripped over. Only use WAGNER original-high-pressure hoses in order to ensure functionality, safety and durability.

1.9 PERSONAL PROTECTION WHILE HOT SPRAYING

During all spraying with a temperature-set- ting of more than 43°C (display on the control panel starts blinking) take adequate safety measures against combustion. -> Wear protective gloves. Attention: The high-pressure hose and the hose whip are heated, too! Use of a plastic coated spray gun is recom- mended.33 TempSpray-H326 / -H226 / -H126

The heating-hoses TempSpray-H326, TempSpray-H226 and TempSpray-H126 are designed for all established Airless paint-spraying devices, whose operating pressure is below the rated pressure of the heating-hoses.With some electronically controlled Airless-devices, the operation of a TempSpray-H126 can lead to malfunctions. To avoid this, mount a shock absorber (e.g. a 15m meter long textile reinforced high-pressure hose) between the device and the heating hose.With the heating-hoses, mainly water-based colours can be heated from 20°C to 60°C, to improve the spraying on the Airless-nozzle.Thereby it is possible to improve both spray result and mate-rial consumption. This depends on the used material and the calibration of the parameters. The heating-hoses can be used both in workshops and on construction sites.Due to the cross-section and the operation length, the Temp-Spray-H326 is adapted well for high-viscosity materials out-doors.Due to its shorter hose, TempSpray -H226 is recommended for smaller objects and indoor work.Both hoses are qualied for the operation of an inside-fed paint roller.In the lacquer sector TempSpray -H326, -H226 and -H126 can be used, but pay attention to the safety instructions, especially in reference to explosion protection.The TempSpray-H126 is specically conceived for lacquer work. Its minor hose-section raises the handling and reduces the needed volume of lacquer to ll the hose.The TempSpray-H126 is not capable for high-viscosity materi-als and big nozzles. TempSpray heated hoses must not be used in areas that come under the Explosion Protection Ordinance.

2.2 COATING MATERIAL

Diluting lacquers and paints or those containing solvents, two-component coating materials, dispersion and latex paints.No other materials should be used for spraying without WAG-NER‘s approval.In particular, airless spray putty, high-viscosity coating substances such as, e.g. roof coatings and corrosion protectionNo other materials should be used for spraying without WAG-NER‘s approval.

For a better understanding of the function see the technical conguration below:All 3 heating-hoses are heated via an electric conductor, which is located directly in the colour-ow in the inside of the hose.An electric current ows trough the heating conductor, which is thereby heated up. Thereupon it changes its electrical resist-ance proportional to its temperature. The electronic system in the governor housing measures this resistance constantly and calculates the temperature of the heating conductor out of it, without any further sensor. The control electronics adapts the current ow so that the set temperature is kept constant.The output of the heating-hoses is limited. If the volume ow rate is too high (nozzle too big) or the temperature of the ma-terials before processing is too low, the results may vary. Of course the surrounding air temperature has an eect on the heating-ability of the heating-hoses, too.Calculated values for the orientation can be found in the spec-ication of each heating-hose. Pay attention to the Airless quality of the coating materials to be processed.Regard the directions from the colour-manufacturer (technical data sheets of the colours):Some colours will be destroyed, if they are heated over a certain level. Some colours at-tain a high viscosity, thus they can damage the heating wire in the hose.The TempSpray-H326/H226 can be used for coating materials with a viscosity up to 25,000 mPas.The heating-hose TempSpray-H126 can be used for coating materials with a viscosity up to 5,000 mPas.

2.2.1 COATING MATERIALS WITH SHARP-EDGED

ADDITIONAL MATERIALSThese particles have a strong wear and tear eect on valves and tips, but also on the heating hose and spray gun. This im-pairs the durability of these wearing parts considerably.

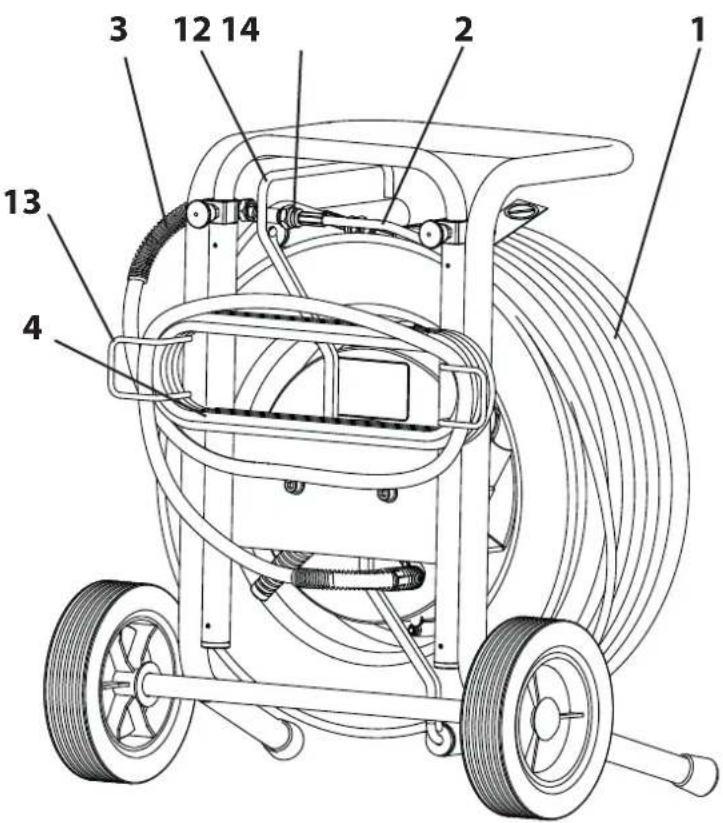

1 HP hose2 Hose whip3 Connecting hose4 Power cord5 Hose drum6 Frame7 Lock wheel8 Governor housing9 Control panel with display10 Screw connexion (TempSpray-H126)11 Telescopic handle12 Hose guide with roller13 Cable holder14 Park tting for xing the hose during transport35 TempSpray-H326 / -H226 / -H126

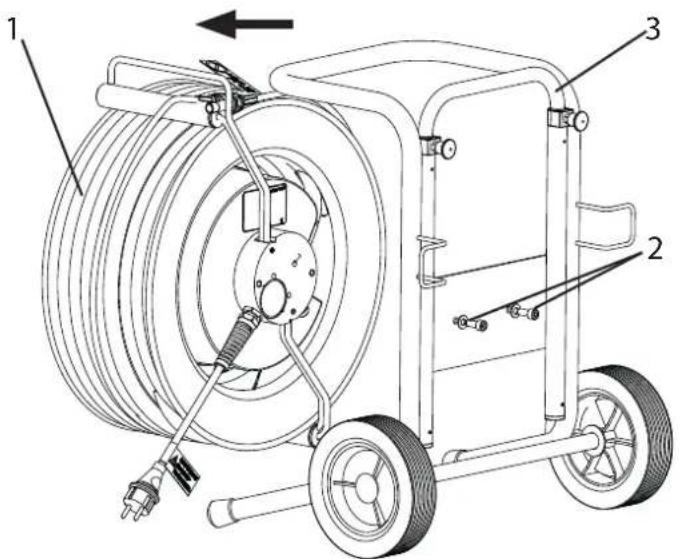

TempSpray-H326 and TempSpray-H226:Roll up the high-pressure hose and x to the hose guide park tting. Coil connecting hose over the cable holder and con-nect it to the park tting as well. Roll up the mains connection cable onto the cable holder.Pull the locking pins (Item 1) on both sides of shaft. The lock-ing pins can be arrested by a small turn (left or right). Pull the shaft out and deblock the locking pins. A light pull or push will help to lock the pins well. Carry the device – don’t throw it!

TempSpray-H126:Roll up the high-pressure hose (roll diameter greater than 20 cm). Then roll up the power cord as well. The advice can be transported with the Airless-unit on which it is mounted (See details for transport of the Airless-unit).36 TempSpray-H326 / -H226 / -H126

Voltage : 230 Volt ~, 50 - 60 Hz Fuses : 16 A Power cord : 6 m long, 3x1.5 mm² Max. current consumption : 5.9 A Degree of protection :: IP 54 Max. heating output: 1.3 kW Max. operating pressure : 25 MPa (250 bar) Hose : DN10-15m-textile reinforced Inner diameter : 10 mm Length : 15 m Fitting : 3/8” NPSM Hose whip : DN5-1m-steel reinforced Inner diameter : 5 mm Length : 1 m Fitting : 1/4” NPSM Connecting hose : DN6-1.6m-texile reinforced Inner diameter : 6 mm Length : 1.6 m Fitting : 1/4” NPSM Max. viscosity of the coating material: 25,000 mPas Adjustable temperature range: 20°C - 60°C Dead weight : 13.2 kg Performance : Max. nozzle size : (Continuous operation with water) 0.013”; more than 50°C -> 0.011” Max. nozzle size : (Continuous operation with emulsion paint) 0.021”; more than 50°C -> 0.019”

• based on surrounding and material temperature of 20°C. During intervallic operation (gun opened/closed) bigger noz

Voltage : 230 Volt ~, 50 - 60 Hz Fuses : 16 A Power cord : 6 m long, 3x1.5 mm² Max. current consumption : 5.2 A Degree of protection : IP 54 Max. heating output : 1.1 kW Max. operating pressure : 25 MPa (250 bar) Hose : DN10-30m-textile reinforced Inner diameter : 10 mm Length : 30 m Fitting : 3/8” NPSM Hose whip : DN5-1m-steel reinforded Inner diameter : 5 mm Length : 1 m Fitting : 1/4” NPSM Connecting hose : DN6-1.6m-textile reinforced Inner diameter : 6 mm Length : 1.6 m Fitting : 1/4” NPSM Max. viscosity of the coating material : : 25,000 mPas Adjustable temperature range: 20°C - 60°C Dead weight : 16.8 kg Performance : Max. nozzle size : (Continuous operation with water) 0.015”; more than 50°C -> 0.013” Max. nozzle size: (Continuous operation with emulsion paint) 0.023”; more than 50°C -> 0.019”

• based on surrounding and material temperature of 20°C. During intervallic operation (gun opened/closed) bigger noz- zles can be used.

Voltage : 230 Volt ~, 50 - 60 Hz Fuses : 16 A Unit connecting line : 4 m long, 3x1.5 mm² Max. current consumption : 2.6 A Degree of protection : IP 54 Max. heating output : 0.6 kW Max. operating pressure : 25 MPa (250 bar) Hose : DN6-10m-steel reinforced Inner diameter : 6 mm Length : 10 m Fitting : 1/4” NPSM screw connection to the device 1/4” NPSM Max. viscosity of the coating material : 5,000 mPas Adjustable temperature range: 20°C - 60°C Dead weight : 3.2 kg Performance : Max. nozzle size : (Continuous operation with water) 0.011”; more than 50°C -> 0.009” Max. nozzle size : (Continuous operation with emulsion paint) 0.015”; more than 50°C -> 0.013”

• based on surrounding and material temperature of 20°C. During intervallic operation (gun opened/closed) bigger noz- zles can be used.38 TempSpray-H326 / -H226 / -H126

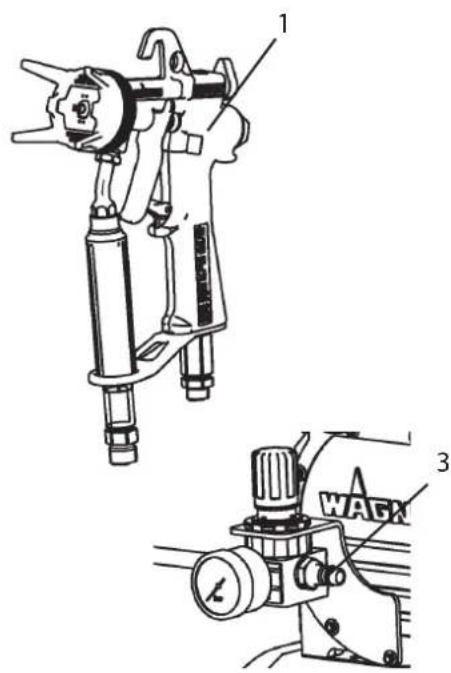

1. Place hose drum close to the Airless-unit.2. Release hose whip (1) from frame and roll up the high-pressure hose. Also release the lock-advice (2) and lock it again after rolling the hose up.3. Release connecting hose and connect it to the hose adapter of the airless-unit.4. Mount spray gun (4) to the hose whip.5. Tighten all coupling nuts strongly, in order that no coating material can leak. 6. Mount the nozzle holder with the chosen nozzle on the spray gun, position it and tighten it well (See manual of the spray gun/ nozzle holder).For safety reasons never use the heating-hose without the steal-armoured hose whip, if working with a spray gun. Counter with a wrench, if you unscrew the high-pressure hose from the hose connector.

4.1.1 CONNECTION TO THE MAINS NETWORK

Connection must always be carried out via an appropriately grounded safety outlet with residual-current-operated circuit-breaker.

4.1.2 CLEANING PRESERVING AGENT WHEN

STARTING-UP OF OPERATION INITIALLYRinse the heating hose with a suitable cleaning agent (recom-mendation: water) at a low pressure setting. Therefore use a spray gun without nozzle and spray into an open box. Before connecting the unit to the mains supply, ensure that the line voltage matches that specied on the unit’s rating plate. STARTUP

1. Mount the governor housing (1) to the hose connector of the airless-unit, thereby arrange the housing in a way that you can reach the control panel easily and no important accesses are barred.2. Roll up the high-pressure hose.3. Mount spray gun (2) to the high-pressure hose.4. Tighten all coupling nuts well, in order that no coating material can leak. 5. Mount the nozzle holder with the chosen nozzle on the spray gun, position it and tighten it well (See manual of the spray gun/ nozzle holder).Counter with a wrench, if you unscrew the high-pressure hose from the hose connector.

4.2 TEMPSPRAY-H126 4.2.1 CONNECTION TO THE MAINS NETWORK

Connection must always be carried out via an appropriately grounded safety outlet with residual-current-operated circuit-breaker.Before connecting the unit to the mains supply, ensure that the line voltage matches that specied on the unit’s rating plate.

4.2.2 CLEANING PRESERVING AGENT WHEN

STARTING-UP OF OPERATION INITIALLYRinse the heating hose with a suitable cleaning agent (recom-mendation: water) at a low pressure setting. Therefore use a spray gun without nozzle and spray into an open box. STARTUP

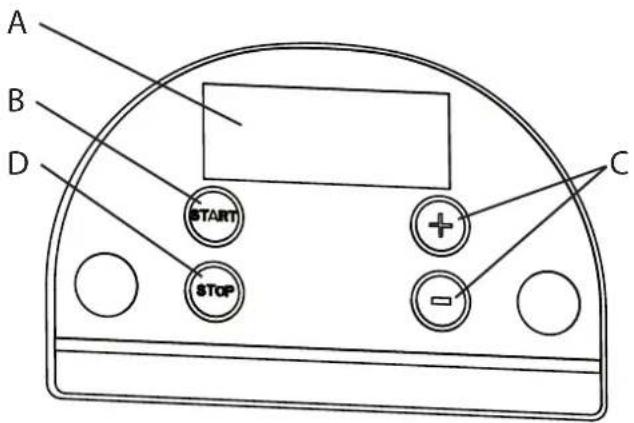

Connect the heat controller to the mains supply. OFF appears in the display window (A) to indicate operational readiness. Press the START button (B), to switch the heat controller on. The display window changes from OFF to the preset tempera- ture of 40°C and the heating process begins. While the material in the heated hose is being heated, a dot illuminates in front of the tem- perature display. As soon as this goes out, it will take another approx. 2 minutes until the material reaches the set temperature. If the dot illuminates again during the work cycle, the material in the hose is heated fur- ther, in order to keep the set temperature constant. If the illuminated dot no longer disappears and the spray result deteriorates, a smaller nozzle should be used for this material.

4.4 TEMPERATURE ADJUSTMENT

The Temperature can be raised or reduced in 1° steps by us- ing the foil-buttons and (C) (“°C” ashes during adjust- ment). To set the temperature you adjusted, you have to push the set-button START (B) within 3 seconds, otherwise the heat- ing control resets to the temperature that was used before. If you press on of the buttons and (C) constantly, the adjustment-speed raises. After conrming with START, “°C” il- luminates constantly. The adjustment range is from 20°C to 60°C. A change in every direction is always possible. The heating can take a couple of minutes until the adjusted temperature is reached. This depends on the start tempera- ture of the material and on the surrounding temperature. It is assumed that the heating time takes from 3 to 8 minutes. At temperature adjustments over 43°C, the display value starts blinking. This is a hint for possible danger of getting burnt. To switch the heat controller o again, press the STOP but- ton (D). The selected temperature will be saved until the next start-up. However, if the power plug is removed, the heat con- troller will be reset to the default temperature of 40°C upon restarting. This happens to avoid an unintended overheating of an even- tually damageable coating material.41 TempSpray-H326 / -H226 / -H126

HOSE Danger of injury through leaking high-pressure hose. Replace any damaged high-pressure hose immediately.Never repair defective high-pressure hoses yourself!The high-pressure hose can’t be removed from the hose reel or the controller housing.Never try to loosen the connection. The high-pressure hose is to be handled with care. Avoid sharp bends and folds: the smallest bending radius is about 20 cm.

not drive over the high-pressure hose. Protect against sharp objects and edges.Never pull on the high-pressure hose to move the device. Always unroll the high-pressure hose com-pletely. When using the high-pressure hose while working on scaolding, it is best to always guide the hose along the outside of the scaf-folding. The risk of damage rises with the age of the high-pressure hose.Wagner recommends replacing high-pressu-re hoses after 6 years.Only use WAGNER original-high-pressure hoses with internal heating in order to ensure functionality, safety and durability.

INTERRUPTION OF WORK

Release the pressure in the hose and switch o the heating during longer breaks. In using quick-drying or two-component coating materials, do not fail to rinse unit through with a suitable cleaning agent dur-ing the processing period.Important: The application life of the material can change as a result of heating. Therefore, please consult the material manufacturer.

7 CLEANING THE DEVICE

A clean state is the best method of ensuring operation with-out problems. After you have nished spraying, clean the unit. Under no circumstances may coating material rests dry and harden in the unit.Clean the device with an adequate detergent, after nishing the paint work.The solvent used for cleaning (with a ash point over 21 °C) has to be adequate to the coating material.While cleaning with solvents (except water)-> always switch o heating.Do not put the high-pressure hose into sol-vents. Use only a wet cloth to wipe down the outside of the hose.The container must be earthed in case of coating materials which contain solvents(except water).Caution! Do not pump or spray in container with small opening (bunghole)!See safety regulations.When cleaning without a nozzle, reduce the pressure to approx. 20 bar.Warm water improves the cleaning eect in the case of water-dilutable coating materials.Therefore the heating can stay switched on.

CLEANING THE UNIT FROM THE OUTSIDEFirst unplug the power plug from the outlet.Danger of short-circuits caused by water ingression! Never spray down the unit with high-pressure or high-pressure steam clean- ers. Wipe unit externally with a piece of cloth, which has been im-mersed in a suitable cleaning agent.

Switch the unit o.Before all repair work: Unplug the power plug from the outlet.

9.1 TEMPSPRAY-H326 AND TEMPSPRAY-H226

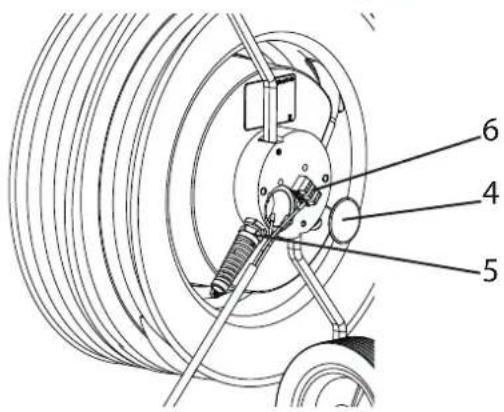

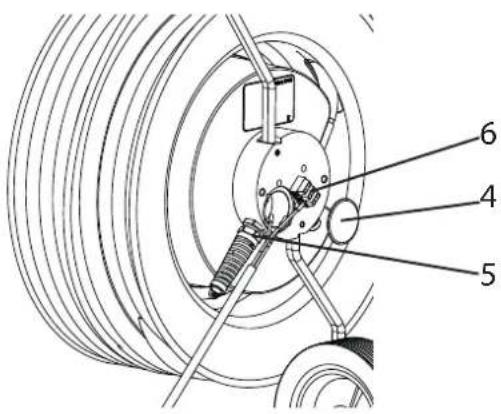

CHANGING THE POWER CORDSwitch the unit o.Before all repair work: Unplug the power plug from the outlet.Work or repairs at the electrical equipment may only be carried out by a skilled electri-cian. No liability is assumed for incorrect in-stallation.1. Dismount the hose reel (1) by loosening the 2 screws (2) on the carriage (3).2. Lever the plastic cover (4) o with a screwdriver.3. Release cable connexion (5). Disconnect the power cable from the terminal strip (6).4. Replace power cord (x green-yellow conductor to PE-marked terminal). (Only use a licensed power cord with the marking H07-RNF and with a splash water proof plug)5. Mount plastic covers carefully.6. Fix hose reel to the carriage again.Due to necessary custom tools repairs on the heating wire and the heating wire feed have to be done only by the Wagner-Service.A replacement of the heating-hose should, due to its internal heating wire, only be done from the Wagner-Service as well.The hose whips of the TempSpray-H326 and TempSpray-H226 can be replaced without any problems. 8 SERVICING

8.1 GENERAL SERVICING

After the regulations of the Accident Pre-vention & Insurance Association an annual expert check is required- inclusive conrma-tion .You can servicing of the unit carried out by the Wagner Service. Favourable conditions can be agreed with a service agreement and/or maintenance packages. Minimum check before every startup: 1. Check the high-pressure hose, power supply cable with plug for damage.Inspect the high-pressure hose visually for any notches or bulges, in particular at the transition in the ttings. Check at periodical intervals: 1. The coupling nuts have to be clearly rotatable. The conductivity has to be less than 1 Mega Ohm (Tempspray-H326, Tempspray-H226) alternatively less than 2 Ohm (TempSpray-H126) over the whole length.2. Check the status of the heating conductor To do this, press and hold down the “START” and buttons simultaneously, and also press the button. If “0A” appears in the display, the heating conductor is ok. If a dierent value is shown for “A” (e.g. 5A), please contact Wagner Service to arrange for an insulation test. 3. The isolation of the heating wire has to be tested with an insulation tester with at least 1000V.Have all the electric tests carried out by the Wagner Service.43 TempSpray-H326 / -H226 / -H126

Switch the unit o. Before all repair work: Unplug the power plug from the outlet.

1. Release cable connexion (1).

2. Remove protective covers (2).

3. Loosen all four screws (3) and carefully remove left hous-

ing shell (4). Attention: Control panel is connected to the right housing shell.

4. Release power cord (6) from the terminal (7) and replace it.

(Only use a licensed power cord with the marking H07- RNF and with a splash water proof plug) Important information for installing the new mains connection cable: Lead mains cable conductor through the cable bushing (5) and return the latter to its position. Fix green-yellow conductor to PE-marked terminal.

5. Carefully mount housing shell (4) again.

Attention: Do not pinch any cables! The printed circuit board must be located in the guide rail, and the inserted cord must not twist.

6. Fit screws (3) and protective covers (2) again.

Switch the unit o. Before all repair work: Unplug the power plug from the outlet.

1. Open the housing as described in section 9.2.

2. Detach one of the two heating conductors from the termi-

nal and connect to a pole of the high-voltage tester.

3. Connect the other pole of the tester to the ground of the

leadthrough housing and perform test.

DISPLAYED ERROR CODE POSSIBLE CAUSE MEASURES FOR ELIMINATING THE MALFUNCTION Err0 Residual current exceeded (approx. 33mA) and relay cuts out:

• Heating conductor insulation in hose dam- aged

• Cable has come loose

• Water has penetrated device Please contact Wager Customer Service Err1 Electronics defective - no communication be- tween the boards Disconnect the device from the power supply. Wait approx. 30 seconds and switch it back on. If the error code is still displayed, contact Wag- ner Customer Service. Err2 Control board does not receive any feedback Disconnect the device from the power supply. Wait approx. 30 seconds and switch it back on. If the error code is still displayed, contact Wag- ner Customer Service. Err3 Interface board does not receive any feedback /no information is received by the interface board Cables pinched in housing Disconnect the device from the power supply. Wait approx. 30 seconds and switch it back on. If the error code is still displayed, contact Wag- ner Customer Service. Have a skilled electrician open the housing and check the cables. Err4 Heating resistance too large: Current ow in heating conductor is inter- rupted Overtemperature protection has actuated Disconnect the device from the power supply. Wait approx. 30 seconds and switch it back on. If the error code is still displayed, contact Wag- ner Customer Service. Err5 Heating resistance too small: Short-circuit in heating wire Disconnect the device from the power supply. Wait approx. 30 seconds and switch it back on. If the error code is still displayed, contact Wag- ner Customer Service. Temperature is displayed in °F instead of °C Temperature display converted to Fahrenheit Press „START“ and „ “ simultaneously to con- vert the display to °C. In the case of all abovementioned errors, a task that has been started can still be n- ished with the TempSpray heating system switched o.

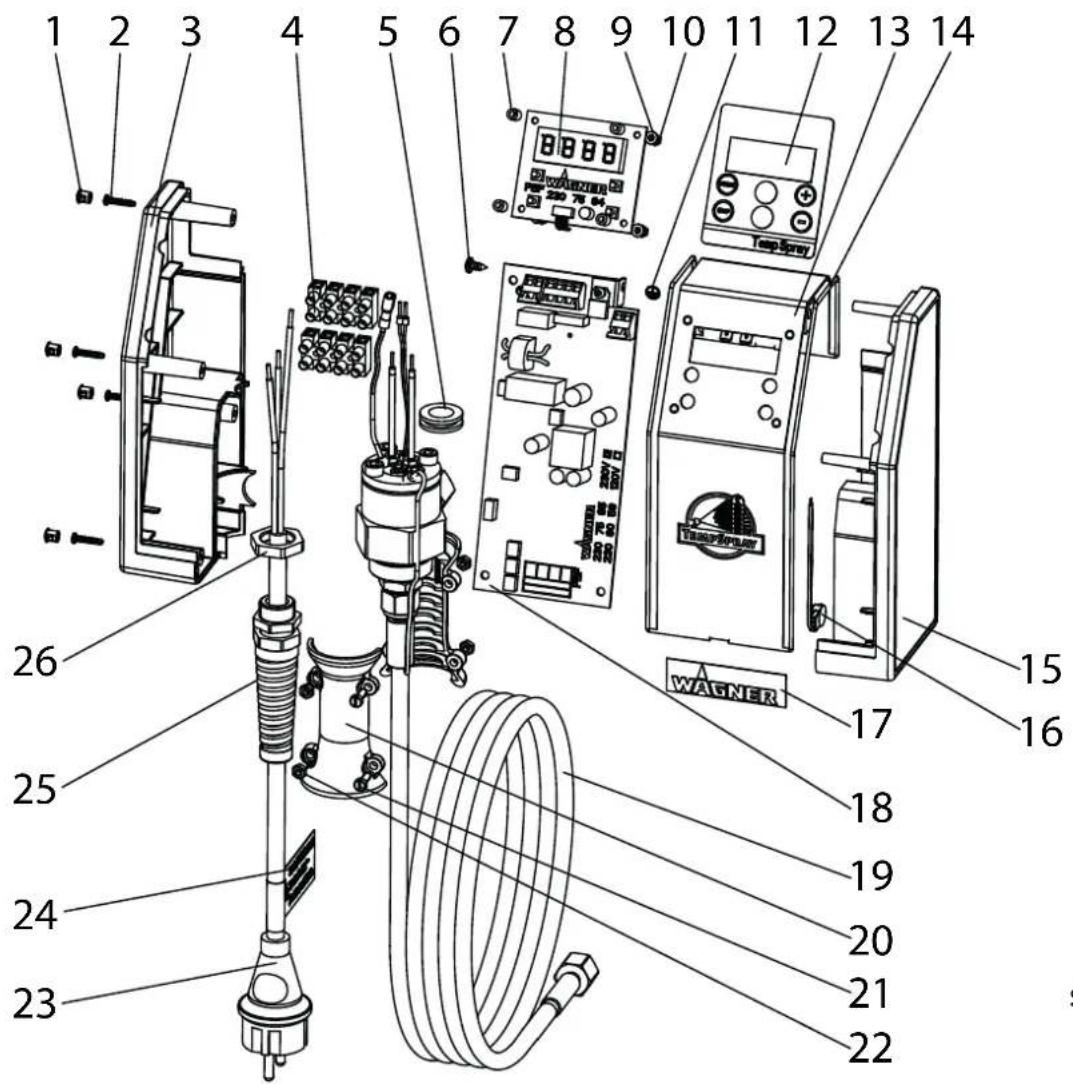

SPARE PARTS AND ACCESSORIES

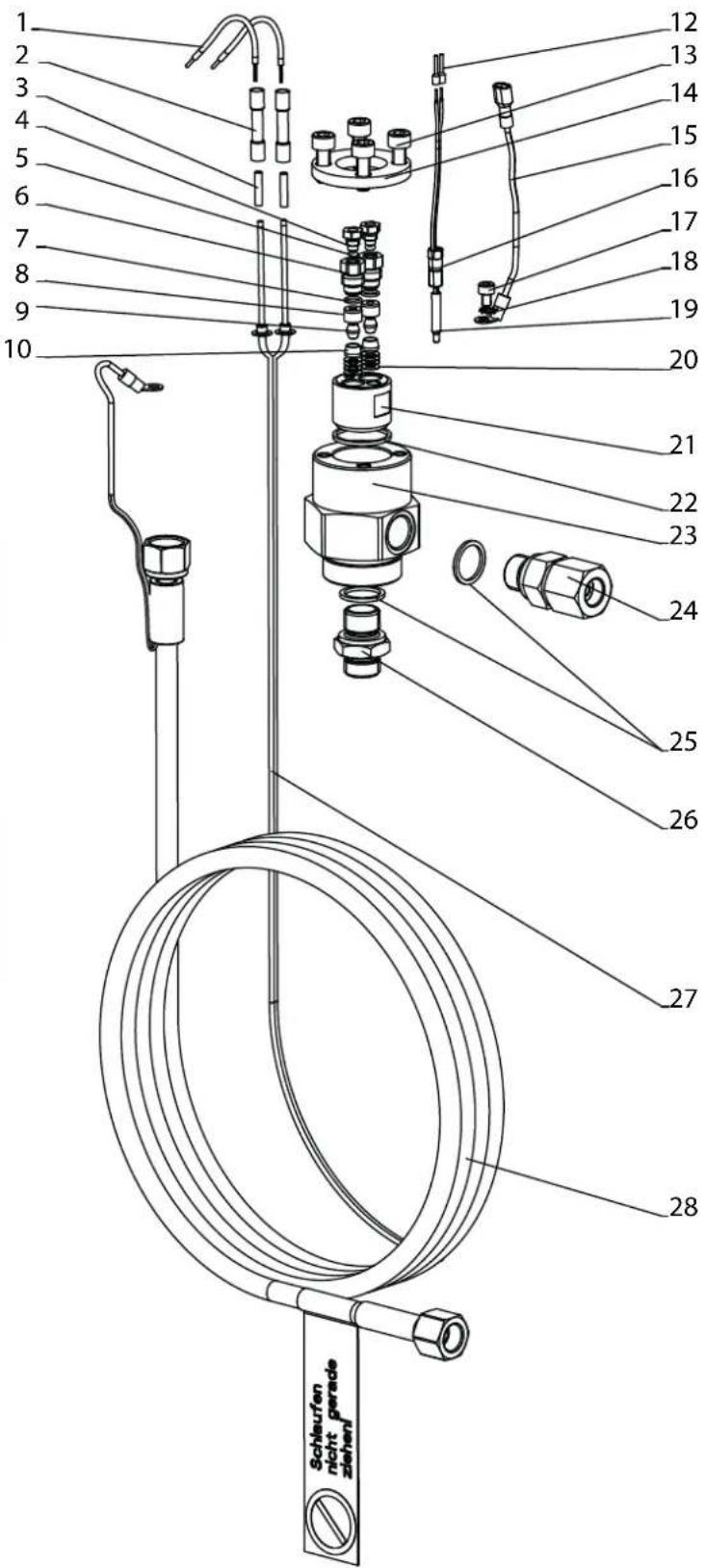

SPARE PARTS AND ACCESSORIES

For safety reasons, we would recommend having the device checked by an expert as required but at least every 6 months to ensure that it can continue to operate safely. In the case of unused devices, the check can be postponed until they are next started up. All (potentially deviating) national inspection and mainte- nance regulations must also be observed. If you have any questions, please contact the customer service team at Wagner.

IMPORTANT INFORMATION ON PRODUCT LIABILITY

According to an EU directive, the manufacturer is only liable without limitation for faults in the product if all parts come from the manufacturer or have been approved by the manu- facturer and have been mounted to the device and are operat- ed properly. If third-party accessories or spare parts are used, the manufacturer is exonerated wholly or partly from his/her liability if use of the third-party accessories or spare parts have caused a defect in the product. In extreme cases, the relevant authorities can completely prohibit using the entire device. With original WAGNER accessories and spare parts, compli- ance with all safety regulations is guaranteed.

In observance of the European Directive 2002/96/EC on waste electrical and electronic equipment and implementation in accordance with national law, this product is not to be dis- posed of together with household waste material but must be recycled in an environmentally friendly way! Wagner or one of our dealers will take back your used Wagner waste electrical or electronic equipment and will dispose of it for you in an environmentally friendly way. Please ask your local Wagner service centre or dealer for details or contact us direct. GUARANTEE DECLARATION (Status 01.02.2009)

1. Scope of guarantee

All Wagner professional colour application devices (here- after referred to as products) are carefully inspected, tested and are subject to strict checks under Wagner quality assurance. Wagner exclusively issues extended guarantees to commercial or professional users (hereafter referred to as “customer”) who have purchased the prod- uct in an authorised specialist shop, and which relate to the products listed for that customer on the Internet under www.wagner-group.com/pro-guarantee. The buyer’s claim for liability for defects from the purchase agreement with the seller as well as statutory rights are not impaired by this guarantee. We provide a guarantee in that we decide whether to replace or repair the product or individual parts, or take the device back and reimburse the purchase price. The costs for materials and working hours are our responsibility. Replaced products or parts become our property.

2. Guarantee period and registration

The guarantee period amounts to 36 months. For industrial use or equal wear, such as shift operations in particular, or in the event of rentals it amounts to 12 months. Systems driven by petrol or air are also guaranteed for a 12 month period. The guarantee period begins with the day of delivery by the authorised specialist shop. The date on the original purchase document is authoritative. For all products bought in authorised specialist shops from

01.02.2009 the guarantee period is extended to 24 months

providing the buyer of these devices registers in accordance with the following conditions within 4 weeks of the day of de- livery by the authorised specialist shop. Registration can be completed on the Internet under www.wagner-group.com/pro-guarantee. The guarantee certicate is valid as conrmation, as is the original purchase document that carries the date of the pur- chase. Registration is only possible if the buyer is in agreement with having the data being stored that is entered during reg- istration. When services are carried out under guarantee the guarantee period for the product is neither extended nor renewed. Once the guarantee period has expired, claims made against the guarantee or from the guarantee can no longer be en- forced.

If defects can be seen in the materials, processing or perform- ance of the device during the guarantee period, guarantee TESTING THE UNIT /PRODUCT LIABILITY / NOTE OF DISPOSAL / GARANTEE DECLARATION54 TempSpray-H326 / -H226 / -H126

claims must be made immediately, or at the latest within a period of 2 weeks. The authorised specialist shop that delivered the device is enti-tled to accept guarantee claims. Guarantee claims may also be made to the service centres named in our operating instruc-tions. The product has to be sent without charge or presented together with the original purchase document that includes details of the purchase date and the name of the product. In order to claim for an extension to the guarantee, the guaran-tee certicate must be included. The costs as well as the risk of loss or damage to the product in transit or by the centre that accepts the guarantee claims or who delivers the repaired product, are the responsibility of the customer. 4. Exclusion of guarantee Guarantee claims cannot be considered for parts that are subject to wear and tear due to use or other natural wear and tear, as well as defects in the product that are a result of natural wear and tear, or wear and tear due to use. This includes in particular cables, valves, packaging, jets, cylinders, pistons, means-carrying housing components, lters, pipes, seals, rotors, stators, etc. Damage due to wear and tear that is caused in particular by sanded coating materials, such as dispersions, plaster, putty, adhesives, glazes, quartz foundation. in the event of errors in devices that are due to non-compliance with the operating instructions, unsuitable or unprofessional use, incorrect assembly and/or commissioning by the buyer or by a third party, or utilisation other than is intended, abnormal ambient conditions, unsuitable coating materials, unsuitable operating conditions, operation with the incorrect mains voltage supply/frequency, over-operation or defective servicing or care and/or cleaning. for errors in the device that have been caused by using accessory parts, additional components or spare parts that are not original Wagner parts. for products to which modications or additions have been carried out. for products where the serial number has been removed or is illegible for products to which attempts at repairs have been carried out by unauthorised persons. for products with slight deviations from the target properties, which are negligible with regard to the value and usability of the device. for products that have been partially or fully taken apart. 5. Additional regulations. The above guarantees apply exclusively to products that have been bought by authorised specialist shops in the EU, CIS, Australia and are used within the reference country. If the check shows that the case is not a guarantee case, re-pairs are carried out at the expense of the buyer.The above regulations manage the legal relationship to us concludingly. Additional claims, in particular for damages and losses of any type, which occur as a result of the product or its use, are excluded from the product liability act except with regard to the area of application. Claims for liability for defects to the specialist trader remain unaected. German law applies to this guarantee. The contractual lan-guage is German. In the event that the meaning of the Ger-man and a foreign text of this guarantee deviate from one an-other, the meaning of the German text has priority. J. Wagner GmbHDivision Professional FinishingOtto Lilienthal Strasse 18 88677 MarkdorfFederal Republic of GermanySubject to modications ∙ Printed in Germany EU Declaration of conformity We declare under sole responsibility that this product conforms to the following relevant stipulations: 2014/35/EU, 2014/30/EU, 2011/65/EU, 2012/19/EU Applied harmonised norms: EN 60519-1, EN 60519-2, EN 60204-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-3 The EU declaration of conformity is enclosed with the product. If required, it can be re-ordered using order number 2313841. GARANTEE DECLARATION55 TempSpray-H326 / -H226 / -H126
