PMS 160 B2 - Sander PARKSIDE - Free user manual and instructions
Find the device manual for free PMS 160 B2 PARKSIDE in PDF.
| Product type | Multi-function sander |
| Brand | Parkside |
| Model | PMS 160 B2 |
| Rated power input | 160 W |
| Rated voltage | 230 V ~, 50 Hz |
| No-load speed | 0 – 13,000 min⁻¹ |
| Rated oscillation frequency | 26,000 min⁻¹ |
| Protection class | II (double insulation) |
| Sound pressure level (LpA) | 91 dB(A) |
| Sound power level (LWA) | 99 dB(A) |
| Hand-arm vibration (ah) | 5.835 m/s² (uncertainty K = 1.5 m/s²) |
| Abrasive attachment system | Hook and loop (Velcro) |
| Dust extraction | Integrated dust box + connection for external extraction (with reducer) |
| Items included | 1 sander, 3 sets of abrasive sheets (grit 80/120/180), 1 dust box, 1 reducer, 1 instruction manual |
| Intended use | Dry sanding of wood, plastic, metal, coated or painted surfaces |
| Warranty | 3 years (wear parts excluded) |
| After-sales service | France: 0800 907 612 – Belgium: 0800 12614 |
Frequently Asked Questions - PMS 160 B2 PARKSIDE
User questions about PMS 160 B2 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sander in PDF format for free! Find your manual PMS 160 B2 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PMS 160 B2 by PARKSIDE.
USER MANUAL PMS 160 B2 PARKSIDE
GB / IE
MULTI-SANDER
Translation of the original instructions
FR / BE
PONCEUSE MULTIFONCTION
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE / AT / CH
GB/IE Translation of the original instructions Page 1
| DE/AT/CH Originalbetriebsanleitung Seite 13 | ||||
| FR/BE Traduction des instructions d’origine Page 25 | ||||
| NL/BE Vertaling van de originele gebruiksaanwijzing Pagina 41 | ||||
| CZ Překlad originálního provozního návodu Strana 53 | ||||
| PL Tłumaczenie oryginalnej instrukcji obsługi | Strona | 65 | ||
| SK Preklad originálneho návodu na obsluhu | Strana | 77 | ||
| ES Traducción del manual de instrucciones original | Página | 89 | ||
| DK Oversættelse af den originale driftsvejledning | Side | 101 | ||
| IT Traduzione delle istruzioni d’uso originali | Pagina | 111 | ||
| HU Az originál használati utasítás fordítása | Oldal | 123 | ||
Introduction 2
Intended use....2
Features 2
Package contents 2
Technical specifications....2
General power tool safety warnings....3
1. Work area safety 3
2. Electrical safety 3
3. Personal safety 4
4. Power tool use and care 4
5. Service 5
Appliance-specific safety instructions 5
Before use 6
Selecting a sanding sheet 6
Fitting the sanding sheet 6
Dust extraction 6
Dust box 6
Reducer 7
Operation 7
Switching on and off 7
Working procedures 7
Maintenance and cleaning 7
Disposal 8
Kompernass Handels GmbH warranty 8
Service....10
Importer....10
Original declaration of conformity 11

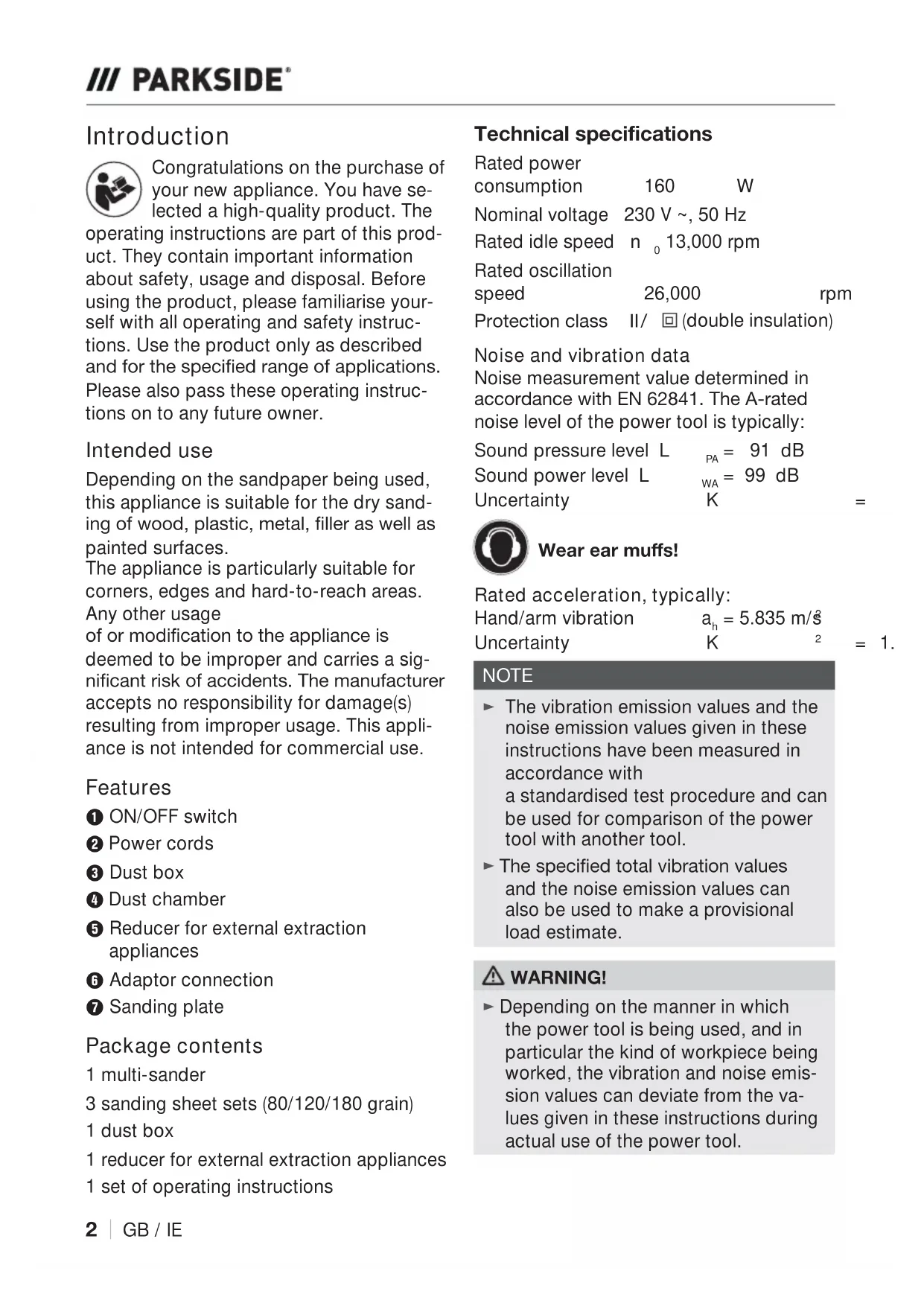

Introduction
Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified range of applications. Please also pass these operating instructions on to any future owner.
Intended use
Depending on the sandpaper being used, this appliance is suitable for the dry sanding of wood, plastic, metal, filler as well as painted surfaces.
The appliance is particularly suitable for corners, edges and hard-to-reach areas.
Any other usage
of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. This appliance is not intended for commercial use.

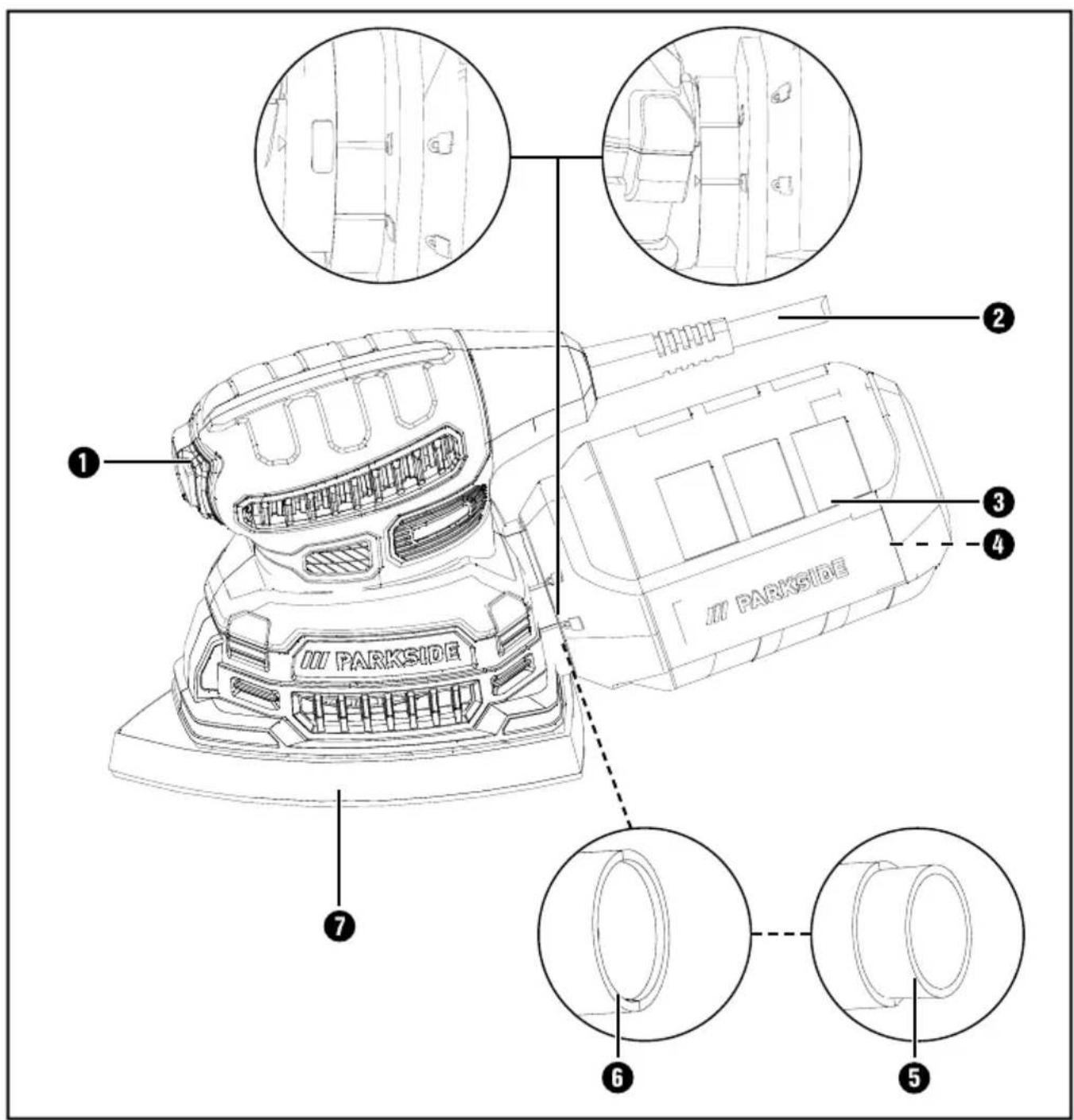

Features
① ON/OFF switch
② Power cords
③ Dust box
4 Dust chamber
⑤ Reducer for external extraction appliances
⑥ Adaptor connection
⑦ Sanding plate
Package contents
1 multi-sander
3 sanding sheet sets (80/120/180 grain)
1 dust box
1 reducer for external extraction appliances
1 set of operating instructions
Technical specifications
Rated power
consumption 160 W
Nominal voltage 230 V \~, 50 Hz
Rated idle speed n 0 13,000 rpm
Rated oscillation
speed 26,000 rpm
Protection class II/ □ (double insulation)
Noise and vibration data
Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically:
Sound pressure level L _PA = 91 dB
Sound power level L _WA = 99 dB
Uncertainty K =
Wear ear muffs!
Rated acceleration, typically:
Hand/arm vibration a_h = 5.835 m/s^2
Uncertainty K ^2 = 1.
NOTE
The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.
WARNING!
▶ Depending on the manner in which the power tool is being used, and in particular the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
WARNING!
▶ Try to keep the vibration load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
General power tool safety warnings
WARNING!
▶ Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When working outdoors with an electrical power tool always use extension cords that are also suitable for use outdoors. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating a power tool may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not allow yourself to get lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and accessory tools, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Always arrange for the replacement of the plug or the power cord to be carried out by the manufacturer of the tool or its customer service department. This will ensure that the safety of the power tool is maintained.
Appliance-specific safety instructions
- Secure the workpiece. A workpiece that is securely held in place by a clamping device or vice is much safer than one held in your hand.
- Do not rest your hands next to or in front of the appliance and the area being worked as there is a risk of injury if you slip.
In the event of danger, remove the mains plug from the socket immediately.
■ Always route the power cord towards the rear, away from the tool.
■ RISK OF FIRE DUE TO FLYING SPARKS! Sanding metal causes sparks. Ensure that nobody can be put at risk and that no combustible materials are located in the immediate vicinity of where you are working.
■ Hold the power tool by the insulated gripping surfaces, as the grinding surface could hit its own cable. Damage to a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock.
WARNING! TOXIC VAPOURS!
▶ Working with the tool can produce harmful/toxic dusts that represent a health hazard for the person operating the appliance and for any other people in the area.
⚠ WARNING! RISKS DUE TO DUST!
- When working for extended periods of time on wood and, in particular, materials that produce dust that is hazardous to health, connect the tool to an appropriate external dust extraction tool. Wear safety goggles and a protective dust mask!
■ Ensure sufficient ventilation when working on plastics, paints, lacquers, etc.
- Do not soak the materials or the area to be processed with liquids containing solvents.
■ Never work on moistened materials or damp surfaces.
- Avoid sanding lead paint or other harmful materials.
■ Do not process materials containing asbestos. Asbestos is a known carcinogen.
- Avoid contact with the sanding sheet while the appliance is running.
■ Do not use the appliance without a sanding sheet fitted.
■ Never use the appliance for purposes other than those for which it was designed, and only use original parts/accessories. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.
■ Always allow the appliance to come to a complete standstill before putting it down.
■ The appliance must always be kept clean, dry and free from oil or grease.
Before use
Selecting a sanding sheet
Removal and surface
The material removal rate and surface quality are determined by the grain strength of the sanding sheet.
◆ Please note that you need to use appropriate sanding sheets with different grains for working different materials.
Fitting the sanding sheet
WARNING!
▶ Always remove the plug from the mains power socket before carrying out any work on the tool.
NOTE
Before fitting a new sanding sheet, remove any dust and dirt from the sanding plate ⑦.

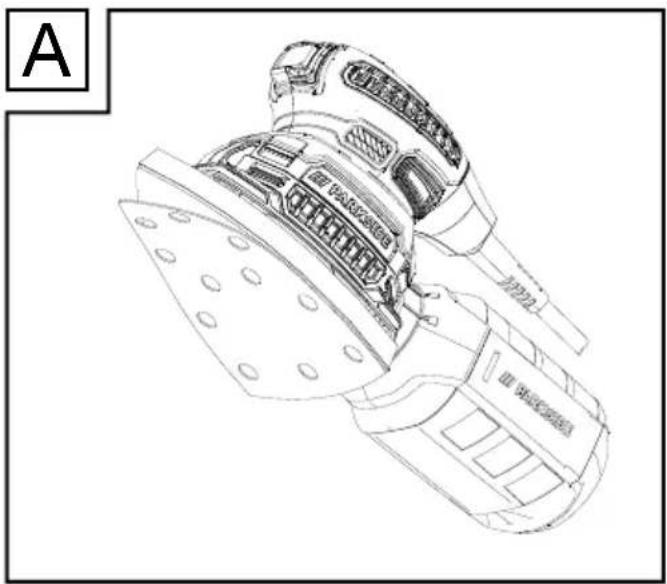

Attaching sanding sheets using Velcro
You can attach the sanding sheet to the sanding plate ⑦ using Velcro (see fig. A on the fold-out page).
- Ensure that the extraction holes on the sanding sheet match up with those on the sanding plate.
Removing sanding sheets fitted using Velcro
- Simply pull the sanding sheet off the sanding plate ⑦.
Dust extraction
WARNING! RISK OF FIRE!
There is a risk of fire when working with power tools that are fitted with a dust collection box or can be connected to a vacuum cleaner via the vacuum cleaner adapter! In unfavourable conditions, e.g. when sparks are flying while sanding metal or metal residues in wood, wood dust in the dust sack (or in the vacuum cleaner dust bag) can spontaneously ignite. This is a particular risk if the wood dust is mixed with paint residues or other chemicals and the workpiece has become hot after being worked for a long time. Therefore, do not allow the workpiece to overheat and always empty the dust box or the dust bag in the vacuum cleaner before taking a break from work.
Wear a dust mask!
NOTE
▶Perforated sanding sheets are required for dust extraction.
Dust box
Connection
◆ Slide the dust box onto the appliance. In doing so, match the ▶ symbol on the appliance with the symbol on the dust box ③. Turn the dust box towards the symbol to lock it. (See the detailed illustration on the fold-out page)
Removal
Turn the dust box towards the symbol. Then pull the dust box off the appliance. (See the detailed illustration on the fold-out page).
NOTE
▶To ensure optimum dust extraction, empty the dust box ③ regularly.
To do this, remove the dust box from the appliance as described above. Clean the dust box ③ thoroughly by knocking out the dust.
Reducer
Connecting
♦ Push the reducer ⑤ into the adapter connection ⑥.
♦ Push the hose of a suitable vacuum cleaning appliance (e.g. a workshop vacuum cleaner) onto the reducer ⑤.
Removal
◆ Pull the hose of the vacuum cleaner off the reducer ⑤.
♦ Pull off the reducer ⑤.
Operation
CAUTION!
▶ Ensure that the appliance is switched off before connecting it to the mains.
NOTE
▶Always switch the multi-sander on before applying it to the material, then move it over the workpiece.
Switching on and off
Switching on the appliance
◆ Move the ON/OFF switch ① to the "I" position.
Switching off the appliance
◆ Move the ON/OFF switch ① to the "0" position.
Working procedures
■ Switch the appliance on before applying it to the workpiece.
■ Apply minimal pressure when working.
■ Work at a constant speed.
■ Change the sanding sheets regularly.
■ Never use the same sanding sheet for sanding different materials (e.g. wood followed by metal). Optimum sanding results can only be achieved by using clean sanding sheets.
■ Clean the sanding sheet every once in a while using a vacuum cleaner.
■ Sand hard-to-reach places with the front or side edge of the sanding sheet on the sanding plate.
■ Guide the sander over the workpiece in parallel and use overlapping sanding motions.
■ After completing the task, lift the appliance from the workpiece and then switch it off.
Maintenance and cleaning
WARNING!
▶ Always remove the plug from the mains power socket before carrying out any work on the tool.
The appliance is maintenance-free.
■ Always clean the appliance directly after completion of work.
■ Use a dry cloth to clean the housing.
■ Remove any sanding dust stuck to the appliance with a brush.
■ Never use sharp objects, petrol, solvents or cleaning agents which can damage plastic. Do not allow any liquids to get into the interior of the appliance.
■ Always keep the ventilation openings free of obstructions.
Disposal
Applies only to France
The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.
Do not dispose of power tools in your normal domestic waste!
The adjacent symbol of a crossed-out dustbin means
that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.
The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.
If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:
1–7: plastics, 20–22: paper and cardboard, 80–98: composites.
Applies only to Spain:
The packaging contains paper and/or cardboard components.
The packaging contains plastic and/or metal components.
This appliance has a 3-year warranty valid from the date of purchase. If included with the product on delivery, the battery packs of the X12V and X20V Team series also come with a 3-year warranty from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not cover product parts that are subject to normal wear and tear and can therefore be considered wearing parts, such as saw blades, replacement blades, abrasive papers, etc. or for damage to fragile parts, such as switches or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.
The warranty does not apply to
■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
■ Please have the till receipt and the item number (IAN) 490924_2404 available as proof of purchase.
- You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional faults or other defects occur, please first contact the service department listed below by telephone or use our contact form, which you can find on parkside-diy.com in the Service category.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can view and download these instructions along with many other manuals at parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and use the search box to search for the operating instructions. Enter the article number (IAN) 490924_2404 to find the operating instructions for your article.
WARNING!
▶ Have your tools repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the tool is maintained.
▶ Always ensure that the power plug and power cord are replaced only by the manufacturer of the appliance or the company's customer service. This will ensure that the safety of the tool is maintained.
Service
GB Service Great Britain
Tel.: 0800 051 897 0
Contact form on parkside-diy.com
IE Service Ireland
Tel.: 1800 851251
Contact form on parkside-diy.com
IAN 490924_2404
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Original declaration of conformity
We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive (2006/42/EC)
EMC (Electromagnetic Compatibility) (2014/30/EU)
RoHS Directive (2011/65/EU)*
* The manufacturer bears the full responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.
Applied harmonised standards
EN 62841-1:2015/A11:2022
EN 62841-2-4:2014
EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3:2013/A2:2021
EN IEC 63000:2018
Type/appliance designation: Multi-sander PMS 160 B2
Year of manufacture: 08–2024
Serial number: IAN 490924_2404
Bochum, 22/06/2024
Semi Uguzlu
- Quality Manager -
We reserve the right to make technical changes in the context of further product development.
Inhaltsverzeichnis
Einleitung 14
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Directive relative aux machines (2006/42/CE)
WAARSCHUWING! GIFTIGE DAMPEN!
WAARSCHUWING! RISICO DOOR STOF!
WAARSCHUWING! BRANDGEAR!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NĚMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
Manguito reductor 96
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALEMANIA
www.kompernass.com
Vurderet acceleration, normalt
Hånd-/armvibration a_h=5,835 m/s^2
Usikkerhed K 2
BEMÆRK
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
TYSKLAND
www.kompernass.com
ADVARSEL!
- Kvalitetschef -
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANIA
www.kompernass.com
Semi Uguzlu
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
Németország
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informací Stan informacji · Stav informácií · Estado de las informaciones · Tilstand af information · Versione delle informazioni · Információk állása: 08/2024 · Ident.-No.: PMS160B2-062024-1
