Product Type	USB-C Docking Station (Network Adapter)
Brand	i-TEC
Model	C31METAL25LAN
Dimensions (L x W x H)	113 x 113 x 40 mm
Power Delivery (PD)	100 W
Video Ports	2x DisplayPort (DP 1.2/1.4 with DSC)
Maximum Resolution	Up to 5K (5120x2880) @ 60 Hz (1 monitor, DP 1.4 DSC)
USB Ports	1x USB-C 3.1 (data), 1x USB-C 3.1 + PD, 3x USB 3.0 (BC 1.2), 2x USB 2.0
Ethernet Port	1x GLAN RJ-45 (Realtek RTL8153, 10/100/1000 Mbps)
Audio	1x 3.5 mm Combo Audio Jack (input/output)
Built-in Cable	USB-C, 100 cm
ON/OFF Switch	Yes (hold for 2 seconds)
Kensington Lock	Compatible
VESA Mount	Compatible
Supported Operating Systems	Windows 10, macOS*, Android, Chrome OS, Linux
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture, extreme temperatures, or shocks.
Spare Parts and Repairability	No user-serviceable parts. Contact after-sales service for any repairs.
General Information	Manufactured for i-TEC. Manual available at www.i-tec.cz/fr/.

Frequently Asked Questions - C31METAL25LAN i-TEC

Which operating systems are compatible with the C31METAL25LAN?

The adapter is compatible with Windows 10, macOS, Android, Chrome OS and Linux (latest updates). Note that macOS does not support Multi Stream Transport (MST) mode, so when connecting multiple monitors, the same image will be displayed on all.

What is the maximum supported resolution?

With a single monitor and DisplayPort 1.4 DSC, resolution can reach 5K (5120x2880) at 60 Hz. Without DSC, up to 4K at 60 Hz (DP 1.4) or 4K at 30 Hz (DP 1.2). With two monitors, up to 2× 4K at 60 Hz (DP 1.4 DSC) or 2× 1440p at 60 Hz (DP 1.4 without DSC).

How to use the Power Delivery (PD) charging function?

The USB-C PD port allows charging the host device (laptop) and connected peripherals, with power up to 100 W. Connect the original power adapter to this port to enable charging. If you do not need PD, this port can be used for data transfer.

Can I connect an HDMI monitor to the DisplayPort ports?

Yes, you can use a DisplayPort to HDMI adapter or cable (not included) to connect an HDMI monitor. The resolution will depend on the monitor's and cable's capabilities.

How to configure audio on the docking station?

On Windows, go to System Settings → Sound → Output and select USB Audio Device. On macOS, use Applications → Utilities → Audio MIDI Setup to create a multi-output device and add the desired outputs (headphones, speakers, display).

What to do if the docking station is not recognized?

Disconnect the USB-C cable from the station and the computer, wait about 10 seconds, then reconnect. Also check that drivers are up to date and the operating system is updated.

Is the docking station compatible with a MacBook?

Yes, but please note that macOS does not support MST mode for multiple displays. So if you connect two monitors, they will display the same image (mirror mode). For a single monitor, resolution can reach 4K/60 Hz depending on the Mac's capabilities.

How to activate the ON/OFF switch?

Press and hold the ON/OFF button for at least 2 seconds to turn the docking station on or off. This saves energy and resets the device if needed.

Can I use the station with a Kensington lock?

Yes, the housing is compatible with a standard Kensington lock (security slot) to secure the station to a desk or mount.

Where can I download the manual and drivers?

The full manual and drivers are available on the official website: www.i-tec.cz/fr/ under the 'Manuals, Drivers' tab. For any questions, contact support at [e-mail].

USER MANUAL C31METAL25LAN i-TEC

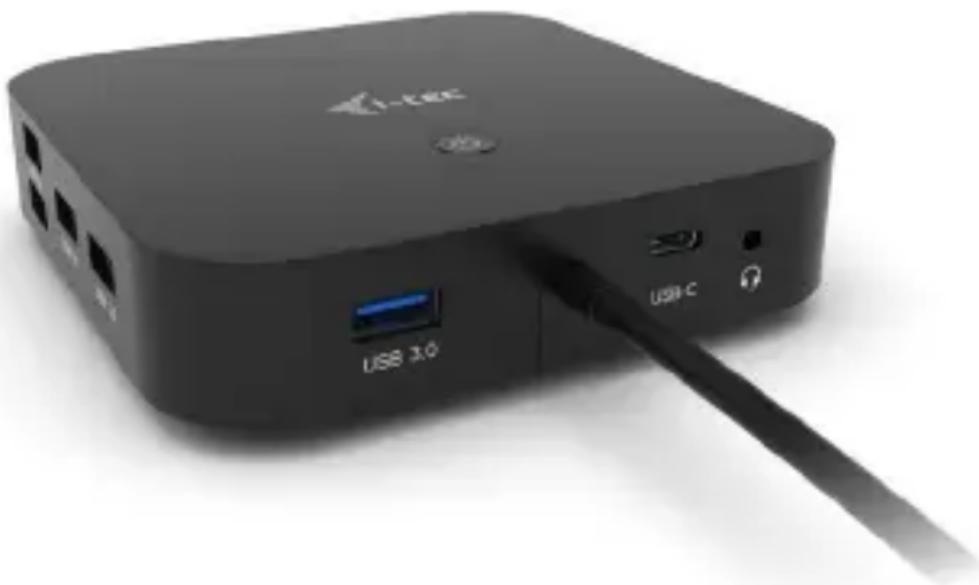

USB-C Dual Display Docking Station with Power Delivery

2x 4K DisplayPort / 1x Gigabit LAN / 1x USB-C Data / 3x USB-A 3.0 / 2x USB-A 2.0 / 1x Audio+Mic / 1x USB-C Power Delivery+Data

Black I-PEC wireless device with USB port and cable, no visible text or symbols on body

User guide • Gebrauchsanweisung • Mode d'emploi Manual de instrucciones • Manuale • Uživatelská příručka Instrukcje obsługi • Užívatel'ská príručka • Vartotojo vadovas Handleiding

EN

Please read the entire instruction manual carefully. Detailed manual is available on our website www.i-tec.cz/en/ in the tab „Manuals, drivers“. In case of any issues, please contact our technical support at: [e-mail]

DE

USB-C Dual Display Docking Station with Power Delivery

ENGLISH....06-17

DEUTSCH....18-31

FRANÇAIS....32-44

ESPAÑOL....45–56

ITALIANO....57-68

ČESKY....69–80

POLSKI....81-92

SLOVENSKY....93-104

LIETUVOS....105-116

NEDERLANDS....117-128

WEEE....129-130

Declaration of Conformity....131–132

FCC....133

www.i-tec.cz/en

GLOSSARY

- Interface / port / connector / input / slot – a place where two devices physically interconnect.

- Controller – a semi-conductor component (so-called chipset) in a laptop, tablet, PC etc. ensuring the operation of a port.

- USB-C – is a new symmetrical connector which allows faster charging, energizing, double-function (a host and a guest), support for alternative modes (DisplayPort, MHL and Thunderbolt).

- Alternate modes (Alt modes) – special modes for the USB-C connector that can be supported. Currently the most popular modes are DisplayPort / DockPort, MHL, Thunderbolt. A device with this capability on the port and cable allows video transmission while also retaining other port functionalities (for data transfer and charging via Power Delivery).

- DisplayPort / DockPort Alt mode – this mode allows video transmission via the USB-C port and cable.

- USB-C Power Delivery (USB-C PD) – optional property of the USB-C connector. A connector with this support can charge and be charged at the same time and it supports loads from 10W to 100W (depending on profiles 1-5).

- USB 3.1 / 3.0 / 2.0 – USB interface / port standard for connecting various USB devices. Using the type A USB interface allows the connection of various USB devices to a docking station or adapter. The type B USB port is used for connecting a docking station or adapter to a laptop, tablet or PC.

- Display Port – standard for digital graphics interface / port used for connecting monitors and other display devices.

- LAN (Local Area Network) – the local computer network is now the most popular Ethernet that achieves a theoretical transfer rate of up to 1 Gbit/s at the docking station - GLAN / RJ-45.

- Audio – designation for sound input (microphone) or output devices (headphones / speakers).

SPECIFICATION

• 1x integrated USB-C cable for connecting to a device (100 cm)
- Docking station technology: USB-C (MST)
• Power Delivery: 100 W
• Video ports: 2x DisplayPort
- Resolution:

DP 1.2 HBR2:

1 monitor – up to 4K/30 Hz

2 monitors – up to 2x 1080p/60 Hz *

DP 1.4 HBR3:

1 monitor – up to 4K/60 Hz 2 monitors – up to 2x 1440p/60 Hz *

DP 1.4 HBR3 DSC:

1 monitor – up to 5K/60 Hz 2 monitors – up to 2x 4K/60 Hz *

• 1x USB-C Gen. 2 port (data only)
• 1x USB-C Gen. 2 + PD port (data + power delivery)
• 3x USB 3.0 port with support for quick charging (BC 1.2)
- 2x USB 2.0 port
• 1x Ethernet GLAN RJ-45 port (Realtek RTL8153)
• 1x 3.5 mm Combo Audio port
- LED indication
• ON/OFF switch for the docking station
• Kensington lock support
• Support for VESA mounting
- OS: Windows 10, macOS *, Android, Chrome OS and Linux with the latest updates
• Product dimensions: 113 x 113 x 40 mm

* macOS does not support Multi Stream Transport (MST) technology. Connecting two monitors to the station on macOS will result in both monitors showing the same image.

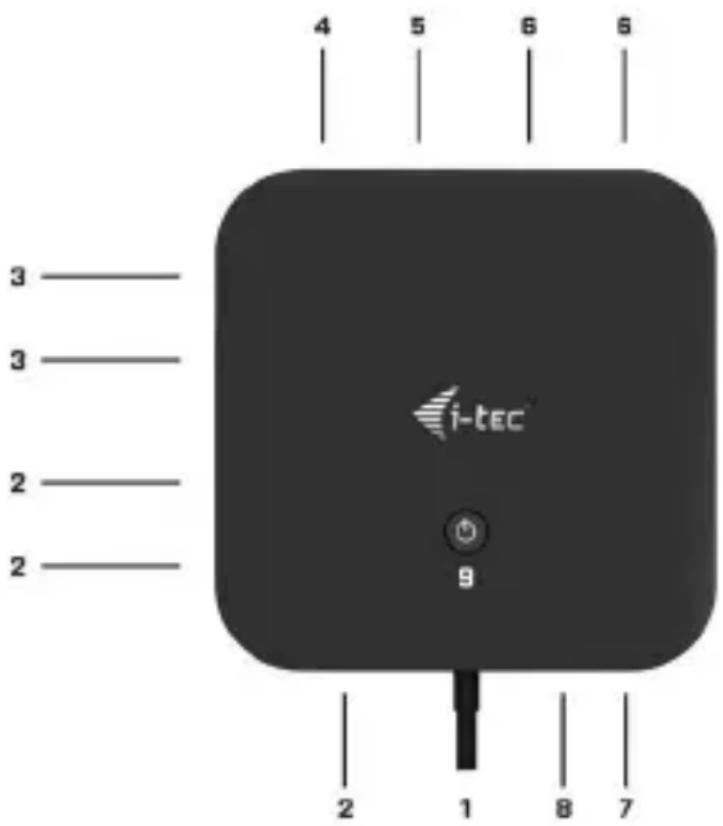

DESCRIPTION

1. Integrated USB-C cable for connection to a device (100 cm)
2. 3x USB 3.0 port (5Gb/s)
3. 2x USB 2.0 port
4. USB-C Gen. 2 + PD port (data + power delivery)
5. Ethernet GLAN RJ-45 port - supports 10/100/1000 Mb/s
6. 2x DisplayPort
7. 3.5 mm Combo Audio Jack
8. USB-C Gen. 2 port (data only)
9. ON/OFF switch for the docking station – button must be held down for two seconds

SYSTEM REQUIREMENTS

Hardware Requirements: Device with a free USB-C or Thunderbolt port

Requirements for Power Delivery feature: device with a free USB-C or Thunderbolt 3 port with Power Delivery support.

Operating system: Windows 10, macOS and Linux with the latest updates

* macOS does not support Multi Stream Transport (MST) technology. Connecting two monitors to the station on macOS will result in both monitors showing the same image.

DRIVER INSTALLATION

Windows 10 32/64bit: After connection, the drivers for the docking station are installed automatically on the system. Before installation make sure that your system has installed the latest drivers for your device and updated BIOS.

macOS X: Installation of the drivers in macOS X is automatic. Before installation make sure that your Mac has installed the latest OS for your device.

CONNECTING A DISPLAYPORT MONITOR

The docking station is fitted with 2x DisplayPorts for connecting external monitors to a DisplayPort interface. Modern plasma, or LCD monitors and TVs, will serve as the perfect display device of choice. The graphics chip at the heart of the docking station supports up to 5x K 5120x2880 resolution @60Hz. Connect the monitor to the docking station using a high-quality HDMI cable. The screen of your laptop, Mac, tablet or PC may flash while installing the external monitor - this is normal.

Black network device with attached computer and laptop, no visible text or symbols

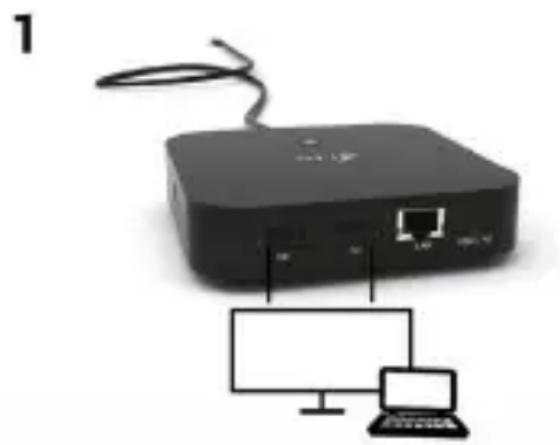

• 1 monitor connected via 2 DisplayPort cables - resolution up to 5K 5120x2880/60Hz.

5K resolution is only supported if your laptop's USB-C/Thunderbolt™ 3 connector supports DisplayPort 1.4 DSC.

Black wireless router connected to a laptop via network cable (no text or symbols visible)

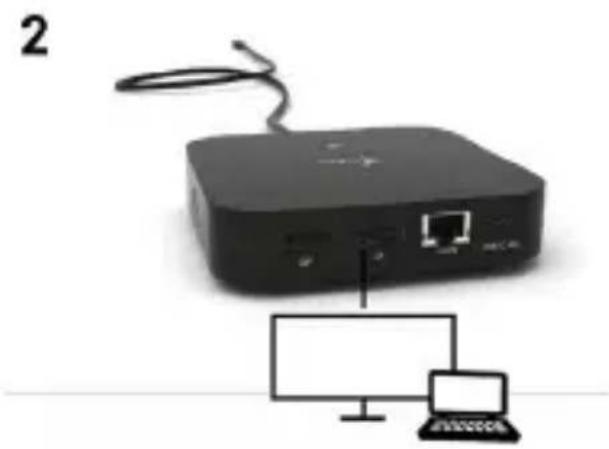

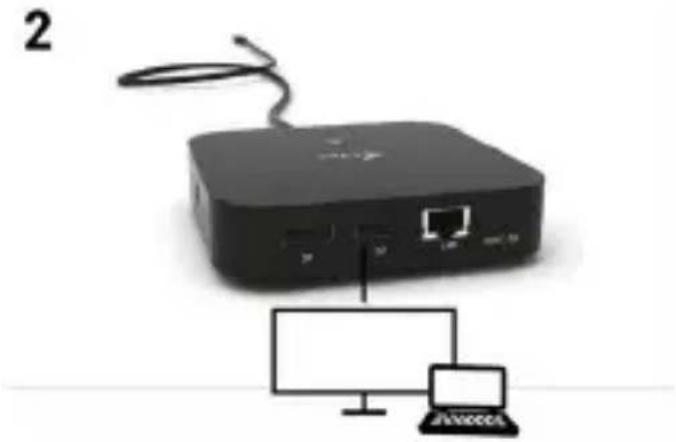

- 1 monitor connected via DisplayPort/HDMI cable - resolution up to 4K 3840x2160/60Hz.

4K/60Hz resolution is only supported if your laptop's USB-C/ Thunderbolt™ 3 connector supports DisplayPort 1.4 DSC or DisplayPort 1.4 without DSC.

If the USB-C/Thunderbolt™ 3 only supports DisplayPort 1.2, the maximum resolution is 4K 3840x2160/30Hz.

Black network device with attached computer and network ports (no visible text or symbols)

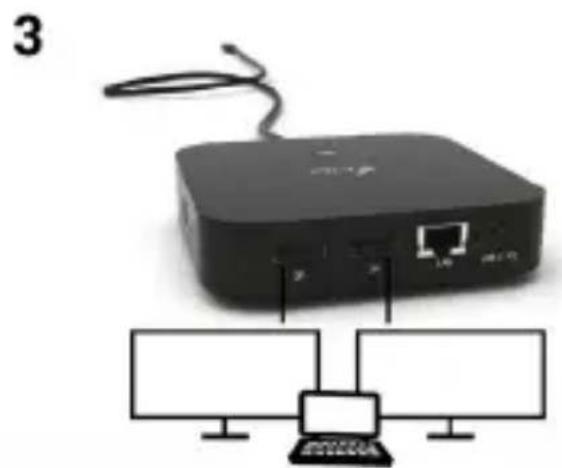

- 2 monitors connected via DisplayPort/HDMI cables - resolution up to 4K 3840x2160/60Hz.

Only if your laptop's USB-C/Thunderbolt™ 3 connector supports DisplayPort 1.4 DSC.

i-tec USB-C Dual DP Display Dock with PD 100 W

If the USB-C/Thunderbolt™ 3 only supports DisplayPort 1.4 without DSC, the maximum resolution is 2x 2560x1440/60Hz.

If the USB-C/Thunderbolt™ 3 only supports DisplayPort 1.2, the maximum resolution is 2x 1920x1080/60Hz.

The resolution, the frame rate and the maximum number of connected external monitors depends on the capabilities of the host PC/laptop.

CONNECTING TO THE LAN

You can use the GLAN RJ-45 port for connecting the Ethernet to a router / switch and to the internet, it supports speeds of 10 / 100 / 1000 Mbps.

CONNECTING USB DEVICES

The station's USB-A 3.0 and USB-C 3.1 Gen.2 ports can be used to connect your keyboard, mouse, external hard drive, printer and other peripherals, or to connect a hub, giving you additional USB ports to use.

CHARGING

The docking station supports charging of USB mobile devices, such as smart phones, e-book readers, multimedia players, navigation devices, and tablets. Simply connect the device that you want to charge using the original cable to the USB port of the docking station. If the device is not charged, connect the original USB-C power adapter to the USB-C Power Delivery port of the docking station.

CHARGING THROUGH POWER DELIVERY

The docking station offers USB-C Power Delivery / Data port, designed for energizing of the connected “parent” device using the original power adapter and for charging of devices connected through the USB ports. If you no need charging your devices through Power Delivery, you can use the port for data transfer.

AUDIO

Audio output devices, for listening through graphic output, need to be set / verified here: System Preferences-Sound-Output – select USB Audio Device.

Setting the audio output device to both the earphones and the monitor simultaneously can be done in Open-Applications-Utilities-Audio settings MIDI.app – click on „+“ on the left at the bottom – Create device with multiple outputs and select the desired outputs from the offered options on the Device with multiple outputs.

The majority of problems with the docking station and the connected peripheral devices can be solved by disconnecting the USB-C cable of the docking station from the USB-C port of the PC / Mac / smartphone and reconnecting after approximately 10 s.

USING IN WINDOWS OS

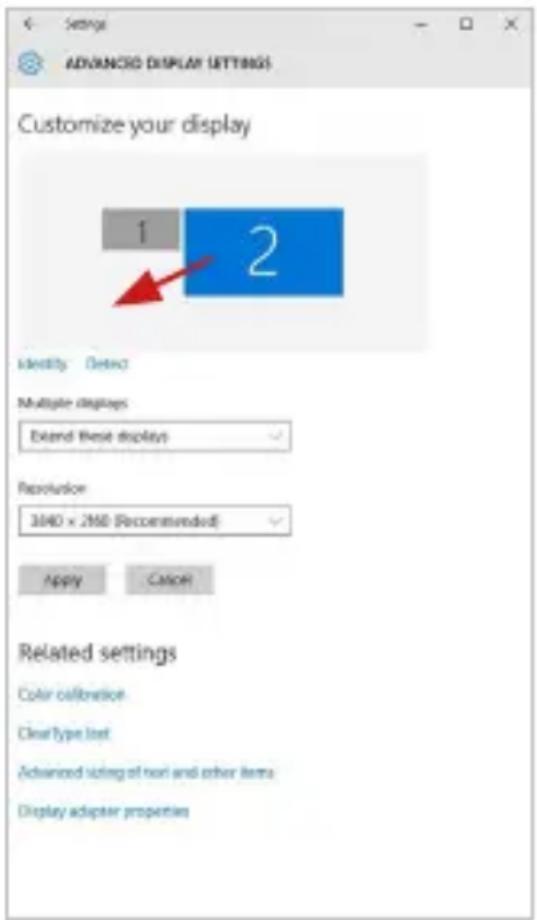

Advanced configuration for the graphics – after connecting the monitor and clicking on the settings for "Image Resolution" in Windows, you can select the monitor you want to use.

By clicking on the second monitor and moving it you can position this monitor as required relative to the original monitor of your laptop / tablet

Now you can set Extend and Mirror mode:

• Mirror mode: on the monitor select the 2 monitors → Mirror this display → OK.
• Extend mode: on the monitor select the 2 monitors → Extend this display → OK.
  ^nd Monitor, select Several
  ^nd Monitor, select Several

i-tec USB-C Dual DP Display Dock with PD 100 W


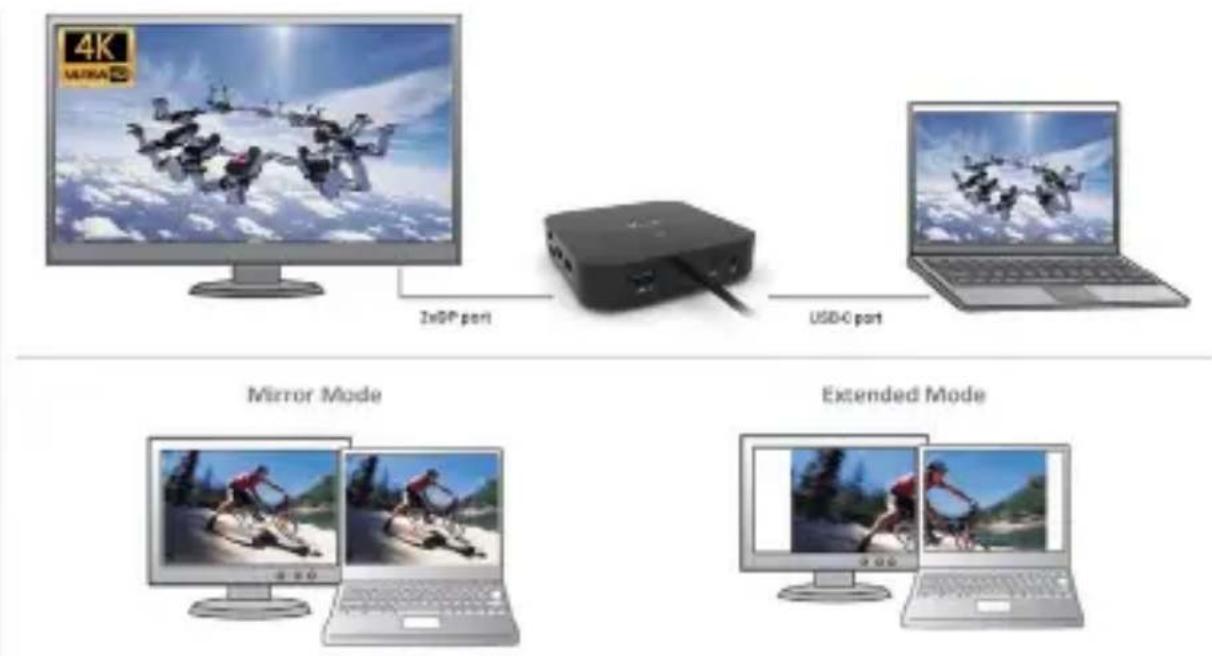

Mirror and Extended mode

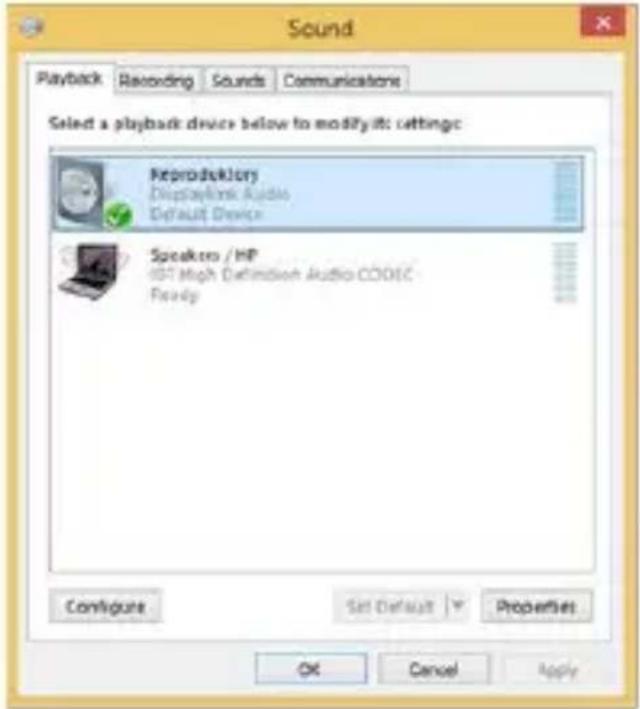

Audio settings – this will allow audio settings in the Control Panels → Audio.

Audio settings

The Standby / Hibernate mode and the Video port – after the activation of the laptop / tablet from the Standby / Hibernate mode the primary (original) monitor is displayed, for this reason we recommend using the monitor that is integrated with the laptop / tablet as the primary monitor, so that you can log on to the system again.

The Mirror mode – the additional monitor takes on the parameters of the original monitor in the system, i.e., if you select the Mirror mode and the original monitor resolution is e.g. 1280x1024 then the screen will be displayed on the additional monitor with a resolution of max. 1280x1024 (even if you set a higher resolution).

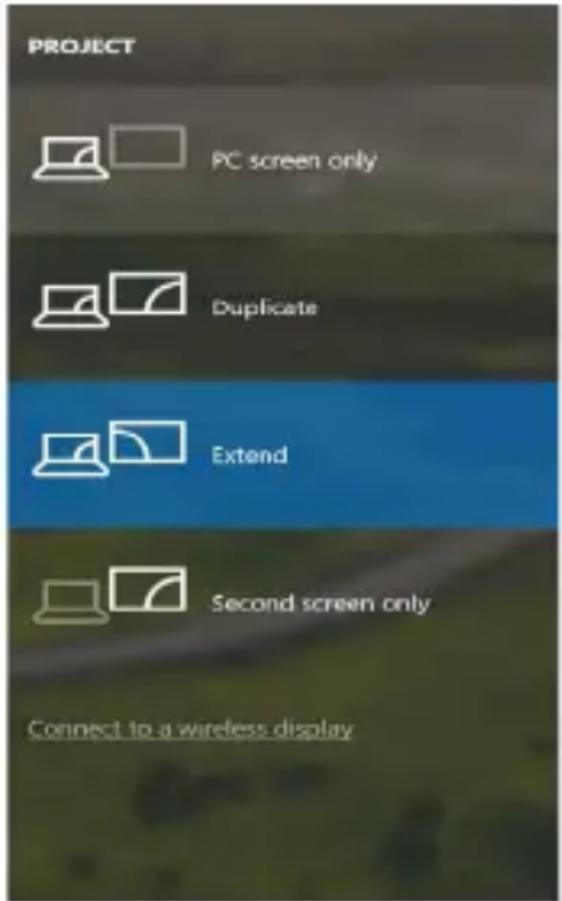

Pressing the keys „Windows“ + P you can also easily control the monitors – for using a monitor in Win 10 you can select: Computer screen only, Mirror, Extend, Second screen only.

Control the monitor in Windows 10

USING IN MACOS X

After connecting the monitor, the screen on your Mac will glimmer, which is a standard condition, after stabilization it is possible to perform standard setting of the monitor here: System Preferences-Displays:

i-tec USB-C Dual DP Display Dock with PD 100 W

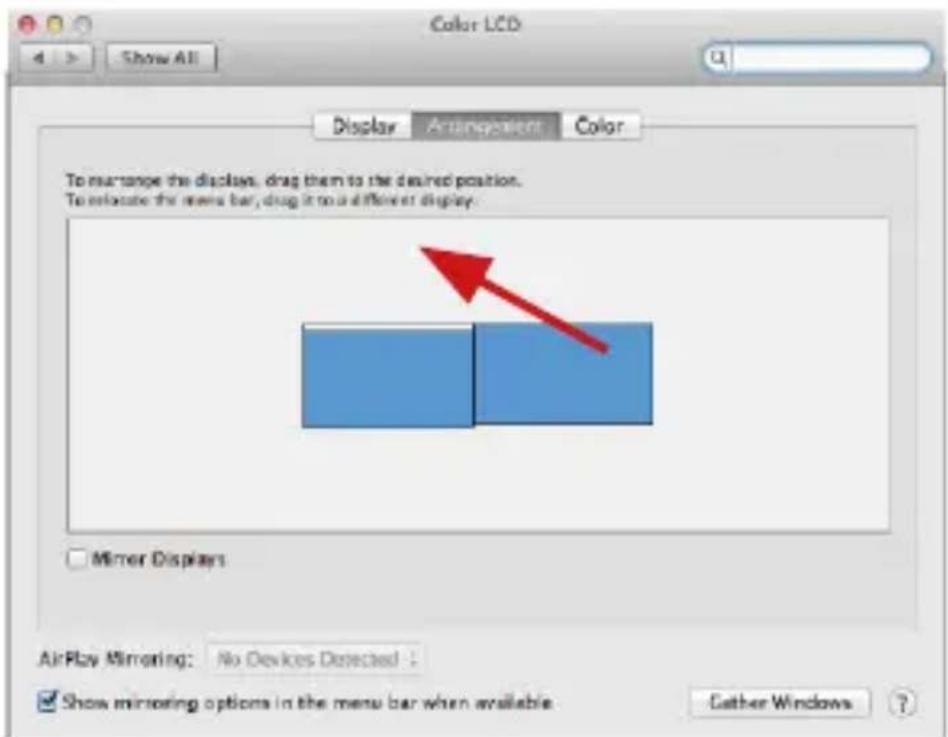

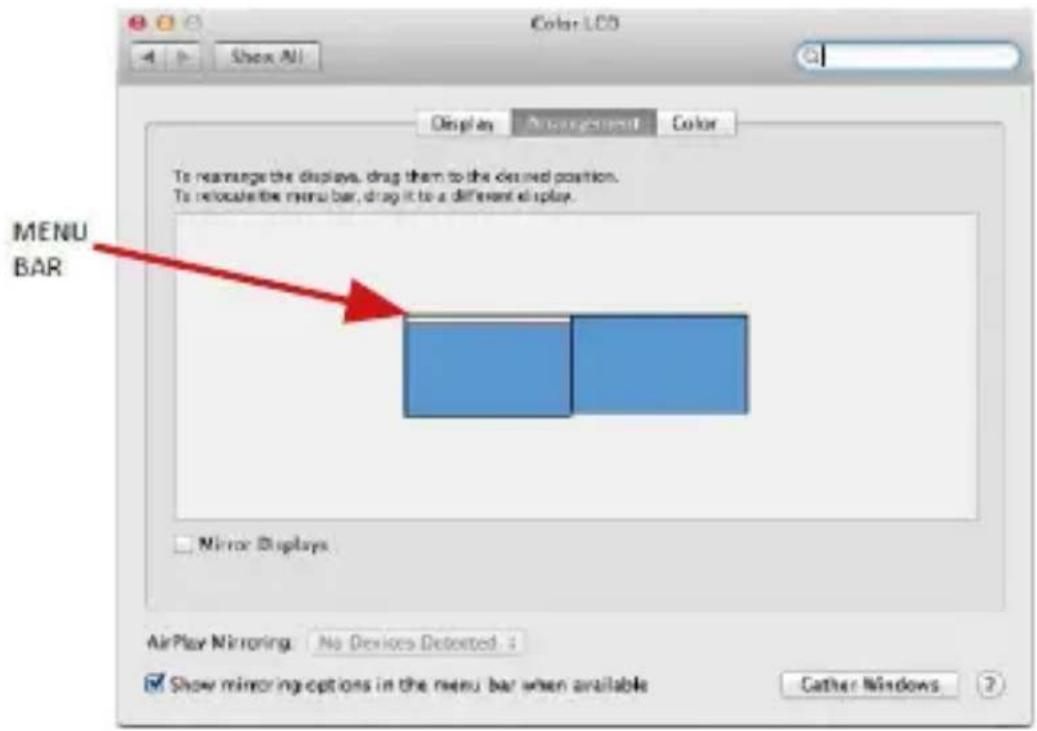

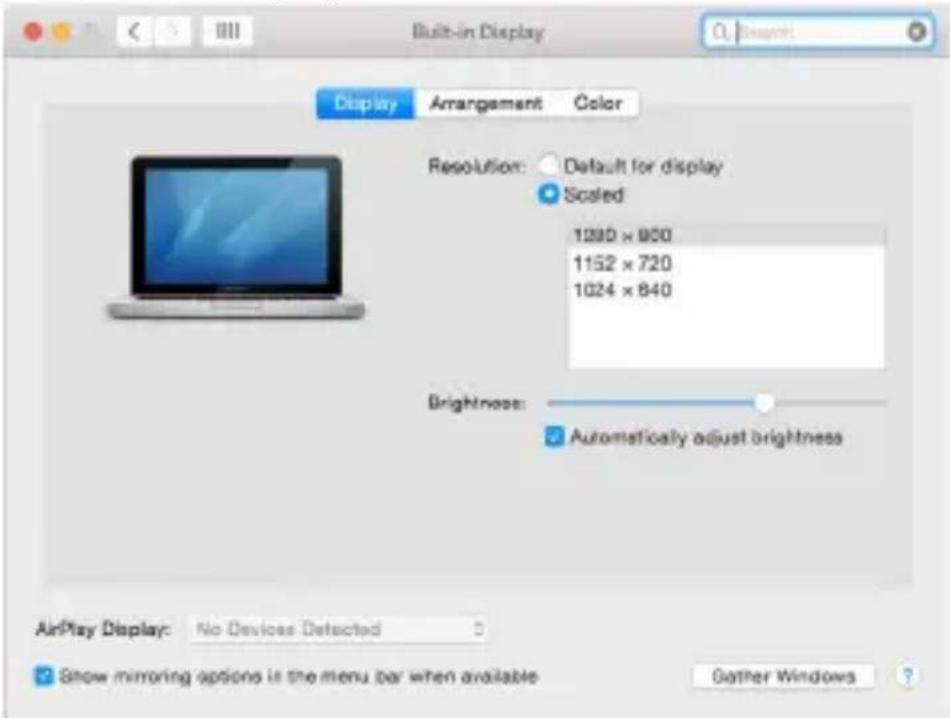

Click on Arrangement and in the default mode (Extended desktop) click on the new monitor and drag it as necessary vis-à-vis the Mac monitor. If you select Mirror displays the mode will change to Mirror (the resolution of the monitors will be automatically adjusted according to their parameters and the highest possible resolution will be set on both monitors). By cancelling the Mirror displays option you will return to the Extended desktop mode.

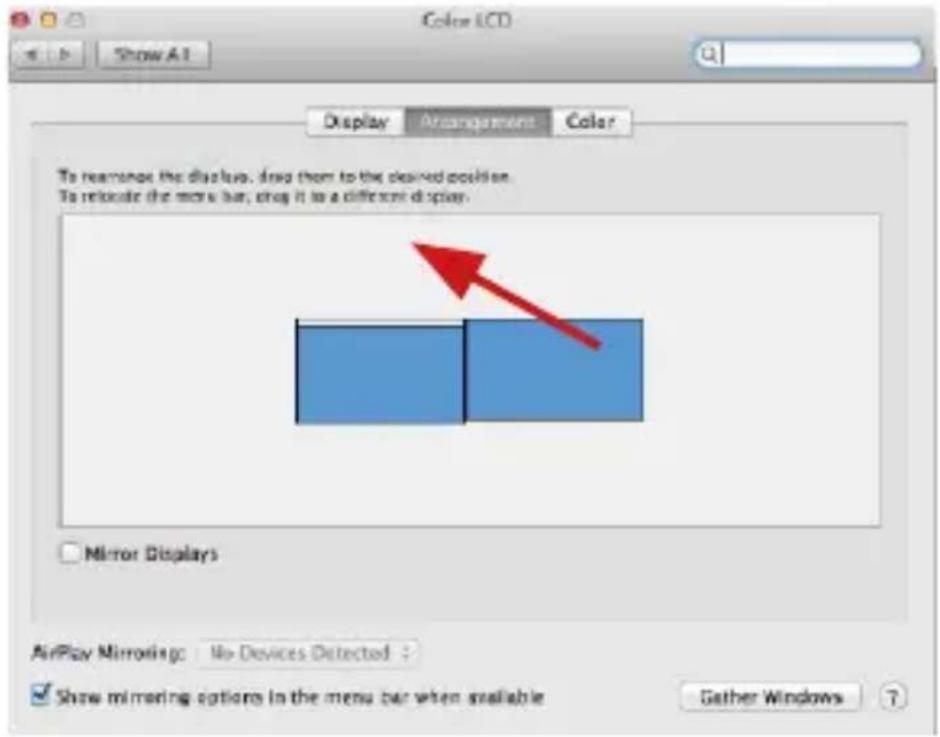

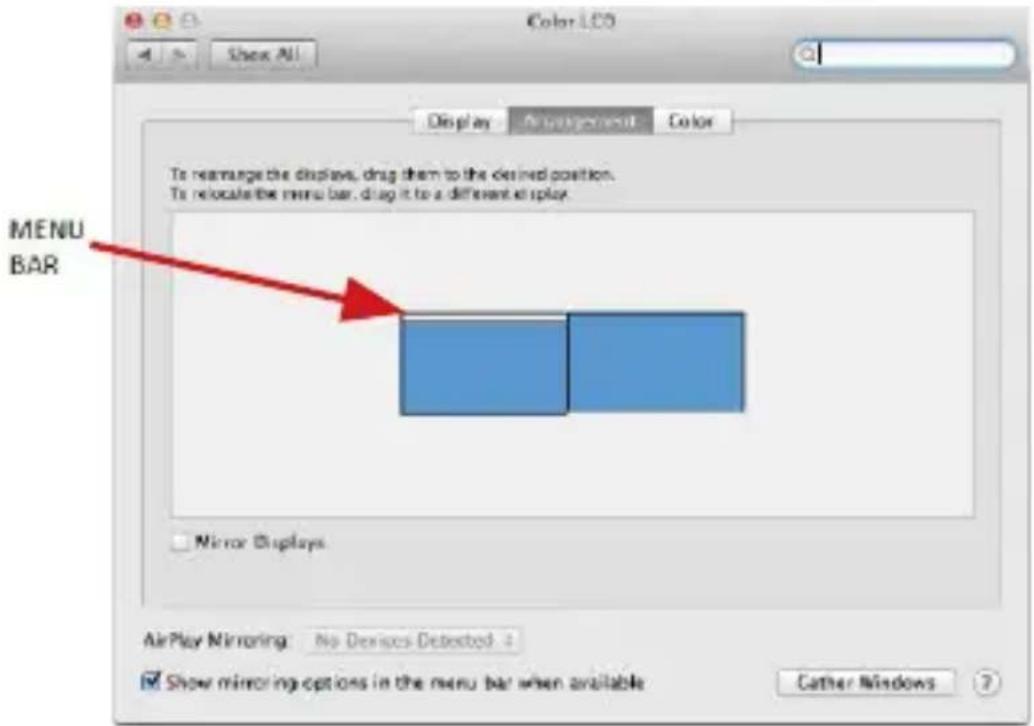

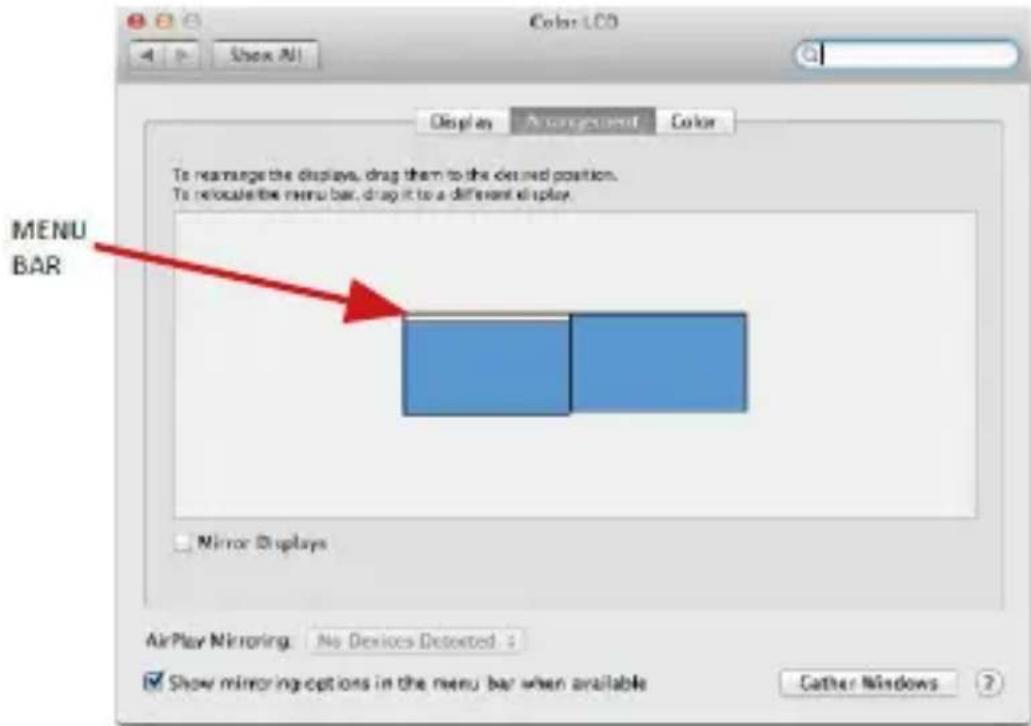

Extended mode: The arrow indicates the possible position of the connected monitor vis-à-vis the Mac monitor.

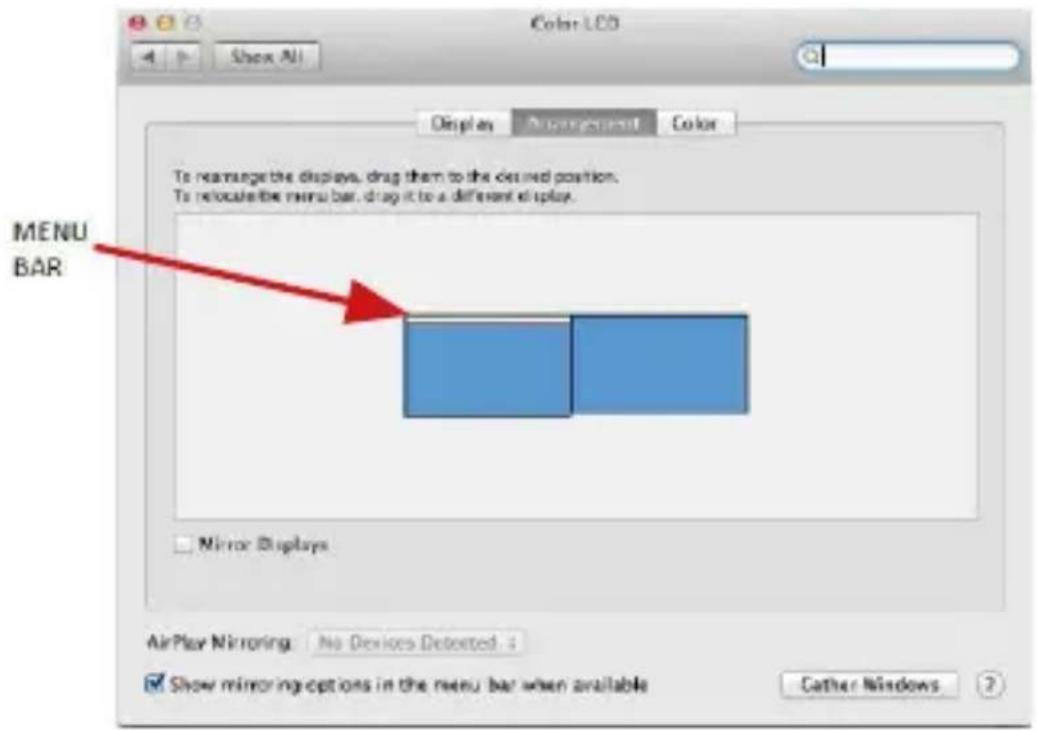

Extended mode: In this mode you can choose the Main monitor by dragging the Menu Bar.

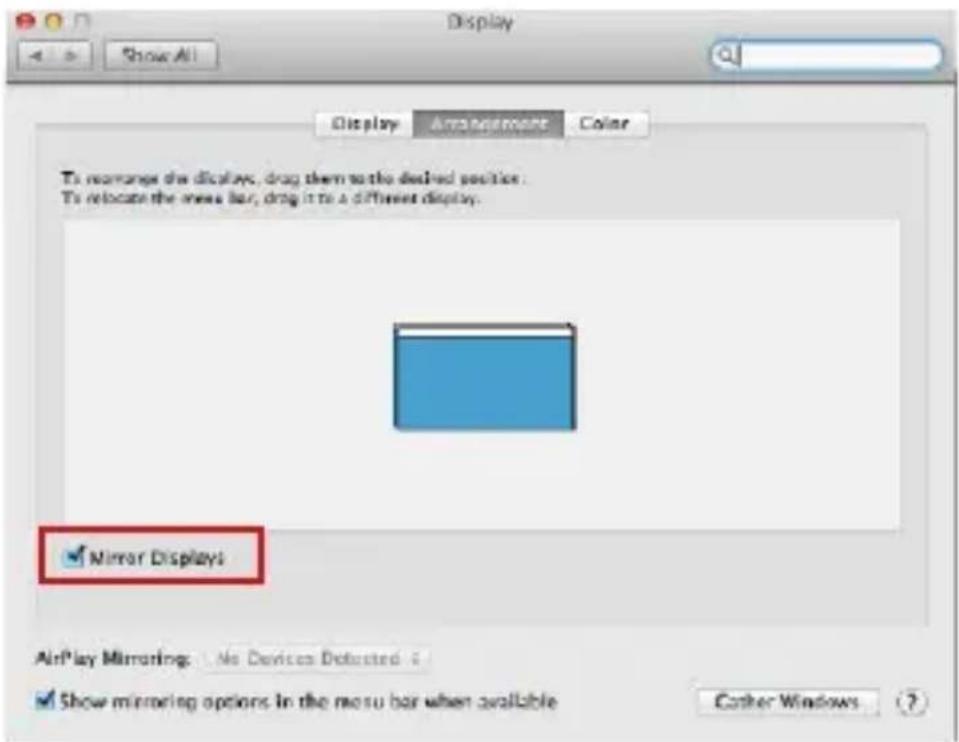

Mirror mode: This mode can only be used if supported by the Mac.

Click on Gather Windows: using this option you can choose the settings of the corresponding monitor – Scaled (offers available resolutions), Rotation (Standard, 90°, 180° and 270°) and Refresh rate (if offered). Below the following setting options are displayed. This may vary, depending on your monitor.

i-tec USB-C Dual DP Display Dock with PD 100 W

Display option 1

Display option 2

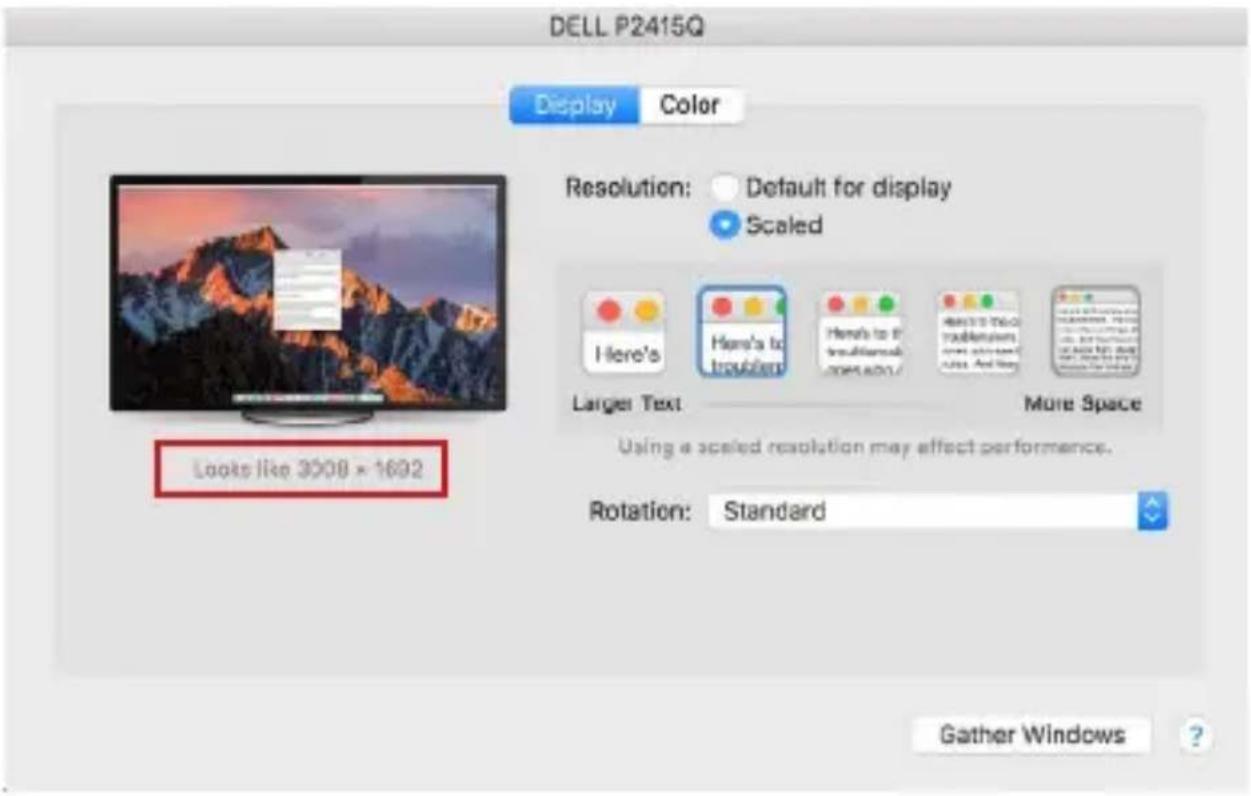

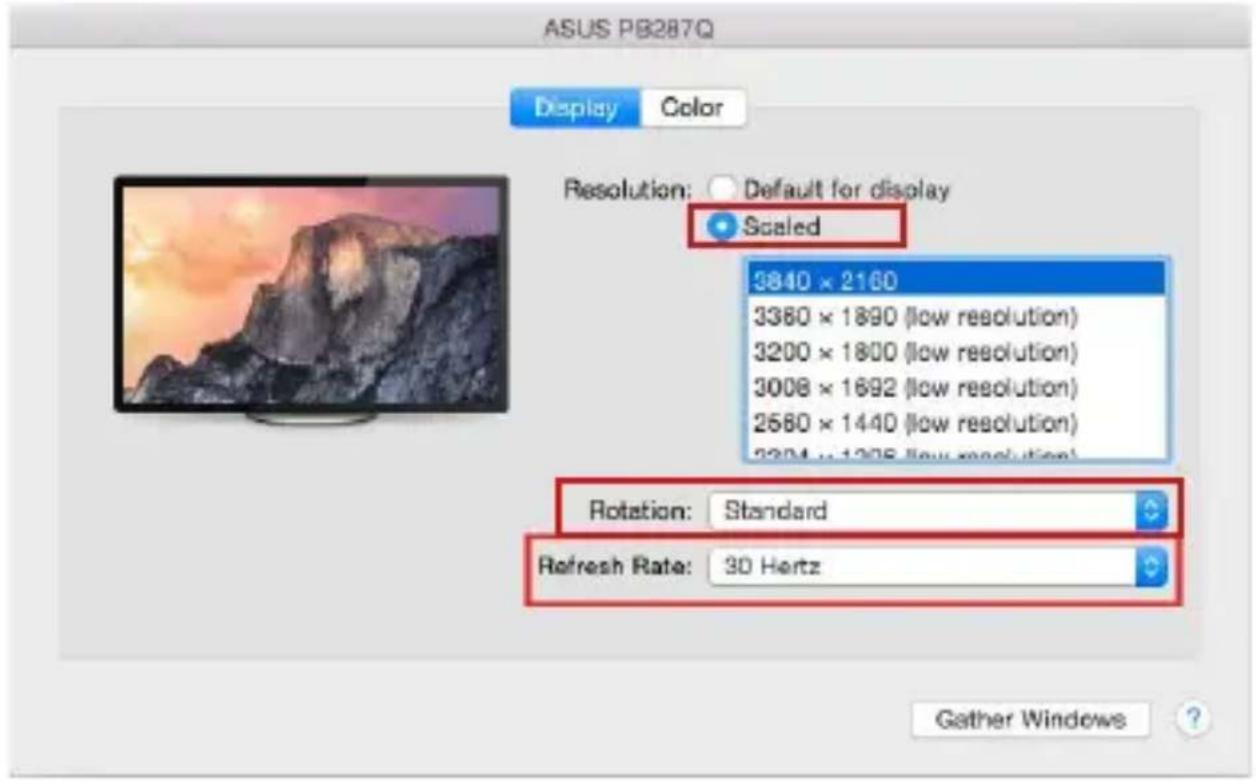

In Scaled mode click on the required icon, the resolution is displayed below (which looks like this, 3008x1692 = 4K@30Hz)

Closed-display mode – It is possible to work on the connected monitor when the Mac monitor is closed, but you will require power supply and mouse and keyboard connection. More information can be found here: https://support.apple.com/en-us/HT201834

When the power supply is ensured from the battery, the use of a HDMI monitor is limited by the Mac. In some situations in case of problems with displaying it is possible to solve it by disconnecting the USB-C cable of the docking station from the USB-C port on the Mac and reconnecting it after approximately 10 s. Please wait for completion of connection of all peripherals. Most problems with renewing the screen on the connected monitor after hibernation of the Mac, after using screensaver, after restarting the Mac, after turning the Mac OFF / ON can be solved by the same way.

The majority of problems with the docking station and the connected peripheral devices can be solved by disconnecting the USB-C cable of the docking station from the USB-C port of the PC / Mac / smartphone and reconnecting after approximately 10 s.

SAFETY INSTRUCTIONS

• Do not expose to extreme temperatures and air humidity.
• Use the device on flat surfaces – you will prevent it from slipping and falling to the ground.
• Save the user manual for a possible use later.

In cooperation with the service department:

• Check functionality after falling to water or to the ground.
• Check functionality when the cover is broken.
• Send the device back if it does not work in accordance with the user manual.

FREQUENTLY ASKED QUESTIONS

Available on our website www.i-tec.cz/en/ on the "FAQ" tab of this product.

BEGRIFFSWÖRTERBUCH

Black wireless router connected to a laptop via network interface (no text or symbols visible)

Illustration of a network device with a cable, ports, and a laptop connected to it (no text or symbols visible)

Black network device with attached laptop and ports, labeled '3' (no text or symbols on device body)
        D["Computer monitor with 4K video"]
        E["Computer monitor with 2x8P video"]
        F["Computer monitor with 3x8P video"]
        G["Computer monitor with 3x8P video"]
    end
    subgraph Extended Mode
        H["Computer monitor with 3x8P video"]
        I["Computer monitor with 3x8P video"]
        J["Computer monitor with 3x8P video"]
        K["Computer monitor with 3x8P video"]

Toneinstellung

i-tec USB-C Dual DP Display Dock with PD 100 W

Abbildung 1

i-tec USB-C Dual DP Display Dock with PD 100 W

https://support.apple.com/de-de/HT201834

i-tec USB-C Dual DP Display Dock with PD 100 W

Black wireless router connected to a computer and a laptop (no visible text or symbols)

i-tec USB-C Dual DP Display Dock with PD 100 W

Black wireless router connected to a laptop via network cable (no text or symbols visible)

Black wireless router connected to two computer monitors (no visible text or symbols)

i-tec USB-C Dual DP Display Dock with PD 100 W

Paramètres audio

i-tec USB-C Dual DP Display Dock with PD 100 W

i-tec USB-C Dual DP Display Dock with PD 100 W

Vue option 1

Vue option 2

i-tec USB-C Dual DP Display Dock with PD 100 W

INSTRUCTIONS DE SÛRETÉ

i-tec USB-C Dual DP Display Dock with PD 100 W

DP 1.4 HBR3:

Black wireless router connected to a computer and a laptop (no visible text or symbols)

Black network device with cable and connected to a laptop (no visible text or symbols)

Black wireless router connected to two computer monitors (no visible text or symbols)

i-tec USB-C Dual DP Display Dock with PD 100 W

ALIMENTACIÓN A TRAVÉS POWER DELIVERY

Ajustes de sonido

i-tec USB-C Dual DP Display Dock with PD 100 W

i-tec USB-C Dual DP Display Dock with PD 100 W

i-tec USB-C Dual DP Display Dock with PD 100 W

i-tec USB-C Dual DP Display Dock with PD 100 W

Black network device connected to a laptop via a network interface (no text or symbols visible)

Black network device with attached laptop and cable, no visible text or symbols

Black wireless router connected to two computer monitors (no visible text or symbols)

Impostazione audio

i-tec USB-C Dual DP Display Dock with PD 100 W

i-tec USB-C Dual DP Display Dock with PD 100 W

i-tec USB-C Dual DP Display Dock with PD 100 W

DP 1.4 HBR3:

1 monitor – až 4K/60Hz 2 monitory – až 2x 1440p/60Hz *

DP 1.4 HBR3 DSC:

Black network device with attached computer and router, connected by cables (no visible text or symbols)

Black network device connected to a laptop via a cable, with no visible text or symbols on the device itself.

Black network device with attached network interface and monitor (no visible text or symbols)

i-tec USB-C Dual DP Display Dock with PD 100 W

Nastavení zvuku

i-tec USB-C Dual DP Display Dock with PD 100 W

i-tec USB-C Dual DP Display Dock with PD 100 W

i-tec USB-C Dual DP Display Dock with PD 100 W

DP 1.4 HBR3 DSC:

1 monitor — do 5K/60 Hz

2 monitory – do 2x 4K/60 Hz *

i-tec USB-C Dual DP Display Dock with PD 100 W

Black network device connected to a computer and a laptop, no visible text or symbols

Black network device connected to a laptop via cable, shown with a monitor and cable (no text or symbols visible)

Black network device with two connected devices, one connected via cable to a router and the other via a laptop (no visible text or symbols)

Ustawienia dźwięku

i-tec USB-C Dual DP Display Dock with PD 100 W

i-tec USB-C Dual DP Display Dock with PD 100 W

Display opcja 1

i-tec USB-C Dual DP Display Dock with PD 100 W

https://support.apple.com/pl-pl/HT201834

i-tec USB-C Dual DP Display Dock with PD 100 W

Black network device connected to a computer monitor and a router (no visible text or symbols)

- 1 monitor pripojený cez 2 DisplayPort káble – rozlíšenie až 5K 5120x2880/60Hz.

Black network device with attached cables and a laptop connected to a monitor (no visible text or symbols)

Black network device with two connected devices, one connected via cable to a router (no visible text or symbols)

- 2 monitory pripojené cez DisplayPort/HDMI káble – rozlíšenie až 4K 3840x2160/60Hz.

i-tec USB-C Dual DP Display Dock with PD 100 W

NABÍJANIE CEZ POWER DELIVERY

Môžete vykonat' nastavenie Rozšírit' (Extend) a Zrkadlit' / Duplikovat' (Mirror):
        D["Computer monitor with '4K' label"]
        E["Computer monitor with 'LED' label"]
    end
    subgraph Extended Mode
        F["Computer monitor with 'LED' label"]
        G["Computer monitor with 'LED' label"]
    end

Režimy Rozšířit' a Zrkadlit'

i-tec USB-C Dual DP Display Dock with PD 100 W

i-tec USB-C Dual DP Display Dock with PD 100 W

Variant zobrazenia 1

Variant zobrazenia 2

i-tec USB-C Dual DP Display Dock with PD 100 W

https://support.apple.com/cs-cz/HT201834

i-tec USB-C Dual DP Display Dock with PD 100 W

DP 1.4 HBR3:

1 monitorius – iki 4K/60 Hz 2 mo nitoriai – iki 2x 1440p/60 Hz *

DP 1.4 HBR3 DSC:

1 monitorius – iki 5K/60 Hz 2 monitoriai – iki 2x 4K/60 Hz *

i-tec USB-C Dual DP Display Dock with PD 100 W

Black network device connected to a computer via a cable, no visible text or symbols

- 1 monitorius prijungtas per 2 „DisplayPort“ kabelius - rezoliucija iki 5K 5120x2880 / 60Hz.

Black network device with attached cables and a laptop connected to its base (no visible text or symbols)

- 1 monitorius prijungtas per „DisplayPort“ / HDMI kabelj - rezoliucija iki 4K 3840x2160 / 60Hz.

4K/60Hz reozliucija palaikoma tik tada, kai nešiojamojo kompiuterio USB-C / Thunderbolt™ 3 konektorius palaiko „DisplayPort 1.4 DSC“ arba „DisplayPort 1.4 be DSC“.

Black wireless router connected to two computer monitors (no visible text or symbols)

- 2 monitoriai, prijungti per „DisplayPort“ / HDMI kabelius - rezoliucija iki 4K 3840x2160 / 60Hz.

Tik tada, kai nešiojamojo kompiuterio USB-C / Thunderbolt™ 3 konektorius palaiko „DisplayPort 1.4 DSC“.
        D["Computer monitor with '4K' icon"]
        E["Computer monitor with '3D' icon"]
        F["Computer monitor with '3D' icon"]
        G["Computer monitor with '3D' icon"]
        H["Computer monitor with '3D' icon"]
    end
    subgraph Extended Mode
        I["Computer monitor with '3D' icon"]
        J["Computer monitor with '3D' icon"]
        K["Computer monitor with '3D' icon"]
        L["Computer monitor with '3D' icon"]
        M["Computer monitor with '3D' icon"]
    end

Garso nustatymas

i-tec USB-C Dual DP Display Dock with PD 100 W

Vaizdo variantas 1

i-tec USB-C Dual DP Display Dock with PD 100 W

i-tec USB-C Dual DP Display Dock with PD 100 W

DP 1.4 HBR3:

1 monitor – max. 4K/60Hz 2 monitoren – max. 2x 1440p/60Hz *

DP 1.4 HBR3 DSC:

1 monitor – max. 5K/60Hz 2 monitoren – max. 2x 4p/60Hz *

i-tec USB-C Dual DP Display Dock with PD 100 W

Black network device with attached computer and laptop, no visible text or symbols

Black wireless router connected to a computer monitor and laptop (no visible text or symbols)

Black network device with USB port and connected to two computer monitors (no visible text or symbols)

i-tec USB-C Dual DP Display Dock with PD 100 W

OPLADEN VIA POWER DELIVERY

Audio-instellingen

i-tec USB-C Dual DP Display Dock with PD 100 W

Monitorbediening in Windows 10

GEBRUIK IN MACOS X

i-tec USB-C Dual DP Display Dock with PD 100 W

Weergavevariant 1

i-tec USB-C Dual DP Display Dock with PD 100 W

This equipment is marked with the above recycling symbol. It means that at the end of the life of the equipment you must dispose of it separately at an appropriate collection point and not place it in the normal domestic unsorted waste stream. This will benefit the environment for all. (European Union only)

DEUTSCH

This equipment has been tested and found to comply within the limits of a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
