U3HDMI4K - Network card / adapter i-TEC - Free user manual and instructions

Type	USB 3.0 4K Ultra HD Display Adapter HDMI
Brand	i-TEC
Model	U3HDMI4K
Interface	USB 3.0 (backward compatible with USB 2.0)
Output	HDMI 1.4
Max Resolution	3840 x 2160 (4K UHD)
Number of Simultaneous Displays	Up to 6
Dimensions	75 x 44 x 14 mm (2.95 x 1.73 x 0.55 in)
Weight	36 g (1.27 oz)
Power Source	USB bus-powered
Operating Temperature	10°C to 40°C (50°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	Up to 85% non-condensing
Supported Operating Systems	Windows 7/8/8.1/10 (32/64 bit), Mac OS X 10.10+
Package Contents	Adapter, USB 3.0 cable (60 cm), CD with drivers, Quick Start Guide
Maintenance	Clean with a soft, dry cloth; avoid liquids.
Safety	Do not expose to extreme temperatures or moisture; use on flat surface.
Spare Parts and Repairability	Not user-serviceable; contact i-TEC support for repairs.

Frequently Asked Questions - U3HDMI4K i-TEC

What are the primary graphics card requirements for DisplayLink chipsets in i-tec graphic adapters and docking stations?

DisplayLink graphic chipsets are secondary displays. There currently needs to be a primary graphics card in the system. DisplayLink works with all Intel, NVidia, ATI/AMD, and VIA graphics cards. It does not support SiS or Matrox graphics cards, multiple graphics cards, ATI Crossfire, or NVIDIA SLI configurations. For NVIDIA GeForce Go 7700/7900, use an earlier software release.

After installation of Windows 8.1 the equipment stopped functioning. In Windows 8 it worked without problems.

Please install the most recent drivers from our website found in the 'Download' tab for the product. Windows 8.1 is supported from DisplayLink version 7.4.

After installation of Mac OS X 10.10 Yosemite the equipment stopped functioning.

Please install the most recent drivers from our website in the 'Download' tab for the product. Mac OS X 10.10 Yosemite is supported from DisplayLink version 2.3.

I am using Mac OS X and the audio output is not functioning.

The current drivers for Mac OS X do not support audio when the equipment is connected to the USB 3.0 port. Audio can be used only when connected to a USB 2.0 port.

Adapter is not functioning with tablet and Windows 8.

Please install the most recent version of drivers 7.7 M0 or higher from http://www.displaylink.com/support/index.php.

I have a problem with detecting the display adapter in the USB 3.0 port of my notebook/PC.

The problem may be caused by outdated drivers for the USB 3.0 port. Download and install the most recent drivers for the USB 3.0 chipset from http://www.displaylink.com/support/ticket.php?id=315.

How to properly install the display adapter in Windows?

Do not connect the adapter until you install the most recent DisplayLink drivers. After driver installation, connect the adapter; remaining drivers install automatically. The control utility activates only after connecting the monitor.

Are there drivers for Windows 8/8.1/10 32/64 bit for the display adapter available?

Yes, install the most recent DisplayLink drivers from http://www.displaylink.com/support/index.php. Do not connect the adapter until drivers are installed.

Can I get more detailed information on troubleshooting for the display adapter?

Visit the DisplayLink website at http://www.displaylink.com/support/knowledgebase.php under the FAQ tab or contact technical support.

How many display adapters can be connected simultaneously?

Up to 6 display adapters can be connected simultaneously to one PC or notebook.

USER MANUAL U3HDMI4K i-TEC

USB 3.0 4K Ultra HD Display Adapter

HDMI

i-tec

EN

Read carefully the user manual before assembly - installation - commissioning. Protect yourself and avoid damaging your equipment.

DE

Recommended products

White rectangular electronic device with three ports and a logo on the front panel (no visible text or symbols on body)

i-tec USB 3.0 Metal Charging HUB 10 Port P/N: U3HUBMETAL10

i-tec USB 3.0 Metal Charging HUB 7 Port P/N: U3HUBMETAL7

i-tec USB 3.0 Metal Charging HUB 4 Port P/N: U3HUBMETAL4

• 10x / 7x / 4x USB 3.0 port
• Compatible with USB 2.0 / 1.1
• USB charging detection mechanism for mobile devices for all 10 / 7 / 4 ports
- Plug & Play
- Power adapter

i-tec USB Smart Charger 5 Port 40W / 8A

P/N: CHARGER5P40W

• Input: AC 100-240V / 50-60Hz
• Output: 5x A-Type USB DC 5V / max. 2.4A; total output max. DC 5V / 8A
- iPad/iPhone and Samsung phones and tablets can be charged on any port
• LED indicator

3D rendering of a black rectangular electronic device with four ports and a white top label (no readable text or symbols beyond the label)

Black and white photo of a portable electronic device with three grilles and control buttons (no visible text or symbols)

i-tec LCD Battery Charger 4-Channel

P/N: BACHR20

• Input: AC 100-240V / 50-60Hz
- Charging up to 4 NiCd/NiMH rechargeable batteries type "AA" or "AAA" with capacity 180 – 3000 mAh in 4 independent battery compartments
• Charging current: 200mA, 500mA, 700mA
• Discharging current: 100mA, 250mA, 350mA
• USB slot for charging of mobile devices (2.1A)

i-tec Metal Power Bank 8000 mAh with 3-in-1 Cable P/N: PB8000

• A portable battery with a capacity of 8000 mAh
• For charging of mobile phones, GPS navigators, tablets, music players and other digital devices
- Ideal solution for travelling where you cannot recharge your devices from the mains
• 4 LED diodes indicating the current battery capacity level
• Control by a single ON/OFF button
- Slim design
• 3-in-1 USB cable (Micro/Apple 8pin/Apple 30pin)

Exterior view of a silver power bank with two ports and a logo (no visible text or symbols on the device body)

Two black USB flash drives labeled USB 2.0 and USB 1.0, shown from different angles (no text or symbols on the devices themselves)

i-tec USB 3.0 Dual Docking Station

+ USB Charging Port

P/N: U3HDMIDVIDOCK

• 1x DVI-I port
• 1x HDMI port
• 1x Fast USB 3.0 port for charging of USB devices
• 1x USB 3.0 port type A
• 4x USB 2.0 port type A
• 1x USB 3.0 port type B
• 1x Ethernet 10 / 100 / 1000 Mb/s GLAN RJ-45 port
• 1x 3.5 mm audio output for earphones / loudspeakers
• 1x 3.5 mm input for a microphone

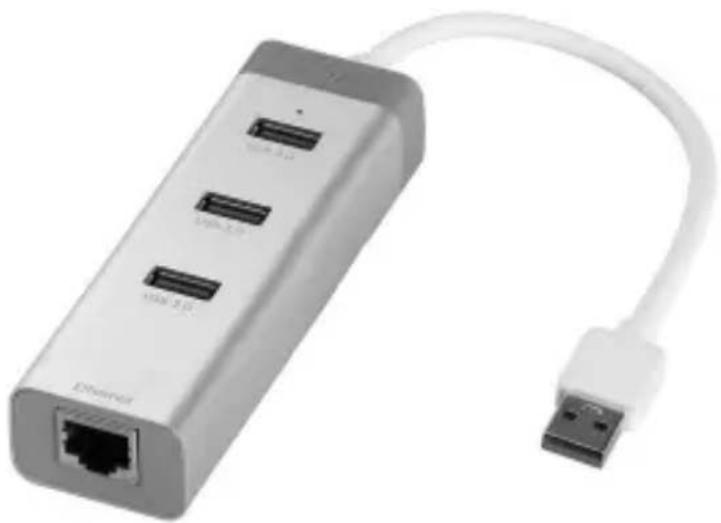

i-tec USB 3.0 Metal HUB 3 Port with Gigabit Ethernet Adapter

P/N: U3GLAN3HUB

• 3x USB 3.0 port
• 1x Ethernet 10/100/1000 Mbps LAN RJ-45 port
• LED indication for charging status and Ethernet connection
• Interface USB 3.0, backward compatible with USB 2.0
- Plug & Play

White USB port terminal with three Ethernet ports and a USB cable (no text or symbols visible)

USB 3.0 4K Ultra HD Display Adapter HDMI

ENGLISH 06-08

DEUTSCH 09-11

ČESKY 12-14

POLSKI 15-17

SLOVENSKY 18-20

LIETUVOS 21-23

Declaration of Conformity 24

WEEE 25

FCC 26

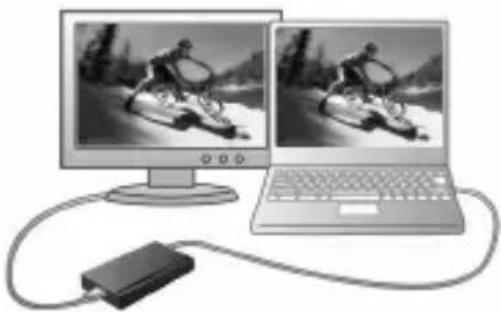

Mirror Mode

Two computer monitors connected to a laptop, one showing a racing scene (no text or symbols visible)

Extended Mode

Illustration of a computer connected to a laptop via cable, showing two screens with a satellite dish (no text or symbols present)

Using Dual Adapters (Extended Mode)

INTRODUCTION

Thank you for purchasing the „i-tec USB 3.0 4K Ultra HD Display Adapter“. It is a video / audio transmitter from USB to HDMI. Graphic chip supports not only Full HD resolution 1080 (1920 x 1080 pixels), but up to 4K (UHD) resolution 3840 x 2160 pixels.

PACKAGE CONTENTS

• USB 3.0 4K Ultra HD Display Adapter
- USB 3.0 cable (60 cm) – for connecting to PC / notebook, one side is connector type A - Male, second is connector type Micro USB 3.0 - Female
• CD with drivers and user's manuals
- Quick Start

SPECIFICATION

• Interface: USB 3.0 (compatible with USB 2.0)
• Output: HDMI spec. 1.4
• Powered through USB cable
• Connecting up to 6 display adapters simultaneously to one PC / notebook
• Resolution: 640x480 720x400 720x480 768x576 800x600 832x624 800x480 848x480 1024x600 1024x768 1152x864 1152x870 1280x720 1280x768 1280x800 1280x960 1280x1024 1360x7681366x768 1368x768 1400x1050 1440x900 1600x900 1600x1200 1680x1050 1920x1080 1920x1200 2048x1080 2048x1152 2048x1280 2048x1536 2560x1440 2560x1600 3840x2160
• Working temperature: 10-40°C
• Storage temperature: -20\~70°C
• Humidity: up to 85 %
• Dimensions: 75 x 44 x 14 mm
• Weight: 36 g

SYSTEM REQUIREMENTS

Operating system: Win 7 32/64bit, Win 8 32/64bit, Win 8.1 32/64bit, Win 10 32/64bit, Mac OS X 10.10 and higher

For Productivity

• Processor: Intel Core i5 2+GHz / AMD Trinity or better
• Memory: 4GB
- Graphics processor: Intel HD 4000, ATI Radeon HD7xxx, NVidia GeForce 5xxM graphics processors or better
• USB: USB 2.0 / but USB 3.0 recommended

For Full screen video playback

• Processor: Intel Core i7 2+GHz / AMD Richland A10-575x / AMD Kaveri A10-7400P or better
• Memory: 8GB
• Graphics processor: Intel HD 4000, ATI Radeon HD 8650, NVidia GeForce 7xxM graphics processors or better
USB: USB 3.0

To play UHD 4K video, the computer must be able to decode this video by its graphic processor. Especially the less powerful portable computers may be able to play 4K video, but the result is less than ideal (chopping, tearing of the video).

INSTALLATION OF DRIVERS IN WIN 7 / WIN 8 / WIN 8.1 / WIN 10 (32/64BIT VERSION)

Before the first use do not connect the USB 3.0 4K Ultra HD Display Adapter to the notebook / PC, until you install the corresponding drivers from the supplied CD. The equipment drivers need to be installed only before the first use.

Insert the CD with the drivers to the CD drive and install the drivers according to the following procedure:

USB 3.0 4K Ultra HD Display Adapter

Select installation from CD, the Setup.exe file in the CD:/Driver directory or confirm automatic installation of the downloaded driver. You can find the current drivers for i-tec products on our website http://www.i-tec-europe.eu in the "Download" tab for the individual products.

Note for installation of the Video (Display) port: The installation will follow in several steps. For OS Win 7 / 8 / 8.1 / 10 perform the installation as the Administrator and after the installation restart the PC / notebook.

• During the installation of the drivers the screen may glimmer – this is a standard process.
  • After the installation of the drivers, we recommend restarting the PC / notebook.
• The system then shows "USB3.0 UHD HDMI Adapter" in USB Display Adapters and "DisplayLink Audio" in Audio Devices.

HARDWARE INSTALLATION (CONNECTING THE ADAPTER TO A PC / NOTEBOOK)

1. Turn on the PC / notebook and connect the USB cable to the Micro USB 3.0 port.
2. Connect the USB 3.0 cable to the PC / notebook to a free USB 3.0 / 2.0 port.
3. After this, the automatic installation of the drivers in the individual systems will start.
4. Restart the PC / notebook.
5. Connect the HDMI cable to the USB 3.0 4K Ultra HD Display Adapter and to the monitor. After connecting, the screen may glimmer – this is a standard process.

INSTALLATION OF DRIVERS IN MAC OS X

Before the first use do not connect the USB 3.0 4K Ultra HD Display Adapter to the MacBook / PC, until you install the corresponding drivers from the supplied CD. The equipment drivers need to be installed only before the first use.

Insert the CD with the drivers to the CD drive or download the required software from our website www.i-tec-europe.eu from the „Download“ tab for this product. Install the drivers according to the following procedure:

Select the installation from the DisplayLink_MacOSX.dmg file in the directory on the CD:/ or run the downloaded file. Decompress the file on the desktop of your MacBook / PC as a virtual disc, select "Drivers" and then „DisplayLink Software Installer“. Then select the language of the installation and follow the instructions on the screen. Enter the user password if necessary.

The monitor may be flashing during the installation of the drivers – this is a standard process. After the completion of the installation restart the MacBook / PC.

HARDWARE INSTALLATION (CONNECTING THE ADAPTER TO A MACBOOK / PC)

1. Turn on the MacBook / PC and connect the USB cable to the Micro USB 3.0 port.
2. Connect the USB 3.0 cable to the MacBook / PC to a free USB 3.0 / 2.0 port.
3. After this, the automatic installation of the drivers in the individual systems will start.
4. Restart the MacBook / PC.
5. Connect the HDMI cable to the USB 3.0 4K Ultra HD Display Adapter and to the monitor. After connecting, the screen may glimmer – this is a standard process.

The installed ports are displayed in Mac OS X as „USB3.0 UHD HDMI Adapter“ in „About This Mac“ → „System Profiler“ → „Hardware“ → „USB“.

UNINSTALLING THE DRIVERS

Use the default uninstall via Control Panel-Add or Remove Programs-Remove:

• DisplayLink Core Software for Video drivers

SAFETY INSTRUCTIONS

• Do not expose to the extreme temperatures and air moisture.
  • Use the device on the flat pads – you avoid the slip and fall on the ground.
• Keep the activators and manual for the later possible use.

FREQUENTLY ASKED QUESTIONS

Question: What are the primary graphics card requirements for DisplayLink chipsets in i-tec graphic adapters and docking stations?

Answer: DisplayLink graphic chipsets are secondary displays. There currently needs to be a primary graphics card in the system. Windows Vista and later: Under windows Vista onwards, the DisplayLink graphics driver works closely with the primary graphic card. DisplayLink works with all Intel, NVidia, ATI/AMD, NVidia and VIA graphics cards. DisplayLink do not support the SiS or Matrox graphics cards. DisplayLink may not work if there are multiple graphics cards installed in the PC. DisplayLink does not support ATI crossfire or NVIDIA SLI configurations. NVIDIA GeForce Go 7700/7900 from v6.3 software. If using DisplayLink with these graphics card, please use an earlier software release.

Question: After installation of Windows 8.1 the equipment stopped functioning. In Windows 8 it worked without problems.

Answer: Please install the most recent drivers from our website that you can find in the „Download“ tab for the given product. Windows 8.1 is supported from the DisplayLink 7.4 version.

Question: After installation of Mac OS X 10.10 Yosemite the equipment stopped functioning.

Answer: Please install the most recent drivers from our website that you can find in the „Download“ tab for the given product. Mac OS X 10.10 Yosemite is supported from the DisplayLink 2.3 version.

Question: I am using Mac OS X and the audio output is not functioning.

Answer: The current drivers for Mac OS X do not support audio when the equipment is connected to the USB 3.0 port. Audio can be used only when the equipment is connected to the USB 2.0 port.

Question: Adapter is not functioning with tablet and Windows 8.

Answer: Please install the most recent version of drivers 7.7 M0 or higher that you can download from http://www.displaylink.com/support/index.php.

Question: I have a problem with detecting the display adapter in the USB 3.0 port of my notebook/PC.

Answer: The problem may be caused by outdated drivers for the USB 3.0 port of your notebook / PC. Please read the description and download the most recent drivers for the USB 3.0 chipset in your notebook / PC and installed them according to the instructions provided. The drivers can be downloaded from http://www.displaylink.com/support/ticket.php?id=315.

Question: How to properly install the display adapter in Windows?

Answer: Do not connect the display adapter to the USB port of your notebook / PC until you install the drivers. You need to install the most recent drivers for the DisplayLink (for internal chipset DL-5500) that you can download from http://www.displaylink.com/support/index.php. After you have installed the drivers and connected the display adapter to the USB port of your notebook / PC the remaining drivers will be installed automatically. The control utility will be activated only after connecting the monitor.

Question: Are there drivers for Windows 8/8.1/1032/64 bit for the display adapter available?

Answer: Yes, for the graphic part you need to install the most recent drivers for the DisplayLink (for internal chipset DL-5500) that you can download from http://www.displaylink.com/support/index.php. Do not connect the display adapter until you install these drivers. After you have installed the drivers and connected the display adapter to the USB port of your notebook / PC the remaining drivers will be installed automatically. The control utility will be activated only after connecting the monitor.

Question: Can I get more detailed information on troubleshooting for the display adapter?

Answer: Of course, you can find useful information on the DisplayLink website at http://www.displaylink.com/support/knowledgebase.php on the FAQ tab or you can contact our technical support.

For more information, please refer to the User's Manual on the provided CD-ROM.

USB 3.0 4K Ultra HD Display Adapter

EINLEITUNG

Meets the essential requirements according to EMC Directive 2004/108/EEC:

Pro Rádiové parametry, pre Rádiové parametre, dla parametrów Radiowych, for Radio parameters:

EN 55022:2010 ClassB ; EN61000-3-2:2006+ A1:2009+A2:2009; EN61000-3-3:2013

and it is safety under conditions of standard application.

Pure electrical circuit lines without any symbols

European Union Only

Note: Marking is in compliance with EU Directive 2002/96/EC and EN50419

English

This equipment is marked with the above recycling symbol. It means that at the end of the life of the equipment you must dispose of it separately at an appropriate collection point and not place it in the normal domestic unsorted waste stream. This will benefit the environment for all. (European Union only)
