USER MANUAL 237670 Hendi

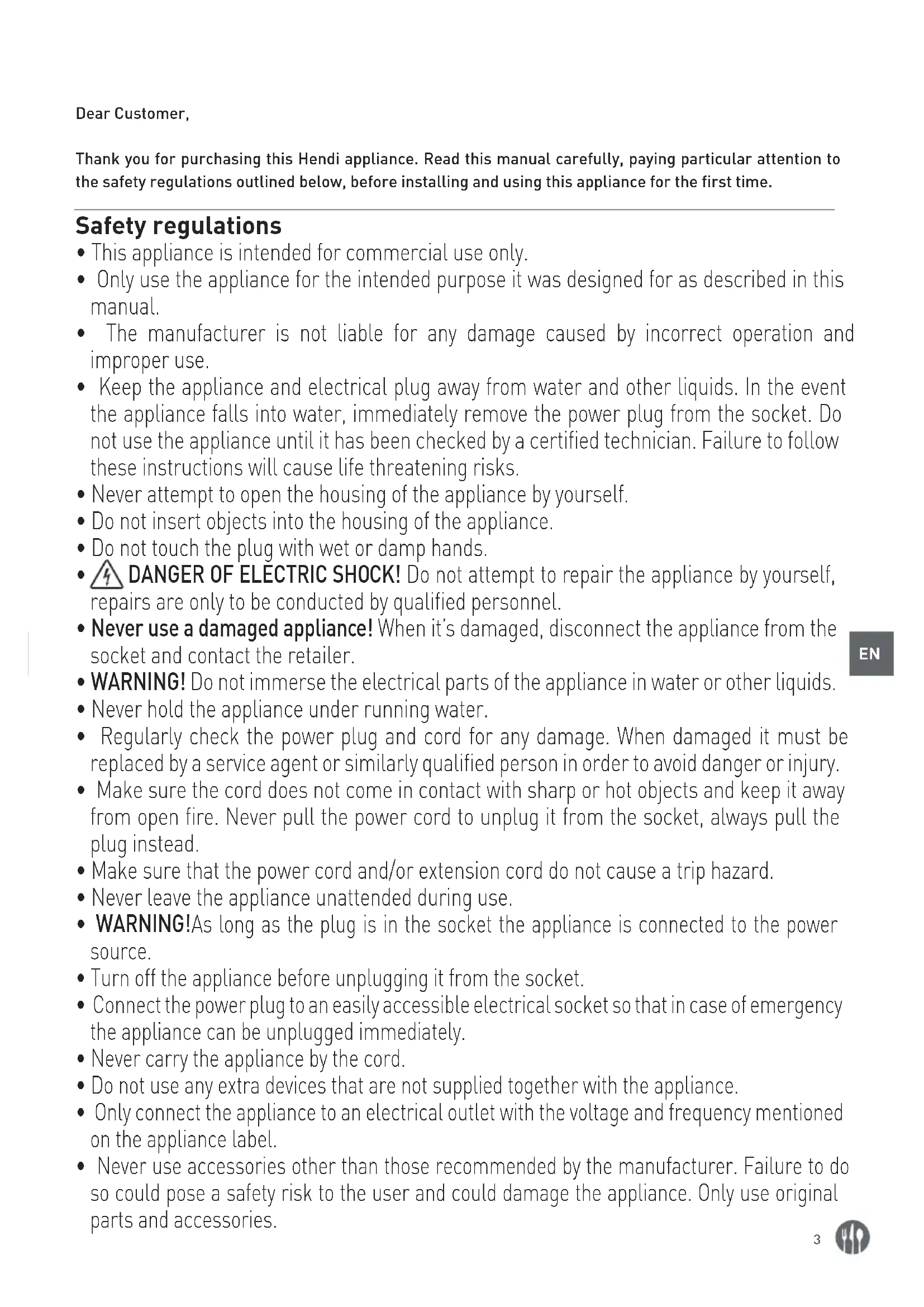

Dear Customer, Thank you for purchasing this Hendi appliance. Read this manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time. Safety regulations

• This appliance is intended for commercial use only.

• Only use the appliance for the intended purpose it was designed for as described in this manual.

• The manufacturer is not liable for any damage caused by incorrect operation and improper use.

• Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.

• Never attempt to open the housing of the appliance by yourself.

• Do not insert objects into the housing of the appliance.

• Do not touch the plug with wet or damp hands.

DANGER OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.

• Never use a damaged appliance! When it’s damaged, disconnect the appliance from the socket and contact the retailer.

• WARNING! Do not immerse the electrical parts of the appliance in water or other liquids.

• Never hold the appliance under running water.

• Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.

• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.

• Make sure that the power cord and/or extension cord do not cause a trip hazard.

• Never leave the appliance unattended during use.

• WARNING! As long as the plug is in the socket the appliance is connected to the power source.

• Turn off the appliance before unplugging it from the socket.

• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.

• Never carry the appliance by the cord.

• Do not use any extra devices that are not supplied together with the appliance.

• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.4

• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.

• Keep the appliance and its power cord out of reach of children.

• WARNING: ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage. Special Safety Regulations

• Use the appliance only as described in this manual.

• This appliance should be operated by trained personnel.

CAUTION! DANGER OF BURNS! The temperature of the heating surface and other accessible surface is very high during use. Touch the control panel only.

CAUTION! This appliance will emit non-ionizing electromagnetic radiation.

An equipotential bonding terminal is provided at the rear side of the appliance to allow cross bonding with other equipment.

• Do not place the appliance near objects that may be affected by a magnetic field TVs, radios, bank cards and credit cards.

• Do not place the appliance on a heating object (gas, electric, charcoal cooker, etc.) Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.

• Make sure the appliance is not placed near water vapour or greasy vapours. The fan in

side of the appliance will take in these vapours and this will cause grease or moisture to accumulate in the appliance which may result in a short-circuit in the appliance.

• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the heat

ing plate since they can get hot.

• WARNING: Keep all ventilation openings in the appliance clear of obstruction.

• WARNING: If the heating surface is cracked or damaged, switch off the appliance to avoid the possibility of electric shock.

• Allow at least 20 cm spacing around the appliance for ventilation purpose during use.

• Do not use hard utensils to hit the heating plate surface. Do not use water jet, flush di

rectly with water or steam cleaner as the parts will get wet and electric shock might be resulted.

• Take care when operating the appliance, as rings, watches and similar objects worn by the user could get hot when in close proximity to the heating surface.

• CAUTION! Securely route the power cord if necessary in order to prevent unintentional pulling or contact with the heating surface.

• Do not wash the appliance with water. Washing can cause leakages and increase the risk of electric shock.

• Do not clean or store the appliance unless it is completely cooled down.5

• Do not place empty cookware on the appliance during operation as this may damage the cookware.

• Only use the cookware of the type and size recommended. (See ---> Suitable cooking equipment).

• The power supply lines should be connected to the electrical power supply system by authorized technician. Intended use

• This appliance is intended for professional use.

• The appliance is designed only for cooking a vari- ety of food via heating the suitable cookware. Any other use may lead to damage to the appliance or personal injury.

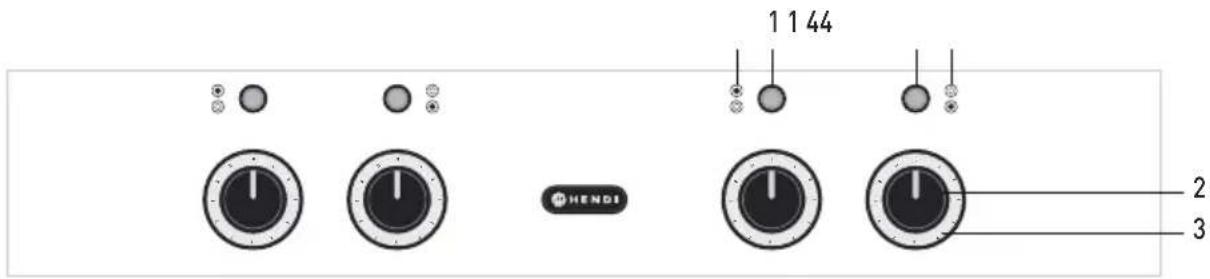

• Operating the appliance for any other purpose shall be deemed as a misuse of the device. The user shall be solely liable for improper use of the device. Grounding installation This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is fitted with a power cord that has a grounding wire and grounded plug. The plug must be plugged into an outlet that is properly installed and grounded. Control panel of the appliance

3. Power setting (Range: 1 - 11, level 1 is the lowest

and level 11 is the highest)

4. Heating surface position (For item 237687 only)

Rear heating surface Front heating surface6

Preparations before using for the first time

• Remove all protective packaging and wrapping.

• Keep the packaging if you intend to store your ap- pliance in the future.

• Check to make sure the appliance is undamaged. In case of incomplete delivery and damages. Please contact supplier (See --> Warranty).

• Clean the appliance before use (See --> Cleaning and Maintenance).

• Make sure the appliance is completely dry.

• Place the appliance on a horizontal, stable and heat resist surface that is safe against water splashes.

• Ensure that there is sufficient ventilation. Keep a minimum distance of 20 cm around the appli- ance.

• Do not place the appliance in close proximity to devices which are sensitive to disturbances by magnetic sources (e.g. radios, tape decks). Note: Due to manufacturing residues, the appli- ance may emit a slight odor in the first few cycles. This is normal and does not indicate any defect or hazard. Make sure the appliance is well ventilated. Suitable cooking equipment Suitable Not suitable Bottom of cookware Flat bottom Curved, uneven, rounded bottom Material Cookware with iron, cast iron, mag- netic stainless steel or enamelled iron bottom. Cookware with ceramic, glass, copper, bronze, or aluminium bottom. Diameter of the bottom 237670: Between 16 cm and 30 cm. 237687: Between 16 cm and 26 cm. 237670: Less than 16 cm or more than 30 cm. 237687: Less than 16 cm or more than 26 cm. Type of cookware Cookware with a bottom thickness over 1.5 mm. Completely closed containers or cans. Note: Using a pan or pot that’s not suitable for induction cooking may damage the appliance.7

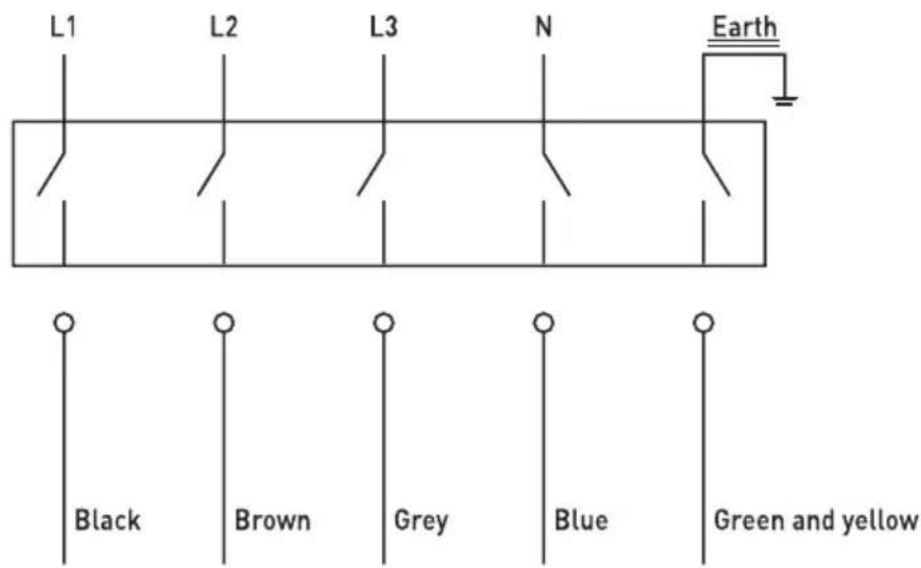

Power supply line connection Attention: The power supply lines should be connected by authorized technician. Operation

• Place a suitable cookware at the center of the heating surface of the appliance. (See -> Suitable cooking equipment) Note: Do not place empty cookware as this may damage the cookware.

• Connect the internal wires of the power cord to a suitable electrical supply outlet. (See --> Power supply line connection)

• Operation light stays off when the line indicator of the knob and“0” the panel are aligned. Power lev- el from 1-11 can be adjusted by turning clockwise and the green light on.

• The appliance will shut down automatically if there is no operation detected after 4 hours.

• Overheat protection is included for the appliance. The heating function will be terminated if the temperature of the pot or plate is too high, or the display light will flash. In this case, turn the knob anti-clockwise to “0” on the panel and wait for several minutes to cool down. The appliance will resume to normal operation again. Cleaning and Maintenance Attention: Always disconnect the appliance from the electrical power source and let it cool down completely before cleaning and storage. Cleaning

• Never immerse the appliance in water or other liquids.

• Clean the cooled exterior surface with a slightly damp cloth or sponge with some mild soap solu- tion.

• Never use abrasive sponges or detergents, steel wool or metallic utensils to clean the interior or exterior parts of the appliance. Storage

• Before storage, always make sure the appliance has already been disconnected from the electri- cal outlet and cooled down completely.

• Store the appliance in a cool, clean and dry place.

• Never put heavy objects on the heating surface during storage as it may crack it.8

Troubleshooting If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the service provider. Problems Possible cause Possible solution The appliance does not switch ON. Electrical power connection is not connected properly with the electri- cal outlet. Check the electrical power connec- tion to make sure it is connected properly. Cooling fan is operating even after the appliance is switched to Standby mode. This is normal. The cooling fan con- tinues running in Standby mode for some time to cool down all internal elements. Wait until the cooling fan stops rotating. The green LED flashes once and switch off for 2 seconds Without cooking utensil on the stove top or using an inappropriate cooking utensil. Place or replace a suitable pan with a flatted bottomed on the plate. The red LED flashes twice and switch off for 2 seconds - The device heats up extensively. - Parts are damaged - Clear the ventilation slots and let the device cool off for several min- utes. If the error code has shown when the appliance is in cooling condition, contact the supplier. - Contact the supplier. The red LED flashes three times and switch off for 2 seconds Stove-top overheat Make sure water is inside the pan. The red LED flashes four times and switch off for 2 seconds Voltage under-loaded/ over-loaded Make sure the voltage and frequency comply with the rating label shown on the product. Technical specification Item no. 237670 237687 Operating voltage and frequency 380-400V 3N~ 50/60Hz Rated input power 5000W 17000W Power setting - 5000W for front; 3500W for rear Protection class Class I Waterproof protection class IPX3 IPX4 Dimension 400 x 400 x (H)380 mm 800 x 700 x (H)870 mm Net weight 12,5 kg 76 kg Remark: Technical specification is subjected to change without prior notification. Warranty Any defect affecting the functionality of the ap- pliance which becomes apparent within one year after purchase will be repaired by free repair or re- placement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appli- ance is claimed under warranty, state where and when it was purchased and include proof of pur- chase (e.g. receipt). In line with our policy of continuous product devel- opment we reserve the right to change the product, packaging and documentation specifications with- out notice.9

Discarding & Environment When decommissioning the appliance, the prod- uct must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a des- ignated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate col- lection and recycling of your waste equipment at the time of disposal will help conserve natural re- sources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.10
