274231 - Ice machine Hendi - Free user manual and instructions

Product type	Ice cream maker
Brand	Hendi
Model	274231
Container capacity	2.0 L
Ice production capacity	1.3 L
Power supply	220-240 V ~ 50 Hz
Minimum input power	180 W
Temperature range	-10 °C to -35 °C
Timer setting	5 to 90 minutes
Protection class	Class I (earthing required)
Refrigerant	R600a (flammable)
Container material	Food-safe plastic
Dimensions (L x D x H)	Approximately 25 x 30 x 35 cm (estimate)
Weight	Approximately 5 kg (estimate)
Main functions	Ice cream, sorbet and frozen yogurt making
Digital display	Temperature, timer, motor and cooling indicators
Cold storage mode	2 hours after cycle end
Motor protection	Automatic shut-off in case of blockage by too hard ice
Cleaning	External surface with damp cloth; do not immerse, do not put in dishwasher
Safety	Automatic shut-off, hot surface (control panel only), grounding plug
Warranty	12 months

Frequently Asked Questions - 274231 Hendi

How to use the Hendi 274231 ice cream maker?

Prepare the ingredients cooled to about 10°C, fill the container to 60% max, place the paddle and lid, lock by turning counterclockwise. Plug in, press STANDBY/OFF, then set the duration (5 to 90 min) and press START/PAUSE.

What is the maximum preparation capacity?

The container has a capacity of 2.0 L, but only fill to 60% (about 1.2 L) as the volume increases during production. The maximum ice production is 1.3 L.

Can I add ingredients while operating?

Yes, carefully open the lid and add fruits, chocolate chips, etc. Close quickly to avoid cold loss.

What to do if the ice is too hard and the paddle stops?

The appliance shuts off automatically to protect the motor. Unplug, let it cool completely, discard the preparation and check your recipe. Then restart.

How to clean the Hendi ice cream maker?

Unplug and let it cool. Clean the exterior with a damp cloth and mild soap. Never immerse the appliance or any parts in the dishwasher. Dry well before storing.

What is the storage duration of homemade ice cream?

Store the ice cream in a closed container at -12°C maximum for up to one week. Indicate the date and flavor. Never refreeze melted ice cream.

Is the appliance noisy?

The compressor and paddle motor produce normal operating noise. Ensure the appliance is on a stable surface and there is at least 10 cm of space around for ventilation.

Can I make frozen yogurt with this machine?

Yes, the appliance is designed to make ice cream, sorbets and frozen yogurt. Follow a suitable recipe and ensure the ingredients are well chilled.

What to do if the screen displays an error code?

Consult the troubleshooting table in the manual. Common issues include incorrect connection or ice too hard. If the problem persists, contact customer service.

How to switch to cold storage mode?

At the end of the cycle, the appliance automatically switches to 'Cold storage' mode for 2 hours, with flashing display '00:00 / COLD'. To serve, open the lid and remove the container.

USER MANUAL 274231 Hendi

Exterior view of a Arktic water heater with digital display and control knobs (no text or symbols on main body)

Item: 274231

You should read this user manual carefully before using the appliance.

READ MANUAL

Keep this manual with the appliance.

Simple line drawing of a house with an arrow pointing left, labeled 'INDOOR' below (no other text or symbols)

For indoor use only.

FOOD CONTACT

Prohibition sign depicting a trash bin crossed out by diagonal lines, indicating no waste or discharge.

RoHS

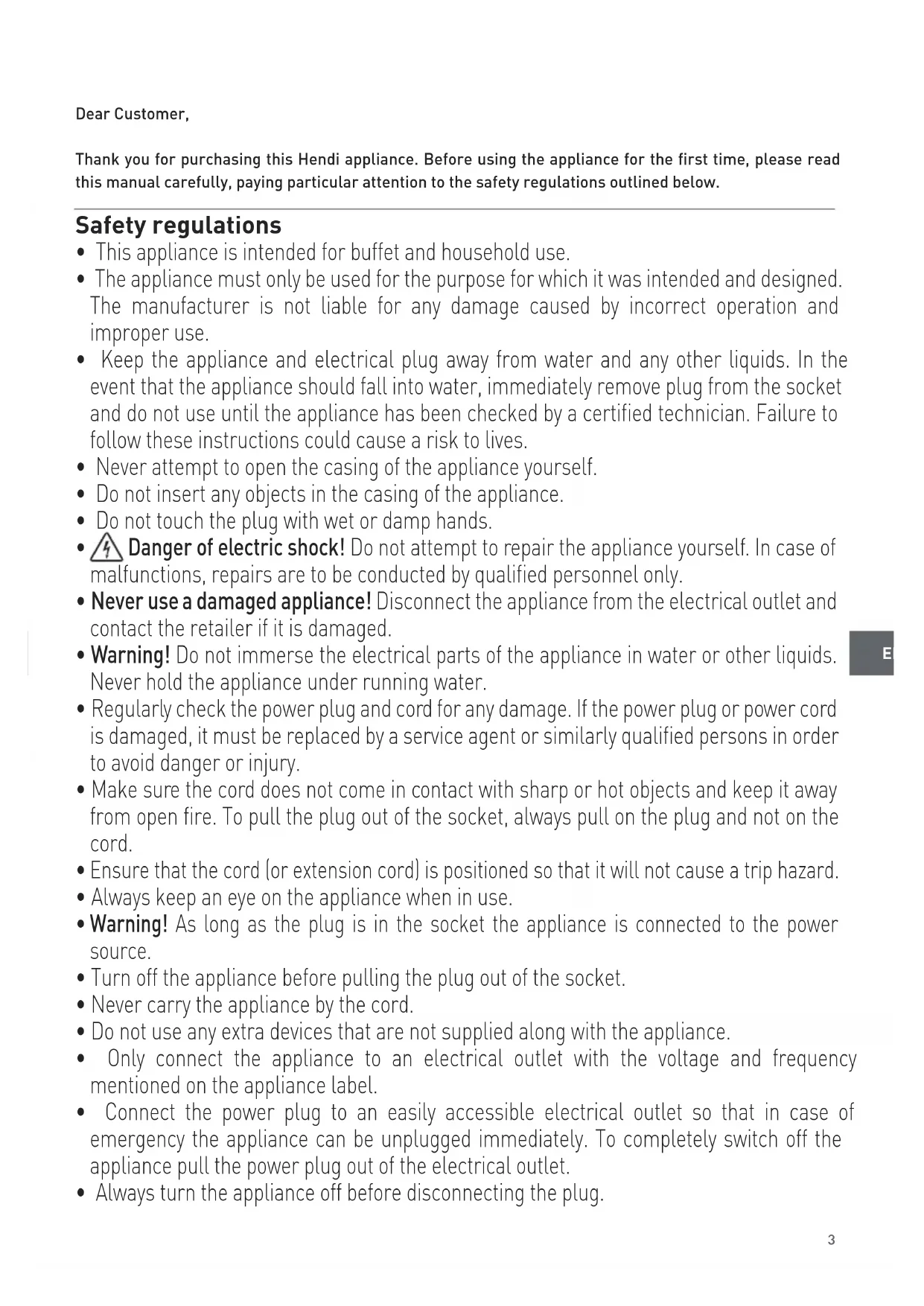

Thank you for purchasing this Hendi appliance. Before using the appliance for the first time, please read this manual carefully, paying particular attention to the safety regulations outlined below.

Safety regulations

• This appliance is intended for buffet and household use.
• The appliance must only be used for the purpose for which it was intended and designed. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug away from water and any other liquids. In the event that the appliance should fall into water, immediately remove plug from the socket and do not use until the appliance has been checked by a certified technician. Failure to follow these instructions could cause a risk to lives.
• Never attempt to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not touch the plug with wet or damp hands.
• Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunctions, repairs are to be conducted by qualified personnel only.
• Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact the retailer if it is damaged.
• Warning! Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. If the power plug or power cord is damaged, it must be replaced by a service agent or similarly qualified persons in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. To pull the plug out of the socket, always pull on the plug and not on the cord.
• Ensure that the cord (or extension cord) is positioned so that it will not cause a trip hazard.
  • Always keep an eye on the appliance when in use.
• Warning! As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before pulling the plug out of the socket.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied along with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Connect the power plug to an easily accessible electrical outlet so that in case of emergency the appliance can be unplugged immediately. To completely switch off the appliance pull the power plug out of the electrical outlet.
  • Always turn the appliance off before disconnecting the plug.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
• This appliance must not be used by children under any circumstances.
• Keep the appliance and its cord out of reach of children.
• Always disconnect the appliance from the mains if it is left unattended or is not in use, and before assembly, disassembly or cleaning.
• Never leave the appliance unattended during use.

Special Safety Regulations

• This appliance is designed only for making ice-cream, sorbet and frozen yoghurt. Any other use may lead to damage of the appliance or personal injury.
• Use the appliance only as described in this manual.
• This appliance should be operated by trained personnel in kitchen of the restaurant, canteens or bar staff, etc.

• Caution! Hot surface! The surface is hot when in use. Touch the control panel only.

Caution! Hot surface! The surface is hot when in use.

Touch the control panel only.

Caution! Risk of fire! The refrigerant used is R600a. It is a flammable refrigerant which is environmentally friendly. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

- The foam blowing agent used is C_5H_10 in this appliance. It is highly flammable.

- Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.) Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- During the operation, never place your hands or kitchen utensils inside the ice-cream container. Touching of stirrer may cause hand and finger injuries or damage the appliance.

- Never remove the stirrer during the operation of the appliance.

- WARNING: Keep all ventilation openings in the appliance enclosure clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• Do not wear loose fitting clothing such as scarf, etc and long hair should be tied up during operation.
• Allow at least 10 cm spacing around the appliance for ventilation purpose during use.
• Do not use hard utensils to hit the outer surface. Do not use water jet, flush directly with water or steam cleaner as the parts will get wet and electric shock might be resulted.
• Do not expose it to direct sunlight. Avoid mechanical shocks and vibrations.
• Caution! Securely route the power cord if necessary in order to prevent unintentional pulling or contact with the heating surface.
• Do not clean or store the appliance unless it is completely cooled down.
• No any parts are dishwasher safe.
• This appliance is intended to be used in household and similar applications such as
  1) Staff kitchen areas in shops, offices and other working environments;
  2) Farm houses and by clients in hotels, motels and other residential type environment;
  3) Bed and breakfast type environments;
  4) Catering and similar non-retail applications.
• No any parts are dishwasher safe.

Intended use

• This appliance is intended for buffet and household use.
• This appliance is designed only for making ice-cream, sorbet and frozen yoghurt. Any other use may lead to damage of the appliance or personal injury.

- Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Grounding installation

This appliance is classified as protection class I appliance and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

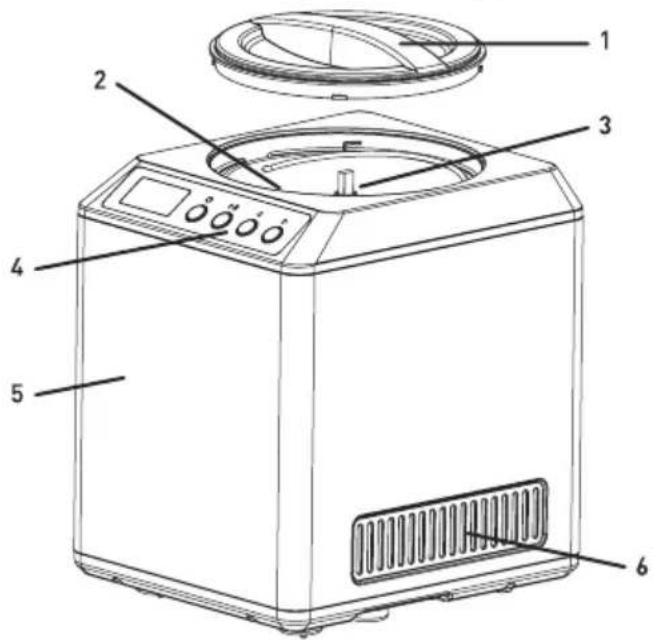

Overview of the main parts of the appliance

Technical diagram of a microwave oven with labeled parts including control panel, fan, and air vent

1. Transparent lid
2. Removable ice-cream container
3. Stirrer
4. Control panel
5. Housing
6. Ventilation holes

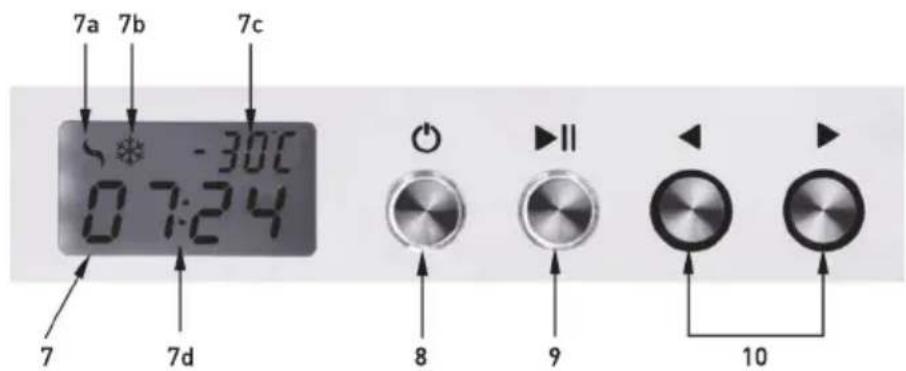

Control panel for the main functions

7a 7b 7c -30°C 07:24 7 7d 8 II 9 10

1. Digital display: it will show the following messages during operation:

7a.- Motor running for the rotation of stirrer
7b.- Cooling operation
7c.- Temperature at the bottom of the removable container (Range: -10^ -35^ )
7d.- Timer (Default: 90 minutes). Remaining time during ice-cream making operation

1. STANDBY/OFF button: Press to switch to STANDBY or OFF mode of the appliance
2. START/PAUSE button: Press to start ice cream making operation. Press again to pause.
3. Time setting buttons

◀: decrease the time of operation
▶ : increase the time of operation

Preparations before using for the first time

• Remove all protective packaging and wrapping.
• Check to make sure the appliance is undamaged and with all accessories (e.g. plastic scoop, stirrer, ice-cream container, measuring cup). In case of incomplete delivery and damages. Please contact supplier (See ==> Warranty).
• Clean the appliance before use (See ==> Cleaning and Maintenance).

• Make sure the appliance is completely dry.
- Place the appliance on a horizontal, stable and heat resist surface that is safe against water splashes.
- Ensure that there is sufficient ventilation. Keep a minimum distance of 10 cm around the appliance.

Operation

Warning: Make sure the appliance is unplugged from the electrical power supply.

Preparation for the ingredients of making ice-cream

• First, prepare all the ingredients for making the ice-cream according to recommended recipe.

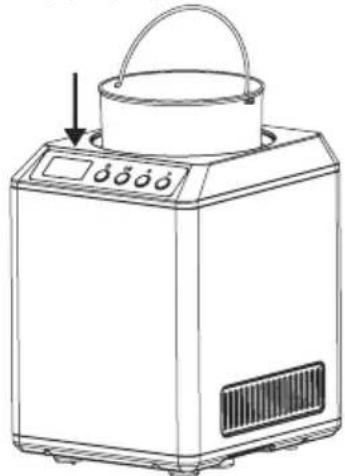

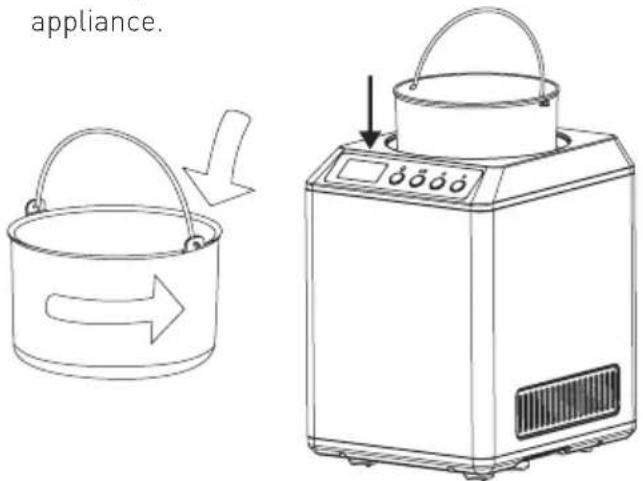

• Then, place the removable container inside the appliance.

appliance.

• Next, place the stirrer in the center of the removable container.
• After that, fill the ice-cream container (2) with the prepared ingredients. The ingredients should be well cooled before (about 10°C). Never being warm or hot.

Note: To avoid spilling of the excessive cream from the ice-cream container during operation, fill the ice-cream container with up to 60% of its total capacity. Ice-cream will expand during operation and fill the whole container.

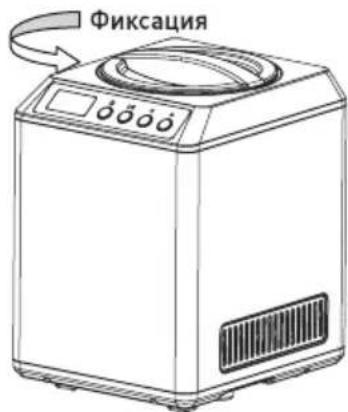

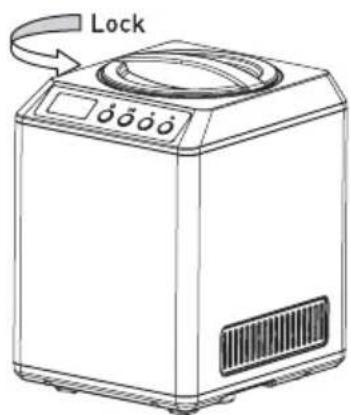

- Now, mount and lock the transparent lid [1] by turning it anti-clockwise. Observe the marking on the outside of the lid [1].

Lock

• Connect the plug to a suitable, single electrical power supply. A short beep sound will be heard.
• Switch to STANDBY mode by pressing STANDY-BY/OFF button (8).

Ice-cream making operation

• Set the desired time by pressing button (10). (Timer range: 5 \~ 90 minutes).
  Note: The appliance will start from default time of 90 minutes if no any buttons are pressed.
• Then, press START/PAUSE button (9) to start ice cream making operation. Press again to pause.
• The stirrer start rotation and cooling operation is started for making ice-cream.

• Indicator (7a) and (7b) will be blinked. Temperature at the bottom of container (7c) and remaining time (7d) will be shown on the display (7).

• When the set time is reached, indicator (7a) and (7b) will go out. The stirrer will stop rotation & the motor will stop running.

• Press STANDBY/OFF (8) to switch OFF the appliance and unplug it, take the ice-cream container out and enjoy it.
• If the consistency of the ice-cream is not good after the set time is reached, you can extend processing time by pressing the increase / decrease time button (10) or add some ingredients.

Addition of extra ingredient

- During ice-cream making process, you can add additional ingredients according to your special taste such as fruit, chocolate chips, raisins, nuts, almonds, etc.

Keep cool functional

This function allows the user to serve the ice-cream at a later time.

• When the set time is reached, the stirrer will stop rotation and the motor will stop running.

• The display will blink with 00:00 / COOL for about 10 minutes each alternately and the temperature indicator (7d) will show continuously.

• To do this, just open the transparent lid (1) and be careful during the addition of ingredients.

• Close the lid (2) after addition.

- This indicates that it enters the "Keep cool" mode. This "Keep cool" function will last for about 2 hrs.

- After 2 hrs, the appliance will be switched OFF automatically with the display without background light.

Motor protection

• If the ice-cream is too hard, the motor will be blocked to rotate and ice-cream making process will be interrupted.

• The appliance will shut down automatically in order to prevent motor overheated.

• Unplug the appliance and cool down completely before start up again.

• Check again the recipe and discard the food as the ingredients not correct and goes bad.

Removing and serving the ice-cream

- Open the lid (1) of the appliance and remove the ice-cream container (2) from the appliance. Transfer the ice-cream to an appropriate container or ice-cream goblets.

Note: Use only plastic or wooden scoops (included) to avoid damaging ice-cream container.

- Store ice-cream in an appropriately sealed container at a max. temperature of about -12^ for maximum of 1 week period. Mark the container with date of production and flavour.

- Caution! Ice-cream is good environment for bacteria growth. Keep the ice-cream, appliance and containers for ice-cream storage perfectly clean and dry. Never re-freeze melted or partially thawed ice-cream.

Suggested recipes

1. Vanilla ice-cream

2. Milk: 250ml

3. Cream: 500ml
4. Sugar 110g

5. 1 \~ 2 teaspoons vanilla extract

6. Chocolate ice-cream

7. Milk: 250ml

8. Cream: 500ml
9. Sugar 50g

- 100g bittersweet or semi-sweet chocolate (your favourite)

- 1 teaspoon vanilla extract

Remark: Please note that these recipes are just for reference only.

Cleaning and Maintenance

Attention: Always unplug the appliance from the electrical power outlet and let it cool down completely before cleaning & storage.

Cleaning

• Never immerse the appliance in water or other liquids.

• Clean the cooled exterior surface with a slightly damp cloth or sponge with some mild soap solution.

• Never use abrasive sponges or detergents, steel wool or metallic utensils to clean the interior or exterior parts of the appliance.
  Note: No any parts are dishwasher safe.

Storage

- Before storage, always make sure the appliance has already been disconnected from the electrical outlet and cooled down completely.

- Store the appliance in a cool, clean and dry place.

Troubleshooting

If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider.

Problems Possible cause Possible solution
The appliance does not switch on.	- Power plug is not connected properly with the electrical outlet.- Press the Standby/OFF (1) button.	- Check the power plug to make sure it is connected properly.- Press the Standby/OFF (1) button.
The stirrer stops rotation - The ice-cream is too hard and so stop to prevent overheating.		- Unplug the appliance and cool down completely to start up again.- Throw away the ingredients and check again the recipe.

EN

Technical specification

Item no.: 274231

Operating voltage and frequency: 220-240V\~50Hz

Rated input power: 180W

Container capacity: approx. 2,0L

Ice-cream production capacity: approx. 1,3L

Temperature range: - 10°C \~ - 35°C

Timer setting: 5 \~ 90 mins

(The stirrer rotates until the timer ends. When the stirrer gets blocked by ice cream the motor will stop automatically to prevent damage.)

Protection class: class I

Refrigerant used and quantity: R600a / 32g

Dimension: 272x315x(H)362mm

Net weight: 12kg

Remark: Technical specification is subjected to change without prior notification

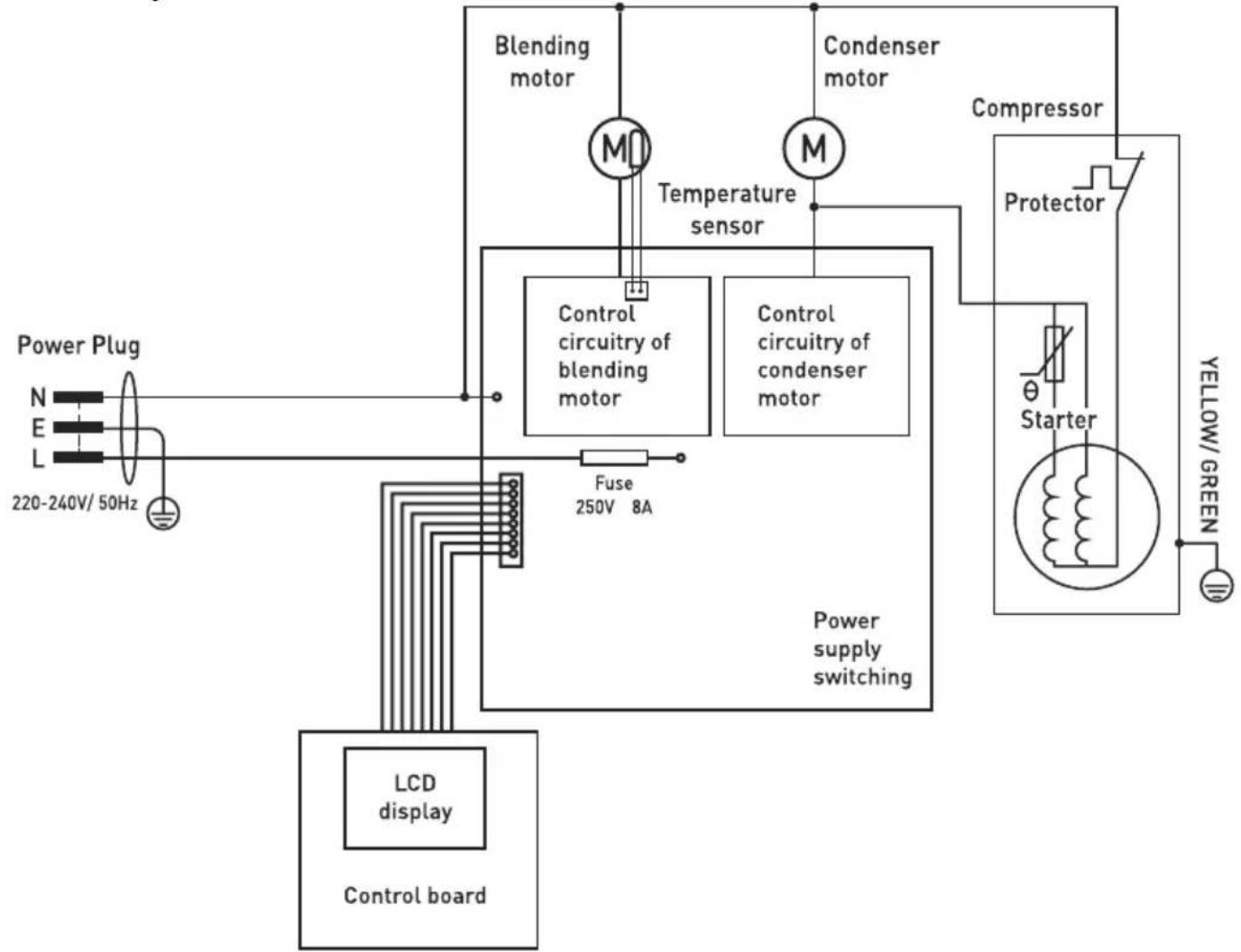

Electric diagram

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.

Line drawing of a bucket and a portable appliance with arrows indicating flow direction (no text or symbols)

Technical diagram of a microwave oven with labeled parts including control panel, lid, and fan

Line drawing of a bucket and a digital kitchen appliance with directional arrows (no text or symbols)

Technical diagram of a microwave oven with labeled parts including lid, control panel, and air vent

Technical diagram of a microwave oven with labeled parts including control panel, lid, and fan components

Refrigerant used and quantity: R600a / 32g

Dimension: 272x315x(H)362mm

Poids net: 12kg

Technical diagram of a microwave oven with labeled parts including lid, fan, and control panel

Line drawing of a bucket and a portable kitchen appliance with directional arrows (no text or symbols)

Technical diagram of a microwave oven with labeled parts including lid, control panel, and fan

Technical diagram of a microwave oven with labeled parts including lid, control panel, and fan

Simple line drawing of a bucket with handle and arrow indicators (no text or symbols)

Line drawing of a portable kitchen appliance with a lid and control panel (no text or symbols)

Фиксация

Technical diagram of a microwave oven with labeled parts including control panel, fan, and air vent

Line drawing of a bucket and a portable appliance with directional arrows indicating flow (no text or symbols)

Hendi Food Service Equipment GmbH

Ehring 15

Hendi Food Service Equipment Romania S.R.L.

PKS Hendi South East Europe SA

5 Metsovou Str.

18346 Moschato, Athens, Greece

Tel: [phone]

Email: [e-mail]

Hendi Italia S.R.L.

Via Leonardo da Vinci 4

39100 Bolzano (BZ), Italy

Tel: [phone]

Email: [e-mail]

Hendi HK Ltd.

1208, 12/F Exchange Tower

33 Wang Chiu Road, Kowloon Bay, Hong Kong

Tel: [phone]

Email: [e-mail]

Find Hendi on internet:

www.hendi.eu

www.facebook.com/HendiToolsforChefs

www.linkedin.com/company/hendi-food-service-equipment-b.v.

www.youtube.com/HendiEquipment

• Changes, printing and typesetting errors reserved.
• Änderungen und Druckfehler vorbehalten.
• Wijzigingen en drukfouten voorbehouden.

• Producent zastrzega sobie prawo do zmian oraz błędów drukarskich w instrukcji.

• Variations et fautes d'impression réservés.

• Errori di cambiamenti, di stampa e di impaginazione riservati.
• Drepturi rezervate cu privire la modificări și greșeli de imprimare.
• Изменения, печати и верстки ошибки защищены.
• Με επιφύλαξη αλλαγών, λαθών εκτύπωσης και στοιχειοθεσίας.
