I. ВАЖНИ ПРАВИЛА

1. This technical description and instructions manual was prepared in order to acquaint you with the product and the conditions of proper installation and use. These instructions were also intended for use by qualified technicians, who shall perform the initial installation, or disassembly and repairs in the event of a breakdown.
2. Following the current instructions will primarily be of interest to the consumer, but along with this, it is also one of the warranty conditions, pointed out in the warranty card, so that the consumer can benefit from the free warranty services. The producer is not responsible for damages in the appliance that have appeared as a result of operation and/or installation not corresponding to the instructions here.
3. The electric water heater complies with the requirements of EN 60335-1, EN 60335-2-21.
4. This appliance can be used by children aged from 3 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5. Children shall not play with the appliance.
6. Children aged from 3 to 8 years are only allowed to operate the tap connected to the water heater.
7. Cleaning and user maintenance shall not be made by children without supervision.

Attention! Improper installation and connection of the appliance may make it hazardous for the health and life of consumers. It may cause grievous and permanent consequences, including but not limited to physical injuries and/or death. Improper installation and connection of the appliance may also lead to damage to the consumers' property /damage and/ or destruction/, or to that of third persons, as a result of, but not limited to flooding, explosion and/or fire.

Installation, connection to the main water and power supply, and putting into operation must be carried out by certified electricians and technical personnel certified in installation of this category of appliances, who have obtained their license in the state where the installation and commissioning of the appliance are carried out, and in compliance with its local legislation.

All alterations and modifications to the water heater's construction and electrical circuitry are forbidden. If such alterations or modifications are established during inspection, the appliance's warranty shall be null and void. Alterations and modifications shall mean each instance of removal of elements incorporated by the manufacturer, building in of additional components into the water heater, replacement of elements by similar elements unapproved by the manufacturer.

Mounting

1. The water heater must only be mounted in premises with normal fire resistance.
2. In the event the device is mounted in a bathroom, the selected location must exclude the possibility of water spray contact from the showerhead or portable showerhead attachment.
3. The water heater is designed to operate only in closed and heated premises where the temperature is not lower than 4^ C and it is not designed to operate in a continuous protracted regime.
4. When mounted on a wall - the device is suspended by means of the M8 bolts attached to the housing, which are installed on brackets pre-mounted and levelled with the wall. The load-bearing brackets and dowels for wall mounting are included in the kit.

Water heater connection

1. The appliance is intended to supply hot water to household sites equipped with a piping system working at pressure below 6 bar (0,6 Mpa).
2. .The safety return-valve must be mounted on the cold water supply pipe, in observance of the direction arrow stamped on its body, indicating the incoming water's direction. Additional stopcocks must not be mounted between the safety return-valve and the water heater.
   Exception: If the local regulations (norms) require the usage of another protection valve or mechanism (in accordance with EN 1487 or EN 1489), then it must be bought additionally. For mechanisms operating in accordance with EN 1487 the announced operational pressure must be no more than 0.7 MPa. For other protection valves, the pressure at which they are calibrated must be 0.1 MPa lower than the one marked on the appliance's sign. In these cases the safety valve which the appliance is supplied with should not be used.
3. The safety valve and the pipe between the valve and the water heater must be protected from freezing. During hose draining - its free end must be always open to the atmosphere (not to be immersed). Make sure that the hose is also protected from freezing.
4. In order to secure the water heater's safe operation, the safety return-valve must undergo regular cleaning and inspections for normal functioning /the valve must not be obstructed/, and for the regions with highly calcareous water it must be cleaned from the accumulated lime scale. This service is not provided under warranty maintenance.
5. In order to prevent injury to user and third persons in the event of faults in the system for providing hot water, the appliance must be mounted in premises outfitted with floor hydro insulation and plumbing drainage. Don't place objects, which are not waterproof under the appliance under any circumstances. In the event of mounting the appliance in premises not outfitted with floor hydro insulation, a protective tub with a plumbing drainage must be placed under the appliance.
6. During operation – regime of heating the water – water drops through the drainage opening of the protection valve are usual. The protection valve should be left open to the atmosphere. Measures should be taken to lead and collect the leakages in order to prevent damages.
7. If the probability exists for the premise's temperature to fall below 0^ C, the water heater must be drained.

In the event you must empty the water heater, first you must cut off its power supply. The inflow of water from the water mains must first be terminated and the hot water tap of the mixing-faucet must be opened. The water tap 7 (fig 5) must be opened to drain the water from water tank. If there is no such tap build in the pipe line, than the water can be drain directly from inlet pipe of water tank after when you disconnect it from water main.

Connection to the electrical network

1. Do not switch on the water heater unless you established it was filled with water..
2. Upon connecting the water heater to the electric mains care must be taken to connect the safety lead.
3. Models without power cord, the circuit has to be supplied with a safety fuse (16A) and with inbuilt device to ensure disconnection of all pole pieces in the conditions of over-voltage from category III.
4. If the power supply cord (of models that have one) is damaged, it must be replaced by a service representative or a person with similar qualification, to avoid any risk.
5. The power supply conductor insulation from fixed wiring must be protected from direct contact with the flange (in zone under the plastic panel). For example, insulating sleeving having temperature rating higher than 90 °C can be used.
6. During the heating the appliance could produce a hissing noise (the boiling water). This is common and does not indicate any damage. The noise gets higher with the time and the reason for this is the accumulation of limestone. To remove the noise the appliance must be cleaned from limestone. This type of cleaning is not covered by the warranty.

Dear Clients,

The TESY team would like to congratulate you on your new purchase. We hope that your new appliance shall bring more comfort to your home.

II. TECHNICAL PARAMETERS

1. Nominal volume, litres - see the appliance's rating plate
2. Nominal voltage - see the appliance's rating plate
3. Nominal power consumption - see the appliance's rating plate
4. Nominal pressure - see the appliance's rating plate

This is not the water mains pressure. This is the pressure that is declared for the appliance and refers to the requirements of the safety standards.

1. Water heater type – closed type accumulating water heater, with thermal insulation

2. Daily energy consumption – see Annex I

3. Rated load profile – see Annex I
4. Quantity of mixed water at 40°C V40 in litres – see Annex I
5. Maximum temperature of the thermostat – see Annex I
6. Default temperature settings – see Annex I
7. Energy efficiency during water heating – see Annex I

III. DESCRIPTION AND PRINCIPLE OF OPERATION

The appliance consists of a body, flange at the bottom side (for water heaters intended for vertical mounting) or at the sides (for water heaters intended for horizontal mounting), protective plastic panel and a safety-return valve.

1. The housing consists of two steel tanks (water tanks) and a casing (outer shell) with heat insulation between them from an environmentally clean high-density polyurethane foam and a housing (outer shell) with thermal insulation placed in-between made of ecologically clean high density polyurethane, and two pipes with thread G½" for cold water supply (marked by a blue ring) and hot water outlet pipe (marked by a red ring).

The inner tanks are made of steel protected from corrosion by a special glass-ceramic or enamel coating.

1. An electric heater and a magnesium protector are installed on each flange. The electric heater is used for heating the water in the tank and is operated by the thermostat, which automatically maintains the set temperature. The appliance has two built-in devices (for each of the water tanks) for overheat protection (thermo-switches) which switch off the respective heater from the mains when the water temperature raises too much.

2. The safety-return valve prevents the appliance's complete emptying if the cold water supply stops from the water mains. The valve protects the appliance from pressure increases higher than the allowed value during heating mode (an increase of temperature causes water expansion and therefore pressure increase) by releasing the excess pressure through the drainage opening.

The safety-return valve cannot protect the appliance in the event of water mains pressure that is higher than the pressure stated for the appliance.

IV. MOUNTING AND SWITCHING ON

Attention! Improper installation and connection of the appliance will make it hazardous with grave health consequences and may cause even death of users.

it may also damage their property, that of third parties, as a result of flooding, explosion, fire. Installation, connection to the water mains and connection to power lines must be carried out by qualified technicians. A qualified technician means a person who has appropriate competencies pursuant to the regulations of the relevant state.

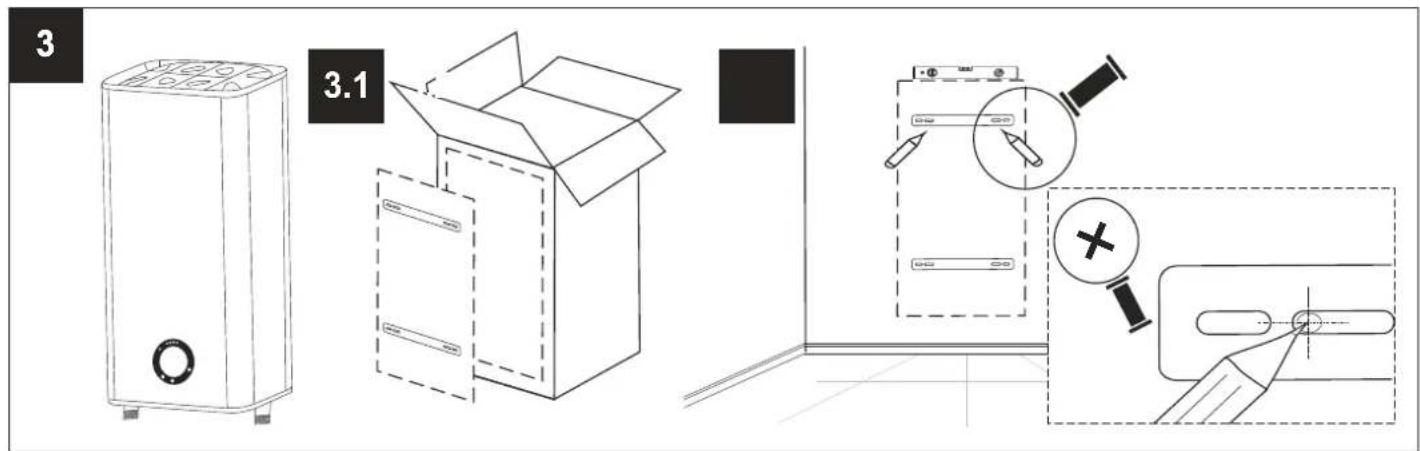

1. Mounting

We recommend the device to be mounted in close proximity to locations where hot water is used in order to reduce heat losses during transportation in the pipelines. If the device is mounted in a bathroom, it should be in such a place so as not to be poured with water from the showerhead or a portable showerhead attachment.

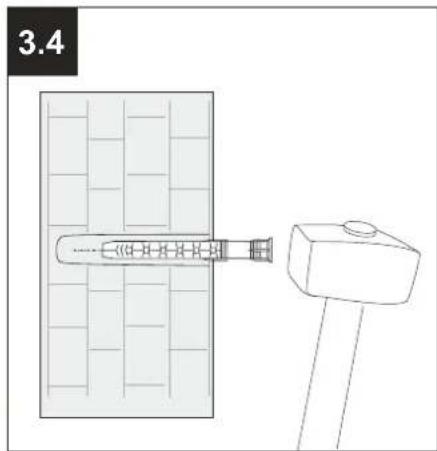

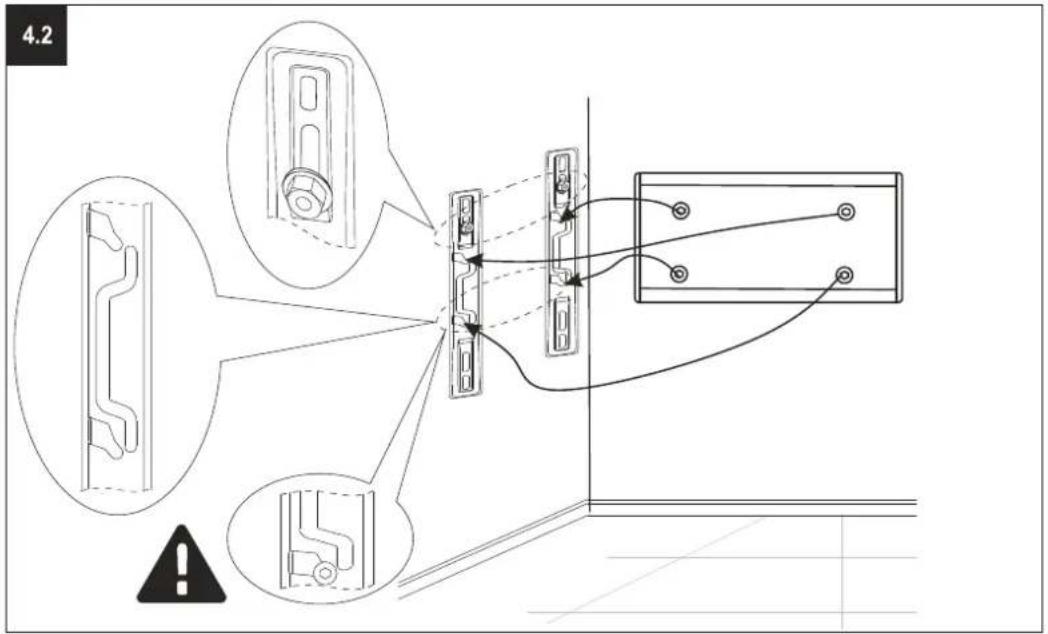

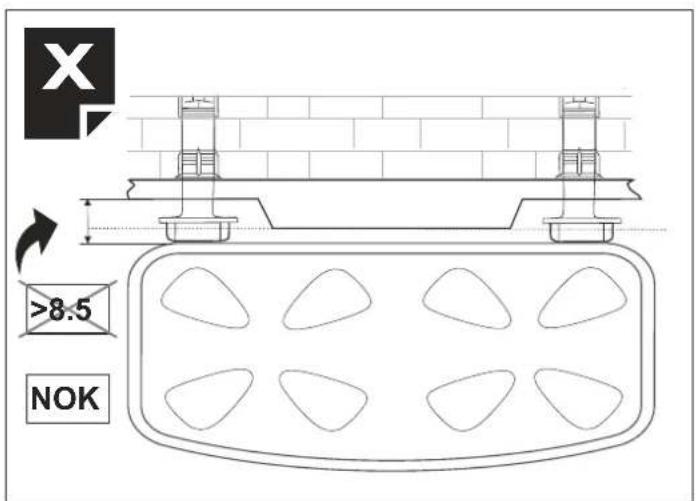

When mounted on a wall - the device is suspended by means of the M8 bolts attached to the housing, which are installed on brackets pre-mounted and levelled with the wall. The load-bearing brackets and dowels for wall mounting are included in the kit.

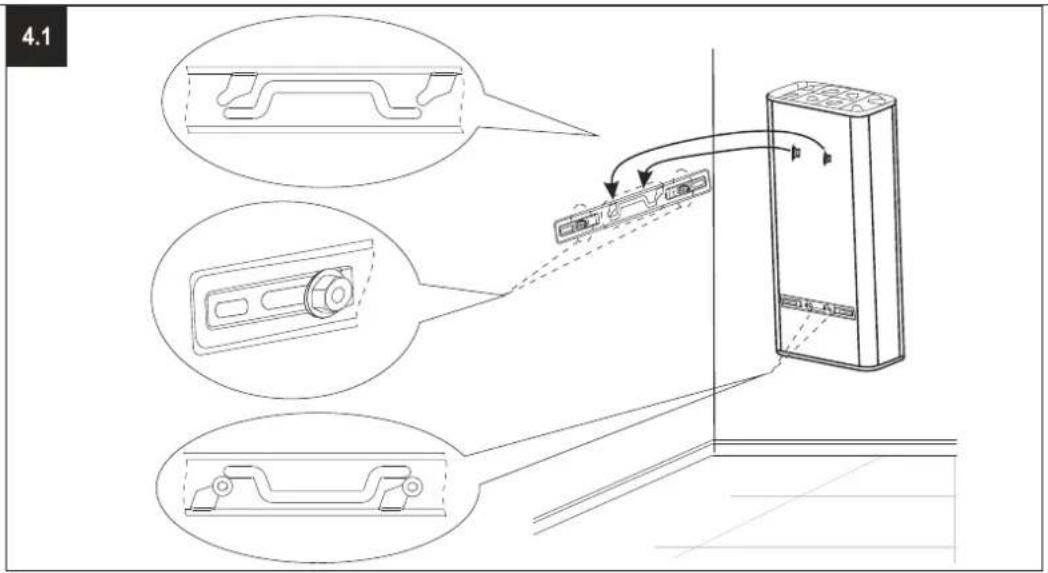

Vertical installation scheme - Fig. 4.1

Horizontal installation scheme – Fig. 4 2.

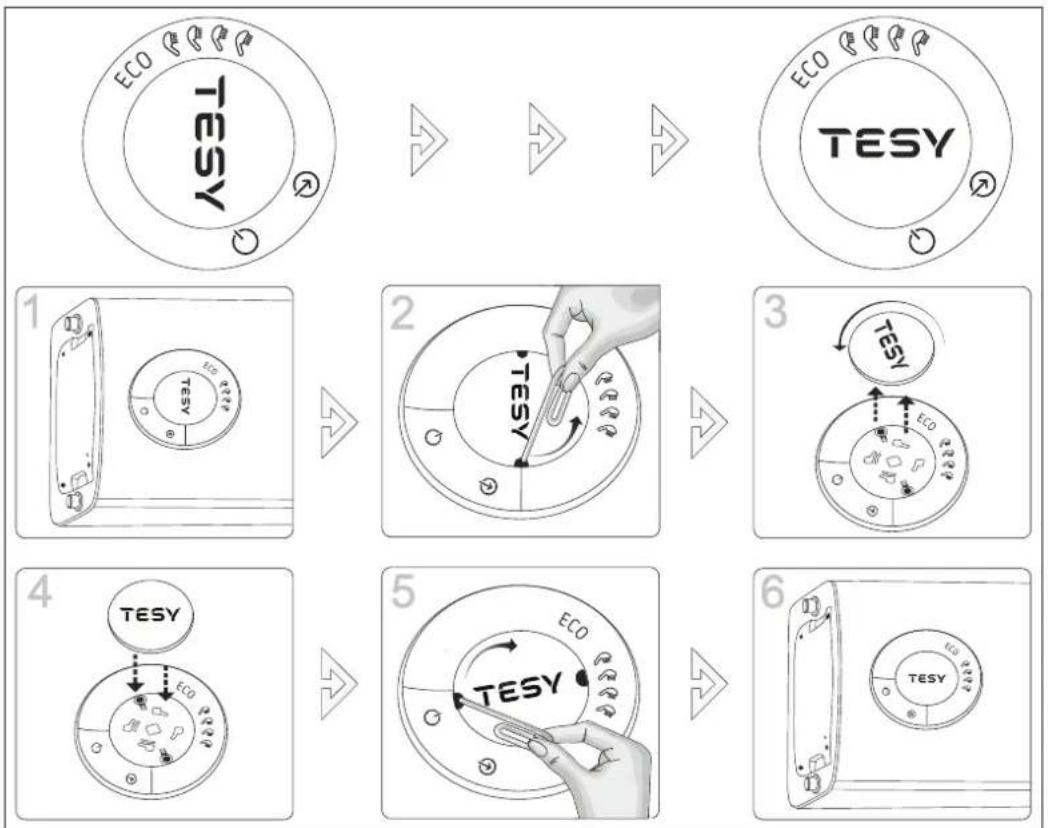

Depending on the installation method of the appliances (horizontal or vertical), you can orient the TESY logo on the control panel according to the orientation of the appliances. - Fig. 4 2.

In order to prevent injury to the user and/or third persons in the event of faults in the system for hot water supply, the appliance must be installed in premises

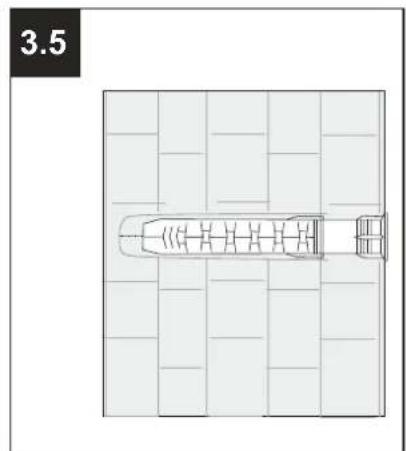

with floor hydro insulation and drainage to the sewerage. Under no circumstances should you place objects which are not waterproof under the appliance. If the appliance is installed in premises without floor hydro insulation, a protective tub with drainage to the sewerage must be in place under the appliance.

Note: The set does not include a protective tub and it should be chosen/purchased by the user.

2. Connecting the water heater to the water supply system

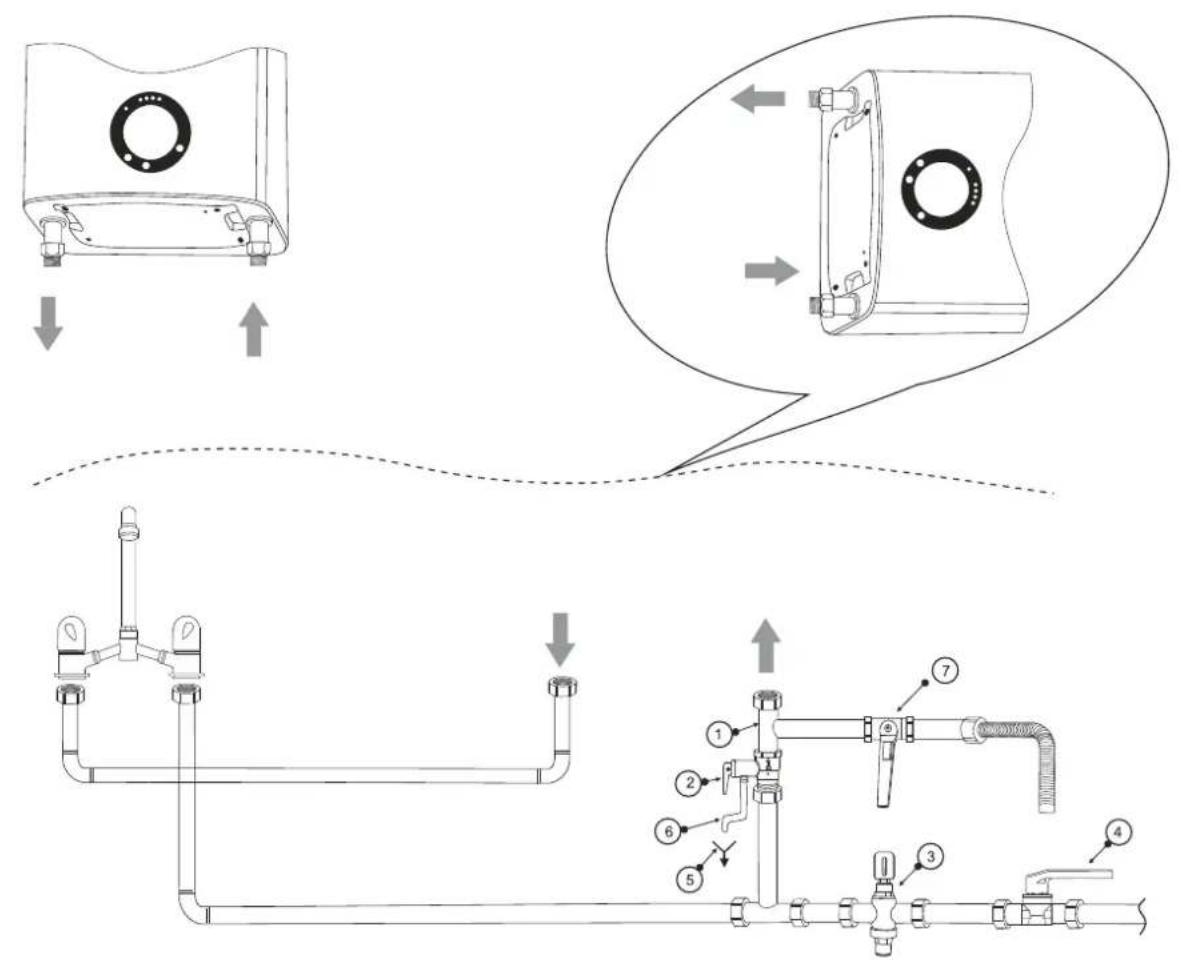

Fig. 5 Where: 1 - Inlet pipe; 2 - safety valve; 3 - reducing valve (for pressure in the water mains higher than 0.6 MPa); 4 - stop valve; 5 - funnel connected to the sewerage; 6 - hose; 7 - drain water tap.

Upon connecting the water heater to the water mains you must consider the indicative colour markings (rings) affixed to the pipes: blue for cold (incoming) water, red for hot (outgoing) water.

The mounting of the safety return-valve supplied with the water heater is obligatory. The safety return-valve must be mounted on the cold water supply pipe, in accordance with the direction of the arrow stamped on its body, indicating the direction of the incoming water.

Exception: If the local regulations (norms) require the use of another protection valve or device (which conforms to EN 1487 or EN 1489), then it must be purchased additionally. For device operating in accordance with EN 1487 the declared maximum operational pressure must be no more than 0.7MPa . For other protection valves, the pressure at which they are calibrated must be 0.1MPa lower than the one marked on the appliance's plate. In these cases the safety valve which the appliance is supplied with should not be used.

Other type of stopping armature is not allowed between the protection return valve (the protective device) and the appliance.

The presence of other (old) safety return-valves may lead to a breakdown of your appliance and they must be removed.

The attaching of the safety return-valve to threads longer than 10 mm is not allowed; otherwise this may damage the valve and therefore pose danger to appliance.

The safety-return valve and the pipe between the valve and the water heater must be protected from freezing. In case of hose draining its free end must be open to the atmosphere (not to be immersed). Make sure that the hose is also tied from freezing.

To fill the water heater with water first open the hot-water tap of the water-mixing faucet. Then open the cold-water tap of the water-mixing faucet. The appliance is full when a constant stream of water flows from the water-mixing faucet. Then close the hot water tap.

When you have to empty the water heater, first you must cut off its power supply. Then stop feeding water to the appliance. Open the hot-water tap of the water-mixing faucet. Open tap 7 (fig. 5) in order to drain the water from water tank. If there is no such tap built in the pipeline, than the water can be drained directly from the inlet pipe of the water tank, having it disconnected from the water mains prior to this

When removing the flange, it is normal for several litres of water, which have remained in the water tank, to be discharged.

Measures must be taken to prevent damages by the discharged water.

If the pressure in the water mains piping exceeds the value specified in paragraph II above, a pressure-reducing valve must be installed, otherwise the water heater will not be correctly operated. The manufacturer will not bear any liability for problems arising from improper operation of the appliance.

3. Connecting the water heater to the electrical mains

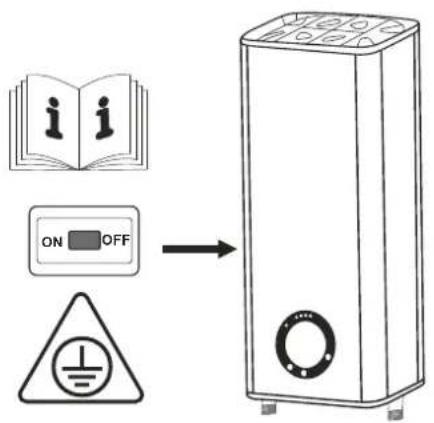

Make sure the appliance is full of water before switching on the electrical power supply.

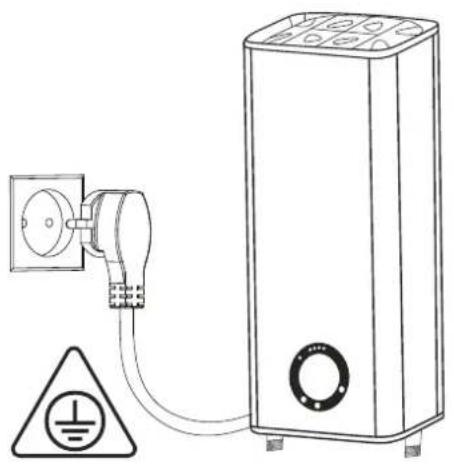

3.1. For models with a power cord with a plug, connection to the electrical mains is done by inserting the plug into an electrical socket. Disconnection from the electrical mains is done by unplugging the power cord from the socket.

The electrical socket must be properly connected to a separate current loop that is provided with a safety fuse. It must be earthed.

3.2. Water heaters without power cord

The appliance has to be connected to a separate current loop of the stationary electrical installation, provided with a safety fuse with nominal current of 16A (20A for power >3700W). Connection is done using copper single core (rigid) conductors – cable 3 x 2.5 mm ^2 for a total power of 3000W (cable 3 x 4.0 mm ^2 for power >3700W).

In the electrical circuit providing power supply for the appliance there has to an inbuilt device which would disconnect all poles in case of category III overvoltage.

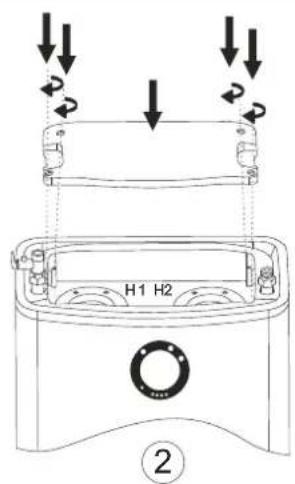

To install the power supply wire to the water heater, remove the plastic cover (Fig.7.2).

Connect the power supply wire in compliance with the marking on the terminals, as it follows:

• the phase – to marking A or A1, L or L1;
• the neutral – to marking N (B or B1 or N1);

- The safety wire must be connected to the screw joint marked with ⏻ After installation, put the plastic cover back in its place!

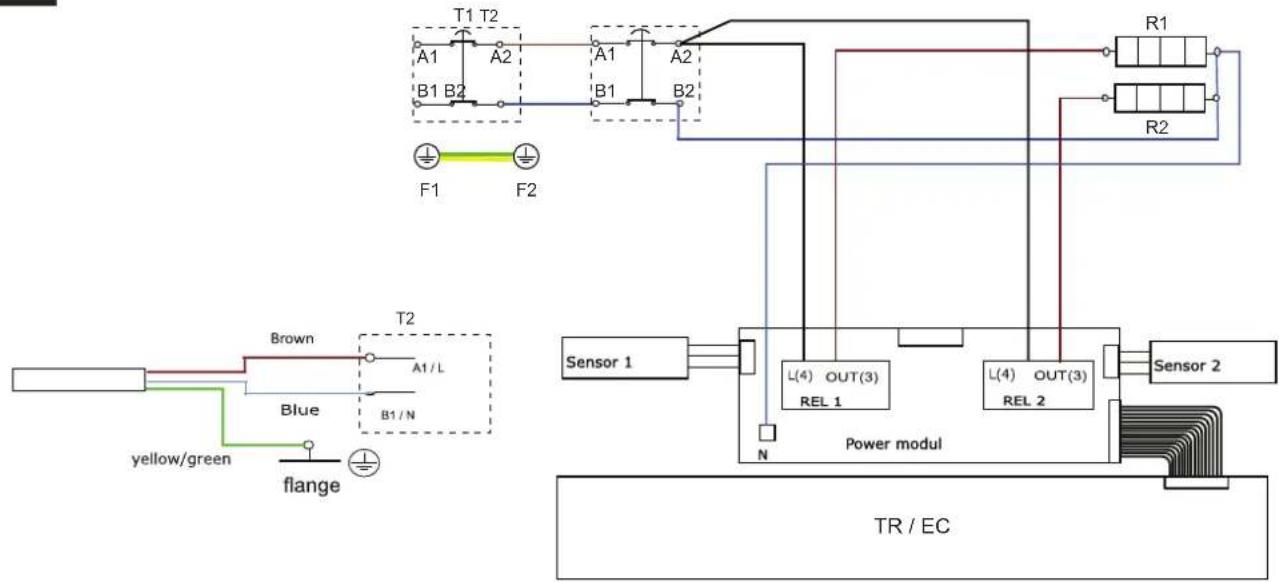

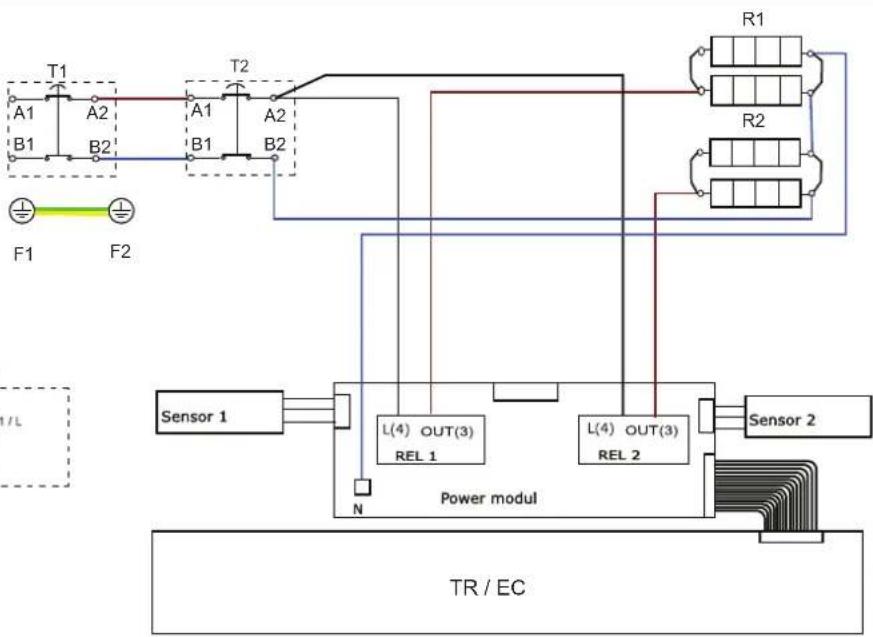

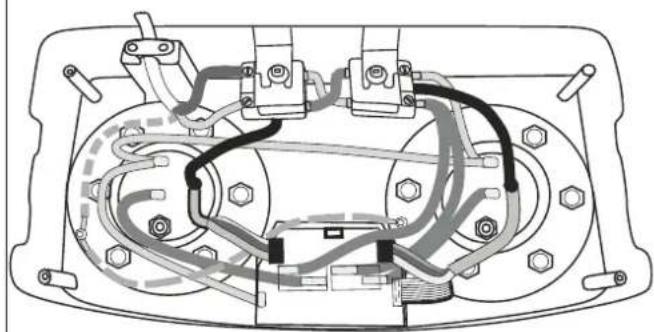

Explanations to Fig. 6:

T1, T2 - thermal circuit breaker; TR/EC - thermal regulator/ electronic control; R1, R2 - heating element; F1, F2 - flange; S1, S2 - sensor.

V. ANTI-CORROSION PROTECTION - MAGNESIUM ANODE

The magnesium anode provides additional protection to the water tank's inner surface from corrosion. It is an element undergoing wear and tear and is subject to periodic replacement, which is at the expense of the user. In view of the long-term and accident-free use of your water heater, the manufacturer recommends periodic inspections of the magnesium anode's condition by a qualified technician and replacement whenever required, and this could be performed during the appliance's technical preventive maintenance.

For replacements, please contact the authorized service centres or a qualified technician!

VI. OPERATION.

1. Switch on the electric water heater

Before initial start of the appliance, please make sure that the water heater has been correctly connected to the electrical network and that it is filled up with water. Switching on the water heater is done through the device incorporated in the installation, which is described in sub-item 3.2. of section IV, or by inserting the plug into an electrical socket (for models with cord with a plug).

2. Description of the control panel of the appliance

The unit's control panel displays information about the operation and condition of the water heater.

Designation of buttons and elements:

1 - "Stand by" / "ON" button";
② - Operating mode selection button;
3 - Indicators of set manual control mode;
4 - Indicator of set ECO mode;
5 - Indicator of a registered problem.

3. Device settings and control - Turning on the electronic control of the device

Press the ⏻ button to switch the appliance on. The operating mode set is displayed on the control panel. Press the ⏻ button again to switch the electronic control off. The Stand By mode is activated and the unit automatically enters the Anti-freeze mode. The ⏻ button and button ↗ remain lit on the control panel.

- Operating control mode

The ↗ button selects the operating mode. Each time you press the button, a mode is selected in sequence as follows:

WARNING: The maximum number of showers depends on the capacity of your appliances and the method of installation. (fig. 1.3 horizontal or vertical).

Manual control mode

In manual mode, the appliance works like an ordinary electric water heater. The amount of hot water is set as equivalent to the number of showers.

The set amount of hot water and the current status of the appliance are indicated by indicator lights on the control panel.

The "shower" symbol gives you information about the amount of hot water that is already heated depending on the number of showers. On the control panel, the indicator light provides feedback on the selection made.

When the "shower" symbol is lit constantly, this means that the set amount of hot water has been reached, but when the "shower" symbol flashes, this indicates that the appliance is heating mode.

When more than one of the set "showers" are not ready, the corresponding "shower" symbols blink one after the other constantly. This gives information about the set amount of hot water, as well as the amount reached at any given time, when they are lit continuously.

ECO mode

Attention! Your TESY electric water heater is of the highest energy class. The class of the appliance is guaranteed only when it operates in ECO mode "Eco Smart" due to the significant energy savings that are generated.

In the ECO modes the electric water heater develops its own algorithm of operation in order to guarantee energy saving, respectively to reduce your electricity bill, but to maintain your maximum comfort of use.

This operating mode is especially suitable if you have established habits regarding hot water consumption (for example, you shower at approximately the same time each day). To operate the water heater in the "Eco" mode, press the ↗ button until the ECO light on the control panel appears. During the first week when the self-learning process of the appliance based on the habits of the household takes place, the water is heated to 70 °C. After this period, the maximum temperature of water heating depends on the actual needs.

Operation principle: When the Eco mode is selected the appliance will learn your habits and develop a weekly program to provide you with the right amount of water at the right time, but also so that it generates energy savings and lowers your electricity bill. The principle of operation requires a self-learning period of one week, after which the Eco mode automatically reproduces the learned cycle of work and begins to accumulate energy savings without disturbing your comfort, calculated on the basis of your habits. The appliance monitors your habits and learns constantly. If you change your habits frequently, the appliance could not come up with a completely accurate algorithm that guarantees your comfort and provides hot water exactly when you need it.

Note: When the power supply goes out, the appliance saves the Smart algorithm according to your habits for up to 45 minutes.

If you need to heat the water to a maximum temperature once, with the ECO mode activated, select the maximum number of "shower" symbol. With this change the ECO algorithm is kept. Upon returning to the ECO mode, the operation of the water heater continues based on the algorithm developed.

- "Anti-freezing" function

The anti-freeze function is active in the Stand By mode.

If you intend not to use the water heater for a long time, protect its contents from freezing by pressing the ⏻ button to activate the "Anti-freeze" function, where by the water heater will maintain the water temperature at approximately 10 °C.

WARNING: The electrical power supply of the device should be switched on. The safety valve and the pipe connecting it to the device must be secured against freezingter.

●FACTORY SETTINGS RESET function

To enable this function, the appliance must be in Stand-by mode. You can enable it by pressing and holding the ⏻ and ↗ buttons for at least 10 seconds. During these 10 seconds you should hear two sound signals. The first one is a test, all symbols on the display will be illuminated, and when you keep pressing the buttons you will hear the second signal which will indicate that you have restored the factory settings of the appliance.

WARNING: When you return to the factory settings, the smart algorithm is reset.

●The "Anti-legionella" Function

The low temperature of the water in the water heater creates a favorable environment for the development of microorganisms, and in particular the Legionella bacterium, which can be extremely dangerous for the human body.

The Anti- Legionella / Disinfection Function is an innovative function and is automatically activated in order to protect the water heater from the development of bacteria in the hot water.

If the water in the water heater does not reach the temperature of 65 °C for 7 days, the anti-legionella function is activated. The water in the water heater is warmed to 65 °C and kept at this temperature for 60 minutes.

●Problem log

When a problem is detected in the appliance, all symbols go out. The ⚠ symbol lights up on the panel and starts flashing. At the same time, the appliance heater switches off (the appliance stops heating) and the operating mode indication goes out. Different errors are encoded with different number of flashes of the symbol (flashes N times and goes out for 2 seconds).

Code of error /number of blinks/		Name of error
1 error	1 Sensor 1 – The lower sensor is switched off
2 error	2 Sensor 1 - The lower sensor is in short circuit
3 error	3 Sensor 1 – The upper sensor is switched off
4 error	4 Sensor 1 - The upper sensor is in short circuit
5 error	5 Sensor 2 – The lower sensor is switched off
6 error	6 Sensor 2 - The lower sensor is in short circuit
7 error	7 Sensor 2 – The upper sensor is switched off
8 error	8 Sensor 2 - The upper sensor is in short circuit
9 error	9 Error reading data from NFC
10	error 10	The water heater is turned on without any water present (H1)
11	error 11	The water heater is turned on without any water present (H2)
12 error	12	The water in the inlet tank does not heat up (H1)
13 error	13	The water in the outlet tank does not heat up (H2)
14 error	14 Water freezing is possible !

Note: If you see any of the above listed errors, please contact an authorized service centre. You can find a list of them in the warranty card.

VII. PERIODIC MAINTENANCE

In the conditions of normal use of the water heater, under the influence of high temperature, limestone (the so-called lime scale) deposits on the surface of the heating element. This worsens the heat exchange between the heating element and the water. The temperature on the surface of the heating element and around it increases. Specific noise can be heard – of boiling water. The thermoregulator begins to switch on and off more frequently. A "deceptive" activation of the thermal protection is possible. Due to these facts, the manufacturer recommends preventive maintenance of your water heater every two years by an authorized service centre or service facility, this service remaining at the customer's expense. This preventive maintenance should include cleaning and examination of the anode protector (for water heaters with glass-ceramic coating), which has to be replaced with a new one, if necessary.

To clean the appliance, use a damp cloth. Do not use abrasive or solvent-containing detergents.

The manufacturer does not bear responsibility for any consequences arising from non-adherence to these instructions.

Instructions for protection of the environment

Old electric appliances contain valuable materials and must not be disposed of with the domestic waste! Please contribute actively for the protection of the resources and the environment and dispose of the appliance in the buy-back centres organized for this purpose (if such are available).

I. ВАЖНЫЕ ПРАВИЛА

Vysvetlivka k fig.6:

2. Raccordement hydraulique

Explication figure 6:

Line drawing of two cardboard boxes, one open and one closed, with no text or symbols present.

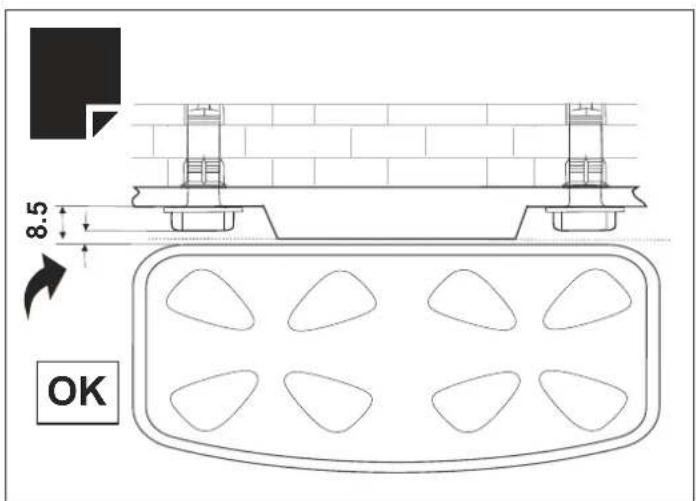

max 7 mm Ø 7 x 90

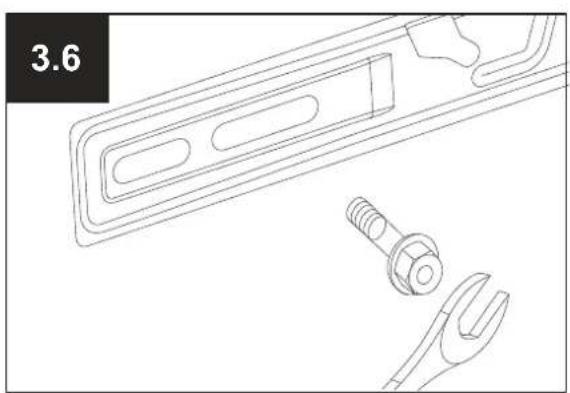

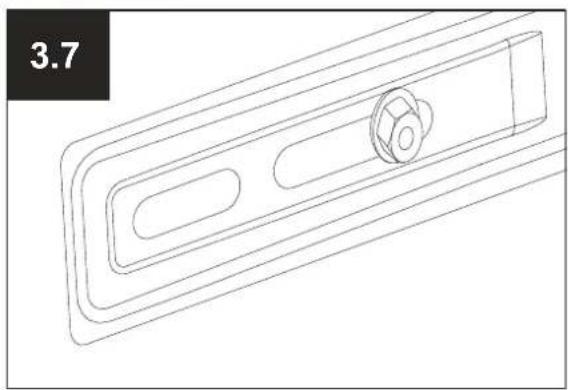

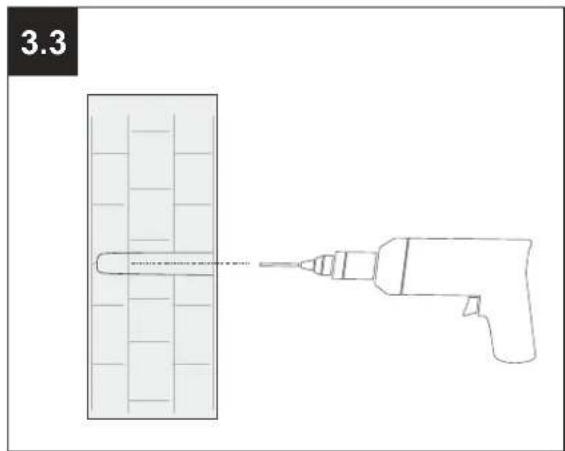

3 3.1

3.3

Technical line drawing of a mechanical component with a pin inserted into a grid-patterned block (no text or symbols)

Top-down architectural floor plan of a boat on a grid-patterned floor (no text or symbols)

Technical line drawing of a mechanical component with a wrench, pliers, and a bolt (no text or symbols)

Technical line drawing of a mechanical component with a central knob (no text or symbols)

Black triangular warning symbol with exclamation mark (no text or numbers)

8.5 OK

X >8:5 NOK

4.1

4.2 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026 2027 2028 2029 2030 2031 2032 2033 2034 2035 2036 2037 2038 2039 2040 2041 2042 2043 2044 2045 2046 2047 2048 2049 2050 2051 2052 2053 2054 2055 2056 2057 2058 2059 2060 2061 2062 2063 2064 2065 2066 2067 2068 2069 2070 2071 2072 2073 2074 2075 2076 2077 2078 2079 2080


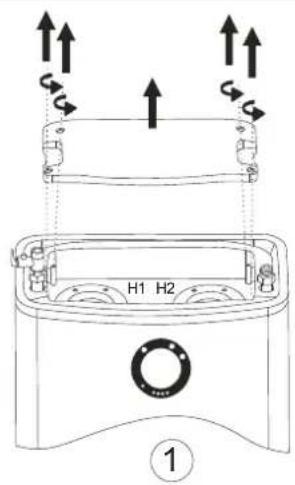

Technical diagram showing a device with rotating components and two labeled parts (① and ②) illustrating assembly or installation steps.

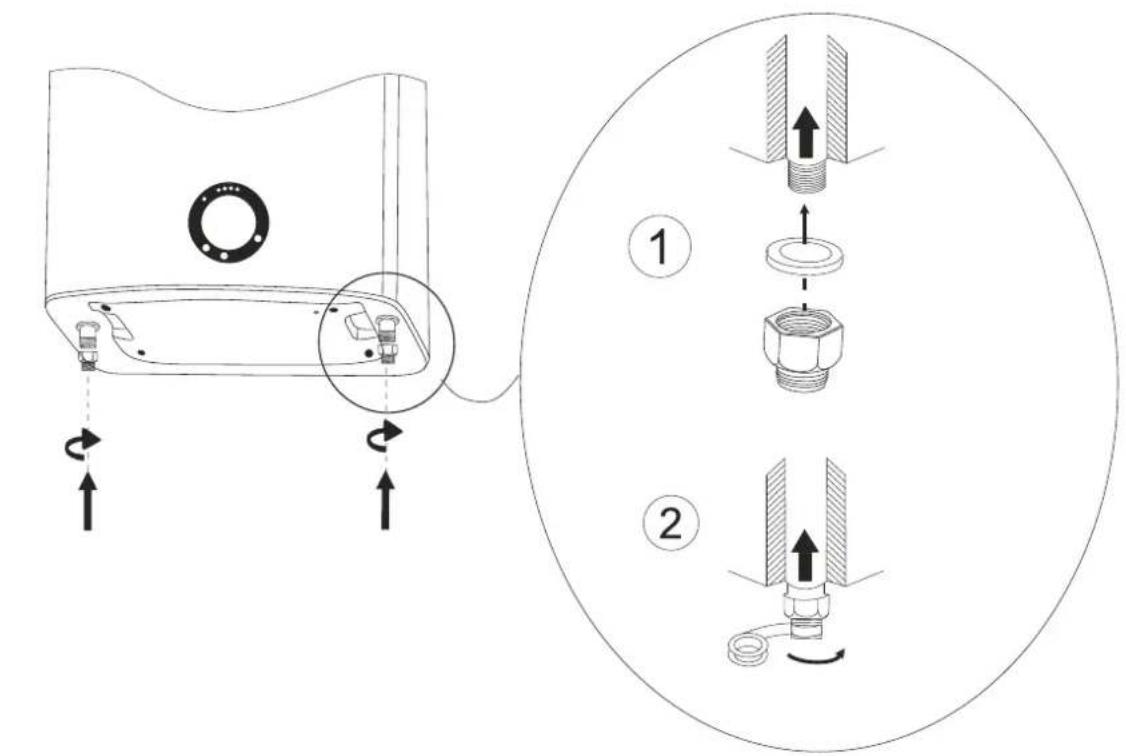

Technical diagram showing pipe connection and component assembly with numbered parts and directional arrows indicating flow or movement.

6.1

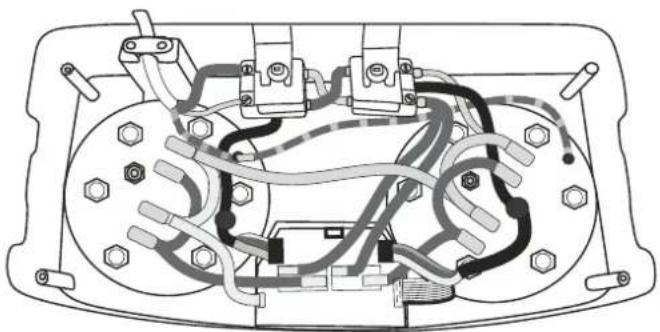

Electrical diagrams - Copper heating element
        direction TB
        A1["Yellow/Green"] --> B1["Blue"]
        B1 --> B2["B1/N"]
        B2 --> C1["T2"]
        C1 --> D1["A1/L"]
        D1 --> E1["F1"]
        E1 --> F1["F2"]
        F1 --> G1["R1"]
        F1 --> H1["R2"]
        G1 --> I1["Sensor 1"]
        H1 --> J1["Sensor 2"]
        I1 --> K1["L(4) OUT(3) REL 1"]
        J1 --> L1["L(4) OUT(3) REL 2"]
        K1 --> M["TR/EC"]
        L1 --> N["N"]
    end
    style Power module fill:#f9f,stroke:#333
    style Power module fill:#ccf,stroke:#333
    style Power module fill:#cfc,stroke:#333

6.2

Electrical diagrams - DRY heating element

Brown A1 / L Blue B1 / N yellow/green flange
    subgraph_Power_modul["Power modul"]
        A1["A1"] --> B1["B1"]
        A2["A2"] --> B2["B2"]
        B1 --> T1["T1"]
        B2 --> T2["T2"]
    end
    subgraph_Control["Control Circuit"]
        R1["R1"] --> R2["R2"]
        R2 --> Sensor2["Sensor 2"]
    end
    T1 --> A1
    T2 --> A2
    T1 --> F1["F1"]
    T2 --> F2["F2"]
    Sensor1["Sensor 1"] --> L4["L(4) OUT(3) REL 1"]
    Sensor2 --> L4
    L4 --> N["N"]
    L4 --> Powermodul["Power modul"]
    Powermodul --> TR["TR/EC"]
    style Power_modul fill:#f9f,stroke:#333,stroke-width:2px
    style Control fill:#ccf,stroke:#333,stroke-width:2px

6.3

Electrical diagrams - Copper heating element

Technical diagram of a vehicle's internal components, showing hoses and wiring (no text or labels)

6.4

Electrical diagrams - DRY heating element

Technical diagram of an electrical enclosure with internal wiring and mounting brackets (no text or labels)

7
7.1

Line drawing of a power outlet connected to a rectangular device with a warning symbol (no text or labels)

7.2

Diagram showing electrical switch symbols and a device with open book, ON/OFF labels, and grounding symbol

H1 H2 ①

H1 H2 ②

TESY

TESY Ltd

Shumen, 9700, 48 Blvd. Madara,

PHONE: [phone],

[e-mail]

ТЕСИ ООД

9701 гр. Шумен, бул. Мадара 48,

PHONE: [phone],

[e-mail]
